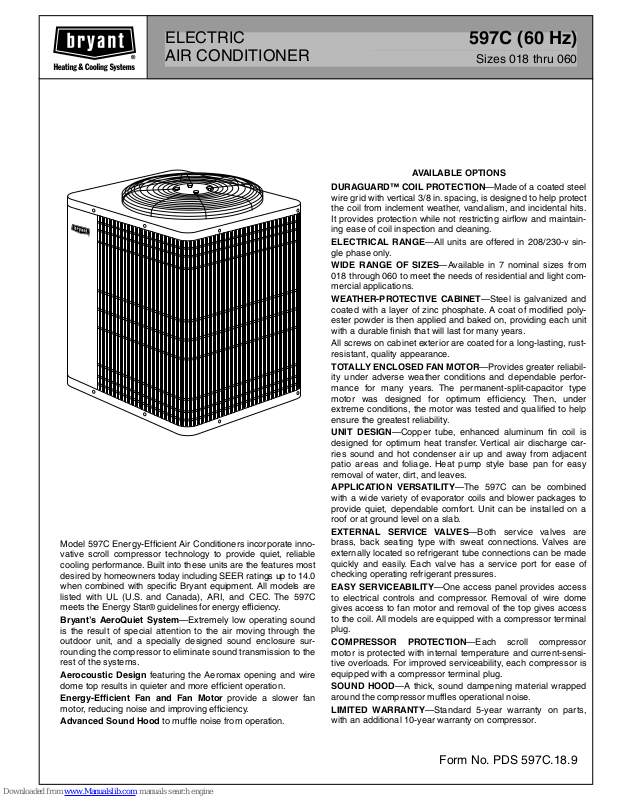

ELECTRIC AIR CONDITIONER

Model 597C Energy-Efﬁcient Air Conditioners incorporate innovative scroll compressor technology to provide quiet, reliable cooling performance. Built into these units are the features most desired by homeowners today including SEER ratings up to 14.0 when combined with speciﬁc Bryant equipment. All models are listed with UL (U.S. and Canada), ARI, and CEC. The 597C

meets the Energy Star

Bryant’s AeroQuiet System —Extremely low operating sound

is the result of special attention to the air moving through the outdoor unit, and a specially designed sound enclosure surrounding the compressor to eliminate sound transmission to the rest of the systems.

Aerocoustic Design featuring the Aeromax opening and wire

dome top results in quieter and more efﬁcient operation.

Energy-Efﬁcient Fan and Fan Motor provide a slower fan

motor, reducing noise and improving efﬁciency.

Advanced Sound Hood to mufﬂe noise from operation.

guidelines for energy efﬁciency.

597C (60 Hz)

Sizes 018 thru 060

AVAILABLE OPTIONS

DURAGUARD™ COIL PROTECTION —Made of a coated steel

wire grid with vertical 3/8 in. spacing, is designed to help protect the coil from inclement weather, vandalism, and incidental hits. It provides protection while not restricting airﬂow and maintaining ease of coil inspection and cleaning.

ELECTRICAL RANGE —All units are offered in 208/230-v sin-

gle phase only.

WIDE RANGE OF SIZES —Available in 7 nominal sizes from

018 through 060 to meet the needs of residential and light commercial applications.

WEATHER-PROTECTIVE CABINET —Steel is galvanized and

coated with a layer of zinc phosphate. A coat of modiﬁed polyester powder is then applied and baked on, providing each unit with a durable ﬁnish that will last for many years.

All screws on cabinet exterior are coated for a long-lasting, rustresistant, quality appearance.

TOTALLY ENCLOSED FAN MOTOR —Provides greater reliabil-

ity under adverse weather conditions and dependable performance for many years. The permanent-split-capacitor type motor was designed for optimum efﬁciency. Then, under extreme conditions, the motor was tested and qualiﬁed to help ensure the greatest reliability.

UNIT DESIGN —Copper tube, enhanced aluminum ﬁn coil is

designed for optimum heat transfer. Vertical air discharge carries sound and hot condenser air up and away from adjacent patio areas and foliage. Heat pump style base pan for easy removal of water, dirt, and leaves.

APPLICATION VERSATILITY —The 597C can be combined

with a wide variety of evaporator coils and blower packages to provide quiet, dependable comfort. Unit can be installed on a roof or at ground level on a slab.

EXTERNAL SERVICE VALVES —Both service valves are

brass, back seating type with sweat connections. Valves are externally located so refrigerant tube connections can be made quickly and easily. Each valve has a service port for ease of checking operating refrigerant pressures.

EASY SERVICEABILITY —One access panel provides access

to electrical controls and compressor. Removal of wire dome gives access to fan motor and removal of the top gives access to the coil. All models are equipped with a compressor terminal plug.

COMPRESSOR PROTECTION —Each scroll compressor

motor is protected with internal temperature and current-sensitive overloads. For improved serviceability, each compressor is equipped with a compressor terminal plug.

SOUND HOOD —A thick, sound dampening material wrapped

around the compressor mufﬂes operational noise.

LIMITED WARRANTY —Standard 5-year warranty on parts,

with an additional 10-year warranty on compressor.

Form No. PDS 597C.18.9

Page 2

DIMENSIONS

A97082

ACCESS

/8-IN. DIA

/8-IN. DIA KNOCKOUT

AND 1

HOLE WITH 1

FIELD POWER SUPPLY CONN

FIELD CONTROL

SUPPLY CONN

/16"

/2"

PANEL

LINE CONN

H DIA VAPOR

/8-IN. DIA HOLE

/8-IN. DIA LIQUID

LINE CONN

PAD DIMENSIONSABCDEFGHKLMN

MINIMUM MOUNTING

/4"

/2"

/16"

/4"

AIR DISCHARGE

/8-IN. DIA TIEDOWN KNOCKOUTS

(2) PLACES IN BASEPAN

and 24 in. between units for proper airflow.

Minimum outdoor operating ambient in cooling mode is 55°F (unless low-ambient control is used) max 125°F.2.

Series designation is the 14th position of the unit model number.3.

1. Allow 30 in. clearance to service end of unit, 48 in. above unit, 6 in. on one side, 12 in. on remaining side,

Center of gravity .4.

AIR IN

/16"

AIR IN

NOTES:

AIR DISCHARGE

AIR IN

AIR DISCHARGE

UNIT DIMENSIONS

DIMENSIONS (IN.)

—2—

SIZE SERIES

UNIT

018 F, G 33-13/16 22-1/2 26-3/16 4-1/8 7-1/8 21-15/16 28-3/8 5/8 9-1/4 17-3/8 13-1/2 2-3/8 20 x 27

024 F, G 27-13/16 30 33 5-1/16 9-11/16 15-15/16 22-3/8 5/8 16-1/2 20-3/8 11 2-15/16 26 x 32

030 F, G 33-13/16 30 33 5-1/16 9-11/16 21-15/16 28-3/8 3/4 16-1/2 20-3/8 13-1/2 2-15/16 26 x 32

036 F, G 33-13/16 30 33 5-1/16 9-11/16 21-15/16 28-3/8 3/4 16-1/2 20-3/8 13-1/2 2-15/16 26 x 32

042 F, G 39-13/16 30 33 5-1/16 9-11/16 27-15/16 34-3/8 7/8 16-1/2 20-3/8 15 2-15/16 26 x 32

048 F, H 39-13/16 30 33 5-1/16 9-11/16 27-15/16 34-3/8 7/8 16-1/2 20-3/8 15 2-15/16 26 x 32

060 F, G 39-13/16 30 33 5-1/16 9-11/16 27-15/16 34-3/8 7/8 16-1/2 20-3/8 15 2-15/16 26 x 32

Page 3

RECOMMENDED TUBE DIAMETERS

Liquid Tube Diameter (In.) Vapor Tube Diameter (In.)

UNIT SIZE

018, 024 030, 036 3/4 7/8 042, 048 7/8 1-1/8

0 to 50 Ft

Tube Length Long-Line Applications

3/8 3/8

0 to 50 Ft

Tube Length

Long-Line Applications *

(Maximum Diameter)

5/8 3/4

060 1-1/8 1-1/8

For tube sets between 50 and 175 ft or 20 ft vertical differential, consult Residential Split System Long-Line Application Guideline.

CHECK-FLO-RATER® PISTON

UNIT SIZE-SERIES

018-F, G 55 024-F, G 61 030-F, G 67 036-F, G 76 042-F, G 82 048-F, H 93 060-F, G 101

Piston listed is for any approved non-capillary tube coil combination. Piston is shipped with outdoor unit and must be installed in an approved indoor coil.

PISTON

IDENTIFICATION NO.

CHARGING SUBCOOLING (TXV-TYPE EXPANSION DEVICE)

UNIT SIZE-SERIES REQUIRED SUBCOOLING (°F)

018-F, G 10 024-F, G 12 030-F, G 15 036-F, G 12 042-F, G 12 048-F, H 11 060-F, G 12

REGISTERED QUALITY SYSTEM

As an ENERGY STAR® Partner, Bryant Heating

& Cooling Systems has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

CERTIFICATION APPLIES

ONLY WHEN THE

COMPLETE SYSTEM

IS LISTED WITH ARI.

Refer to the combination ratings in the product data sheet for system combinations meeting ENERGY STAR® efﬁciency standards.

—3—

Page 4

SPECIFICATIONS

UNIT SIZE-SERIES 018-F, G 024-F, G 030-F, G 036-F, G 042-F, G 048-F/H 060-F, G

Operating Weight (Lb) 149 187 197 197 207 261 265

ELECTRICAL

Unit Volts—Hertz—Phase 208/230—60—1 208/230—60—1 208/230—60—1 208/230—60—1 208/230—60—1 208/230—1—60 208/230—1—60 Operating Voltage Range Compressor— Rated Load Amps 10.0 11.4 15.0 17.9 20.0 23.7/19.9 28.8

Locked Rotor Amps 41.0 56.0 72.5 88.0 104.0 129.0/137.0 169.0 Condenser Fan Motor—Full Load Amps 0.5 0.5 0.5 1.1 1.1 1.1 1.4 Min Unit Ampacity for Wire Sizing 13.0 14.8 19.3 23.4 26.0 30.5/26.0 37.4 Min Wire Size (60°C Copper) AWG† 14 14 14 12 10 8/10 8 Min Wire Size (75°C Copper) AWG† 14 14 14 12 10 10 8 Max Wire Length (60°C) (Ft)‡ 61 53 39 52 77 77 82 Max Wire Length (75°C) (Ft)‡ 58 50 37 50 73 61 78 Max Branch Circuit Fuse Size (Amps)

COMPRESSOR & REFRIGERANT

Compressor— Manufacturer Copeland

Type Scroll Temperature & Current Protection Internal Line Break Refrigerant— Type R-22

Amount @ 15 Ft †† 4.25 5.25 6.25 6.25 7.00 10.50 11.00

CONDENSER COIL & FAN

Coil Face Area (Sq Ft) 10.9 12.2 15.2 15.2 18.3 18.3 18.3 Fins Per In.—Rows—Circuits 25—1—225—1—225—1—325—1—325—1—420—2—520—2—6 Fan Motor—PSC Type, HP & RPM 1/15 & 800 1/5 & 825 1/4 & 1125

Volts—Hertz—Phase 208/230—60—1

Condenser Airﬂow (CFM) 1500 2000 2000 3000 3000 3000 3300

OPTIONAL EQUIPMENT

Support Feet KSASF0101AAA Coastal Filter KAACF0101SML KAACF0201MED

Time Delay Relay KAATD0101TDR Cycle Protector KSACY0101AAA Crankcase Heater KAACH1201AAA Start Assist—Capacitor/Relay Type KSAHS1501AAA Start Assist—PTC Type KAACS0201PTC TXV (RPB) KAATX0201RPB KAATX0301RPB KAATX0401RPB KAATX0501RPB KAATX0601RPB KAATX0701RPB TXV (Hard Shutoff)‡‡ KSATX0601HSO KSATX0701HSO Low-Pressure Switch KAALP0101LPS High-Pressure Switch KSAHI0101HPS Filter Drier P502-8083S (RCD) P502-8163S (RCD) Evaporator Freeze Thermostat Liquid-Line Solenoid Valve KAALS0101LLS Winter Start Control Low-Ambient Pressure Switch KSALA0201R22 MotorMaster® Control††† 32LT660004 (RCD0

Ball Bearing Fan Motor Not Available HC38GE231 (RCD)

Thermostat, Auto Changeover,

Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool TSTATBBNAC01-B

Thermostat, Auto Changeover,

7-Day Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool TSTATBBPAC01-B

Thermidistat™ Control—

Programmable/ Non-Programmable Thermostat with Humidity Control TSTATBBPRH01-B

Builder’s Thermostat, Manual Changeover,

Non-Programmable, °F/°C,

1-Stage Heat, 1-Stage Cool TSTATBBBAC01-B Outdoor Air Temperature Sensor TSTATXXSEN01-B Backplate for Builder’s Thermostat TSTATXXBBP01 Backplate for Non-Programmable Thermostat TSTATXXNBP01 Backplate for Programmable Thermostat TSTATXXPBP01 Thermostat Conversion Kit (4 to 5 wire) TSTATXXCNV10

***

See notes on page 5.

187—253 187—253 187—253 187—253 187—253 187—253 187—253

20 20 30 40 40 50/40 60

KSAHS1601AAA

KAAFT0101AAA

KAAWS0101AAA

HC40GE232

(RCD)

—4—

Page 5

Permissible limits of the voltage range at which the unit will operate satisfactorily. Operation outside these limits may result in unit failure.

† If wire is applied at ambient greater than 30°C (86°F), consult Table 310-16 of the NEC (ANSI/NFPA 70).

The ampacity of nonmetallic-sheathed cable (NM), trade name ROMEX, shall be that of 60°C (140°F) conductors, per the NEC (ANSI/NFPA 70) Article 336-26. If other than uncoated (non-plated), 60 or 75°C (140 or 167°F) insulation, copper wire (solid wire for 10 AWG and smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA 70).

‡ Length shown is as measured 1 way along wire path between unit and service panel for a voltage drop not to exceed 2%.

Time-delay fuse or circuit breaker.

†† Charge quantity is for 15 ft of interconnecting tubing. For tubing lengths longer than 15 ft, add 0.6 oz of refrigerant per ft of tube length in excess of 15 ft. ‡‡ Do not use hard shutoff TXV with LSV.

*** See low-ambient controller Installation Instructions for application.

††† Fan motor with ball bearings required.

NOTES: 1. All motors/compressors contain internal overload protection.

2. Copper wire must be used from service disconnect to unit.

3. Control circuit is 24v on all units and requires external power source.

—5—

Page 6

ACCESSORY USAGE GUIDELINE

REQUIRED FOR

LOW-AMBIENT

ACCESSORY

Crankcase Heater Yes Yes No

Evaporator Freeze Thermostat Yes No No

Winter Start Control Yes† No No

Accumulator No No No

Compressor Start Assist

Capacitor and Relay

MotorMaster® Control,

Low-Ambient Pressure Switch

Wind Bafﬂe See Low-Ambient Instructions No No Coastal Filter No No Yes Support Feet Recommended No Recommended

Liquid-Line Solenoid Valve

Hard Shutoff TXV

Ball Bearing Fan Motor Yes‡ No No

For tubing line sets between 50 and 175 ft and/or 20 ft vertical differential, refer to the Residential Split-System Long-Line Application Guideline.

† Only when low-pressure switch is used. ‡ Required for Low-Ambient Controller (full modulation feature) and MotorMaster Control only.

APPLICATIONS

(Below 55°F)

Yes Yes No

Ye s N o N o

REQUIRED FOR

LONG-LINE

APPLICATIONS

(Over 50 Ft)

See Long-Line

Application

Guideline

REQUIRED FOR

SEA COAST APPLICATIONS (Within 2 Miles)

ACCESSORY DESCRIPTION AND USAGE (Listed Alphabetically)

Ball Bearing Fan Motor

A fan motor with ball bearings which permits speed reduction while maintaining bearing lubrication.

SUGGESTED USE: Required on all units where Low-Ambient Controller (full modulation feature) or MotorMaster® Control has been added.

Coastal Filter

A mesh screen inserted under the top cover and inside the base pan to protect the condenser coil from salt damage without restricting airﬂow.

SUGGESTED USE: In geographic areas where salt damage could occur.

Compressor Start Assist — Capacitor/Relay Type

Start capacitor and start relay gives “hard” boost to compressor motor at each start-up.

SUGGESTED USE: Installations where interconnecting tube length exceeds 50 ft.

Compressor Start Assist — PTC Type

Solid state electrical device which gives a “soft” boost to compressor motor at each start-up.

SUGGESTED USE: Installations with marginal power supply.

Crankcase Heater

An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on restart and minimizes chance of refrigerant slugging. May or may not include a thermostat control.

SUGGESTED USE: When interconnecting tube length exceeds 50 ft.

Cycle Protector

Solid state timing device which prevents compressor rapid recycling. Control provides an approximate 5-minute delay after power to the compressor has been interrupted for any reason, including normal room thermostat cycling.

SUGGESTED USE: Installations in areas where power interruptions are frequent.

Evaporator Freeze Thermostat

An SPST temperature actuated switch which stops unit operation when evaporator reaches freeze-up conditions.

SUGGESTED USE: All units where Winter Start Control has been added.

Filter Drier

A device for removing contaminants from refrigerant circulating in an air conditioner: 1-direction ﬂow.

SUGGESTED USE: All split system air conditioners.

High-Pressure Switch

Auto reset SPST switch activated by refrigerant pressure on high side of refrigerant circuit. Cycles compressor off if refrigerant pressure rises to 400 ± 10 psig and resets at 298 ± 20 psig. Provides protection against compressor damage due to loss of outdoor airﬂow. To prevent rapid compressor recycling, Cycle Protector can be used with this switch.

SUGGESTED USE: Installations exposed to very ‘‘ dirty’’ outdoor air.

10.

Liquid-Line Solenoid Valve (LSV)

An electrically operated shutoff valve to be installed at the outdoor or indoor unit (depending on tubing conﬁguration) and which stops and starts refrigerant liquid ﬂow in response to compressor operation. Maintains a column of refrigerant liquid ready for action at next compressor operation cycle.

NOTE: Compressor Start Assist — Capacitor/Relay Type must also be used. Do not use with hard shutoff TXV.

SUGGESTED USE: For improved system performance in air conditioners for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.

Installations where outdoor design temperature exceeds 105°F (40.6°C). Replacement installations with hard shutoff expansion valve on indoor coil. Installations where Liquid-Line Solenoid Valve has been added.

Replacement installations with rapid pressure balance (RPB) expansion valve on indoor coil.

When unit will be operated below 55°F (12.8°C) outdoor air temperature. Use with Low-Ambient Controller. All commercial installations.

Where user is likely to “play” with the room thermostat. All commercial installations. Installations where interconnecting tube length exceeds 50 ft. High-rise applications.

Installations where condenser inlet air temperature exceeds 125°F (51.7°C).

In certain long line-applications. Refer to Residential Split System Long-Line Application Guideline.

—6—

Page 7

ACCESSORY DESCRIPTION AND USAGE (Listed Alphabetically) Continued

11. Low-Ambient Pressure Switch A long life pressure switch which is mounted to outdoor unit service valve. It is designed to cycle the outdoor fan motor in order to maintain head pressure within normal operating limits (approximately 100 psig to 225 psig). The control maintains working head pressure at low-ambient temperatures down to 0°F when properly installed.

SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).

12.

Low-Pressure Switch

Auto reset SPST switch activated by refrigerant pressure on liquid side of refrigerant circuit. Cycles compressor off if refrigerant charge is lost. To prevent rapid compressor recycling, Cycle Protector can be used with this switch.

SUGGESTED USE: Where indoor coil is exposed to ‘‘ dirty’’ air.

13.

MotorMaster® Control

A fan speed control device activated by a temperature sensor. Designed to control condenser fan motor speed in response to the saturated, condensing temperature during operation in cooling mode only. For outdoor temperatures down to –20°F, it maintains condensing temperature at 100°F ± 10°F.

SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F.

14.

Outdoor Air Temperature Sensor

A device that allows the temperature at a remote location (outdoors) to be displayed at the thermostat.

SUGGESTED USE: All corporate programmable thermostats.

15.

Support Feet

Four stick-on plastic feet which raise the unit 4 in. above the mounting pad. This allows sand, dirt, and other debris to be ﬂushed from the unit base minimizing corrosion.

SUGGESTED USE: Coastal installations.

16.

Thermostatic Expansion Valve (TXV)

A modulating ﬂow-control valve which meters refrigerant liquid ﬂow rate into the evaporator in response to the superheat of the refrigerant gas leaving the evaporator. Kit includes valve, adapter tubes, and external equalizer tube. Both hard shutoff and RPB type valves are available. Do not use hard shutoff TXV with Liquid-Line Solenoid Valve.

SUGGESTED USE: For improved system performance in cooling mode for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.

17.

Time-Delay Relay

An SPST delay relay which brieﬂy continued operation of the indoor blower motor to provide additional cooling after the compressor cycles off.

SUGGESTED USE: For improved efﬁciency ratings for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.

18.

Winter Start Control

An SPST delay relay which bypasses the low-pressure switch for approximately 3 minutes to permit start-up for cooling operation under low-load conditions.

SUGGESTED USE: All air conditioners where Low-Ambient Controller has been added.

All commercial installations.

Windy areas or where debris is normally circulating. Rooftop installations. For improved sound rating.

Required for use on all zoning systems.

SOUND POWER (dBA)

UNIT SIZE

018 68 50.0 56.5 61.0 63.5 59.0 54.5 45.5 024 70 55.0 61.5 62.5 64.5 61.0 55.0 49.0 030 72 55.0 58.0 61.5 63.5 62.5 56.5 51.5 036 74 56.5 63.5 68.0 70.0 63.0 57.5 52.0 042 74 56.5 60.5 64.5 67.5 61.5 58.0 53.0 048 74 56.0 61.0 67.0 67.5 66.0 63.0 56.5 060 76 63.5 66.0 69.0 69.0 66.5 64.0 56.5

SOUND

LEVEL

(dBA)

125 250 500 1000 2000 4000 8000

OCTAVE BAND CENTER FREQUENCY (Hz)

—7—

Page 8

UNIT SIZE-

SERIES

CC5A/CD5AA018 17,400 NONE — 12.00 12.00 12.00 11.05 CC5A/CD5AA024 17,800 NONE — 12.20 12.20 12.20 11.25 CC5A/CD5AW024 17,800 NONE — 12.20 12.20 12.20 11.25

CK5A/CK5BA024 17,800 NONE — 12.20 12.20 12.20 11.25

CK5A/CK5BW024 17,800 NONE — 12.20 12.20 12.20 11.25 F(A,B)4(A,B)N(F,C)018 17,000 TDR 12.00 — 12.00 — 10.95 F(A,B)4(A,B)N(F,C)024 17,600 TDR 12.50 — 12.50 — 11.45

FC4(B,C)NF024 17,600 TDR & TXV 12.50 ———11.45

FK4(C,D)NF001 18,000 TDR & TXV 14.00 ———12.85

018-F, G

024-F, G

See notes on page 15.

FK4(C,D)NF002 18,000 TDR & TXV 14.00 ———12.95

CC5A/CD5AA018 16,800 TDR 13 ——13 12.05

CC5A/CD5AA024 17,400 TDR 13.5 ——13.5 12.4

CC5A/CD5AW024 17,400 TDR 13.5 ——13.5 12.4

CK5A/CK5BA018 17,000 TDR 13 ——13 12.3

CK5A/CK5BA024 17,400 TDR 13.5 ——13.5 12.6

CK5A/CK5BW024 17,400 TDR 13.5 ——13.5 12.6

CC5A/CD5AW024 17,600 TDR 13.50 — 13.50 — 12.45

CK5A/CK5BW024 17,600 TDR 13.50 — 13.50 — 12.45

CC5A/CD5AW024 17,600 TDR 13.50 — 13.50 — 12.55

CK5A/CK5BW024 17,600 TDR 13.50 — 13.50 — 12.55

CC5A/CD5AA024

CC5A/CD5AA030 23,200 NONE — 12.20 12.20 12.20 10.95

CC5A/CD5AW024 23,000 NONE — 12.00 12.00 12.00 10.85

CC5A/CD5AW030 23,200 NONE — 12.20 12.20 12.20 10.95

CK5A/CK5BA024 23,000 NONE — 12.00 12.00 12.00 10.85

CK5A/CK5BA030 23,200 NONE — 12.20 12.20 12.20 11.05

CK5A/CK5BW024 23,000 NONE — 12.00 12.00 12.00 10.85

CK5A/CK5BW030 23,200 NONE — 12.20 12.20 12.20 11.05

F(A,B)4(A,B)NF024 23,200 TDR 12.00 — 12.00 — 10.95 F(A,B)4(A,B)NF030 23,600 TDR 12.20 — 12.20 — 11.25

FC4(B,C)NF024 23,200 TDR & TXV 12.00 ———10.95 FC4(B,C)NF030 23,600 TDR & TXV 12.20 ———11.25

FK4(C,D)NF001 23,400 TDR & TXV 13.50 ———12.35 FK4(C,D)NF002 23,600 TDR & TXV 13.50 ———12.50 FK4(C,D)NF003 23,600 TDR & TXV 14.00 ———12.80 FK4(C,D)NF004 24,000 TDR & TXV 14.00 ———12.80

CC5A/CD5AA024 23,000 TDR 13 ——13 11.9

CC5A/CD5AA030 23,200 TDR 13.5 ——13.5 12.05

CC5A/CD5AW024 23,000 TDR 13 ——13 11.9

CC5A/CD5AW030 23,200 TDR 13.5 ——13.5 12.05

CK5A/CK5BA024 23,000 TDR 13 ——13 12.1

CK5A/CK5BA030 23,200 TDR 13.5 ——13.5 12.1

CK5A/CK5BW024 23,000 TDR 13 ——13 12.1

CK5A/CK5BW030 23,200 TDR 13.5 ——13.5 12.1

CC5A/CD5AA024 23,200 TDR 13.00 — 13.00 — 11.90

CC5A/CD5AA030 23,600 TDR 13.50 — 13.50 — 12.20

CK5A/CK5BW030 23,200 TDR 13.00 — 13.00 — 12.05

CC5A/CD5AA024 23,200 TDR 13.00 — 13.00 — 11.90

CC5A/CD5AA030 23,600 TDR 13.50 — 13.50 — 12.20

COMBINATION RATINGS

SEER

FACTORY-

INDOOR

SECTION

CK5BA018

CE3AA024 17,600 NONE — 12.20 12.20 12.20 11.25 CK3BA024 17,800 NONE — 12.20 12.20 12.20 11.25

FF1DNA018 17,000 TDR 12.20 — 12.20 — 11.30 FF1DNA024 17,600 TDR 12.20 — 12.20 — 11.30 FG3AAA024 17,400 NONE — 12.00 12.00 12.00 11.05

CE3AA024 17,200 TDR 13 ——13 12.4 CK3BA024 17,400 TDR 13.5 ——13.5 12.6

CE3AA024 23,000 NONE — 12.00 12.00 12.00 10.95 CE3AA030 23,200 NONE — 12.20 12.20 12.20 11.10 CF5AA024 23,000 NONE — 12.00 12.00 12.00 10.95 CK3BA024 23,000 NONE — 12.00 12.00 12.00 10.85 CK3BA030 23,200 NONE — 12.20 12.20 12.20 11.05

FF1DNA024 23,000 TDR 12.00 — 12.00 — 10.85 FF1DNA030 23,600 TDR 12.20 — 12.20 — 11.10 FG3AAA024 22,800 NONE — 11.80 11.80 11.80 10.70

CE3AA024 23,000 TDR 13 ——13 11.95 CE3AA030 23,200 TDR 13.5 ——13.5 12.2 CK3BA024 23,000 TDR 13 ——13 12.1 CK3BA030 23,200 TDR 13.5 ——13.5 12.1

CK3BA024 23,000 TDR 13.00 — 13.00 — 11.75 CK3BA030 23,200 TDR 13.00 — 13.00 — 12.05

CK3BA024 23,000 TDR 13.00 — 13.00 — 11.75

TOTAL CAP.

BTUH

17,400 NONE — 12.00 12.00 12.00 11.05

23,000 NONE — 12.00 12.00 12.00 10.85

SUPPLIED

ENHANCE-

MENT

COILS + 315(A,J)AV036070 VARIABLE SPEED FURNACE

COILS + 355MAV042060 VARIABLE SPEED FURNACE

COILS + 355MAV042080 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV036070 VARIABLE SPEED FURNACE

COILS + 355MAV042040 VARIABLE SPEED FURNACE

COILS + 355MAV042060 VARIABLE SPEED FURNACE

STANDARD

RATING

BRYANT GAS

FURNACE OR

ACCESSORY

TDR†

ACCESSORY

TXV‡ LLS

EER

—8—

Page 9

UNIT

SIZE-

SERIES

CK5A/CK5BW024 23,000 TDR 13.00 — 13.00 — 11.75 CK5A/CK5BW030 23,200 TDR 13.00 — 13.00 — 12.00

024-F, G

030-F, G

See notes on page 15.

CC5A/CD5AA024 23,200 TDR 13.00 — 13.00 — 11.90 CC5A/CD5AA030 23,600 TDR 13.50 — 13.50 — 12.20

CK5A/CK5BW024 23,000 TDR 13.00 — 13.00 — 12.00 CK5A/CK5BW030 23,200 TDR 13.50 — 13.50 — 12.25

CC5A/CD5AA030

CC5A/CD5AA036 29,600 NONE — 12.50 12.50 12.50 10.90

CC5A/CD5AW030 29,000 NONE — 12.00 12.00 12.00 10.55

CK5A/CK5BA030 29,000 NONE — 12.00 12.00 12.00 10.60 CK5A/CK5BA036 29,600 NONE — 12.50 12.50 12.50 10.95

CK5A/CK5BN036 27,600 NONE — 12.50 12.50 12.50 10.95 CK5A/CK5BW030 29,000 NONE — 12.00 12.00 12.00 10.60 CK5A/CK5BW036 29,600 NONE — 12.50 12.50 12.50 10.95

F(A,B)4(A,B)NF030 29,200 TDR 12.00 — 12.00 — 10.70 F(A,B)4(A,B)NF036 29,600 TDR 12.00 — 12.00 — 10.65

FC4(B,C)NF030 29,200 TDR & TXV 12.00 ———10.70 FC4(B,C)NF036 29,600 TDR & TXV 12.00 ———10.65

FK4(C,D)NF001 29,600 TDR & TXV 13.00 ———11.45 FK4(C,D)NF002 29,600 TDR & TXV 13.40 ———11.55 FK4(C,D)NF003 30,000 TDR & TXV 13.80 ———12.10 FK4(C,D)NF004 30,200 TDR & TXV 14.00 ———12.00

CC5A/CD5AA030 28,600 TDR 12.5 ——12.5 11.5

CC5A/CD5AA036 29,000 TDR 13 ——13 11.9 CC5A/CD5AW030 28,600 TDR 12.5 ——12.5 11.5

CK5A/CK5BA030 28,600 TDR 12.5 ——12.5 11.6

CK5A/CK5BA036 29,000 TDR 13 ——13 11.95

CK5A/CK5BT036 29,000 TDR 13 ——13 11.95 CK5A/CK5BW030 28,600 TDR 12.5 ——12.5 11.6

CC5A/CD5AA030 28,600 TDR 13 ——13 11.65

CC5A/CD5AA036 29,000 TDR 13.5 ——13.5 12.05 CC5A/CD5AW030 28,600 TDR 13 ——13 11.65 CC5A/CD5AW036 29,000 TDR 13.5 ——13.5 12.05

CK5A/CK5BA030 28,600 TDR 13 ——13 11.7

CK5A/CK5BA036 29,000 TDR 13.5 ——13.5 12.1 CK5A/CK5BW030 28,600 TDR 13 ——13 11.7 CK5A/CK5BW036 29,000 TDR 13.5 ——13.5 12.1

CC5A/CD5AA030 29,600 TDR 13.00 — 13.00 — 11.45

CC5A/CD5AA036 30,000 TDR 13.50 — 13.50 — 11.95

CK5A/CK5BW030 29,000 TDR 12.50 — 12.50 — 11.10 CK5A/CK5BW036 29,600 TDR 13.00 — 13.00 — 11.65

CC5A/CD5AA030 29,600 TDR 13.00 — 13.00 — 11.45

CC5A/CD5AA036 30,000 TDR 13.50 — 13.50 — 11.95

CK5A/CK5BA036 29,600 TDR 13.00 — 13.00 — 11.65 CK5A/CK5BW030 29,000 TDR 12.50 — 12.50 — 11.10

CC5A/CD5AA030 29,600 TDR 13.00 — 13.00 — 11.45

CC5A/CD5AA036 30,000 TDR 13.50 — 13.50 — 11.95

CK5A/CK5BW030 29,000 TDR 12.50 — 12.50 — 11.20

COMBINATION RATINGS Continued

SEER

FACTORY-

INDOOR

SECTION

CK3BA030 23,200 TDR 13.00 — 13.00 — 12.00

CK3BA024 23,000 TDR 13.00 — 13.00 — 12.00 CK3BA030 23,200 TDR 13.50 — 13.50 — 12.25

CD5AW036 29,600 NONE — 12.50 12.50 12.50 10.90

CE3AA030 29,000 NONE — 12.00 12.00 12.00 10.65 CE3AA036 29,600 NONE — 12.20 12.20 12.20 10.80 CF5AA036 29,600 NONE — 12.50 12.50 12.50 10.90 CK3BA030 29,000 NONE — 12.00 12.00 12.00 10.60 CK3BA036 29,600 NONE — 12.50 12.50 12.50 10.95

FF1DNA030 29,600 TDR 12.00 — 12.00 — 10.70 FG3AAA036 29,400 NONE — 12.00 12.00 12.00 10.70

CE3AA030 28,600 TDR 12.5 ——12.5 11.7 CE3AA036 29,000 TDR 12.5 ——12.5 11.75 CK3BA030 28,600 TDR 12.5 ——12.5 11.6 CK3BA036 29,000 TDR 13 ——13 11.95

CE3AA030 28,600 TDR 13 ——13 11.85 CE3AA036 29,000 TDR 13 ——13 11.95 CK3BA030 28,600 TDR 13 ——13 11.7 CK3BA036 29,000 TDR 13.5 ——13.5 12.1

CK3BA030 29,000 TDR 12.50 — 12.50 — 11.10 CK3BA036 29,600 TDR 13.00 — 13.00 — 11.65

CK3BA030 29,000 TDR 12.50 — 12.50 — 11.20 CK3BA036 29,600 TDR 13.00 — 13.00 — 11.75

TOTAL CAP.

BTUH

29,000 NONE — 12.00 12.00 12.00 10.55

SUPPLIED

ENHANCE-

MENT

COILS + 355MAV042080 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV036070 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV048090 VARIABLE SPEED FURNACE

COILS + 355MAV042040 VARIABLE SPEED FURNACE

COILS + 355MAV042060 VARIABLE SPEED FURNACE

COILS + 355MAV042080 VARIABLE SPEED FURNACE

STANDARD

RATING

BRYANT GAS FURNACE OR

ACCESSORY

TDR†

ACCESSORY

TXV‡ LLS

EER

—9—

Page 10

COMBINATION RATINGS Continued

UNIT SIZE-

SERIES

030-F, G

036-F, G

See notes on page 15.

INDOOR

SECTION

CK5A/CK5BW036 29,600 TDR 13.00 — 13.00 — 11.75

CK3BA030 29,000 TDR 12.50 — 12.50 — 11.05

CK3BA036 29,600 TDR 13.00 — 13.00 — 11.60 CK5A/CK5BW030 29,000 TDR 12.50 — 12.50 — 11.05 CK5A/CK5BW036 29,600 TDR 13.00 — 13.00 — 11.60

CK3BA030 29,000 TDR 13.00 — 13.00 — 11.45

CK3BA036 29,600 TDR 13.50 — 13.50 — 12.00 CK5A/CK5BW030 29,000 TDR 13.00 — 13.00 — 11.45 CK5A/CK5BW036 29,600 TDR 13.50 — 13.50 — 12.00

CK3BA030 29,000 TDR 13.00 — 13.00 — 11.40

CK3BA036 29,600 TDR 13.50 — 13.50 — 11.95 CK5A/CK5BW036 29,600 TDR 13.50 — 13.50 — 11.95

CC5A/CD5AA036

CC5A/CD5AA042 35,000 NONE — 12.00 12.00 12.00 10.75 CC5A/CD5AW042 35,000 NONE — 12.00 12.00 12.00 10.65

CD5AW036 35,000 NONE — 12.00 12.00 12.00 10.75

CE3AA036 34,800 NONE — 12.00 12.00 12.00 10.60

CE3AA042 35,400 NONE — 12.20 12.20 12.20 10.80

CF5AA036 35,200 NONE — 12.00 12.00 12.00 10.70

CK3BA036 35,000 NONE — 12.00 12.00 12.00 10.75

CK3BA042 35,000 NONE — 12.00 12.00 12.00 10.75 CK5A/CK5BA036 35,000 NONE — 12.00 12.00 12.00 10.75 CK5A/CK5BA042 35,000 NONE — 12.00 12.00 12.00 10.75 CK5A/CK5BN036 33,000 NONE — 11.50 11.50 11.50 10.50 CK5A/CK5BN042 34,000 NONE — 12.00 12.00 12.00 10.75 CK5A/CK5BW036 35,000 NONE — 12.00 12.00 12.00 10.75

F(A,B)4(A,B)NF036 35,000 TDR 12.00 — 12.00 — 10.65

F(A,B)4(A,B)N(F,B)042 35,400 TDR 12.00 — 12.00 — 10.70

FC4(B,C)NB054 36,000 TDR & TXV 13.00 ———11.45 FC4(B,C)NF036 35,000 TDR & TXV 12.00 ———10.65

FC4(B,C)N(F,B)042 35,400 TDR & TXV 12.00 ———10.70

FG3AAA036 34,600 NONE — 11.80 11.80 11.80 10.50 FK4(C,D)NB005 36,000 TDR & TXV 14.00 ———12.10 FK4(C,D)NB006 36,000 TDR & TXV 14.00 ———12.35 FK4(C,D)NF001 35,000 TDR & TXV 12.20 ———10.95 FK4(C,D)NF002 35,000 TDR & TXV 12.50 ———11.00 FK4(C,D)NF003 35,400 TDR & TXV 13.00 ———11.60

FK4

(C,D)

FK4(C,D)NF005 36,000 TDR & TXV 14.00 ———12.10

CC5A/CD5AA036 34,600 TDR 12.5 ——12.5 11.35

CK5A/CK5BA036 34,600 TDR 12.5 ——12.5 11.35 CK5A/CK5BE042 35,000 TDR 13 ——13 11.5

CK5A/CK5BT036 34,600 TDR 12.5 ——12.5 11.35

CC5A/CD5AA036 34,600 TDR 13 ——13 11.5 CC5A/CD5AA042 35,000 TDR 13 ——13 11.65 CC5A/CD5AW036 34,600 TDR 13 ——13 11.5

CK5A/CK5BA036 34,600 TDR 13 ——13 11.55 CK5A/CK5BA042 35,000 TDR 13 ——13 11.6 CK5A/CK5BE042 35,000 TDR 13 ——13 11.7

CK5A/CK5BT036 34,600 TDR 13 ——13 11.55 CK5A/CK5BT042 35,000 TDR 13 ——13 11.6

CK5A/CK5BW036 34,600 TDR 13 ——13 11.55

CC5A/CD5AA036 34,600 TDR 13 ——13 11.6 CC5A/CD5AA042 35,000 TDR 13 ——13 11.75 CC5A/CD5AW036 34,600 TDR 13 ——13 11.6 CC5A/CD5AW042 34,800 TDR 13 ——13 11.65

CK5A/CK5BA036 34,600 TDR 13 ——13 11.65 CK5A/CK5BA042 35,000 TDR 13 ——13 11.7

CK5A/CK5BT036 34,600 TDR 13 ——13 11.65 CK5A/CK5BT042 35,000 TDR 13 ——13 11.7

CK5A/CK5BW036 34,600 TDR 13 ——13 11.65

CC5A/CD5AA042 35,000 TDR 13 ——13 11.7 CC5A/CD5AW036 34,600 TDR 13 ——13 11.55

NF004

CE3AA036 34,000 TDR 12.5 ——12.5 11.2 CE3AA042 34,600 TDR 12.5 ——12.5 11.45 CK3BA036 34,600 TDR 12.5 ——12.5 11.35

CE3AA036 34,000 TDR 12.5 ——12.5 11.4 CE3AA042 34,600 TDR 13 ——13 11.65 CK3BA036 34,600 TDR 13 ——13 11.55 CK3BA042 35,000 TDR 13 ——13 11.6

CE3AA036 34,000 TDR 12.5 ——12.5 11.45 CE3AA042 34,600 TDR 13 ——13 11.75 CK3BA036 34,600 TDR 13 ——13 11.65 CK3BA042 35,000 TDR 13 ——13 11.7

TOTAL CAP.

BTUH

35,000 NONE — 12.00 12.00 12.00 10.75

35,400 TDR & TXV 13.00 ———11.40

SEER

FACTORYSUPPLIED

ENHANCE-

MENT

COILS + 355MAV060080 VARIABLE SPEED FURNACE

COILS + 355MAV060100 VARIABLE SPEED FURNACE

COILS + 355MAV060120 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV036070 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV048090 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066110 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066135 VARIABLE SPEED FURNACE

STANDARD

RATING

BRYANT GAS

FURNACE OR

ACCESSORY

TDR†

—10—

ACCESSORY

TXV‡ LLS

EER

Page 11

UNIT

SIZE-

SERIES

CC5A/CD5AW042 34,800 TDR 13 ——13 11.6

CK5A/CK5BA042 35,000 TDR 13 ——13 11.65 CK5A/CK5BT042 35,000 TDR 13 ——13 11.65

CK5A/CK5BW036 34,600 TDR 13 ——13 11.55

CC5A/CD5AA042 35,000 TDR 13 ——13 11.8 CC5A/CD5AW036 34,600 TDR 13 ——13 11.6 CC5A/CD5AW042 35,000 TDR 13 ——13 11.7

CK5A/CK5BA042 35,000 TDR 13 ——13 11.75

CK5A/CK5BT042 35,000 TDR 13 ——13 11.75 CK5A/CK5BW036 34,600 TDR 13 ——13 11.65

CC5A/CD5AA036 35,200 TDR 13.00 — 13.00 — 11.60

CC5A/CD5AA042 35,200 TDR 13.00 — 13.00 — 11.70

CK5A/CK5BA042 35,000 TDR 13.00 — 13.00 — 11.45 CK5A/CK5BW036 35,000 TDR 12.50 — 12.50 — 11.35

CC5A/CD5AA036 35,200 TDR 13.00 — 13.00 — 11.60

036-F, G

042-F, G

See notes on page 15.

CC5A/CD5AA042 35,200 TDR 13.00 — 13.00 — 11.70

CK5A/CK5BA036 35,000 TDR 12.50 — 12.50 — 11.35

CK5A/CK5BN042 34,000 TDR 13.00 — 13.00 — 11.40

CC5A/CD5AA036 35,200 TDR 13.00 — 13.00 — 11.60

CC5A/CD5AA042 35,200 TDR 13.00 — 13.00 — 11.70

CK5A/CK5BA042 35,000 TDR 13.00 — 13.00 — 11.50 CK5A/CK5BW036 35,000 TDR 12.50 — 12.50 — 11.45

CK5A/CK5BA042 35,000 TDR 13.00 — 13.00 — 11.40 CK5A/CK5BW036 35,000 TDR 12.50 — 12.50 — 11.30

CC5A/CD5AA036 35,200 TDR 13.00 — 13.00 — 11.60

CC5A/CD5AA042 35,200 TDR 13.00 — 13.00 — 11.70

CK5A/CK5BA042 35,000 TDR 13.00 — 13.00 — 11.65 CK5A/CK5BW036 35,000 TDR 13.00 — 13.00 — 11.65

CK5A/CK5BA042 35,000 TDR 13.00 — 13.00 — 11.65 CK5A/CK5BW036 35,000 TDR 13.00 — 13.00 — 11.60

CC5A/CD5AA042

CC5A/CD5AC048 40,500 NONE — 12.00 12.00 12.00 10.55 CC5A/CD5AW042 41,000 NONE — 12.00 12.00 12.00 10.55 CC5A/CD5AW048 41,000 NONE — 12.20 12.20 12.20 10.65

CK5A/CK5BA042 41,000 NONE — 12.00 12.00 12.00 10.65

CK5A/CK5BA048 41,000 NONE — 12.20 12.20 12.20 10.70

CK5A/CK5BN042 40,000 NONE — 12.00 12.00 12.00 10.65

CK5A/CK5BN048 40,000 NONE — 12.20 12.20 12.20 10.70 CK5A/CK5BW048 41,000 NONE — 12.20 12.20 12.20 10.70

F(A,B)4(A,B)N(F,B)042 41,000 TDR 12.00 — 12.00 — 10.50 F(A,B)4(A,B)N(F,B)048 41,500 TDR 12.20 — 12.20 — 10.70

FC4(B,C)N(F,B)042 41,000 TDR & TXV 12.00 ———10.50 FC4(B,C)N(F,B)048 41,500 TDR & TXV 12.20 ———10.70

FC4(B,C)NB054 43,000 TDR & TXV 13.00 ———11.40

FK4(C,D)NB005 42,000 TDR & TXV 13.50 ———11.75 FK4(C,D)NB006 43,000 TDR & TXV 14.00 ———12.10 FK4(C,D)NF003 41,500 TDR & TXV 13.00 ———11.30 FK4(C,D)NF005 42,000 TDR & TXV 13.50 ———11.75

COMBINATION RATINGS Continued

SEER

FACTORY-

INDOOR

SECTION

CE3AA036 34,000 TDR 12.5 ——12.5 11.4 CE3AA042 34,600 TDR 13 ——13 11.7 CK3BA042 35,000 TDR 13 ——13 11.65

CE3AA036 34,000 TDR 12.5 ——12.5 11.45 CE3AA042 34,600 TDR 13 ——13 11.75 CK3BA042 35,000 TDR 13 ——13 11.75

CK3BA036 35,000 TDR 12.50 — 12.50 — 11.35 CK3BA042 35,000 TDR 13.00 — 13.00 — 11.45

CK3BA036 35,000 TDR 12.50 — 12.50 — 11.35 CK3BA042 35,000 TDR 13.00 — 13.00 — 11.40

CK3BA036 35,000 TDR 12.50 — 12.50 — 11.45 CK3BA042 35,000 TDR 13.00 — 13.00 — 11.50

CK3BA036 35,000 TDR 12.50 — 12.50 — 11.30 CK3BA042 35,000 TDR 13.00 — 13.00 — 11.40

CK3BA036 35,000 TDR 13.00 — 13.00 — 11.65 CK3BA042 35,000 TDR 13.00 — 13.00 — 11.65

CD5AA048 41,000 NONE — 12.20 12.20 12.20 10.65 CE3AA042 41,000 NONE — 12.00 12.00 12.00 10.70 CE3AA048 41,500 NONE — 12.20 12.20 12.20 10.75 CF5AA048 41,500 NONE — 12.20 12.20 12.20 10.70 CK3BA042 41,000 NONE — 12.00 12.00 12.00 10.65 CK3BA048 41,000 NONE — 12.20 12.20 12.20 10.70

FG3AAA048 41,000 NONE — 12.20 12.20 12.20 10.65

TOTAL CAP.

BTUH

41,000 NONE — 12.00 12.00 12.00 10.65

SUPPLIED

ENHANCE-

MENT

COILS + 315(A,J)AV066155 VARIABLE SPEED FURNACE

COILS + 355MAV042040 VARIABLE SPEED FURNACE

COILS + 355MAV042060 VARIABLE SPEED FURNACE

COILS + 355MAV042080 VARIABLE SPEED FURNACE

COILS + 355MAV060080 VARIABLE SPEED FURNACE

COILS + 355MAV060100 VARIABLE SPEED FURNACE

COILS + 355MAV060120 VARIABLE SPEED FURNACE

STANDARD

RATING

BRYANT GAS FURNACE OR

ACCESSORY

TDR†

ACCESSORY

TXV‡ LLS

EER

—11—

Page 12

UNIT SIZE-

SERIES

CC5A/CD5AA042 40,000 TDR 12.5 ——12.5 11.25 CC5A/CD5AC048 39,500 TDR 13 ——13 11.25

CK5A/CK5BA042 40,000 TDR 12.5 ——12.5 11.3 CK5A/CK5BA048 40,500 TDR 13 ——13 11.45 CK5A/CK5BE042 40,000 TDR 12.5 ——12.5 11.35

CK5A/CK5BT042 40,000 TDR 12.5 ——12.5 11.3 CK5A/CK5BT048 40,500 TDR 13 ——13 11.45

CC5A/CD5AA042 40,000 TDR 12.5 ——12.5 11.35 CC5A/CD5AC048 39,500 TDR 13 ——13 11.35 CC5A/CD5AW042 40,000 TDR 12.5 ——12.5 11.3 CC5A/CD5AW048 40,500 TDR 13 ——13 11.5

CK5A/CK5BA042 40,000 TDR 12.5 ——12.5 11.4 CK5A/CK5BA048 40,500 TDR 13 ——13 11.55

CK5A/CK5BT042 40,000 TDR 12.5 ——12.5 11.4 CK5A/CK5BT048 40,500 TDR 13 ——13 11.55

CK5A/CK5BW048 40,500 TDR 13 ——13 11.55

CC5A/CD5AA042 40,000 TDR 12.5 ——12.5 11.35 CC5A/CD5AC048 39,500 TDR 13 ——13 11.4 CC5A/CD5AW042 40,000 TDR 12.5 ——12.5 11.3 CC5A/CD5AW048 40,500 TDR 13 ——13 11.55

CK5A/CK5BA042 40,000 TDR 12.5 ——12.5 11.4

042-F, G

See notes on page 15.

CK5A/CK5BA048 40,500 TDR 13 ——13 11.6

CK5A/CK5BT042 40,000 TDR 12.5 ——12.5 11.4 CK5A/CK5BT048 40,500 TDR 13 ——13 11.6

CK5A/CK5BW048 40,500 TDR 13 ——13 11.6

CC5A/CD5AA042 40,000 TDR 12.5 ——12.5 11.4 CC5A/CD5AC048 39,500 TDR 13 ——13 11.4 CC5A/CD5AW042 40,000 TDR 12.5 ——12.5 11.3 CC5A/CD5AW048 40,500 TDR 13 ——13 11.6

CK5A/CK5BA042 40,000 TDR 12.5 ——12.5 11.45 CK5A/CK5BA048 40,500 TDR 13 ——13 11.6

CK5A/CK5BT042 40,000 TDR 12.5 ——12.5 11.45 CK5A/CK5BT048 40,500 TDR 13 ——13 11.6

CK5A/CK5BW048 40,500 TDR 13 ——13 11.6

CK5A/CK5BN042 40,000 TDR 12.50 — 12.50 — 11.00 CK5A/CK5BN048 40,000 TDR 12.50 — 12.50 — 11.05

CC5A/CD5AA042 41,000 TDR 13.00 — 13.00 — 11.50

CK5A/CK5BA042 40,500 TDR 12.50 — 12.50 — 11.15 CK5A/CK5BA048 41,000 TDR 12.50 — 12.50 — 11.15

CK5A/CK5BA042 40,500 TDR 12.50 — 12.50 — 11.00 CK5A/CK5BA048 41,000 TDR 12.50 — 12.50 — 11.15

CC5A/CD5AA042 41,000 TDR 13.00 — 13.00 — 11.50

COMBINATION RATINGS Continued

SEER

FACTORY-

INDOOR

SECTION

CD5AA048 40,500 TDR 13 ——13 11.4 CE3AA042 40,000 TDR 12.5 ——12.5 11.35 CE3AA048 40,500 TDR 12.5 ——12.5 11.4 CK3BA042 40,000 TDR 12.5 ——12.5 11.3 CK3BA048 40,500 TDR 13 ——13 11.45

CD5AA048 40,500 TDR 13 ——13 11.55 CE3AA042 40,000 TDR 12.5 ——12.5 11.45 CE3AA048 40,500 TDR 13 ——13 11.5 CK3BA042 40,000 TDR 12.5 ——12.5 11.4 CK3BA048 40,500 TDR 13 ——13 11.55

CD5AA048 40,500 TDR 13 ——13 11.55 CE3AA042 40,000 TDR 12.5 ——12.5 11.45 CE3AA048 40,500 TDR 13 ——13 11.5 CK3BA042 40,000 TDR 12.5 ——12.5 11.4 CK3BA048 40,500 TDR 13 ——13 11.6

CD5AA048 40,500 TDR 13 ——13 11.6 CE3AA042 40,000 TDR 12.5 ——12.5 11.5 CE3AA048 40,500 TDR 13 ——13 11.55 CK3BA042 40,000 TDR 12.5 ——12.5 11.45 CK3BA048 40,500 TDR 13 ——13 11.6

CK3BA042 40,500 TDR 12.50 — 12.50 — 11.00 CK3BA048 41,000 TDR 12.50 — 12.50 — 11.15

CD5AA048 41,000 TDR 13.50 — 13.50 — 11.65 CK3BA042 40,500 TDR 12.50 — 12.50 — 11.15 CK3BA048 41,000 TDR 12.50 — 12.50 — 11.15

CK3BA042 40,500 TDR 12.50 — 12.50 — 11.00 CK3BA048 41,000 TDR 12.50 — 12.50 — 11.15

CD5AA048 41,000 TDR 13.50 — 13.50 — 11.65

TOTAL CAP.

BTUH

SUPPLIED

ENHANCE-

MENT

COILS + 315(A,J)AV048090 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066110 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066135 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066155 VARIABLE SPEED FURNACE

COILS + 355MAV042060 VARIABLE SPEED FURNACE

COILS + 355MAV042080 VARIABLE SPEED FURNACE

COILS + 355MAV060080 VARIABLE SPEED FURNACE

COILS + 355MAV060100 VARIABLE SPEED FURNACE

STANDARD

RATING

BRYANT GAS

FURNACE OR

ACCESSORY

TDR†

ACCESSORY

TXV‡ LLS

EER

—12—

Page 13

UNIT

SIZE-

SERIES

CK5A/CK5BA042 40,500 TDR 13.00 — 13.00 — 11.35 CK5A/CK5BW048 41,000 TDR 13.00 — 13.00 — 11.50

042-F, G

CK5A/CK5BA042 40,500 TDR 13.00 — 13.00 — 11.30 CK5A/CK5BW048 41,000 TDR 13.00 — 13.00 — 11.45

*CC5A/CD5AA060 48,000 NONE — 12.00 12.00 12.00 10.60

CC5A/CD5AC048 47,000 NONE — 11.80 11.80 11.80 10.45 CC5A/CD5AW048 47,500 NONE — 12.00 12.00 12.00 10.55 CC5A/CD5AW060 48,500 NONE — 12.40 12.40 12.40 10.85

CK5A/CK5BA048 47,500 NONE — 12.00 12.00 12.00 10.60

CK5A/CK5BA060 48,000 NONE — 12.00 12.00 12.00 10.80

CK5A/CK5BN048 46,000 NONE — 12.00 12.00 12.00 10.60

CK5A/CK5BN060 48,000 NONE — 12.00 12.00 12.00 11.00

CK5A/CK5BT048 47,500 NONE — 12.00 12.00 12.00 10.60

CK5A/CK5BT060 48,000 NONE — 12.00 12.00 12.00 10.80 CK5A/CK5BW048 47,500 NONE — 12.00 12.00 12.00 10.60

CK5A/CK5BX060 48,500 NONE — 12.40 12.40 12.40 11.00

F(A,B)4(A,B)N(F,B,C)048 47,500 TDR 12.00 — 12.00 — 10.55 F(A,B)4(A,B)N(F,B,C)060 48,000 TDR 12.10 — 12.10 — 10.60

FC4(B,C)N(F,B)048 47,500 TDR & TXV 12.00 ———10.55 FC4(B,C)N(F,B)060 48,000 TDR & TXV 12.10 ———10.60

FC4(B,C)NB054 48,500 TDR & TXV 12.50 ———11.05 FC4(B,C)NB070 48,000 TDR & TXV 12.20 ———11.00

FK4(C,D)NB006 48,500 TDR 13.50 ———11.95 FK4(C,D)NF005 47,500 TDR 13.20 ———11.65

CC5A/CD5AC048 46,000 TDR 12 ——12 10.8

CK5A/CK5BA048 46,500 TDR 12 ——12 10.95

048-F, H

See notes on page 15.

CK5A/CK5BT048 46,500 TDR 12 ——12 10.95

CC5A/CD5AA060 47,000 TDR 12.5 ——12.5 11.15

CC5A/CD5AC048 46,000 TDR 12.5 ——12.5 11 CC5A/CD5AW048 46,500 TDR 12.5 ——12.5 11.1

CK5A/CK5BA048 46,500 TDR 12.5 ——12.5 11.15

CK5A/CK5BA060 47,000 TDR 12.5 ——12.5 11.45

CK5A/CK5BT048 46,500 TDR 12.5 ——12.5 11.15

CK5A/CK5BT060 47,000 TDR 12.5 ——12.5 11.45 CK5A/CK5BW048 46,500 TDR 12.5 ——12.5 11.15

CK5A/CK5BX060 48,000 TDR 13 ——13 11.7

CC5A/CD5AA060 47,000 TDR 12.5 ——12.5 11.1

CC5A/CD5AC048 46,000 TDR 12 ——12 10.95 CC5A/CD5AW048 46,500 TDR 12.5 ——12.5 11.05 CC5A/CD5AW060 48,000 TDR 13 ——13 11.45

CK5A/CK5BA048 46,500 TDR 12.5 ——12.5 11.1

CK5A/CK5BA060 47,000 TDR 12.5 ——12.5 11.4

CK5A/CK5BT048 46,500 TDR 12.5 ——12.5 11.1

CK5A/CK5BT060 47,000 TDR 12.5 ——12.5 11.4 CK5A/CK5BW048 46,500 TDR 12.5 ——12.5 11.1

CK5A/CK5BX060 48,000 TDR 13 ——13 11.65

CC5A/CD5AA060 47,000 TDR 12.5 ——12.5 11.2

CC5A/CD5AC048 46,000 TDR 12.5 ——12.5 11.05 CC5A/CD5AW048 46,500 TDR 12.5 ——12.5 11.15 CC5A/CD5AW060 48,000 TDR 13 ——13 11.5

COMBINATION RATINGS Continued

SEER

FACTORY-

INDOOR

SECTION

CK3BA042 40,500 TDR 13.00 — 13.00 — 11.35 CK3BA048 41,000 TDR 13.00 — 13.00 — 11.50

CK3BA042 40,500 TDR 13.00 — 13.00 — 11.30 CK3BA048 41,000 TDR 13.00 — 13.00 — 11.45

CD5AA048 47,500 NONE — 12.00 12.00 12.00 10.55 CE3AA048 47,500 NONE — 12.00 12.00 12.00 10.65 CE3AA060 48,000 NONE — 12.40 12.40 12.40 10.90 CF5AA048 47,500 NONE — 12.00 12.00 12.00 10.65 CK3BA048 47,500 NONE — 12.00 12.00 12.00 10.60 CK3BA060 48,000 NONE — 12.00 12.00 12.00 10.80

FG3AAA048 47,500 NONE — 12.00 12.00 12.00 10.55 FG3AAA060 48,000 NONE — 12.20 12.20 12.20 10.75

CD5AA048 46,500 TDR 12 ——12 10.9 CE3AA048 46,500 TDR 12 ——12 10.9 CE3AA060 47,000 TDR 12.5 ——12.5 11.3 CK3BA048 46,500 TDR 12 ——12 10.95

CD5AA048 46,500 TDR 12.5 ——12.5 11.1 CE3AA048 46,500 TDR 12.5 ——12.5 11.15 CE3AA060 47,000 TDR 12.5 ——12.5 11.5 CK3BA048 46,500 TDR 12.5 ——12.5 11.15 CK3BA060 47,000 TDR 12.5 ——12.5 11.45

CD5AA048 46,500 TDR 12.5 ——12.5 11.05 CE3AA048 46,500 TDR 12.5 ——12.5 11.05 CE3AA060 47,000 TDR 12.5 ——12.5 11.45 CK3BA048 46,500 TDR 12.5 ——12.5 11.1 CK3BA060 47,000 TDR 12.5 ——12.5 11.4

TOTAL CAP.

BTUH

SUPPLIED

ENHANCE-

MENT

COILS + 355MAV060120 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV048090 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066110 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066135 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066155 VARIABLE SPEED FURNACE

STANDARD

RATING

BRYANT GAS FURNACE OR

ACCESSORY

TDR†

ACCESSORY

TXV‡ LLS

EER

—13—

Page 14

UNIT SIZE-

SERIES

CK5A/CK5BA048 46,500 TDR 12.5 ——12.5 11.15 CK5A/CK5BA060 47,000 TDR 12.5 ——12.5 11.5

CK5A/CK5BT048 46,500 TDR 12.5 ——12.5 11.15

CK5A/CK5BT060 47,000 TDR 12.5 ——12.5 11.5 CK5A/CK5BW048 46,500 TDR 12.5 ——12.5 11.15 CK5A/CK5BX060 48,000 TDR 13 ——13 11.75

CK5A/CK5BA048 47,000 TDR 12.00 — 12.00 — 10.75

CC5A/CD5AA060 47,000 TDR 12.00 — 12.00 — 10.65

048-F, H

060-F, G

See notes on page 15.

CC5A/CD5AW060 48,000 TDR 12.50 — 12.50 — 10.95

CK5A/CK5BA048 47,000 TDR 12.00 — 12.00 — 10.65 CK5A/CK5BA060 47,000 TDR 12.00 — 12.00 — 10.90 CK5A/CK5BX060 48,000 TDR 12.50 — 12.50 — 11.15

CC5A/CD5AC048 46,000 TDR 12.00 — 12.00 — 10.65 CC5A/CD5AW060 48,000 TDR 12.80 — 12.80 — 11.25

CK5A/CK5BA048 47,000 TDR 12.50 — 12.50 — 10.95 CK5A/CK5BX060 48,000 TDR 12.80 — 12.80 — 11.45

CC5A/CD5AA060 47,000 TDR 12.50 — 12.50 — 11.00 CC5A/CD5AW048 47,000 TDR 12.50 — 12.50 — 10.90 CC5A/CD5AW060 48,000 TDR 13.00 — 13.00 — 11.30 CK5A/CK5BA060 47,000 TDR 12.50 — 12.50 — 11.25 CK5A/CK5BW048 47,000 TDR 12.50 — 12.50 — 11.00 CK5A/CK5BX060 48,000 TDR 13.00 — 13.00 — 11.50

CC5A/CD5AW060* 57,000 NONE — 12.00 12.00 12.00 10.30

CC5A/CD5AA060 55,000 NONE — 12.00 12.00 12.00 10.20

CK5A/CK5BA060 55,000 NONE — 12.00 12.00 12.00 10.35 CK5A/CK5BN060 55,000 NONE — 12.00 12.00 12.00 10.55 CK5A/CK5BX060 57,000 NONE — 12.00 12.00 12.00 10.45

F(A,B)4(A,B)N(F,B)060 57,000 TDR 11.50 — 11.50 — 9.95

FB4(A,B)NB070 58,000 TDR 12.00 — 12.00 — 10.40 FC4(B,C)NB070 58,000 TDR & TXV 12.00 ———10.40

FC4(B,C)N(F,B)060 57,000 TDR & TXV 11.50 ———9.95

FK4(C,D)NB006 58,000 TDR & TXV 12.50 ———10.65

CC5A/CD5AA060 54,500 TDR 12 ——12 10.4

CK5A/CK5BA060 54,500 TDR 12 ——12 10.55

CK5A/CK5BT060 54,500 TDR 12 ——12 10.55 CK5A/CK5BX060 56,000 TDR 12.5 ——12.5 10.9

CC5A/CD5AA060 54,500 TDR 12 ——12 10.35 CC5A/CD5AW060 56,000 TDR 12.5 ——12.5 10.7

CK5A/CK5BA060 54,500 TDR 12 ——12 10.55

CK5A/CK5BT060 54,500 TDR 12 ——12 10.55 CK5A/CK5BX060 56,000 TDR 12.5 ——12.5 10.9

CC5A/CD5AA060 54,500 TDR 12 ——12 10.45 CC5A/CD5AW060 56,000 TDR 12.5 ——12.5 10.75

CK5A/CK5BA060 54,500 TDR 12 ——12 10.6

CK5A/CK5BT060 54,500 TDR 12 ——12 10.6 CK5A/CK5BX060 56,000 TDR 12.5 ——12.5 10.95

COMBINATION RATINGS Continued

SEER

FACTORY-

INDOOR

SECTION

CD5AA048 46,500 TDR 12.5 ——12.5 11.15 CE3AA048 46,500 TDR 12.5 ——12.5 11.15 CE3AA060 47,000 TDR 12.5 ——12.5 11.55 CK3BA048 46,500 TDR 12.5 ——12.5 11.15 CK3BA060 47,000 TDR 12.5 ——12.5 11.5

CD5AA048 47,000 TDR 12.00 — 12.00 — 10.70 CK3BA048 47,000 TDR 12.00 — 12.00 — 10.75

CD5AA048 47,000 TDR 12.00 — 12.00 — 10.60 CK3BA048 47,000 TDR 12.00 — 12.00 — 10.65

CD5AA048 47,000 TDR 12.50 — 12.50 — 10.90 CK3BA048 47,000 TDR 12.50 — 12.50 — 10.95 CK3BA060 47,000 TDR 12.50 — 12.50 — 11.20

CE3AA060 57,000 NONE — 12.00 12.00 12.00 10.40 CK3BA060 55,000 NONE — 12.00 12.00 12.00 10.45

FG3AAA060 57,000 NONE — 12.00 12.00 12.00 10.30

CE3AA060 54,500 TDR 12 ——12 10.75 CK3BA060 54,500 TDR 12 ——12 10.55

CE3AA060 54,500 TDR 12 ——12 10.7 CK3BA060 54,500 TDR 12 ——12 10.55

CE3AA060 54,500 TDR 12 ——12 10.8 CK3BA060 54,500 TDR 12 ——12 10.6

TOTAL CAP.

BTUH

SUPPLIED

ENHANCE-

MENT

COILS + 355MAV042080 VARIABLE SPEED FURNACE

COILS + 355MAV060080 VARIABLE SPEED FURNACE

COILS + 355MAV060100 VARIABLE SPEED FURNACE

COILS + 355MAV060120 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066110 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066135 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066155 VARIABLE SPEED FURNACE

STANDARD

RATING

BRYANT GAS

FURNACE OR

ACCESSORY

TDR†

ACCESSORY

TXV‡ LLS

EER

—14—

Page 15

* Tested combination.

† In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in performance.

Use either the accessory Time-Delay Relay KAATD0101TDR or a furnace equipped with TDR. All Bryant furnaces are equipped with TDR except for the 394HAD.

‡ Based on computer simulation. Requires hard shutoff TXV.

EER — Energy Efﬁciency Ratio LLS — Liquid-Line Solenoid Valve SEER — Seasonal Energy Efﬁciency Ratio TDR — Time-Delay Relay TXV — Thermostatic Expansion Valve NOTES: 1. Ratings are net values reﬂecting the effects of circulating fan motor heat. Supplemental electric heat is not included.

2. Tested outdoor/indoor combinations have been tested in accordance with DOE test procedures for electric air conditioners. Ratings for other combinations are determined under DOE computer simulation procedures.

3. Determine actual CFM values obtainable for your system by referring to fan performance data in fan coil or furnace coil literature.

4. Do not apply with capillary tube coils as performance and reliability are signiﬁcantly affected.

—15—

Page 16

DETAILED COOLING CAPACITIES*

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

597CN018-F, G Outdoor Section With CK5A/CK5B018 Indoor Section

72 19.5 9.60 1.40 18.8 9.33 1.58 18.0 9.05 1.77 17.2 8.75 1.98 16.3 8.44 2.21

525

600

675

F(A,B)4(A,B)N(F,C) 018 0.98 0.98 CK5A/CK5BW 024 1.00 0.88

See notes on page 25.

67 17.8 12.1 1.38 17.1 11.9 1.55 16.4 11.6 1.74 15.6 11.2 1.95 14.8 10.9 2.17 62 16.2 14.6 1.37 15.6 14.3 1.54 14.9 14.0 1.72 14.3 13.6 1.93 13.5 13.2 2.16 57 15.6 15.6 1.36 15.1 15.1 1.54 14.5 14.5 1.73 14.0 14.0 1.93 13.4 13.4 2.16

72 19.8 10.0 1.44 19.1 9.74 1.61 18.3 9.45 1.80 17.4 9.16 2.01 16.5 8.84 2.25 67 18.1 12.8 1.41 17.4 12.6 1.58 16.7 12.3 1.77 15.9 11.9 1.98 15.0 11.6 2.21 62 16.6 15.5 1.40 15.9 15.2 1.57 15.2 14.8 1.76 14.6 14.4 1.97 13.8 13.8 2.20 57 16.1 16.1 1.39 15.6 15.6 1.56 15.0 15.0 1.75 14.5 14.5 1.96 13.8 13.8 2.19

72 20.0 10.4 1.46 19.2 10.1 1.63 18.4 9.81 1.82 17.6 9.51 2.03 16.7 9.19 2.26 67 18.3 13.5 1.44 17.6 13.2 1.61 16.9 12.9 1.80 16.1 12.6 2.01 15.2 12.3 2.24 62 16.8 16.4 1.43 16.2 16.0 1.60 15.5 15.5 1.79 14.9 14.9 2.00 14.2 14.2 2.23 57 16.6 16.6 1.43 16.0 16.0 1.59 15.5 15.5 1.78 14.8 14.8 1.99 14.2 14.2 2.22

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CC5A/CD5AA 018 1.00 1.00

024 1.02 1.00 CC5A/CD5AA 018 0.97 0.89

CC5A/CD5AW 024 1.02 1.00 024 1.00 0.89

CE3AA 024 1.01 1.00 CC5A/CD5AW 024 1.00 0.89 CK3BA 024 1.02 1.00 CE3AA 024 0.99 0.88

CK5A/CK5BA 018 1.00 1.00 CK3BA 024 1.00 0.88

024 1.02 1.00 CK5A/CK5BA 018 0.98 0.88

CK5A/CK5BW 024 1.02 1.00 024 1.00 0.88

024 1.01 0.99

FC4(B,C)NF 024 1.01 0.99 CC5A/CD5AW 024 1.01 0.93

FF1DNA 018 0.98 0.96 CK5A/CK5BW 024 1.01 0.93

024 1.01 1.00

FG3AAA 024 1.00 1.00 CC5A/CD5AW 024 1.01 0.92

FK4(C,D)NF 001 1.03 0.91 CK5A/CK5BW 024 1.01 0.92

002 1.03 0.91 —— —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 315(A,J)AV036070 VARIABLE SPEED FURNACE

COILS + 355MAV042060 VARIABLE SPEED FURNACE

COILS + 355MAV042080 VARIABLE SPEED FURNACE

Cooling

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

—16—

Page 17

DETAILED COOLING CAPACITIES* Continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

597CN024-F, G Outdoor Section With CC5A/CD5AA024 Indoor Section

72 25.7 12.6 1.88 24.8 12.3 2.09 23.8 11.9 2.31 22.7 11.5 2.5 21.6 11.1 2.84

700

800

900

F(A,B)4(A,B)NF 024 1.01 1.00 CK5A/CK5BW 030 1.01 0.93

See notes on page 25.

67 23.4 15.9 1.89 22.6 15.5 2.09 21.6 15.1 2.31 20.7 14.7 2.5 19.7 14.3 2.82 62 21.3 19.1 1.89 20.5 18.7 57 20.3 20.3 1.89 19.6 19.6 2.09 18.9 18.9 2.30 18.2 18.2 2.5 17.5 17.5 2.82

72 26.1 13.2 1.92 25.2 12.8 2.13 24.2 12.5 2.35 23.1 12.1 2.6 22.0 11.7 2.88 67 23.9 16.8 1.92 23.0 16.5 2.13 22.0 16.1 2.35 21.0 15.7 2.6 20.0 15.3 2.86 62 21.8 20.3 1.93 20.9 19.9 2.13 20.0 19.4 2.34 19.1 18.8 2.5 18.2 18.2 2.86 57 21.1 21.1 1.93 20.4 20.4 2.12 19.7 19.7 2.34 18.9 18.9 2.5 18.1 18.1 2.87

72 26.5 13.7 1.96 25.6 13.3 2.17 24.5 13.0 2.39 23.4 12.6 2.6 22.2 12.2 2.92 67 24.2 17.7 1.96 23.3 17.4 2.17 22.3 17.0 2.39 21.3 16.6 2.6 20.2 16.2 2.90 62 22.1 21.4 1.97 21.3 20.9 2.17 20.4 20.3 2.38 19.5 19.5 2.6 18.7 18.7 2.91 57 21.8 21.8 1.96 21.1 21.1 2.16 20.3 20.3 2.38 19.5 19.5 2.6 18.7 18.7 2.90

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CC5A/CD5AA 024 1.00 1.00 CE3AA 024 1.00 0.91

030 1.01 1.00 030 1.01 0.90

CC5A/CD5AW 024 1.00 1.00 CK3BA 024 1.00 0.90

030 1.01 1.00 030 1.01 0.90

CE3AA 024 1.00 1.00 CK5A/CK5BA 024 1.00 0.90

030 1.01 1.00 030 1.01 0.90 CF5AA 024 1.00 1.00 CK5A/CK5BW 024 1.00 0.90 CK3BA 024 1.00 1.00 030 1.01 0.90

030 1.01 1.00

CK5A/CK5BA 024 1.00 1.00 CC5A/CD5AA 024 1.01 0.93

030 1.01 1.00 030 1.03 0.92

CK5A/CK5BW 024 1.00 1.00 CK3BA 024 1.00 0.94

030 1.01 1.00 030 1.01 0.93

030 1.03 0.99

FC4(B,C)NF 024 1.01 1.00 CC5A/CD5AA 024 1.01 0.93

030 1.03 0.99 030 1.03 0.92

FF1DNA 024 1.00 1.01 CK3BA 024 1.00 0.94

030 1.03 1.01 030 1.01 0.94

FG3AAA 024 0.99 1.00 CK5A/CK5BW 024 1.00 0.94

FK4(C,D)NF 001 1.02 0.93 030 1.01 0.94

002 1.03 0.93

003 1.03 0.90 CC5A/CD5AA 024 1.01 0.93

004 1.04 0.91 030 1.03 0.92

COILS + 315(A,J)AV036070 VARIABLE SPEED FURNACE CK3BA 024 1.00 0.92

CC5A/CD5AA 024 1.00 0.91 030 1.01 0.92

030 1.01 0.91 CK5A/CK5BW 024 1.00 0.92

CC5A/CD5AW 024 1.00 0.91 030 1.01 0.92

030 1.01 0.91 —— —

Capacity Power Capacity Power

Cooling

2.09 19.6 18.2 2.30 18.7 17.8 2.5 17.8 17.3 2.82

Indoor

Section Size

COILS + 355MAV042040 VARIABLE SPEED FURNACE

COILS + 355MAV042060 VARIABLE SPEED FURNACE

COILS + 355MAV042080 VARIABLE SPEED FURNACE

Cooling

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

—17—

Page 18

DETAILED COOLING CAPACITIES* Continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

597CN030-F, G Outdoor Section With CC5A/CD5AA030 Indoor Section

72 32.3 15.8 2.37 31.0 15.3 2.68 29.8 14.8 3.04 28.4 14.3 3.4 27.0 13.8 3.86

875

1000

1125

F(A,B)4(A,B)NF 030 1.01 0.99 036 1.02 0.95

See notes on page 25.

67 29.6 19.8 2.39 28.5 19.4 2.71 27.3 18.9 3.07 26.0 18.3 3.4 24.6 17.8 3.86 62 27.0 23.8 2.41 25.9 23.3 2.73 24.8 22.8 3.09 23.7 22.2 3.4 22.4 21.5 3.86 57 25.6 25.6 2.43 24.8 24.8 2.75 23.9 23.9 3.09 22.9 22.9 3.4 22.0 22.0 3.88

72 32.8 16.4 2.40 31.6 15.9 2.72 30.3 15.5 3.08 28.9 15.0 3.4 27.4 14.4 3.92 67 30.1 21.0 2.44 29.0 20.5 2.76 27.7 20.0 3.10 26.4 19.5 3.4 25.0 18.9 3.92 62 27.5 25.4 2.46 26.5 24.8 2.78 25.3 24.2 3.14 24.1 23.5 3.5 22.9 22.7 3.91 57 26.5 26.5 2.46 25.7 25.7 2.78 24.8 24.8 3.13 23.8 23.8 3.5 22.8 22.8 3.93

72 33.3 17.0 2.44 32.0 16.6 2.77 30.7 16.1 3.13 29.2 15.6 3.5 27.6 15.0 3.94 67 30.6 22.1 2.48 29.3 21.6 2.79 28.1 21.1 3.15 26.7 20.5 3.5 25.3 20.0 3.97 62 28.0 26.7 2.50 26.9 26.1 2.83 25.7 25.4 3.17 24.5 24.5 3.5 23.4 23.4 3.97 57 27.4 27.4 2.50 26.4 26.4 2.81 25.5 25.5 3.17 24.5 24.5 3.5 23.4 23.4 3.98

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CC5A/CD5AA 030 1.00 1.00 CE3AA 030 0.99 0.90

036 1.02 1.00 036 1.00 0.90

CC5A/CD5AW 030 1.00 1.00 CK3BA 030 0.99 0.91

CD5AW 036 1.02 1.00 036 1.00 0.89

CE3AA 030 1.00 1.00 CK5A/CK5BA 030 0.99 0.91

036 1.02 1.00 036 1.00 0.89 CF5AA 036 1.02 1.00 CK5A/CK5BW 030 0.99 0.91 CK3BA 030 1.00 1.00 036 1.00 0.89

036 1.02 1.00

CK5A/CK5BA 030 1.00 1.00 CC5A/CD5AA 030 1.02 0.94

036 1.02 1.00 036 1.03 0.93

CK5A/CK5BN 036 0.95 1.00 CK3BA 030 1.00 0.96 CK5A/CK5BW 030 1.00 1.00 036 1.02 0.95

036 1.02 1.00 CK5A/CK5BW 030 1.00 0.96

036 1.02 1.01

FC4(B,C)NF 030 1.01 0.99 CC5A/CD5AA 030 1.02 0.94

036 1.02 1.01 036 1.03 0.93

FF1DNA 030 1.02 1.00 CK3BA 030 1.00 0.96

FG3AAA 036 1.01 1.00 036 1.02 0.95

FK4(C,D)NF 001 1.02 0.96 CK5A/CK5BA 036 1.02 0.95

002 1.02 0.96 CK5A/CK5BW 030 1.00 0.96

003 1.03 0.92

004 1.04 0.93 CC5A/CD5AA 030 1.02 0.94

COILS + 315(A,J)AV036070 VARIABLE SPEED FURNACE 036 1.03 0.93

CC5A/CD5AA 030 0.99 0.92 CK3BA 030 1.00 0.96

036 1.00 0.90 036 1.02 0.94

CC5A/CD5AW 030 0.99 0.92 CK5A/CK5BW 030 1.00 0.96

CE3AA 030 0.99 0.91 036 1.02 0.94

036 1.00 0.92 CK3BA 030 0.99 0.92 CK3BA 030 1.00 0.97

036 1.00 0.90 036 1.02 0.95

CK5A/CK5BA 030 0.99 0.92 CK5A/CK5BW 030 1.00 0.97

036 1.00 0.90 036 1.02 0.95

CK5A/CK5BT 036 1.00 0.90

CK5A/CK5BW 030 0.99 0.92 CK5A/CK5BW 030 1.00 0.94

COILS + 315(A,J)AV048090 VARIABLE SPEED FURNACE 036 1.02 0.93

CC5A/CD5AA 030 0.99 0.91 CK3BA 030 1.00 0.94

036 1.00 0.89 036 1.02 0.93

CC5A/CD5AW 030 0.99 0.91

036 1.00 0.89 CK3BA 030 1.00 0.94

—— — 036 1.02 0.93

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 355MAV042040 VARIABLE SPEED FURNACE

COILS + 355MAV042060 VARIABLE SPEED FURNACE

COILS + 355MAV042080 VARIABLE SPEED FURNACE

COILS + 355MAV060080 VARIABLE SPEED FURNACE

COILS + 355MAV060100 VARIABLE SPEED FURNACE

COILS + 355MAV060120 VARIABLE SPEED FURNACE

CK5A/CK5BW 036 1.02 0.93

Cooling

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

—18—

Page 19

DETAILED COOLING CAPACITIES* Continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

597CN036-F, G Outdoor Section With CC5A/CD5AA036 Indoor Section

72 39.0 19.3 2.91 37.6 18.7 3.23 35.9 18.1 3.56 34.2 17.5 3.9 32.5 16.9 4.36

1050

1200

1350

F(A,B)4(A,B)NF 036 1.00 1.00 042 1.00 0.92

F(A,B)4(A,B)N(F,B) 042 1.01 1.01 CK5A/CK5BA 036 0.99 0.91

FC4(B,C)N(F,B) 042 1.01 1.01 CK5A/CK5BT 036 0.99 0.91

See notes on page 25.

67 35.8 24.5 2.89 34.4 23.9 3.21 32.8 23.2 3.53 31.3 22.6 3.9 29.7 22.0 4.32 62 32.7 29.4 2.87 31.4 28.8 3.19 30.0 28.1 3.51 28.6 27.4 3.8 27.1 26.5 4.29 57 31.3 31.3 2.87 30.3 30.3 3.18 29.2 29.2 3.51 28.0 28.0 3.8 26.9 26.9 4.29

72 39.7 20.2 2.97 38.2 19.6 3.29 36.5 19.0 3.62 34.8 18.4 4.0 32.8 17.7 4.40 67 36.4 26.0 2.95 35.0 25.4 3.27 33.4 24.7 3.60 31.8 24.1 3.9 30.2 23.5 4.39 62 33.4 31.4 2.94 32.0 30.7 3.24 30.6 29.9 3.59 29.1 28.9 3.9 27.8 27.8 4.34 57 32.5 32.5 2.93 31.4 31.4 3.25 30.3 30.3 3.58 29.0 29.0 3.9 27.8 27.8 4.35

72 40.3 21.0 3.03 38.5 20.4 3.33 36.9 19.8 3.69 35.1 19.2 4.0 33.2 18.5 4.47 67 36.9 27.4 3.01 35.3 26.7 3.31 33.8 26.2 3.66 32.2 25.5 4.0 30.3 24.8 4.42 62 33.9 33.1 3.00 32.5 32.2 3.29 31.2 31.2 3.64 29.9 29.9 4.0 28.5 28.5 4.40 57 33.5 33.5 2.99 32.4 32.4 3.31 31.2 31.2 3.64 29.9 29.9 4.0 28.5 28.5 4.40

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CC5A/CD5AA 036 1.00 1.00 CK5A/CK5BA 036 0.99 0.92

042 100 1.00 042 1.00 0.93

CC5A/CD5AW 042 1.00 1.00 CK5A/CK5BE 042 1.00 0.92

CD5AW 036 1.00 1.00 CK5A/CK5BT 036 0.99 0.92

CE3AA 036 0.99 1.00 042 1.00 0.93

042 1.01 1.00 CK5A/CK5BW 036 0.99 0.92 CF5AA 036 1.01 1.00 CK3BA 036 1.00 1.00 CC5A/CD5AA 036 0.99 0.92

042 1.00 1.00 042 1.00 0.92

CK5A/CK5BA 036 1.00 1.00 CC5A/CD5AW 036 0.99 0.92

042 1.00 1.00 042 0.99 0.92

CK5A/CK5BN 036 0.94 1.00 CE3AA 036 0.97 0.91

042 0.97 1.00 042 0.99 0.91

CK5A/CK5BW 036 1.00 1.00 CK3BA 036 0.99 0.91

FC4(B,C)NF 036 1.00 1.00 042 1.00 0.92

FC4(B,C)NB 054 1.03 1.00 042 1.00 0.92

FG3AAA 036 0.99 1.00 CK5A/CK5BW 036 0.99 0.91

FK4(C,D)NB

FK4(C,D)NF 001 1.00 0.98 CC5A/CD5AW 036 0.99 0.92

COILS + 315(A,J)AV036070 VARIABLE SPEED FURNACE CK5A/CK5BA 042 1.00 0.92

CC5A/CD5AA 036 0.99 0.94 CK5A/CK5BT 042 1.00 0.92

CE3AA 036 0.97 0.93 CK5A/CK5BW 036 0.99 0.92

CK3BA 036 0.99 0.94 CC5A/CD5AA 042 1.00 0.91

CK5A/CK5BA 036 0.99 0.94 CC5A/CD5AW 036 0.99 0.92 CK5A/CK5BE 042 1.00 0.93 042 1.00 0.92 CK5A/CK5BT 036 0.99 0.94 CE3AA 036 0.97 0.91

COILS + 315(A,J)AV048090 VARIABLE SPEED FURNACE 042 0.99 0.90

CC5A/CD5AA 036 0.99 0.92 CK3BA 042 1.00 0.92

CC5A/CD5AW 036 0.99 0.92 CK5A/CK5BT 042 1.00 0.92

CE3AA 036 0.97 0.92 CK5A/CK5BW 036 0.99 0.91

CK3BA 036 0.99 0.92 CC5A/CD5AA 036 1.01 0.92

005 1.03 0.94

006 1.03 0.93 CC5A/CD5AA 042 1.00 0.92

002 1.00 0.98 042 0.99 0.92

003 1.01 0.93 CE3AA 036 0.97 0.91

004 1.01 0.95 042 0.99 0.91

005 1.03 0.94 CK3BA 042 1.00 0.92

042 0.99 0.93

042 1.00 0.92 CK5A/CK5BA 042 1.00 0.92

042 0.99 0.91

042 1.00 0.93 042 1.01 0.92

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 315(A,J)AV066110 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066135 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066155 VARIABLE SPEED FURNACE

COILS + 355MAV042040 VARIABLE SPEED FURNACE

Cooling

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

—19—

Page 20

DETAILED COOLING CAPACITIES* Continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

597CN036-F, G Outdoor Section With CC5A/CD5AA036 Indoor Section Continued

72 39.0 19.3 2.91 37.6 18.7 3.23 35.9 18.1 3.56 34.2 17.5 3.9 32.5 16.9 4.36

1050

1200

1350

See notes on page 25.

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CK3BA 036 1.00 0.94 CK5A/CK5BA 042 1.00 0.93

042 1.00 0.93 CK5A/CK5BW 036 1.00 0.93

CK5A/CK5BA 042 1.00 0.93

CK5A/CK5BW 036 1.00 0.94 CK3BA 036 1.00 0.94

COILS + 355MAV042060 VARIABLE SPEED FURNACE 042 1.00 0.94

CC5A/CD5AA 036 1.01 0.92 CK5A/CK5BA 042 1.00 0.94

042 1.01 0.92 CK5A/CK5BW 036 1.00 0.94

CK3BA 036 1.00 0.94

042 1.00 0.94 CC5A/CD5AA 036 1.01 0.92

CK5A/CK5BA 036 1.00 0.94 042 1.01 0.93

CK5A/CK5BN 042 0.97 0.94 CK3BA 036 1.00 0.92

COILS + 355MAV042080 VARIABLE SPEED FURNACE 042 1.00 0.92

CC5A/CD5AA 036 1.01 0.92 CK5A/CK5BA 042 1.00 0.92

042 1.01 0.92 CK5A/CK5BW 036 1.00 0.92

CK3BA 036 1.00 0.93

042 1.00 0.93 CK5A/CK5BA 042 1.00 0.92

—— —CK5A/CK5BW 036 1.00 0.92

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 355MAV060080 VARIABLE SPEED FURNACE

COILS + 355MAV060100 VARIABLE SPEED FURNACE

COILS + 355MAV060120 VARIABLE SPEED FURNACE

Cooling

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

—20—

Page 21

DETAILED COOLING CAPACITIES* Continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

597CN042-F, G Outdoor Section With CC5A/CD5BAA042 Indoor Section

72 45.8 22.5 3.47 44.1 21.8 3.83 42.3 21.2 4.22 40.5 20.5 4.6 38.7 19.8 5.13

1225

1400

1575

F(A,B)4(A,B)N(F,B) 042 1.00 1.01

FC4(B,C)N(F,B) 042 1.00 1.01 CC5A/CD5AC 048 0.96 0.90

See notes on page 25.

67 41.8 28.3 3.44 40.2 27.6 3.78 38.6 27.0 4.17 36.9 26.3 4.6 35.2 25.6 5.07 62 38.0 33.9 3.40 36.6 33.2 3.74 35.1 32.5 4.13 33.6 31.7 4.5 32.1 30.9 5.02 57 36.2 36.2 3.38 35.1 35.1 3.73 33.9 33.9 4.12 32.7 32.7 4.5 31.5 31.5 5.01

72 46.6 23.5 3.55 44.9 22.8 3.91 43.0 22.1 4.29 41.2 21.5 4.7 39.3 20.8 5.21 67 42.6 30.0 3.52 41.0 29.3 3.87 39.3 28.7 4.25 37.5 27.9 4.6 35.8 27.2 5.15 62 38.8 36.2 3.48 37.4 35.4 3.83 35.8 34.5 4.20 34.3 33.6 4.6 32.8 32.6 5.10 57 37.6 37.6 3.46 36.4 36.4 3.81 35.2 35.2 4.20 33.9 33.9 4.6 32.6 32.6 5.11

72 47.3 24.4 3.62 45.5 23.7 3.98 43.6 23.1 4.37 41.6 22.4 4.8 39.6 21.7 5.28 67 43.3 31.6 3.59 41.5 31.0 3.94 39.8 30.3 4.32 38.0 29.5 4.7 36.2 28.8 5.22 62 39.5 38.2 3.56 38.0 37.2 3.90 36.5 36.2 4.28 35.0 35.0 4.7 33.6 33.6 5.19 57 38.9 38.9 3.55 37.6 37.6 3.89 36.3 36.3 4.28 34.9 34.9 4.7 33.6 33.6 5.19

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CC5A/CD5AA 042 1.00 1.00

CC5A/CD5AC 048 0.99 1.00 CC5A/CD5AA 042 0.98 0.91

CC5A/CD5AW 042 1.00 1.00 CC5A/CD5AC 048 0.96 0.90

048 1.00 1.00 CC5A/CD5AW 042 0.98 0.92

CD5AA 048 1.00 1.00 048 0.99 0.91

CE3AA 042 1.00 1.00 CD5AA 048 0.99 0.91

048 1.01 1.00 CE3AA 042 0.98 0.91 CF5AA 048 1.01 1.00 048 0.99 0.91 CK3BA 042 1.00 1.00 CK3BA 042 0.98 0.91

048 1.00 1.00 048 0.99 0.91

CK5A/CK5BA 042 1.00 1.00 CK5A/CK5BA 042 0.98 0.91

048 1.00 1.00 048 0.99 0.91

CK5A/CK5BN 042 0.98 1.00 CK5A/CK5BT 042 0.98 0.91

048 0.98 1.00 048 0.99 0.91

CK5A/CK5BW 048 1.00 1.00 CK5A/CK5BW 048 0.99 0.91

048 1.01 1.02 CC5A/CD5AA 042 0.98 0.91

048 1.01 1.02 CC5A/CD5AW 042 0.98 0.92

FC4(B,C)NF 038 1.02 1.02 048 0.99 0.91 FC4(B,C)NB 054 1.05 1.00 CD5AA 048 0.99 0.91

FG3AAA 048 1.00 1.00 CE3AA 042 0.98 0.91

FK4(C,D)NB 005 1.02 0.96 048 0.99 0.91

006 1.05 0.94 CK3BA 042 0.98 0.91

FK4(C,D)NF 003 1.01 0.95 048 0.99 0.91

005 1.02 0.96 CK5A/CK5BA 042 0.98 0.91

COILS + 315(A,J)AV048090 VARIABLE SPEED FURNACE 048 0.99 0.91

CC5A/CD5AA 042 0.98 0.92 CK5A/CK5BT 042 0.98 0.91

CC5A/CD5AC 048 0.96 0.91 048 0.99 0.91

CD5AA 048 0.99 0.92 CK5A/CK5BW 048 0.99 0.91

CE3AA 042 0.98 0.92

048 0.99 0.92 CC5A/CD5AA 042 0.98 0.91 CK3BA 042 0.98 0.92 CC5A/CD5AC 048 0.96 0.90

048 0.99 0.92 CC5A/CD5AW 042 0.98 0.92

CK5A/CK5BA 042 0.98 0.92 048 0.99 0.91

048 0.99 0.92 CD5AA 048 0.99 0.91

CK5A/CK5BE 042 0.98 0.91 CE3AA 042 0.98 0.90 CK5A/CK5BT 042 0.98 0.92 048 0.99 0.91

048 0.99 0.92 —— —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 315(A,J)AV066110 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066135 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066155 VARIABLE SPEED FURNACE

Cooling

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

—21—

Page 22

DETAILED COOLING CAPACITIES* Continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

597CN042-F, G Outdoor Section With CC5A/CD5BAA042 Indoor Section continued

72 45.8 22.5 3.47 44.1 21.8 3.83 42.3 21.2 4.22 40.5 20.5 4.6 38.7 19.8 5.13

1225

1400

1575

See notes on page 25.

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CK3BA 042 0.98 0.91

048 0.99 0.91

CK5A/CK5BA 042 0.98 0.91

048 0.99 0.91

CK5A/CK5BT 042 0.98 0.91

048 0.99 0.91

CK5A/CK5BW 048 0.99 0.91

COILS + 355MAV042060 VARIABLE SPEED FURNACE CD5AA 048 1.00 0.92

CK3BA 042 0.99 0.96 CK3BA 042 0.99 0.94

048 1.00 0.95 048 1.00 0.93

CK5A/CK5BN 042 0.98 0.96 CK5A/CK5BA 042 0.99 0.94

048 0.98 0.96 CK5A/CK5BW 048 1.00 0.93

COILS + 355MAV042080 VARIABLE SPEED FURNACE COILS + 355MAV060120 VARIABLE SPEED FURNACE

CC5A/CD5AA 042 1.00 0.93 CK3BA 042 0.99 0.94

CD5AA 048 1.00 0.92 048 1.00 0.93 CK3BA 042 0.99 0.95 CK5A/CK5BA 042 0.99 0.94

048 1.00 0.95 CK5A/CK5BW 048 1.00 0.93

CK5A/CK5BA 042 0.99 0.95 —— —

048 1.00 0.95

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 355MAV060080 VARIABLE SPEED FURNACE

CK3BA 042 0.99 0.96

048 1.00 0.95

CK5A/CK5BA 042 0.99 0.96

048 1.00 0.95

COILS + 355MAV060100 VARIABLE SPEED FURNACE

CC5A/CD5AA 042 1.00 0.93

Cooling

—22—

Page 23

DETAILED COOLING CAPACITIES* Continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

597CN048-F, H Outdoor Section With CC5A/CD5AA060 Indoor Section

72 53.5 25.8 4.09 51.5 25.1 4.58 49.4 24.3 5.13 47.1 23.4 5.69 44.7 22.5 6.31

1400

1600

1800

F(A,B)4(A,B)N(F,B,C) 048 0.99 1.02 CK3BA 048 0.97 0.93

See notes on page 25.

67 48.9 32.2 4.04 47.1 31.4 4.53 45.0 30.6 5.05 43.0 29.7 5.62 40.8 28.8 6.23 62 44.6 38.5 4.00 42.9 37.7 4.48 41.0 36.7 4.99 39.0 35.8 5.55 37.0 34.8 6.14 57 41.8 41.8 3.97 40.4 40.4 4.44 39.0 39.0 4.96 37.5 37.5 5.52 35.9 35.9 6.12

72 54.6 26.9 4.17 52.5 26.1 4.67 50.3 25.3 5.21 47.8 24.4 5.78 45.4 23.5 6.41 67 50.0 34.1 4.12 48.0 33.3 4.62 45.9 32.4 5.14 43.7 31.5 5.71 41.4 30.6 6.32 62 45.6 41.0 4.08 43.7 40.1 4.56 41.8 39.1 5.08 39.8 38.1 5.64 37.8 36.9 6.23 57 43.5 43.5 4.06 42.0 42.0 4.55 40.5 40.5 5.06 38.9 38.9 5.63 37.3 37.3 6.23

72 55.5 27.9 4.25 53.2 27.1 4.75 51.0 26.3 5.30 48.5 25.4 5.87 45.9 24.5 6.50 67 50.8 35.8 4.21 48.7 35.0 4.69 46.5 34.1 5.22 44.3 33.2 5.79 42.0 32.3 6.41 62 46.3 43.3 4.16 44.5 42.3 4.64 42.5 41.2 5.17 40.5 39.9 5.73 38.4 38.4 6.33 57 44.9 44.9 4.15 43.4 43.4 4.63 41.8 41.8 5.16 40.1 40.1 5.73 38.3 38.3 6.32

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CC5A/CD5AA 060 1.00 1.00 CE3AA 048 0.97 0.92 CC5A/CD5AC 048 0.98 0.99 060 0.98 0.90

CC5A/CD5AW 048 0.99 1.00 CK3BA 048 0.97 0.92

060 1.01 1.00 060 0.98 0.91 CD5AA 048 0.99 1.00 CK5A/CK5BA 048 0.97 0.92 CE3AA 048 0.99 1.00 060 0.98 0.91

060 1.00 1.00 CK5A/CK5BT 048 0.97 0.92 CF5AA 048 0.99 0.99 060 0.98 0.91 CK3BA 048 0.99 1.00 CK5A/CK5BW 048 0.97 0.92

060 1.00 1.00 CK5A/CK5BX 060 1.00 0.91

CK5A/CK5BA 048 0.99 1.00

060 1.00 1.00 CC5A/CD5AA 060 0.98 0.93

CK5A/CK5BN 048 0.96 0.98 CC5A/CD5AC 048 0.96 0.93

060 1.00 1.00 CC5A/CD5AW 048 0.97 0.93

CK5A/CK5BT 048 0.99 1.00 060 1.00 0.93

060 1.00 1.00 CD5AA 048 0.97 0.93

CK5A/CK5BW 048 0.99 1.00 CE3AA 048 0.97 0.93

CK5A/CK5BX 060 1.01 1.00 060 0.98 0.91

060 1.00 1.03 060 0.98 0.91

FC4(B,C)N(F,B) 048 0.99 1.02 CK5A/CK5BA 048 0.97 0.93

060 1.00 1.03 060 0.98 0.91

FC4(B,C)NB 054 1.01 1.02 CK5A/CK5BT 048 0.97 0.93

070 1.00 1.02 060 0.98 0.91

FG3AAA 048 0.99 1.00 CK5A/CK5BW 048 0.97 0.93

060 1.00 1.00 CK5A/CK5BX 060 1.00 0.91

FK4(C,D)NB 006 1.01 0.94 FK4(C,D)NF 005 0.99 0.95

COILS + 315(A,J)AV048090 VARIABLE SPEED FURNACE CC5A/CD5AC 048 0.96 0.92

CC5A/CD5AC 048 0.96 0.94 CC5A/CD5AW 048 0.97 0.92

CD5AA 048 0.97 0.94 060 1.00 0.92 CE3AA 048 0.97 0.94 CD5AA 048 0.97 0.92

060 0.98 0.92 CE3AA 048 0.97 0.92 CK3BA 048 0.97 0.94 060 0.98 0.90

CK5A/CK5BA 048 0.97 0.94 CK3BA 048 0.97 0.92 CK5A/CK5BT 048 0.97 0.94 060 0.98 0.90

COILS + 315(A,J)AV066110 VARIABLE SPEED FURNACE CK5A/CK5BA 048 0.97 0.92

CC5A/CD5AA 060 0.98 0.93 060 0.98 0.90 CC5A/CD5AC 048 0.96 0.92 CK5A/CK5BT 048 0.97 0.92

CC5A/CD5AW 048 0.97 0.93 060 0.98 0.90

CD5AA 048 0.97 0.93 CK5A/CK5BW 048 0.97 0.92

—— —CK5A/CK5BX 060 1.00 0.90

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 315(A,J)AV066135 VARIABLE SPEED FURNACE

COILS + 315(A,J)AV066155 VARIABLE SPEED FURNACE

CC5A/CD5AA 060 0.98 0.93

Cooling

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

—23—

Page 24

DETAILED COOLING CAPACITIES* Continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

597CN048-F, H Outdoor Section With CC5A/CD5AA060 Indoor Section continued

72 53.5 25.8 4.09 51.5 25.1 4.58 49.4 24.3 5.13 47.1 23.4 5.69 44.7 22.5 6.31

1400

1600

1800

See notes on page 25.

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

COILS + 355MAV042080 VARIABLE SPEED FURNACE

CD5AA 048 0.98 0.97 CD5AA 048 0.98 0.96 CK3BA 048 0.98 0.97 CK3BA 048 0.98 0.96

CK5A/CK5BA 048 0.98 0.97 060 0.98 0.96

COILS + 355MAV060080 VARIABLE SPEED FURNACE

CC5A/CD5AA 060 0.98 0.98 CK5A/CK5BX 060 1.00 0.96

CC5A/CD5AW 060 1.00 0.98

CD5AA 048 0.98 0.98 CC5A/CD5AA 060 0.98 0.96 CK3BA 048 0.98 0.98 CC5A/CD5AW 048 0.98 0.96

CK5A/CK5BA 048 0.98 0.98 060 1.00 0.95

060 0.98 0.98 CK5A/CK5BA 060 0.98 0.96

CK5A/CK5BX 060 1.00 0.98 CK5A/CK5BW 048 0.98 0.96

COILS + 355MAV060100 VARIABLE SPEED FURNACE

CC5A/CD5AC 048 0.96 0.97 —— —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

CC5A/CD5AW 060 1.00 0.96

CK5A/CK5BA 048 0.98 0.96

COILS + 355MAV060120 VARIABLE SPEED FURNACE

CK5A/CK5BX 060 1.00 0.96

Cooling

—24—

Page 25

DETAILED COOLING CAPACITIES* Continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

597CN060-F, G Outdoor Section With CC5A/CD5AW060 Indoor Section

72 63.6 31.1 4.98 61.2 30.3 5.51 58.7 29.3 6.08 56.1 28.4 6.71 53.5 27.4 7.41

1750

2000

2250

F(A,B)4(A,B)N(F,B) 060 1.00 1.04

FC4(B,C)N(F,B) 060 1.00 1.04

NOTE: When the required data fall between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.

* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per ARI standard 210/240-94. If additional tubing length and/or

indoor unit is located above outdoor unit, a slight variation in capacity may occur.

† Total and sensible capacities are net capacities. Blower motor heat has been subtracted. ‡ Sensible capacities shown are based on 80°F (27°C) entering air at the indoor coil. For sensible capacities at other than 80°F (27°C), deduct 835 Btuh (245

kW) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80°F (27°C), or add 835 Btuh (245 kW) per 1000 CFM (480 L/S) of indoor coil air per degree above 80°F (27°C). When the required data falls between the published data, interpolation may be performed.

** Unit kW is total of indoor and outdoor unit kilowatts.

67 58.2 39.2 4.90 56.0 38.3 5.42 53.7 37.4 5.99 51.3 36.4 6.62 48.9 35.4 7.31 62 53.1 47.1 4.83 51.0 46.1 5.34 48.9 45.1 5.90 46.8 44.0 6.53 44.6 42.8 7.21 57 50.4 50.4 4.80 48.8 48.8 5.31 47.2 47.2 5.88 45.5 45.5 6.50 43.7 43.7 7.19

72 64.8 32.5 5.09 62.3 31.6 5.62 59.7 30.6 6.20 57.0 29.7 6.84 54.2 28.6 7.50 67 59.3 41.5 5.01 57.0 40.6 5.53 54.6 39.6 6.11 52.1 38.6 6.73 49.6 37.6 7.43 62 54.2 50.2 4.94 52.0 49.1 5.46 49.8 47.9 6.02 47.6 46.6 6.65 45.4 45.1 7.34 57 52.3 52.3 4.92 50.6 50.6 5.43 48.8 48.8 6.00 47.0 47.0 6.62 45.2 45.2 7.32

72 65.7 33.7 5.20 63.1 32.8 5.73 60.4 31.8 6.31 57.7 30.9 6.94 54.6 29.8 7.60 67 60.2 43.7 5.12 57.8 42.8 5.64 55.3 41.8 6.22 52.8 40.8 6.84 50.2 39.8 7.54 62 55.0 52.9 5.05 52.8 51.6 5.57 50.6 50.2 6.14 48.5 48.5 6.76 46.4 46.4 7.45 57 54.0 54.0 5.03 52.2 52.2 5.55 50.3 50.3 6.12 48.4 48.4 6.75 46.4 46.4 7.45

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CC5A/CD5AW 060 1.00 1.00

CC5A/CD5AA 060 0.96 0.97

CE3AA 060 1.00 1.00

CK3BA 060 0.96 1.00 CC5A/CD5AA 060 0.96 0.95 CK5A/CK5BA 060 0.96 0.98 CC5A/CD5AW 060 0.98 0.95 CK5A/CK5BN 060 0.96 0.98 CE3AA 060 0.96 0.92 CK5A/CK5BX 060 1.00 1.00 CK3BA 060 0.96 0.94

FB4(A,B)NB 070 1.02 1.02

FC4(B,C)NB 070 1.02 1.02

FG3AAA 060 1.00 1.00

FK4(C,D)NB 006 1.02 1.00

COILS + 315(A,J)AV066110 VARIABLE SPEED FURNACE

CC5A/CD5AA 060 0.96 0.95 CK3BA 060 0.96 0.93

CE3AA 060 0.96 0.92 CK5A/CK5BA 060 0.96 0.93

CK3BA 060 0.96 0.93 CK5A/CK5BT 060 0.96 0.93 CK5A/CK5BA 060 0.96 0.93 CK5A/CK5BX 060 0.98 0.92

Capacity Power Capacity Power

Cooling

Indoor

Section Size

CK5A/CK5BT 060 0.96 0.93

CK5A/CK5BX 060 0.98 0.93

COILS + 315(A,J)AV066135 VARIABLE SPEED FURNACE

CK5A/CK5BA 060 0.96 0.94

CK5A/CK5BT 060 0.96 0.94

CK5A/CK5BX 060 0.98 0.93

COILS + 315(A,J)AV066155 VARIABLE SPEED FURNACE

CC5A/CD5AA 060 0.96 0.94

CC5A/CD5AW 060 0.98 0.94

CE3AA 060 0.96 0.91

Cooling

SYSTEM DESIGN SUMMARY

1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01-in. wc.

2. Minimum outdoor operating air temperature without low-ambient operation accessory is 55°F (12.8°C).

3. Maximum outdoor operating air temperature is 125°F (51.7°C).

4. For reliable operation, unit should be level in all horizontal planes.

5. Maximum elevation of indoor coil above or below base of outdoor unit is: Indoor coil above = 50 ft, indoor coil below = 150 ft.

6. For interconnecting refrigerant tube lengths between 50 and 175 ft or 20 ft vertical differential, consult the Residential Split System Long-Line Application Guideline available from equipment distributor.

7. If any refrigerant tubing is buried, provide a minimum 6-in. vertical rise to the valve connections at the unit. Refrigerant tubing lengths up to 36 in. may be buried without further consideration. For buried lines longer than 3 ft, consult your local distributor.

8. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of connector provided.

9. Mismatches of indoor coil capacity more than 1 size larger than outdoor unit capacity may result in inadequate indoor comfort.

10. Do not apply capillary tube indoor coils to these units.

—25—

Page 26

SST

°F

See notes on page 27.

TCG 16.5 15.8 15.0 14.2 13.4 12.6 11.7 SDT 75.0 85.0 95.0 105.0 115.0 125.0 135.0

KW 0.781 0.900 1.03 1.18 1.35 1.52 1.71

TCG 18.2 17.4 16.6 15.8 14.9 14.0 13.1 SDT 75.1 85.1 95.1 105.0 115.0 125.0 135.0

KW 0.781 0.901 1.03 1.18 1.35 1.53 1.72

TCG 20.0 19.2 18.3 17.4 16.5 15.5 14.6 SDT 75.3 85.3 95.3 105.0 115.0 125.0 135.0

KW 0.784 0.904 1.04 1.19 1.35 1.53 1.73

TCG 21.9 21.0 20.1 19.1 18.1 17.1 16.1 SDT 76.1 86.0 96.0 106.0 116.0 126.0 136.0

KW 0.794 0.913 1.05 1.20 1.36 1.54 1.74

TCG 23.9 22.9 21.9 20.9 19.9 18.8 17.7 SDT 77.0 86.9 96.9 107.0 117.0 127.0 137.0

KW 0.806 0.924 1.06 1.21 1.38 1.56 1.76

TCG 26.0 25.0 23.9 22.8 21.7 20.6 19.4 SDT 78.3 88.1 98.0 108.0 118.0 128.0 138.0

KW 0.822 0.941 1.07 1.23 1.39 1.58 1.78

TCG 21.5 20.6 19.5 18.4 17.3 16.2 15.2 SDT 75.0 85.0 95.0 105.0 115.0 125.0 135.0

KW 1.19 1.34 1.50 1.68 1.87 2.08 2.33

TCG 23.6 22.8 21.7 20.6 19.4 18.2 17.0 SDT 75.0 85.0 95.0 105.0 115.0 125.0 135.0

KW 1.17 1.32 1.49 1.67 1.86 2.08 2.32

TCG 25.9 25.0 24.0 22.9 21.6 20.3 19.0 SDT 75.0 85.0 95.0 105.0 115.0 125.0 135.0

KW 1.15 1.30 1.47 1.65 1.85 2.07 2.31

TCG 28.2 27.4 26.4 25.3 24.0 22.6 21.2 SDT 75.0 85.0 95.0 105.0 115.0 125.0 135.0

KW 1.12 1.28 1.45 1.63 1.84 2.06 2.30

TCG 30.6 29.9 28.9 27.8 26.5 25.1 23.6 SDT 75.0 85.1 95.1 105.0 115.0 125.0 135.0

KW 1.10 1.25 1.42 1.61 1.82 2.04 2.29

TCG 33.2 32.4 31.5 30.4 29.1 27.6 26.1 SDT 75.4 85.3 95.3 105.0 115.0 125.0 135.0

KW 1.07 1.22 1.39 1.59 1.80 2.03 2.27

TCG 27.5 26.3 25.0 23.7 22.4 20.9 19.4 SDT 75.0 85.0 95.0 105.0 115.0 125.0 135.0

KW 1.41 1.65 1.91 2.20 2.52 2.86 3.22

TCG 30.3 29.0 27.7 26.3 24.8 23.3 21.8 SDT 75.1 85.1 95.1 105.0 115.0 125.0 135.0

KW 1.36 1.60 1.86 2.15 2.48 2.82 3.20

TCG 33.3 31.9 30.5 29.0 27.5 25.9 24.2 SDT 75.4 85.3 95.3 105.0 115.0 125.0 135.0

KW 1.32 1.55 1.81 2.11 2.43 2.79 3.17

TCG 36.4 35.0 33.4 31.9 30.2 28.6 26.8 SDT 76.1 86.0 96.0 106.0 116.0 126.0 136.0

KW 1.28 1.51 1.78 2.07 2.40 2.75 3.14

TCG 39.7 38.2 36.5 34.9 33.1 31.4 29.5 SDT 77.0 86.9 96.8 107.0 117.0 127.0 137.0

KW 1.25 1.48 1.74 2.03 2.36 2.72 3.12

TCG 43.2 41.5 39.8 38.0 36.2 34.3 32.3 SDT 78.4 88.1 98.0 108.0 118.0 128.0 138.0

KW 1.22 1.45 1.71 2.00 2.33 2.69 3.09

TCG 33.4 31.9 30.3 28.7 27.1 25.4 23.6 SDT 75.0 85.0 95.0 105.0 115.0 125.0 135.0

KW 1.76 1.99 2.24 2.52 2.83 3.16 3.52

TCG 36.8 35.2 33.5 31.8 30.1 28.3 26.4 SDT 75.4 85.2 95.2 105.0 115.0 125.0 135.0

KW 1.76 1.98 2.23 2.51 2.82 3.16 3.52

TCG 40.3 38.6 36.9 35.1 33.2 31.3 29.3 SDT 76.2 86.0 95.9 106.0 116.0 126.0 136.0

KW 1.76 1.98 2.23 2.51 2.82 3.16 3.53

TCG 44.0 42.3 40.4 38.5 36.5 34.5 32.3 SDT 77.4 87.1 96.9 107.0 117.0 127.0 137.0

KW 1.77 1.99 2.24 2.52 2.83 3.18 3.55

TCG 48.0 46.1 44.1 42.0 39.9 37.8 35.5 SDT 78.9 88.5 98.3 108.0 118.0 128.0 138.0

KW 1.78 2.00 2.26 2.54 2.85 3.19 3.57

TCG 52.1 50.1 48.0 45.8 43.6 41.3 38.9 SDT 80.5 90.1 99.7 109.0 119.0 129.0 139.0

KW 1.80 2.02 2.28 2.56 2.87 3.22 3.60

55 65 75 85 95 105 115

CONDENSER ONLY RATINGS*

CONDENSER ENTERING AIR TEMPERATURES °F

597C018-F, G

597C024-F, G

597C030-F, G

597C036-F, G

—26—

Page 27

CONDENSER ONLY RATINGS* Continued

SST

°F

TCG 38.6 36.8 35.0 33.2 31.4 29.6 27.9

* ARI listing applies only to systems shown in Ratings and Performance table.

KW — Total Power (kW) SDT — Saturated Temperature Leaving Compressor (°F) SST — Saturated Temperature Entering Compressor (°F) TCG — Gross Cooling Capacity (1000 Btuh).

SDT 75.0 84.9 95.0 105.0 115.0 125.0 135.0

KW 2.16 2.42 2.71 3.03 3.39 3.80 4.25

TCG 42.7 40.8 38.8 36.9 34.9 33.0 31.1 SDT 75.0 85.0 95.0 105.0 115.0 125.0 135.0

KW 2.15 2.40 2.70 3.02 3.38 3.79 4.24

TCG 47.0 45.0 43.0 40.8 38.7 36.6 34.5 SDT 75.2 85.0 95.0 105.0 115.0 125.0 135.0

KW 2.14 2.39 2.68 3.00 3.37 3.77 4.22

TCG 51.4 49.3 47.2 45.0 42.7 40.5 38.2 SDT 76.7 86.2 95.8 105.0 115.0 125.0 135.0

KW 2.15 2.40 2.68 3.00 3.36 3.75 4.20

TCG 55.9 53.7 51.5 49.2 46.8 44.4 42.0 SDT 78.4 87.8 97.3 107.0 116.0 126.0 136.0

KW 2.18 2.43 2.71 3.03 3.38 3.77 4.21

TCG 60.7 58.4 56.0 53.6 51.1 48.5 46.0 SDT 80.3 89.6 99.1 109.0 118.0 128.0 137.0

KW 2.21 2.46 2.75 3.07 3.42 3.81 4.25

TCG 46.4 44.2 42.0 39.7 37.4 35.0 32.5 SDT 75.4 85.1 95.0 105.0 115.0 125.0 135.0

KW 2.29 2.64 3.03 3.48 3.96 4.48 5.03

TCG 50.9 48.6 46.3 43.9 41.5 39.0 36.4 SDT 77.0 86.5 96.1 106.0 115.0 125.0 135.0

KW 2.30 2.65 3.04 3.47 3.95 4.46 5.02

TCG 55.6 53.2 50.8 48.2 45.7 43.0 40.3 SDT 78.8 88.3 97.8 107.0 117.0 126.0 136.0

KW 2.33 2.68 3.07 3.51 3.98 4.50 5.05

TCG 60.6 58.0 55.4 52.7 50.0 47.2 44.3 SDT 80.8 90.2 99.7 109.0 119.0 128.0 138.0

KW 2.35 2.71 3.11 3.55 4.03 4.55 5.12

TCG 65.9 63.1 60.4 57.5 54.6 51.6 48.5 SDT 82.9 92.3 102.0 111.0 121.0 130.0 139.0

KW 2.39 2.75 3.15 3.60 4.09 4.62 5.19

TCG 71.4 68.5 65.6 62.5 59.4 56.2 53.0 SDT 85.2 94.5 104.0 113.0 123.0 132.0 141.0

KW 2.42 2.79 3.20 3.65 4.14 4.68 5.27

TCG 55.0 52.6 50.2 47.6 45.0 42.4 39.9 SDT 76.1 85.8 95.6 105.0 115.0 125.0 135.0

KW 2.88 3.25 3.66 4.13 4.61 5.08 5.56

TCG 60.2 57.7 55.1 52.3 49.6 46.9 44.1 SDT 77.8 87.4 97.1 107.0 116.0 126.0 136.0

KW 2.92 3.29 3.70 4.17 4.65 5.12 5.59

TCG 65.6 63.0 60.3 57.3 54.4 51.4 48.5 SDT 79.6 89.2 98.8 108.0 118.0 128.0 137.0

KW 2.96 3.34 3.75 4.23 4.71 5.19 5.67

TCG 71.3 68.7 65.8 62.6 59.5 56.4 53.2 SDT 81.5 91.2 101.0 110.0 120.0 129.0 139.0

KW 3.01 3.39 3.82 4.30 4.78 5.27 5.75

TCG 77.3 74.5 71.5 68.2 64.8 61.5 58.2 SDT 83.6 93.2 103.0 112.0 122.0 131.0 141.0

KW 3.05 3.45 3.88 4.37 4.86 5.36 5.85

TCG 83.6 80.7 77.5 74.0 70.5 67.0 63.5 SDT 85.8 95.4 105.0 114.0 124.0 133.0 143.0

KW 3.11 3.51 3.95 4.45 4.95 5.45 5.96

55 65 75 85 95 105 115

CONDENSER ENTERING AIR TEMPERATURES °F

597C042-F, G

597C048-F, H

597C060-F, G

—27—

Page 28

GUIDE SPECIFICATIONS

Air-Cooled, Split-System

Air Conditioner

597C

1-1/2 to 5 Tons Nominal

GENERAL

System Description

Outdoor-mounted, air-cooled, split-system air conditioner unit suitable for ground or rooftop installation. Unit consists of a hermetic compressor, an air-cooled coil, propeller-type condenser fan, and a control box. Unit will discharge supply air upward as shown on contract drawings. Unit will be used in a refrigeration circuit to match up to a packaged fan coil or coil unit.

Quality Assurance

Unit will be rated in accordance with the latest edition of ARI Standard 210.

Unit will be certiﬁed for capacity, efﬁciency, and listed in the latest ARI directory.

Unit construction will comply with latest edition of ANSI/ ASHRAE and with NEC.

Unit will be constructed in accordance with UL standards and will carry the UL label of approval. Unit will have c-UL approval.

Unit cabinet will be capable of withstanding Federal Test Method Standard No. 141 (Method 6061) 500-hr salt spray test.

Air-cooled condenser coils will be leak tested at 150 psig and pressure tested at 300 psig.

Unit constructed in ISO 9001 approved facility.

Delivery, Storage, and Handling

Unit will be shipped as single package only and is stored and handled per unit manufacturer’s recommendations.

Warranty (for inclusion by specifying engineer)

U.S. and Canada only.

PRODUCTS

Equipment

Factory-assembled, single-piece, air-cooled air conditioner unit. Contained within the unit enclosure will be all factory wiring, piping, controls, compressor, refrigerant charge (R22), and special features required prior to ﬁeld start-up.

Unit Cabinet Unit cabinet will be constructed of galvanized steel, bonderized,

and coated with a powder coat paint.

ans

F Condenser fan will be direct-drive propeller type, discharging air

upward.

Condenser fan motors will be totally enclosed, 1-phase type with class B insulation and permanently lubricated bearings.

Shafts will be corrosion resistant. Fan blades will be statically and dynamically balanced. Condenser fan openings will be equipped with steel wire safety

guards. Compressor Compressor will be hermetically sealed. Compressor will be mounted on rubber vibration isolators. Condenser Coil Condenser coil will be air cooled. Coil will be constructed of aluminum ﬁns mechanically bonded

to copper tubes which are then cleaned, dehydrated, and sealed.

igeration Components

Refr Refrigeration circuit components will include liquid line shutoff

valve with sweat connections, suction line shutoff valves with sweat connections, system charge of R22 refrigerant, and compressor oil.

Operating Characteristics

The capacity of the unit will meet or exceed _____ Btuh at a suction temperature of _____ °F. The power consumption at full load will not exceed _____ kW.

Combination of the unit and the evaporator or fan coil unit will have a total net cooling capacity of _____ Btuh or greater at conditions of _____ CFM entering air temperature at the evaporator at _____ °F wet bulb and _____ °F dry bulb, and air entering the unit at _____ °F.

The system will have an SEER of _____ Btuh/watt or greater at DOE conditions.

Electrical Requirements

Nominal unit electrical characteristics will be _____ v, single phase, 60 hz. The unit will be capable of satisfactory operation within voltage limits of _____ v to _____ v.

Unit electrical power will be single point connection. Control circuit will be 24v.

Special Features

Refer to section of this literature identifying accessories and descriptions for speciﬁc features and available enhancements.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

UNIT MUST BE INSTALLED IN ACCORDANCE

WITH INSTALLATION INSTRUCTIONS

Cancels: PDS 597C.18.8

—28— PRINTED IN U.S.A. Catalog No. 5259-705 2-03
