NDTES!
1. ALL DIMENSIONS ARE IN
INCHES. THOSE IN PARENTHESES
ARE CENTIMETERS.
2. LOCATION DIMENSIONS
ARE ALL ±1/2*.
3. GAS TRAIN, CONTROL AND
BURNER CONFIGURATION WILL
VARY DEPENDING ON JOB
SPECIFICATIONS 8. CONDITIONS.
4. DIMENSIONS ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
CONSULT FACTORY FOR
CERTIFIED DIMENSIONS.
5. ALL FLANGES ARE 150#
UNLESS OTHERWISE NOTED,
FLANGES TO STRADDLE
CENTER LINE.

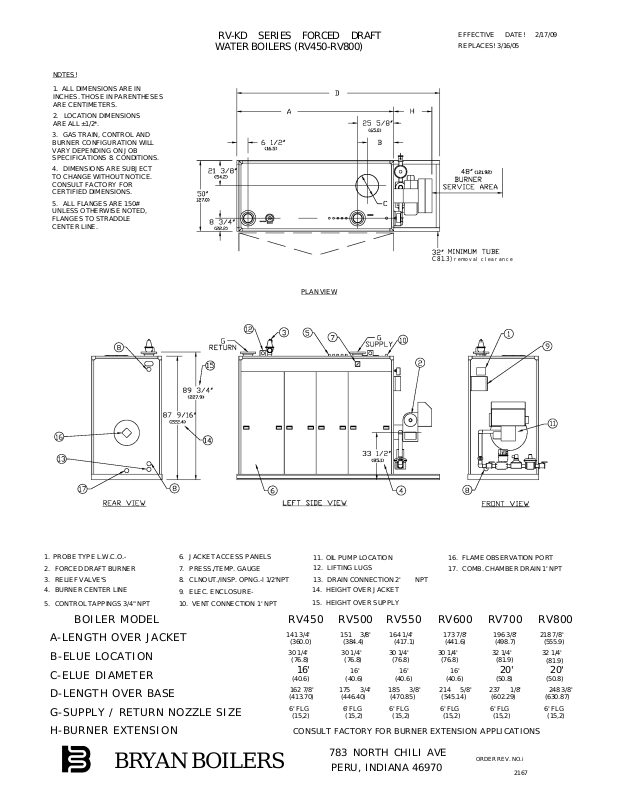

RV-KD SERIES FORCED DRAFT
WATER BOILERS (RV450-RV800)
PLAN VIEW
EFFECTIVE DATE! 2/17/09
REPLACES! 3/16/05
C81.3) removal clearance
1. PROBE TYPE L.W.C.O.-
2. FORCED DRAFT BURNER
3. RELIEF VALVE'S
4. BURNER CENTER LINE
5. CONTROL TAPPINGS 3/4" NPT
6. JACKET ACCESS PANELS
7. PRESS./TEMP. GAUGE
8. CLNOUT./INSP. OPNG.-l 1/2'NPT
9. ELEC. ENCLOSURE-
10. VENT CONNECTION 1' NPT
BOILER MODEL
A-LENGTH OVER JACKET
B-ELUE LOCATION
C-ELUE DIAMETER
D-LENGTH OVER BASE
G-SUPPLY / RETURN NOZZLE SIZE
H-BURNER EXTENSION
BRYAN BOILERS
11. OIL PUMP LOCATION
12. LIFTING LUGS
13. DRAIN CONNECTION 2'
14. HEIGHT OVER JACKET
15. HEIGHT OVER SUPPLY
NPT
16. FLAME OBSERVATION PORT
17. COMB. CHAMBER DRAIN 1' NPT
RV450 RV500 RV550 RV600 RV700 RV800
141 3/4'
(360.0)
30 1/4'
(76.8)
16'
(40.6)
162 7/8'
(413.70)
6' FLG
(15,2)
CONSULT FACTORY FOR BURNER EXTENSION APPLICATIONS
151 3/8'
(384.4)
30 1/4'
(76.8)
16'
(40.6)
175 3/4'
(446.40)
6' FLG
(15,2)
164 1/4'
(417.1)
30 1/4'
(76.8)
16'
(40.6)
185 3/8'
(470.85)
6' FLG
(15,2)
30 1/4'
(76.8)
214 5/8'
(545.14)
6' FLG
783 NORTH CHILI AVE
PERU, INDIANA 46970
173 7/8'
(441.6)
16'
(40.6)
(15,2)
196 3/8'
(498.7)
32 1/4'
(81.9)
20'
(50.8)
237 1/8'
(602.29)
6' FLG
(15,2)
ORDER REV. NO.i
2167
218 7/8'
(555.9)
32 1/4'
(81.9)
20'
(50.8)
248 3/8'
(630.87)
6' FLG
(15,2)
BRYAN BOILERS
RV SERIES FORCED DRAFT
Form # >> 2167
Date >> 2/17/09
KNOCKDOWN WATER BOILERS
BOILER MODEL RV450 RV500 RV550 RV600 RV700 RV800
INPUT MBH 4,500 5,000 5,500 6,000 7,000 8,000
(KW) 1,318.5 1,465.0 1,611.5 1,758.0 2,051.0 2,344.0
OUTPUT* MBH 3,780 4,200 4,620 5,040 5,880 6,720
(KW) 1,107.5 1,230.6 1,353.6 1,476.7 1,722.8 1,968.9
BOILER HORSEPOWER* HP 113 125 138 151 176 201
(KW) 1,106.6 1,229.6 1,352.5 1,475.5 1,721.4 1,967.3
TUBE DIAMETER INCHES 1.50 1.50 1.50 1.50 1.50 1.50
(CM) 3.81 3.81 3.81 3.81 3.81 3.81
NUMBER OF TUBES 61 67 75 81 95 109
PRESSURE VESSEL
VOLUME GAL 181 200 216 236 278 309
(L) 685.1 757.0 817.6 893.3 1,052.2 1,169.6
HEATING SURFACE SQ FT 544 597 668 722 847 972
(SQ M) 50.6 55.5 62.1 67.1 78.7 90.3
OPERATING WEIGHT LBS 9,979 10,897 11,771 12,648 14,428 16,176
(KG) 4,526.5 4,943.1 5,339.2 5,736.9 6,544.4 7,337.5
SHIPPING WEIGHT LBS 8,470 9,230 9,970 10,680 12,110 13,600
(KG) 3,842.0 4,186.7 4,522.4 4,844.4 5,493.1 6,169.0
Output and Boiler HP based on an average natural gas combustion effiiciency.
