NDTESi
1. ALL DIMENSIONS ARE IN
INCHES. THOSE IN PARENTHESES
ARE CENTIMETERS.
3. LOCATION DIMENSIONS
ARE ALL ±1/3'.
3. GAS TRAIN, CONTROL AND
BURNER CONFIGURATION WILL
VARY DEPENDING ON JOB
SPECIFICATIONS & CONDITIONS.
4. DIMENSIONS ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
CONSULT FACTORY FOR
CERTIFIED DIMENSIONS.
5. ALL FLANGES ARE 150#
UNLESS OTHERWISE NOTED,
FLANGES TO STRADDLE
CENTER LINE.

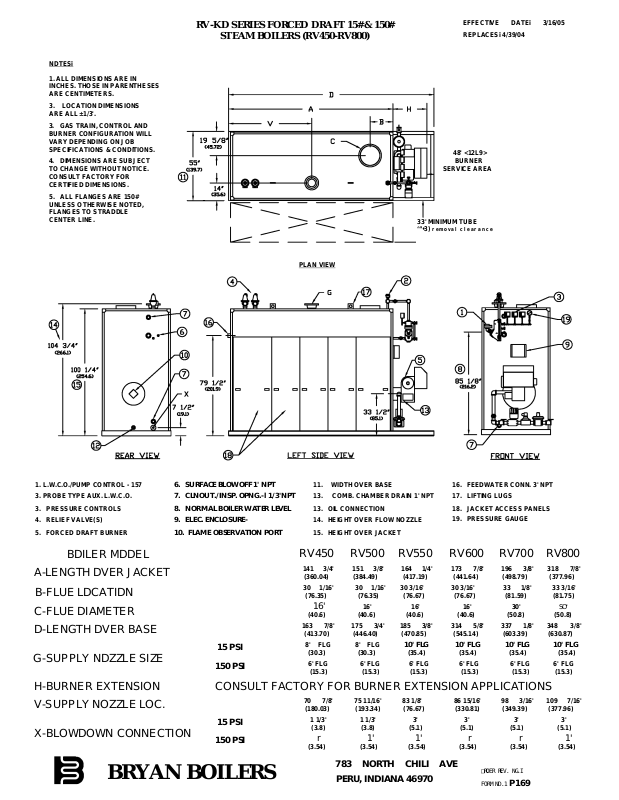

RV-KD SERIES FORCED DRAFT 15# & 150#
STEAM BOILERS (RV450-RV800)
PLAN VIEW
EFFECTIVE DATEi 3/16/05
REPLACESi 4/39/04
48' <12L9>
BURNER
SERVICE AREA
33' MINIMUM TUBE
‘“•3) removal clearance
1. L.W.C.O./PUMP CONTROL - 157
3. PROBE TYPE AUX. L.W.C.O.
3. PRESSURE CONTROLS
4. RELIEF VALVE(S)
5. FORCED DRAFT BURNER
BDILER MDDEL
A-LENGTH DVER JACKET
B-FLUE LDCATIDN
C-FLUE DIAMETER
D-LENGTH DVER BASE
G-SUPPLY NDZZLE SIZE
6. SURFACE BLOWOFF 1' NPT
7. CLNOUT./INSP. OPNG.-l 1/3'NPT
8. NORMAL BOILER WATER LEVEL
9. ELEC. ENCLOSURE-
10. FLAME OBSERVATION PORT
15 PSI
150 PSI
11. WIDTH OVER BASE
13. COMB. CHAMBER DRAIN 1' NPT
13. OIL CONNECTION
14. HEIGHT OVER FLOW NOZZLE
15. HEIGHT OVER JACKET
16. FEEDWATER CONN. 3' NPT
17. LIFTING LUGS
18. JACKET ACCESS PANELS
19. PRESSURE GAUGE
RV450 RV500 RV550 RV600 RV700 RV800
141 3/4'
(360.04)
30 1/16'
(76.35)
16'
(40.6)
163 7/8'
(413.70)
8' FLG
(30.3)
6' FLG
(15.3)
151 3/8'
(384.49)
30 1/16'
(76.35)
16'
(40.6)
175 3/4'
(446.40)
8' FLG
(30.3)
6' FLG
(15.3)
164 1/4'
(417.19)
30 3/16'
(76.67)
16'
(40.6)
185 3/8'
(470.85)
10' FLG
(35.4)
6' FLG
(15.3)
173 7/8'
(441.64)
30 3/16'
(76.67)
16'
(40.6)
314 5/8'
(545.14)
10' FLG
(35.4)
6' FLG
(15.3)
196 3/8'
(498.79)
33 1/8'
(81.59)
30'
(50.8)
337 1/8'
(603.39)
10' FLG
(35.4)
6' FLG
(15.3)
H-BURNER EXTENSION CONSULT FACTORY FOR BURNER EXTENSION APPLICATIONS
V-SUPPLY NOZZLE LOC.
X-BLOWDOWN CONNECTION
BRYAN BOILERS
15 PSI
150 PSI
70 7/8'
(180.03)
1 1/3'
(3.8)
r
(3.54)
75 11/16'
(193.34)
1 1/3'
(3.8)
1'
(3.54)
83 1/8'
(76.67)
3'
(5.1)
(3.54)
1'
783 NORTH CHILI AVE
PERU, INDIANA 46970
86 15/16'
(330.81)
3'
(5.1)
r
(3.54)
98 3/16'
(349.39)
3'
(5.1)
r
(3.54)
□ROER REV. NG.I
FORM ND.1 P169
318 7/8'
(377.96)
33 3/16'
(81.75)
SO'
(50.8)
348 3/8'
(630.87)
10' FLG
(35.4)
6' FLG
(15.3)
109 7/16'
(377.96)
3'
(5.1)
1'
(3.54)
BRYAN BOILERS Rv SERIES FORCED DRAFT # >> „
Date >> 3/16/05
KNOCKDOWN STEAM BOILERS
BOILER MODEL RV450 RV500 RV550 RV600 RV700 RV800
2
J,6!
INPUT
OUTPUT*
BOILER HORSEPOWER
TUBE DIAMETER
NUMBER OF TUBES 61 67 75 81 95 109
PRESSURE VESSEL
VOLUME
HEATING SURFACE
MBH 4,500 5,000 5,500 6,000 7,000 8,000
(KW) 1,318.5 1,465.0 1,611.5 1,758.0 2,051.0 2,344.0
MBH 3,600 4,000 4,400 4,800 5,600 6,400
(KW) 1,054.8 1,172.0 1,289.2 1,406.4 1,640.8 1,875.2
HP 108 120 131 143 167 191
(KW) 1,058 1,176 1,284 1,401 1,637 1,872
INCHES 1.50 1.50 1.50 1.50 1.50 1.50
(CM) 3.81 3.81 3.81 3.81 3.81 3.81
GAL 198 216 237 255 294 333
(L) 749.4 817.6 897.0 965.2 1,112.8 1,260.4
SQ FT 544 597 688 722 847 972
STEAM OUTPUT*
OPERATING WEIGHT
SHIPPING WEIGHT
(SQ M) 50.6 55.5 63.9 67.1 78.7 90.3
LBS/HR 3,711 4,124 4,536 4,948 5,773 6,598
(KG/HR) 1,683.5 1,870.5 2,057.6 2,244.6 2,618.7 2,992.8
LBS 10,261 11,611 12,312 13,622 15,512 17,392
(KG) 4,654.5 5,266.9 5,584.5 6,178.8 7,036.2 7,889.1
LBS 8,610 9,810 10,335 11,495 13,060 14,615
(KG) 3,905.5 4,449.8 4,688.0 5,214.1 5,924.0 6,629.4
Output based on nominal 80% of input. Actual combustion efficiencies will vary and are fuel dependant.
