Bruno SRE-1550 Installation

Download

SRE-1550 ELECTRA-RIDE

STAIRWAY ELEVATOR

INSTALLATION MANUAL

www.bruno.com

1780 EXECUTIVE DR., P.O., BOX 84, OCONOMOWOC, WI 53066 USA

Technical Service

DEALER:

TEL.: (262) 567-4990 FAX: (262) 953-5501

Toll free number valid throughout the U.S. and Canada

Bruno invites your calls at: 1-800-882-8183

email: service@bruno.com Technical Service fax: 262-953-5503

MAN-1550-1 UL

REVISED 06-18-2004

IMPORTANT NOTES

The warranty for the Electra-Ride™ II

Stairway Elevator is

rendered null and void

if the unit is installed by

anyone other than an authorized Bruno dealer.

This stairway elevator is intended

for indoor use only

in a heated, enclosed location

above 35 F (2 C).

Electra-Ride™ is a trademark of Bruno Independent Living Aids, Inc.® . The Electra-Ride™ II, #5,230,405 is covered by one or more U.S. Patents

and/or U.S. Patents Pending.

SRE-1550 UL 06-18-2004

TABLE OF CONTENTS

IMPORTANT NOTES................................................................................................ 2

REGULATORY INFORMATION............................................................................... 4

SPECIFICATIONS..................................................................................................... 5

INTRODUCTION........................................................................................................ 7

CARTON CONTENTS........................................................................................ 8

OVERVIEW................................................................................................................ 9-10

INSTALLATION ........................................................................................................ 11-46

Tools Necessary for Installation....................................... 11

Bumper Bracket Installation.............................................. 12

Fitting the Rail...................................................................... 12

Application Guide................................................................ 13-14

Cutting the Rail.................................................................... 15

Rail Joint Assembly............................................................ 16

Positioning Foot Clamp Assemblies.............................. 17-18

Mount the Carriage on the Upper Rail............................. 19

Adjust the Carriage Angle.................................................. 19

Seat, Footrest and Arm Assemblies............................... 20-23

Final Limit Switch and Ramp Actuation.......................... 24-25

Trial Run............................................................................... 2 6

Call/Send Transmitter/IR/Residential............................. 27-31

Circuit Board Diagnostics-Residential........................... 32-33

Conversion to Right-Hand Installation-Residential...... 34

Call/Send Transmitter/RF/Commercial.......................... 3 5

Circuit Board Diagnostics-Commercial.......................... 36-37

Conversion to Right-Hand Installation-Commercial.... 38

Testing the Call/Send Transmitters................................. 39

Upper Bumper Bracket...................................................... 40

Lubrication............................................................................ 40

Charger Mounting and Leads........................................... 41-42

Speed Adjustment.............................................................. 4 4

Mounting the Call/Send Antenna (Commercial Units). 45

Overspeed............................................................................ 46

ELECTRICAL............................................................................................................. 47-48

Circuit Breaker..................................................................... 4 7

Fuse....................................................................................... 47-48

Battery Charger LED's And Fuse...................................... 48

LONG-TERM STORAGE.......................................................................................... 49

YEARLY MAINTENANCE OPERATIONS............................................................... 50

TROUBLESHOOTING.............................................................................................. 51-52

HARDWARE ............................................................................................................. 53-57

WIRING SCHEMATICS............................................................................................ 58-59

EXPLODED VIEW AND BILL OF MATERIALS..................................................... 60-75

LIMITED WARRANTY.............................................................................................. 76

SRE-1550 UL 06-18-2004

REGULATORY INFORMATION

FCC REGULATIONS

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the of the following measures:

Reorient or relocate receiving antenna.

Increase separation between equipment and receiver.

Consult your dealer or an experienced radio/TV technician.

Underwriters Laboratories, Inc. Regulations:

Installation of this lift is intended to be conducted in Accordance with ANSI ASME A17.5; A17.1, Part XX (Commercial) or Part XXI (Residential); and the National Electric Code NFPA 70.

SRE-1550 UL 06-18-2004

SPECIFICATIONS

SRE-1550 ELECTRA-RIDE™ II

Weight Capacity: 350 lbs. (159 kg)

Variable Speed: 0 to 38 feet per minute (0 to12 m/mn)

Power Source : two (2) 12-volt sealed, maintenance-free batteries

with 24-volt continuous-duty charger

Motor: 24 VDC, 2-pole, 1.02 hp

Drive: self-locking gearbox, rack and pinion drive

Control: constant pressure (armrest and two remotes)

Brake: self-locking worm gear

Maximum Incline: 45 degrees

Rail: steel channel with integral drive gear rack

Seat Swivel: 0, 45, and 90 degrees, both directions, at top

and at bottom of rail

Power Supply: 24 VDC battery charger powered by 120V wall outlet

SRE-1550 UL 06-18-2004

This page intentionally left blank.

SRE-1550 UL 06-18-2004

INTRODUCTION

Thank you for purchasing an SRE-1550 Electra-RideTM II Stairway Elevator. Be sure to check carton contents for shipping damage as soon as they are received. Also, check the carton contents against the packing list before leaving the shop to install product on site. Report any discrepancies to bruno independent living aids immediately.

Reading through the installation manual before installing this unit will enable you to install the elevator more quickly and will help you avoid the frustration of getting to the job site only to discover that you are missing a critical tool or piece of equipment.

MATERIAL DATA SAFETY SHEET(S) ON

MATERIALS USED ON THIS UNIT CAN BE

REQUESTED THROUGH OUR TECHNICAL SERVICE

DEPARTMENT

This unit is covered by one or more US Patents and/or has U.S. Patents Pending.

SRE-1550 UL 06-18-2004

NOTE:

CARTON CONTENTS

The ELECTRA-RIDETM II is shipped in 5 cartons. Check the contents of the cartons to be sure you have all of the components before beginning an installation.

CHECK CARTON

CONTENTS FOR

SHIPPING DAMAGE

IMMEDIATELY UPON

RECEIPT

*MSDS (Material Safety

Data Sheet) available

from Bruno upon request. Contact

Service

Department

Check the carton contents for shipping damage upon receipt. Damage claims must be filed by the dealer, not the manufacturer. Bruno Independent Living Aids cannot be responsible for shipping damage.

CARTON 1

[ ] 1 COMPLETE CARRIAGE ASSEMBLY

CARTON 2

[ ] 1 Tube [ ] 1 FINAL LIMIT SWITCH RAMP ASSEMBLY [ ] 1 BATTERY CHARGER [ ] 2 BUMPER ASSEMBLIES

SRE-K-1553 BUMPER ASSEMBLY PARTS KIT

[ ] 4 M8 EXT. TOOTH WASHER [ ] 4 M8 X 1.25 X 20mm LG. HEX HD. CAP SCREW [ ] 4 M8 X 1.25 METRIC HEX NUT (PLATED)

[ ] 4 VELCRO STRIPS (2.5" EA.) [ ] 10 11" LG WIRE TIES [ ] 32 SHEET METAL SCREWS (M 6.3 X 50 MM)(16' RAIL);

[ ] CLAMP SETS:

UPON REQUEST CLAMPS, ADJUSTABLE, 9 LBS. EA.

[ ]

SRE-K-1501 ELECTRICAL PARTS KIT

[ ] 1 CHARGER HOOKUP WIRE HARNESS [ ] 1 FUSE (MDL3.5A TIME-DELAY)

[ ] 1 SEAT ASSEMBLY [ ] 1 FOOTREST ASSEMBLY [ ] 1 ANTENNA [ ] 2 CALL/SEND TRANSMITTERS [ ] 2 MOUNTING PLATES, CALL/SEND TRANSMITTERS

WHITE LITHIUM GREASE (16' RAIL)

40 FOR (20' RAIL)

• 9 (16' RAIL) • 11 (20' RAIL) • 13 (24' RAIL)

• TBD** (CUSTOM RAIL) **DEPENDS UPON RAIL LENGTH

CARTON 3

[ ] 1 SRE-K-2701 RESIDENTIAL

---OR---

***NOTE:

[ ] 1 SRE-K-0055A COMMERCIAL CALL/SEND KIT

Rail sections must have

matching numbers

[ ] 1 EA. RAIL SECTION ***

stamped on the

sections.

[ ] 1 EA. RAIL SECTION *** [ ] 1 EA. JOINT PLATE

SRE-K-1502 HARDWARE KIT (JOINT PLATE)

[ ] 8 EA. M6 X 16 FLAT HEAD SCREWS [ ] 8 EA. M6 HEX NUTS

CALL/SEND HARDWARE KIT

INSTALLING CAL

CARTON 4

CARTON 5

SRE-1550 UL 06-18-2004

OVERVIEW

OVERVIEW OF INSTALLATION

Installation of the ELECTRA-RIDETM II Stairway Elevator consists of the following:

* Determine whether the elevator should be a left- or right-side installation. "Left" or "right"

installation is determined by the side of the stairway on which the rail is installed (viewed from the bottom of the stairs). THE GEAR RACK WILL BE TOWARD THE CENTER OF THE STAIRS. Unless specified otherwise, Bruno Stairway Elevators are set up for left-side installation when shipped, but can easily be converted to right-side installation. Instructions for converting the unit for right-hand installation are included later in this manual.

* Identify and locate lower rail section and bumper bracket assembly.

* Assemble and tighten the rail joint. CAUTION: RAILS CANNOT BE MIXED.

CHECK ID NUMBERS STAMPED AT ENDS OF RAILS.

* Determine the correct length for the rail (using Steps 2 & 4 from the APPLICATION

GUIDE), and cut the rail.

* Install lower bumper assembly.

* Position rail on left or right side of stairway using rail clamp assemblies.

* Manually mount the carriage on the upper rail.

* Adjust the carriage angle by loosening the four angle adjustment bolts.

* Install seat assembly and make electrical connections.

* Secure the footrest.

* When installing a right-side ELECTRA-RIDE

Operation.

* Remove one motor cover (right-side installation only). Reverse the motor leads and set

the two switches to reverse the direction of the Elevator.

* Perform a trial run of the ELECTRA-RIDETM II to determine final location of rail.

II, follow instructions for Reversing

SRE-1550 UL 06-18-2004

OVERVIEW

OVERVIEW OF INSTALLATION

OVERVIEW (CON'T.)

* Determine the appropriate location for the remaining mounting clamps and

brackets for attaching the rail to the stairs then loosely assemble the clamps and brackets to the Stairway Elevator Rail.

* Adjust and tighten the rail clamps and mounting brackets.

* Anchor the mounting brackets to the stairs.

* Locate and drill holes for the top bumper bracket.

* Install the top bumper bracket.

* Determine where the charger will be positioned, and install rail wire lead

accordingly.

* Position battery charger at upper or lower landing.

* Route wire to household outlet.

* Mount remote call/send transmitters.

* Test unit for proper operation.

* Train customer in safe and convenient operation of the Stairway Elevator.

REMEMBER:

No installation is complete until the customer has been trained to use the Elevator smoothly and safely. After demonstrating correct operation, have the customer operate the Elevator several times while you are available to answer questions.

BE SURE THE CUSTOMER UNDERSTANDS ALL SAFETY ASPECTS OF USING THE ELEVATOR. Patience and thoroughness in this phase of the installation are often

rewarded with repeat business and customer referrals.

SRE-1550 UL 06-18-2004

Tools Necessary for Installation

[ ] Protractor level, builder's level

[ ] Socket set, metric (10 mm through 22 m)

[ ] Ratchet, with 6" extension

INSTALLATION

NOTE:

THE STANDARD

STAIRWAY ELEVATOR IS

SUITABLE FOR STAIRWAY

ANGLES UP TO

45 DEGREES.

[ ] Combination wrench set, metric (22 mm through 36 mm)

[ ] Phillips screwdrivers

[ ] Slotted screwdrivers

[ ] Allen wrenches, metric (4 mm minimum size)

[ ] Electric drill with letter `O' (.316") and 1/4" bit

[ ] Hacksaw with 2 or 3 blades, or metal cutting bandsaw

[ ] 20' tape measure

[ ] Small rubber mallet

[ ] C-clamp

[ ] Flashlight

[ ] 5/16" open-end wrench

[ ] Needle nose pliers

[ ] Scissors or knife

SRE-1550 UL 06-18-2004

[ ] Extension cord

[ ] Double-sided foam tape

[ ] File

[ ] 12" adjustable wrench

BE SURE YOU HAVE ALL NECESSARY

PARTS AND TOOLS BEFORE TRAVELING TO

INSTALLATION SITE.

INSTALLATION

ASSEMBLY-Residential and Commercial Units

[ ] Determine whether a left- or right-side installation is appropriate for the site. "Left" or

"right" refers to the side of the stairway on which the rail is installed (as viewed from the bottom of the stairs). Unless otherwise specified Bruno Stairway Elevators are shipped from the factory in the left-side configuration. Conversion to right-side installation is easy (instructions included later in this manual ).

[ ] Identify and locate lower rail section appropriate to the installation (left or right).

BUMPER BRACKET INSTALLATION

[ ] Assemble lower rail

[ ] Install bumper bracket.

bumper bracket

FITTING THE RAIL

[ ] Determine the correct length for the rail by measuring along a straight line placed on the

stairs. (SEE STEP 2 IN THE APPLICATION GUIDE) To that amount, add Measurement B (STEP 4 IN THE APPLICATION GUIDE). This process will allow you to custom fit the Elevator to your customer by determining the most comfortable seat-to-floor height within the space available at the top of the stairs.

NOTE: The rail must rest approximately 1/2" to 1" above nosing of the steps and extend from the lower floor to a point beyond the nosing of the top step (see Application Guide Step 4). In some cases where the bottom landing is made of material such as concrete, ceramic tile or slate, the last bracket on the landing may be omitted with a bracket added on the second step from the

bottom and top of stairway.

REMINDER:

THIS RAIL MUST BE INSTALLED 1/2" TO 1" ABOVE STAIR NOSING.

OTHERWISE, FOOTREST WILL HIT THE STEPS, CAUSING

INTERMITTENT OPERATION.

SRE-1550 UL 06-18-2004

INSTALLATION

SRE-1550 UL 06-18-2004

INSTALLATION

SRE-1550 UL 06-18-2004

INSTALLATION

CUTTING THE RAIL-Residential and Commercial Units

IMPORTANT NOTE!

Under no circumstances should a rail section be cut shorter than

18” (46 cm). There must be at least (2) clamps on a short rail section (1 at the rail joint and 1 at the rail end). Cutting a rail shorter than 18” (46

cm) would not allow enough room for the (2) necessary clamps.

Example:

After measuring the staircase, you determine you need 9 feet of rail. With your (2) 8-foot sections you decide to use (1) 8-foot section and cut the remaining (1) foot from the second 8-foot section.

Doing this could yield a rail piece with insufficient weld.

Instead, Bruno recommends cutting at least one foot off one of the

8-foot sections (leaving 7 feet of rail) and then cutting 2 feet from

the second 8-foot section. You will have a (1) 7-foot section and

(1) 2-foot section, both of which are long enough to be properly

mounted (2 clamps minimum per short rail).

NEVER CUT OFF THE JOINT END!

The M6 bolts securing the gear rack must remain intact.

Cut off the end with the pre-drilled charge contact mounting holes.

Then, using the provided template, redrill (2) holes on each end of the rail.

1. Use a metal-cutting power saw or manual hacksaw to cut the rail to length. Cut off the end of the rail to be located at the top of the stairway.

2. Use a file or other appropriate tool to deburr the cut end of the rail. Soften any sharp edges which might abrade the insulation of the wiring to be routed to the bumper at the end of the rail.

USE “O” SIZE DRILL

BIT (8.03mm/.316")

SRE-1550 UL 06-18-2004

3. Use a C-clamp to hold the upper bumper bracket in place in the cut end of the rail.

4. Use the holes in the bumper bracket as guides to drill mounting holes. Use an O-size (8.03 mm/.316") drill bit in the rail.

INSTALLATION

RAIL JOINT ASSEMBLY-Residential and Commercial Units

[ ] Assemble the rail joint by attaching the bottom plate to the

NOTE: THE RAIL IS ALWAYS INSTALLED WITH THE

GEAR RACK TOWARDS THE

CENTER OF THE STAIRS

AND GEAR TEETH FACING

WALL.

INSTALLATION SUGGESTION

Once two sections of rail

are installed, and before

installing the carriage, run

a plomb line along the rail.

If the rail bows, insert

shims or readjust clamps.

rail with the screws, lock washers and hex nuts provided with the unit. Install the bolts, internal-tooth washers and hex nuts through the joint blocks on both sides of the rail. Tighten all bolts securely and make sure screw heads are flush with the surface of the inside of the rail. PLEASE REFER TO

EXPLODED VIEWS AT BACK OF MANUAL.

NOTE: The chamfered edges of the holes must face "up" toward the bottom

of the rail.

SRE-1550 UL 06-18-2004

INSTALLATION

POSITIONING FOOT CLAMP ASSEMBLIES-Residential and Commercial Units

[ ] Install rail mounting foot clamps in the placement pattern as shown below. Be

sure to leave a minimum space of 1-1/2" from the wall.

*bottom landing *first tread up from bottom landing *top landing *first tread down from top landing *closest tread above and below rail joint(s) *minimum of every third tread over the remainder of the staircase.

NOTE: IF TOP OR BOTTOM CLAMP IS OMITTED BECAUSE THE LANDING IS CEMENT OR CERAMIC TILE , OR IN THE EVENT THAT THE OWNER WISHES NOT TO DRILL HOLES IN THE LANDING, A SET OF CLAMPS SHOULD BE ADDED ON THE SECOND-TO- LAST STEP AND AT THE TOP OF STAIRWAY.

[ ] For ease of installation, finger tighten all clamps to rail. The clamp assembly should

be positioned so the nut is closest to the wall.

[ ] Slide top and bottom clamps down until firmly seated on step. When installing on

carpeted stairs, use a rubber mallet on the clamps to compress carpet and cushion before anchoring to steps.

[ ] Securely install one screw near the wall on the top and bottom of foot of clamp

assemblies. This will enable the installer to change the position of the rail if necessary and prevent drilling excess holes.

[ ] Make sure to use the measurements indicated below as a guide for positioning the

clamp assemblies.

RAIL

1/2" TO 1" ABOVE

*SEE NOTE BELOW

NOSING

RAIL MOUNTING FOOT CLAMP ASSEMBLY

*INSTALL FOOT CLAMPS AT LEAST 1-1/2” FROM WALL. PROVIDE ADDITIONAL CLEARANCE IF SEAT NEEDS TO SWIVEL AGAINST WALL. BEFORE SECURING ALL CLAMPS, RUN CARRIAGE ASSEMBLY UP AND DOWN STAIRWAY TO CHECK SEAT CLEARANCE OVER THE ENTIRE TRAVEL LENGTH.

SRE-1550 UL 06-18-2004

INSTALLATION

REMINDER:

Bruno ships the Stairway Elevator with fasteners appropriate for WOODEN STAIR TREADS ONLY. Other stair material may require different fasteners. Please contact Bruno Independent Living Aids, Inc. for information.

IF THREADED

FASTENER

EXTENDS

BELOW A

STAIR TREAD

THAT IS EX-

POSED, IT CAN

BE TRIMMED FLUSH WITH

PLIERS.

For installations on hardwood stairs, Bruno recommends drilling a pilot hole before inserting fasteners.

[ ] Once the rail position is determined, place one screw in each

bracket to hold rail in place while tightening to rail. This will prevent mounting feet from rotating while bolt is being tightened.)

[ ] Tighten the rail bolt. Install the rest of the screws in bracket,

then tighten securely.

SRE-1550 UL 06-18-2004

INSTALLATION

MOUNTING CARRIAGE ON UPPER RAIL-RESIDENTIAL AND COMMERCIAL UNITS

[ ] Turn toggle switch off. When facing the front of the unit, remove the left motor

cover. Slide the carriage into the rail until the spur gear rests on the gear rack. Manually turn the motor pulley to fully engage the entire carriage inside the upper rail.

ADJUSTING THE CARRIAGE ANGLE-RESIDENTIAL AND COMMERCIAL UNITS

[ ] Adjust the carriage angle by loosening the angle adjustment bolts. Level the angle

adjustment aracket, using a standard builder's level or protractor level. When the angle adjustment bracket is level, securely tighten all four angle adjustment bolts*.

TORQUE RATING = 70 LB-FT

angle adjustment

bracket

REMINDER:

Recheck with level after tightening

adjustment bolts.

angle adjustment

bolts

(For a more

detailed

view of

safety lock

washer

inserted

with lower

bolt, see

CARRIAGE

ASSEMBLY

DRAWING,

SRE-00060,

at the back

of this

manual.)

SRE-1550 UL 06-18-2004

INSTALLATION

INSTALLING THE SEAT ASSEMBLY-RESIDENTIAL AND COMMERCIAL UNITS

[ ] Feed the five-conductor lead through the hollow tube under the seat. Insert the seat

frame post into the outer mounting tube. Determine the correct seat height, then insert the bolt in the corresponding hole. Make sure the head of the bolt protrudes 3/8" from the mounting tube. Fish excess wires into hole on front pivot bolt.

bolt

protrudes

3/8"

outer mounting

tube

front pivot bolt

SEAT HEIGHT ADJUSTMENT-RESIDENTIAL AND COMMERCIAL UNITS

[ ] Remove footrest assembly, then gently pull the extra wire from the hole in the pivot bolt.

Remove the bolt in the outer mounting tube. Adjust seat height, replace bolt and secure. Reinsert extra wire in the pivot bolt. Replace the footrest assembly.

SRE-1550 UL 06-18-2004

INSTALLATION

FOOTREST ASSEMBLY-RESIDENTIAL AND COMMERCIAL UNITS

[ ] Connect the wires as shown in the illustration. Tuck the excess wires in the footrest

hanger just above the footrest switch bracket, and below where the outer mounting tube would sit. While holding the wires in place bring the footrest close to the carriage, near the pivot bolt, tilt the footrest slightly while raising it up and over the bolt until it is engaged in the slot. Tighten the bolt, then the (2) set screws at the top of the footrest post (see illustration below) to completely secure the seat post.

NOTE:

BE CAREFUL NOT TO PINCH

THE WIRES WHILE SLIDING

THE FOOTEST OVER THE BOLT.

footrest switch bracket

set screws

outer mounting

tube

footrest

pivot bolt

footrest hanger

safety switch

SAFETY SWITCH-RESIDENTIAL AND COMMERCIAL UNITS

[ ] The footrest comes equipped with a safety switch which will stop the Elevator in

the event that something becomes trapped between the footrest and a stair tread.

[ ] Confirm correct operation of this feature by moving the sliding tray (BOTH

SIDES) while operating the Elevator. The Elevator will stop if this feature is operating correctly.

SRE-1550 UL 06-18-2004

INSTALLATION

SEAT SWIVEL AND ARM ROTATION-RESIDENTIAL AND COMMERCIAL UNITS

Fold the seat up when the Elevator is not in use. The seat latch will automatically keep the seat folded. To unfold the seat when ready to use the Elevator, the rider simply pushes down the seat, or pushes down on the arm rest. The swivel latch located directly

under the seat allows the seat to rotate in 45-degree increments. To disengage the latch, lift up on either the right or left lever found at the front edge of the seat. Releasing the lever locks the seat in place.

Push the arm lock lever to rotate the arm up to 90 degrees for easy transfer. The arm then can be rotated back to its original position. The arm is locked in place automatically when the latch re-engages.

PUSH UP LATCH

TO SWIVEL SEAT

SRE-1550 UL 06-18-2004

INSTALLATION

ARM ADJUSTMENT-RESIDENTIAL AND COMMERCIAL UNITS

The seat arms are set at the narrowest position. To adjust to a wider setting, loosen the Phillips head screws on the bottom of the seat (see illustration). Rotate arm out to desired position. Tighten the screws. Repeat process on other side.

NOTE:

IF EXTENDING THE ARMS TO MAXIMUM WIDTH, BE SURE TO ADJUST

THE RAIL-TO-WALL DISTANCE TO COMPENSATE FOR THE INCREASED

ANGLE OF ROTATION.

arm lock release

Arm Adjustment

arm adjustment screws

SRE-1550 UL 06-18-2004

INSTALLATION

FINAL LIMIT SWITCH AND ACTUATION RAMP-RESIDENTIAL AND COMMERCIAL UNITS

The final limit switch and actuation ramp assembly is a safety feature which enhances the stopping capability of the Elevator. The actuation ramp is to be mounted to the side of the rail, 1" from the top of the rail in a LEFT-HAND installation. In a RIGHTHAND installation the mount the ramp 8" from the top end of the rail. Tighten M6 X 10 hex head screws on bottom of ramp.

1" LH

8" RH

tighten

M6 x 10 hex

head cap screws

measure the

distance from the

end of the rail to the

inside edge of the

actuation ramp

The limit switches on the end of the carriages require adjustment:

• Lengthen the switch on the upper end of the carriage.

• Shorten the switch on the lower end of the carriage.

REVERSING CARRIAGE

FAILURE TO ADJUST LIMIT SWITCHES WILL NOT AL-

LOW UNIT TO CHARGE.

NOTE:

SRE-1550 UL 06-18-2004

INSTALLATION

[ ] Remove seat

[ ] Remove carriage from rail.

[ ] To adjust limit switches remove covers and rotate angle adjustment bracket

weldment, if necessary, to access the limit switches.

[ ] Loosen limit switches using a 9/16" box wrench on the outside nut and a 5/8" open end

wrench on the inside nut. It may also be necessary to use a pair of needle nose pliers.

To access the limit switch on the motor side, it may be necessary to remove the charge

contact assembly. Remove wire tie on the charge contact. Slide it out of the way, being

careful to keep wires connected. Remove the outer nut on limit switch and slide limit

switch out so that the inside nut can be adjusted. Tighten and reinstall parts. Replace

covers and adjust the angle adjustment bracket. Replace unit on rail and perform a

test to make sure unit will charge correctly.

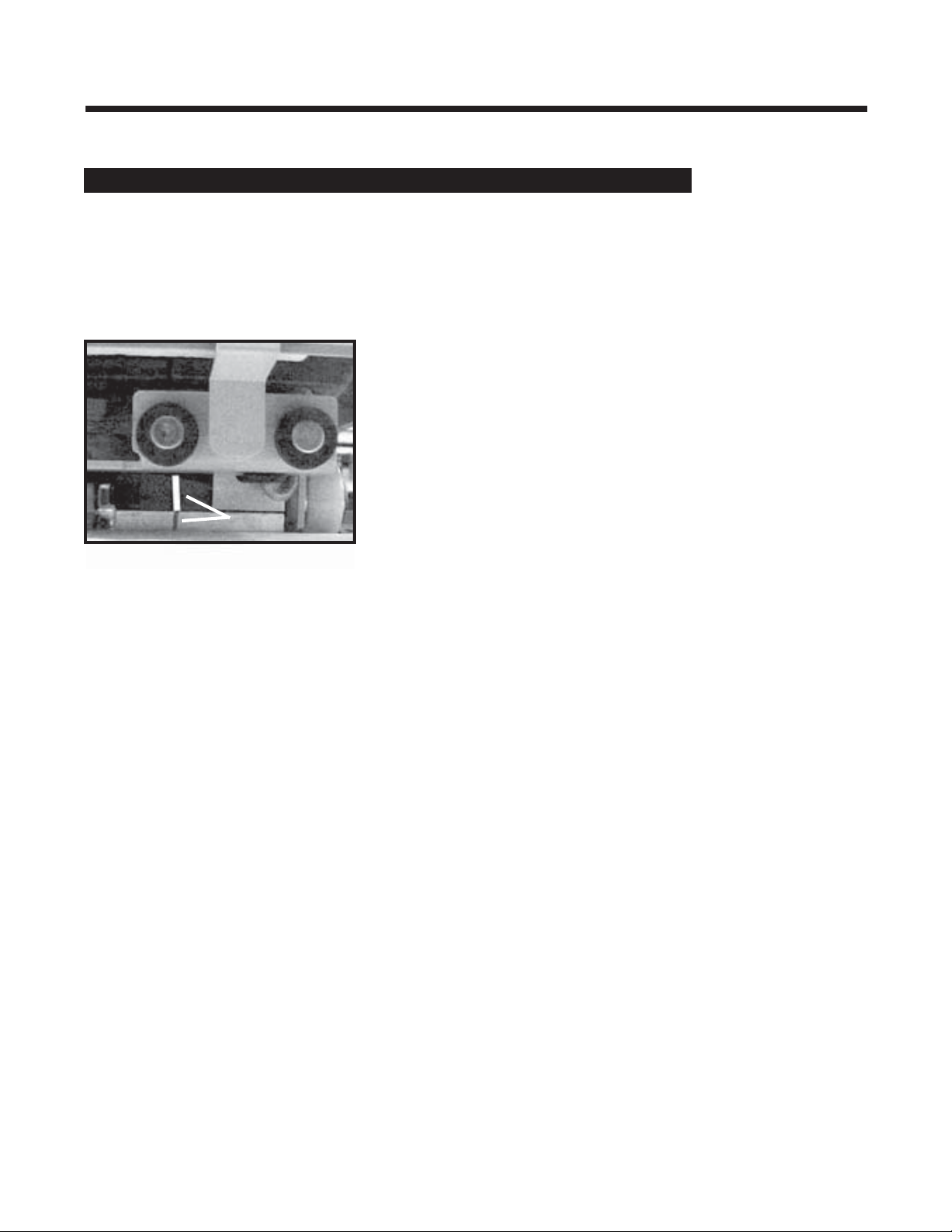

CHARGE CONTACT LIMIT SWITCH ADJUSTMENT

MAKE SURE CONTACTS

ARE SECURELY TOUCHING

WHEN CARRIAGE STOPS

AGAINST RAIL END

SRE-1550 UL 06-18-2004

INSTALLATION

ELECTRA-RIDE TRIAL RUN

[ ] With the seat in the central riding position, move the Elevator completely down and up

the rail, while observing the elevator-to-wall clearance. A clearance of 1/2" to 1" is acceptable. Repeat the run with the seat in the folded position. If necessary, adjust the rail placement by sliding it closer to, or further from the wall.

[ ] Verify proper operation of the following: speed, direction, final limit switch, footrest

safety switch, seat swivel safety switch, and remote call/send transmitter.

REMINDER:

MAKE SURE SUFFICIENTCLEARANCE EXISTS FOR CALL/SEND

ANTENNA OVER ENTIRE TRAVEL

OF RAIL.

The carriage comes equipped with a safety switch panel. As the carriage approaches the end of the rail, the panel is depressed, which activates the switch, and stops the carriage.

SAFETY

SWITCH PANEL

SRE-1550 UL 06-18-2004

INSTALLATION

RESIDENTIAL

INFRARED CALL/SEND TRANSMITTER

The call/send system on the Bruno SRE-1550 is based on infrared (IR) controls, the same type of control used for televisions and stereos.

Like a television remote, the SRE-1550 hand-held transmitter may experience certain types of interference. Receivers are mounted on both sides of the SRE-1550 carriage to minimize interference.

Should interference occur, the unit will stop. This feature has been integrated into the SRE-1550 to ensure your safety.

The direct line between the transmitter to either of the (2) transmitters should be clear of obstacles for optimal operation. It may be necessary to reposition the transmitters so that they are aimed at the carriage.

To reduce the possibility of interference:

While riding in the seat, ALWAYS operate the Elevator using the rocker switch on the armrest.

Operating the SRE-1550 with a transmitter while riding in the seat can lead to signal interference.

DO NOT mount the transmitters behind an obstacle such as a rail post.

DO NOT allow direct sunlight to shine on the receivers (blinding the receivers on the

carriage).

DO replace transmitter batteries regularly.

Depleted or nearly-depleted batteries alter the effective range of the transmitter.

DO keep the transmitter and receiver lens free of dirt and debris.

Use a non-abrasive cleaner suitable for glass or acrylic surfaces. Do not use polishes or cleaning products containing wax. These products

will leave a film on the lens that will reduce the signal transmission range.

SRE-1550 UL 06-18-2004

INSTALLATION

CALL/SEND TRANSMITTER-RESIDENTIAL

The 9V battery is inserted upside down in the IR transmitter

when shipped from the Bruno factory. Prior to operating the SRE-1550, the installer must remove the battery and

reinsert it so that the (+) and (-) poles are properly connected.

MOUNTING THE CALL/SEND TRANSMITTERS

TO THE WALL

Remember to mount the transmitters in locations which are out of the reach of children, yet always visible to the operator from the stairway elevator.

bracket and bracket mounting hardware

(a)

(b)

Step 1

Steps 2 & 3

1) On the back of the transmitter, loosen and remove the screw (a) securing the two halves of the transmitter.

2) Place the bracket (b) on the back of the transmitter. The base of the bracket will be flush with the bottom of the transmitter, with the base of the bracket pointing toward the front of the transmitter.

Insert the longest screw provided in the mounting

3) hardware kit (see illustration above left) through the

top hole in the bracket and through the corresponding hole in the back of the transmitter. Tighten, without overtightening to avoid damaging the transmitter back.

4) Turn the transmitter/bracket unit over so that the

front of the transmitter is facing you.

5) Mount this unit to the wall using the two (2)

#8 x .75" lg Phillips pan head sheet metal screws and the two (2) plastic ribbed anchors provided.

6 Run the unit up and down the stairs using the remote call/sent transmitter. Test both transmitters.

Step 4

Step 5

7) Repeat the test with the installer or installer's

assistant sitting on the seat.

NOTE:

INSTALLATION OF THE

CALL/SEND UNIT MAY VARY BY

LOCAL CODE. PLEASE REFER

TO LOCAL CODES FOR

INSTALLATION GUIDELINES.

SRE-1550 UL 06-18-2004

INSTALLATION

LEARNING THE REMOTE INFRARED TRANSMITTER-RESIDENTIAL

(not necessary when installing unit for the first time)R

The operating channel of the two (2) infrared transmitters included with the SRE-1550 is pre-set at the Bruno factory.

Should it become necessary to re-learn the transmitters (for example, if there are multiple units in the same location, or in the event you have to replace transmitters) proceed as follows:

1) Turn off the circuit breaker.

2) Remove the carriage cover to expose the circuit board.

3) Locate the LEARN switch on the circuit board (see illustration to left).

(c)

(a)

(c)

4) On one of the IR TRANSMITTERS, remove the screw (a) securing the back to the transmitter. [If the transmitter is mounted to a wall, unscrew the (2) mounting bracket screws, turn the transmitter over and remove screw (a) securing the mounting bracket and the transmitter back.]

5) Remove the transmitter back and set aside with its screw.

6) On the TRANSMITTER circuit board, locate the switch (b) labelled "SW".

7) Change the configuration for switches 1 and 2. Note: There are four possible configurations:

•1 up, 2 down (default manufacturer's setting)

•1 up, 2 up

•1 down, 2 up

•1 down, 2 down

(b)

SRE-1550 UL 06-18-2004

INSTALLATION

8) Once you have changed the switch positions:

Turn on the CARRIAGE circuit breaker.

•

Wait until you hear a BEEP.

•

Press and hold the LEARN switch on the CARRIAGE circuit board.

The red LED on the carriage circuit board will glow.

AS YOU HOLD DOWN the LEARN switch, press one of

• theTRANSMITTER pushbuttons.

When the red LED on the carriage circuit board goes out,

• release the LEARN switch and the transmitter pushbutton.

Depress the DOWN transmitter button (if the carriage is at

•

the top of the rail), or the UP transmitter button (if the carriage is at the bottom of the rail). If the carriage moves, the new configuration has been accepted and the transmitter relearned.

9) Make sure both transmitters are set to the same switch configuration.

10) Reassemble and secure the transmitter back (remount on wall if applicable).

11) Reassemble and secure the carriage cover.

NOTE:

While using the remote

call/send, you may

experience some

intermittent operation.

This will not harm the unit.

However, while using the

rocker switch, operation

should NOT be

intermittent.

SRE-1550 UL 06-18-2004

Transmitter Battery

INSTALLATION

The 9V battery is inserted upside down in the IR

transmitter when shipped from the Bruno factory.

Prior to operating the SRE-2000, the installer must

remove the battery and reinsert it so that the (+) and

(-) poles are properly connected.

To access the transmitter battery, open the door on

the back of the transmitter as shown to the left.

WHEN THE INSTALLATION IS COMPLETE

Verify proper operation of the power supply, call/send transmitters, on/off switch, footrest, safety switches, and carriage limit switches.

Inform the customer of the location of the Owner's Manual. Encourage him/her to become familiar with its contents.

Train the customer to use the stairway elevator correctly and safely. Be sure to have him/her operate the unit while you are there to answer any questions and address any concerns.

SRE-1550 UL 06-18-2004

INSTALLATION

CIRCUIT BOARD DIAGNOSTICS : RESIDENTIAL

The circuit board provided on the SRE-1550 is equipped with (4) diagnostic modes that continuously monitor the unit’s operation. This choice of operational modes allows the SRE-1550 to respond to the requirements of a wide variety of installations.

NOTE : The SRE-1550 is shipped in the MULTI-USER/DIAGNOSTIC MODE.

MULTI-USER/DIAGNOSTIC MODE

Provides full range of Audio diagnostic notices:

* Circuit Board Power Up : Chirp

* Safety Device Activated: Chirp

* Elevator Stopped Off Charge Bumper: 5 Beeps (4 short and 1long) Repeats every 3 minutes until the Elevator is returned to the bumper.

* Seat Safety Disengaged: Chirp repeats every 3 seconds until seat safety

switch is re-engaged.

* Battery Voltage Drop : 5 Beeps (3 short and 2 long)

Repeats every 4 minutes until seat safety switch is disengaged, the battery

voltage increases, or the switch is pressed.

* Battery Voltage Critical: 5 Beeps (2 short and 3 long)

Repeats once a minute until the voltage exceeds 16V or the switch is pressed.

* Switch Active During Power Up: 3 Beeps / Pause/5 Beeps (UP, DOWN, LEARN,

REMOTE UP, REMOTE DOWN)Repeats beeps every 5 seconds until all switches are off.

* More Than One Switch Active: 3 Beeps / Pause/X beeps (number of beeps indicates which switches are active) Repeats every 30 seconds until all switches are off.

* Transmitter ID Memory Full: 3 Beeps (1 short and 2 long)

SINGLE-USER MODE

Provides the same audio diagnostic notices as the Multi-User/Diagnostic Mode, except for the Seat Safety Disengaged notice.

QUIET MODE

In the QUIETmode, none of the Audible Warning Messages is active.

BATTERY WARNINGS ONLY MODE

Provides battery audio diagnostic only.

* Elevator Stopped Off Charge Bumper: 5 Beeps (4 short and 1 long)

Repeatsevery 3 minutes until Elevator is returned to the bumper.

* Battery Voltage Drop : 5 Beeps (3 short and 2 long)

Repeats once every 4 minutes until the seat safety switch is disengaged or the battery voltage increases.

* Battery Voltage Critical: 5 Beeps (2 short and 3 long)

Repeats once a minute until voltage is above 16 V.

SRE-1550 UL 06-18-2004

INSTALLATION

CIRCUIT BOARD DIAGNOSTICS : RESIDENTIAL

AUDIO REFERENCE

Chirp .25 Seconds

NOTICE:

Before touching anything inside the carriage assembly,

ground yourself by touching an unpainted metal

surface on the unit such as an exposed bolt,

or one of the mounting screws on the electrical panel.

While you work, periodically touch an unpainted metal

surface to dissipate any static electricity that could

harm internal components.

CHANGING THE PCB DIAGNOSTIC MODE

* Turn the Circuit Breaker on the carriage to `OFF'.

* Remove Left Carriage Cover.

* Unit is shipped in Multi-User Diagnostic Mode. Changes are made via the

Number 1 and Number 2 positions on the 4-Ganged DIP Switch.

Short Beep .5 Seconds

Long Beep 1.5 Seconds

Pause 1 Second

4 GANGED DIP SWITCH (S1)

DIAGNOSTIC MODE DIP SW NO. 1 DIP SW NO. 2

Multi-User OFF OFF

Single-User ON OFF

Quiet OFF ON

Battery Warning Only ON ON

OTHER CIRCUIT BOARD FEATURES

Also located on the 4-ganged DIP Switch are Switch No. 3 (LH/RH installation) and Switch No. 4 (coast delay). Refer to the Conversion to Right-Hand Installation instructions for changing Switch No. 3. The coast delay option (Switch No. 4) has been provided in cases of interference which may cause intermittent operation. The normal setting is 600 mSec. of coast. Should the unit lose the remote call/send signal, this can be increased to 900 mSec. by moving Switch No. 4 to the `ON' position.

SRE-1550 UL 06-18-2004

INSTALLATION

CONVERSION TO RIGHT-HAND INSTALLATION - RESIDENTIAL UNIT

As shipped from the factory, the Electra-RideTM II is set up for left-side installation (as viewed from the bottom of the stairs).

To convert the unit for right-side installation, perform the following operations:

ELECTRICAL

1. Make sure the circuit breaker switch on the rear of the carriage is in the OFF position.

2. Remove the back carriage cover and the left side cover.

3. Set the No. 3 DIP Switch on the 4-ganged dip switch to the ON position.

NOTE: It is imperative that the circuit breaker be turned OFF while changing from lefthand to right-hand installation. Otherwise, the board will not accept the change.

CHANGING CONTROLS FROM RIGHT TO LEFT ARMREST

1. Remove the switch housing weldment by removing the Torx head machine screw under the arm. The trim holding the harness on the backside of the arm slides off.

2. To disconnect the harness under the seat , remove the seat hinge nut.

3. Slide the harness cable guide off.

4. Reinstall the seat hinge nut.

5. Remove the 2 screws from the swivel switch cover, then remove the cover.

6. Unplug the switch harness, and remove the grommet.

7. Slide the grommet onto the other side of the swivel switch cover, and reconnect the harness.

8. Reassemble the cover using the 2 screws.

9. Remove the seat hinge nut, and install the harness guide on the opposite side.

10. Fasten the switch housing on the left arm. Slide the trim over the harness on the backside of the arm.

SRE-1550 UL 06-18-2004

COMMERCIAL

CALL/SEND TRANSMITTER

*Install the key-controlled call/send transmitters as shown below. The key switch should be approximately 48" from the floor. One transmitter should be installed at the top of the stairs, and one at the bottom.

The seat key switch and rocker switch

are located under the right arm pad (on

your right as you are sitting in the seat).

Please refer to the instructions "Changing Controls From Right to Left Armrest"

if the unit will be installed on the right

side of the stairway (as viewed from the

bottom of the stairs).

INSTALLATION

INSTALLLING COMMERCIAL CALL/SEND TRANSMITTER

SRE-1550 UL 06-18-2004

INSTALLATION

CIRCUIT BOARD DIAGNOSTICS : COMMERCIAL

The circuit board provided on the SRE-1550 is equipped with (4) diagnostic modes that continuously monitor the unit’s operation. This choice of operational modes allows the SRE1550 to respond to the requirements of a wide variety of installations.

NOTE : The SRE-1550 is shipped in the MULTI-USER/DIAGNOSTIC MODE.

MULTI-USER/DIAGNOSTIC MODE

Provides full range of Audio diagnostic notices:

The Commercial SRE-1550

* Circuit Board Power Up : Chirp

Multi-User/Diagnostic Mode.

* Safety Device Activated: Chirp

* Elevator Stopped Off Charge Bumper: 5 Beeps (4 short and 1 long) Repeats every 3 minutes until the Elevator is returned to the bumper.

* Seat Safety Disengaged: Chirp repeats every 3 seconds until seat safety

switch is re-engaged.

* Battery Voltage Drop : 5 Beeps (3 short and 2 long)

Repeats every 4 minutes until seat safety switch is disengaged, the battery

voltage increases, or the switch is pressed.

* Battery Voltage Critical: 5 Beeps (2 short and 3 long)

Repeats once a minute until the voltage exceeds 16V or the switch is pressed.

* Switch Active During Power Up: 3 Beeps / Pause/3 Beeps (UP, DOWN, LEARN)

Repeats beeps every 5 seconds until all switches are off.

* More Than One Switch Active: 3 Beeps / Pause/X beeps (number of beeps indicates which switches are active) Repeats every 30 seconds until all switches are off.

* Transmitter ID Memory Full: 3 Beeps (1 short and 2 long)

NOTE:

is shipped in

SINGLE-USER MODE

Provides the same audio diagnostic notices as the Multi-User/Diagnostic Mode, except for the Seat Safety Disengaged notice.

QUIET MODE

In the QUIETmode, none of the Audible Warning Messages is active.

BATTERY WARNINGS ONLY MODE

Provides battery audio diagnostic only.

* Elevator Stopped Off Charge Bumper: 5 Beeps (4 short and 1 long)

Repeatsevery 3 minutes until Elevator is returned to the bumper.

* Battery Voltage Drop : 5 Beeps (3 short and 2 long)

Repeats once every 4 minutes until the seat safety switch is disengaged or

the battery voltage increases.

* Battery Voltage Critical: 5 Beeps (2 short and 3 long)

Repeats once a minute until voltage is above 16 V.

SRE-1550 UL 06-18-2004

INSTALLATION

CIRCUIT BOARD DIAGNOSTICS

COMMERCIAL UNIT

Chirp .25 Seconds

Short Beep .5 Seconds

Long Beep 1.5 Seconds

NOTICE:

Before touching anything inside the carriage assembly,

ground yourself by touching an unpainted metal

surface on the unit such as an exposed bolt,

or one of the mounting screws on the electrical panel.

While you work, periodically touch an unpainted metal

surface to dissipate any static electricity that could

harm internal components.

DIAGNOSTIC MODE DIP SWITCH POSITION

Multi-User OFF OFF

CHANGING THE PCB DIAGNOSTIC MODE

* Turn the Circuit Breaker on the carriage to `OFF'.

* Remove Left carriage cover.

* Turn the Power DIP Switch (SW3) to the `OFF' position.

* Unit is shipped is Multi-User Diagnostic Mode.

Changes are made on (S1) 4 Ganged DIP Switch -

Number 3 and Number 4 Positions.

4 GANGED DIP SWITCH (SW1)

Pause 1 Second

#3 #4

Single-User OFF ON

Quiet ON OFF

Battery Warning Only ON ON

OTHER CIRCUIT BOARD FEATURES

Also located on S1 DIP Switch are switch #1 Installation and #2 Coast Delay. Refer to Reversing Operation instructions for changing Switch # 1. The coast delay option (Switch #2 on S1) has been provided in cases of interference which may cause intermittent operation. The normal setting is 600 mS seconds of coast, should the unit lose the remote call/send signal, this can be increased to 900mS seconds by moving switch # 2 on S1 to the `ON' position.

SRE-1550 UL 06-18-2004

INSTALLATION

CONVERSION TO RIGHT-HAND INSTALLATION-COMMERCIAL UNIT

As shipped from the factory, the Elevator is set up for left-hand installation (as viewed from the bottom of the stairs.) Should the installation require a right-hand installation, perform the following operations:

Turn the on / off circuit breaker on the rear of carriage to `OFF'.

Remove left carriage cover.

Set the Installation DIP Switch (S2) to the `RH' position.

Set the No. 1 DIP Switch on the 4-Ganged Dip Switch (S1) to the `OFF' position.

Check that the power Switch (S3) is turned `ON' .

Unplug the motor leads and reverse the connections.

Turn the circuit breaker switch to the “ON” position.

Replace the carriage cover.

CIRCUIT BOARD

SET THE

INSTALLATION DIP

SWITCH (S2) FROM

`LH' TO `RH'

POSITION

REVERSING CONNECTIONS

POWER DIP

SWITCH (S3)

SET NO. 1 SWITCH OF

(S1)

TO THE `OFF'

POSITION

CHANGING CONTROLS FROM RIGHT TO LEFT ARMREST

1. Remove the switch housing weldment by removing the Torx head machine screw under the arm. The trim holding the harness on the backside of the arm slides off.

2. To disconnect the harness under the seat , remove the seat hinge nut.

3. Slide the harness cable guide off.

4. Reinstall the seat hinge nut.

5. Remove the 2 screws from the swivel switch cover, then remove the cover.

6. Unplug the switch harness, and remove the grommet.

7. Slide the grommet onto the other side of the swivel switch cover, and reconnect the harness.

8. Reassemble the cover using the 2 screws.

9. Remove the seat hinge nut, and install the harness guide on the opposite side.

10. Fasten the switch housing on the left arm. Slide the trim over the harness on the backside of the arm.

SRE-1550 UL 06-18-2004

INSTALLATION

Testing the Call/Send Transmitters

A slight delay will occur between the time the rocker switch is depressed and the initiation of carriage movement. This is normal and is a function of the soft start feature of the controller.

♦ Run the unit up and down the stairs using the rocker switch on the carriage. The

unit should operate in such a way that the arrow depressed on the rocker switch corresponds to the desired direction of travel.

The unit should travel noticeably faster going up than down.

♦ Run the unit up and down the stairs using the remote call/send transmitters. Test

both transmitters.

♦ Push the seat into the stored position and run the unit up and down the stairs with

the remote call/send transmitter.

♦ With the seat in the central riding position, move the Elevator completely down and

up the rail, while observing the elevator-to-wall clearance. A clearance of 1/2" to 1" is acceptable. Repeat the run with the seat in the folded position. If necessary, adjust the rail placement by sliding it closer to, or further from the wall.

♦ Verify proper operation of the following: speed, direction, final limit switch, footrest

safety switch, seat swivel safety switch, and remote call/send transmitter.

Train the customer to use the stairway

elevator correctly and safely. Be sure to

have the customer operate the unit while

you are there to answer any questions or

concerns. Remind the customer to always use

the seat belt.

SRE-1550 UL 06-18-2004

INSTALLATION

UPPER BUMPER BRACKET

[ ] Install the upper bumper bracket to rail.

Installation Note:

Before tightening the

brackets, check to make sure that the

bumper wires are not

trapped under the

bumper bracket at the

lower landing.

PRIOR TO LUBRICATION, run the carriage up and down the rail five to six (5-6) times. This will clean the paint chips out of the gear rack. Vacuum or brush the gear rack and rail to remove any paint chips loosened during this operation. Once the gear rack and rail are clean and free of paint debris, proceed with lubrication.

LUBRICATION

[ ] Apply a thin coating of white lithium grease to the gear rack TEETH ONLY

(see illustration below).

Apply a light coating of white lithium

grease to the gear rack teeth only.

These instructions apply to

carriages with nylon wheels.

If you are lubricating a carriage

with steel wheels, apply the

grease to the rail and the gear

rack teeth.

1 TUBE PER 16-FOOT UNIT

SRE-1550 UL 06-18-2004

INSTALLATION

Position the Charger in a suitable permanent location near the end of the rail. Be sure that it will not pose a tripping hazard. Connect the power cord to the nearest wall or floor outlet. Bundle together the loose wires. Secure the charger mounting bracket with (2) #8 x 0.75" lg. Phillips pan head sheet metal screws.

CHARGER MOUNTING

BRACKET

CHARGER LEAD CONNECTIONS

CONNECTORS

RAIL BUMPER

WALL

Install wiring harness

on Elevator rail.

Connect harness to

charger.

RAIL BUMPER

NOTE: GEAR RACK TEETH FACE WALL OF STAIRWAY

SRE-1550 UL 06-18-2004

INSTALLATION

LEAD TO BATTERY CHARGER WIRING HARNESS

RAIL CHARGER LEAD

INSTALLATION

SUGGESTION:

AFTER ROUTING THE

WIRE HARNESS OUT OF

SIGHT, A SMALL PIECE OF

DOUBLE SIDED FOAM

TAPE CAN BE APPLIED TO

THE

HARNESS PLUGS FOR

ATTACHMENT

UNDER THE RAIL.

NOTE:

IF THE CHARGER PLUG

AND WIRE ARE

LOCATED IN A

VULNERABLE

LOCATION, USE OF A

PLUG LOCK IS

RECOMMENDED TO

PREVENT ACCIDENTAL

UNPLUGGING. PLUG

LOCKS ARE AVAILABLE

AT HARDWARE AND

DEPARTMENT STORES.

[ ] Route the charger wiring harness along the back side

of the rail and secure it to the rail mounting clamps with wire ties. Be sure that this wiring is mounted securely to avoid damage.

[ ] Coil any excess harness wire and attach it to a rail clamp

located under the rail.

NOTE: THE CHARGER SHOULD BE PLUGGED INTO A HOUSEHOLD OUTLET ALL OF THE TIME. THE ELEVATOR IS DESIGNED SO THAT THE BATTERIES WILL BE CHARGED WHEN THE CARRIAGE IS AT ONE OR THE OTHER END OF THE RAIL. IT IS IMPERATIVE THAT THE CARRIAGE BE "PARKED" AT THE END OF THE RAIL WHEN NOT IN USE TO MAINTAIN FULL BATTERY CHARGE. THE ONLY EXCEPTION

IS WHEN TURNING UNIT 'OFF' (SEE LONG TERM STORAGE SECTION).

IN AN INSTALLATION WHERE THE CARRIAGE CANNOT BE PARKED AT THE END OF THE RAIL (STAIRWAYS WITH A DOOR AT THE TOP, FOR EXAMPLE), THE CARRIAGE SHOULD BE RUN TO THE OTHER END OF THE RAIL WITH THE REMOTE CALL/SEND TRANSMITTER WHEN NOT IN USE. THIS WILL ENSURE THAT THE BATTERIES REMAIN FULLY CHARGED.

SRE-1550 UL 06-18-2004

INSTALLATION

IMPORTANT

ALWAYS "PARK" THE CARRIAGE AT

THE UPPER OR LOWER END OF THE

RAIL TO KEEP BATTERIES FULLY

CHARGED

PILOT LAMP INDICATES

"CHARGING CONTACT" AND

CORRECT POLARITY.

BE SURE CHARGER IS

PLUGGED INTO A "LIVE"

OUTLET.

SRE-1550 UL 06-18-2004

INSTALLATION

SPEED ADJUSTMENT

A provision for adjusting speed is one of the unique features of the SRE-1550 Stairway Elevator. The Speed Adjustment Potentiometer is located on the top of the Carriage. Adjust according to the following procedure:

1.) Loosen the collet nut on the Speed Control Potentiometer approximately one-half turn.

2.) Turn the Potentiometer completely in the counterclockwise direction. This is the starting point. Turn the Potentiometer in the clockwise direction, aligning the slotted shaft with the weight range of the user.

3.) The speed may be adjusted by turning the slotted shaft on the Potentiometer

(clockwise = faster, counterclockwise = slower). With the customer seated on the unit, perform several test runs to arrive at the most to appropriate speed setting.

4.) When the speed has been set satisfactorily, retighten the collet nut.

5.) Recheck the speed.

SPEED ADJUSTMENT

POTENTIOMETER

CW = faster CCW = slower

TURN POTENTIOMETER COUNTERCLOCKWISE

THEN

COLLET NUT

TURN CLOCKWISE, ALIGNING SLOTTED SHAFT WITH WEIGHT RANGE OF CUSTOMER

SRE-1550 UL 06-18-2004

INSTALLATION

INSTALLING CALL/SEND ANTENNA-COMMERCIAL UNIT

Install the Call/Send Antenna on the rear of the carriage as shown below.

Secure the antenna by snapping it into the clip.

CALL/SEND

ANTENNA & CLIP

CAUTION:

MAKE SURE ANTENNA

DOES NOT TOUCH

METAL OF CARRIAGE

SRE-1550 UL 06-18-2004

As you start to thread the connector, twist the

antenna back and forth to make sure that you

insert the antenna as far as possible into the

receptacle. This action ensures that the

necessary contact is made for proper operation

of the Stairway Elevator.

INSTALLATION

OVERSPEED-COMMERCIAL UNITS ONLY

ALIGNMENT

Before installing the carriage, the overspeed cam must be adjusted to line up with the overspeed housing.

Looking at the end of the carriage, align the white mark on the cam with the white mark on the overspeed housing.

align

looking at end of

carriage

Slide the carriage on the rail, making sure not to alter the alignment.

RESETTING THE OVERSPEED

If the overspeed is tripped during installation or service operations, reset the cam by rotating it back to its detent position.

By by-passing the overspeed switch and running up the drive unit, it is possible to manually rotate the cam.

In the event of a failure which activates the

overspeed, it will be necessary to remove the complete drive unit from the rail, and to return the unit to the dealer or manufacturer for diagnosis and repair before putting the unit back into service.

SRE-1550 UL 06-18-2004

ELECTRICAL

CIRCUIT BREAKER

The on/off switch is built into the circuit breaker which is provided to protect the

battery,controller and motor circuits in the Elevator carriage. It is unlikely that this circuit

breaker will ever trip in normal use, but if the Elevator should fail to operate, check the circuit

breaker and reset it if necessary. If the circuit breaker should trip, determine the cause and

correct the situation.

The most likely cause of a tripped circuit breaker would be a foreign object jamming the rail or

gear rack or overloading the elevator by exceeding its rated load capacity.

A fuse has been provided to protect the battery charging circuit and the Call / Send electronics.

The Elevator is shipped with this fuse installed.

CIRCUIT BREAKER WITH ON/OFF

SWITCH BUILT IN

antenna shown here

is on commercial units only

REPLACING A "BLOWN" FUSE:

[ ] Turn “OFF” the unit using the “ON” / “OFF” switch on the back of the unit.

[ ] Disconnect the battery charger from the rail charge lead.

[ ] Remove carriage cover.

[ ] Determine and repair any short circuit which may have caused the fuse to blow.

SRE-1550 UL 06-18-2004

ELECTRICAL

*NOTE:

A FLASHING GREEN

LIGHT ON THE CHARGER

INDICATES A PROBLEM

WITH THE

BATTERY. IF THE

BATTERY HAS NOT

REACHED THE END OF

THE FIRST STAGE OF THE

OPERATION WITHIN 18 HOURS, THE CHARGER

MAY DETERMINE THAT A

PROBLEM EXISTS

WITHIN THE BATTERY.

TO REPLACE A "BLOWN" FUSE (CONTINUED)

[ ] Use a fuse puller to remove the "old" fuse from PC board

spring clips (be careful to avoid breaking the glass).

[ ] Replace the fuse using only an MDL3.5A time-delay

type fuse.

[ ] Turn the power switch to "ON".

[ ] Replace the carriage cover.

[ ] Reconnect the battery charger Leads.

[ ] Test the unit for proper operation.

WHEN THE INSTALLATION IS COMPLETE, TEST THE UNIT FOR

CORRECT OPERATION OF CALL/SEND, `ON/OFF' SWITCH,

FOOTREST, SAFETY SWITCHES, CARRIAGE LIMIT SWITCHES

AND SEAT SAFETY SWITCH.

TRAIN THE CUSTOMER TO USE THE STAIRWAY

ELEVATOR CORRECTLY AND SAFELY. BE SURE TO HAVE

THEM OPERATE THE UNIT WHILE YOU ARE THERE TO

ANSWER ANY QUESTIONS OR CONCERNS.

BATTERY CHARGER

BATTERY CHARGER SEQUENCE IS AS FOLLOWS:

RED LED `ON' = AC Power on (power cord plugged in)

YELLOW CONTINUOUS LED = Batteries charging

FLASHING YELLOW LED = Batteries are 80% charged

GREEN CONTINUOUS LED = Batteries in “charge

completing” mode (or float / standby condition) FLASHING GREEN LED = Possible battery fault

detected after battery has failed to reached the end of the first stage of charging (continuous yellow LED) after approx. 18 hours. Consult an authorized Bruno dealer.

BATTERY CHARGER FUSE REPLACEMENT

If the charger is subject to a power line surge, the AC input fuse may `BLOW' This fuse is located beneath the power cord from the wall outlet to prevent shock hazard, to replace fuse:

1) Remove Power Cord from wall outlet and charger socket.

2) Pull out on the fuse access panel.

3) Remove fuse.

4) Replace with the same size and type: (BUSS # GMC 4) 5 x 20mm-4AMP/125V-TIME LAG

SRE-1550 UL 06-18-2004

LONG-TERM STORAGE

TURNING THE UNIT OFF

When the Elevator will not be in use for an extended period of time:

1) moved the seat/carriage 2"-3" away from the lower charge contacts,

2) turn off the circuit breaker, then

3) unplug the charger from the wall outlet.

DO NOT unplug the charger from the wall outlet without first turning off the circuit breaker. Failure to first turn off the circuit breaker will result in battery discharge or premature battery failure.

TURNING THE UNIT ON

To turn the Elevator back on:

1) turn on the circuit breaker, then

2) plug the charger back into the wall outlet.

NOTE: The batteries may require recharging before normal use if the Elevator has remained in the `off ' position for an extended period of time. To do so, simply move the unit to the LOWER charge contacts, and reconnect the charger to the wall outlet (circuit breaker `on').

SRE-1550 UL 06-18-2004

MAINTENANCE

YEARLY MAINTENANCE OPERATIONS

STAIRWAY ELEVATORS

Clean rails, racks and wheels. Regrease.

Check for dry and/or worn belts. Lubricate.

Check rail wear. There should be no groove.

Clean charging contacts (both carriage and rail ends) with Scotch Brite®.

Check battery voltage (load test).

Check safety switches (footrest, carriage, seat).

Check armrest switch and keyswitch (if applicable).

Check battery charger output:

• Load test using remote controls: check voltage while carriage is traveling up.

• Test with carriage against contacts.

• Test with carriage away from contacts.

• Check contacts and lights.

Check speed.

Check seat belt for wear and proper operation.

Examine exposed wiring. Are there any cuts or abrasions?

Verify operation of seat swivel mechanism. Does it move easily and lock in place correctly?

Check that all hardware is properly tightened.

SRE-1550 UL 06-18-2004

TROUBLESHOOTING

UNIT FAILS TO

OPERATE

UNIT OPERATES

SLOWLY, LACKS

POWER

Check circuit breaker. Reset if necessary.

Check battery connections.

Check footrest safety switches to see if one of these limit switches is depressed. Sliding safety tray below footrest should slide freely and should not stick in a position which would depress one of the safety switches.

Check for discharged batteries. Battery voltage should be in a range of 16-28 VDC.

Commercial units only: Check fuse. Replace if necessary.

Check for discharged batteries.

Check setting of speed control potentiometer.

CONTROLS OPERATE BACK-

WARDS AND UNIT GOES

"UP" SLOWLY AND "DOWN"

FAST

Check for loose connections.

Check to make sure charger is plugged in and working.

Unit has been connected for left-hand operation but is installed on the right-hand side of the stairs (or vice versa).

Make correct connections according to instructions in the installation manual, section on Reversing Operations.

SRE-1550 UL 06-18-2004

TROUBLESHOOTING

UNIT OPERATES

ERRATICALLY

INTERMITTENTLY WITH

REMOTE

CALL/SEND

UNIT OPERATES ER-

RATICALLY OR INTER-

MITTENTLY WITH A

RIDER USING THE

ARMREST MOUNTED

CONTROL SWITCH

Check all safety mechanisms, including swivel seat safety switch.

Change the delay setting on the receiver board to 900 mSec.

Reorient the transmitter (to point directly at the carriage).

Consult your dealer, an experienced technician or call

our Technical Service Department at 1-800-882-8768.

Check swivel seat safety switch.

Check to see that the footrest safety tray is not dragging on the stair nosing or hitting debris on the stairs.

If necessary, reposition the stair rail mounting brackets to correct the problem.

Check the rail for debris that may bump safety switches (footrest and carriage panels).

UNIT WILL NOT

OPERATE UNLESS

THE SEAT IS

POSITIONED SO THAT

IT FACES THE OPEN SIDE OF

THE STAIRS

UNIT WILL NOT

OPERATE WITH

CALL / SEND

REMOTE

UNIT DOES NOT SHUT

OFF WHEN IT HITS THE

BUMPER AT THE END OF

THE RAIL

This is correct lift operation.

A safety switch in the seat swivel prevents the unit from operating with the seat "out of position".

Check batteries in remote call/send unit.

Aim transmiter at the carriage

Transmitters must be `learned' to receiver.

Connections were not made correctly when changing unit from left-side to right-side installation.

Consult installation manual for diagram of correct wiring configuration.

Verify correct operation of limit switch in carriage assembly.

ROUGH OR

Wipe down rail.

CHATTERING RIDE

Apply a small amount of grease to the gear rack only.

SRE-1550 UL 06-18-2004

CALL/SEND HARDWARE-RESIDENTIAL AND COMMERCIAL

SRE-1550 UL 06-18-2004

HARDWARE

SRE-1550 UL 06-18-2004

HARDWARE

SRE-1550 UL 06-18-2004

HARDWARE

SRE-1550 UL 06-18-2004

HARDWARE

SRE-1550 UL 06-18-2004

WIRING SCHEMATIC-RESIDENTIAL

SRE-1550 UL 06-18-2004
