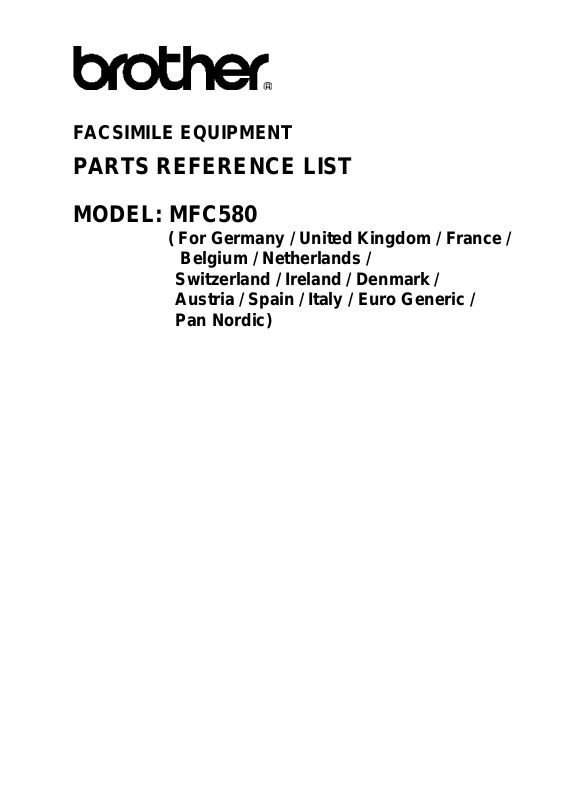

FACSIMILE EQUIPMENT
PARTS REFERENCE LIST
MODEL: MFC580
( For Germany / United Kingdom / France /
Belgium / Netherlands /
Switzerland / Ireland / Denmark /
Austria / Spain / Italy / Euro Generic /
Pan Nordic)
© Copyright Brother 2001
All rights reserved
No part of this publication may be reproduced in any form
or by any means without permission in writing from the
publisher.
Specifications are subject to change without prior notice.
NOTES FOR USING THIS PARTS REFERENCE LIST
RECOMMEND
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q' ty
(3) Description
Note: No orders without Parts Code or Tool No. can be accepted.
[Example]
(1) (2) (3)
REF.NO. CODE Q' TY DESCRIPTION
REMARKS
2. Parts change will be informed by the technical information.
COUNTRIES
GERMANY ---- GER
UNITED KINGDOM ---- UK
FRANCE ---- FRA
BELGIUM ---- BEL
NETHERLANDS ---- NLD
SWITZERLAND ---- CHE
IRELAND ---- IRE
DENMARK ---- DEN
AUSTRIA ---- AUS
SPAIN ---- SPA
ITALY ---- ITA
EURO GENERIC ---- GNR
PAN NORDIC ---- NOR
LIST1 (SCANNER)
REF No.
CODE
Q'TY
DESCRIPTION
RECOMMEND
REMARK
1
LE6124001
1
UPPER COVER, GRAY(1495)
2
UU0021001
1
PRESSURE ROLLER
3
LE2472001
2
PRESSURE ROLLER SPRING
4
LE2471001
2
PRESSURE ROLLER SHAFT
5
UL6244002
2
PINCH ROLLER
6
LE6126001
1
PINCH ROLLER SPRING
7
LE6127001
1
SCANNER DRIVE UNIT
7-1
LE6130001
1
SCANNER MOTOR
7-2
0A4300605
1
SCREW, PAN (S/P WASHER) M3X6
8
UU7030001
1
SEPARATION ROLLER GEAR
9
UU7031001
1
SEPARATION ROLLER
10
LE6325001
1
BUSHING 12
11
LE6326001
1
BUSHING 6
12
LE6301001
1
DOCUMENT EJECTION ROLLER
13
LE6302001
1
DOCUMENT FEED ROLLER
14
UU7039001
2
GEAR 27
15
UF8105001
2
CONDUCTIVE BUSHING
16
UF0026001
2
PAWLED PLASTIC BUSHING
17
UU2028001
2
CIS SPRING
18
LG3117001
1
CIS UNIT, COLOR
119LG3118001
1
CIS HARNESS
20
LE6479001
1
SEPARATION ROLLER FILM
21
087311016
6
TAPTITE, CUP B M3X10
22
085411216
2
TAPTITE, BIND B M4X12
MFC580
LIST2(ENGINE)
REF No.
CODE
Q'TY
DESCRIPTION
RECOMMEND
REMARK
1
LE6053001
4
RUBBER BUSH
2
LE6198001
1
CARRIAGE ASSY
2-1
LE6062001
2
HEAD CLAMP SPRING
2-2
LE6715001
1
CARRIAGE PCB ASSY
13LE6421001
1
WAVY WASHER
4
LE6722001
2
ECCENTRIC BUSHING
5
087320616
2
TAPTITE, CUP S M3X6
6
0A5300605
4
SCREW, PAN (S/P WASHER) M3X6
7
LE6074001
1
TIMING BELT
8
LE6434001
1
CARRIAGE MOTOR
9
LE6424001
1
IDLE PULLEY HOLDER ASSY
10
087320616
1
TAPTITE, CUP S M3X6
11
0A5300805
1
SCREW, PAN (S/P WASHER) M3X8
12
UF9823001
2
SHOULDER SCREW
13
LE3171001
1
PULLEY SPRING
14
LE6078001
1
FLAT CABLE CLAMP
15
LE6571001
1
CABLE CLAMP STOPPER FILM
16
LE6152001
1
FFC CLAMP FILM
17
LE6425001
1
ENCODER STRIP
18
UD6012001
1
ENCODER STRIP SPRING
19
LG3124001
1
INK EMPTY SENSOR PCB
20
LE6081001
1
SENSOR SUPPORT
21
LE6082001
1
PLATEN
22
LE6385001
1
FLUSHING SPONGE
23
085271015
2
TAPTITE, BIND B M2.6X10
24
085311015
1
SCREW, BIND B TITE 3X10
25
LE6430001
1
STAR WHEEL SUPPORT ASSY
25-1
LE6504001
7
STAR WHEEL W
25-2
LE6805001
8
STAR WHEEL B
25-3
LE6107001
7
STAR WHEEL SPRING
26
LE6874001
1
PRESSURE ROLLER HOLDER L ASSY
26-1
LE6875001
1
PRESSURE HOLDER FILM A
26-2
LE6876001
1
PRESSURE HOLDER FILM B
26-3
LE6392001
1
PRESSURE HOLDER FILM C
27
LE6877001
1
PRESSURE ROLLER HOLDER R ASSY
27-1
LE6875001
1
PRESSURE HOLDER FILM A
27-2
LE6876001
1
PRESSURE HOLDER FILM B
27-3
LE6392001
1
PRESSURE HOLDER FILM C
28
LE6878001
2
PRESSURE ROLLER HOLDER ASSY
28-1
LE6875001
1
PRESSURE HOLDER FILM A
28-2
LE6876001
1
PRESSURE HOLDER FILM B
28-3
LE6392001
1
PRESSURE HOLDER FILM C
29
LE6090001
4
PRESSURE ROLLER SPRING
(INCLUDING PF BUSHING L)
31
LE6093001
1
PF ROLLER GEAR R
32
LE6121001
1
RETAINING RING, EXTERNAL C5
33
LE6095001
1
PF BUSHING R
34
LE6122001
1
RETAINING RING, EXTERNAL C8
35
LE6096001
1
PAPER EJECTION ROLLER ASSY
36
UU1290001
1
CONDUCTIVE BUSHING
37
UF9949001
1
EJECTION ROLLER BUSHING
38
LE6489001
1
PAPER FEED MOTOR ASSY
39
LE6101001
1
PF ROLLER GEAR
40
LE6103001
1
PAPER EJECTION ROLLER GEAR
41
LE6104001
1
JOINT
42
UF8034001
1
GEAR,39
43
LE9268001
1
GEAR, 25M
44
LE6109001
1
GEAR, 31 MF
45
UF8105001
1
CONDUCTIVE BUSHING
46
087320616
3
TAPTITE, CUP S M3X6
47LE6576001
1
GEAR HOLDER ASSY
47-1
LE3432001
1
ASF ROLLER
48
LE6002001
1
PURGE UNIT ASSY
1
48-1
LG3083001
1
PURGE SWITCH ASSY
48-2
LE6472001
1
PURGE FOAM
49
087310815
3
TAPTITE, CUP B M3X8
50
LE6134001
1
PAPER CHUTE
51
LE6393001
1
CHUTE FILM L
52
LE6394001
1
CHUTE FILM R
53
LE3194001
1
REGISTRATION SENSOR ACTUATOR
* You have to use the same color spare part with the original part for the replacement.
*30 LE6091003 1 PAPER FEED ROLLER ASSY, RED
*30 LE6091004 1 PAPER FEED ROLLER ASSY, BLUE
(INCLUDING PF BUSHING L)
MFC580
LIST2(ENGINE)
REF No.
CODE
Q'TY
DESCRIPTION
RECOMMEND
REMARK
54
LE6153001
1
TORSION SPRING 7.2X140
55
LG2239001
1
REGISTRATION SENSOR
56
LG3156001
1
REGISTRATION SENSOR HARNESS
57
LE6356001
1
PF SPRING
58
UG5577000
1
FLAT CORE
59
LE6438001
1
FLAT CABLE GUIDE
60
LE6440001
1
INK EMPTY SENSOR LIGHT BLOCK FILM
61
LE6626001
1
SUPPORT SPRING
62
0A5300805
2
SCREW, PAN (S/P WASHER) M3X6
63
LE6863001
1
CHUTE FILM
<addtion>
64
LE6376001
1
IDLE GEAR SPRING
<addition>
65
LE6857001
1
IDOL GEAR
<addition>
66
LE6858001
1
POLYSLIDER WASHER
<addition>
MFC580
LIST3(HEAD UNIT)
REF No.
CODE
Q'TY
DESCRIPTION
RECOMMEND
REMARK
1
LK0517001
1
PRINT HEAD (SP)
1
1-1
LK0516001
1
NOZZLE PROTECTOR SEALS(SP)
1
1-2
LK0536001
1
HEAD FILTER SEALS(SP)
1
MFC580
LIST4(COVER)
REF No.
CODE
Q'TY
DESCRIPTION
RECOMMEND
REMARK
1
LE6135001
1
ACF ASSY, GRAY(1495)
1-1
LE3254001
1
SEPARATION PAD
1-2
LE3255001
1
SEPARATION PAD HOLDER
1-3
LE3434001
1
HOLDER CAP
1-4
LE6442001
1
ACF FILM
2
085411216
4
TAPTITE, BIND B M4X12
3
LE6143001
1
TOP COVER ASSY, GRAY(1495)
4
LE6671001
1
LOWER COVER
5
LE6568001
1
ANTI-STATIC BRUSH
6
LE6148001
1
INK ABSORBER BOX ASSY
7
LE6463001
1
FLUSHING BOX ASSY
8
LE6322001
1
BOTTOM SHIELD PLATE
9
----
NOT USED
10
LE6154001
1
PAPER WIDTH SENSOR ACTUATOR
11
LE6185001
4
RUBBER FOOT
12
LE6824001
1
BOTTOM PLATE
13
LE6156001
1
ENCLOSURE COVER
14
087320516
3
TAPTITE, CUP S M3X5
15
002300616
3
SCREW, PAN M3X6
16
087311216
11
TAPTITE, CUP B M3X12
17
UF6559001
1
SCREW, PAN (WASHER) M4X8DB
18
LE6813001
1
FENCE FILM
19
LE6142001
1
JAM CLEAR COVER
20
LE6553001
1
INK FENCE A
21
LE6554001
1
INK FENCE B
22
LE6555001
1
INK FENCE C
23
LE6556001
1
INK FENCE D
24
LE6557001
1
PCB COVER SHEET
25
LE6160001
1
INK REPLACEMENT INSTRUCTION LABEL
26
LE6525001
1
JAM MARK LABEL
27
LE6649001
1
CONSUMABLE LABEL
(28)
UU0456001
1
PROTECTION PAPER
(29)
----
NOT USED
(30)
----
NOT USED
(31)
----
NOT USED
(32)
----
NOT USED
(33)
UF5745000
1
MJ COVER, EXT FOR GER/UK/FRA/BEL/DEN/AUS/ITA
MFC580
LIST5(CONTROL PANEL)
Y
K
A
R
A
A
K
A
R
A
A
)
)
)
R
(
)
)
)
)
)
Y
R
R
A
R
R
R
A
REF No. CODE Q'T
1 LE6346001 1 CONTROL PANEL ASSY, MFC580 FOR GER/AUS 1
1 LE6338001 1 CONTROL PANEL ASSY, MFC580 FOR
1 LE6348001 1 CONTROL PANEL ASSY, MFC580 FOR FR
1 LE6781001 1 CONTROL PANEL ASSY, MFC580 FOR NLD 1
1 LE6788001 1 CONTROL PANEL ASSY, MFC580 FOR DEN/NO
1 LE6793001 1 CONTROL PANEL ASSY, MFC580 FOR SP
1 LE6797001 1 CONTROL PANEL ASSY, MFC580 FOR IT
1-1 LE6347001 1 CONTROL PANEL, MFC580 FOR GER/AUS
1-1 LE6339001 1 CONTROL PANEL, MFC580 FOR U
1-1 LE6349001 1 CONTROL PANEL, MFC580 FOR FR
1-1 LE6782001 1 CONTROL PANEL, MFC580 FOR NLD
1-1 LE6789001 1 CONTROL PANEL, MFC580 FOR DEN/NO
1-1 LE6794001 1 CONTROL PANEL, MFC580 FOR SP
1-1 LE6798001 1 CONTROL PANEL, MFC580 FOR IT
1-2 LE4073003 1 KEY, TEN, GRAY(1495
1-3 LE6168001 2 KEY, CURSOR L, PURPLE(6255
1-4 LE6169001 2 KEY, CURSOR S, PURPLE(6255
1-5 LE6350001 1 KEY, MENU, MFC580 FOR GER/AUS
1-5 LE6079001 1 KEY, MENU, MFC580 FOR
1-6 LE3295001 9 KEY, CYLINDER 6, GRAY(1495), MFC580 FOR GER
1-7 LE9228003 1 KEY, BLACK FAX START, GRAY
1-8 LE6171005 1 KEY, BLACK COPY, GRAY(1496
1-9 LE6171002 1 KEY, COLOR COPY, GREEN(5159
1-10 LE6171003 1 KEY, COLOR FAX START, PURPLE(6255
1-11 LE6171004 1 KEY, STOP, PINK(2205
1-12 LG3127001 1 CONTROL PANEL PCB ASSY, MFC580
1-13 LG2567001 1 LCD
1-14 UG3803000 1 PIEZO RINGER
1-15 LG3258001 1 FPC KE
1-16 LE6174001 1 PANEL REAR COVE
1-17 LE3330001 1ADF SPRING PLATE B
1-18 LE3299001 1 SEPARATION RUBBE
1-19 LE3300001 1ADF SPRING PLATE
1-20 LE3323001 2ADF GUIDE CAP
1-21 UF5034001 1 TAPTITE, B 3X6
1-22 LE6176001 1 DOCUMENT FRONT SENSOR ACTUATO
1-23 LE6177001 1 DOCUMENT REAR SENSOR ACTUATO
1-24 UU2057001 1 DOCUMENT PRESSURE BAR SPRING
1-25 LE6652001 1 DOCUMENT PRESSURE BA
1-26 087310815 2 TAPTITE, CUP B M3X8
1-27 LE1071001 1
2 LE6340001 1 LCD SHEET, MFC580 1
3 LG3135001 1 PANEL-MAIN HARNESS
DESCRIPTION RECOMMEND REMAR
UK/BEL/CHE/IRE/GNR
UK/FRA/BEL/NLD/CHE/IRE/DEN/SPA/ITA/GNR/NO
1496
NTI-STATIC BRUSH
1
1
1
1
1
MFC580
LIST6(PCB)
REF No.
CODE
Q'TY
DESCRIPTION
RECOMMEND
REMARK
1 LG3577021 1 MAIN PCB ASSY, MFC580 1
2 LG4207004 1 NCU PCB ASSY, MFC580 1
3 LG3666001 1 POWER SUPPLY PCB ASSY 1
4 LG3154001 1 POWER SUPPLY HARNESS
MFC580
LIST7(ACCESSORIES)
(
)
)
)
(
)
)
(
)
(13)
(17)
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 ---- NOT USED
2 UG3625001 1 TELEPHONE LINE CORD, FOR GER
2 UG3626001 1 TELEPHONE LINE CORD, FOR UK
2 UG3627001 1 TELEPHONE LINE CORD, FOR FRA
2 UG1575001 1 TELEPHONE LINE CORD, FOR BEL
2 LG3077001 1 TELEPHONE LINE CORD, FOR NLD/IRE/SPA/GNR
2 UG3469000 1 TELEPHONE LINE CORD, FOR CHE
2 UG3633001 1 TELEPHONE LINE CORD, FOR DEN
2 UG4205001 1 TELEPHONE LINE CORD, FOR AUS
2 UG3634001 1 TELEPHONE LINE CORD, FOR ITA
2 UG3629001 1 TELEPHONE LINE CORD, FOR NOR
NORWAY
2 UG3635001 1 TELEPHONE LINE CORD, FOR NOR (SWEDEN
2 UG3632001 1 TELEPHONE LINE CORD, FOR NOR (FINLAND
3 LE7699001 1 FERRITE CORE ASSY, FOR GER/UK/IRE/AUS/GNR
3 LE3602001 1 FERRITE CORE ASSY (INCL. 2 PCS) FOR
FRA/BEL/NLD/CHE/DEN/SPA/ITA/NOR
4 LE6396001 1 DOCUMENT SET TRAY ASSY, GRAY
1495
5 LE6398001 1 PAPER EJECT TRAY ASSY, GRAY(1495
6 LE3305001 1 DOCUMENT EJECTION WIRE
7 LE6808001 1 SP ATTACHMENT BAG ASSY
8 LE6674001 1 CD-ROM ASSY<GERMAN/ENGLISH/FRENCH>,
MFC580 FOR GER/UK/FRA/BEL/CHE/IRE/AUS
LE6702001 1 CD-ROM ASSY<DUTCH/FRENCH/ITALIAN/SPANISH>,
8
MFC580 FOR BEL/NLD/SPA/ITA
LE6705001 1 CD-ROM ASSY
<ENGLISH/NORWEGIAN/DANISH/SWEDISH>,
8
9
LE6823001 1 TRAY EXTENSION
MFC580 FOR DEN/GNR/NOR
W/ PAPER SUPPORT
10 ---- NOT USED
(11) LK0504001 1
GLYCEROL CLEANING FLUID
1
(INCLUDING 120CC FLUID IN A BOTTLE
AND SYRINGE)
(12) LK0505001 1
INITIAL LIQUID CARTRIDGE ASSY(SP)
1
(INCLUDING 4 CARTRIDGES)
(14) LE6455001 1
ZA0310001 1
HEAD CLEANER STICK ASSY(SP)
FOAM EMPTY CARTRIDGE
1
1
(FOR INK EMPTY SENSOR COMPENSATION)
(15) UF9258001
16 LG2085001
COLOR TEST CHART CTC-001
1
AC CORD ASSY, FOR
1
GER/FRA/BEL/NLD/AUS/SPA/ITA/GNR/NOR (VDE)
1
16 LG2086001 1 AC CORD ASSY, FOR UK/IRA (BS) 1
16 LG2087001 1 AC CORD ASSY, FOR CHE (SEV) 1
16 LG2181001 1 AC CORD ASSY, FOR DEN (DEMCO) 1
LG3622001 1 TELEPHONE PLUG, FOR NLD
(18) UG4558001 1 I/F CABLE, FOR GER/UK/IRE/AUS/GNR
MFC580
LIST8(PRINTED MATERIAL)
REF No.
CODE
Q'TY
DESCRIPTION
RECOMMEND
REMARK
(1-1)
LE6528003
1
OWNER'S MANUAL, MFC580 FOR GER/AUS
(1-1)
LE6528004
1
OWNER'S MANUAL, MFC580 FOR UK/IRE/GNR/NOR
(1-1)
LE6528005
1
OWNER'S MANUAL, MFC580 FOR FRA
(1-1)
LE6528008
1
OWNER'S MANUAL, MFC580 FOR BEL <DUTCH>
(1-1)
LE6776008
1
OWNER'S MANUAL, MFC580 FOR BEL/CHE <FRENCH>
(1-1)
LE6528009
1
OWNER'S MANUAL, MFC580 FOR NLD
(1-1)
LE6528010
1
OWNER'S MANUAL, MFC580 FOR CHE <GERMAN>
(1-1)
LE6528015
1
OWNER'S MANUAL, MFC580 FOR SPA
(1-1)
LE6528016
1
OWNER'S MANUAL, MFC580 FOR ITA
(1) LE6845003 1 OWNER'S MANUAL ASSY, MFC580 FOR GER/AUS
(INCLUDING OWNER'S MANUAL(REF.No.(1-1),
WARRANTY CARD, LICENSE AGREEMENT SHEET,
TRAY EXTENSION(REF.No.7-9), WINXP INSERTION)
(1) LE6846004 1 OWNER'S MANUAL ASSY, MFC580 FOR UK
(INCLUDING OWNER'S MANUAL(REF.No.(1-1),
3 WARRANTY CARDS, LICENSE AGREEMENT SHEET,
TRAY EXTENSION(REF.No.7-9), WINXP INSERTION)
(1) LE6847005 1 OWNER'S MANUAL ASSY, MFC580 FOR FRA
(INCLUDING OWNER'S MANUAL(REF.No.(1-1),
2 WARRANTY CARDS, LICENSE AGREEMENT SHEET,
TRAY EXTENSION(REF.No.7-9), WINXP INSERTION)
(1) LE6848008 1 OWNER'S MANUAL ASSY, MFC580 FOR BEL
(INCLUDING 2 OWNER'S MANUALS(REF.No.(1-1),
WARRANTY CARD, LICENSE AGREEMENT SHEET,
TRAY EXTENSION(REF.No.7-9), WINXP INSERTION)
(1) LE6849009 1 OWNER'S MANUAL ASSY, MFC580 FOR NLD
(INCLUDING OWNER'S MANUAL(REF.No.(1-1),
WARRANTY CARD, LICENSE AGREEMENT SHEET,
TRAY EXTENSION(REF.No.7-9), WINXP INSERTION)
(1) LE6850010 1 OWNER'S MANUAL ASSY, MFC580 FOR CHE
(INCLUDING 2 OWNER'S MANUALS(REF.No.(1-1),
WARRANTY CARD, LICENSE AGREEMENT SHEET,
TRAY EXTENSION(REF.No.7-9), WINXP INSERTION)
(1) LE6851011 1 OWNER'S MANUAL ASSY, MFC580 FOR IRE/NOR
(INCLUDING OWNER'S MANUAL(REF.No.(1-1),
WARRANTY CARD, LICENSE AGREEMENT SHEET,
TRAY EXTENSION(REF.No.7-9), WINXP INSERTION)
(1) LE6852013 1 OWNER'S MANUAL ASSY, MFC580 FOR DEN
(INCLUDING OWNER'S MANUAL(REF.No.(1-1),
WARRANTY CARD, LICENSE AGREEMENT SHEET,
TRAY EXTENSION(REF.No.7-9), WINXP INSERTION)
(1) LE6853015 1 OWNER'S MANUAL ASSY, MFC580 FOR SPA
(INCLUDING WARRANTY CARD,
LICENSE AGREEMENT SHEET,
TRAY EXTENSION(REF.No.7-9), WINXP INSERTION)
(1) LE6854016 1 OWNER'S MANUAL ASSY, MFC580 FOR ITA
(INCLUDING OWNER'S MANUAL(REF.No.(1-1),
WARRANTY CARD, LICENSE AGREEMENT SHEET,
TRAY EXTENSION(REF.No.7-9), WINXP INSERTION)
(1) LE6855054 1 OWNER'S MANUAL ASSY, MFC580 FOR GNR
(INCLUDING OWNER'S MANUAL(REF.No.(1-1),
WARRANTY CARD, LICENSE AGREEMENT SHEET,
TRAY EXTENSION(REF.No.7-9), WINXP INSERTION)
1
1
1
1
1
1
1
1
1
1
1
MFC580
LIST9(PACKING)
REF No.
CODE
Q'TY
DESCRIPTION
RECOMMEND
REMARK
(1)
LE6678001
1
CARTON, BROTHER, MFC580
1
(2)
LE6871001
1
POLYSTYREN FOAM ASSY
(FAX2002255)
(3)
LE3605001
1
BAG, 800X900H
(4)
LE6195001
1
CARTON, FOR OPTION
(5)
LE6680001
1
START CARD, MFC580 FOR GER/AUS
(5)
LE6719001
1
START CARD, MFC580 FOR UK/IRE
(5)
LE6725001
1
START CARD, MFC580 FOR FRA
(5)
LE6774001
1
START CARD, MFC580 FOR BEL/CHE <FRENCH>
(5)
LE6775001
1
START CARD, MFC580 FOR BEL <DUTCH>
(5)
LE6765001
1
START CARD, MFC580 FOR NLD
(5)
LE6772001
1
START CARD, MFC580 FOR CHE <GERMAN>
(5)
LE6766001
1
START CARD, MFC580 FOR DEN
(5)
LE6767001
1
START CARD, MFC580 FOR SPA
(5)
LE6768001
1
START CARD, MFC580 FOR ITA
(5)
LE6558001
1
START CARD, MFC580 FOR GNR
(5)
LE6773001
1
START CARD, MFC580 FOR NOR
(5)
LE6769001
1
START CARD, MFC580 FOR NOR (NORWAY)
(5)
LE6770001
1
START CARD, MFC580 FOR NOR (SWEDEN)
(5)
LE6771001
1
START CARD, MFC580 FOR NOR (FINLAND)
(6)
LE6476001
1
CARRIAGE RETAINER
MFC580
8XA431
PL-FAX018
Ver. H
Loading...
