Computerized Embroidery Machine
Operation Manual
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Important Safety Instructions
Please read these safety instructions before attempting to use the machine.
This machine is intended for household use.
DANGER - To reduce the risk of electric shock
1Always unplug the machine from the electrical outlet immediately after using, when cleaning,
when making any user servicing adjustments mentioned in this manual, or if you are leaving the
machine unattended.
WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons.
2Always unplug the machine from the electrical outlet when removing covers, lubricating, or
when making any adjustments mentioned in the instruction manual.
• To unplug the machine, switch the machine to the symbol “O” position to turn it off, then grasp
the plug and pull it out of the electrical outlet. Do not pull on the cord.
• Plug the machine directly into the electrical outlet. Do not use an extension cord.
• Always unplug your machine if the power is cut.
3 Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or water is spilled on the unit. Return the machine to the nearest
authorized dealer or service center for examination, repair, electrical or mechanical adjustment.
4 Always keep your work area clear:
• Never operate the machine with any air openings blocked. Keep ventilation openings of the
machine free from the build up of lint, dust, and loose cloth.
• Do not use extension cords. Plug the machine directly into the electrical outlet.
• Never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
5 Special care is required when embroidering:
• Always pay close attention to the needle. Do not use bent or damaged needles.
• Keep fingers away from all moving parts. Special care is required around the machine needle.
• Switch the machine to the symbol “O” position to turn it off when making any adjustments in the
needle area.
• Do not use a damaged or incorrect needle plate, as it could cause the needle to break.
• Do not push or pull the fabric when embroidering.
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
6 This machine is not a toy:
• Your close attention is necessary when the machine is used by or near children.
• Do not use outdoors.
7 For a longer service life:
• When storing this machine, avoid direct sunlight and high humidity locations. Do not use or store
the machine near a space heater, iron, halogen lamp, or other hot objects.
• Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders
can damage the case and machine, and should never be used.
• Always consult the operation manual when replacing or installing any assemblies, the presser feet,
needle, or other parts to assure correct installation.
8 For repair or adjustment:
• If the Light unit is damaged, it must be replaced by authorized dealer.
• In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table
in the back of the operation manual to inspect and adjust the machine yourself. If the problem
persists, please consult your local authorized Brother dealer.
Use this machine only for its intended use as described in the manual.
Use accessories recommended by the manufacturer as contained in this manual.
Save these instructions.
The contents of this manual and specifications of this product are subject to change without notice.
For additional product information and updates, visit our web site at www.brother.com
FOR USERS IN THE UK, EIRE, MALTA AND CYPRUS ONLY
IMPORTANT
• In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying the
mark, rating as marked on plug.
• Always replace the fuse cover. Never use plugs with the fuse cover omitted.
• If the available electrical outlet is not suitable for the plug supplied with this equipment, you
should contact your authorized dealer to obtain the correct lead.
FOR USERS IN AUSTRALIA AND NEW ZEALAND
This embroidery machine is not intended to be used by young children, and assistance may be
required if used by a person with a disability.
2
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Contents
Important Safety Instructions .............................................................................................. 1
Introduction ........................................................................................................................5
Machine Features ................................................................................................................5
Accessories..........................................................................................................................6
Included accessories .........................................................................................................................................6
Optional accessories.........................................................................................................................................7
Names of Machine Parts and Their Functions .....................................................................8
Front view.........................................................................................................................................................8
Needle and embroidery foot section .................................................................................................................9
Right-side/rear view ..........................................................................................................................................9
Operation buttons...........................................................................................................................................10
Operation panel..............................................................................................................................................11
GETTING READY 13
Embroidery Step by Step ................................................................................................... 14
Attaching the Embroidery Unit..........................................................................................15
Embroidery unit precautions ........................................................................................................................... 15
Attaching the embroidery unit......................................................................................................................... 15
Removing the embroidery unit ........................................................................................................................ 16
Turning the Machine On/Off.............................................................................................18
Power supply precautions ...............................................................................................................................18
Turning on the machine.................................................................................................................................. 19
Turning off the machine..................................................................................................................................19
LCD (Liquid Crystal Display) Operation............................................................................20
Viewing the LCD.............................................................................................................................................20
Changing the machine settings........................................................................................................................21
Checking machine operating procedures ........................................................................................................23
Winding/Installing the Bobbin...........................................................................................24
Bobbin precautions .........................................................................................................................................24
Winding the bobbin ........................................................................................................................................ 24
Installing the bobbin .......................................................................................................................................28
Upper Threading ...............................................................................................................30
About the spool of thread ................................................................................................................................30
Threading the upper thread .............................................................................................................................30
Threading the needle ...................................................................................................................................... 32
Threading the needle manually (without using the needle threader) ................................................................34
Replacing the Needle ........................................................................................................ 35
Needle precautions.........................................................................................................................................35
Checking the needle ....................................................................................................................................... 35
Replacing the needle.......................................................................................................................................36
EMBROIDERY 39
Embroidering Neatly ......................................................................................................... 40
What to prepare..............................................................................................................................................40
Preparing the Fabric ..........................................................................................................42
Attaching a stabilizer material to the fabric ..................................................................................................... 42
Setting the fabric in the embroidery frame.......................................................................................................43
Attaching the Embroidery Frame.......................................................................................47
Attaching the embroidery frame...................................................................................................................... 47
Removing the embroidery frame .....................................................................................................................48
Selecting Embroidery Patterns...........................................................................................49
Copyright information .................................................................................................................................... 49
Embroidery pattern types.................................................................................................................................49
LCD (liquid crystal display) operation .............................................................................................................50
Selecting characters ........................................................................................................................................52
Selecting an embroidery pattern......................................................................................................................53
Selecting a frame pattern.................................................................................................................................54
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Using an embroidery card (sold separately) ....................................................................................................55
Embroidering.....................................................................................................................56
Embroidering attractive finishes.......................................................................................................................56
Embroidering a pattern....................................................................................................................................57
Appliquéing ...................................................................................................................................................59
Editing and Saving Patterns ............................................................................................... 61
Adjusting the layout........................................................................................................................................61
Storing patterns...............................................................................................................................................63
Adjusting the thread tension............................................................................................................................ 64
Resewing ........................................................................................................................................................65
Thread runs out partway through a design.......................................................................................................65
Stopping while embroidering ..........................................................................................................................66
APPENDIX 69
Care and Maintenance ...................................................................................................... 70
Cleaning the machine surface .........................................................................................................................70
Cleaning the race............................................................................................................................................70
Attaching the Embroidery Foot..........................................................................................72
Attaching the embroidery Foot “Q”................................................................................................................. 72
Troubleshooting ................................................................................................................ 74
Error messages ................................................................................................................................................78
Adjusting the LCD...........................................................................................................................................81
Operation beep...............................................................................................................................................81
Canceling the operation beep .........................................................................................................................82
Index .................................................................................................................................83
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Introduction
Thank you for purchasing this embroidery machine. Before using the machine, carefully read the
“Important Safety Instructions” (page 1), and then study this manual for the correct operation of the
various functions. In addition, after you have finished reading this manual, store it where it can quickly be
accessed for future reference.
Machine Features
1
32
4
a Simple bobbin-winding
The bobbin can quickly and easily be wound with thread (page 24).
b Quick-set bobbin
You can start embroiderying without pulling up the bobbin thread (page 28).
c Automatic thread cutting
The thread can be cut automatically after embroidering (page 51).
d Embroidery
You can embroider built-in embroidery patterns, characters, framed decorations, and designs from optional embroidery
cards (page 39).
5
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Accessories
Included accessories
After opening the box, check that the following accessories are included. If any item is missing or damaged,
contact your retailer.
1. 2. 3.* 4. 5. 6. 7. 8. 9.
10. 11. 12. 13. 14. 15.
16. 17.
*75/11 3 needles
90/14 1 needle
No. Part Name
1 Seam ripper X54243-051 10 Spool net XA5523-050
2 Bobbin (4) SA156
3 Needle set X59535-051
4 Cleaning brush X59476-051
5 Screwdriver (large) XC8349-051
6 Screwdriver (small) X55468-051
7 Spool cap (large) 130012-054 15 Scissors XC1807-121
8 Spool cap (medium) X55260-153 16 Dust cover XZ5004-021
9 Spool cap (small) 130013-154 17 Accessory bag XC4487-051
Part Code
U.S.A. / Canada
Others
SFB:
XA5539-
151
No. Part Name
11 Operation manual XD1628-051
12 Quick reference guide XD1629-051
Embroidery foot “Q”
13
(on machine)
Embroidery set (large)
14
H 18cm X W 13 cm
(H 7 inches X W 5 inches)
U.S.A. / Canada
SA444/EF84
Part Code
XD0474-051
Others
EF84:
XD0600-
002
6
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Optional accessories
The following are available as optional accessories.
1. 2. 3. 4.
5.
No. Part Name
Brother poly #90
1
bobbin thread
Water solude stabilizer SA520
2
Stabilizer material for
embroidery
3 Embroidery card
Embroidery set (small)
4
H 2 cm X W 6 cm
(H 1 inch X W 2-1/2 inches)
U.S.A. / Canada
EBT-PE
SA519
SA442/
EF82
Part Code
BM4: X81267-001
BM3: X81175-001
6.
Other
EBT-PEN:
XC5996-001 5
EBT-CEN
EBT-CEN
–
EF82:
XD0598-002
No. Part Name
Embroidery set (medium)
H 10 cm X W 10 cm
(H 4 inches X W 4 inches)
Embroidery set (extra large
(multi-position))
6
H 30 cm X W 13 cm
(H 12 inches X W 5 inches)
U.S.A. / Canada
SA443/
EF83
SA545
Part Code
Memo
z To obtain optional accessories or parts, contact your sales representative or the nearest authorized
service center.
z
All specifications are correct at the time of printing. The part codes are subject to change without notice.
z Visit your nearest authorized retailer for a complete listing of optional accessories available for your
machine.
Other
EF83:
XD0599-002
EF85:
XD0601-002
7
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Names of Machine Parts and Their Functions
The names of the various parts of the machine and their functions are described below. Before using the
machine, carefully read these descriptions to learn the names of the machine parts.
Front view
a Thread guide plate
Pass the thread around the thread guide plate when
threading the upper thread.
b Thread guide cover
Like with the thread guide plate, pass the thread around
the thread guide cover when threading the upper
thread.
c Spool pin
Place a spool of thread on the spool pin.
d Bobbin winding thread guide
Pass the thread around this thread guide when winding
the bobbin thread.
e Top cover
Open the top cover to place the spool of thread on the
spool pin.
f Bobbin winder
Use the bobbin winder when winding the bobbin.
g Operation panel
From the operation panel, patterns can be selected and
edited, and operations for using the machine can be
displayed (page 11).
8
h Embroidery unit connector slot
Plug in the connector for the embroidery unit.
i Presser foot lever
Raise and lower the presser foot lever to raise and lower
the presser foot
j Operation buttons
Use these buttons to operate the machine.
k Embroidery unit
Attach the embroidery unit to the machine, and then
attach the embroidery frame.
l Thread cutter
Pass the threads through the thread cutter to cut them.
m Needle threader lever
Use the needle threader lever to thread the needle.
n Thread take-up lever check window
Look through the window to check the position of the
take-up lever.
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Needle and embroidery foot section
a Thread guide disk
Pass the thread through the thread guide disk when
using the needle threader to thread the needle.
b Needle bar thread guide
Pass the upper thread through the needle bar thread
guide.
c Needle plate
When the needle is lowered, it enters the hole in the
needle plate.
d Needle plate cover
Remove the needle plate cover to clean the bobbin case
and race.
e Bobbin cover/bobbin case
Remove the bobbin cover, and then insert the bobbin
into the bobbin case.
f Embroidery foot “Q”
This presser foot is used for embroidering.
Right-side/rear view
a Handle
Carry the machine by its handle when transporting the
machine.
b Handwheel
Turn the handwheel toward you (counterclockwise) to
raise and lower the needle.
c Embroidery card slot
Insert the embroidery card.
d Air vent
The air vent allows the air surrounding the motor to be
exchanged. Do not cover the air vent while the
machine is being used.
e Power supply jack
Insert the plug on the power supply cord into the power
supply jack.
f Main power switch
Use the main power switch to turn the machine on and
off.
Memo
z Refer to pages 8 through 11 while you are
learning to use your machine.
9
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Operation buttons
The operation buttons help you to easily perform various basic machine operations.
a Start/stop button
Press the start/stop button to start or stop embroidering.
The machine embroiders at a slow speed while the
button is pressed. When embroidering is stopped, the
needle is lowered in the fabric.
The button changes color according to the machine’s
operation mode.
Green: The machine is ready to embroider or
is embroidering.
Red: The machine can not embroider.
Orange: The machine is winding the bobbin
thread, or the bobbin winder shaft is
moved to the right side.
b Needle position button
Press the needle position button to raise or lower the
needle. Pressing the button twice sews one stitch.
c Thread cutter button
Press the thread cutter button after embroidering is
stopped to cut both the upper and the bobbin threads.
CAUTION
● Do not press the thread cutter button
after the threads have already been cut,
otherwise the needle may break, the
threads may become tangled or damage
to the machine may occur.
Note
z Do not press the thread cutter button if there
is no fabric under the presser foot or while
the machine is embroidering, otherwise
damage to the machine may occur.
z When cutting thread thicker than #30, nylon
thread or other special threads, use the
thread cutter on the side of the machine.
10
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Operation panel
The front operation panel has an LCD (liquid crystal display) and operation keys.
a
c
b
a LCD (liquid crystal display) (touch panel)
Touch the keys displayed on the LCD to perform
operations.
For details, refer to “LCD (Liquid Crystal Display)
Operation” (page 20).
b Back key
Press to return to the previous screen.
c Previous page key
Press to display the previous screen when there are
items that are not displayed on the LCD.
d Next page key
Press to display the next screen when there are items
that are not displayed on the LCD.
e Memory key
Press to store patterns in the machine's memory.
fg
f Embroidery key
Press to display the pattern type selection screen.
g Settings key
Press to display the settings screen.
h Help key
Press to get help on using the machine.
Displays simple explanations of setting upper thread /
bobbin winding / setting bobbin thread / embroidery
unit attachment / embroidery frame attachment / needle
replacement.
d
e
h
11
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
12
1 GETTING READY
The various preparations to start embroidering are described in this chapter.
Embroidery Step by Step .........................................................................................14
Attaching the Embroidery Unit................................................................................15
Embroidery unit precautions ..............................................................................15
Attaching the embroidery unit ...........................................................................15
Removing the embroidery unit...........................................................................16
Turning the Machine On/Off ..................................................................................18
Power supply precautions ..................................................................................18
Turning on the machine .....................................................................................19
Turning off the machine .....................................................................................19
LCD (Liquid Crystal Display) Operation..................................................................20
Viewing the LCD ................................................................................................20
Changing the machine settings...........................................................................21
Checking machine operating procedures ...........................................................23
Winding/Installing the Bobbin.................................................................................24
Bobbin precautions ............................................................................................24
Winding the bobbin ...........................................................................................24
Installing the bobbin ..........................................................................................28
Upper Threading .....................................................................................................30
About the spool of thread ..................................................................................30
Threading the upper thread................................................................................30
Threading the needle..........................................................................................32
Threading the needle manually (without using the needle threader)..................34
Replacing the Needle ..............................................................................................35
Needle precautions ............................................................................................35
Checking the needle...........................................................................................35
Replacing the needle ..........................................................................................36
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Embroidery Step by Step
The basic steps for embroidery are as follows.
Attaching the embroidery
1
unit
2 Checking the needle
Setting up the bobbin
3
thread
4 Preparing the fabric
Attaching the embroidery
5
frame
Attach the embroidery unit. (If the embroidery unit is not attached, the
machine does not operate.)
For details, refer to “Attaching the embroidery unit” (page 15).
↓
Use a needle matched to the fabric.
For details on replacing the needle, refer to “Replacing the needle” (page
36).
↓
For the bobbin thread, wind embroidery bobbin thread and set it in
place.
For details, refer to “Winding/Installing the Bobbin” (page 24).
↓
Attach a stabilizer material to the fabric, and hoop it in an embroidery
frame.
For details, refer to “Preparing the Fabric” (page 42).
↓
Attach the embroidery frame to the embroidery unit.
For details, refer to “Attaching the Embroidery Frame” (page 47).
6 Selecting a pattern
7 Checking the layout
Setting up the embroidery
8
thread
↓
Select an embroidery pattern.
For details, refer to “Selecting Embroidery Patterns” (page 49).
↓
Check and adjust the size and position of the embroidery pattern.
For details on adjusting the layout, refer to “Adjusting the layout” (page
61).
↓
Set up the embroidery thread according to the pattern.
For details, refer to “Upper Threading” (page 30).
14
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Attaching the Embroidery Unit
This section describes how to attach the embroidery unit. Before turning on the machine, attach the
embroidery unit to it. If the embroidery unit is not attached, the machine does not operate.
1
Embroidery unit precautions
Cautions for the embroidery unit will be explained
below.
CAUTION
● Do not move the machine with the
embroidery unit in place. The embroidery
unit may be dropped and cause injury.
● Keep your hands and other objects away
from the embroidery carriage and frame.
Otherwise injury may result.
Note
z Do not touch the connector in the
embroidery unit connector slot. The
connector could be damaged, and it may
cause malfunctions.
z Do not lift up on the embroidery carriage,
and do not forcefully move it. It may cause
malfunctions.
Attaching the embroidery unit
Get the included embroidery unit ready.
Turn off the machine.
a
Slide the embroidery unit onto the machine
b
arm.
Push it in until it clicks and stops.
X The embroidery unit is attached.
Turn on the machine.
c
• For details, refer to “Turning on the machine”
(page 19).
X The confirmation message is displayed.
Attaching the Embroidery Unit 15
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Be sure that no objects or hands are near the
d
embroidery unit and press .
• When an animation is displayed on the
screen, the message above will be displayed
if you touch the screen with your finger.
X The carriage moves to its initial position.
a
a Carriage
Removing the embroidery unit
Make sure that the machine is completely stopped
and follow the instructions below.
Remove the embroidery frame.
a
• For details on removing the embroidery
frame, refer to “Removing the embroidery
frame” (page 48).
Press , and then press .
b
X The embroidery carriage moves into a
position where it can be stored.
Turn off the machine.
c
• For details, refer to “Turning off the machine”
(page 19).
CAUTION
● Do not put your hands or other objects
near the carriage. It may cause injury.
Note
z If the machine is initialized with hands or
objects near the carriage, the screen may
return to the initial display. After removing
whatever is near the carriage, turn the power
on again.
X The screen for selecting the embroidery
pattern type is displayed.
• For details on the embroidery patterns, refer
to “Selecting Embroidery Patterns” (page 49).
CAUTION
● Always turn off the machine before
removing the embroidery unit.
It may cause malfunctions if removed
when the machine is turned on.
16
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Hold the release button on the bottom left of
d
the embroidery unit, and slowly pull the
embroidery unit to the left.
a
a Release button
X The embroidery unit separates from the
machine.
1
CAUTION
● Do not carry the embroidery unit by
holding the release button compartment.
Attaching the Embroidery Unit 17
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Turning the Machine On/Off
This section explains how to turn the machine on and off.
Power supply precautions
Be sure to observe the following precautions concerning the power supply.
WARNING
● Use only regular household electricity for the power source. Using other power sources may
result in fire, electric shock, or damage to the machine.
● Turn off the main power and remove the plug in the following circumstances:
• When you are away from the machine
• After using the machine
• When the power fails during use
• When the machine does not operate correctly due to a bad connection or a disconnection
• During electrical storms
CAUTION
● Do not use extension cords or multi-plug adapters with many other appliances plugged in to
them. Fire or electric shock may result.
● Do not touch the plug with wet hands. Electric shock may result.
● When unplugging the machine, always turn off the main power first. Always grasp the plug to
remove it from the outlet. Pulling on the cord may damage the cord, or lead to fire or electric
shock.
● Do not allow the power cord to be cut, damaged, modified, forcefully bent, pulled, twisted,
or bundled. Do not place heavy objects on the cord. Do not subject the cord to heat. These
things may damage the cord and cause fire or electric shock. If the cord or plug is damaged,
take the machine to your authorized dealer for repairs before continuing use.
● Unplug the power cord if the machine is not to be used for a long period of time. Otherwise a
fire may result.
18
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Turning on the machine
Before turning on the machine, be sure to attach the
embroidery unit to it. If the embroidery unit is not
attached, the machine does not operate. (For details,
refer to “Attaching the Embroidery Unit” (page 15).)
Prepare the included power cord.
Make sure that the machine is turned off (the
a
main power switch is set to “ ”), and then
plug the power supply cord into the power
supply jack on the right side of the machine.
Insert the plug of the power supply cord into a
b
household electrical outlet.
1
Turning off the machine
When you are finished using the machine, turn it off.
In addition, before transporting the machine to
another location, be sure to turn it off.
Make sure that the machine is completely
a
stopped.
Press the left side of the main power switch on
b
the right side of the machine to turn the
machine off (set it to “ ”).
X The lamps go off when the machine is
turned off.
Unplug the power supply cord from the
c
electrical outlet.
Grasp the plug when unplugging the power
supply cord.
1
a Power supply jack
Press the right side of the main power switch
c
on the right side of the machine to turn the
machine on (set it to “|”).
X The lamps, LCD and (Start/stop button)
light up when the machine is turned on.
Unplug the power supply cord from the power
d
supply jack.
Note
z If a power outage occurs while the machine
is being operated, turn off the machine and
unplug the power supply cord. When
restarting the machine, follow the necessary
procedure to correctly operate the machine.
(For U.S.A. only)
z This appliance has a polarized plug (one
blade wider than the other). To reduce the
risk of electrical shock, this plug is intended
to fit in a polarized outlet only one way. If
the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact
a qualified electrician to install the proper
outlet. Do not modify the plug in any way.
Turning the Machine On/Off 19
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
LCD (Liquid Crystal Display) Operation
From the LCD, patterns can be selected and edited, and operations for using the machine can be
displayed (page 11).
Viewing the LCD
When the machine is turned on, the opening screen appears. The screen shown below appears after the
confirmation message was displayed by lightly touching the LCD. (The machine can be set so that the opening
screen is not displayed (page 21).)
■ Pattern type selection screen
a
d
e
a Embroidery patterns
b Additional embroidery patterns
c Alphabet patterns
d Frame patterns
e Embroidery card
f Patterns stored in the machine's memory
g Moves the embroidery unit carriage to its storage position
b
c
g
f
Memo
z Refer to “Error messages” (page 78) for messages displayed on the LCD.
z Depending on the model, a different screen may be displayed when the machine is turned on.
20
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Changing the machine settings
Various machine operations and embroidery settings can be changed.
The attributes that can be set are listed below.
Attribute Icon Details Settings
1
Thread
color
display
Display unit
Embroidery
tension
Max
embroidery
speed
Buzzer
Opening
screen
Language
LCD
brightness
Changes the thread color display on the
embroidery screen.
(When “Thread No. #123” is selected)
Selects the measurement units that are
displayed (only for embroidering).
Adjusts the thread tension for embroidering
(only for embroidering).
Specifies the maximum embroidering
speed.
Specifies whether or not a beep is sounded
with each operation (page 82).
Sets whether or not to display the opening
screen when the power is turned on.
(There are models where this cannot be changed.)
Allows the language used in the screens to
be changed.
Adjusts the brightness of the LCD.
Thread color/Time to embroider/
Needle count/Thread number (#123)
Embroidery/Country/Madeira poly/
Madeira rayon/Sulky/Robison anton
mm/INCH
-8 to +8
English/German/French/Italian/
Dutch/Spanish/Japanese/Danish/
Norwegian/Finnish/Swedish/
Portuguese/Russian/Korean/Thai/
others
Lighter Darker
Display the service count and the total
Stitch
counter
Product
number
Program
version
NO.: The “NO.” is the number for the machine. –
VERSION: Display the program version. –
number of embroidery stitches. The service
count is a reminder to take your machine in
for regular servicing. (Contact your
authorized dealer for details.)
–
Note
z The items shown in reverse highlighting are the settings at the time of purchase.
z For details on the embroidering settings, refer to “LCD (liquid crystal display) operation” (page 50).
LCD (Liquid Crystal Display) Operation 21
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Turn on the machine.
a
X The LCD comes on.
Press (Settings key) on the operation
b
panel.
Example: Changing the maximum
embroidering speed
X The settings screen appears.
Press the item to be set.
c
Switch screens using (Previous page key)
and (Next page key).
22
When settings are complete, press (Back
d
key).
X The initial screen appears again.
Note
z Settings that are changed are not lost when
the power is turned off.
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Press (Next page key) to switch to the
d
Checking machine operating
procedures
Displays simple explanations of setting upper thread /
bobbin winding / setting bobbin thread / embroidery
unit attachment / embroidery frame attachment /
needle replacement on the LCD.
Turn on the machine.
a
X The LCD comes on.
Press (Help key) on the operation panel.
b
next page.
Press (Previous page key) to return to the
previous page.
Example: Upper threading
1
X The help screen appears.
Press the item to be displayed.
c
4
5
a Upper threading
b Bobbin winding
c Bobbin installation
d Embroidery unit attachment
e Embroidery frame attachment
f Needle replacement
X The first screen describing the procedure for
the selected topic appears.
• Press (Back key) to return to the item
selection screen.
1
23
6
After you finish checking, press (Back
e
key) two times.
X The initial stitch screen appears again.
Note
z For details on each topic, refer to the
corresponding page in this Operation
Manual.
LCD (Liquid Crystal Display) Operation 23
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Winding/Installing the Bobbin
This section describes how to wind the thread onto the bobbin, and then insert the bobbin thread.
Place the bobbin on the bobbin winder shaft so
c
Bobbin precautions
Be sure to observe the following precautions
concerning the bobbin.
CAUTION
● Only use the Bobbin (part code: SA156,
SFB: XA5539-151) designed specifically
for this machine. Use of any other bobbin
may result in injuries or damage to the
machine.
● The included bobbin was designed
specifically for this machine. If bobbins
from other models are used, the machine
will not operate correctly. Use only the
included bobbin or bobbins of the same
type (part code: SA156, SFB: XA5539-
151).
that the spring on the shaft fits into the notch
in the bobbin
Press down on the bobbin until it snaps into
place.
a Notch
b Bobbin winder shaft spring
Slide the bobbin winder in the direction of the
d
arrow until it snaps into place.
.
1
2
Actual size
11.5 mm
(7/16 inch)
This model
Other model
Winding the bobbin
Wind the thread around the bobbin to prepare the
bobbin thread.
Turn on the machine.
a
Open the top cover.
b
• (Start/stop button) lights up in orange.
Remove the spool cap that is inserted onto the
e
spool pin.
1
2
a Spool pin
b Spool cap
24
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Place the spool of thread for the bobbin onto
f
the spool pin.
Slide the spool onto the pin so that the spool is
horizontal and the thread unwinds to the front at the
bottom.
Memo
z When embroidering with fine, cross-wound
thread, use the small spool cap, and leave a
small space between the cap and the spool.
c
a
b
1
• If the spool is not positioned so that the
thread unwinds correctly, the thread may
become tangled around the spool pin.
Slide the spool cap onto the spool pin.
g
Slide the spool cap as far as possible to the right, as
shown, with the rounded side on the left.
CAUTION
● If the spool or the spool cap is not
installed correctly, the thread may
become tangled around the spool pin,
causing the needle to break.
● Three spool cap sizes are available,
allowing you to choose a spool cap that
best fits the size of spool being used. If the
spool cap is too small for the spool being
used, the thread may catch on the slit in
the spool or the needle may break.
●
a Spool cap (small)
b Spool (cross-wound thread)
c Space
z When using thread that winds off quickly,
such as transparent nylon thread or metallic
thread, place the spool net over the spool
before placing the spool of thread onto the
spool pin.
If the spool net is too long, fold it to fit the
size of the spool.
1
3
a Spool net
b Spool
c Spool cap
d Spool pin
2
4
Winding/Installing the Bobbin 25
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

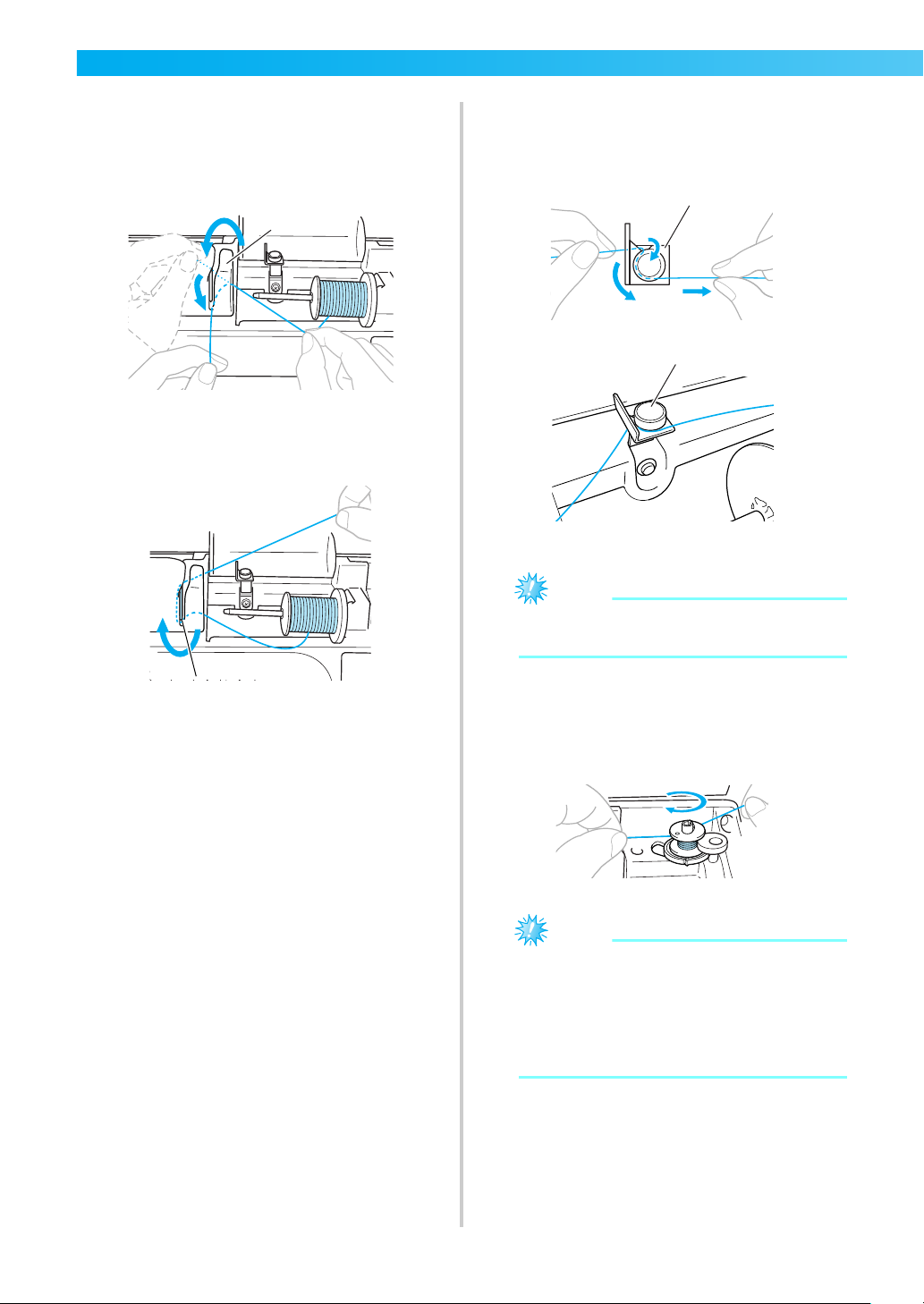

While holding the thread near the spool with
h
your right hand, as shown, pull the thread with
your left hand, and then pass the thread
behind the thread guide cover and to the front.
1
a Thread guide cover
Pass the thread under the thread guide plate,
i
and then pull it to the right.
Pass the thread under the hook on the thread
j
guide, and then wind it counterclockwise
under the pretension disk.
1
1
a Thread guide
Note
z Make sure that the thread passes under the
pretension disk.
1
a Thread guide plate
While holding the thread with your left hand,
k
wind the thread that was pulled out clockwise
around the bobbin five or six times with your
right hand.
Note
z Make sure that the thread between the spool
and the bobbin is pulled tight.
z Be sure to wind the thread clockwise around
the bobbin, otherwise the thread will
become wrapped around the bobbin winder
shaft.
26
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Pass the end of the thread through the guide
l
slit in the bobbin winder seat, and then pull
the thread to the right to cut it.
1
a Guide slit in bobbin winder seat
(with built-in cutter)
CAUTION
● Be sure to cut the thread as described. If
the bobbin is wound without cutting the
thread using the cutter built into the slit
in the bobbin winder seat, the thread
may become tangled in the bobbin or the
needle may bend or break when the
bobbin thread starts to run out.
Press (Start/stop button) once to start
m
winding the bobbin.
Use scissors to cut the end of the thread
n
wound around the bobbin.
Slide the bobbin winder shaft to the left, and
o
then remove the bobbin from the shaft.
Remove the spool for the bobbin thread from
p
the spool pin, and then close the top cover.
Memo
z When the machine is started or the
handwheel is turned after winding the
bobbin, the machine will make a clicking
sound; this is not a malfunction.
1
1
a Start/stop button
• When the bobbin winding becomes slow,
press (Start/stop button) once to stop the
machine.
CAUTION
● When the bobbin winding becomes slow,
stop the machine, otherwise the machine
may be damaged.
Winding/Installing the Bobbin 27
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Insert the bobbin into the bobbin case so that
d
Installing the bobbin
Install the bobbin wound with thread.
the thread unrolls to the left.
CAUTION
● Use a bobbin that has been correctly
wound with thread, otherwise the needle
may break or the thread tension will be
incorrect.
• Be sure to insert the bobbin correctly.
CAUTION
● Be sure to install the bobbin so that the
thread unwinds in the correct direction,
●
The bobbin was designed specifically for
this machine. If bobbins from other
models are used, the machine will not
operate correctly. Use only the included
bobbin or bobbins of the same type (part
code: SA156, SFB: XA5539-151).
Actual size
11.5 mm
(7/16 inch)
otherwise the thread may break or the
thread tension will be incorrect.
Memo
z The order that the bobbin thread should be
passed through the bobbin case is indicated
by marks around the bobbin case. Be sure to
thread the machine as indicated.
This model Other model
Slide the bobbin cover latch to the right.
a
1
a Bobbin cover
b Latch
X The bobbin cover opens.
Remove the bobbin cover.
b
Hold the bobbin with your right hand and hold
c
the end of the thread with your left.
2
Lightly hold down the bobbin with your right
e
hand, and then guide the thread as shown with
your left hand.
CAUTION
●
When installing the bobbin, be sure to hold
it down with your finger. If the bobbin is
not correctly installed, the thread tension
will be incorrect.
• Be careful not to drop the bobbin.
28
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

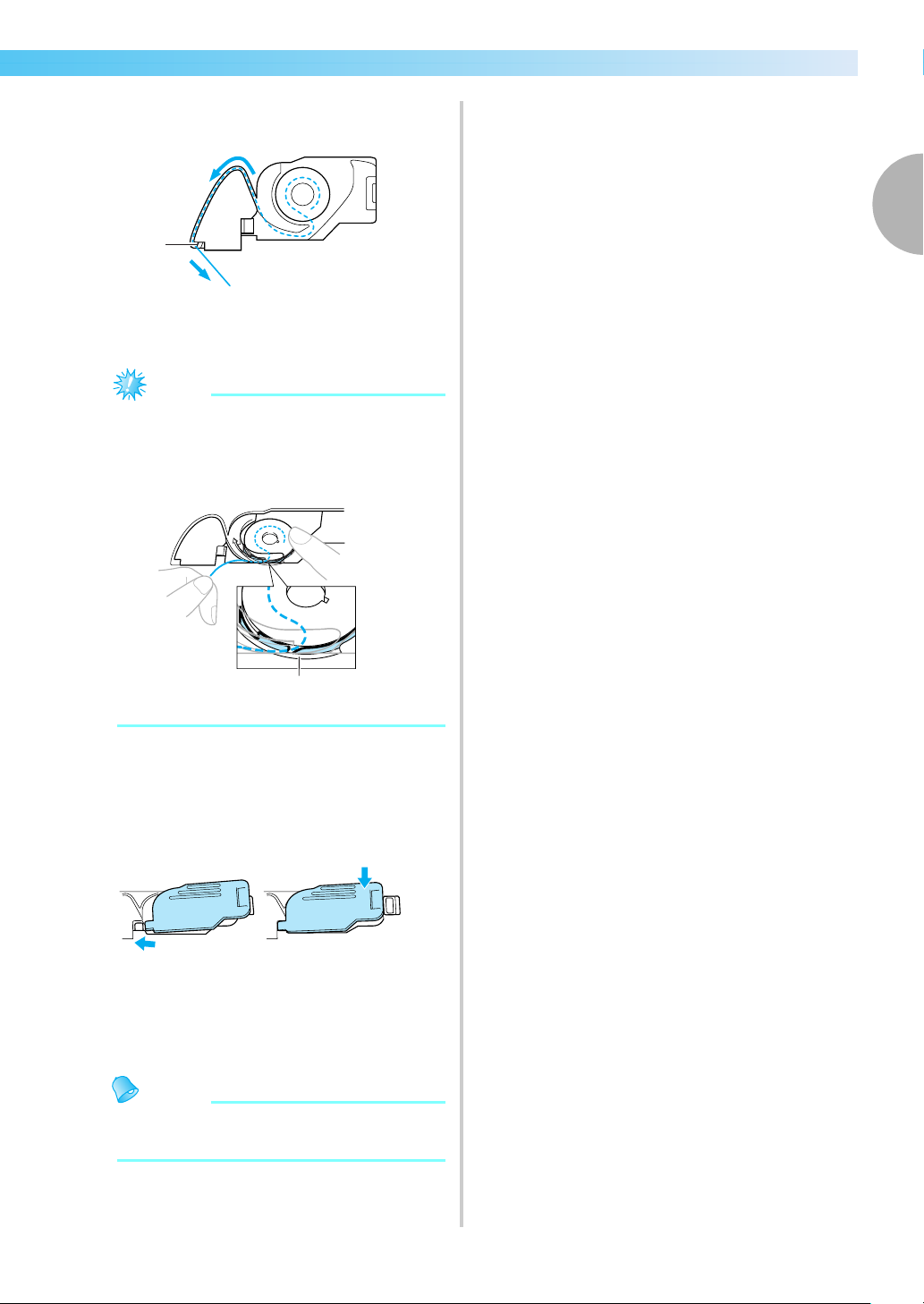

Pass the thread through the slot as shown, and
f
then pull the thread out toward the front.
1
a Cutter
X The cutter cuts the thread.
Note
z Make sure that the thread is correctly
inserted through the tension-adjusting spring
of the bobbin case. If it is not inserted
correctly, reinsert the thread.
1
1
a Tension-adjusting spring
Reattach the bobbin cover.
g
Insert the tab in the lower-left corner of the
bobbin cover, and then lightly press down on
the right side.
1
X The lower threading is finished.
Next, thread the upper thread. Continue with
the procedure in “Upper Threading” (page 30).
Memo
z You can start embroidering without pulling
up the bobbin thread.
2
Winding/Installing the Bobbin 29
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

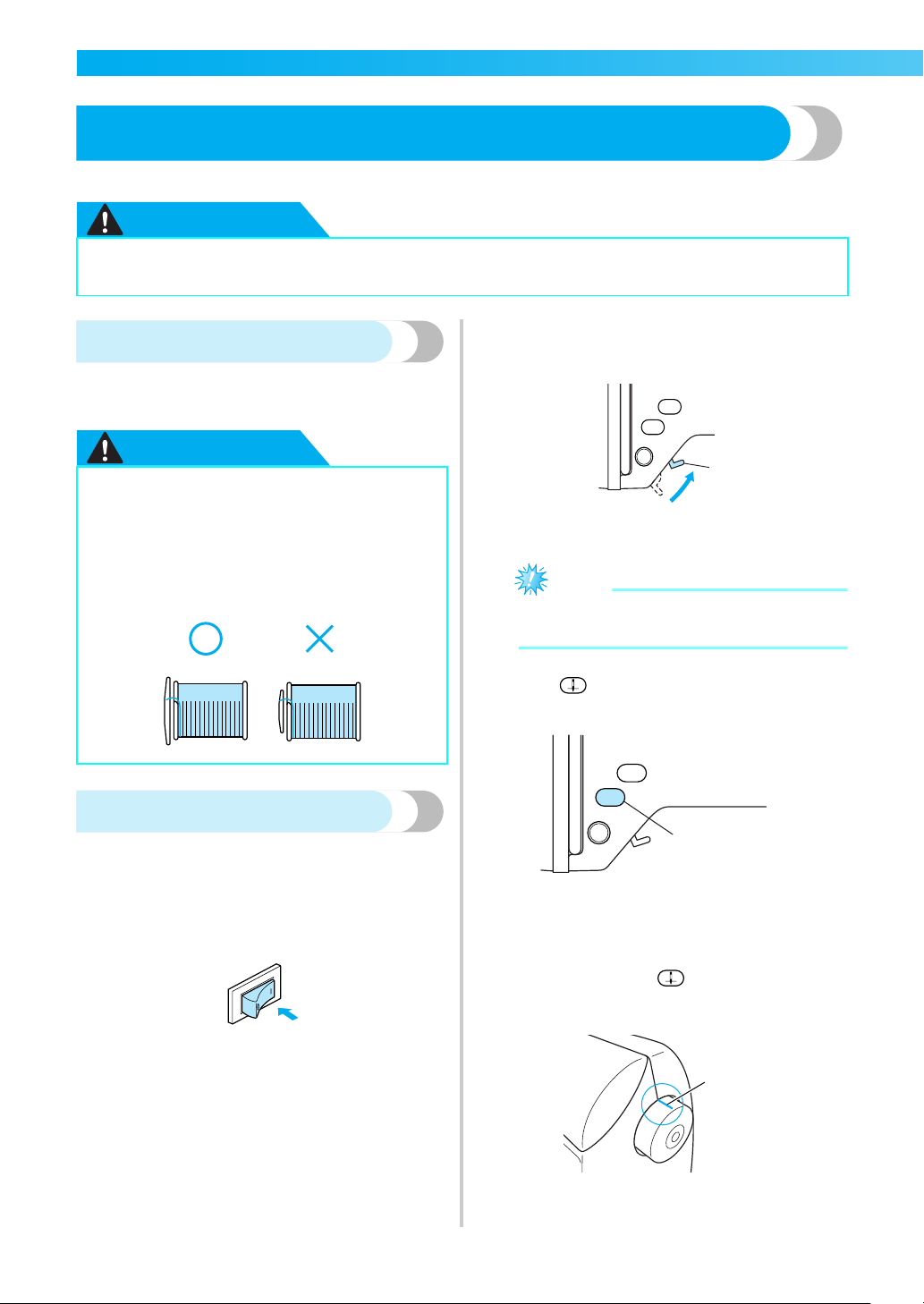

Upper Threading
This section describes how to position the spool for the upper thread, and then thread the needle.
CAUTION
● When threading the upper thread, carefully follow the instructions. If the upper threading is
not correct, the thread may become tangled or the needle may bend or break.
Raise the presser foot lever to raise the presser
b
About the spool of thread
Information about the spools of thread is described
below.
foot.
CAUTION
● Three spool cap sizes are available,
allowing you to choose a spool cap that
best fits the size of spool being used. If the
spool cap is too small for the spool being
used, the thread may catch on the slit in
the spool or the needle may break.
Threading the upper thread
Set the spool of thread on the spool pin, and then
thread the machine.
Turn on the machine.
a
a
a Presser foot lever
Note
z If the presser foot is not raised, the machine
cannot be threaded.
Press (Needle position button) once or
c
twice to raise the needle.
1
a Needle position button
X The needle is correctly raised when the mark on
the handwheel is at the top, as shown below.
Check the handwheel and, if this mark is not at
this position, press (Needle position button)
until it is.
30
1
a Mark on handwheel
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Open the top cover.
d
Remove the spool cap that is inserted onto the
e
spool pin.
1
2
a Spool pin
b Spool cap
Place the spool of thread onto the spool pin.
f
Slide the spool onto the pin so that the spool is
horizontal and the thread unwinds to the front
at the bottom.
Slide the spool cap onto the spool pin.
g
Slide the spool cap as far as possible to the
right, as shown, with the rounded side on the
left.
While holding the thread lightly with your
h
right hand, pull the thread with your left hand,
and then pass the thread behind the thread
guide cover and to the front.
1
1
CAUTION
● If the spool or the spool cap is not
positioned correctly, the thread may
become tangled around the spool pin or
the needle may break.
a Thread guide cover
Pass the thread under the thread guide plate,
i
and then pull it up.
1
a Thread guide plate
Upper Threading 31
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
While using your right hand to lightly hold the
j
thread passed under the thread guide plate,
Threading the needle
pass the thread through the guides in the order
shown below.
This section describes how to thread the needle.
1
Memo
z
The needle threader can be used with sewing
machine needles 75/11 through 100/16.
z Thread with a thickness of 130/20 or thicker
cannot be used with the needle threader.
z If the needle threader cannot be used, refer
to “Threading the needle manually (without
using the needle threader)” (page 34).
a Shutter
Pull the end of the thread passed through the
a
Note
z If the embroidery foot has been lowered and
the shutter is closed, the machine cannot be
threaded. Be sure to raise the embroidery
foot and open the shutter before threading
the machine. In addition, before removing
the upper thread, be sure to raise the
embroidery foot and open the shutter.
z This machine is equipped with a window
that allows you to check the position of the
take-up lever. Look through this window and
check that the thread is correctly fed through
the take-up lever.
needle bar thread guide to the left, and then
pass the thread through the thread guide disk
from the front.
1
Pass the thread behind the needle bar thread
k
guide.
The thread can easily be passed behind the
needle bar thread guide by holding the thread
in your left hand, then feeding the thread with
your right hand, as shown.
1
a Needle bar thread guide
32
a Thread guide disk
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Cut the thread with the cutter on the left side
b
of the machine.
1
a Cutter
Note
z If the thread is pulled through and cannot be
cut correctly, lower the embroidery foot so
that the thread is held in place before cutting
the thread. If this operation is performed,
skip step
z When using thread that quickly winds off the
spool, such as metallic thread, it may be
difficult to thread the needle if the thread is
cut.
Therefore, instead of using the thread cutter,
pull out about 80 mm (approx. 3 inches) of
thread after passing it through the thread
guide disks (marked “7”).
c.
Lower the needle threader lever on the left
d
side of the machine until it clicks, and then
slowly return the lever to its original position.
1
a Needle threader lever
X The thread is passed through the eye of the
needle.
Note
z If the needle was not completely threaded,
but a loop in the thread was formed in the
eye of the needle, carefully pull the loop
through the eye of the needle to pull out the
end of the thread.
1
1
a 80mm or more
Lower the presser foot lever to lower the
c
embroidery foot.
1
a Presser foot lever
CAUTION
● When pulling out the thread, do not pull
it with extreme force, otherwise the
needle may break or bend.
Upper Threading 33
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Raise the presser foot lever, pass the end of the
e
thread through the embroidery foot hole.
Threading the needle manually
(
without using the needle threader
When using special thread, thread with a thickness of
130/20 or thicker which cannot be used with the
needle threader, thread the needle as described
below.
Thread the machine to the needle bar thread
a
guide.
)
X The upper threading is finished.
Now that the upper threading and the lower
threading are finished, you are ready to start
embroidering.
Note
z If the needle is not raised, the needle
threader cannot thread the needle. Be sure
to press (Needle position button) to
raise the needle before using the needle
threader.
• For details, refer to “Threading the upper
thread” (page 30).
Lower the presser foot lever.
b
1
a Pressor foot lever
Pass the thread through the eye of the needle
c
from front to back.
Raise the presser foot lever, pass the end of the
d
thread through the embroidery foot hole.
34
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Replacing the Needle
This section describes how to replace the needle.
Needle precautions
Be sure to observe the following precautions
concerning the handling of the needle. Failure to
observe these precautions is extremely dangerous, for
example, if the needle breaks and fragments are
dispersed. Be sure to read and carefully follow the
instructions below.
CAUTION
● Only use home sewing machine needles.
Use of any other needle may bend the
needle or damage the machine.
● Never use bent needles. Bent needles can
easily break, possibly resulting in injuries.
Checking the needle
1
Embroidering with a bent needle is extremely
dangerous since the needle may break while the
machine is being operated.
Before using the needle, place the flat side of the
needle on a flat surface and check that the distance
between the needle and the flat surface is even.
1
2
a Flat side
b Needle type marking
CAUTION
● If the distance between the needle and the flat
surface is not even, the needle is bent. Do not
use a bent needle.
a Flat surface
1
1
Replacing the Needle 35
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Place fabric or paper under the embroidery
d
Replacing the needle
foot to cover the hole in the needle plate.
Replace the needle as described below. Use the
screwdriver and a needle that has been determined to
be straight according to the instructions in “Checking
the needle” (page 35).
Press (Needle position button) once or
a
twice to raise the needle.
1
a Needle position button
Turn off the machine.
b
CAUTION
Note
z Before replacing the needle, cover the hole
in the needle plate with fabric or paper to
prevent the needle from falling into the
machine.
Hold the needle with your left hand, and then
e
use a screwdriver to turn the needle clamp
screw toward you (counterclockwise) to
remove the needle.
1
2
a Screwdriver
b Needle clamp screw
• Do not apply a strong force when loosening
or tightening the needle clamp screw,
otherwise certain parts of the machine may
be damaged.
● Before replacing the needle, be sure to
turn off the machine, otherwise injuries
may occur if (Start/stop button) is
accidentally pressed and the machine
starts embroidering.
Lower the presser foot lever.
c
1
a Presser foot lever
36
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
With the flat side of the needle toward the rear
f
of the machine, insert the needle until it
touches the needle stopper.
1
a Needle stopper
While holding the needle with your left hand,
g
use the screwdriver to tighten the needle clamp
screw.
1
CAUTION
● Be sure to insert the needle until it
touches the needle stopper and securely
tighten the needle clamp screw with the
screwdriver, otherwise the needle may
break or damage may result.
Replacing the Needle 37
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
38
2EMBROIDERY
The steps for embroidering are described in this chapter.
Embroidering Neatly ........................... 40
What to prepare .............................40
Preparing the Fabric ............................ 42
Attaching a stabilizer material
to the fabric ..................................42
Setting the fabric
in the embroidery frame ................43
Attaching the Embroidery Frame.........47
Attaching the embroidery frame ....47
Removing the embroidery frame.... 48
Selecting Embroidery Patterns.............49
Copyright information....................49
Embroidery pattern types ...............49
LCD (liquid crystal display)
operation
Selecting characters .......................52
Selecting an embroidery pattern ....53
Selecting a frame pattern ............... 54
Using an embroidery card
(sold separately) ............................. 55
............................................
50
Embroidering .......................................56
Embroidering attractive finishes ..... 56
Embroidering a pattern...................57
Appliquéing ....................................59
Editing and Saving Patterns .................61
Adjusting the layout .......................61
Storing patterns ..............................63
Adjusting the thread tension...........64
Resewing ........................................65
Thread runs out partway
through a design.............................65
Stopping while embroidering .........66
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

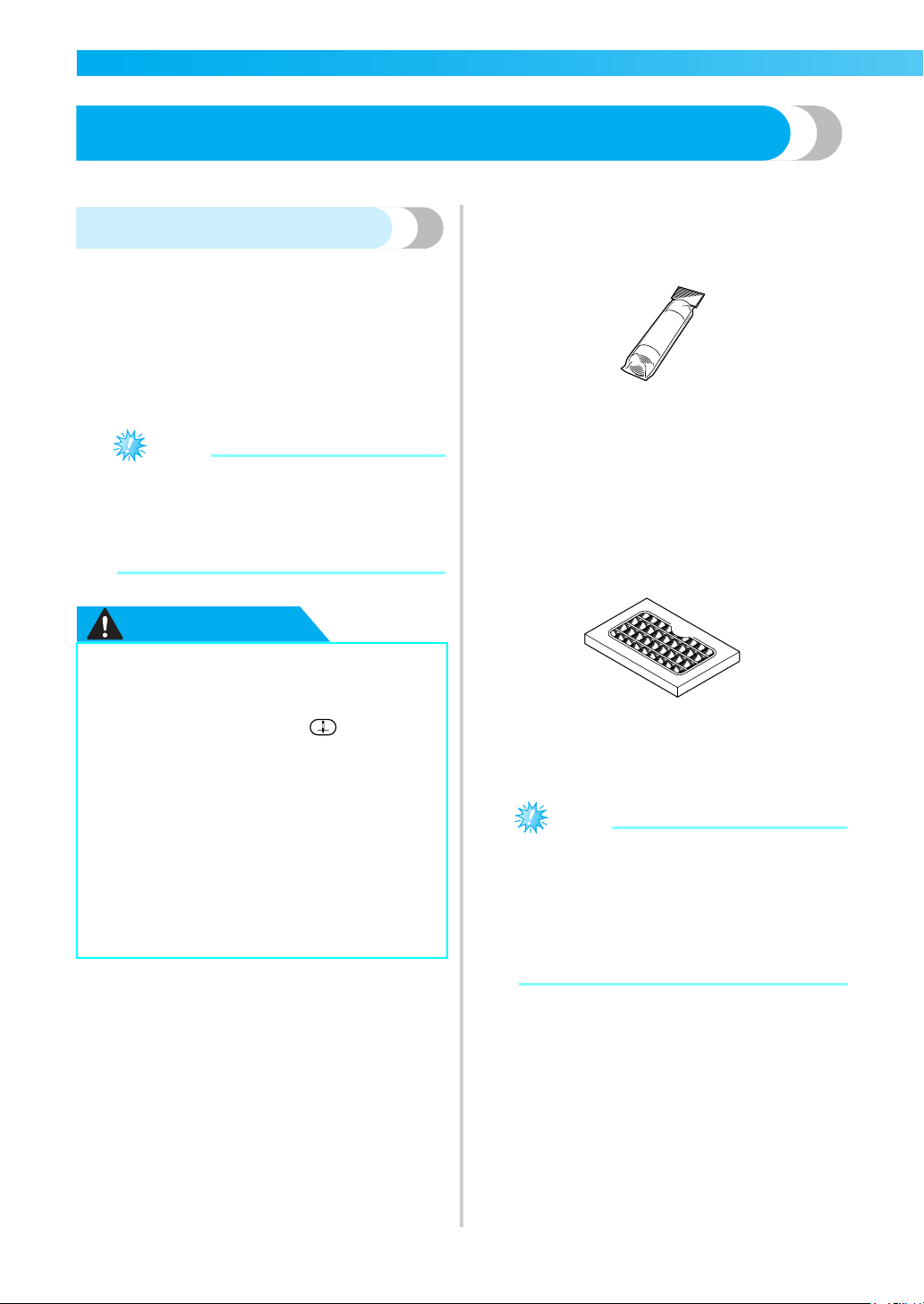

Embroidering Neatly
This section describes the preparations and basic procedures for embroidering.
■ Stabilizer material
What to prepare
The following is necessary for embroidering.
■ Fabric
Prepare the fabric for embroidery. Prepare a piece
of fabric a little larger than the embroidery frame
that matches the size of the pattern you want to
embroider.
Note
z Always use stabilizer for embroidery
projects, especially when embroidering on
lightweight or stretch fabrics. Not using a
stabilizer may result in poor quality
embroidery designs.
Attach a stabilizer material for embroidery to the
fabric to prevent poor quality embroidery designs.
We recommend stabilizer material for
embroidery. Use a water soluble sheet on thin
materials like organdy and fabrics with a nap like
towels. For details, refer to “Optional accessories”
(page 7).
■ Embroidery thread
For the upper thread, use the embroidery thread
or country thread.
CAUTION
● Do not embroider fabrics that are too
thick. To check the fabric thickness,
attach the embroidery frame to the
embroidery unit, and use (Needle
position button) to raise the needle. If
there is space between the embroidery
foot and the fabric, the fabric can be
embroidered. If there is not space, do not
embroider the fabric. Otherwise, the
needle may break, resulting in injury.
● Be careful when embroidering
overlapping patterns. The needle may not
easily pierce the fabric, causing the
needle to break.
For the bobbin thread, use the embroidery bobbin
thread. For details, refer to “Optional accessories”
(page 7).
Note
z For good quality embroidery designs be sure
to use embroidery thread designed for
embroidery machines.
z Before starting to embroider, be sure there is
enough bobbin thread. If you continue
embroidering when the bobbin thread is
low, the thread may become tangled.
40
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
■ Needle
Use a 75/11 home sewing machine needle. When
embroidering on thick fabrics such as denim, use
a 90/14 home sewing machine needle.
Memo
z A 75/11 needle is already installed when the
machine is purchased.
z When replacing the needle, refer to
“Replacing the needle” (page 36).
■ Other
Embroidery frames “small”, “medium” and “extra
large (multi-position)” are optional. For details,
refer to “Optional accessories” (page 7).
2
Embroidering Neatly 41
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

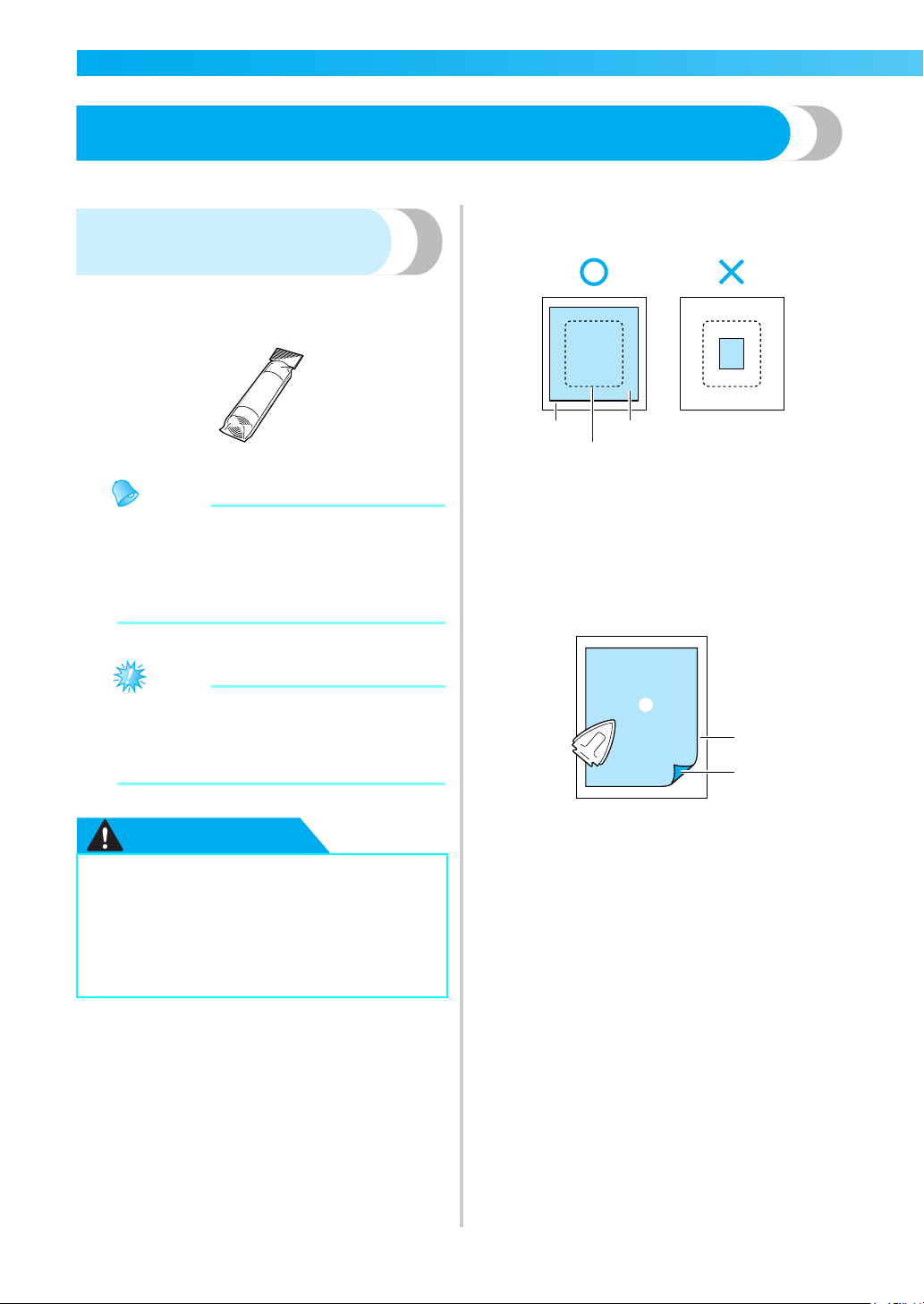

Preparing the Fabric
After attaching a stabilizer material to the embroidery fabric, it is stretched on an embroidery frame.
Prepare stabilizer material that is larger than
a
Attaching a stabilizer material
to the fabric
Attach a stabilizer material for embroidery to the
fabric to prevent poor quality embroidery designs.
the embroidery frame being used.
Memo
z We recommend the stabilizer material for
embroidery. Use a water soluble stabilizer
on thin materials like organdy and fabrics
with a nap like towels. For details, refer to
“Optional accessories” (page 7).
Note
z Always use stabilizer material for
embroidery with stretch fabrics, thin fabrics,
fabrics with a loose weave and fabrics where
stitches easily contract.
CAUTION
● Always use stabilizer material for
embroidery projects. The needle may
break or bend if you embroider without
using a stabilizer material for thin fabrics
or stretch fabrics. Furthermore, the
pattern may not turn out correctly.
1
a Fabric
b Size of embroidery frame
c Stabilizer material
If you are using stabilizers with adhesive, place
b
the adhesive surface of the stabilizer material
against the wrong side of the fabric, and iron it
with a steam iron.
a Stabilizer material
b Fabric (wrong side)
c Attached surface
When it cannot be ironed or placed in the
hoop.
For fabrics, such as towels, which cannot be
ironed or for embroidering in places where
ironing is difficult, place the stabilizer
material under the fabric, and stretch the
fabric in the embroidery frame without
attaching the stabilizer.
3
2
1
2
3
42
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
■ Embroidery frame (extra large (multi-position))
Setting the fabric in the
embroidery frame
The fabric is stretched in the embroidery frame. If the
fabric is loose, the quality of the embroidery pattern
may be poor. Put the fabric in the frame without slack
following the steps below. Have a fabric with a
stabilizer material attached and the embroidery frame
(medium, small, large or extra large (multi-position))
ready.
■ Embroidery frame (large)
Embroidery can be done in an area with a height of
up to 18 cm (7 inches) and a width of up to 13 cm
(5 inches). This is used to embroider multiple
patterns without changing the fabric position in the
frame.
[option]
Embroidery can be done in an area with a height of
up to 30 cm (12 inches) and a width of up to 13 cm
(5 inches). This is used to embroider connected or
combined characters or patterns, or large patterns.
CAUTION
● Use the embroidery frame that matches
the size of the pattern being embroidered.
Otherwise, the embroidery frame may be
hit by the embroidery foot and cause
injury or needle breakage.
2
■ Embroidery frame (medium)[option]
Patterns with a height of up to 10 cm (4 inches)
and a width of up to 10 cm (4 inches) can be
embroidered.
■ Embroidery frame (small)[option]
Patterns with a height of up to 2 cm (1 inch) and a
width of up to 6 cm (2-1/2 inches) can be
embroidered. This is used for letters and other
small embroidery.
• There are patterns for which embroidery
frame (small) cannot be used.
Loosen the embroidery frame adjustment
a
screw and remove the inner and outer frames,
placing the outer frame on a flat surface.
Separate the inner and outer frame by removing
inner frame upward.
a Inner frame
b Outer frame
c Adjustment screw
Place the fabric with the stabilizer material on
b
top of the outer frame.
Have the right side of the cloth up.
1
a Right side
1
2
3
Preparing the Fabric 43
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Press the inner frame in from the top of the
c
fabric.
Line up on the inner frame and on
outer frame.
Tighten the adjustment screw by hand just
d
enough to secure the fabric.
Press the inner frame in from the top of the
f
fabric again, lining up on the inner frame
and on outer frame.
3
21
45
a Outer frame
b Inner frame
c Fabric (right
d Stabilizer material
e Ledge of outer frame
side)
• Press down firmly until the inner frame is
securely pressed against the ledge of the
outer frame.
Gently remove the fabric from the frame
e
without loosening the adjustment screw.
Memo
z This precautionary step will help reduce
pattern distortion while embroidering.
Tighten the adjustment screw while removing
g
any slack in the fabric by hand. The goal is to
have a drum-like sound when the stretched
fabric is struck lightly.
44
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
■ Using embroidery sheets
If the embroidery sheet attached to the
embroidery frame is used, the pattern can be
embroidered in exactly the right position on the
fabric.
Make a mark with a chalk pen at the center of
a
the position for the pattern to be embroidered.
1
2
Line the mark on the fabric up with the base
c
line on the embroidery sheet.
Place the inner frame with the fabric on the
d
outer frame and stretch the fabric.
• For details, refer to page 43.
Remove the embroidery sheet.
e
2
a Embroidery pattern
b Mark
Place the embroidery sheet on the inner frame.
b
1
3
a Embroidery sheet
b Inner frame
c Embroidery sheet base lines
2
Preparing the Fabric 45
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
■ Embroidery on fabrics that cannot be stretched
on an embroidery frame
When small pieces of fabric that cannot be
stretched on an embroidery frame or thin pieces
like ribbon are being embroidered, use stabilizer
material as a base to stretch on the frame.
We recommend stabilizer material for all
embroidery.
1
2
3
1
3
2
1
3
a Stabilizer material
b Tack or spray glue
c Fabric
After completing the embroidery, remove the
stabilizer material carefully.
46
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

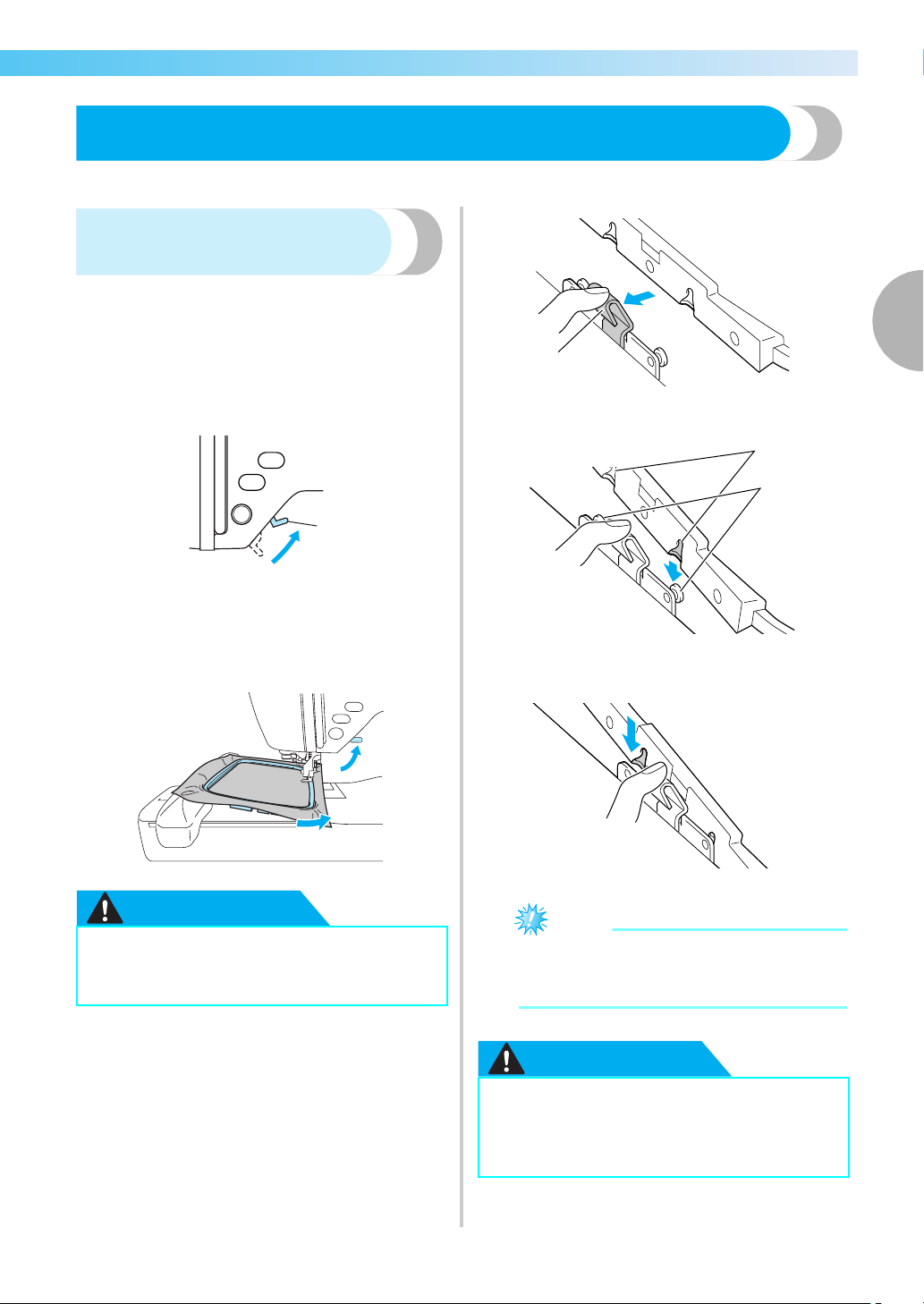

Attaching the Embroidery Frame
This section describes how to attach the embroidery frame.
Attaching the embroidery
frame
Wind the embroidery bobbin thread onto the
a
bobbin and set it into the bobbin case.
• For details, refer to “Winding/Installing the
Bobbin” (page 24).
1
1
2
Raise the presser foot lever.
b
a
a Presser foot lever
Pass the embroidery frame under the
c
embroidery foot while raising the presser foot
lever even further.
CAUTION
● Do not hit the needle with your finger or
the embroidery frame. It may cause injury
or needle breakage.
a Lever
1
2
2
a Mounting brackets
b Pins
3
Note
z Be sure to insert both pins. If only the
forward or the back pin is inserted, the
pattern may not turn out correctly.
While lightly holding the lever on the frame
d
holder to the left, align the two pins on the
embroidery frame holder with the mounting
brackets on the frame, and then press the
frame into the embroidery frame holder until a
click is heard.
After pressing the front mounting bracket onto
the pin so that it clicks into place, press the
back mounting bracket into place.
CAUTION
● Correctly set the embroidery frame into
the embroidery frame holder. Otherwise,
the embroidery foot may hit the
embroidery frame, resulting in injury.
Attaching the Embroidery Frame 47
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Pass the embroidery frame under the
c
Removing the embroidery
frame
Make sure that the machine is completely stopped
and follow the instructions below.
Raise the presser foot lever.
a
a
embroidery foot while raising the presser foot
lever even further.
CAUTION
a Presser foot lever
While pushing the lever of the embroidery
b
frame holder to the left, lift the embroidery
frame up to remove it.
Remove the back mounting bracket from the
pin, and then remove the front mounting
bracket from the pin.
● Do not hit the needle with your finger or
the embroidery frame. It may cause injury
or needle breakage.
1
a Lever
2
a Mounting brackets
b Pins
1
1
2
48
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Selecting Embroidery Patterns
This section provides details on the various types of embroidery patterns available and the procedure for
selecting a pattern.
■ Frame patterns
Copyright information
The patterns stored in the machine and embroidery
cards are intended for private use only. Any public or
commercial use of copyrighted patterns is an
infringement of copyright law and is strictly
prohibited.
Embroidery pattern types
An embroidery pattern can be selected from the
following types available.
b c
a
10 shapes, such as squares and circles, can be
combined with 12 stitch types.
• For details, refer to “Selecting a frame
pattern” (page 54).
■ Embroidery card (sold separately)
Patterns from an embroidery card can be
embroidered.
• For details, refer to “Using an embroidery
card (sold separately)” (page 55).
■ Patterns stored in the machine's memory
Patterns, such as frequently used character
combinations, can be stored in the machine’s
memory to be recalled later and embroidered.
Patterns consisting of up to 12 patterns or 512 KB
can be stored.
2
e f
d
a Embroidery patterns
b Additional embroidery patterns
c Alphabet patterns
d Frame patterns
e Embroidery card
f Patterns stored in the machine's memory
■ Embroidery patterns (Embroidery patterns/
Additional embroidery patterns)
There are total 136 patterns. The patterns are
completed by changing the upper thread
according to the instructions displayed on the
screen.
• For details, refer to “Selecting an embroidery
pattern” (page 53).
■ Alphabet patterns
There are 6 types of characters (European
characters); upper case/lower case/numbers/
symbols.
• For details, refer to “Selecting characters”
(page 52).
• For details, refer to “Storing patterns” (page
63).
Selecting Embroidery Patterns 49
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
LCD (liquid crystal display)
operation
The LCD (liquid crystal display) is operated using the
operation keys on the operation panel. The use of the
keys for embroidery will be explained below.
■ Operation keys
Returns to the previous screen.
When there are patterns that are not
displayed on the screen (when
or is displayed), the previous
patterns/subsequent patterns are
displayed.
Returns to the type selection screen.
The selected pattern is cancelled.
Press this key to adjust language or
change the thread color display or
other settings.
Press (Settings key).
DISPLAY UNIT
The measurement units that are displayed can be
selected. [mm/inch]
EMBROIDERY TENSION
The thread tension for embroidering can be
adjusted. [-8 to +8]
MAX EMBROIDERY SPEED (SPM)
The maximum embroidering speed can be
selected. [650SPM/350SPM]
NAME OF COLOR: Typical color name
TIME: Time required for embroidering
NEEDLE COUNT: Needle progress number
#123: Select from the following thread color
number sets
• EMBROIDERY (POLYESTER) THREAD#
• COUNTRY (COTTON) THREAD#
• MADEIRA POLY THREAD#
• MADEIRA RAYON THREAD#
• SULKY THREAD#
• ROBISON-ANTON POLY THREAD#
50
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
■ LCD button
When a specific pattern is selected,
press this key and then, press
embroidery settings such as the
specified character string and color
are confirmed.
Press this key to change the thread
settings.
to switch the display. The
Press this key when you want to
change the color character by
character in character embroidery.
Since the machine stops at the end of
each character, the upper thread is
changed as you embroider.
Press this key again to cancel multicolor.
2
The needle progresses one color or
one stitch (if pressed continuously, 9
stitches to 20 stitches) at a time and
changes the position for starting the
embroidery. This is used when a
specific color is not embroidered or
when restarting the machine after
power has been turned off in the
middle of the operation.
Press this key to select or cancel
programmed thread cutting.
Press or to adjust the thread
tension.
Press or to change the
thread density (alphabet and frame
patterns only).
Press this key to adjust the pattern.
Back one
color
Back one
stitch
• For details, refer to “Resewing” (page 65).
The position of the pattern within the
embroidery frame can be checked,
and the size and angle can be
changed.
• For details, refer to “Adjusting the layout”
(page 61).
Forward
one color
Forward
one stitch
Memo
z Keys that appear surrounded with a dotted
line cannot be used.
Selecting Embroidery Patterns 51
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Selecting characters
Specify the characters for embroidery.
Memo
z When “The pattern is too large for the
embroidery frame.” is displayed, no more
characters can be entered.
z Characters of different styles (sans serif, serif,
and outline, etc.) cannot be combined.
Select the alphabet patterns.
a
Select the character style.
b
Select the characters.
c
If a wrong character was selected, press .
Example: Welcome
Switch between uppercase/lowercase
Switch among large/medium/small sizes
52
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Select the pattern.
b
Switch the screen using (Previous page
key) and (Next page key).
Memo
z The alphabet pattern you created can be
stored for later use. For details, refer to
“Storing patterns” (page 63).
Selecting an embroidery pattern
There are total of 136 embroidery patterns, such as
fruits and animals, stored in the machine's memory.
70 Embroidery patterns
66 Embroidery patterns
Memo
z Refer to “Embroidery Pattern Color Change
Table” in the Quick reference guide for
samples of completed patterns and the
thread used.
Select the type of the embroidery pattern.
a
When / is pressed, the display of
•
patterns moves backward/forward 10 patterns.
X When a pattern is selected, it can be
embroidered.
2
X The pattern selection screen is displayed.
Selecting Embroidery Patterns 53
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Select the stitch.
c
Selecting a frame pattern
10 shapes, such as squares and circles, can be
combined with 12 stitch types.
Switch the screen using (Previous page
key) (Next page key), and select from the
12 stitches.
Memo
z Refer to “Frame patterns” in the Quick
reference guide for frame pattern shapes and
stitches.
Press the frame pattern.
a
X The frame shape selection screen is
displayed.
Select the frame shape.
b
Switch the screen using (Previous page
key) (Next page key), and select from the
ten types.
X When a stitch is selected, it can be
embroidered.
X The stitch selection screen is displayed.
54
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Insert the embroidery card in the embroidery
b
Using an embroidery card
(sold separately)
If an embroidery card is used, you can embroider
patterns other than the patterns stored in the
machine. There are various cards with different
themes.
card slot on the right side of the machine.
Face the arrow on the embroidery card toward
you, and insert it in the direction of the arrow.
Note
z Always turn off the machine to insert and
remove embroidery cards.
z Insert the embroidery card into the
embroidery card slot, facing it in the right
direction.
z Do not put anything other than an
embroidery card in the embroidery card slot.
z When embroidery cards are not in use, keep
them in their storage cases.
z Use only embroidery cards manufactured for
this machine. Using unauthorized cards may
cause your machine to operate incorrectly.
z Embroidery cards purchased in foreign
countries may not work with your machine.
z Large patterns supplied on embroidery cards
may be difficult to view on the screen.
Turn on the machine.
c
Press the embroidery card on the screen.
d
2
Turn off the machine.
a
X The selection screen for the patterns stored
in the card is displayed.
Select a pattern.
e
The operation is the same as in “Selecting
Embroidery Patterns” (page 49).
Selecting Embroidery Patterns 55
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Embroidering
After the preparations are done, you can try embroidering. This section describes the steps for
embroidering and appliquéing.
Embroidering attractive finishes
There are many factors that go into sewing beautiful embroidery. Using the appropriate stabilizer (page 42) and
hooping the fabric in the frame (page 43) are two important factors mentioned earlier. Another important point
is the appropriateness of the needle and thread being used. See the explanation of threads below.
Upper thread
Thread
Bobbin thread
Use embroidery thread, or country embroidery thread intended for use with
this machine.
Other embroidery threads may not yield optimum results.
Use embroidery bobbin thread intended for use with this machine.
For details, refer to “Optional accessories” (page 7).
Memo
z If you use threads other than those listed above, the pattern may not turn out correctly.
Note
z Before embroidering, check that there is enough thread in the bobbin. If you continue embroidering
without enough thread in the bobbin, the thread may tangle.
z Do not leave objects in the range of motion of the embroidery frame. The frame may strike the object
and cause a poor finish to the embroidery pattern.
z When embroidering on large garments (especially jackets or other heavy fabrics), do not let the fabric
hang over the table. Otherwise, the embroidery unit cannot move freely, and the pattern may not turn
out as planned.
56
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Example: Embroidery thread number selected

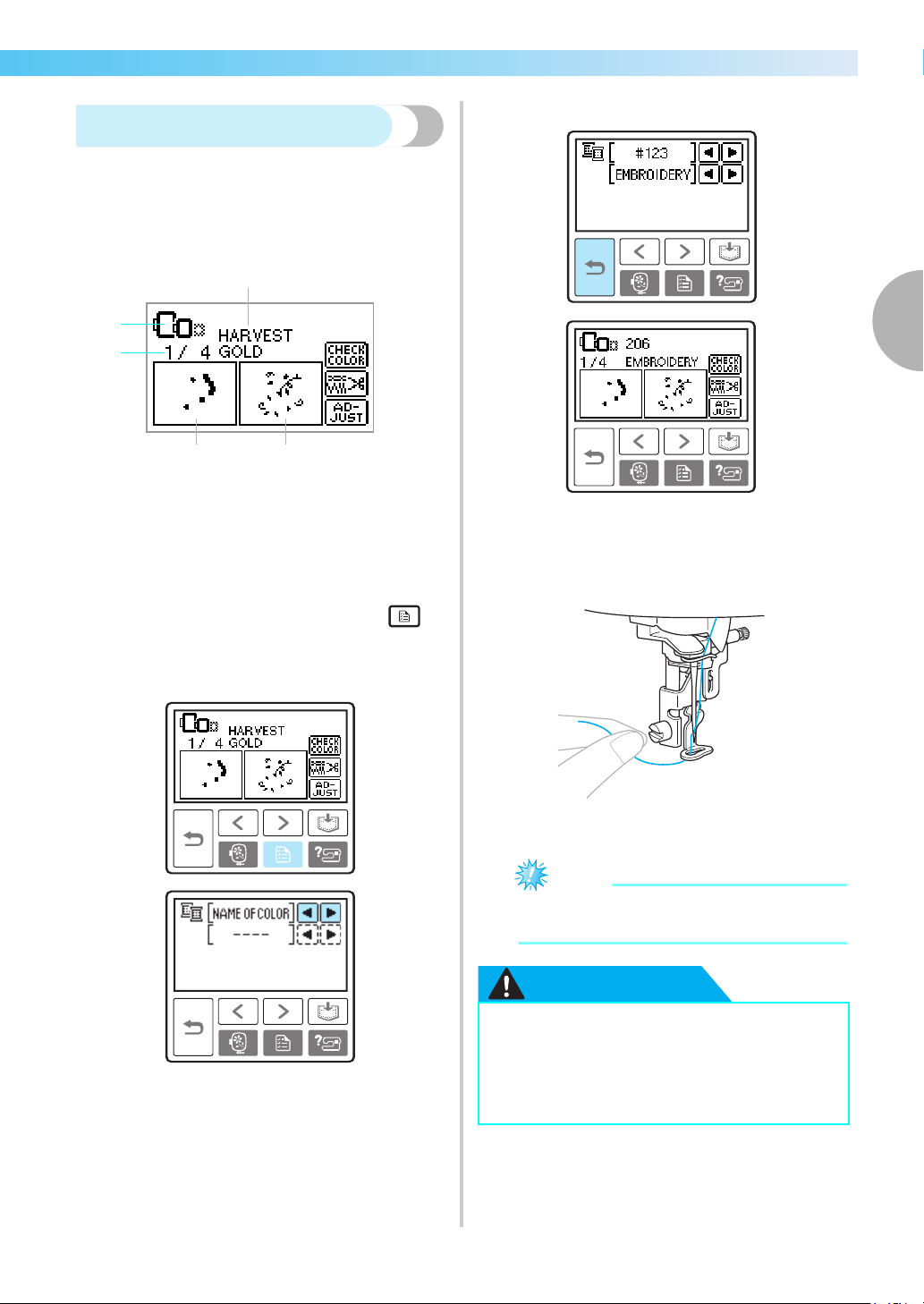

Embroidering a pattern
Embroidery patterns are embroidered with a change
of thread after each color.
Prepare embroidery thread of the color shown
a
on the screen.
c
a
b
d e
a Embroidery frames that can be used for
embroidering
b Current color step/Number of colors in design
c Current name of color
d Current color part
e Next color part
• The thread color number set displayed for the
thread colors can be changed. Press
(Settings key), and then change the setting in
the settings screen. For details, refer to “LCD
(liquid crystal display) operation” (page 50).
Set the embroidery thread, thread the needle,
b
then pass the end of the thread through the
embroidery foot hole.
Give the thread a little slack.
• Refer to “Threading the upper thread” (page
30) and “Threading the needle” (page 32).
2
Note
z Before using the needle threader, be sure to
lower the embroidery foot.
CAUTION
● If the thread is pulled too tight, the needle
may break or bend.
● Do not let hands or objects hit the
carriage while embroidering. The pattern
may misalign.
Embroidering 57
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Lower the presser foot lever.
c
1
a Presser foot lever
Press (Start/stop button).
d
1
a Start/stop button
After progressing 5-6 stitches, press (Start/
e
stop button) to stop the machine.
Use scissors to cut the thread at the beginning
f
of the stitching.
Cut the thread at the edge of the stitching.
Press (Start/stop button) again.
g
X The embroidery starts again and stops
automatically with reinforcement after one
color has been completed. When automatic
thread cutting is set, the thread is cut.
Press (Thread cutter button) once.
h
1
a Thread cutter button
X The needle is raised and the threads are cut.
CAUTION
● Do not press (Thread cutter button)
after threads have already been cut,
otherwise the needle may break, the
threads may become tangled or damage
to the machine may occur.
● Do not press (Thread cutter button) if
there is no fabric under the embroidery
foot or while the machine is
embroidering, otherwise damage to the
machine may occur.
• If the thread is left at the beginning of the
stitching, it may be sewn over as you
continue embroidering the pattern, making it
very difficult to deal with the thread after the
pattern is finished. Trim the thread at the
beginning.
58
Set up embroidery thread for the next color,
i
and repeat steps
a through h.
Cut the excess thread.
j
X When the last color is embroidered,
“Finished sewing.” will appear on the
display. Press , and the display will
return to the initial screen.
Memo
z For the automatic cutting setting, refer to
“LCD (liquid crystal display) operation”
(page 50).
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Remove the fabric from the embroidery frame,
d
Appliquéing
Prepare the base fabric and the appliqué fabric
(appliqué piece). Press (Settings key), and set
the thread color display to NAME OF COLOR, so
“APPLIQUE MATERIAL”, “APPLIQUE POSITION”
and “APPLIQUE” are displayed on the screen.
Select an appliqué pattern.
a
and cut it out along the cut-out line.
Cut carefully along the stitching and remove
the thread.
• If it is not cut right on the stitching, it will not
be finished neatly.
Stretch the base fabric on the embroidery
e
frame.
2
When “APPLIQUE MATERIAL” is displayed on
b
the screen, apply iron-on stabilizer to the back
of the appliqué piece fabric, and stretch it on
the embroidery frame.
Lower the presser foot lever, and press
c
(Start/stop button).
X The cut-out for the appliqué piece is sewn,
and the machine stops.
1
2
a Cut-out line
b Appliqué piece fabric
X “APPLIQUE POSITION” will be displayed
on the screen.
Set up the thread for appliquéing.
f
Lower the presser foot lever, and press
g
(Start/stop button).
X The position for the appliqué is stitched, and
the machine stops.
1
2
a Appliqué position
b Base fabric
X “APPLIQUE” will be displayed on the
screen.
Apply a thin layer of fabric glue or spray
h
adhesive to the back of the appliqué piece, and
attach it in the appliqué position.
Embroidering 59
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Lower the presser foot lever, and press
i
(Start/stop button).
Note
z When “APPLIQUE MATERIAL”, “APPLIQUE
POSITION” and “APPLIQUE” are displayed,
a specific color thread does not appear. Use
a proper color thread to match the appliqué
piece.
Follow the instructions on the screen, and
j
change thread colors as you embroider.
60
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

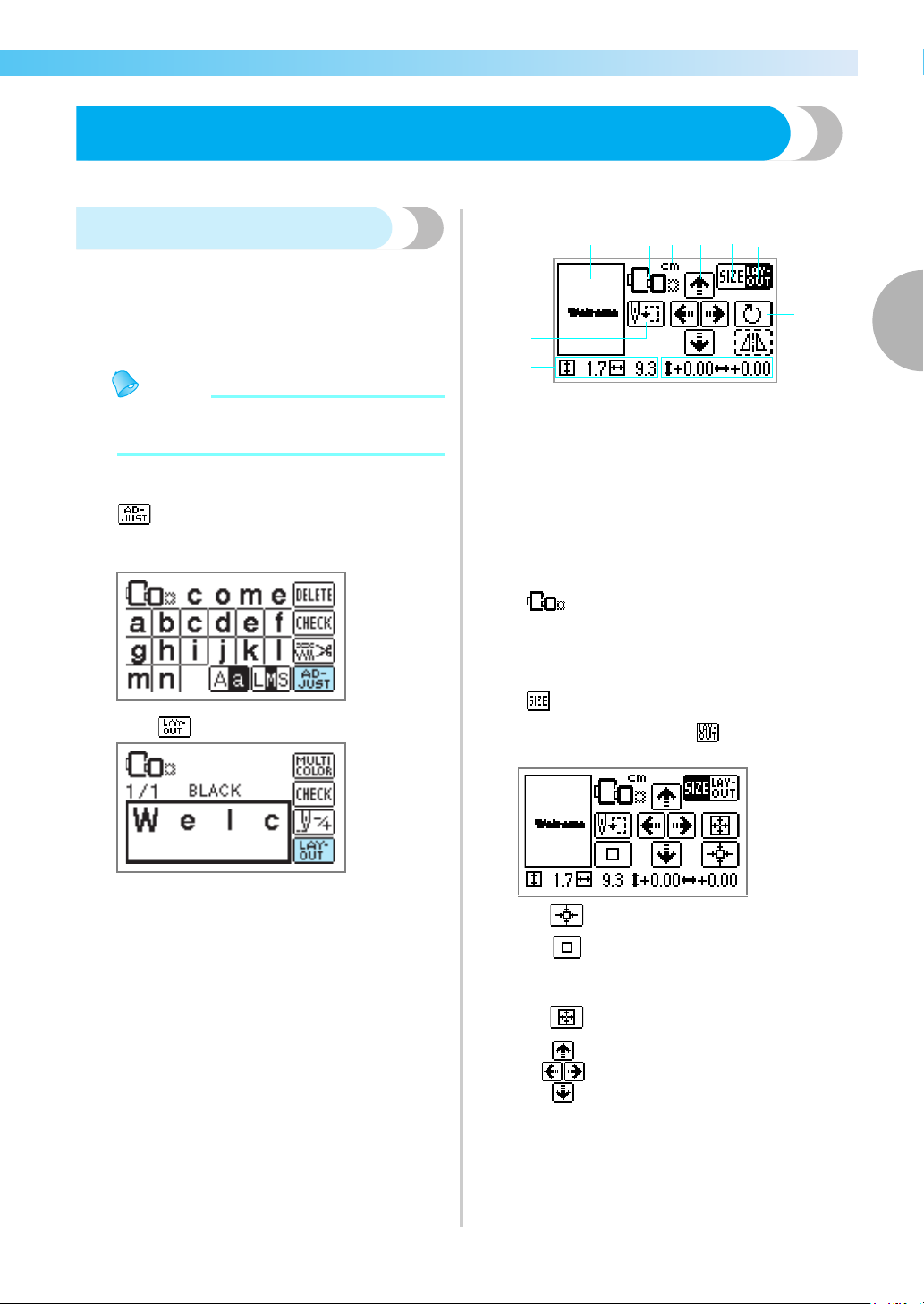

Editing and Saving Patterns
This section describes ways to edit, adjust, reposition and memorize patterns.
Check and adjust the layout.
Adjusting the layout
The pattern is normally positioned in the center of the
embroidery frame.
You can check the layout before starting embroidery
and change the position and the size.
Memo
z Keys that appear surrounded with a dotted
line cannot be used.
After selecting the embroidery pattern, press
a
.
X The embroidery screen is displayed.
c
a b c d e f
k
j
a Layout within the frame
b Available embroidery frames
c Display unit (cm/INCH)
d Change position keys
e Size key
f Layout key
g Rotation key
h Horizontal mirror image key
i Distance from the center
j Embroidery size
k Starting point key
g
h
i
2
Press .
b
X The layout screen is displayed.
Embroidery frame size
These flash if the pattern was resized,
the layout was adjusted, or the
recommended embroidery frame size
was changed. Embroidery frame icons
that appear in gray cannot be used.
Size key
Increases/decreases the size of the
pattern. Press to return to the
previous screen.
Decreases size
Returns to original size
Returns to center position (when the
pattern was moved with the change
position key)
Increases size
Change position keys
Moves the embroidery position up,
down, left and right.
Editing and Saving Patterns 61
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

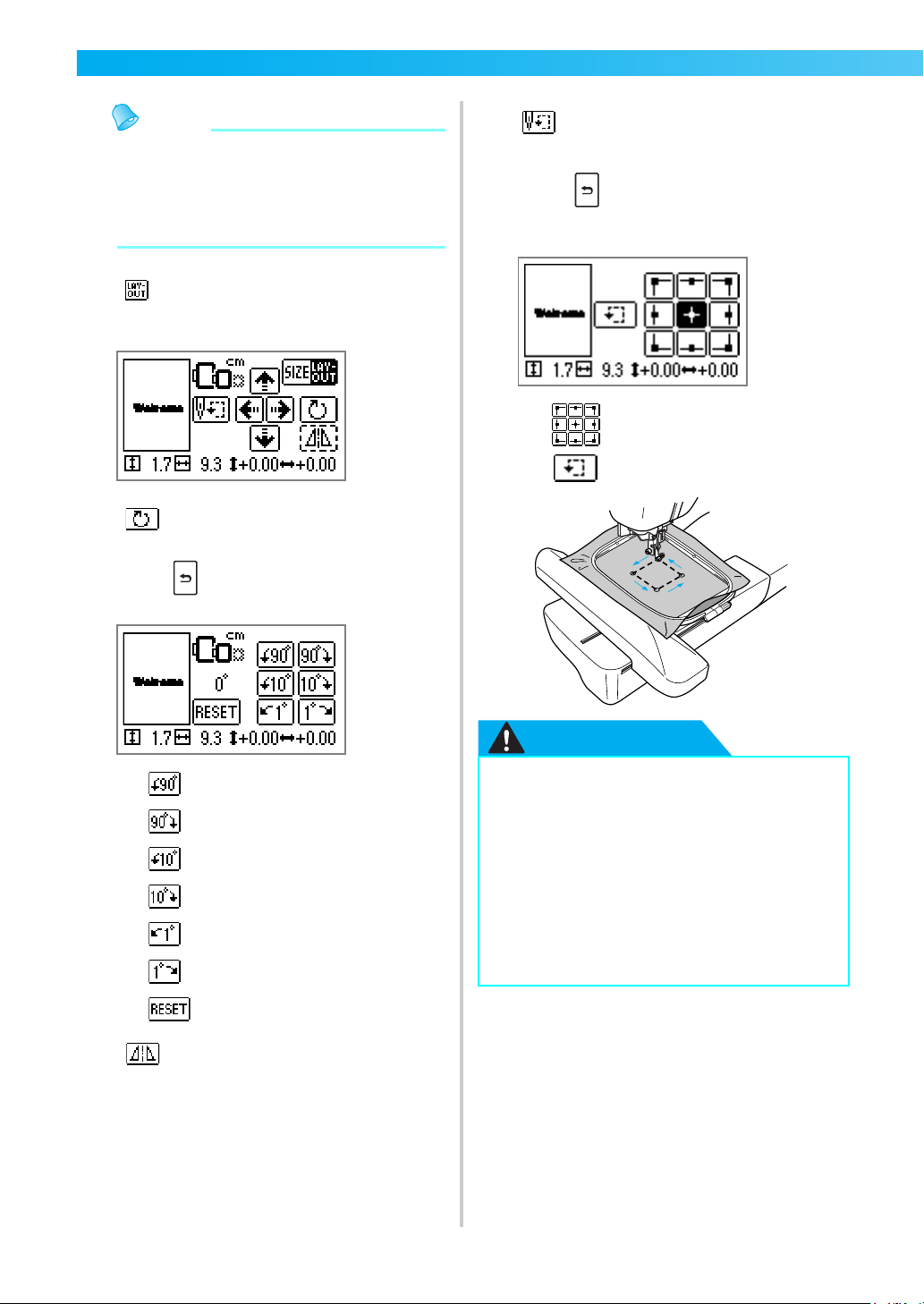

Memo
z If you make a note of the values in the lower
part of screen when you change the size and
position, you can embroider with the same
size and layout even if you have to turn the
power back on in the middle of your work.
Layout key
Press this key to move to rotation
screen.
Rotation key
Rotates the pattern one degree, 10
degrees or 90 degrees at a time.
• Press (Back key) to return to the previous
screen.
Starting point key
Moves the needle start position to align
the needle with the pattern position.
• Press (Back key) to return to the previous
screen.
Moves the needle to the position of
the selected needle start position.
Moves the frame to check the pattern
position.
62
Rotates the pattern 90 degrees to the
left
Rotates the pattern 90 degrees to the
right
Rotates the pattern 10 degrees to the
left
Rotates the pattern 10 degrees to the
right
Rotates the pattern 1 degree to the
left
Rotates the pattern 1 degree to the
right
Returns the pattern to its original
position
Horizontal mirror image key
Mirrors the pattern left and right.
CAUTION
● Never lower the needle when the
embroidery frame is moving. The needle
may break or bend.
● When you have revised the pattern, check
the display of available embroidery
frames and use an appropriate frame. If
you use an embroidery frame not
displayed as available for use, the presser
foot may strike the frame and possibly
cause injury.
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Press (Back key) to return to the original
d
screen.
Memo
z When the machine is turned off, the layout
returns to the original setting.
z You can also check the pattern size and
distance from the center by pressing
after starting embroidering.
Storing patterns
The embroidery patterns and the alphabet patterns
you have customized can be stored in the machine's
memory.
Since the stored patterns will not be erased when the
machine is turned off, you can always recall them for
embroidery. This is convenient for storing names and
the like. You can store up to 12 patterns or 512 KB of
data.
■ Storing a pattern
After selecting the pattern to be stored, press
a
(Memory key).
X After the pattern is stored, the initial screen
appears again.
2
Note
z Do not turn off the machine while the
pattern is being stored, otherwise the pattern
data may be lost.
■ Recalling a pattern.
Press (Recall key).
a
X The stored patterns are displayed.
Editing and Saving Patterns 63
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Select the pattern you wish to recall.
b
Switch screens using (Previous page key)
and (Next page key).
b
Adjusting the thread tension
If embroidery fails, it is difficult to undo the thread
and the fabric may be damaged. Before
embroidering, use a scrap of the same fabric to check
a
c
the adjustment of the thread tension, etc.
To adjust the thread tension, press (Settings
key).
a Total amount of memory used
b Total amount of memory space
c Number of the currently displayed page from the
total number of pages
X The selected pattern is shown in reverse
highlighting.
Press .
c
To delete the stored pattern, press .
Press to weaken the thread tension.
Press to tighten the thread tension.
■ Correct thread tension
The thread tension is correct when upper thread
is just visible on back of the fabric.
X The stored pattern is recalled and the
embroidery screen appears. You can
embroider the recalled pattern.
Note
z Characters saved from an embroidery card
must have the embroidery card inserted in
the machine in order to retrieve the memory
saved from the embroidery card.
12
a Right side
b Wrong side
■ Upper thread is too tight
The lower thread will be visible on the front of the
fabric. In this instance, decrease the upper thread
tension.
12
a Right side
b Wrong side
■ Upper thread is too loose
The upper thread has slack. In this instance,
increase the upper thread tension.
12
a Right side
b Wrong side
64
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Resewing
When the wrong upper thread color has been sewn,
it can be resewn with the correct color.
Press (Start/stop button) to stop the
a
machine.
Press .
b
Press .
c
Press (Back one color) to return to the
d
beginning of the mistaken color.
Thread runs out partway
through a design
When the upper thread or the bobbin thread runs out
while embroidering, the machine stops. Move the
needle back about 10 stitches and resume
embroidering.
Set up the upper or bobbin thread.
a
Press .
b
Press .
c
2
Set up the correct color for the upper thread.
e
Press (Start/stop button) to continue the
f
design.
Press (Back one stitch) to move the
d
needle back about 10 stitches.
(Forward one stitch) increases the stitch
number.
Restart the embroidery.
e
Editing and Saving Patterns 65
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Press (Embroidery key).
Stopping while embroidering
c
If the embroidery is stopped before it is complete,
check the current needle count before turning off the
machine.
Memo
z When the machine is turned off, the
embroidery size and layout return to the
original setting.
Press (Start/stop button) to stop the
a
machine.
Check the current needle count on the screen
b
and make a note of it.
X The confirmation message is displayed.
Press .
d
X The selected pattern is deleted, and the
screen for selecting the embroidery pattern
type is displayed.
If the needle count is not displayed, press
(Settings key), and then use to display
the following screen.
• Press (Back key) to return to the embroi-
Turn off the machine.
e
• Always remove the embroidery unit when
you move the machine.
Turn on the machine and select the pattern.
f
Press .
g
66
dery screen.
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Press .
h
Press (Forward one color) to move to
i
the beginning of the color you want to
embroider.
Press (Forward one stitch) to increase
j
the needle count.
If is pressed continuously, it moves
forward 1 —> 9 —> 30 stitches.
2
Move forward to about 10 stitches before the
total number of stitches confirmed in
Restart the embroidery.
k
b.
Editing and Saving Patterns 67
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
68
3 APPENDIX
The various maintenance and troubleshooting procedures are described in this chapter.
Care and Maintenance ............................................................................................70
Cleaning the machine surface ............................................................................70
Cleaning the race ...............................................................................................70
Attaching the Embroidery Foot................................................................................72
Attaching the embroidery Foot “Q”...................................................................72
Troubleshooting ......................................................................................................74
Error messages ...................................................................................................78
Adjusting the LCD ..............................................................................................81
Operation beep ..................................................................................................81
Canceling the operation beep ............................................................................ 82
Index .......................................................................................................................83
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Care and Maintenance
Simple machine maintenance operations are described below.
Cleaning the machine surface
If the surface of the machine is dirty, lightly soak a
cloth in neutral detergent, squeeze it out firmly, and
then wipe the surface of the machine. After cleaning
it once with a damp cloth, wipe it again with a dry
cloth.
CAUTION
● Unplug the power supply cord before
cleaning the machine, otherwise injuries
or an electric shock may occur.
Cleaning the race
Embroidery performance will suffer if dust collects in
the bobbin case, therefore, it should be cleaned
periodically.
Turn off the machine.
a
Unplug the power cord from the power supply
b
jack on the right side of the machine.
CAUTION
● Unplug the power supply cord before
cleaning the machine, otherwise injuries
or an electric shock may occur.
Remove the embroidery unit.
c
Grasp both sides of the needle plate cover, and
d
then slide it toward you.
70
a
a Needle plate cover
X The needle plate cover is removed.
Remove the bobbin case.
e
Grasp the bobbin case, and then pull it out.
1
a Bobbin case
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
a
Use the cleaning brush or a vacuum cleaner to
f
remove any lint and dust from the race and
bobbin thread sensor and their surrounding
area.
c
a Cleaning brush
b Race
c Bobbin thread sensor
• Do not apply oil to the bobbin case.
b
Note
z If lint or dust collects on the bobbin thread
sensor, the sensor may not operate correctly.
Insert the bobbin case so that the projection
g
on the bobbin case aligns with the spring.
a
Insert the tabs on the needle plate cover into
h
the needle plate, and then slide the cover back
on.
a Needle plate cover
CAUTION
●
Never use a bobbin case that is scratched,
otherwise the upper thread may become
tangled, the needle may break or
embroidering performance may suffer. For
a new bobbin case (part code: XC8167-
251), contact your nearest authorized
service center.
● Be sure that the bobbin case is correctly
installed, otherwise the needle may break.
3
b
1
a Projection
b Spring
a Bobbin case
a
2
1
Care and Maintenance 71
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

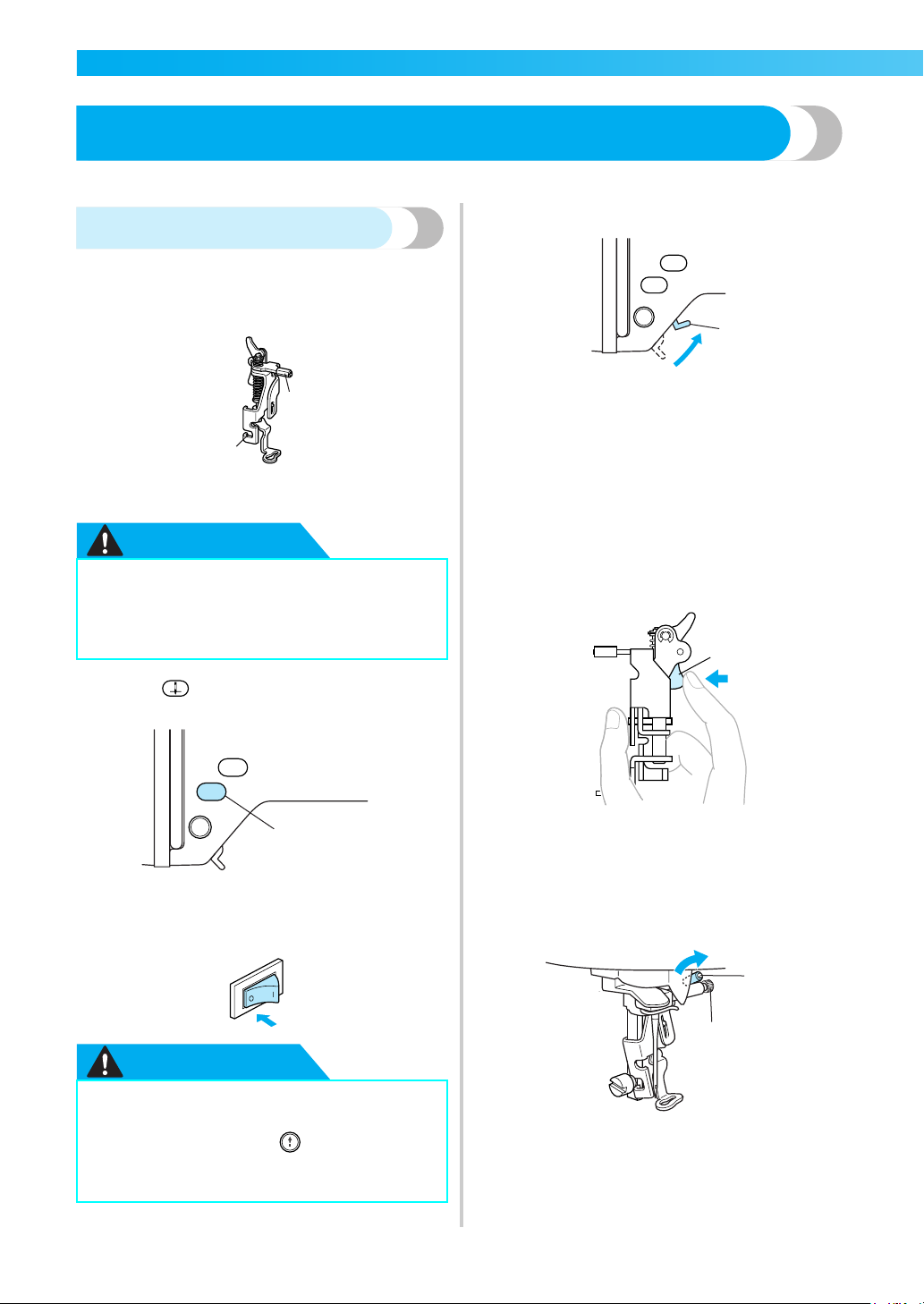

Attaching the Embroidery Foot
This section describes how to attach the embroidery foot.
Raise the presser foot lever.
Attaching the embroidery Foot “Q”
Attach the embroidery foot “Q” when embroidering.
Have the included embroidery foot “Q” and a
screwdriver ready.
1
c
a
a Presser foot lever
X The embroidery foot is raised.
2
a Embroidery foot bar
b Caught by the presser foot holder screw
CAUTION
● Always use the embroidery foot “Q”
when embroidering. If the wrong presser
foot is used, the needle may hit the
presser foot and break or bend.
Press (Needle position button) once or
a
twice to raise the needle.
1
a Needle position button
Turn off the machine.
b
• At the time of purchase, the presser foot lever
is up.
Hold the embroidery foot with your right
d
hand, as shown.
Hold the embroidery foot with your index
finger wrapped around the lever at the back of
the foot.
a
a Lever
While pressing in the lever with your finger, fit
e
the embroidery foot bar over the needle clamp
screw to attach the embroidery foot to the
presser foot bar.
CAUTION
● Before attaching the embroidery foot, be
sure to turn off the machine, otherwise
injuries may occur if (Start/stop
button) is accidentally pressed and the
machine starts embroidering.
72
1
2
a Embroidery foot bar
b Needle clamp screw
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Secure the embroidery foot with the presser
f
foot holder screw.
Set the embroidery foot perpendicular.
Firmly tighten the presser foot holder screw.
g
Turn the screwdriver toward the front.
3
CAUTION
● Do not hit the needle with your finger or
the embroidery foot when attaching it.
The needle may break or cause injury.
● Be sure to tighten the screw with the
included screwdriver. If the screw is
loose, the needle may hit the embroidery
foot and break or bend.
● Before embroidering, always turn the
handwheel toward you
(counterclockwise) slowly to make sure
that the needle does not hit the
embroidery foot. Otherwise, the needle
may break or bend.
Attaching the Embroidery Foot 73
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Troubleshooting
If the machine stops operating correctly, check the following possible problems before requesting service.
If the problem persists, contact your retailer or the nearest authorized service center.
Symptom Probable Cause Remedy Reference
The machine is not turned on. Turn on the machine. page 19
The machine does
not operate.
The needle breaks.
The start/stop button was not
pressed.
The presser foot lever is raised. Lower the presser foot lever. page 58
The embroidery unit is not
attached on the machine.
The needle is incorrectly installed. Correctly install the needle.
The needle is bent or blunt. Replace the needle.
The upper thread tension is too
tight.
The spool is incorrectly installed. Correctly install the spool. page 30
The area around the hole in the
needle plate is scratched, or has a
burr on it.
The area around the hole in the
embroidery foot is scratched, or
has a burr on it.
The bobbin case is scratched, or
has a burr on it.
Press the start/stop button. page 58
Attach the embroidery unit. page 15
Use the screwdriver to firmly tighten
the screw.
Loosen the upper thread tension. page 64
Replace the needle plate. Contact
your retailer or the nearest authorized
service center.
Replace the embroidery foot. Contact
your retailer or the nearest authorized
service center.
Replace the bobbin case. Contact
your retailer or the nearest authorized
service center.
page 36The needle clamp screw is loose.
–
–
–
The upper thread
breaks.
74
A bobbin designed specifically for
this machine is not used.
The upper thread was not
threaded correctly (for example,
the spool is not installed correctly,
the spool cap is too big for the
spool being used, or the thread
has come out of the needle bar
thread guide).
There are knots or tangles in the
thread.
The upper thread tension is too
tight.
Incorrect bobbins will not work
properly. Only use a bobbin
designed specifically for this
machine.
Correct the upper threading. page 30
Remove any knots or tangles. –
Loosen the upper thread tension. page 64
page 24
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Symptom Probable Cause Remedy Reference
The upper thread
breaks.
Bobbin thread
does not wind
neatly on the
bobbin.
The thread is tangled, for example,
in the bobbin case.
The needle is bent or blunt. Replace the needle.
The needle is incorrectly installed. Correctly install the needle.
The area around the hole in the
needle plate is scratched, or has a
burr on it.
The area around the hole in the
embroidery foot is scratched, or
has a burr on it.
The bobbin case is scratched, or
has a burr on it.
A bobbin designed specifically for
this machine is not used.
The thread that was pulled out
was not wound onto the bobbin
correctly.
Remove the tangled thread. If the
thread is tangled in the bobbin case,
clean the race.
Replace the needle plate. Contact
your retailer or the nearest authorized
service center.
Replace the embroidery foot. Contact
your retailer or the nearest authorized
service center.
Replace the bobbin case. Contact
your retailer or the nearest authorized
service center.
Incorrect bobbins will not work
properly. Only use a bobbin
designed specifically for this
machine.
Wind the thread that was pulled off
around the bobbin five or six times
clockwise.
page 70
page 35
–
–
–
page 24
page 26
3
The lower thread
is tangled or
breaks.
The thread tension
is incorrect.
The bobbin thread is incorrectly
installed.
The bobbin is scratched or does
not rotate smoothly, or has a burr
on it.
The thread is tangled.
A bobbin designed specifically for
this machine is not used.
The upper thread was not
threaded correctly.
The bobbin thread is incorrectly
installed.
The thread tension is incorrect.
A bobbin designed specifically for
this machine is not used.
Correctly install the bobbin thread. page 28
Replace the bobbin. –
Remove the tangled thread and clean
the race.
Incorrect bobbins will not work
properly. Only use a bobbin
designed specifically for this
machine.
Correct the upper threading. page 30
Correctly install the bobbin thread. page 28
Adjust the tension of the upper
thread.
Incorrect bobbins will not work
properly. Only use a bobbin
designed specifically for this
machine.
page 70
page 24
page 64
page 24
Troubleshooting 75
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Symptom Probable Cause Remedy Reference
Stitches are
skipped.
A high-pitched
noise is made
while
embroidering.
The thread does
not pass through
the eye of the
needle.
The upper thread was not
threaded correctly.
Correct the upper threading. page 30
The needle is bent or blunt. Replace the needle. page 35
The needle is incorrectly installed. Correctly install the needle. page 36
Dust has accumulated under the
needle plate or in the bobbin case.
Dust has accumulated in the
bobbin case.
The upper thread was not
threaded correctly.
The bobbin case is scratched, or
has a burr on it.
Remove the needle plate cover and
clean the race.
page 70
Clean the race. page 70
Correct the upper threading. page 30
Replace the bobbin case. Contact
your retailer or the nearest authorized
–
service center.
Incorrect bobbins will not work
A bobbin designed specifically for
this machine is not used.
properly. Only use a bobbin
designed specifically for this
page 24
machine.
The needle has not been raised to
the correct position.
Press the needle position button. page 32
The needle is incorrectly installed. Correctly install the needle. page 36
The stitch is not
sewn correctly.
The lamps do not
come on.
Nothing appears
on the LCD.
Machine does not
operate when
button is pressed.
Embroidery unit
does not move.
Embroidering
continues
although the
bobbin thread
ran out.
The thread tension is incorrect.
The thread is tangled, for example,
in the bobbin case.
The lamps are damaged.
Adjust the tension of the upper
thread.
Remove the tangle thread. If the
thread is tangled in the bobbin case,
clean the race.
Contact your retailer or the nearest
authorized service center.
page 64
page 70
–
The machine is not turned on. Turn on the machine. page 19
The brightness of the LCD is either
too light or too dark.
An animation is displayed on the
LCD.
Adjust the brightness of the LCD. page 81
Touch the LCD with your finger, and
the animation will disappear.
page 20
No pattern selected. Select a pattern. page 49
The embroidery unit is not set up
correctly.
Dust has collected on the bobbin
thread sensor.
Set up the embroidery unit correctly. page 15
Remove any dust from the bobbin
thread sensor.
page 70
76
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Symptom Probable Cause Remedy Reference
Embroidery not
neatly done.
The fabric is not fully stretched on
the embroidery frame. The fabric
is loose.
No stabilizer material is attached.
The thread is tangled and the
bobbin case, etc., is plugged up.
The thread tension is incorrect.
Objects are placed near the
carriage or embroidery frame.
Material coming out of the
embroidery frame is causing
problems.
When embroidering on a heavy
fabric, the fabric is hanging off the
table.
Stretch the fabric properly on the
embroidery frame.
Always use stabilizer material for
embroidery with stretch fabrics, thin
fabrics, fabrics with a loose weave
and fabrics where stitches easily
contract.
Remove the tangled thread. When
the bobbin case is plugged up, clean
the race.
Adjust the tension of the upper
thread.
If the embroidery unit carriage or
embroidery frame bumps into objects,
the pattern will be misaligned.
place objects within the range of
embroidery frame motion.
Stretch the fabric on the frame once
again so that the material coming out
of the embroidery frame does not
cause problems, rotate the pattern
and embroider.
If embroidery is done with the fabric
hanging off the table, the embroidery
unit movement will be impaired.
Support the fabric while embroidering.
Do not
page 43
page 42
page 70
page 64
3
page 16
–
–
The fabric is catching. It is
pinched.
The carriage was moved while the
embroidery frame was being
removed or attached during
embroidery.
Stop the machine and set up the
fabric correctly.
If the carriage is moved during the
process, the pattern may be misaligned.
Be careful when removing or
attaching the embroidery frame.
Troubleshooting 77
–
–
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

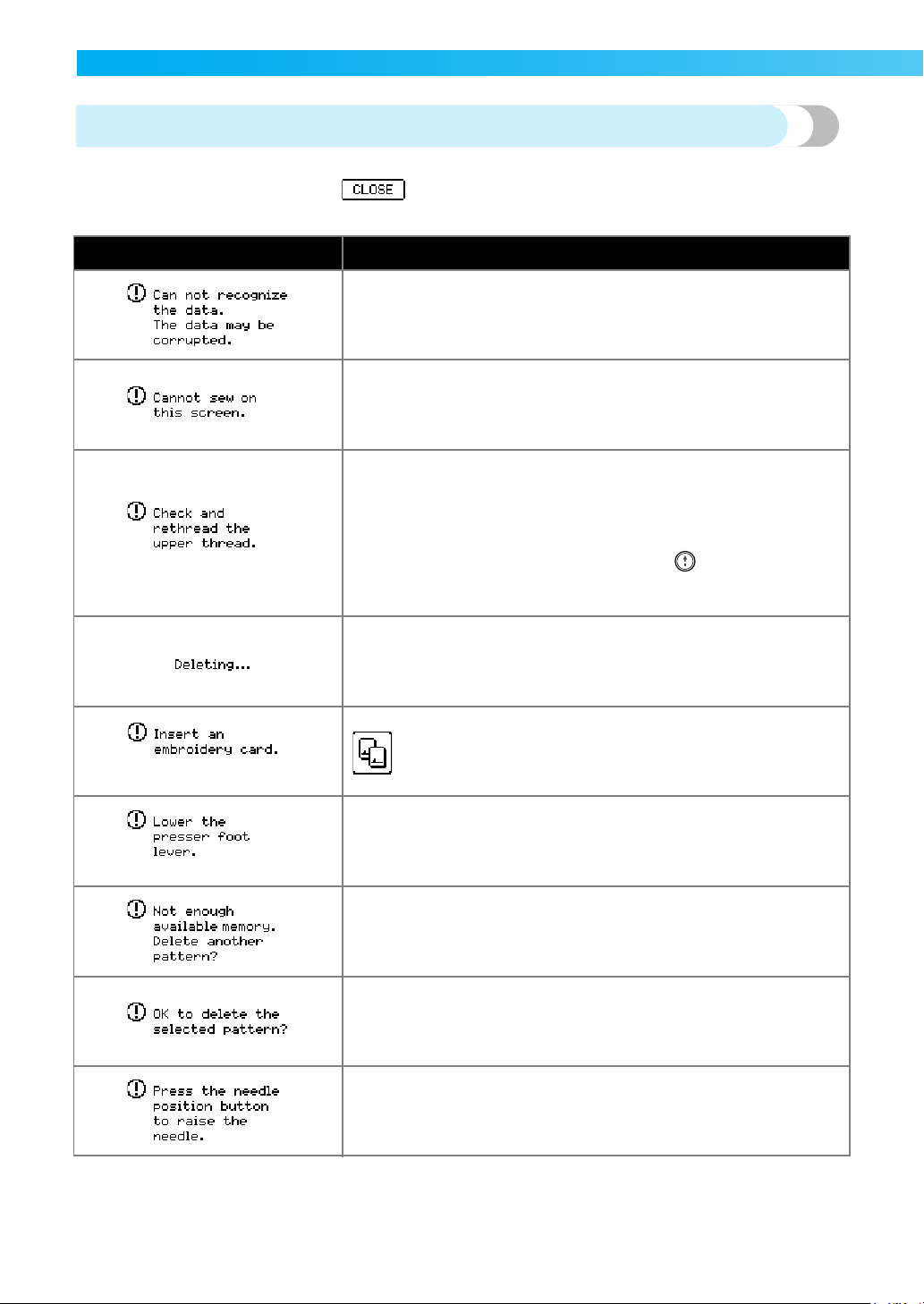

Error messages
When erroneous operations are performed messages and advice on operation will be displayed on the LCD.
Follow what is displayed. If you press or do the operation correctly while the error message is
displayed, the message disappears.
Error Message Probable Cause
There is a possibility that the data for the selected pattern is corrupted.
The start/stop button was pressed at a screen other than the embroidery
screen.
Upper thread broken.
Upper thread not set up correctly.
Upper thread has run out.
CAUTION
Be sure to rethread the machine. If you press (Start/stop button)
without rethreading the machine, the thread tension may be wrong or
the needle may break and cause injury.
The machine is deleting a previously saved pattern.
on the LCD was pressed when no card was inserted.
The start/stop button or thread cutter button was pressed while the
embroidery foot was raised.
The memory is full and the pattern cannot be saved.
You pressed the back key or the embroidery key while a pattern was
selected.
You tried to select an embroidery pattern or change the layout when
the needle was down.
The machine is turned on while the needle is lowered.
78
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Error Message Probable Cause
This message is displayed when the embroidery unit is trying to
initialize while the embroidery foot is lowered.
The needle position button or thread cutter button was pressed while
the bobbin winder shaft is moved to the right.
A pattern is being stored.
The start/stop button was pressed when no pattern is selected.
Bobbin thread has run out.
Little bobbin thread remains.
When the embroidery unit is attached, and then the machine is turned
on.
You tried to set a number of characters that will not fit within the frame.
The upper thread has become tangled around the bobbin case, and the
needle is bent and hitting the needle plate, etc., so the machine stops
(refer to page 74).
A card that cannot be used with this machine has been inserted, and
you tried to select a pattern from the card.
3
An embroidery card incompatible with this machine was inserted and a
pattern on the card was selected.
You try to retrieve a pattern downloaded as one for a different machine.
The combined character pattern is too large for the embroidery frame.
You can rotate the pattern 90 degrees and continue combining
characters.
Troubleshooting 79
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Error Message Probable Cause
The machine was turned on before the embroidery unit was attached.
The bobbin winder is winding the bobbin.
80
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Adjusting the LCD
If nothing appears on the LCD when the machine is
turned on, the brightness of the LCD is either too light
or too dark. In such a case, perform the following
operation.
Turn off the machine.
a
Turn on the machine while pressing any of the
b
display panel buttons.
Operation beep
Each time a key is pressed you will hear one beep. If
an incorrect operation is performed you will hear two
or four beeps.
■ If a key is pressed (correct operation)
One beep sounds.
■ If an incorrect operation is performed
Two or four beeps sound.
■ If the machine locks up, for example, because
the thread is tangled
The machine beeps for four seconds and the
machine automatically stops.
Be sure to check for the cause of the error, and
correct it before continuing to embroider.
3
Press or .
c
Turn off the machine, then turn it on again.
d
Troubleshooting 81
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Canceling the operation beep
When the machine is purchased, it is set to beep each
time an operation panel key is pressed. This setting
can be changed so that the machine does not beep.
Turn on the machine.
a
X The LCD comes on.
Press (Settings key) on the operation
b
panel.
Press (Back key).
e
X The initial screen appears again.
X The settings screen appears.
Press (Next page key) three times.
c
Press OFF for the buzzer.
d
X The screen for changing the beep setting
appears.
82
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Index
A
accessories ......................................................................6
air vent
...........................................................................9
appliqué
.......................................................................59
B
back key .......................................................................11
...................................................................... 81, 82
beep
............................................................................6
bobbin
bobbin case
bobbin case removal
bobbin cover
bobbin installation
bobbin winder
bobbin winding
bobbin winding thread guide
Brother poly #90 bobbin thread
buzzer
....................................................................9
.....................................................70
..................................................................9
........................................................28
................................................................8
............................................................24
..........................................8
......................................7
..........................................................................82
C
characters .....................................................................52
cleaning
........................................................................70
cleaning brush
................................................................6
D
dust cover .......................................................................6
E
embroidery card ......................................................7, 55
embroidery card slot
Embroidery foot “Q”
embroidery foot attachment
embroidery frame
embroidery frame attachment
embroidery frame removal
embroidery key
embroidery pattern
embroidery pattern selection
embroidery pattern types
embroidery set
embroidery sheets
embroidery unit
embroidery unit attachment
embroidery unit connector slot
embroidery unit removal
error messages
.......................................................9
.................................................. 6, 9
..........................................72
.........................................................43
.......................................47
............................................48
.............................................................11
.......................................................53
.........................................49
..............................................49
........................................................... 6, 7
.........................................................45
..............................................................8
..........................................15
.......................................8
...............................................16
..............................................................78
F
frame pattern ................................................................54
H
handle ............................................................................9
handwheel
help key
......................................................................9
................................................................. 11, 23
I
included accessories .......................................................6
L
layout adjustment .........................................................61
..............................................................................11
LCD
LCD button
LCD operation
...................................................................51
.......................................................20, 50
M
machine settings ...........................................................21
main power switch
maintenance
manual needle threading
memory key
..................................................9, 19
.................................................................70
..............................................34
...........................................................11, 63
N
needle bar thread guide ..................................................9
needle plate
needle plate cover
needle position button
needle replacement
needle set
needle threader
needle threader lever
needle threading
next page key
....................................................................9
..........................................................9
..................................................10
......................................................36
.......................................................................6
.............................................................32
......................................................8
...........................................................32
................................................................11
O
operation beep .......................................................81, 82
operation buttons
operation keys
operation panel
optional accessories
..................................................... 8, 10
....................................................... 11, 50
........................................................8, 11
........................................................7
P
pattern type selection screen .........................................20
power supply
power supply jack
preparations for embroidering
presser foot lever
previous page key
................................................................18
...........................................................9
.......................................40
.............................................................8
.........................................................11
Q
quick reference guide .....................................................6
3
Index 83
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
R
race ..............................................................................70
recalling a pattern
release button
resewing
.......................................................................65
.........................................................63
...............................................................17
S
safety instructions ...........................................................1
...........................................................................6
scissors
screwdriver
seam ripper
settings key
spool cap
spool net
spool of thread
spool pin
stabilizer material
start/stop button
storing pattern
.....................................................................6
.....................................................................6
............................................................ 11, 22
........................................................................6
.................................................................. 6, 25
..............................................................30
.........................................................................8
....................................................7, 42
............................................................10
...............................................................63
T
thread cutter ...................................................................8
thread cutter button
thread guide cover
thread guide disk
thread guide plate
thread take-up lever check window
thread tension adjustment
top cover
touch panel
troubleshooting
turning machine on/off
........................................................................8
......................................................10
..........................................................8
............................................................9
...........................................................8
................................8
.............................................64
...................................................................11
.............................................................74
..................................................19
U
upper threading ............................................................30
84
English
882-U30
XD1628-051
Printed in Taiwan
Loading...
