Brother 580MC User Manual

Download

Page 1

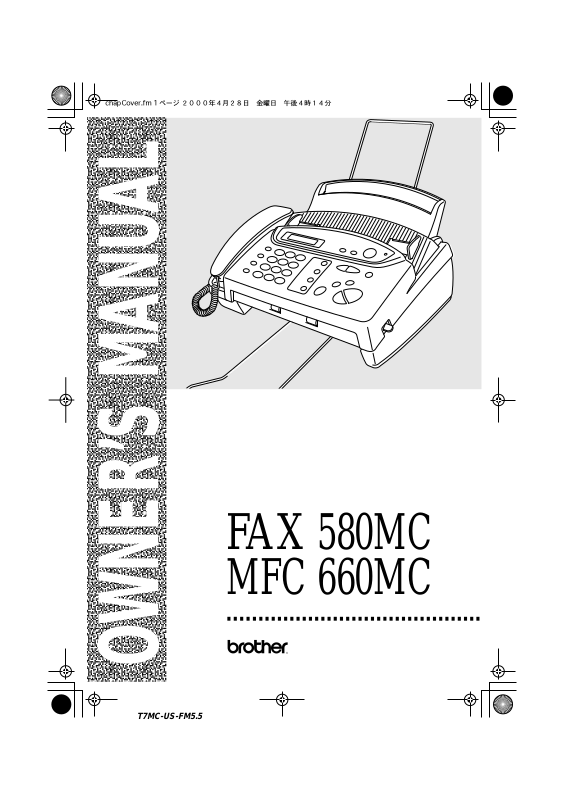

FAX MFC 660MC

OWNER’S MANUAL

580MC

Page 2

If You Need to Call Customer Service

Please complete the following information for future reference:

Model: FAX580MC MFC660MC (Circle your model number)

Serial Number:* Date of Purchase: Place of Purchase:

* The serial number is on the underside of the unit.

Retain this Quick-Start Manual with your sales receipt as a permanent record of your purchase, in the event of a theft, fire or warranty service.

Year 2000 Compliant

Brother is addressing the Year 2000 related issues for all Brother FAX/MFC and multi-function centers. Our focus is to ensure that our bundled third party software will continue to properly process date/time data after January 1, 2000.

Brother FAX/MFC and multi-function centers will function properly after January 1, 2000, provided that all nonBrother hardware, software and firmware used by our customers in connection or combination with Brother FAX/MFC, and bundled software, accurately exchange date data with the Brother products.

Please continue to check our Web page for updates at http://www.brother.com. All remedies will be provided to individual customers via software patches through software download or from Brother Customer Service.

Page 3

Brother Numbers

Brother fax-back system

Brother Customer Service has installed an easy-to-use fax-back system, so you can get instant answers to common technical questions and product information for all Brother products. This system is available 24 hours a day, 7 days a week. You can use the system to send faxes to any fax machine, not just the one from which you are calling.

If you can’t resolve difficulty with your FAX/MFC using this manual, call our fax-back system, and follow the voice prompts to receive faxed instructions about using the system, and an index of fax-back subjects.

USA: From within Canada: 1-800-681-9838

The Brother fax-back system number (USA only) has been preprogrammed on One Touch key 1.

1-800-521-2846

Frequently Asked Questions (FAQs)

You can find more information about Brother products on the World Wide Web. From product specification sheets to Frequently Asked Questions (FAQs), it is all there. Visit us at:

http://www.brother.com

Brother Bulletin Board

Brother’s Bulletin Board Numbers are

USA: From within Canada: 1-514-685-2040

1-888-298-3616

For Customer Service

USA:

From within Canada: 1-800-853-6660 (voice)

From within Montreal: 1-514-685-6464 (voice)

1-800-284-4329 (voice) 1-908-575-8790 (fax)

1-514-685-4898 (fax)

BROTHER NUMBERS

Page 4

Ordering Accessories and Supplies

For the best quality results use only genuine Brother accessories, available at most Brother retailers. If you cannot find the accessory you need and you have a Visa, Master Card, Discover or American Express credit card, you can order accessories directly from Brother.

USA:

1-888-879-3232 (voice) 1-800-947-1445 (fax)

From within Canada:

DESCRIPTION

1-800-668-2768 (voice)

ITEM

Thermal Print Cartridge PC401 2-PK Refill Ribbon Rolls PC402RF Telephone Line Cord Tell the Brother Representative your Model

number so you get the appropriate color.

Telephone Handset Tell the Brother Representative your Model

number so you get the appropriate color.

Handset Curled Cord Tell the Brother Representative your Model

number so you get the appropriate color. Paper Wire Extension UF9869001 Output Paper Support LE4129001 Paper Tray LE4126001 Owner’s Manual LE4171001 Surge Protection Device with Telephone

QPD 120 Line Protection (2 outlets)

Surge Protection Device with Telephone

FX 120 Line Protection (8 outlets)

Multi-function Link Disks for Windows

option on Floppy

3.1, 3.11

option on Floppy

MFL-2D31

MFL-2D95

ORDERING ACCESSORIES AND SUPPLIES

Page 5

Notice – Disclaimer of Warranties

(For USA and Canada)

BROTHER’S LICENSOR(S), AND THEIR DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS (COLLECTIVELY BROTHER’S LICENSOR) MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, REGARDING THE SOFTWARE. BROTHER’S LICENSOR(S) DOES NOT WARRANT, GUARANTEE OR MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY, CURRENTNESS OR OTHERWISE. THE ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF THE SOFTWARE IS ASSUMED BY YOU. THE EXCLUSION OF IMPLIED WARRANTIES IS NOT PERMITTED BY SOME STATES IN THE USA AND SOME PROVINCES IN CANADA. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.

IN NO EVENT WILL BROTHER’S LICENSOR(S) BE LIABLE TO YOU FOR ANY CONSEQUENTIAL, INCIDENTAL OR INDIRECT DAMAGES (INCLUDING DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, AND THE LIKE) ARISING OUT OF THE USE OR INABILITY TO USE THE SOFTWARE EVEN IF BROTHER’S LICENSOR HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES IN THE USA AND SOME PROVINCES IN CANADA DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. IN ANY EVENT BROTHER’S LICENSOR’S LIABILITY TO YOU FOR ACTUAL DAMAGES FROM ANY CAUSE WHATSOEVER, AND REGARDLESS OF THE FORM OF THE ACTION (WHETHER IN CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY OR OTHERWISE), WILL BE LIMITED TO $50.

Compilation and Publication Notice

Under the supervision of Brother Industries, Ltd., this manual has been compiled and published, covering the latest product descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.

Trademarks

The Brother logo is a registered trademark of Brother Industries, Ltd. Brother is a registered trademark of Brother Industries, Ltd. IBM, IBM PC, MWAVE and IBM Aptiva are registered trademarks of International

Business Machines Corporation. ScanSoft PaperPort is a registered trademark of ScanSoft, Inc. Microsoft and MS-DOS are registered trademarks of Microsoft Corporation. Windows and Windows NT are registered trademarks of Microsoft in the U.S. and

other countries.

All other terms and brand and product names mentioned in this manual are registered trademarks of their respective companies.

NOTICE – DISCLAIMER OF WARRANTIES

iii

Page 6

BROTHER 90 DAY LIMITED WARRANTY and EXCHANGE SERVICE

(For FAX 580MC Only)

(For USA Only)

This warranty gives you certain rights and you may also have other rights that may vary from state to state.

This warranty is given only to the first end-use purchaser of the accompanying product (referred to in this warranty as “this Product”).

What is covered: Brother warrants to

you for the Warranty Period that there are no defects in the materials, workmanship or Year 2000 compliance of this Product. The “Warranty Period” is 90 days from the date you purchased this product. The “Warranty Period” for consumable items, such as Toner, Drums, Ribbons, etc. is 90 days from the date of purchase, or the rated life of the Consumable item, whichever is shorter.

What is NOT covered: This warranty is

VOID -- that is, this Product has no warranty -- if: (1) you did not purchase this Product from an authorized Brother reseller within the United States, (2) this Product has been serviced, modified or tampered with by anyone other than an Authorized Service Representative of Brother, (3) the serial number has been modified, defaced or removed from this Product, (4) this Product has been abused or damaged, (5) non Brother brand or non Brother approved parts, supplies, power supplies or other accessories have been used with this Product, or (6) this Product has been transported without the proper preparation and packaging.

What to do if you think your Product is defective:

Call our Customer Service Hotline at 1800-284-4329, or if you suspect a defect in materials or workmanship in this Product, you can report it to a Brother Authorized Service Center. During the Warranty Period, supply Brother’s representative with a copy of your dated bill of sale showing that this Product was purchased within the United States. For the name of your Brother Authorized Service Center, call 1-800-521-2846. After contacting the Brother Authorized Service Center, you

may be required to deliver or send the Product properly packaged, freight prepaid, to the Authorized Service Center together with a photocopy of your bill of sale.

What Brother will do: Brother (or its

Authorized Service Center) will evaluate your report of a possible defect to determine whether a defect exists, and if it does exist, Brother (or its Authorized Service Center) will repair or (at Brother’s option) replace the Product with a product that performs the same functions and performs as well as the original Product. Brother reserves the right to supply refurbished or remanufactured replacement parts provided that the replacement parts conform to the manufacturer’s specifications for new products. The repaired or replacement product will be returned to you at no cost.

Exchange Service:

When an exchange is authorized, Brother will exchange your non-working product with a refurbished or remanufactured product that conforms to the manufacturer’s specifications for new products. The refurbished or remanufactured Product you receive

will be covered by the balance of the limited warranty period remaining on the original Product, plus an additional thirty (30) days. You will keep the replacement Product that is sent to you and must return (or be billed up to the cost of a new product) your original non- working product, which shall become the property of Brother. You must call Brother Customer Service and if the representative cannot correct the product’s malfunction over the telephone and you elect the exchange service, you must provide information pertaining to this Product and you must also provide a valid major credit card number. Your credit card will be charged up to the cost of a new Product if: (i) you do not return your original Product to Brother within five (5) business days; (ii) the malfunctions of your original Product are not covered by the limited warranty; (iii) the proper

FAX LIMITED WARRANTY

Page 7

BROTHER 90 DAY LIMITED WARRANTY and EXCHANGE SERVICE

(For FAX 580MC Only)

(For USA Only)

packaging instructions are not followed and has caused damage to the product; or (iv) the warranty period on your original Product has expired or has not been sufficiently validated with a copy of the proof of purchase (bill of sale). The Brother Customer Service Representative will ship the exchange Product via next business day delivery courier service, with return instructions and prepaid return air bill. Follow the return instructions. You must return the original Product in the same shipping carton in which the exchanged Product was received and include a copy of proof of purchase (bill of sale). Retain your original accessory items and a copy of the return air bill, signed by the courier.

Limitations:

Repair or replacement as described above is your sole and exclusive (that is, your only) remedy if this Product is defective. Brother is not responsible for damage to or loss of any equipment, media, programs or data related to the use of this Product. Except for that repair or replacement,

Brother shall not be liable for any direct, indirect, incidental or consequential damages or specific relief. Because some states do not allow the exclusion or limitation of consequential or incidental damages, the above limitation may not apply to you.

THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, WRITTEN OR ORAL, WHETHER EXPRESSED BY AFFIRMATION, PROMISE, DESCRIPTION, DRAWING, MODEL OR SAMPLE. ANY AND ALL WARRANTIES OTHER THAN THIS ONE, WHETHER EXPRESS OR IMPLIED, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED.

This Limited Warranty is the only warranty that Brother is giving for this Product. It is the

the exclusive and only statement

final expression and

Brother’s obligations to you. It replaces all other agreements and understandings that you may have with Brother or its representatives.

This Limited Warranty (and Brother’s obligation to you) may not be changed in any way unless you and Brother sign the same piece of paper in which we (1) refer to this Product and your bill of sale date, (2) describe the change to this warranty and (3) agree to make that change.

Product Support: Toll-free customer

service and technical support is available for hardware operational assistance at 1-800-284-4329

. At any time, free technical support in the form of Frequently Asked Questions, troubleshooting tips and service center locator is available through our fax-back system at 1-800-521-2846

or Brother’s Internet Web Site (www.brother.com). Now you can visit us on-line (www.brothermall.com

) , your complete source for genuine Brother Accessories and Supplies.

ROTHER

B 100 B

RIDGEWATER,

OMERSET

NTERNATIONAL

ORPORATE

ERSEY

ORPORATION

LVD.

08807-0911

Please record your model and serial numbers and your date and location of Purchase below for your records. Keep this information with your proof of purchase (bill of sale) in case your Product is lost, stolen or requires service.

Model # _______________________ Serial #________________________ Date of purchase: _______________ Store where purchased:___________ Location of store:________________

Important: We recommend that you

keep all original packing materials, in the event that you ship this product.

FAX LIMITED WARRANTY

Page 8

BROTHER ONE YEAR LIMITED WARRANTY and EXCHANGE SERVICE

(For MFC 660MC Only)

(For USA Only)

This warranty gives you certain rights and you may also have other rights that may vary from state to state.

This warranty is given only to the first end-use purchaser of the accompanying product (referred to in this warranty as “this Product”).

What is covered: Brother warrants to

you for the Warranty Period that there are no defects in the materials, workmanship or Year 2000 compliance of this Product. The “Warranty Period” is 1 year from the date you purchased this product. The “Warranty Period” for consumable items, such as Toner, Drums, Ribbons, etc. is 90 days from the date of purchase, or the rated life of the Consumable item, whichever is shorter.

What is NOT covered: This warranty is

What to do if you think your Product is defective:

Call our Customer Service Hotline at 1-800-284-4329, or if you suspect a defect in materials or workmanship in this Product, you can report it to a Brother Authorized Service Center. During the Warranty Period, supply Brother’s representative with a copy of your dated bill of sale showing that this Product was purchased within the United States. For the name of your Brother Authorized Service Center, call 1-800-521-2846. After contacting the Brother Authorized Service Center, you

may be required to deliver or send the Product properly packaged, freight prepaid, to the Authorized Service Center together with a photocopy of your bill of sale.

What Brother will do: Brother (or its

Exchange Service:

Page 9

BROTHER ONE YEAR LIMITED WARRANTY and EXCHANGE SERVICE

(For MFC 660MC Only)

(For USA Only)

Limitations:

This Limited Warranty is the only warranty that Brother is giving for this Product. It is the

the exclusive and only statement

final expression and

Brother’s obligations to you. It replaces all other agreements and understandings that you may have with Brother or its representatives.

Product Support: Toll-free customer

service and technical support is available for hardware operational assistance at 1-800-284-4329

. At any time, free technical support in the form of Frequently Asked Questions, troubleshooting tips and service center locator is available through our fax-back system at 1-800-521-2846

or Brother’s Internet Web Site (www.brother.com). Now you can visit us on-line (www.brothermall.com

), your complete source for genuine Brother Accessories and Supplies.

ROTHER

100 B

RIDGEWATER,

OMERSET

NTERNATIONAL

ORPORATE

ERSEY

ORPORATION

LVD.

08807-0911

Model # _______________________ Serial #________________________ Date of purchase: _______________ Store where purchased:___________ Location of store:________________

Important: We recommend that you

keep all original packing materials, in the event that you ship this product.

vii

Page 10

BROTHER MULTIFUNCTION CENTER/FACSIMILE MACHINE

LIMITED WARRANTY

(For Canada Only)

Pursuant to this limited warranty of 1 year from the date of purchase for labour and parts, Brother International Corporation (Canada) Ltd. (“Brother”), or its Authorized Service Centers, will repair this MFC/Facsimile machine free of charge if defective in material or workmanship. This Limited Warranty does not include cleaning, consumables (including, without limitation, print cartridges, print head, toner and drum) or damage caused by accident, neglect, misuse or improper installation or operation, any damage caused from service, maintenance, modifications, or tampering by anyone other than a Brother Authorized Service Representative, or from the use of supplies or consumable items that are non-Brother products. Operation of the MFC/Facsimile machine in excess of the specifications or with the Serial Number or Rating Label removed shall be deemed abuse and all repairs thereafter shall be the sole liability of the end-user/purchaser. In order to obtain warranty service, the MFC/Facsimile machine must be delivered or shipped freight prepaid by the end user/purchaser to a “Brother” Authorized Service Center, together with your Proof of Purchase in the form of a Sales Receipt.

For laser products: Failure to remove the Toner Cartridge (and Toner Drum Unit on applicable models) during shipping will cause severe damage to the MFC/Facsimile and will VOID the Warranty. (Refer to your Operation Manual for proper packaging.)

For ink-jet products: Do not remove the ink cartridges during shipping. Damage to your print head resulting from packing without the ink cartridges will VOID your warranty. (Refer to your Operation Manual for proper packaging.)

BROTHER DISCLAIMS ALL OTHER WARRANTIES EXPRESSED OR IMPLIED INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, EXCEPT TO THE EXTENT THAT ANY WARRANTIES IMPLIED BY LAW CANNOT BE VALIDLY WAIVED.

No oral or written information, advice or representation provided by Brother, its Authorized Service Centers, Distributors, Dealers, Agents or employees, shall create another warranty or modify this warranty. This warranty states Brother’s entire liability and your exclusive remedy against Brother for any failure of the MFC/Facsimile machine to operate properly.

Neither Brother nor anyone else involved in the development, production, or delivery of this MFC/Facsimile machine shall be liable for any indirect, incidental, special, consequential, exemplary, or punitive damages, including lost profits, arising from the use of or inability to use the product, even if advised by the end user/purchaser of the possibility of such damages. Since some Provinces do not allow the above limitation of liability, such limitation may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from Providence to Providence.

Warranty Service is available at Brother Authorized Service Centers throughout Canada. For Technical Support or for the name and location of your nearest Authorized Service Center call 1-800-853-6660. Within Montreal, please call 685-6464. Internet support: support@brother.ca or browse Brother’s Web Site: www.brother.com

Brother International Corporation (Canada) Ltd. 1 Rue Hôtel de Ville Dollard-Des-Ormeaux, QC H9B 3H6

We ’re at y our side.

Page 11

Introduction..................................................................................... 1-1

Using This Manual..................................................................... 1-1

Finding Information............................................................. 1-1

About FAX/MFC ....................................................................... 1-1

Fax Tones and Handshake................................................... 1-2

ECM (Error Correction Mode)............................................ 1-2

FAX 580MC and MFC 660MC Control Panel Overview ......... 1-3

Location and Connections.............................................................. 2-1

Caution....................................................................................... 2-1

Choosing a Location................................................................... 2-1

Packing List................................................................................ 2-2

Assembly.................................................................................... 2-2

Attach the paper wire extension.......................................... 2-2

Attach the paper tray ........................................................... 2-3

Attach the output paper support .......................................... 2-3

Loading the Paper................................................................ 2-3

Acceptable Paper................................................................. 2-4

Connections................................................................................ 2-4

Connecting the Machine...................................................... 2-4

Special Line Considerations................................................ 2-5

Roll Over Phone Lines ................................................... 2-5

Two-Line Phone System................................................. 2-5

Converting Telephone Wall Outlets ............................... 2-6

Installing Brother Machine, External Two-Line TAD,

and Two-Line Telephone.............................................. 2-6

Multi-Line Connections (PBX)........................................... 2-7

If you are installing the FAX/MFC to work

with a PBX: .................................................................. 2-7

Custom Features on Your Phone Line................................. 2-7

Connecting an External Telephone Answering

Device (TAD).................................................................... 2-8

Sequence......................................................................... 2-8

Connections..................................................................... 2-9

Outgoing Message (OGM) ............................................. 2-9

Connecting an External Telephone ..................................... 2-9

Page 12

On-Screen Programming................................................................ 3-1

User-Friendly Programming....................................................... 3-1

Function Mode..................................................................... 3-1

Alternating Displays............................................................ 3-1

Function Selection Table..................................................... 3-2

Initial Setup...................................................................................... 4-1

Getting Started............................................................................ 4-1

Setting Date and Time......................................................... 4-1

Setting Station ID ................................................................ 4-1

Setting Tone/Pulse Dialing Mode (For Canada Only).... 4-2

Details for Entering Text................................................. 4-2

Inserting spaces............................................................... 4-2

Making corrections ......................................................... 4-2

Repeating letters.............................................................. 4-3

Special characters and symbols....................................... 4-3

Setting Up Your Area Code (For USA Only) ..................... 4-3

Setting Beeper Volume........................................................ 4-4

Choosing the Handset Volume............................................ 4-4

Setting Volume Amplify................................................. 4-5

Setting the Speaker Volume................................................ 4-5

Setting the Ring Volume ..................................................... 4-5

Memory Storage.................................................................. 4-5

Setup Receive................................................................................... 5-1

Basic Receiving Operations ....................................................... 5-1

Select Answer Mode............................................................ 5-1

To select or change your Answer Mode ......................... 5-2

Setting Ring Delay .............................................................. 5-2

Setting F/T Ring Time.........................................................5-3

Record FAX/TEL Outgoing Announcement (F/T OGM)... 5-3

Easy Receive ....................................................................... 5-4

Printing a Reduced Incoming original................................. 5-5

Recommended Reductions.............................................. 5-5

Setting Paper Size................................................................5-5

Advanced Receiving Operations................................................ 5-6

Operation from External or Extension Telephone............... 5-6

For FAX/TEL Mode Only .............................................. 5-6

Changing Remote Codes................................................. 5-6

Page 13

Polling.................................................................................. 5-7

Setting Multi-function Link® Mode

(For MFC 660MC Only)................................................... 5-7

Setup Send ....................................................................................... 6-1

Automatic Document Feeder (ADF).......................................... 6-1

Manual Transmission .......................................................... 6-2

Automatic Transmission...................................................... 6-2

Manual and Automatic Fax Redial...................................... 6-2

Memory Transmission......................................................... 6-2

Basic Sending Operations .......................................................... 6-3

Contrast................................................................................ 6-3

Resolution............................................................................ 6-3

Advanced Sending Operations................................................... 6-4

Overseas Mode.................................................................... 6-4

Delayed Fax......................................................................... 6-4

Setting Up for Polled Transmit............................................ 6-4

Canceling a Scheduled Job.................................................. 6-5

Interrupting Delayed Fax and Polled Transmit Jobs........... 6-5

More Advanced Features (Call Brother fax-back system).. 6-6

Auto Dial Numbers and Dialing Options...................................... 7-1

Storing Numbers for Easy Dialing............................................. 7-1

Storing One Touch Dial Numbers....................................... 7-1

Storing Speed Dial Numbers............................................... 7-2

Changing One Touch and Speed Dial Numbers.................. 7-3

Setting Up Groups for Broadcasting ................................... 7-3

Dialing Options.......................................................................... 7-4

Manual Dialing.................................................................... 7-4

One Touch Dialing.............................................................. 7-4

Speed Dialing ...................................................................... 7-5

Dialing Access Codes and Credit Card Numbers................ 7-5

Search.................................................................................. 7-6

Redial................................................................................... 7-6

Answering Calls with the Speakerphone............................. 7-6

Broadcasting........................................................................ 7-6

Pause.................................................................................... 7-7

Hold..................................................................................... 7-7

Tone/Pulse (For Canada Only)............................................ 7-7

Page 14

Telephone Services.......................................................................... 8-1

Custom Features......................................................................... 8-1

Distinctive Ring...................................................................8-1

Registering the Distinctive Ring Pattern......................... 8-1

Caller ID.............................................................................. 8-2

Caller ID Log.................................................................. 8-2

Printing the Caller ID Log .............................................. 8-3

Viewing the Caller ID Log.............................................. 8-3

Returning a Call from the Log........................................ 8-3

Registering a Caller ID Number ..................................... 8-4

Clearing a Caller ID Stored in Memory.......................... 8-4

Call Waiting Caller ID......................................................... 8-5

CallManage (For USA Only)..................................................... 8-5

Registration with CallManage............................................. 8-5

Sending a Fax Using CallManage....................................... 8-6

Placing a Telephone Call Using CallManage...................... 8-6

Customer Support................................................................ 8-6

Message Center................................................................................ 9-1

Message Center Mode................................................................ 9-1

Flexible Memory Settings (Message Storage)..................... 9-1

Setting Up the Message Center ........................................... 9-2

Setting Message Storage...................................................... 9-2

Recording Message Center Outgoing Message................... 9-2

Listening to Outgoing Message (OGM) ......................... 9-3

Erasing Outgoing Message (OGM) ................................ 9-3

Activating Message Center Mode ....................................... 9-3

Message Indicator................................................................ 9-3

Playing Voice Messages......................................................9-4

Printing a Fax Message ....................................................... 9-4

Backup Printing Option....................................................... 9-4

Erasing Messages ................................................................ 9-5

To erase voice messages individually............................. 9-5

To erase messages all at once ......................................... 9-5

Setting Maximum Time for Incoming Messages................ 9-5

Setting Toll Saver................................................................ 9-6

ICM Recording Monitor......................................................9-6

Recording a Conversation ................................................... 9-6

Fax Forwarding/Paging ....................................................... 9-6

Programming a Fax Forwarding Number....................... 9-7

xii

Page 15

Programming Paging Number ........................................ 9-7

Remote Retrieval........................................................................ 9-8

Using Remote Access Code ................................................ 9-8

Changing Remote Retrieval Access Code........................... 9-8

Remote Commands ............................................................. 9-9

Retrieving Memory Status List ......................................... 9-10

Retrieving Fax Messages................................................... 9-11

Changing Fax Forwarding Number................................... 9-11

Making Copies...............................................................................10-1

Copy Functions ........................................................................ 10-1

Making a Single Copy....................................................... 10-1

Copy Options: Single or Multiple Copies,

Reduce/Enlarge, Sort/Stack............................................. 10-1

Printing Reports............................................................................ 11-1

FAX/MFC Settings and Activity.............................................. 11-1

To Print a Report............................................................... 11-1

Transmission Verification (Xmit) Report ......................... 11-2

Activity Report Interval..................................................... 11-2

Important Information................................................................. 12-1

Standard Telephone and FCC Notices..................................... 12-1

These notices are in effect on models sold and used

in the United States only. ................................................ 12-1

International Energy Star Compliance Statement......... 12-2

Industry Canada Compliance Statement

(For Canada Only)...................................................... 12-2

Federal Communications Commission Compliance

Notice (For USA Only) .............................................. 12-2

Important Safety Instructions........................................ 12-3

Troubleshooting and Routine Maintenance............................... 13-1

Troubleshooting ....................................................................... 13-1

Error Messages.................................................................. 13-1

If You Are Having Difficulty with Your FAX/MFC........ 13-4

Printing or Receiving Faxes.......................................... 13-4

Phone Line or Connections........................................... 13-4

Sending Faxes............................................................... 13-5

Handling Incoming Calls.............................................. 13-6

xiii

Page 16

Routine Maintenance................................................................ 13-7

Cleaning the Scanner......................................................... 13-7

Cleaning the Print Head..................................................... 13-7

Replacing the Print Cartridge............................................ 13-8

Setting Up the MFC 660MC

and Computer to Work Together.............................................. 14-1

Before You Install Multi-Function Link®................................ 14-1

Package Contents............................................................... 14-1

PC Configuration Requirements........................................ 14-1

Connecting the MFC 660MC to Your PC......................... 14-2

Choosing the Software to Install.............................................. 14-3

Install Multi-Function Link® Software......................... 14-3

On-Line Documentation ............................................... 14-3

Product Support............................................................. 14-3

Brother Web Link ......................................................... 14-3

Installing the Multi-Function Link® Software......................... 14-4

Overview of Basic Steps ................................................... 14-4

Installing the Brother Software ......................................... 14-4

Viewing On-Line Documentation............................................ 14-6

Using the Multi-Function Link® Software

(For MFC 660MC Only) ............................................................ 15-1

Introduction.............................................................................. 15-1

Running the Brother Software.................................................. 15-1

Multi-Function Link®................................................... 15-2

ScanSoftTM PaperPort®................................................ 15-2

Sending a Fax from Your PC................................................... 15-2

Sending a Quick Fax ......................................................... 15-2

Sending a Fax from the Main Menu..................................15-3

Sending a Fax from a Windows

Receiving Faxes into the PC .................................................... 15-5

Before You Begin..............................................................15-5

Checklist for the MFC: ................................................. 15-5

On your PC: .................................................................. 15-6

Viewing Received Faxes................................................... 15-6

Scanning a Document............................................................... 15-7

Scanning Options............................................................... 15-7

Resolution ..................................................................... 15-7

Contrast......................................................................... 15-8

Application.................. 15-4

xiv

Page 17

Image Type ................................................................... 15-8

Scanning into the PaperPort® Viewer............................... 15-8

16 17

18 19

Multi-Function Link® (option)

(For FAX 580MC Only)............................................................. 16-1

Specifications................................................................................... S-1

Index..................................................................................................I-1

Remote Retrieval Access Card...................................................... R-1

Page 18

Introduction

Using This Manual

Thank you for purchasing a Brother FAX/MFC. This FAX/MFC has been designed to be simple to use, with LCD screen prompts to guide you through functions. However, you can use your FAX/MFC to its fullest potential by taking a few minutes to read this manual.

Additionally, your FAX/MFC has a Help Key. Press Copy/Help and then press

Start to print a list of basic operational steps and functions.

Finding Information

All chapter headings and subheadings are listed in the Table of Contents. You will be able to find information about a specific feature or function by checking the Index at the back of this manual. Also, throughout this manual, you’ll see special symbols alerting you to important information, cross-references, and warnings. Illustrations of some screen displays also help you choose the correct key-presses.

About FAX/MFC

If you’re a first-time FAX/MFC user, fax operation might seem a little mysterious. You’ll soon get used to the unusual fax tones on your phone line, and be able to send and receive faxes easily.

1 - 1

INTRODUCTION

Page 19

Fax Tones and Handshake

When someone is sending a fax, the FAX/MFC sends fax calling tones (CNG tones)— soft, intermittent beeps at 4-second intervals. You’ll hear them when you dial and press Start, and they continue for about 40 seconds after dialing. During that time, the sending machine must begin the “handshake” with the receiving machine. Each time you use automatic procedures to send a fax, you are sending CNG tones over the phone line. You’ll soon learn to listen for these soft beeps each time you answer a phone on your fax line, so you know if you are receiving a fax message.

The receiving fax responds with fax receiving tones—loud, chirping sounds. A receiving fax chirps for about 40 seconds over the phone line, and the screen displays RECEIVE. If your FAX/MFC is set to the FAX ONLY Mode, it will answer every call automatically with fax receiving tones. Even if the other party hangs up, your FAX/MFC continues to send the “chirps” for about 40 seconds, and the screen continues to display “RECEIVE”. To cancel the receiving mode, press Stop.

When your FAX/MFC answers in FAX/TEL Mode, the FAX/MFC listens for CNG tones and then responds with receiving tones.

The fax “handshake” is the time in which the sending machine’s CNG tones and the receiving machines “chirps” overlap. This must be for at least 2 to 4 seconds, so the machines can understand how each is sending and receiving the fax. The handshake cannot begin until the call is answered, and the CNG tones only last for about 40 seconds after the number is dialed. Therefore, it’s important for the receiving machine to answer the call in as few rings as possible.

When you have an external telephone answering device (TAD) on your fax line, your TAD will determine the number of rings before the call is answered. Pay special attention to the directions in the Installation chapter for connecting a TAD to your FAX/MFC.

ECM (Error Correction Mode)

The Error Correction Mode (ECM) is a way for the FAX/MFC to check the integrity of a fax transmission while it is in progress. ECM transmissions are possible only between machines that both have the ECM feature. If they do, you may send and receive fax messages that are continuously checked for their integrity.

Sufficient memory must be available in your FAX/MFC for this feature to work.

INTRODUCTION

1 - 2

Page 20

FAX 580MC and MFC 660MC Control Panel Overview

2 3 4

LCD (Liquid Crystal Display)

Displays messages to help you set up and operate your fax machine.

Hold/Caller ID

Lets you put calls on hold. Also, lets you view or print the Caller ID list.

Redial/Pause

Re-dials the last number called. Also inserts a pause in autodial numbers.

Search/Speed Dial

Lets you dial stored phone numbers by pressing # and a two-digit number. Also lets you look up numbers stored in the dialing memory.

Speaker Phone

Lets you speak to the person at the other end and dial telephone numbers without lifting the handset.

Dial Pad

Dials phone and fax numbers, and can be used as a keyboard for entering information into the fax machine.

SIX IN ONE

One Touch Dial Keys

These four keys give you instant access to previously stored phone numbers.

Stop

Stops a fax, cancels an operation or exits from Function mode.

Mode

Use to select how fax machine will handle incoming calls.

Copy/Help

Makes a copy. If no originals are in the ADF, it prints a quick reference Help List.

Start

Starts an operation, such as sending a fax.

Resolution

Sets the resolution when you send a fax or make a copy.

14 13

8 9

10 11

Function/Set

Lets you access the function and programming mode. Also, stores a function setting into the fax machine.

(Left Arrow) (Right Arrow) Volume

Moves the LCD cursor to the left or right. Adjusts speaker, ring and handset volume.

Microphone

Picks up your voice when you speak to another party using speakerphone.

MC ON/OFF

Lets you activate the Message Center.Also,notifies you that you have voice or fax messages in the memory.

Play/Record

Lets you listen to voice messages and print fax messages stored in memory. Also, lets you record telephone calls.

Erase

Lets you delete voice messages, fax messages or all messages.

1 - 3

INTRODUCTION

Page 21

Location and Connections

Caution

Never install telephone wiring during a lightning storm.

We recommend that this product be used with a surge protection device to protect the product against lightning storms.

Never install a telephone jack in a wet location unless the jack is specifically designed for a wet location.

Never touch telephone wires or terminals that are not insulated unless the telephone line has been disconnected at the network interface.

Use caution when installing or modifying telephone lines.

Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.

Do not use the telephone to report a gas leak in the vicinity of the leak.

For PLUGGABLE EQUIPMENT, the electrical outlet should be installed near the equipment and should be easily accessible.

Choosing a Location

Place your FAX/MFC on a flat, stable surface, such as a desk. Select a place that is free of vibration and shocks. Locate the FAX/MFC near a telephone jack and a standard, grounded power outlet.

Avoid placing your machine in a high-traffic area. Do not place near heaters, air conditioners, water, chemicals or refrigerators. Do not expose the FAX/MFC to direct sunlight, excessive heat, moisture or dust. Do not connect your machine to electrical outlets controlled by wall switches or automatic timers. Disruption of power can wipe out information in the unit’s memory. Do not connect your machine to electrical outlets on the same circuit as large appliances or other equipment that might disrupt the power supply. Avoid interference sources, such as speakers or the base units of cordless phones.

LOCATION AND CONNECTIONS

2 - 1

Page 22

Packing List

Make sure you have the following items:

Paper Wire Extension

Telephone

Line Cord

Telephone

Handset

Curled Cord

Output Paper

Support

Multi Function

Link CD-ROM

(For MFC 660MC

Only) Cable and

PC/IF Box

(For MFC 660MC

If an item is missing, call Brother Customer Service at

Note

Only)

1-800-284-4329 (USA), 1-800-853-6660 (from within Canada) or 1-514-685-6464 (from within Montreal). See Ordering Accessories and Supplies on page ii for the correct item numbers.

Whenever you transport the FAX/MFC, use the packing materials that came with your machine. If you do not pack the FAX/MFC correctly, you may void your warranty.

Paper T ray

One Touc h Name Label

Owner’s

Manual

Brother Start Card

Assembly

Attach the paper wire extension

Attach the paper wire extension to the paper tray and slide it up or down to fit letter or legal size paper.

2 - 2

LOCATION AND CONNECTIONS

Paper Wire Extension

Page 23

Attach the paper tray

Attach the paper tray. Make sure the wide pins on the paper tray are inserted firmly into the pockets on the top edge of the machine.

Paper T ray

Attach the output paper support

Attach the output paper support.

Output

Paper

Support

Loading the Paper

The maximum number of 20 lb. sheets you can load depends on the paper size, either 50 Letter or 30 Legal.

Temperature: 68˚F (20˚C) Humidity: 60%

Place paper in the paper tray.

Tap the stack of paper so the edges are even.

LOCATION AND CONNECTIONS

2 - 3

Page 24

Acceptable Paper

Size: Letter and Legal Weight: 17 lb. – 24 lb. Thickness: .0031 inches – .0039 inches

DO NOT use curled, wrinkled, folded or ripped paper, or paper with staples, paper clips, paste or tape attached. DO NOT use cardboard, newspaper or fabric.

Connections

Connecting the Machine

Connect the handset, power cord, and telephone line.

Connect the Handset.

Connect the curled handset cord to the bottom of the handset and the back of the machine.

Connect the power cord.

Connect the telephone line.

Connect one end of the telephone line cord to the jack labeled LINE on the back of the machine. Connect the other end to a modular wall jack.

2 - 4

LOCATION AND CONNECTIONS

Page 25

WARNING

■ This machine must be grounded using a three-prong plug.

■ Since the machine is grounded through the power outlet, you can protect yourself from

potentially hazardous electrical conditions on the telephone line by keeping the power to your machine on when you connect it to a telephone line. When you want to move your machine, protect yourself by disconnecting the telephone line first, and then the power cord.

■ Lightning and power surges can damage this product! We recommend that you use a

quality surge protection device on the AC power line as well as on the telephone line, or unplug the lines during a lightning storm.

Special Line Considerations

Roll Over Phone Lines

A roll over phone system is a group of two or more separate telephone lines that pass incoming calls to each other if they are busy. The calls are usually passed down or “rolled over” to the next available phone line in a preset order.

Your FAX/MFC can work in a roll over system as long as it is the last number in the sequence, so the call cannot roll away. Do not put the FAX/MFC on any of the other numbers; when the other lines are busy and a second fax call is received, the fax call is transferred to a line that does not have a fax machine. Your FAX/MFC will work best on a dedicated line.

Two-Line Phone System

A two-line phone system is nothing more than two separate phone numbers on the same wall outlet. The two phone numbers can be on separate jacks (RJ11) or combined into one jack (RJ14). Your machine must be plugged into an RJ11 jack. RJ11 and RJ14 jacks may be equal in size and appearance and both may contain four wires (black, red, green, yellow). To test the type of jack, plug in a two-line phone and see if it can access both lines. If it can, you must separate the line for your machine.

LOCATION AND CONNECTIONS

2 - 5

Page 26

Converting Telephone Wall Outlets

There are three ways to convert to an RJ11 receptacle. The first two ways may require assistance from the telephone company. You can change the wall outlets from one RJ14 jack to two RJ11 jacks. Or, you can have an RJ11 wall outlet installed and slave or jump one of the phone numbers to it.

The third way is the easiest: Buy a triplex adapter. You can plug a triplex adapter into an RJ14 outlet. It separates the wires into two separate RJ11 jacks (Line 1, Line 2) and a third RJ14 jack (Lines 1 and 2). If your Brother machine is on Line 1, plug the machine into L1 of the triplex adapter. If your machine is on Line 2, plug it into L2 of the triplex adapter.

Triplex Adapter

RJ14

RJ11 RJ14

Installing Brother Machine, External Two-Line TAD, and Two-Line Telephone

When you are installing an external two-line telephone answering device (TAD) and a two-line telephone, your machine must be isolated on one line at both the wall jack and at the TAD. The most common connection is to put the Brother machine on Line 2, which is our assumption in the following steps. The back of the two-line TAD must have two telephone jacks: one labeled L1 or L1/L2, and the other labeled L2. You will need at least three telephone line cords, the one that came with your machine and two for your external two-line TAD. You will need a fourth line cord if you add a two-line telephone.

Place the two-line TAD and two-line telephone next to your Brother machine.

Plug one end of the telephone line cord for your machine into the L2 jack of the triplex adapter. Plug the other end into the LINE jack on the back of the machine.

Plug one end of the first telephone line cord for your TAD into the L1 jack of the triplex adapter. Plug the other end into the L1 or L1/L2 jack of the two-line TAD.

2 - 6

LOCATION AND CONNECTIONS

Page 27

Plug one end of the second telephone line cord for your TAD into the L2 jack of the two-line TAD. Plug the other end into the EXT. jack on the back of the machine.

Triplex Adapter

Two Line External TAD Brother Machine

You can keep two-line telephones on other wall outlets as always. There are two ways to add a two-line telephone to the FAX/MFC’s wall outlet. You can plug the telephone line cord from the two-line telephone into the L1+L2 jack of the triplex adapter. Or, you can plug the two-line telephone into the TEL jack of the two-line TAD.

Two Line Phone

Multi-Line Connections (PBX)

Most offices use a central telephone system. While it is often relatively simple to connect the FAX/MFC to a key system or a PBX (Private Branch Exchange), we suggest that you contact the company that installed your telephone system and ask them to connect the FAX/MFC for you. It is advisable to have a separate line for the FAX/MFC. You can then leave the FAX/MFC in FAX ONLY Mode to receive faxes any time, day or night.

If the FAX/MFC is to be connected to a multi-line system, ask your installer to connect the unit to the last line on the system. This prevents the unit from being activated each time a telephone call is received. (See Easy Receive, page 5-4.)

As with all fax units, this machine must be connected to a two wire system. If your line has more than two wires, proper connection of the FAX/MFC cannot be made.

If you are installing the FAX/MFC to work with a PBX:

It is not guaranteed that the unit will operate correctly under all circumstances with a PBX. Any cases of difficulty should be reported first to the company that handles your PBX.

If all incoming calls will be answered by a switchboard operator, it is recommended that the Answer Mode be set to MANUAL. All incoming calls should initially be regarded as telephone calls.

The unit may be used with either pulse or tone dialing telephone service.

Custom Features on Your Phone Line

To learn how custom features may affect your faxing operations, please see Troubleshooting and Routine Maintenance, Chapter 13.

LOCATION AND CONNECTIONS

2 - 7

Page 28

Connecting an External Telephone Answering Device (TAD)

Sequence

You might choose to connect an additional answering system. When you have an external TAD on the same telephone line as the FAX/MFC, the TAD answers all calls. The FAX/MFC “listens” for fax calling (CNG) tones. If it hears them, the FAX/MFC takes over the call and receives the fax. If it doesn’t hear CNG tones, the FAX/MFC lets the TAD continue playing your outgoing message so your caller can leave you a voice message.

The TAD must answer within four rings (the recommended setting is two rings). The FAX/MFC cannot hear CNG tones until the TAD has answered the call, and with four rings there are only 8–10 seconds of CNG tones left for the fax “handshake.” Make sure you carefully follow instructions in this manual for recording your outgoing message. We do not recommend using the toll saver feature on your external answering machine if it exceeds 4 rings.

Do not connect a TAD elsewhere on the same phone line—your FAX/MFC and TAD will both try to control the line.

2 - 8

LOCATION AND CONNECTIONS

Page 29

Connections

The external TAD must be plugged into the back of the FAX/MFC, into the jack labeled EXT. Your FAX/MFC cannot work properly if you plug the TAD into a wall jack.

Plug the telephone line cord from the wall jack into the back of the FAX/MFC, in the jack labeled LINE.

Plug the telephone line cord from your TAD into the back of the FAX/MFC, in the jack labeled EXT. (Make sure this cord is connected to the TAD at the TAD’s telephone line jack (not to telephone set jack).)

Set your external TAD to four rings or less. (The FAX/MFC’s Ring Delay setting does not apply.)

Record the outgoing message (see below).

Set the TAD to answer calls.

See Message Storage (Function/Set, 8, 1) to VOICE:EXT.

Set the Answer Mode to MC:MSG CTR.

Outgoing Message (OGM)

Timing is important in recording this message. The message sets up the ways to handle both manual and automatic fax reception.

Record 5 seconds of silence at the beginning of your message. (This allows your FAX/ MFC time to listen for the fax CNG tones of automatic transmissions before they stop.)

Limit your speaking to 20 seconds.

End your 20-second message by giving your Fax Receive Code for people sending manual faxes. For example: “After the beep, leave a message or send a fax by pressing 5 1 and Start.”

Connecting an External Telephone

Your FAX/MFC is equipped with a handset that you can use as a regular phone. However, you can also connect a separate telephone (or telephone answering device) directly to your FAX/MFC.

Connect the modular plug on the telephone’s line cord to the jack labeled EXT. on the back of the FAX/MFC.

Whenever this phone (or TAD) is in use, the screen displays EXT. TEL IN USE, and, if the FAX/MFC handset is lifted, an alarm sounds. To disconnect the call and switch to the FAX/MFC, press Speaker Phone.

LOCATION AND CONNECTIONS

2 - 9

Page 30

On-Screen Programming

User-Friendly Programming

We have designed your FAX/MFC with on-screen programming and a Help key. User-friendly programming helps you take full advantage of all the functions your FAX/MFC has to offer. (See Using This Manual, page 1-1.)

Since your fax programming is done on the LCD, we created step-by-step on-screen prompts to help you program your FAX/MFC. All you need to do is follow the prompts as they guide you through the function menu selections and programming options and settings.

Function Mode

You can access the function mode by pressing Function/Set. When you enter the function mode, your FAX/MFC displays a list of main menu options from which you can choose. These options appear one after the other on the display. Select an option by pressing Function/Set when the option appears on the screen.

You can “scroll” more quickly through options by pressing . When the screen displays your selection, press Function/Set. (Press to scroll backward if you passed your choice or to save key strokes. Both arrow keys show all options, in the opposite order.)

Before you press Function/Set after entering information in a field using the dial pad, you can correct a mistake. Use to back up and then type over the incorrect characters.

When you finish a function, the screen displays ACCEPTED. If you want to exit the Function mode, press Stop.

Alternating Displays

When you see alternating displays, the LCD sometimes alternates between the currently selected option, and a help message giving brief instructions about how to proceed. The display you’ll probably see most often is shown below, showing you, when you place an original in the ADF, that you can dial a number and send a fax, or you can make a copy.

FAX: NO. & START COPY: PRESS COPY

3 - 1

ON-SCREEN PROGRAMMING

Page 31

Function Selection Table

If you have a basic understanding of how to program your FAX/MFC, you can perform most of the programming settings without the Owner’s Manual. To help you understand the function selections, options, and settings that are found in your fax programs, use the Function Selection Table below.

1. INITIAL SETUP

Function Description Factory Set More Info

1. DATE/TIME

2. STATION ID

3. BEEPER

4. VOLUME AMPLIFY

5. TONE/PULSE

(For Canada Only)

6. LOCAL LANGUAGE

(For Canada Only)

Enter date and time for LCD

— 4-1 display and to print on transmissions.

Program name, fax number and

— 4-1 telephone number to appear on each transmitted page.

Adjust volume level of beeper. LOW 4-4 For the hearing-impaired, you

OFF 4-5 can set the volume to the VOL AMPLIFY:ON setting on a permanent or temporary basis.

Selects dialing mode. TONE 4-2

Allows you to change the LCD Language to French.

ENGLISH See French

manual

ON-SCREEN PROGRAMMING

3 - 2

Page 32

2. SETUP RECEIVE

Function Description Factory Set More Info

1. RING DELAY

Number of rings before FAX/ MFC answers in FAX/TEL, FAX, or MC mode.

RING

DELAY:04

TOLL

5-2

SAVER:OFF

2. F/T RING TIME

Sets the time for “double ring”

20 5-3

in FAX/TEL mode.

3. EASY RECEIVE

Receive fax messages without

ON 5-4

pressing the Start key.

4. REMOTE CODE

Enter code to activate or deactivate machine from a

( 51, #51)

5-6

remote location.

5. REDUCTION

6. PAPER

Reduces size of image. AUTO 5-5 Selects size of paper for fax

LETTER 5-5

receiving.

7. POLLING RX

Sets up your FAX/MFC to poll

OFF 5-7

another fax machine.

8. MF LINK (For MFC 660MC Only)

Fax Receive Only/PC Primary/ PC Receive Only.

PC Primary 5-7

3. SETUP SEND

Function Description Factory Set More Info

1. COVERPG SETUP

Automatically sends a cover

OFF 6-6

page you program.

2. COVERPAGE MSG

Program customized message

— 6-6

for fax cover page.

3. CONTRAST

Change lightness or darkness of

AUTO 6-3

a fax you are sending.

4. RESOLUTION

Allows you to change

STANDARD 6-6

resolutions page by page.

5. OVERSEAS MODE

Adjusts for sometimes difficult

OFF 6-4

overseas transmissions

6. CALL RESERVE

7. DELAYED FAX

8. POLLED TX

You can send a fax, then speak. OFF 6-6 Send originals later. — 6-4 Sets up your FAX/MFC with an

OFF 6-4 original to be retrieved by another fax machine.

9. MEMORY TX

You can send faxes from

OFF 6-2 memory.

3 - 3

ON-SCREEN PROGRAMMING

Page 33

4. CANCEL JOB

Function Description Factory Set More Info

Cancel a delayed fax or polling

6-5

job.

5. INTERRUPT

Function Description Factory Set More Info

Send a fax now, even if you

6-5 have the machine set to send a fax later, or if you have it set for Polling.

6. SET AUTO DIAL

Function Description Factory Set More Info

1. ONE-TOUCH DIAL

Dial numbers stored in memory

— 7-1

by pressing only one key.

2. SPEED-DIAL

Dial numbers stored in memory

— 7-2

by pressing only four keys.

3. SETUP GROUPS

Set up a Group number for

— 7-3

broadcasting.

7. PRINT REPORTS

Function Description Factory Set More Info

1. XMIT REPORT

2. ACT.REPORT

OFF 11-1

INTERVAL:

11-1

OFF

3. AUTO DIAL

Print lists and reports of

— 11-1

activity.

4. TEL. INDEX

5. USER SETTINGS

6. MEMORY STATUS

(Details in Chapter 11) — 11-1

— 11-1 — 11-1

ON-SCREEN PROGRAMMING

3 - 4

Page 34

8. SETUP MSG CTR

Function Description Factory Set More Info

1. MSG STORAGE

2. BACKUP PRINT

Select if memory will store fax,voice or both.

Prints copy of faxes received

FAX:OFF

VOICE:ON

ON 9-4

9-2

into memory.

3. OGM

4. ICM MAX. TIME

Select/Record outgoing message.

Select maximum length of

MSG CTR

OGM

5-3, 9-2,

9-3

30 seconds 9-5

incoming messages.

5. ICM REC. MONITR

Adjust speaker volume for

ON 9-6

voice messages as they come in.

6. FAX FWD/PAGING

Set FAX/MFC to forward fax/

OFF 9-7

message—OR—to call your pager.

7. REMOTE ACCESS

Set code for retrieving

159 9-9

messages.

0. TEL SERVICE

Function Description Factory Set More Info

1. DISTINCTIVE

Use with phone company

OFF 8-1 Distinctive Ring service to register the ring pattern with FAX/MFC.

2. CALLER ID

(For USA only)

— 4-3

3 - 5

ON-SCREEN PROGRAMMING

Page 35

Initial Setup

Getting Started

After you have assembled your machine using the Brother StartCard, continue the initial setup by programming the rest of the initial settings.

Setting Date and Time

Your FAX/MFC displays the date and time, and prints it on every fax you send. In the event of a power failure, the FAX/MFC maintains date and time information for

up to two hours. All other settings remain unaffected.

Press Function/Set, 1, 1.

Enter the last two digits of the year and press

Function/Set.

Enter two digits for the month and press Function/Set. (For example, enter 09 for September, or 10 for October)

Enter two digits for the day and press

Function/Set. (For example, 06)

Enter the time in 24-hour format and press Function/Set. (For example, enter 15:25 for 3:25 PM)

Press Stop. The screen now displays the date and time you set, and displays it whenever the FAX/MFC is in Standby mode.

ENTER YEAR:XX

ENTER MONTH:XX

ENTER DAY:XX

ENTER TIME:XX:XX

Setting Station ID

You can store your name, fax number, and telephone number to be printed on all fax pages.

Press Function/Set, 1, 2.

Enter your fax number (up to 20 digits) and press

Function/Set.

Enter your telephone number (up to 20 digits) and press Function/Set. If your telephone number and fax number are the same, enter the same number again. The screen displays your entry.

Use the dial pad to enter your name (up to 20 characters) and press Function/Set. (You can use the chart on next page to help you enter letters.)

Press Stop. The screen returns to the date and time.

FAX:

TEL:

NAME:

INITIAL SETUP

4 - 1

Page 36

Setting Tone/Pulse Dialing Mode (For Canada Only)

Your FAX/MFC comes set to accommodate tone (multi-frequency) dialing service. If you have pulse (rotary) dialing service, you need to change the dialing mode.

Press Function/Set, 1, 5.

DIALING:TONE?

DIALING:PULSE?

Press or to select TONE or PULSE and press Function/Set.

Press Stop to exit.

Details for Entering Text

When you are setting certain functions, such as the Station ID, you may need to enter text into the FAX/MFC. Most keys on the dial pad have three or four letters printed above them. The keys for 0, # and don’t have printed letters because they are used for special characters or operations.

By pressing the appropriate number on the dial pad the correct number of times, you can access the character you want.

Press Key one time two times three times four times

2 ABC2 3 DEF3 4 GH I 4 5 JKL5 6 MNO6 7 PQRS 8 TUV8 9 WXYZ

Inserting spaces

If you want to enter a blank space, press twice.

Making corrections

If you entered a letter incorrectly and want to change it, press to move the cursor after the last correct letter. Then press Stop; the letters above and to the right of the cursor are deleted. Re-enter the correct text and/or digits. You can also back up and type over incorrect letters.

4 - 2

INITIAL SETUP

Page 37

Repeating letters

If you need to enter a character assigned to the same key as the previous character, press to move the cursor to the right.

Special characters and symbols

Press , # or Ø repeatedly to move the cursor under the special character or symbol yow want, then press to select it.

Press for (space) ! “ # $ % & ’ ( ) * + , - . / Press # for : ; < = > ? @ [ ] ^ _ Press Ø for É À È Ê Î Ç Ë Ö 0

NOTICE

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or electronic device to send any message via a telephone fax machine unless such messages clearly contain, in a margin at the top or bottom of each transmitted page, or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity or other individual sending the message and the telephone number of the sending machines or such business, other entity or individual.

In order to program this information into your FAX/MFC, you should complete the steps described on page 4-1.

■ The telephone number you enter is used only for Call Back Message and Cover

Page features.

■ If you do not enter a fax number, no additional information can be entered.

■ To enter a space, press once between numbers and twice between characters.

■ If your Station ID has already been programmed, the screen prompts “1” to make

a change, or “2” to exit without changing.

Setting Up Your Area Code (For USA Only)

You must set up your area code in Caller ID.

Press Function/Set, 0, 2.

Use the dial pad to enter your area code and press

Function/Set.

Press Stop to exit.

AREA CODE:000

AREA CODE:908

INITIAL SETUP

4 - 3

Page 38

Setting Beeper Volume

You can set the beeper to LOW, HIGH or OFF. The default setting is LOW. When the beeper is set to LOW or HIGH, the FAX/MFC beeps every time you press a key or make an error, and at the end of fax sending or receiving.

Press Function/Set, 1, 3.

Press or to select your setting and press Function/Set.

Press Stop to exit.

Choosing the Handset Volume

Before you begin to use the FAX/MFC, you must decide if you need to set the handset volume to AMPLIFY:ON for a user who is hearing-impaired. The AMPLIFY volume level complies with FCC standards.

VOLUME AMPLIFY: OFF This default setting is appropriate if none of the users are hearing-impaired. During a

conversation, users can press or on the control panel to adjust the volume. When the handset is replaced, the handset volume remain until you change it again.

VOLUME AMPLIFY: ON–TEMPORARY This setting is appropriate if some of the users are hearing-impaired. During a

conversation, users can press or on the control panel to adjust the volume to LOW, HIGH or AMPLIFY. When the handset is replaced, the handset volume will return to the default setting of LOW.

VOL AMPLIFY:ON–PERMANENT Choose VOL AMPLIFY:ON–PERMANENT if all of the users are hearing-impaired.

During a conversation, users can press or on the control panel to adjust the volume to LOW, HIGH or AMPLIFY. When the handset is replaced, the handset volume returns to the default setting of AMPLIFY.

When you press or on the control panel to adjust the volume, the display shows the setting you are choosing. Each key press changes the volume to the next setting.

WARNING

It is important that you do not choose PERMANENT unless all users are hearing-impaired. Otherwise, the default setting of AMPLIFY may damage the

hearing of some users.

4 - 4

INITIAL SETUP

Page 39

Setting Volume Amplify

Please carefully read “Setting the Handset Volume” before you do the following steps:

Press Function/Set, 1, 4.

Press or to select VOL AMPLIFY:OFF? if none of the users are

hearing-impaired and go to Step 4—OR—If some or all of the users are hearing-impaired, select VOL AMPLIFY:ON?

Press or to select PERMANENT? if all the users are hearing-impaired—OR— Select TEMPORARY? if only some of the users are hearing-impaired.

Press Function/Set.

Press Stop to exit.

VOL AMPLIFY:OFF? SELECT <- -> & SET

PERMANENT? SELECT <- -> & SET

Setting the Speaker Volume

You can adjust the speaker volume when your FAX/MFC is onhook (after you pressed Speaker Phone), by selecting a speaker volume level.

Press or to adjust the volume level. The display shows the setting you are choosing. Each key press changes the volume to the next setting. The new setting will remain until you change it again.

You can adjust the speaker volume while you are listening to your OGM(Outgoing Message) and ICMs (incoming messages).

If you turn Incoming Recording Monitor to OFF (Function/Set, 8, 5), the Speaker for screening calls will be disabled and you won’t hear callers leaving messages.The volume for other operations can still be controlled using and .

Setting the Ring Volume

You can adjust the ring volume when your FAX/MFC is idle. You can select a ring volume level or press until the ring is off.

Press or to adjust the volume level. With each key press, the FAX/MFC rings so you can hear the current setting and the display shows the setting you are choosing. Each key press changes the volume to the next setting. The new setting will remain until you change it again.

Memory Storage

In the event of a power failure, all settings in the INITIAL SETUP, SETUP RECEIVE, SET AUTO DIAL and SETUP MSG CTR plus the COVERPG SETUP and COVERPAGE MSG (from SETUP SEND) functions are stored permanently. You may have to reset the date and time.

INITIAL SETUP

4 - 5

Page 40

Setup Receive

Basic Receiving Operations

Select Answer Mode

MANUAL—You must answer all calls yourself. If you hear fax tones, press Start to begin receiving the fax, then hang up. You can use this mode with Distinctive Ringing. (See Distinctive Ring, page 8-1.)

FAX ONLY—The FAX/MFC automatically answers every call as a fax call. You cannot receive a voice call, but you can dial out and make a voice call.

FAX/TEL—The FAX/MFC automatically answers every call. If the call is a fax, it prints the fax. If the call is not a fax, it signals you with a double ring (ring-ring), different from the phone company ringing, to alert you to pick up the call. If you select this setting, you’ll need to set the Ring Delay and F/T Ring Time features (on the following pages). If you have extension phones on the same line as the FAX/MFC, set Ring Delay to 4. (See For FAX/TEL Mode Only, page 5-6.)

MSG CTR—The FAX/MFC provides you with a built-in digital Message Center for fax and voice. When you set the machine to answer calls, it will record up to 15 minutes of messages. For more information about Message Center (MSG CTR) operation, please see Chapter 9.

09/06 15:25 FAX

Current Answer Mode

5 - 1

SETUP RECEIVE

SIXINONE

MSG CTR

Page 41

To select or change your Answer Mode

Press Mode. The screen displays your current selection.

FAX ONLY

FAX/TEL

MANUAL

Or, if Message Center Mode is ON, it overrides your Answer Mode Setting, so the display shows:

MC:MSG CTR

Continue to press Mode until your new selection appears. After 2 seconds, the screen returns to the date and time display, along with your new Answer Mode setting.

If you’re changing Answer Mode while in another operation, the screen returns to the current operation display.

Setting Ring Delay

The Ring Delay setting determines the number of times the FAX/MFC rings before it answers. If you have extension phones on the same line as the FAX/MFC, keep the Ring Delay default setting of 4. (See Easy Receive, page 5-4 and Operation from External or Extension Telephone, page 5-6 and For FAX/TEL Mode Only, page 5-6.)

Press Function/Set, 2, 1.

Press or to select Ring Delay and press Function/Set.

Press or to select how many times the line rings before the FAX/MFC answers (00 – 04) and press Function/Set. If you select 00, the line doesn’t ring at all.

Press Stop to exit.

SETUP RECEIVE

5 - 2

Page 42

Setting F/T Ring Time

You need to determine how long the FAX/MFC will notify you with its special double ring when you have a voice call. It will ring happens after the initial ringing from the phone company. Only the FAX/MFC rings for 20, 30, 40 or 70 seconds; no other phones on the same line ring the special double ring. However, you can answer the call on any phone on the same line as the FAX/MFC.

Press Function/Set, 2, 2.

Press or to select how long the FAX/MFC will ring to alert you that you have a voice call and press Function/Set.

Press Stop to exit. Now, when a call comes in and the machine is set to FAX/TEL Mode, all phones on

this line will ring the number of times you selected in Ring Delay. You can let the FAX/MFC pick up and detect if it’s a fax or voice call. If it’s a fax call,

the machine prints the fax. If it’s a voice call, the machine signals you with a double ring for the length of time you selected in F/T Ring Time.

Even if the caller hangs up during the double ringing, the FAX/MFC continues for the set time.

RING TIME:20 SEC

Record FAX/TEL Outgoing Announcement (F/T OGM)

This is the announcement played by your FAX/MFC (not an external TAD) when someone calls and your machine is set to FAX/TEL mode. Although callers hear your announcement, they cannot leave a message. To erase the announcement, follow the directions on Erasing Outgoing Message (OGM), page 9-3.

Press Function/Set, 8, 3. The screen prompts you to choose F/T OGM or MSG CTR OGM.

Press or to select F/T OGM (not MSG CTR OGM) and press Function/Set.

Press or to select RECORD OGM? and press Function/Set. Then pick up the handset to record a message.

Replace the handset. Your OGM is played.

Press Stop to exit.

5 - 3

SETUP RECEIVE

Page 43

Easy Receive

When you use this feature, you don’t have to press Start when you answer a fax call and hear calling beeps. Just hold the handset and wait a few seconds. When you see RECEIVE on the fax screen or when you hear “chirps” through the handset of an extension phone connected to another wall jack, just replace the handset, and your machine does the rest. Selecting ON allows the FAX/MFC to receive fax calls automatically, even if you lift the handset of an extension or external phone. Selecting SEMI lets the machine receive the call only if you’ve answered it at the FAX/MFC. Selecting OFF means you’ll have to activate the FAX/MFC yourself, by pressing

Start or by pressing 5 1 if you are not at your machine. (See Operation from External or Extension Telephone, and For FAX/TEL Mode Only, page 5-6.)

If you’ve set the feature to ON, but your FAX/MFC doesn’t automatically connect a fax call when you lift an external or extension phone handset, press the Fax Receive code 5 1. At the FAX/MFC, lift the handset and press Start.

Press Function/Set, 2, 3.

Press or to select ON, SEMI or OFF and press Function/Set.

Press Stop to exit.

SETUP RECEIVE

5 - 4

Page 44

Printing a Reduced Incoming original

You can always reduce the size of an incoming fax to a fixed percentage, regardless of the size of the paper (up to legal) in your FAX/MFC. If you choose AUTO, your machine chooses the level of reduction for you.

Press Function/Set, 2, 5.

Press or to select the reduction ratio you want (AUTO, 93%, 87% or 75%) and press Function/Set. Choose 100% if you don't want a reduction.

Press Stop to exit.

Recommended Reductions

If your paper is letter size (8.5" x 11"), and the incoming fax is

letter size, select 93% A4, select 87% legal size, select 75%.

If your paper is A4 (8.2" x 11.6"), and the incoming fax is

letter size, select 100% A4, select 93%

If your paper is legal size (8.5" x 14"), and the incoming fax is

letter size, select 100% A4, select 100% legal size, select 93%.

5.REDUCTION

Setting Paper Size

You can use three sizes of paper for printing your faxes—letter, legal and A4. When you change the kind of paper you have loaded in the FAX/MFC, you will need to change the setting for paper size, so your machine will know how to fit the incoming fax on the page. You can also select the level of page reduction to fit on the paper in your machine.

Press Function/Set, 2, 6.

Press or to select LETTER, LEGAL or A4 and press Function/Set.

Press 1 if you want to change the reduction setting—OR—Press 2 to go to Step 5.

Press or to select AUTO, 100%, 93%, 87% or 75% and press

Function/Set.

Press Stop to exit.

5 - 5

SETUP RECEIVE

6.PAPER

CHANGE REDUCTION

1.YES 2.NO

Page 45

Advanced Receiving Operations

Operation from External or Extension Telephone

If you answer a fax call on an extension phone or on an external phone in the EXT. jack, you can make your FAX/MFC take over by using the Fax Receive Code. When you press the Fax Receive Code 5 1, the FAX/MFC starts to receive a fax. (See Easy Receive, page 5-4.)

If the FAX/MFC answers a voice call and double-rings for you to take over, use the Telephone Answer Code # 5 1 to take the call at an extension phone. (See Setting F/T Ring Time, page 5-3.)

If you answer a call, and no one is on the line, assume you’re receiving a fax. At the FAX/MFC phone, press Start, then hang up. At an extension phone, press 5 1, wait for fax receiving tones (chirps), then hang up. At an external phone, press 5 1 and wait for the phone to be disconnected (the screen displays RECEIVE) before you hang up. (Your caller will have to press Start to send the fax.)

For FAX/TEL Mode Only

When the FAX/MFC is in FAX/TEL mode, it will use the F/T Ring Time (double ringing) to alert you to a voice call. If you’re at the FAX/MFC, you can lift the handset to answer.

If you’re at an extension phone, you’ll need to lift the handset during the F/T Ring Time and press # 5 1 between the double rings. If no one is on the line, or if someone wants to send you a fax, send the call back to the FAX/MFC by pressing 5 1.

Changing Remote Codes

Remote Codes might not work with some telephone systems. The preset Fax Receive Code is 5 1. The preset Telephone Answer Code is # 5 1.

If you are always disconnected when accessing your external TAD remotely, try changing the Fax Receive Code from 5 1 to # # # and the Telephone Answer Code from # 5 1 to 9 9 9.

Press Function/Set, 2 , 4 .

Press or to select ON (or OFF) and press

Function/Set.

If you want to, enter a new Fax Receive Code, then press Function/Set.

If you want to, enter a new Telephone Answer Code, then press Function/Set.

Press Stop to exit.

REMOTE ACT.:ON?

FAX RECEIVE:*51

TEL ANSWER:#51

SETUP RECEIVE

5 - 6

Page 46

Polling

Polling is the process of retrieving faxes from another fax machine. You can use your FAX/MFC to “poll” other machines, or you can have someone poll your machine. All parties involved in polling need to set up their fax machines to accommodate polling. When someone polls your machine to receive a fax, they pay for the call; if you poll someone’s fax machine to receive a fax, you pay for the call. (See Canceling a Scheduled Job, page 6-5.)

For details about the Polling function, our fax-back system 1-800-521-2846 (USA), 1-800-681-9838 (From within Canada) and request Document #: 20918.

Some fax machines do not respond to the polling function.

Setting Multi-function Link® Mode (For MFC 660MC Only)

If you connect your FAX/MFC to your PC, you can receive faxes into your PC. (See

Multi-Function Link

Multi-function Link function Link Only/Fax Receive Only) for routing incoming faxes.

Press Function, 2, 8.

Press or to select PC PRIMARY, PC RECEIVE ONLY or FAX RECEIVE ONLY.

Press Set when the screen displays your selection.

Press Stop to exit.

option for FAX 580MC, page 16-1.) See Chapter 14 to set up for

(for MFC 660MC only). After completing all setup for Multi-

, you can select Multi-function Link® Mode (PC Primary/PC Receive

8.MF LINK

5 - 7

SETUP RECEIVE

Page 47

Setup Send

Automatic Document Feeder (ADF)

■ Originals must be between 5.8 and 8.5 inches wide, and 5.9 and 23.7 inches long. Your

FAX/MFC can only scan an image 8.2 inches wide, regardless the paper width.

■ Make sure you place the original face down, top edge first.

■ Adjust the paper guides to fit the width of your original.

aper Guides

■ The automatic document feeder (ADF) can hold up to 10 pages, feeding each one

individually through the FAX/MFC. Use standard (17 lb–24 lb) paper when using the ADF; if you’re using heavier paper, feed each sheet individually to prevent paper jams.

DO NOT use curled, wrinkled, folded or ripped paper, or paper with staples, paper clips, paste or tape attached. DO NOT use cardboard, newspaper or fabric.

■ Make sure originals written with ink are completely dry.

You must press Resolution (before you send the fax) to select the resolution for the type of original you’re sending. (See Resolution, page 6-3.)

SETUP SEND

6 - 1

Page 48

Manual Transmission

Manual transmission lets you hear the dial tone, ringing and fax receiving tones before sending the fax.

Place the original face down in the ADF.

Pick up the handset and listen for a dial tone —OR—press Speaker Phone and listen for a dial tone.

Enter the fax number you want to call. (You can enter the digits using the dial pad, or you can enter a One Touch or Speed Dial number or you can call using

Search/Speed Dial.) (See One Touch Dialing, page 7-4 and Search, page 7-6.)

When you hear the fax tone, press Start.

If you’re using the handset, hang up.

Automatic Transmission

This is the easiest way to send a fax.

IMPORTANT: Do not pick up the handset, or press Speaker Phone.

Place the original face down in the ADF.

Enter the fax number using One Touch, Speed Dial, Search or the dial pad. (See One Touch Dialing, Speed Dialing and Search, page 7-4 to 7-6.)

Press Start.

Manual and Automatic Fax Redial

If you’re sending a fax manually and the line is busy, press Redial/Pause to retry the number.

If you’re sending a fax automatically and the line is busy, the FAX/MFC will redial automatically up to three times at 5 minute intervals.

Memory Transmission

This feature allows your machine to scan a fax into its memory and send it as soon as the scan is complete. This way, you don’t have to wait for the entire fax to be transmitted before you retrieve your original.

Place the original face down in the ADF.

Press Function/Set, 3, 9.

To change the default setting, press or to select ON (or OFF) and press Function/Set. Go to Step 5—OR—For the next fax transmission only, press or to select NEXT FAX ONLY and press Function/Set.

For the next fax only, press or to select ON (or OFF) and press Function/Set.

6 - 2

SETUP SEND

9.MEMORY TX

MEMORY TX:ON? SELECT <- -> & SET

Page 49

Press 1 to select additional settings. The display returns to the SETUP SEND menu—OR—Press 2 if you are finished choosing settings and go to Step 6.

Enter fax number and press Start. If you get a MEMORY FULL message while scanning the first page of a fax, press

Stop to cancel the scan. If you get a MEMORY FULL message while scanning in a subsequent page, you’ll have the option to press Start to transmit the pages scanned so far, or to press Stop to cancel the operation. In this case, send the fax by the Manual Transmission.

Depending on your typical faxes, MEMORY FULL errors can occur frequently. If this happens, change the Memory Transmission setting back to OFF.

Basic Sending Operations

Contrast

If your original is very light or very dark, you might want to set the contrast accordingly. Use S.LIGHT to send a very light original. Use S.DARK to send a very dark original.

Place the original face down in the ADF.

Press Function/Set, 3, 3.

Press or to select AUTO, S.LIGHT or S.DARK and press Function/Set.

Press 2 if you are finished choosing settings, and go to Step 5—OR—Press 1 if you want to select additional settings. The display returns to the Setup Send menu.

Enter a fax number and press Start to send a fax—OR—Press Copy/Help to make a copy.

Resolution

When you have an original in the ADF, you can use the Resolution key. Press Resolution continuously until you see your selection on the screen.

Standard—suitable for most typed originals. Fine—good for small print; transmits a little slower than standard resolution. Super Fine—good for small print or artwork; transmits slower than fine resolution. Photo—use when original has varying shades of gray; slowest transmission time.

SETUP SEND

6 - 3

Page 50

Advanced Sending Operations

Overseas Mode

If you have difficulty sending a fax overseas, use the Overseas mode. After you send a fax using this feature, the feature turns itself off.

Place the original face down in the ADF.

Press Function/Set, 3, 5.

Press or to select ON (or OFF) and press

Function/Set.

Press 1 if you want to select additional settings. The display returns to the Setup Send menu—OR—Press 2 if you are finished choosing settings and go to Step 5.

Enter the fax number you’re calling.

Press Start.

Delayed Fax

You can use this function to send a fax up to 24 hours later.

Place the original face down in the ADF.

Press Function/Set, 3, 7.

Enter the time, in 24-hour format, that you want the fax to be sent and press

Function/Set. (For example, enter 19:45 for 7:45 PM)

Press 1 to leave the originals waiting in the ADF—OR—Press 2 to scan the original into memory. (See Interrupting Delayed Fax and Polled Transmit Jobs, page 6-5.)

Press 1 to select additional settings. The display returns to the SETUP SEND menu—OR—Press 2 if you are finished choosing settings and go to Step 6.

Enter the fax number.

Press Start. The machine will wait to send the fax at the time you set up.

5.OVERSEAS MODE

1.DOC 2.MEMORY

ENTER FAX NO. PRESS START KEY

Setting Up for Polled Transmit

Polled Transmit is when you set up your FAX/MFC to wait with an original so another fax machine can retrieve it.

For more information call our fax-back system at 1-800-521-2846 (USA), 1-800-681-9838 (from within Canada) and request Document #: 21707.

6 - 4

SETUP SEND

Page 51

Canceling a Scheduled Job

You can cancel tasks you’ve scheduled, such as Delayed Fax or Polling Transmit.

Press Function/Set, 4. Any waiting jobs appear on the display. If there are no jobs waiting, the screen displays NO JOB WAITING.

If you have more than two jobs waiting, press or to select the job you want to cancel and press Function/Set. —OR— If you have only one job waiting, go to Step 3.

Press 1 to cancel—OR—Press 2 to exit without canceling.

Press Stop to exit.

4.CANCEL JOB

Interrupting Delayed Fax and Polled Transmit Jobs

You can send a fax or make a copy now, even if you have the FAX/MFC set to send a fax later, or if you have it set to be polled. However, you cannot use automatic redial or the function mode.

Press Function/Set, 5.

Wait 2 seconds, then remove the original that is waiting in the ADF.

Place the original you want to send now in the ADF.

Enter the number for the fax you want to send now.

Press Start.

After the transmission is finished, return the first original to the ADF.

Press Function/Set, 5 to restore the Delayed Fax and/or Polling. If you have set up a Delayed Fax or Polled Transmit job in memory, you don’t have

to interrupt it to send a fax or make a copy.

INSERT ORIGINAL

If you have set up a Delayed Fax or Polled Transmit job, the machine will send an original without storing it in memory.

SETUP SEND

6 - 5

Page 52

More Advanced Features (Call Brother fax-back system)

Your machine has additional advanced features and functions that are not included in this manual. To receive faxed instructions, please call our automated Brother fax-back system at 1-800-521-2846 and enter the Document Numbers for the following scripts:

• Polling (Doc #: 21707)

• Cover Page (Doc #: 20918)

• Call Reservation (Doc #: 21708)

• Print Sample Call Back Message (Doc #: 21709)

• Next Fax Reservation (Doc #: 21710)

• Multiple Resolution Transmission (Doc #: 21711)

• Glossary (Doc #: 21712)

6 - 6

SETUP SEND

Page 53

Auto Dial Numbers

and Dialing Options

Storing Numbers for Easy Dialing

You can set up your FAX/MFC to do three types of easy dialing: One Touch, Speed Dial, and Groups for Broadcasting of faxes.

If you lose electrical power, auto dial numbers in memory will not be lost.

Storing One Touch Dial Numbers

You can store four fax/phone numbers that you can dial by pressing one key (and Start). You also can store names with these numbers. When you press a One Touch dial location, the screen displays the name or number as the call is dialed. (See One

Touch Dialing, page 7-4.) One Touch keys are not the dial pad keys. They are the four keys (numbers 1–4)

located in the middle of the control panel.

Press Function/Set, 6, 1.

Press the One Touch key where you want to store a number. (One Touch key 1 is pre-programmed for Brother fax-back system, USA only. You

can override it if you wish.) The screen displays the location you selected.

Enter a number (up to 20 digits) and press Function/Set.

If you want to enter a pause in the dialing sequence (to wait for an “outside line,” for example), press Redial/Pause as you’re entering digits. Pressing Redial/Pause enters a 3.5-second pause when the number is dialed, and a dash appears on the screen.

Use the dial pad to enter the name or company (up to 15 characters) and press Function/Set. You can use the chart on page 17 to help you enter letters—OR—To store the number without a name, press Function/Set. (See Details for Entering Text, page 4-2.)

Press or to select the type of number and press Function/Set.

FAX a fax only number TEL a telephone (voice) number FAX/TEL both a fax and telephone (voice) number CHAIN a number (usually an access code) for chain dialing.

Return to Step 2 to store another One Touch number—OR—Press Stop to exit.

AUTO DIAL NUMBERS AND DIALING OPTIONS

NAME:

7 - 1

Page 54

When you dial an AUTO DIAL number, the screen displays the name you’ve stored, or, if you haven’t stored a name, the number you’ve stored.

If you must wait for another dial tone at any point in the dialing sequence, store a pause at that place in the number by pressing Redial/Pause. Each key press adds a

3.5 second pause. You can use chain dialing to store long dialing sequences. For example, to store 9 1

201 555 1234 987 65 4321, divide the number into two parts. Store the first part as a Chain type number (this tells the system that the dialing sequence is not complete).

CHAIN—9 1 201 555 1234

The last part of the One Touch number must be stored as any of the other following three types.

FAX or FAX/TEL or TEL—987 65 4321

Now, when you dial, just press the two keys (one after the other, in order) where you’ve stored the two parts of the number.

Storing Speed Dial Numbers

You can store Speed Dial numbers, when you dial by pressing only four keys. There are 50 Speed Dial locations.

Press Function/Set, 6, 2.

Use the dial pad to enter a two-digit location (01–50) and press Function/Set.

Enter the number (up to 20 digits) and press

Function/Set.

Use the dial pad to enter the name or company (up to 15 characters) and press Function/Set—OR—Press Function/Set to store the number without a name. (See Details for Entering Text, page 4-2.)

Press or to select the type of number and press Function/Set.

SPEED-DIAL? #

#05: ENTER & SET

NAME:

FAX a fax only number TEL a telephone (voice) number FAX/TEL both a fax and telephone (voice) number CHAIN a number (usually an access code) for chain dialing.

Return to Step 2 to store another Speed Dial number—OR—Press Stop to exit.

7 - 2

AUTO DIAL NUMBERS AND DIALING OPTIONS

Page 55

Changing One Touch and Speed Dial Numbers

If you try to store a One Touch or Speed Dial number in a location where a number is already stored, the screen displays the current name stored there, then prompts you to either

1. CHANGE—OR—2. EXIT.

Press 1 to change the number stored, or press 2 to exit without making a change.

Enter a new number.

• If you want to erase the entire number, press Stop when the cursor is to the left

of the digits. The letters above and to the right of the cursor are deleted.

• If you want to change a digit, use or to position the cursor under the digit you want to change, then type over it.

Follow the directions from Step 3 in Storing One Touch Numbers or Storing Speed Dial Numbers.

Setting Up Groups for Broadcasting

Groups allow you to send the same fax message to many fax numbers by pressing only one One Touch key (Broadcasting). Touch or Speed Dial number.

uses up a One Touch key

assign up to 53 numbers to one large Group. (See 7-1,

Storing Speed Dial Numbers

Press Function/Set, 6, 3.

Select a One Touch key where you wish to store the number. (For example, press One Touch key 2 to store a Group.)

Use the dial pad to identify the Group with a number and press Function/Set. (For example, press 1 for Group 1.)

To include One Touch or Speed Dial numbers in the Group, enter them as if you were dialing. For example, for One Touch key 3, press One Touch key 3. For Speed Dial location 09, press Search/Speed Dial, then press 0, 9 on the dial pad. The LCD shows 03, #09.

Press Function/Set to accept the numbers for this group.

Use the dial pad to enter a name for the group and press Function/Set. (For example, NEW CLIENTS) (See Details for Entering Text, page 4-2.)

Press Stop to exit. You can print a list of all One Touch and Speed Dial numbers. See Printing Reports,

Chapter 11.

Then

Finally

First

, you’ll need to store each fax number as a One

, you can combine them into a Group.

, you can have up to four small Groups, or you can

Storing One Touch Dial Numbers

, page 7-2 and

Broadcasting

, page 7-6.)

Each Group

, page

SELECT ONE-TOUCH

SETUP GROUP:GO ENTER & SET

G01:*O3#O9_

NAME: ENTER & SET

AUTO DIAL NUMBERS AND DIALING OPTIONS

7 - 3

Page 56

Dialing Options

You can use your FAX/MFC to make voice telephone calls by dialing manually, or by using Search, One Touch or Speed Dial memory. You can use the handset or you can use the Speaker Phone to make and receive calls.

The Speakerphone allows you to operate the phone hands free, or allows more than one person in the room to participate in a two-way phone conversation.When using the Speakerphone, make sure to speak clearly and close to the microphone .

When you dial an auto dial number, the screen displays the name you’ve stored, or, if you haven’t stored a name, the fax number you’ve stored.

Manual Dialing

Manual dialing is simply pressing all of the digits of the phone number.

Pick up the handset—OR—Press Speaker Phone.

When you hear a dial tone, dial the number using the dial pad.

You can switch from handset to Speakerphone by pressing Speaker Phone, then replacing the handset.You can switch from Speakerphone to handset by lifting the handset.

To hang up, replace the handset—OR—Press Speaker Phone.

One Touch Dialing

Pick up the handset—OR—Press Speaker Phone. (See Storing One Touch Dial Numbers, page 7-1.)

When you hear a dial tone, press the One Touch key of the location you want to call.

To hang up a voice call, replace the handset—OR—Press Speaker Phone. If you try to use a One Touch location with no number stored in it, you hear a warning

sound, and screen displays NOT REGISTERED. The display returns to normal after 2 seconds.

If you are sending a fax, press Start after pressing the One Touch key. If you picked up the handset, press Start when the receiving fax machine answers with fax tones.

7 - 4

AUTO DIAL NUMBERS AND DIALING OPTIONS

Page 57

Speed Dialing

Pick up the handset—OR—Press Speaker Phone. (See Storing Speed Dial Numbers, page 7-2.)

When you hear a dial tone, press Search/Speed Dial, press #, then press the twodigit Speed Dial number.

To hang up a voice call, replace the handset—OR—Press Speaker Phone. If you are sending a fax, press Start after entering the Speed Dial number. If you

picked up the handset, press Start when the receiving fax machine answers with fax tones.

Dialing Access Codes and Credit Card Numbers

Sometimes you may want to choose from among several long distance carriers when you make a call. Rates may vary depending upon the time and destination. To take advantage of low rates, you can store the access codes or long-distance carriers as One Touch and Speed Dial numbers. You can store these long dialing sequences by dividing them and setting them up separately in any combination. You can even include manual dialing using the dial pad. The combined number will be dialed in the order you entered it, as soon as you press Start. Make sure you selected CHAIN as the type of the number when you store it into the One Touch or Speed Dial. (See Storing One Touch Dial Numbers and Storing Speed Dial Numbers, page 7-1 to 7-2.)

The CallManage access code can save you money on long distance calls (for details, see CallManage, page 8-5). (For USA Only)

For example: You store “555”on One Touch key 03 and “7000”on One Touch key 02. If you press

One Touch 03, 02 and Start you will dial “555-7000”. To temporarily change a number, you can substitute part of the number with manual dialing using the dial pad. For example, to change the number to 555-7001 you can press One Touch 03 and press 7, 0, 0, 1 using the dial pad.

Pause after dialing Speed Dial numbers for the name to be displayed before you enter the next portion of the dialing sequence.

AUTO DIAL NUMBERS AND DIALING OPTIONS

7 - 5

Page 58

Search

You can search for names you have stored in One Touch and Speed Dial memories. Names are shown alphabetically. (See Storing One Touch Dial Numbers, page 7-1 and Storing Speed Dial Numbers, page 7-2.)

Press Search/Speed Dial, then enter the first letter of the name you’re looking for.

Press or to search the memory.

When the screen displays the name you want to call, pick up the handset or press

Speaker Phone for a voice call.

Press Start to begin dialing.

When the call is over, hang up—OR—Press Speaker Phone to cancel the call.

Redial

If the last number you dialed was busy, press Redial/Pause for easy dialing.

Answering Calls with the Speakerphone

When the FAX/MFC rings, instead of lifting the handset, press Speaker Phone. Speak clearly, toward the microphone . To end the call, press Speaker Phone.

If you have a bad telephone line connection, the other party might hear your voice echoed during the call. Hang up and try the call again—OR—Pick up the handset.

Broadcasting

Using the numbers you have stored in Groups, One Touch and Speed Dial memory, you can “broadcast” faxes automatically to a maximum of 54 different locations in a few simple steps. (See Setting Up Groups for Broadcasting, page 7-3.) To Broadcast, you must set MEMORY TX to either ON or NEXT FAX ONLY.

After the Broadcast is completed, a Broadcast Report will be printed automatically to let you know the results.

Place the original face down in the ADF.

Press Function/Set, 3, 9 to select ON or NEXT FAX ONLY and press Function/Set.

Enter the One Touch and Speed Dial numbers (one after the other) or a Group Number you have stored.

Press Start. The FAX/MFC stores the original in memory, then transmits it to all the numbers you entered. If the line is busy, your machine will redial automatically up to three times at 5 minutes intervals.

Press Stop during transmission to cancel the current fax broadcast.

7 - 6

AUTO DIAL NUMBERS AND DIALING OPTIONS

Page 59

Pause

Press Redial/Pause to insert a pause between numbers. Each key press adds a 3.5 second delay.

Hold

Press Hold/Caller ID to put a call on Hold.

You can put down the handset without disconnecting the call.

Pick up the FAX/MFC handset—OR—Press Speaker Phone to release the call from Hold. Picking up an extension handset will not release the call from Hold.

Tone/Pulse (For Canada Only)

If you have pulse dialing service, but need to send tone signals (for telephone banking, for example), follow the directions below. If you have touch tone service, you do not need this feature to send tone signals.

Lift the handset.

Press #. Any digits dialed after this send tone signals.

When you hang up, the FAX/MFC returns to pulse dialing mode.

AUTO DIAL NUMBERS AND DIALING OPTIONS

7 - 7

Page 60

Telephone Services

Custom Features

Your FAX/MFC supports the Distinctive Ring and Caller ID telephone services offered by some telephone companies.

If you have Call Waiting, Ring Master, Voice Mail, an answering service or an alarm system or other custom feature on your telephone line, it may create a problem in the operation of your FAX/MFC.

Distinctive Ring

This FAX/MFC feature lets you use the Distinctive Ring subscriber service offered by some telephone companies, which allows you to have several telephone numbers on one phone line. Each phone number has its own Distinctive Ring pattern, so you know which phone number is ringing. This is one way you can have a separate phone number for your FAX/MFC.

Your FAX/MFC has a Distinctive Ring function, allowing you to dedicate one phone number just for receiving faxes. You’ll need to follow the directions below to “register” the new Distinctive Ring pattern, that was assigned by the Telephone Company, so your FAX/MFC can recognize its incoming calls.

You can change or cancel the Distinctive Ring pattern at any time. You can switch it off temporarily, then turn it back on. When you get a new fax number, make sure you reset this function.

You can register only one Distinctive Ring pattern with the FAX/MFC. Some ringing patterns cannot be registered.

■ The FAX/MFC will answer only calls to its registered number.

■ To have your TAD answer only the main number, the FAX/MFC must be in Manual

Mode.

■ In FAX/TEL or FAX ONLY mode, the FAX/MFC will answer all numbers on the

phone line.

Registering the Distinctive Ring Pattern

Set the FAX/MFC to MANUAL mode.

Press Function/Set, 0, 1.

Press or to select DISTINCTIVE:SET? and press Function/Set.

8 - 1

TELEPHONE SERVICES

Page 61

Press or to select the prestored ring pattern you want to assign and press Function/Set. (You will hear each pattern as you scroll through the four patterns.) Be sure to choose the pattern assigned by the Telephone Company.

Ring

Pattern

1 long - long

2 short - long - short

3 short - short - long

4 very long (normal pattern)

Press Stop to exit.

Rings

Caller ID

The Caller ID feature of this FAX/MFC lets you use the Caller ID subscriber service offered by many local telephone companies. After at least two rings, the screen displays the telephone number of your caller (or up to 16 characters of the name, if available). Once you pick up the handset, the Caller ID information disappears from the screen, but the call information remains stored in the Caller ID memory.

• CALL PICKUP display remains on the screen when no Caller ID information was transmitted.

• OUT-OF-AREA display means the call originates outside your Caller ID service area.

• PRIVATE CALL display means the caller has intentionally blocked transmission of information.

Caller ID service varies with different carriers. Call your local telephone company to determine the kind of service available in your area.

Caller ID Log

Your FAX/MFC stores up to 30 of the last Caller IDs received into the FAX/MFC’s memory in the Caller ID Log. When the thirty-first call comes in, information about the first call is erased. You can print the report or scroll through Caller ID information to review those calls made to your FAX/MFC.

TELEPHONE SERVICES

8 - 2

Page 62

Printing the Caller ID Log

Press Hold/Caller ID.

To print the Caller ID Log, press Start.

CALLER ID LOG

PRINTING

Viewing the Caller ID Log

Press Hold/Caller ID.

CALLER ID LOG

PRESS START KEY SELECT <- -> & SET

After 2 seconds, press or to scroll through the Caller ID Log.

01)MARY HENDERSON

02)TOM HENDERSON

03)ABC COMPANY

When you want to see more detailed information for a displayed ID (phone number and date and time call was received) press Function/Set.

To continue viewing the Caller ID Log (Step

2), press or . —OR— To exit the Caller ID Log, press Stop.

03)ABC COMPANY

03)9087772837

03)02/01 12:00

DIAL:PRESS START

Returning a Call from the Log

You can scroll through the Caller ID Log and select a call to return automatically. (See page 8-2) You must set up your AREA CODE in advance. (USA only)

Press Hold/Caller ID.

CALLER ID LOG

PRESS START KEY SELECT <- -> & SET

Press or to scroll through the Caller ID Log and when you see a call you want to return immediately, press Function/Set.

To begin dialing, press Start.

Begin speaking when the other party answers.

This feature may not be available in certain area of USA and Canada. If your dialing plan does not follow the standard 1 + area code + 7-digit number dialing system for calling outside your area code, you may experience problems returning calls automatically from the Caller ID Log. Your FAX/MFC will automatically dial “1” plus the area code for any number that does not originate in your area code. If this is not the procedure followed by your dialing plan you will not be able to return calls automatically.

01)MARY HENDERSON

01)9082438436

01)02/01 12:00

DIAL:PRESS START

8 - 3

TELEPHONE SERVICES

Page 63

Registering a Caller ID Number

You can set up a caller in the Caller ID Log as a One Touch or Speed Dial number.

Press Hold/Caller ID.

CALLER ID LOG

PRESS START KEY SELECT <- -> & SET

After 2 seconds, press or to scroll through the Log and when you see a caller you want to register, press Function/Set.

To register the caller as a One Touch number, press the One Touch key where you want the number to be stored. —OR— To register the caller as a Speed Dial number, press Search/Speed Dial and use the dial pad to press the two-digit location code (01–

50), and press Function/Set. If the LCD shows REGISTERED, the auto dial location already has a number.

Enter the caller’s name and press Function/Set.

Press or to select the type of number and press Function/Set:

FAX A fax number TEL A telephone (voice) number FAX/TEL Both a fax and telephone number CHAIN A number, usually an access code, for chain dialing

03)ABC COMPANY

03)9087772837

03)02/01 12:00

DIAL:PRESS START

NAME: ENTER & SET

Return to Step 2 to store another auto dial number—OR—Press Stop to exit.

Clearing a Caller ID Stored in Memory

For effective use of the memory, it is recommended that you clear the Caller IDs stored in memory by pressing Erase when the display shows the number or name.

TELEPHONE SERVICES

8 - 4

Page 64

Call Waiting Caller ID

The Call Waiting Caller ID feature lets you use the Call Waiting Caller ID service offered by many local telephone companies. This feature displays the telephone number (or name, if available) of Call Waiting callers on your FAX/MFC’s screen.

To answer a Call Waiting signal while you’re talking on the phone, ask the other party if you can put them on Hold to catch the other call. The screen displays the Caller ID.

Press Search/Speed Dial to switch to the second call.

To switch back to the first call, press Search/Speed Dial again. Either caller can hang up at any time. However, if you hang up you will disconnect

both callers.

CallManage (For USA Only)

This Brother fax machine provides convenient, “One-Touch” access to a long distance plan that provides best average long distance rates*. Once registered, fax or phone calls made using the CallManage feature will access a long distance carrier selected by CallManage, Inc., that offers a plan with best average domestic rates based on standard long distance plans of major carriers within the United States. This may result in significant savings, depending on your current long distance carrier and calling patterns.

Trying the CallManage feature requires no commitment on your part. Just follow the steps below to register with CallManage, Inc. Once registered, your One-Touch key 4 can be used to access the CallManage feature for any calls you choose. Calls made without using the CallManage feature will be processed through your normal long distance carrier.

If you prefer not to activate the CallManage feature you can use One Touch key 4 to store a number of your own choosing.

Registration with CallManage

Before using the CallManage feature, you must register for this service with CallManage Inc.:

Pick up the handset of your FAX/MFC.

Press One Touch 4. (Your machine will automatically dial the pre-stored toll free registration number for

CallManage, Inc. or you may directly dial 1-888-387-9680.)

A CallManage Customer Service Representative will ask you a number of simple questions required to set up your account (such as name, address, phone number, etc. for billing purposes). There are no sign-up fees, monthly service charges or connection fees for the CallManage feature. You will receive a separate itemized bill each month from CallManage, Inc. for only those calls made using the CallManage feature*.

After registering, the Representative will explain how to reprogram your One Touch key 4 for CallManage dialing.

8 - 5

TELEPHONE SERVICES

Page 65

Sending a Fax Using CallManage

Place the original face down in the ADF.

Press One Touch 4.

Dial the complete long distance or international fax number as usual, using One Touch, Speed Dial, Search or the dial pad. (See One Touch Dialing, Speed Dialing and Search, page 7-4 to 7-6.)

Press Start.

Placing a Telephone Call Using CallManage

You must dial the number and wait to hear the other party answer before you pick up the handset to speak.

Press One Touch 4.

Dial the complete long distance or international number as usual, using One Touch, Speed Dial, Search or the dial pad. (See One Touch Dialing, Speed Dialing and Search, page 7-4 to 7-6.)

Press Start.

Pick up the handset when you hear the other party through the fax machine’s one-way speaker.

Customer Support

If you have questions or want more information, call CallManage at 1-877-622-5457.

Percent savings and comparisons based on standard rate plans of major carriers with tariffs in effect as of January 2000. Long distance savings will depend upon the customer’s current carrier for long distance service and his or her calling patterns. Rates updated periodically. Call 1-877-622-5457 for latest rate and underlying carrier information. In order to use the CallManage feature you must register for service through CallManage, Inc (toll free) at 1-888-387-9680. Once registered, the One Touch 4 button will access a long distance provider selected by CallManage, Inc. that offers a plan with best average domestic rates based on standard long distance plans of major carriers within the United States. Using the CallManage feature after registering will result in your receiving a long distance telephone bill from CallManage, Inc. Without proper registration, calls made using the One Touch 4 button may not be connected or may default to a standard rate plan offered by the underlying carrier and charges for such calls will appear either on the customer’s local telephone bill as the underlying carrier’s service or on a direct bill from the underlying carrier. The One Touch 4 button should not be used if the customer wishes to use his or her existing primary or dial around carrier for long distance service. Brother International, Corp. is not responsible for long distance service or customer billing. Subject to service availability. All applications are subject to credit approvals. DO NOT USE THE ONE TOUCH 4 BUTTON TO DIAL 911 – IT WILL NOT ACCESS EMERGENCY SERVICES. CallManage is a trademark of CallManage, Inc.

TELEPHONE SERVICES

8 - 6

Page 66

Message Center

Message Center Mode

Message Center Mode allows you to store incoming fax and voice messages in a flexible memory. The memory stores 15 minutes of voice messages, or up to 20 pages of fax memory. Any voice or fax message can be retrieved remotely. Memory is shared between fax and voice messages, which are stored on a “first-come, firstserved” basis.

You must record an outgoing message in order to use the Message Center Mode. (See Recording Message Center Outgoing Message, page 9-2.)

Flexible Memory Settings (Message Storage)

Message Center Mode offers you six flexible memory settings, so you can decide the kinds of messages you want to receive.

1.FAX:ON VOICE:ON Both voice and fax messages are stored. You can use

the Fax Forwarding or Paging features and retrieve voice and fax messages remotely.

2.FAX:ON VOICE:EXT You need an external answering machine connected to

the EXT jack for this setting. Fax messages are stored in the message center memory, but voice messages are stored in your external answering machine. Retrieve messages from the external answering machine. You cannot use the Paging feature for voice messages with this setting.

3.FAX:ON VOICE:OFF All memory is used to store fax messages— no voice

messages will be stored.

4.FAX:OFF VOICE:ON All memory is used to store voice messages—no fax

messages will be stored. Incoming faxes will print on paper. You can use the Paging feature, and retrieve voice messages remotely.

5.FAX:OFF VOICE:EXT You need an external answering machine connected to

the EXT jack for this setting. Incoming faxes are not stored in memory, but will print on paper. Voice messages are stored in the external answering machine.

6.FAX:OFF VOICE:OFF Incoming faxes are not stored in memory, but will

print on paper. Voice calls are not stored in memory.

9 - 1

MESSAGE CENTER

Page 67

Setting Up the Message Center

You must set up the Message Center in the following order:

Setting Message Storage. (See Setting Message Storage, page 9-2.)

Record Message Center Outgoing Message (MSG CTR OGM). (See Recording Message Center Outgoing Message, page 9-2.)

Activate Message Center Mode. (See Activating Message Center Mode, page 9-3.)

Setting Message Storage

Read the Flexible Memory Setting descriptions on page 9-1 before you select the FAX and VOICE settings below.

Press Function/Set, 8, 1.

Press or to select ON (or OFF) and press Function/Set.

Press or to select your setting from the list on pages Flexible Memory Settings (Message Storage), page 9-1 (ON, OFF, EXT) and press Function/Set.

Press Stop to exit.

FAX:OFF? SELECT & SET VOICE:ON? SELECT & SET

Recording Message Center Outgoing Message

Recording the Message Center Outgoing Message (MSG CTR OGM) is the second step you need to follow before you can turn on the Message Center. Make sure your OGM is less than 20 seconds long.

Press Function/Set, 8, 3. The screen prompts you to choose an OGM.

Press or to select MSG CTR OGM? (not F/T OGM) and press Function/Set.

This is the only setting you can select if you want to turn the Message Center on.

Press or to select RECORD OGM? and press Function/Set.

Pick up the handset to record a message.

For example: Hello. We are unable to take your call at this time. Please leave a message after the signal. If you wish to send a fax, please press 5 1, wait for fax tones, then press the Start button.

Replace the handset. The Message Center will play your OGM.

Press Stop to exit.

MSG CTR OGM? SELECT & SET

MESSAGE CENTER

9 - 2

Page 68

Listening to Outgoing Message (OGM)

Press Function/Set, 8, 3.

Press or to select MSG CTR OGM? (or F/T OGM) and press Function/Set.

Press or to select PLAY OGM? and press Function/Set. Adjust the volume by pressing Volume or .

Press Stop to exit.

Erasing Outgoing Message (OGM)

Press Function/Set, 8, 3.

Press or to select MSG CTR OGM? (or F/T OGM) and press Function/Set.

Press or to select ERASE OGM? and press Function/Set.

Press 1 to erase the OGM—OR—Press 2 to exit without erasing.

Press Stop to exit.

Activating Message Center Mode

Press and hold until it lights and the LCD displays:

When light is out, the Message Center is off. (See Setting Up the Message Center, page 9-2.)

MC:MSG CTR

Message Indicator

The light flashes when you have new messages or faxes waiting for your review. The LCD displays the total number of voice and

fax messages stored in the Message Center memory.

If you press the flashing to turn off the Message Center before getting your new messages, they won’t be lost. The new messages will be played automatically and the LCD will ask you to acknowledge the new faxes:

Press 1 to print (and automatically delete) the faxes from memory—OR—Press 2 to save the faxes in memory until printing is convenient.

VOICE:03 FAX:02

PRINT FAX?

1.YES 2.NO

9 - 3

MESSAGE CENTER

Page 69

Playing Voice Messages

Follow the steps below to listen to voice messages.

Press Play/Record. Adjust the Volume by pressing or . All messages are played in the order they were recorded. The display shows the

number of the current message, and the total number of messages. If Caller ID information was received, the FAX/MFC beeps during the message and

displays the Caller ID information for one second. During playback, the screen displays the time and date the message was recorded.

Press (RWD) at the end of the message to repeat a message. Press # (FWD) to skip to the next message. You can press and # repeatedly until you reach the message you want to play.

Press Stop to exit.

Printing a Fax Message

Once you print a new fax message stored in memory, it is erased from the memory automatically.

Press Play/Record. After two seconds, the FAX/MFC begins to play voice messages.

If there are fax messages in memory, the LCD displays:

To print the faxes, press 1 —OR— Press 2 to exit without printing.

PRINT FAX?

1.YES 2.NO

Backup Printing Option

When you choose FAX: ON in the Message Center mode, all incoming fax messages are stored in the available memory for retrieval. To print a backup copy automatically, turn this option on.

Press Function/Set, 8, 2.

Press or to display ON (or OFF) and press Function/Set.

Press Stop to exit.

BACKUP PRINT:ON SELECT & SET

MESSAGE CENTER

9 - 4

Page 70

Erasing Messages

If you choose to erase all fax messages, the FAX/MFC will print any previously unprinted faxes before erasing them from memory. Fax messages cannot be erased individually.

You can erase voice messages individually, or all at once.

To erase voice messages individually

Press Play/Record. The FAX/MFC sounds a two-second beep and begins message playback. Each message is preceded by one long beep, and followed by two short beeps.

To erase a specific message, press Erase immediately after the two short beeps, or while the message is playing. The screen prompts

Press 1 to erase the message—OR—Press 2 to cancel.

Press Stop to exit.

To erase messages all at once

Press Erase.

Press or to select erasing all voice messages (VOICE), all document messages (FAX), or all messages—both voice and fax—(MSG) and press Function/Set.

Press 1 to erase—OR—Press 2 to cancel.

Press Stop to exit.

ERASE THIS MSG.?

1.YES 2.NO

ERASE ALL VOICE? SELECT <- -> & SET

Setting Maximum Time for Incoming Messages

Your FAX/MFC comes set to receive voice messages up to 30 seconds long. You can change this setting to any length from 20 seconds to 60 seconds, in 5-second increments.

Press Function/Set, 8, 4.

Press or to select the maximum time setting for incoming messages and press

Function/Set.

Press Stop to exit.

9 - 5

MESSAGE CENTER

MESSAGE 30 SEC? SELECT & SET

Page 71

Setting Toll Saver

When you set the toll saver feature, the FAX/MFC answers after four rings if you don’t have messages, and after two rings if you do have messages. This way, when you call the FAX/MFC, if it rings three times, you know you have no messages, and can hang up, to avoid a toll charge.

When Toll Saver is ON, it overrides your Ring Delay setting. Toll Saver must be off for the FAX/MFC to operate using your Ring Delay setting. (See Setting Ring Delay, page 5-2.)

Press Function/Set, 2, 1.

Press or to select the TOLL SAVER (or RING DELAY) and press

Function/Set.

Press or to select ON and press Function/Set.

Press Stop to exit.

ICM Recording Monitor

This feature lets you turn the speaker volume for voice messages ON or OFF. When you turn the monitor OFF, you will not hear messages as they come in.

Press Function/Set, 8, 5.

Use or to select OFF (or ON) and press Function/Set.

Press Stop to exit.

Recording a Conversation

You can record a telephone conversation by pressing Play/Record during the conversation. Your recording can be as long as the Incoming Message Maximum Time. You and the other party will hear a beep every 15 seconds while recording. To stop recording, press Stop. You cannot record a conversation using Speaker Phone.

Fax Forwarding/Paging

When Paging is set to ON, your FAX/MFC dials the pager number you’ve programmed, and dials your Personal Identification Number (PIN) when connected, to activate your pager and let you know you have a fax or voice message in the Message Center memory.

When Fax Forwarding is set to ON, your FAX/MFC dials the fax machine phone number you’ve programmed, and forwards any faxes you’ve received.

You can not use Paging and Fax Forwarding at the same time.

MESSAGE CENTER

9 - 6

Page 72

Programming a Fax Forwarding Number

Press Function/Set, 8, 6.

Press or until the LCD displays FAX FORWARD? and press

Function/Set.

Enter the number of the fax machine where faxes will be forwarded (up to 20 digits) and press Function/Set.

Press Stop to exit.

You can change a Fax Forwarding number remotely. (See page 9-11.)

You can not use Paging and Fax Forwarding at the same time.

FWD#: ENTER & SET

Programming Paging Number

Press Function/Set, 8, 6.

Press or until the LCD displays PAGING? and press Function/Set.

Enter your pager phone number (up to 20 digits) followed by # # and press Function/Set. Do not include the area code if it is the same as that of your FAX/MFC. For example, 1 8 0 0 5 5 5 1 2 3 4 # #.

If your pager requires a PIN, enter the PIN, press #, press Redial/Pause, enter your FAX/MFC telephone number, then press # # and press Function /Set. For example, 1 2 3 4 5 # Redial/Pause 1 8 0 0 5 2 1 2 8 4 6 # #.

—OR— If you do not need a PIN, press Redial/Pause, enter the telephone number of your

FAX/MFC, then press # # and press Function/Set. For example, Redial/Pause 1

8 0 0 5 2 1 2 8 4 6 # #.

Press Stop to exit.

PAG#: ENTER & SET

You can not change a Paging number or PIN remotely.

9 - 7

MESSAGE CENTER

Page 73

Remote Retrieval

Using Remote Access Code

Dial your fax number from a touch tone phone.

When your FAX/MFC answers, immediately enter your Remote Retrieval Access Code.

The FAX/MFC signals the kinds of messages received: 1 long beep—Fax message(s)

2 long beeps—Voice message(s) 3 long beeps—Fax and Voice message(s) No beeps—No messages

The FAX/MFC then prompts you with two short beeps to enter a command. If you wait longer than 30 seconds to enter a command, the MFC hangs up. If you enter an invalid command, the FAX/MFC beeps three times.

Press 9 0 to reset the FAX/MFC when you finish.

Hang up.

If your FAX/MFC is set to MANUAL mode, you can access the Message Center by waiting about 2 minutes, then entering the Remote Access Code within 30 seconds.

Changing Remote Retrieval Access Code

Enter your Remote Retrieval Access Code when the FAX/MFC picks up your call, so you can access features remotely. The access code is preset to 159 , but you can change it.

Press Function/Set, 8, 7.

Enter a three-digit number from 000 to 999 and press Function/Set. The “ ” cannot be changed.

Do not use the same digits that appear in your Fax Receive Code or Telephone Answer Code.

Press Stop to exit.

MESSAGE CENTER

9 - 8

Page 74

Remote Commands

Follow the commands below to access features remotely. When you call the FAX/MFC and enter your Remote Retrieval Access Code (159 ), the system will signal you with two short beeps to enter a remote command.

Remote Commands Operation Details

91 Playing voice messages After one long beep, the FAX/MFC plays the

ICM.

1 (Skip back) Press 1 while listening to an ICM to repeat it.

If you press 1 before a message, you will hear the previous message.

2 (Skip next) While playing the ICM, you can skip to the

next message.

9 STOP Playing Stop playing the ICM.

92 Record Memo After one long beep, you can record a memo.

To stop recording, press 9.

93 Erase all ICM If you hear one long beep, the erase is

accepted. If you hear three short beeps, you cannot erase because all voice messages have not been played, or there is no voice message to erase. *This code erases all recorded messages, not one at a time.

94 Play and Record OGM in

memory

1 Play 1 MSG CTR OGM The FAX/MFC plays the selected OGM. You

2 F/T OGM

2 Record 1 MSG CTR OGM After one long beep, you can record the

2 F/T OGM

95 Changing Fax Forwarding/

Paging setting

1 OFF 2 Fax Forwarding 3 Paging 4 FAX FWD NO.

can stop playing OGMs by pressing 9.

selected OGM. You will hear the message played once. You can stop recording the message by pressing 9.

If you hear one long beep, the change is accepted. If you hear three short beeps, you cannot change it because the conditions have not been met. (Example: registering paging number.) You can register your fax forwarding number by using 4. FAX FWD NO. (See page 9-11.) Once you have registered the number, the FAX/MFC automatically will change to FAXFWD:ON mode. Then retrieve a Memory Status List by entering 9 6 1 (See page 9-10.) to make sure that the Fax Forwarding number you registered is correct in the List.

9 - 9

MESSAGE CENTER

Page 75

Remote Commands Operation Details

96 Retrieve a fax

1 Memory Status List Enter the number of a remote fax machine to 2 Retrieve all faxes

3 Erase fax in the memory If you hear one long beep, you can erase the fax

97 Check the receiving status You can check whether your FAX/MFC has

1 FAX 2 VOICE

98 Change Answer Mode If you hear one long beep, you can change the

1 MSG CTR 2 FAX/TEL 3 FAX

90 Exit After a long beep, you can exit remote control.

receive a report or stored fax messages. (See page 9-10.)

message from the memory.

received any FAX or VOICE messages. If yes, you will hear one long beep. If no, you will hear three short beeps.

answer mode. If you hear three short beeps, you cannot change it. (Example: There is no MSG CTR OGM when you want to change to MSG CTR mode.)

Retrieving Memory Status List

You can retrieve the Memory Status List from a remote fax machine to see if you have any fax messages.

Dial your fax number.

When you hear the beep, immediately enter your Remote Retrieval Access Code (1 5 9 ).

When you hear two short beeps, use the dial pad to press 9 6 1.

Using the dial pad, enter the number of the remote fax machine (up to 20 digits) where you want the Memory Status List forwarded, and then press # #.

You can not use or # as dial numbers. However, if you want to store a pause, press #.

After you hear your FAX/MFC beep, hang up and wait. Your FAX/MFC calls the remote fax machine. The remote fax machine prints the

Memory Status List.

MESSAGE CENTER

9 - 10

Page 76

Retrieving Fax Messages

Dial your fax number.

When you hear the beep, immediately enter your Remote Retrieval Access Code (1 5 9 ).

As soon as you hear two short beeps, use the dial pad to press 9 6 2.

Using the dial pad, enter the number of the remote fax machine (up to 20 digits) where you want your fax messages forwarded, and then press # #.

You can not use or # as dial numbers. However, if you want to store a pause, press #.

After you hear your FAX/MFC beep, hang up and wait. Your FAX/MFC calls the remote fax machine. The remote fax machine prints your

fax messages.

Changing Fax Forwarding Number

You can change the default setting of your fax forwarding number from a remote fax machine.

Dial your fax number.

When you hear the beep, immediately enter your Remote Retrieval Access Code (1 5 9 ).

When you hear two short beeps, use the dial pad to press 9 5 4.

Enter the new number of the remote fax machine where you want your fax messages forwarded, then press # #.

You can not use or # as dial numbers. However, if you want to store a pause, press #.

To retrieve the Memory Status List, when you hear two short beeps, use the dial pad to press 9 6 1.

Use the dial pad to enter the number of the remote fax machine (up to 20 digits), then press # #.

After you hear your FAX/MFC beep, hang up and wait. Your FAX/MFC calls the remote fax machine. The remote fax machine prints the

Memory Status List showing the new forwarding number.

Check the forwarding number. If the forwarding number is not correct, return to Step 1 to reset it.

9 - 11

MESSAGE CENTER

Page 77

Making Copies

Copy Functions

To make a single copy that is not reduced, enlarged or sorted, you only have to press one key. The default resolution for a single copy is Super Fine. Set the resolution to PHOTO for photographs. Remember, your machine cannot scan anything closer than one-eighth inch from the edge of the paper.

Making a Single Copy

Place the original face down in the ADF.

Press Copy/Help twice. To cancel, press Stop. Do NOT pull on the paper while copying is in progress.

Copy Options: Single or Multiple Copies, Reduce/Enlarge, Sort/Stack

You can choose additional copy options. First, you can select the number of copies. Next, you can choose whether multiple copies will be STACKED (all copies of page 1, then all copies of page 2, etc.) or SORTED (collated). Finally, you can choose an enlargement or reduction ratio. To automatically reduce the copy to the paper size you have set for the paper tray, select AUTO. To reduce the copy by a fixed percentage, choose 93%, 87%, 75% or 50%. Or, to enlarge the copy, select 150%, 125% or 120%. To copy a document at its original size, select 100%.

Place the original face down in the ADF.

Press Copy/Help.

Enter the number of copies you want (1-99) and press Function/Set. For example, press 9 for nine copies.

To start copying now, press Copy/Help. If you would like to select additional copy

options, like SORT, ENLARGE or

REDUCE, press Function/Set.

NO.OF COPIES:01 THEN COPY OR SET

NO.OF COPIES:09

STACK P.01 FNE

MULTI COPY:STACK THEN COPY OR SET

MAKING COPIES

10 - 1

Page 78

Press or to select SORT. For example, select SORT.

To start copying now without enlarging or reducing, press Copy/Help.

To reduce or enlarge the image, press

Function/Set.

Press or to select an enlargement or reduction ratio.

MULTI COPY:SORT

SORT P.01 FNE

ELG/RDC:100% ? THEN COPY OR SET

ELG/RDC:100% ?

ELG/RDC:120% ?



•

ELG/RDC: 93% ?

For example, 75 %.

Press Copy/Help.

If you are making multiple copies and get a MEMORY FULL message while you are scanning the first page, press Stop to cancel the job. Then make a single copy. If you selected SORT and the MEMORY FULL message appears while scanning subsequent pages, you can press Copy/Help to copy the portion that is in memory, or press Stop to cancel. To restart the copy job using less memory, press Copy/Help for stacked copies.

ELG/RDC: 75% ?

SORT P.01 FNE

10 - 2

MAKING COPIES

Page 79

Printing Reports

FAX/MFC Settings and Activity

You can print the following lists and reports:

1.XMIT REPORT

2.ACT.REPORT

3.AUTO DIAL

4.TEL.INDEX

5.USER SETTINGS

6.MEMORY STATUS

To Print a Report

Press Function/Set, 7.

Enter the number of the report you want to print. For example, press 4 to print the TEL-INDEX.

For the Activity Report, also press or to select PRINT REPORT?.

Choose to print a Transmission Verification Report after each fax you send.

Activity Report lists information about the last 30 incoming and outgoing faxes. TX means Transmit; RX means Receive.

Lists names and numbers stored in One Touch and Speed Dial memory, in numerical order.

AUTO DIAL LIST (above), alphabetically. Lists settings for INITIAL SETUP, SETUP

RECEIVE, SETUP SEND, PRINT REPORTS, TEL SERVICE and SETUP MSG CTR.

Lists summary information and amount of memory in use.

Press Start.

Press Stop to exit.

PRINTING REPORTS

11 - 1

Page 80

Transmission Verification (Xmit) Report

You can use the Xmit Report as proof that you sent a fax. This report lists the name or fax number of the receiving party, the time and date of transmission, and whether the transmission was successful.

When the feature is OFF, the report is printed automatically only if there’s an error during transmission. If the report indicates NG, send the original again. If the report indicates you should check the readability of certain pages, resend those pages.

When the feature is ON, the report is printed with every fax you send.

Press Function/Set, 7, 1.

Press or to select ON (or OFF) and press Function/Set.

Press Stop to exit.

Activity Report Interval

You can set the FAX/MFC to print activity reports at specific intervals (6, 12, 24 hours, 2, 4 or 7 days). If you set the interval to OFF, you can print the report by following the steps in the previous section.

Press Function/Set, 7, 2.

Press or to display: and press Function/Set.

Press or to choose your setting and press Function/Set. If you choose 7 days, the screen prompts you to choose a day at which to begin the 7-day countdown.

Enter the time, in 24-hour format, that printing will begin and press Function/Set. (For example, enter 19:45 for 7:45 PM)

Press Stop to exit.

INTERVAL?

11 - 2

PRINTING REPORTS

Page 81

Important Information

Standard Telephone and FCC Notices

These notices are in effect on models sold and used in the United States only.

This equipment is hearing aid and volume control compatible. When programming emergency numbers and/or making test calls to emergency

numbers:

■ Before you hang up, briefly explain to the dispatcher the reason for the call.

■ Perform such activities in the off-peak hours, such as early morning or late evening.

This equipment complies with Part 68 of FCC Rules. On the rear panel of this equipment is a label that contains, among other information, the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. You must, upon request, provide this information to your telephone company.

You may safely connect this equipment to the telephone line by means of a standard modular jack, USOC RJ11C.

An FCC compliant telephone cord with a modular plug is provided with this equipment. This equipment is designed to be connected to the telephone line or premise’s wiring using a compatible modular jack that is Part 68 compliant. See the Installation section of this manual for details.

The REN is useful to determine the quantity of devices you may connect to your telephone line and still have those devices ring when your telephone number is called. In most, but not all areas, the sum of the RENs of all devices connected to one line should not exceed five (5). To be certain of the number of devices you may connect to your line, as determined by the REN, you should contact your local telephone company to determine the maximum REN for your calling area. If your fax damages the telephone line, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But if advance notice is not practical, you will be notified as soon as possible. You will be informed of your right to file a complaint with the FCC.

Your telephone company may make changes to its facilities, equipment, operations or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If you experience trouble with this product, please contact a Brother Authorized Service Center for information on obtaining service or repair. The telephone company may ask that you disconnect this equipment from the line until the problem has been corrected or until you are sure that the equipment is not malfunctioning.

If you are not able to solve a problem with your machine, contact Brother Customer Service. (See Brother Numbers, page i.)

IMPORTANT INFORMATION

12 - 1

Page 82

International Energy Star Compliance Statement

The purpose of the International Energy Star Program is to promote the development and popularization of energy-efficient office equipment, which includes computers, monitors, printers, facsimile receivers and copy machines world-wide. As an International Energy Star partner, Brother Industries, Ltd. has decided that this product meets the guideline of the program.

Industry Canada Compliance Statement (For Canada Only)

This Class B digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur la matériel brouilleur du Canada.

Federal Communications Commission Compliance Notice (For USA Only)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the fax equipment and the receiver.

■ Connect the fax equipment on a separate circuit.

■ Consult the dealer or an experienced radio/TV technician for help.

12 - 2

IMPORTANT INFORMATION

Page 83

WARNING

For protection against the risk of electrical shock, always disconnect all cables from the wall outlet before servicing, modifying or installing the equipment.

This equipment may not be used on coin service lines provided by the telephone company or connected to party lines.

Brother cannot accept any financial or other responsibilities that may be the result of your use of this information, including direct, special or consequential damages. There are no warranties extended or granted by this document.

Important Safety Instructions

Read all of these instructions and save them for future use.

Follow all warnings and instructions marked on the product.

Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Do not use this product near water.

Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

Slots and openings in the cabinet and the back or bottom of the machine are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heater. This product should never be placed in a built-in installation unless proper ventilation is provided.

This product should be operated from the type of power source indicated on the label. If you are not sure of the type of power available, consult with your dealer or local power company.

This product is equipped with a 3-wire grounding type plug. This plug will fit into only a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.

Do not allow anything to rest on the power cord. Do not place this product where people can walk on the cord.

If an extension cord is used with this product, make sure that the total ampere ratings on the products plugged into the extension cord do not exceed ampere rating of the extension cord ampere rating. Also, make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes (USA only).

Do not place anything in front of the fax machine that will block the exit- path of sent documents, originals and received faxes.

Do not touch an original during printing.

IMPORTANT INFORMATION

12 - 3

Page 84

Never push objects of any kind into this product through cabinet slots, because they may touch dangerous voltage points or short out parts resulting in a risk of fire or electric shock. Never spill liquid of any kind on the product.

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points and/or other risks, and may void your warranty. Refer all servicing to a Brother Authorized Service Center. A list of Brother Authorized Service Centers has been included for your convenience, or you may contact the Brother Customer Service for your nearest Brother Authorized Service Center. (See Brother Numbers, page i.)

Unplug this product from the wall outlet and refer servicing to a Brother Authorized Service Center under the following conditions:

A When the power cord is damaged or frayed. B If liquid has been spilled into the product. C If the product has been exposed to rain or water. D If the product does not operate normally when the operating instructions are

followed. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

E If the product has been dropped or the cabinet has been damaged. F If the product exhibits a distinct change in performance, indicating a need for

service.

To protect your product against power surges, we recommend the use of a power protection device (Surge Protector).

12 - 4

IMPORTANT INFORMATION

Page 85

Troubleshooting and

Routine Maintenance

Troubleshooting

If you can’t resolve a difficulty with your FAX/MFC using this manual, please see page i for Brother Numbers to call for assistance.

Error Messages

You may occasionally encounter a difficulty with your FAX/MFC or telephone line. If this happens, your FAX/MFC often identifies the problem and displays an error message. The list below explains the most common error messages.

If you need additional help, call the Brother fax-back system. (See Brother Numbers, page i.)

CHANGE CARTRIDGE

CHECK PAPER PRESS START KEY

CHECK PAPER

The ribbon is used up and printing is not possible. Replace the ribbon or the ribbon cartridge with a new one. (See Replacing the Print Cartridge, page 13-8.)

The FAX/MFC is out of paper, or the paper is not properly loaded. After you load paper, press Start key.

The paper is jammed in the fax machine.

Remove any paper that is not jammed.

TROUBLESHOOTING AND ROUTINE MAINTENANCE

13 - 1

Page 86

Open the top cover by lifting the gray lever on the right side of the top cover.

Top Cover

Pull the jammed printout gently from the paper tray toward the front of the machine. If the printout is jammed, then pull it toward the back of the machine.

YES!

Printout is jammed

NO!

13 - 2

TROUBLESHOOTING AND ROUTINE MAINTENANCE

Page 87

Remove the print cartridge and turn the spool to tighten the ribbon.

Install the cartridge. (See page 13-8.)

Close the top cover.

Load the paper.

COMM.ERROR

CONNECTION FAIL

DISCONNECTED

DOCUMENT JAM

Remove any paper that is not jammed from the ADF.

Open the top cover.

Pull the original toward the front of the machine.

Close the cover.

A poor quality phone line resulted in a communications error. Try the call again.

You have requested a polling call from another party, but the other fax machine is not in Poll Waiting mode.

The other party has disconnected during a fax. Try calling the other party.

The documents were not inserted or fed properly, or were too long or too short.

Original is jammed

MACHINE ERROR XX

Contact Brother Customer Service at:

PRESS STOP KEY

USA: 1-800-284-4329 (voice) From within Canada: From within Montreal:

TROUBLESHOOTING AND ROUTINE MAINTENANCE

1-800-853-6660 (voice) 1-514-685-6464 (voice)

13 - 3

Page 88

NO RESPONSE/BUSY

NOT REGISTERED

PRINTER FAULT

The number you called does not answer or is busy. You may also have reached a number not connected to a fax. Check the number and call again.

You’ve tried accessing a One Touch or Speed Dial location with no number assigned to it. See pages 7-1 to 7-2 for information about storing One Touch or Speed Dial numbers.

The print head has overheated. Unplug the FAX/ MFC and wait 30 minutes for it to cool.

TOP COVER OPEN

The top cover is not closed completely.

If You Are Having Difficulty with Your FAX/MFC

If you think there is a problem with your FAX/MFC, make a copy first. If the copy looks good, the problem is probably not your FAX/MFC. Check the difficulties below and follow the troubleshooting tips.

Printing or Receiving Faxes

Condensed Print and Horizontal Streaks; Top and Bottom of Sentences Cut Off

If your copy looks good, you probably had a bad connection, with static or interference on the phone line. If the copy looks bad, call Brother Customer Service at 1-800-284-4329 (USA), 1-800-853-6660 (from within Canada) or 1-514-685-6464 (from within Montreal).

Vertical Black Lines When Receiving

The sender’s scanner may be dirty. Ask the sender to make a copy to see if the problem is with the sending machine. Try receiving from another fax machine. If the problem continues, call Brother Customer Service at 1-800-284-4329 (USA), 1-800-853-6660 (from within Canada) or 1-514-685-6464 (from within Montreal).

Phone Line or Connections

FAX/MFC Does Not Answer When Called

Make sure the FAX/MFC is in the correct receiving mode for your setup (either FAX, FAX/TEL or TAD). Check for dial tone. If possible, call your FAX/MFC to hear it answer. If there is still no answer, check the telephone line cord connection. (See Connecting the Machine, page 2-4 and Connect the telephone line.) Connect a standard telephone handset to the FAX/MFC telephone jack. If there is no ringing when you call your FAX/MFC, call your Telephone Company to check the line.

13 - 4

TROUBLESHOOTING AND ROUTINE MAINTENANCE

Page 89

Telephone Answering Device (TAD) Does Not Answer When Called

Connect the telephone line cord from your TAD to the back of the FAX/MFC, in the jack labeled EXT. Make sure the TAD is set to answer calls. (See Connecting an External Telephone Answering Device (TAD), page 2-8.)

No Dial Tone on the Handset

Press Speaker Phone—OR—Lift the handset. If you don’t hear a dial tone, check telephone line cord connections at the FAX/MFC and wall jack. Check that the handset is connected to the FAX/MFC’s handset jack. Test the wall jack with another single line telephone. If there is no dial tone at the wall outlet, call your Telephone Company.

The Caller ID does not display after the Call Waiting Signal

The Caller ID signal is sent ten seconds after the Call Waiting Signal and speaking may interfere with it. When you hear the Call Waiting signal, ask the other party to hold while you answer the call. Then stop speaking until you see the Caller ID on the LCD.

Sending Faxes

Poor Transmitting Quality

Try changing your resolution to FINE or SUPERFINE. (See Resolution, page 6-3.) Make a copy to verify the FAX/MFC’s scanner operation.

Dialing Does Not Work

Check all line cord connections, and make sure the curled handset cord is not in the EXT jack. Check power cord connection. Send a manual fax by pressing Speaker Phone—OR—Lifting the handset, and dialing the number. Wait to hear fax receiving tones before pressing Start.

Vertical Black Lines When Sending

Use your FAX/MFC to make a copy. If the copy shows the same problem, the scanner area is dirty. Lift the top cover and check the original path. Clean the scanner’s white tape and the glass strip under the tape using isopropyl alcohol and a lint-free cloth. (See page 13-7.)

TROUBLESHOOTING AND ROUTINE MAINTENANCE

13 - 5

Page 90

Handling Incoming Calls

Double Ring in FAX/TEL Mode

The FAX/MFC knows the incoming call is not a fax so it is signaling you to answer the telephone call. Pick up the FAX/MFC handset or answer from an extension phone and press your FAX/MFC’s Telephone Answer Code (default setting is #51). (See For FAX/TEL Mode Only, page 5-6.)

Transferring a Call to the FAX/MFC

If you have answered the FAX/MFC handset, press Start, and hang up immediately. If you answered at an extension phone, press your three-digit Fax Receive Code (the factory setting is 51). When your FAX/MFC answers, hang up.

FAX/MFC “Hears” Voice as CNG Tone

If your FAX/MFC is set to Easy Receive ON, and it answers voice calls by trying to receive a fax, try turning Easy Receive to OFF. (See Easy Receive, page 5-4.)

Transmission Verification Report Prints “Result: NG”

There is probably temporary noise or static on the phone line. Try sending the fax again. If the problem continues, call the Telephone Company to check your phone line.

Custom Features on a Single Line

If you have Call Waiting, Caller ID, Call Waiting/Caller ID, Ring Master, Voice Mail, an answering machine, alarm system or any other custom feature on a single phone line with your FAX/MFC, it may create a problem sending or receiving fax data.

Example #1:

If you are having a telephone conversation and a fax communication signal comes through on your Call Waiting Caller ID feature, you can verify that the second call is a fax by switching to it. You have the option to receive the fax call, by asking the first caller to hang up to clear the line.

Example #2:

If you are sending or receiving a fax message while a Call Waiting Caller ID (or other custom feature) signal comes through on the line, the signal can temporarily interrupt or disrupt the fax data. Brother’s ECM feature should help overcome this problem. This condition is related to the telephone system industry, and is common to all devices that send and receive information on a single, shared line with custom features. If avoiding a slight interruption is crucial to your business, a separate line with no custom features is recommended.

13 - 6

TROUBLESHOOTING AND ROUTINE MAINTENANCE

Page 91

Routine Maintenance

Cleaning the Scanner

Before cleaning, unplug the power cord for safety. Clean the white bar and the glass strip under the bar with isopropyl alcohol on a lint-free cloth. Be careful not to bend the spring plate or drop anything into the FAX/MFC.

White Bar

Glass Strip

Cleaning the Print Head

Before cleaning, unplug the power cord for safety. To clean the FAX/MFC print head, wipe the print head with a lint-free cloth that is dry or lightly moistened with isopropyl alcohol.

Print Head

TROUBLESHOOTING AND ROUTINE MAINTENANCE

13 - 7

Page 92

WARNING

Just after you have used the machine, the print head is extremely HOT!

Replacing the Print Cartridge

Open the top cover by lifting the gray lever on the right side of the top cover. (See page 13-2.)

Remove the print cartridge containing the used ribbon and set it down.

Install the new print cartridge, by first inserting the recessed and placing the cartridge into its four holders.

Gray Lever

Press down on both sides of the top cover to close it securely.

You can save money by purchasing the 2-PK Refill Ribbon Rolls (PC402RF). (Installation instructions will be included.) If you handle the print cartridge (frame) carefully, you can reuse it until it breaks.

13 - 8

TROUBLESHOOTING AND ROUTINE MAINTENANCE

Page 93

Setting Up the MFC 660MC

Before You Install Multi-Function Link

and Computer to Work Together

This chapter takes you through each step of the installation process. Read it carefully to ensure a problem-free installation.

Package Contents

Before you begin the Multi-Function Link® installation, please check the contents of your package:

• Brother CD-ROM

• Multi-Function Link

• Warranty, Upgrade and Licensing Materials

Cable and PC I/F Box

PC Configuration Requirements

Your PC must meet or exceed the following minimum system configuration requirements for you to install and use Multi-Function Link

CPU 80486/66 or higher RAM 8MB or greater for Windows

8MB or greater for Windows 16MB or greater for Windows NT Version 4.0 (32MB recommended) 24MB or greater for windows (32MB recommended)

Hard Disk Drive 50MB

Operating System Port

CD-ROM Drive

Windows NT Available Serial port

3.1x, 95, 98, 98 Second Edition or

Workstation Version 4.0

3.1 x

95 (16MB recommended)

Workstation

98 Second Edition

SETTING UP THE MFC 660MC AND COMPUTER TO WORK TOGETHER

14 - 1

Page 94

Connecting the MFC 660MC to Your PC

Follow the instructions below to hook up the Multi-Function Link® Cable:

Position your Brother MFC near your personal computer CPU (maximum distance of approximately 5–6 feet).

Make sure to unplug the machine’s power cord from the electrical outlet before connecting the Multi-Function Link Also, make sure the computer is turned off and unplugged from the electrical power before you connect the Multi-Function Link

Connect the RJ-8 connector of the Multi-Function Link® Cable to the back of your Brother MFC in the jack labeled PC I/F.

Connect the 25-pin male RS-232 connector of the Multi-Function Link® Cable to your PC in the available female serial communications port. Use the 9-pin adapter if your PC requires it. (See your PC owner’s manual for the correct interface port for connection.) NOTE: If your PC is an IBM Aptiva, an MWAVE card is using

COM1. You must connect the Multi-Function Link serial port that is available.

cable.

Cable to another COM

14 - 2

SETTING UP THE MFC 660MC AND COMPUTER TO WORK TOGETHER

Page 95

Choosing the Software to Install

Install Multi-Function Link® Software

Click on Install Multi-function Link® Software to access the Software Installation window.

On-Line Documentation

On-Line Documentation includes all the software instructions. To view the On-Line Documentation, you must first install the Acrobat Reader software from the CDROM, by clicking on the Install Acrobat Reader button.

Product Support

This is a page of all Brother support numbers.

Brother Web Link

Brother WEB Link connects you to the Internet Brother Home Page on the World Wide Web. You can find more information about Brother products, from product specifications sheets to Frequently Asked Questions (FAQ’s). You must have service with an Internet service provider.

Click Exit to exit the CD-ROM window, or click Return to return to the previous window.

SETTING UP THE MFC 660MC AND COMPUTER TO WORK TOGETHER

14 - 3

Page 96

Installing the Multi-Function Link® Software

IMPORTANT

To install the software using Windows NT Workstation Version 4.0, you must be logged on as the Administrator.

Make sure your MFC 660MC is connected to your PC as described earlier and that both machines are plugged in and switched on.

Overview of Basic Steps

Insert the Brother CD-ROM into your CD-ROM drive and access the Installation Window.

Enter the command for your version of Windows®, if needed.

Select the option Install Multi-Function Link® Software.

Follow the installation instructions.

Installing the Brother Software

Insert the Brother CD-ROM into your CD-ROM drive.

After you insert the Brother CD-ROM, you must type the appropriate command for your version of Windows

• If you are using Windows then type x:SETUP.EXE. (“x” is the drive letter for your CD-ROM drive.) This will start the Software Installation program.

• If you are using Windows Software Installation program appears automatically when you insert the Brother CD-ROM.

• For Windows Start at the Desktop, select Run and then enter x:\SETUP.EXE. (“x” is the drive letter for your CD-ROM drive.)

95/98 and Windows NT® Workstation Version 4.0, you can also click

, if needed:

3.1x, from the Program Manager: Click File, then Run,

95/98 or Windows NT® Workstation Version 4.0, the

The Brother LOGO will be displayed on the screen.

14 - 4

SETTING UP THE MFC 660MC AND COMPUTER TO WORK TOGETHER

Page 97

If you are using Windows NT® 3.51 or earlier, the following error message will appear on the screen:

You are running Windows NT® 3.51 or earlier. Brother Multi-Function Link® Software does not support this version of Windows NT WINDOWS NT 4.0 AND REINSTALL Multi-Function Link

. YOU MUST UPGRADE TO

Software!!

If you are using Windows NT® Workstation 4.0 and you are not logged-in as the Administrator, an error message will appear explaining the problem.

A window appears listing the options:

• If you are using Windows

Click on “Install Multi-Function Link® Software” and follow the prompts on the

98, the OS detected is shown as “Windows® 95”.

screen. The last step will be to restart Windows®.

SETTING UP THE MFC 660MC AND COMPUTER TO WORK TOGETHER

14 - 5

Page 98

Viewing On-Line Documentation

Make sure you have installed the Acrobat Reader software. (Click on the Install Acrobat Reader button and follow the instructions on the screen.)

After the Acrobat Reader is installed, click on the View Multi-Function Link® Documentation button. When the Table of Contents appears, select a chapter by clicking on it.

Since the Multi-Function Link® manual is in On-line Documentation only, you may wish to print a copy by selecting Print from the File pull-down menu.

14 - 6

SETTING UP THE MFC 660MC AND COMPUTER TO WORK TOGETHER

Page 99

Using the Multi-Function Link

Software

(For MFC 660MC Only)

Introduction

This chapter outlines the basics of the Brother software, so you can get started using the Multi-function Link the On-Line Documentation section of the Brother CD-ROM that is included with your MFC. Be sure to check the online ReadMe file for last-minute, important information that was not included in the On-Line Documentation.

software. Detailed installation and setup instructions are in

Running the Brother Software

The software included with your MFC consists of two parts, the Multi-function Link® and ScanSoft

PaperPort® for Brother.

USING THE MULTI-FUNCTION LINK

SOFTWARE (FOR MFC 660MC ONLY)

15 - 1

Page 100

Multi-Function Link

The Multi-Function Link® Main Menu is the application used for all fax sending and receiving operations. It also contains an electronic Phone Book program and a Log Manager that maintains a record of all PC fax transactions. The Main Menu can be accessed through the Brother Multi-Function Link

program group.

ScanSoft

ScansoftTM PaperPort® for Brother is a document management application. You will use PaperPort

PaperPort

to view incoming faxes and scanned documents. PaperPort® has a

sophisticated, yet easy to use filing system that will help you organize your documents. It allows you to combine or “stack” documents of different formats for printing, faxing, or filing. PaperPort

can be accessed through the PaperPort®

program group.

Sending a Fax from Your PC

Sending a Quick Fax
