wireless
music system for iPod®
BETTER BY BROOKSTONE
®
We believe that exacting standards are the core of our success.

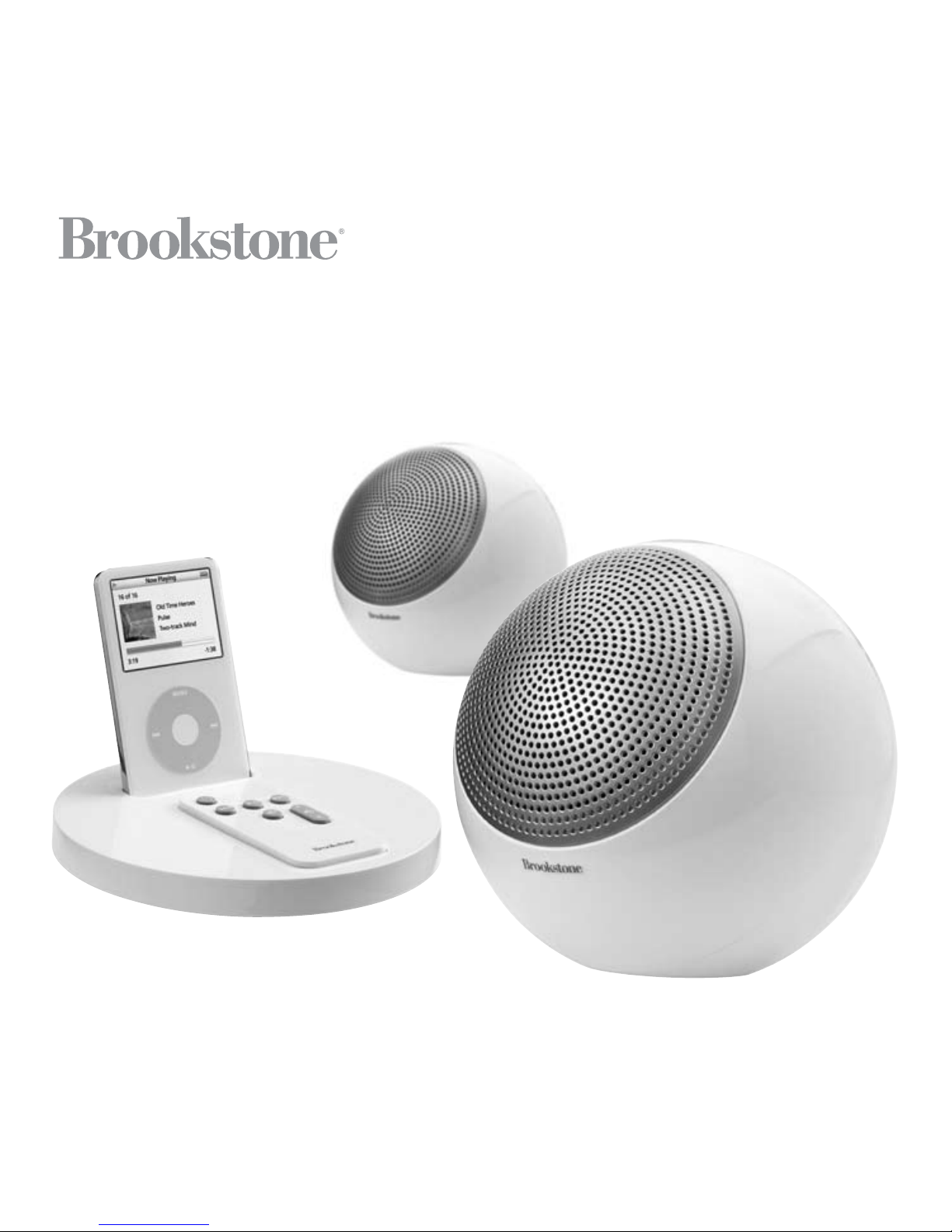

The Wireless Music System for iPod
®
has been thoroughly tested
to be certain it meets our rigorous quality control criteria.
With our Wireless Music System for iPod
®
, you’ll have portable sound—
anywhere you want it. Just dock your iPod, turn on the speakers and
take your music with you anywhere—inside or out! The 900 MHz
technology transmits through walls, floors, and ceilings up to
100 feet away from the transmitter.
wireless
music system for iPod®
1
2
CAUTION
• TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.
THERE ARE NO SERVICEABLE PARTS INSIDE.
• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
The lightning flash with arrow-head symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the unit’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the unit.
3
IMPORTANT SAFETY INSTRUCTIONS
All the safety and operating instructions should be read, adhered to and
followed before the unit is operated.
DANGER
To reduce the risk of electric shock, burns, fire or injury:
1. Always unplug the unit from the electrical outlet immediately after using.
2. Do not use while bathing or in a shower.
3. Do not place or store unit where it can fall or be pulled into a tub or sink.
4. Do not place in or drop into water or other liquid.
5. Do not reach for unit that has fallen into water. Unplug it immediately.
6. Care should be taken so that objects do not fall and liquids are not
spilled onto the unit.
R IS K OF E L EC TR IC S HO CK
D O NO T O P E N
bATTERY PRECAUTIONS
• Dispose of the old battery properly. Do not dispose of the old battery
in a fire.
• Do not leave the battery where a child or pet could play with or swallow
it. If the battery is swallowed, contact a physician immediately.
• The battery may explode if mistreated. Do not attempt to recharge
or disassemble the battery.
• Use only a fresh battery of the required size and type.
• Do not expose the battery to extreme heat such as direct sunlight,
fire, etc.
•
Caution: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
4
WARNING
1. Do not try to disassemble the speakers.
2. Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user’s
authority to operate the equipment.
3.
Do not place speakers near heat sources such as radiators and
heating vents.
4. Do not store speakers in extreme temperatures.
5. Turn the transmitter and speaker power off when not in use.
6. Do not place speakers where there is moisture, rain, vibration,
shock or excessive dust.
7. Use only attachments and accessories specified by the manufacturer.
8. Unplug the unit during lightning storms or when unused for long
periods of time.
5
76
WARNING
1. Do not use the unit near water.
2. Do not block any of the ventilation openings. Install in accordance
with the manufacturer's instructions.
3. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
4. Do not defeat the safety purpose of the polarized or grounding plug.
A polarized plug has two blades with one wider than the other.
A grounding plug has two blades and a third grounding prong.
The wide blade or the third prong is provided for your safety.
When the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
5. Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the unit.
6. Only use attachments/accessories specified by the manufacturer.
7. Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the unit. When a cart is used, use caution
when moving the cart/unit combination to
avoid injury from tip-over.
8. Do not expose the AC/DC Adapter to rain or moisture.
9. The marking plate is located on bottom enclosure.
10. Disconnect the main plug to shut the power off completely.
11. Place on a level surface. Maintain an adequate air path for ventilation
by placing on a stand with a height of at least 2 inches.
12. Refer all servicing to qualified service personnel. Servicing is required
when the unit has been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled or objects have fallen
into the unit, the unit has been exposed to rain or moisture, does not
operate normally, or has been dropped.
98
FCC INFORMATION
This equipment has been tested and found to comply with the limits
for a class B digital Device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
•
Increase the distance between the equipment and receiver.
•
Connect the equipment to an outlet on a circuit different from
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This equipment may not cause harmful interference.
2. This equipment must accept any interference received,
including interference that may cause undesired operation.
Note: The manufacturer is not responsible for any audio or television
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user’s authority to operate
the equipment.
1
17
16
22
21
18
19
Top View
20
3
7 8 9 10 12
11
6
5
4
1415
13
Bottom Top
LOCATION OF CONTROLS
DOCK
1. MONO/STEREO
2. RESET
3. CHANNEL 1/2/3
4. AUX IN
5. DC IN
6. AUX OUT
7. iPod JACK
8. REMOTE CONTROL CRADLE
REMOTE CONTROL
9. (Power)
10.
(Rewind)
11.
(Play/Pause)
1110
12. (Mute)
13. BATTERY COMPARTMENT COVER
14. (Volume Up/Down)
15.
(Fastforward)
SPEAKERS
16. POWER INDICATOR
17. (On/Off)
18. (Volume Down)
19. (Volume Up)
20. SPEAKER BOTTOM
21. REAR COVER
22. CHANNEL 1/2/3
2
1312
LOCATION OF CONTROLS (CONT.)
ACCESSORIES
23. CHARGING BASE (2)
24. MP3 CRADLE
POWER ADAPTERS/CAbLES
25. 3.5MM CABLE
26. DOCK POWER ADAPTER
27. CHARGING BASE POWER ADAPTER (2)
23
26
27
25
24
iPOD DOCK OPERATION
CONNECTING YO UR iPod OR OTHER AU DIO SOURCE T O THE D OCK
1. Insert one end of the DOCK POWER ADAPTER into DC IN
and the other end into an electrical outlet.
2. Plug your iPod into the iPod JACK. If you are using another
audio source, insert one end of the included 3.5MM CABLE
into AUX IN and the other end into your audio source's
headphone jack.
Note: The dock charges your iPod when it is connected
to the iPod JACK.
INSERTING THE RECHARGEABLE BATTERY PACKS
1. Remove the speaker(s) REAR COVER. See Figure 1.
2. Insert the included rechargeable battery pack(s).
3. Replace the REAR COVER.
CHARGING THE SPEAKERS
Charging time is approximately 12 hours.
1. Insert one end of the CHARGING BASE POWER ADAPTER into the
CHARGING BASE’s cord and the other end into an electrical outlet.
2. Place the SPEAKER BOTTOM on the CHARGING BASE.
A red indicator light illuminates inside the speaker.
USING THE SP EAKERS
You can leave the speakers connected to the CHARGING BASE,
or you can remove them and use the rechargeable battery power.
Note: Ensure the dock and speaker(s) are set to the same channel.
1. Slide CHANNEL 1/2/3 on the dock to CHANNEL 1, 2 or 3.
2. Press on the remote control to turn the dock on.
The iPod in the jack turns on automatically.
1514
Figure 1
Figure 2
3. Remove the speaker(s) REAR COVER.
See Figure 2.
4. Slide CHANNEL 1/2/3 on the speaker(s) to
the same channel selected on the dock.
5. Replace the REAR COVER.
6. Press on the speaker(s). The speakers’
POWER INDICATOR illuminates.
7. Press or to adjust the speaker(s)
volume to your desired listening level.
Note:
• The mono/stereo function maximizes the sound when using multiple
speakers with the same dock. To use this function, slide MONO/STEREO
to the STEREO position.
• If signal interference occurs, adjust the channel on the dock and speakers.
• When not in use, press on both the speaker and remote control to turn
off the power to the speaker and dock. The iPod in the jack will charge.
USING THE RE MOTE CONTROL
The remote control allows you to control basic functions on your iPod,
and the power and volume on the dock. Place the remote control in the
REMOTE CONTROL CRADLE after use.
REPLACING THE REMOTE CONT ROL BATT ERY
1. Remove the BATTERY COMPARTMENT COVER.
2. Remove the old battery and insert a new CR2032 button cell battery
(not included) according to polarity indicators inside the compartment.
3. Replace the BATTERY COMPARTMENT COVER.
RESETTING THE UNIT
Insert a thin, pointed object into RESET if the unit is not working properly.
1716
IPOD® ADAPTERS
IPOD® ADAPTER IPOD
®
#9 .................................................................... Video 30 GB
#10 .................................................................. Video 60 GB
#11 .................................................................. Nano 2nd Generation
CARE AND MAINTENANCE
Clean only with a dry cloth.
SPECIFICATIONS
IPOD COMPATIB ILITY
• iPod Mini, Version 1.4.1 or later
• iPod 4th Generation, Version 3.1.1 or later
• iPod 5th Generation, Version 1.1.2 or later
• iPod Photo, Version 1.2.1 or later
• iPod Nano, Version 1.2.0 or later
• iPod Nano, 2nd Generation Version 1.0.2 or later
1918
DOCK
Range: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 feet
Fine Tuning:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Automatic
Number of Channels:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Dimensions:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.375" d x 1" h
Power Supply:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AC Adapter (included)
REMOTE CONTRO L
Batteries: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Uses one CR2032 button
cell battery (included)
SPEAKERS
Power On/Off: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Volume Control: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Fine Tuning: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Automatic
Speaker Unit: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1/2”
Frequency Level: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50Hz-20kHz
Dimensions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.23" Spherical
Power Supply: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AC Adapters (included)
Built-in
Rechargeable Batteries
6V 1600 mAh
Charging Time
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Approximately 12 hours
Battery Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Approximately 3 hours
2120
This wa rranty does not apply to : a) damage c aused by fai lure to foll ow instructi ons relatin g to product ’s use
or the i nstallation of component s; b) damage caused by accident, abuse, misuse , fire, flood s, eart hquake
or ot her externa l causes; c) damage caused by service p erformed b y anyone who is not a repres entative of
Brooks tone; d) accessorie s used in conjun ction with a cove red produ ct; e) a product or part that ha s been
modifi ed to a lter funct ionality or capabi lity; f) items i ntended to be per iodically replaced by the purchaser
during the normal life of t he product including, without li mitation, b atteries or light bul bs; or g) any and all
pre-ex isting condit ions that occu r prior to the eff ective date of this Li mited Warrant y relating to an y product
sold “as is” i ncluding, without l imitation, floor dem onstration models an d refurbis hed items.
BROOKSTONE SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. TO THE EXTENT
PERMITTED BY APPLICABLE LAW, BRO OKSTONE DISCLAIMS ANY AND ALL S TATUTORY OR IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS. IF BROOKSTONE CANNOT
LAWFULLY DISCLAIM STATUTORY OR IMPLIED WARRANTIES, THEN TO THE EXTENT PERMITTED BY LAW, ALL
SUCH WARRANTIES SHALL BE LIMITED IN DURATION TO THE DURATION OF THIS EXPRESS WARRANTY.
Some states disallo w the exclus ion or limita tion o f inci dental or con sequential damage s or how long an
implie d warranty lasts, so t he above ex clusions or limitation s may not a pply to you . This war ranty gives you
specif ic legal rights and you may also hav e other r ights, whi ch vary f rom state to state .
ONE (1) YEAR LIMITED WARRANTY
Brooksto ne warrant s this product a gainst def ects in materials and/or wo rkmanship under norm al use for a
period of ONE (1) YEA R from the date of purc hase by the origi nal purchas er (“Warra nty Period” ). If a defect
arises and a valid claim is rece ived within the Warr anty Period , at its option, Brookstone will eithe r 1) repa ir
the d efect at no charge, using n ew or re furbished re placement p arts, or 2) replace the pro duct with a new
product that is at l east fu nctionally equivalent to the original product, or 3) provide a sto re cred it in the
amount of the purchas e pri ce o f the ori ginal product. A replacement prod uct or pa rt, including a userinstalla ble pa rt ins talled in ac cordance with instructions provid ed by Brooks tone, assumes the r emaining
warranty of the origin al product. Whe n a product or part is excha nged, any repl acement item be comes your
property and the re placed it em become s Brookst one’s pr operty. W hen a store credit i s given, the original
product must be re turned to Br ookstone and becomes Broo kstone’s prop erty.
Obtaining Service: To obtain war ranty service, call Brooks tone Limited Warranty Servi ce at 1-80 0-292-9819.
Please be prepa red to describe the product that needs serv ice and the nat ure of the prob lem. A purchase
receipt is required. All repairs and replace ments must be auth orized in advance. Service opt ions, parts
availability and resp onse times will vary. You are responsible for delivery and the cost of delivery of the
product or any parts to the authorized s ervice center for replacement, per our instructions.
Limits and Exclusi ons: Coverage under this Limited Warrant y is limited to the United States of America,
includ ing the D istrict of Columbia and the U.S. Terr itories of Guam, Pu erto Rico, and U.S. Virgin Islands.
This Limited Warranty applies only to products manufactured for Brookstone that can be identified by the
“Brookstone” trademark, trade name, or logo affixed to them or their packaging. The Limited Warranty does not
apply to any non-Brookstone products. Manufacturers or suppliers other than Brookstone may provide their own
warranties to the purchaser, but Brookstone, in so far as permitted by law, provides these products “as is.”
2322
567198
Merrimack, New Hampshire 03054 • Customer Service 800-846-3000 • www.brookstone.com
bE TTE R bY bR OOK STO NE® W E C RE AT E P RO D UC TS
T O M A K E L I F E B E T TE R . T H R OUG H I N N OVA T I VE
D ESI GN , B ES T- IN -C LA SS PRO DU CT S EL EC TI ON A ND
A N U N YI EL D IN G C OM MI T ME NT T O E X CE LL E NC E, W E
M AX IM IZ E T HE Q UA L IT Y O F O UR P RO DU CT S —A ND
H EL P Y OU E NH AN CE T HE Q UA LI T Y O F Y OU R L IF E.
Loading...
