Bromic Heating CVE-10E-15, CVE-10E-25, CVE-10E-30, CVE-10E-20 User Manual

Curved Glass Delicatessen Displays

Comme rc ial Re fr ige ra tio n R an ge

ATTENTION: THE BROMIC DELICATESSEN DISPLAY REFRIGERATION RANGE IS NOT

APPROVED FOR DOMESTIC USE
If you have purchased a unit for domestic application, please contact
your supplier or Bromic refrigeration immediately

INDEX

1. INDICATIONS AND PROHIBITIONS

2. ASSEMBLY AND INSTALLATION

3. ELECTRIC CONNECTION

4. JOINT KIT ASSEMBLY

5. CLEANING AND MAINTENANCE

6. SPARE PARTS

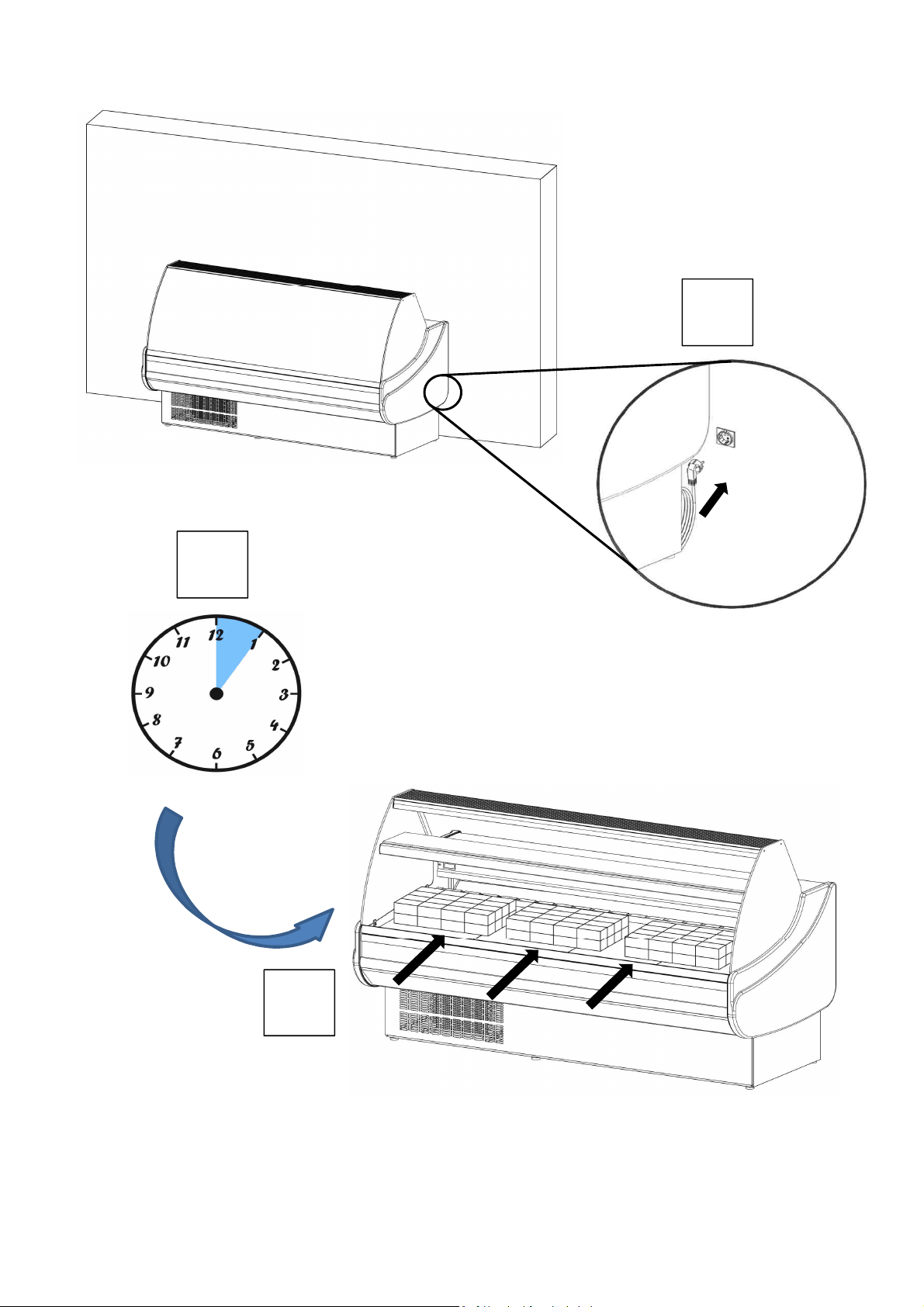

Leave working serve over counter 1 hour without product

After 1 hour you can place the products inside the unit

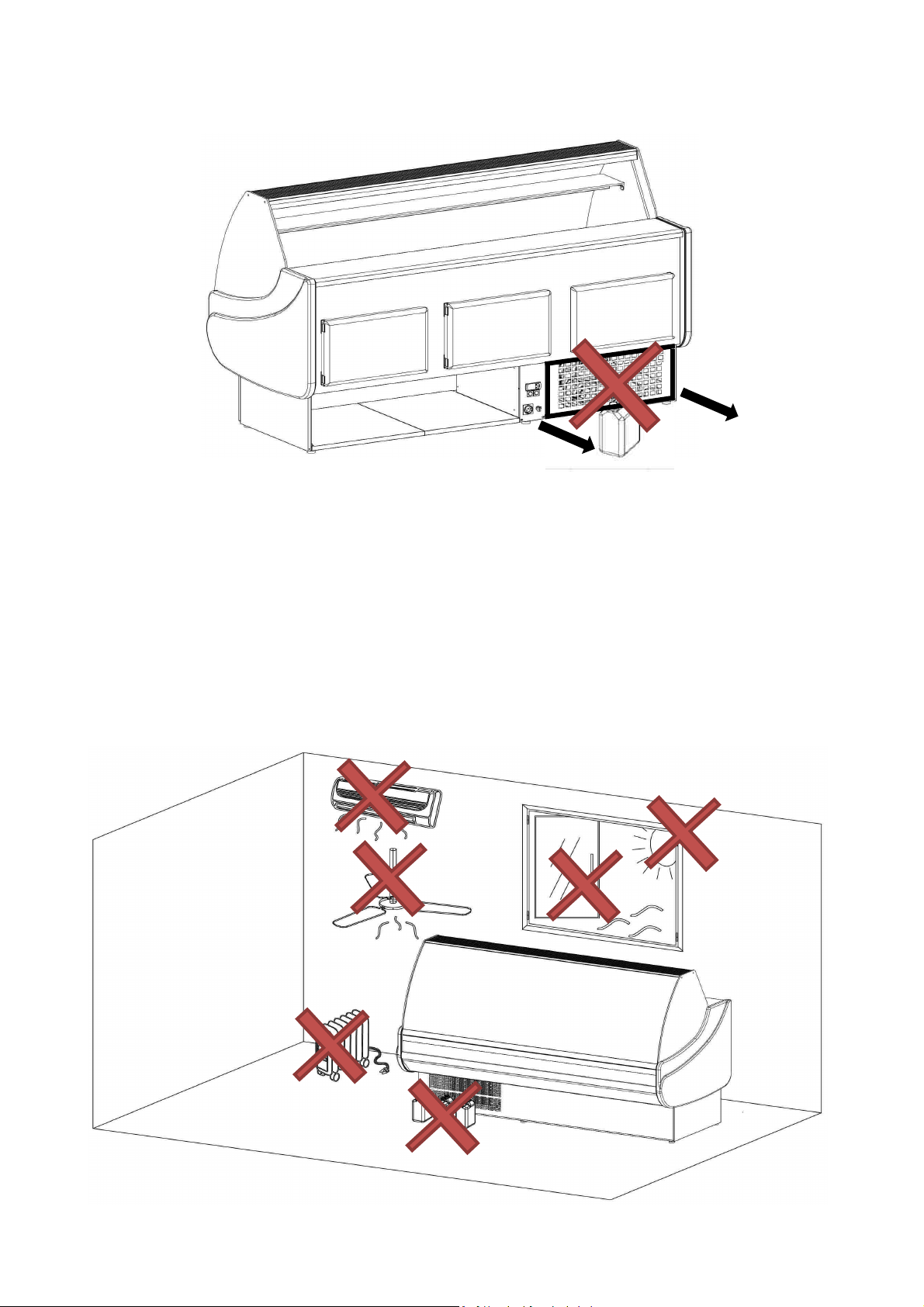

1. INDICATIONS AND PROHIBITIONS

1

x2

CVE-10E-25
CVE-10E-30

2

3

x10

x6

x4

x4

x4

M6x30 EXAG DIN 933 INOX

x6

x9

x4

x6

x3

x6

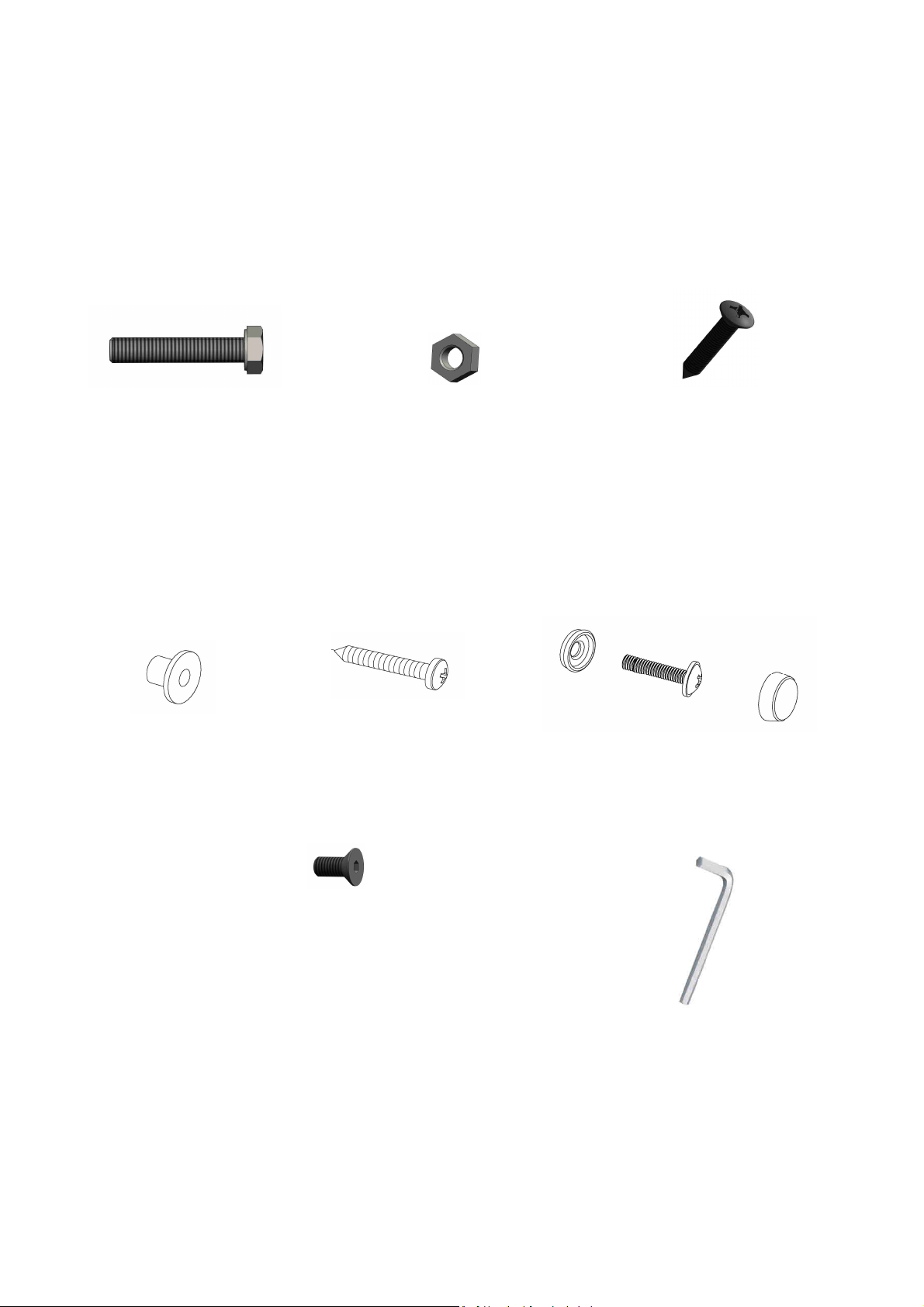

STOCKTAKING

BRACKETS

GLASSES

x6

x12

CVE-10E-15/-20

M6 DIN 934

CVE-10E-15/-20

4.2x13 DIN 798

CVE-10E-15/-20

CVE-10E-25/-30

CVE-12-15/-20

CVE-10E-25/-30

4.8x25 DIN CE

CVE-10E-25/-30

M4x20 DIN 7985

YOU WILL
NEED ALLEN
N5

CVE-12-25/-30

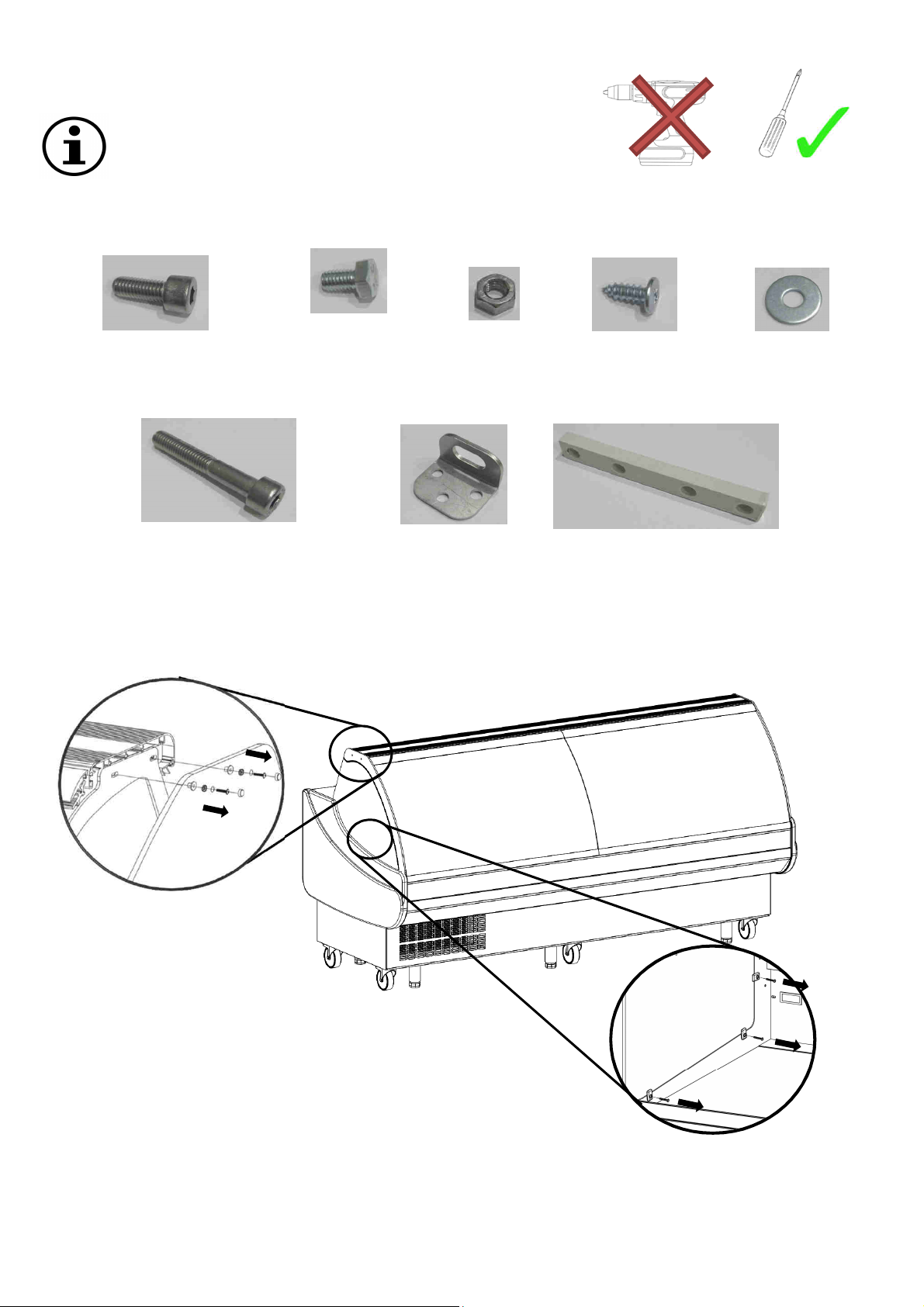

2. ASSEMBLY AND INSTALLATION

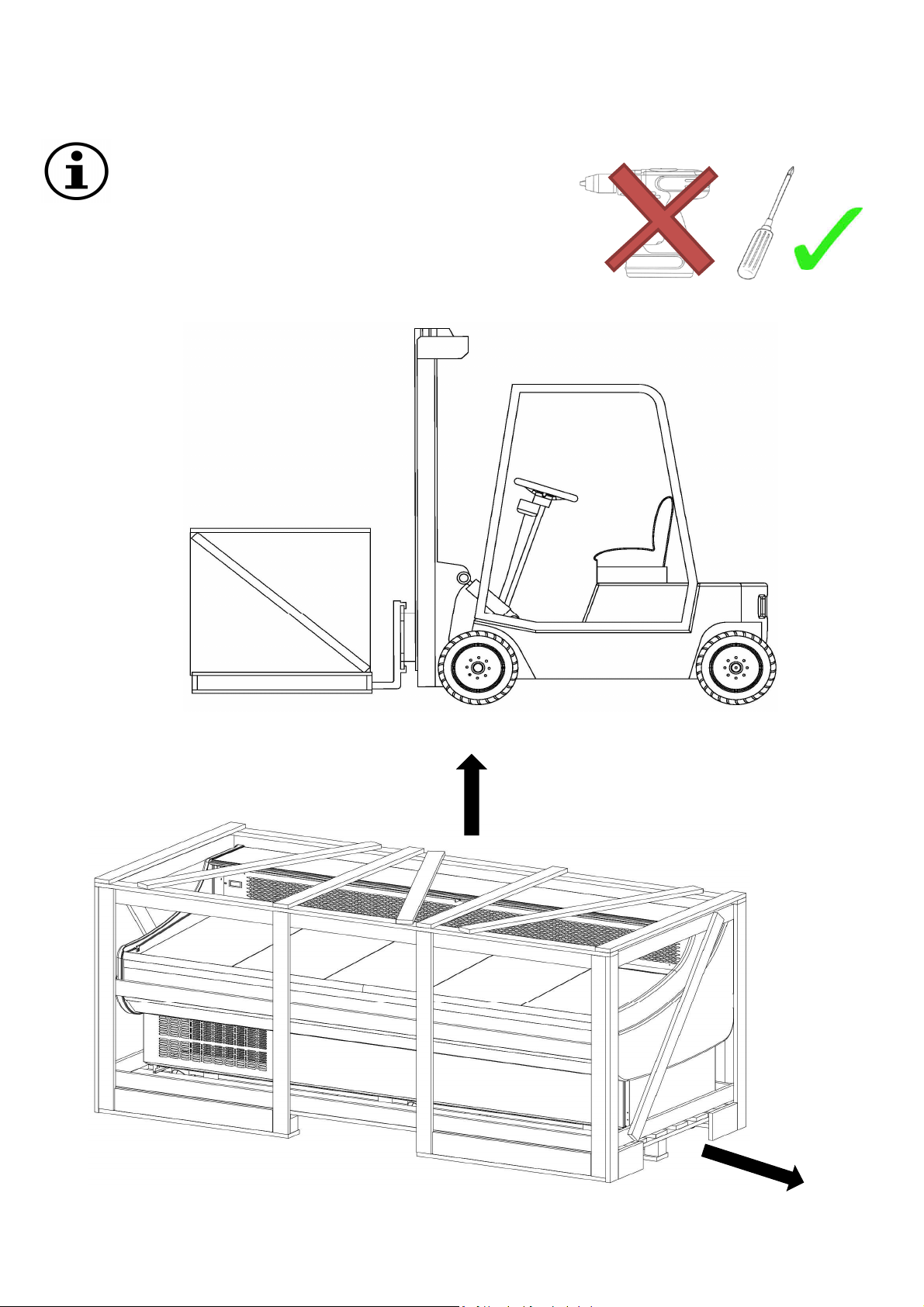

Always screw manually, do not use electrical tools

REMOVE TOP FIRTS

THEN REMOVE
FRONT/BACK
AND SIDES
CAREFULLY

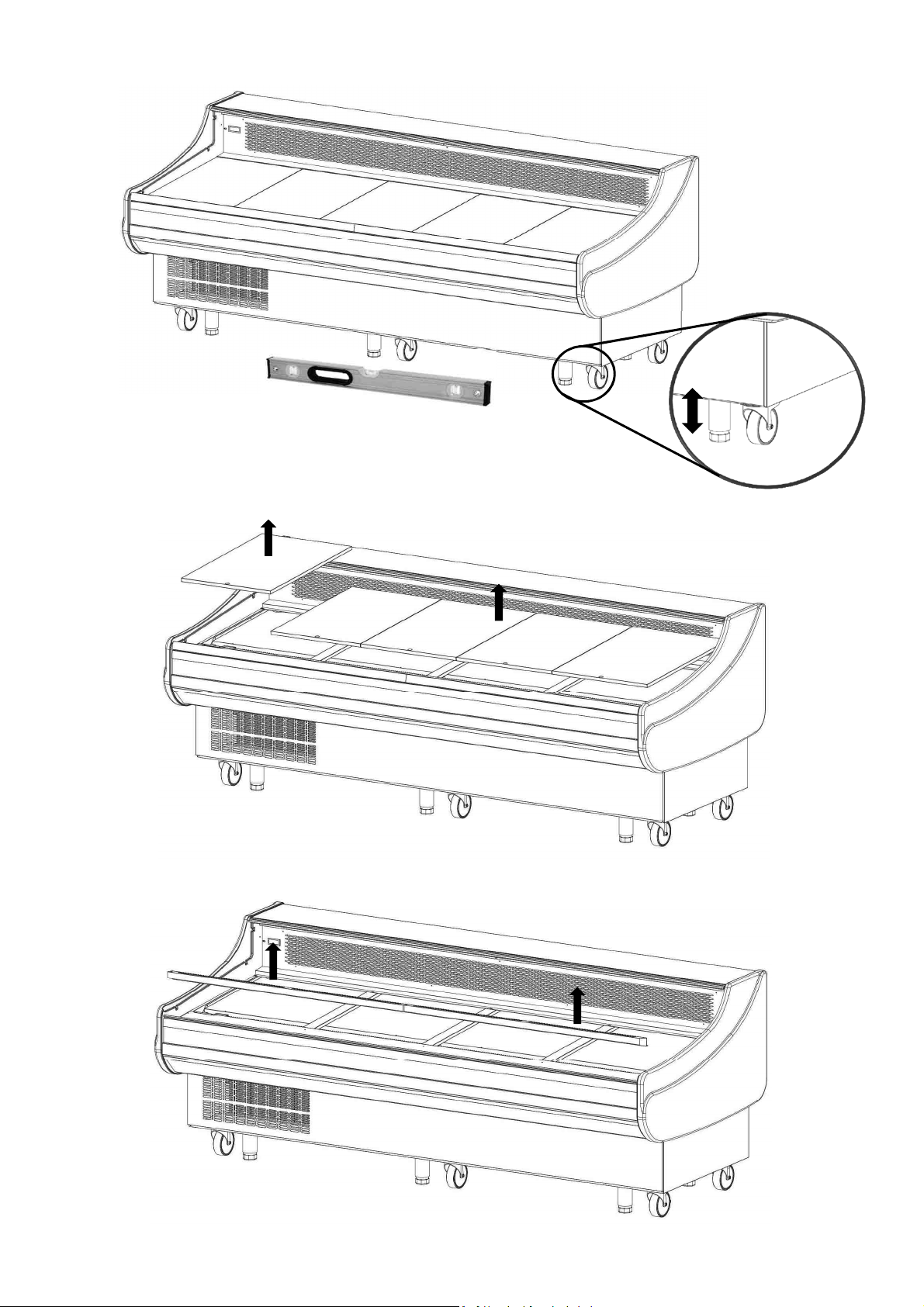

LEVEL AND FIX THE MACHINE

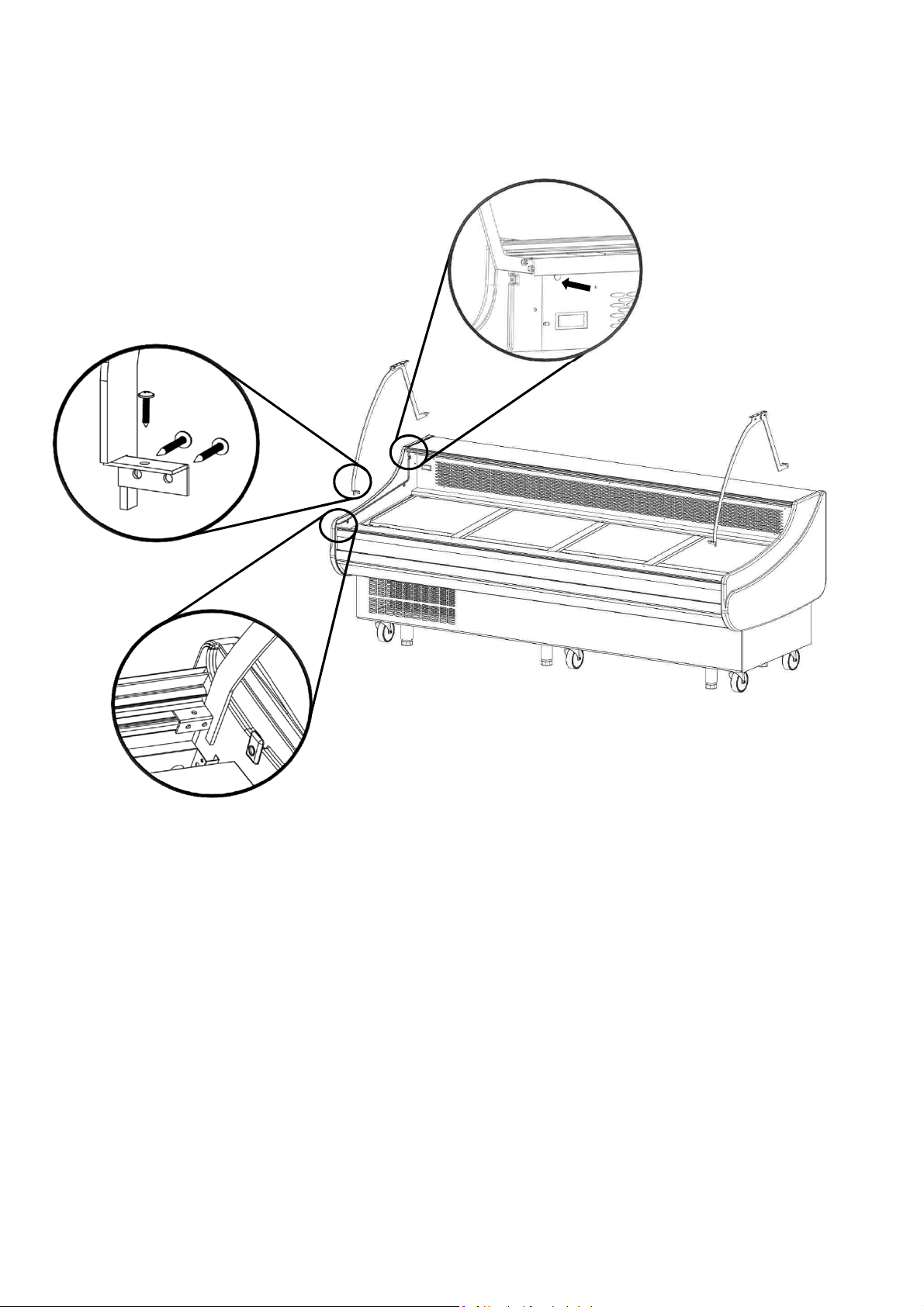

PLACING OF BRACKETS

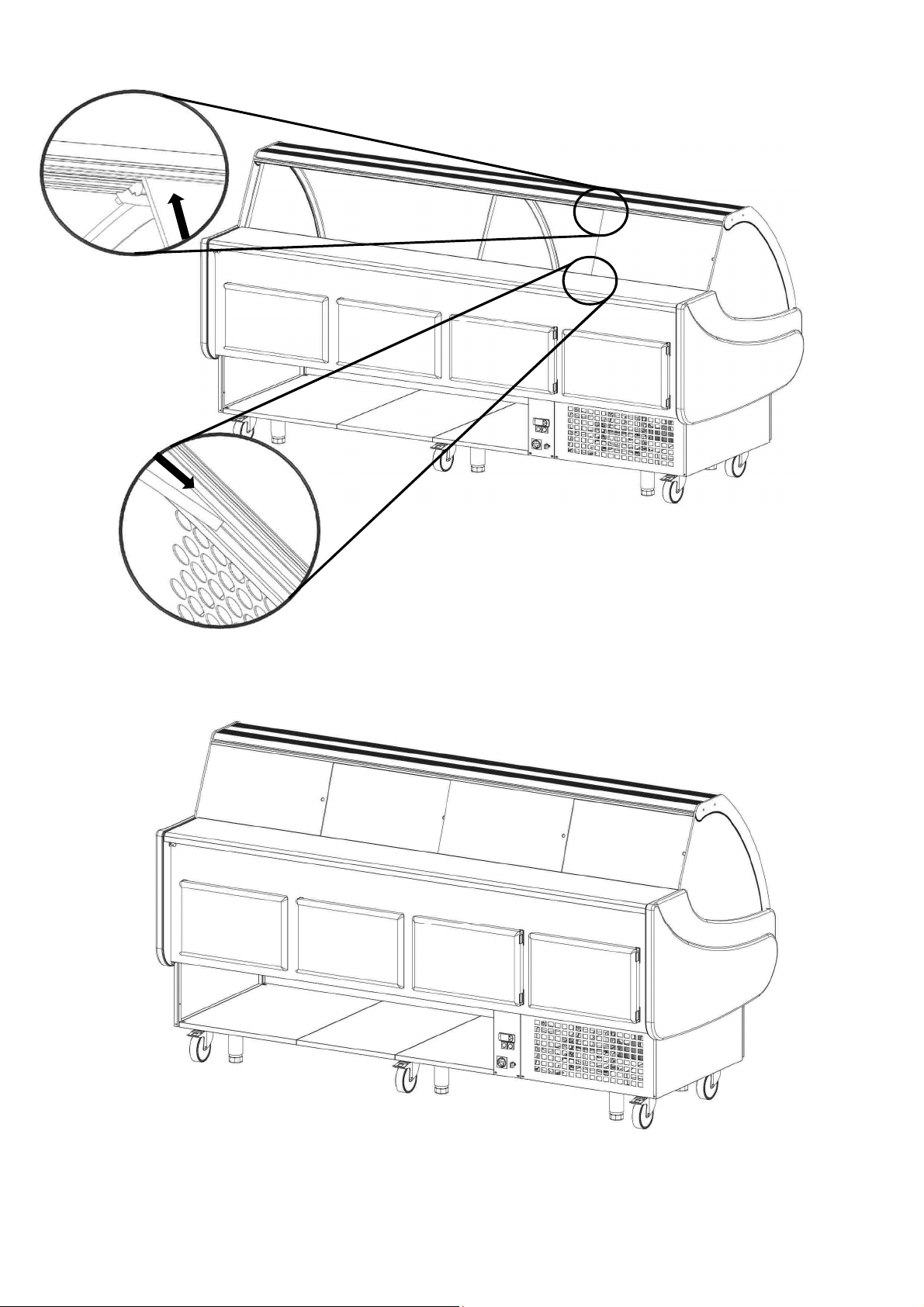

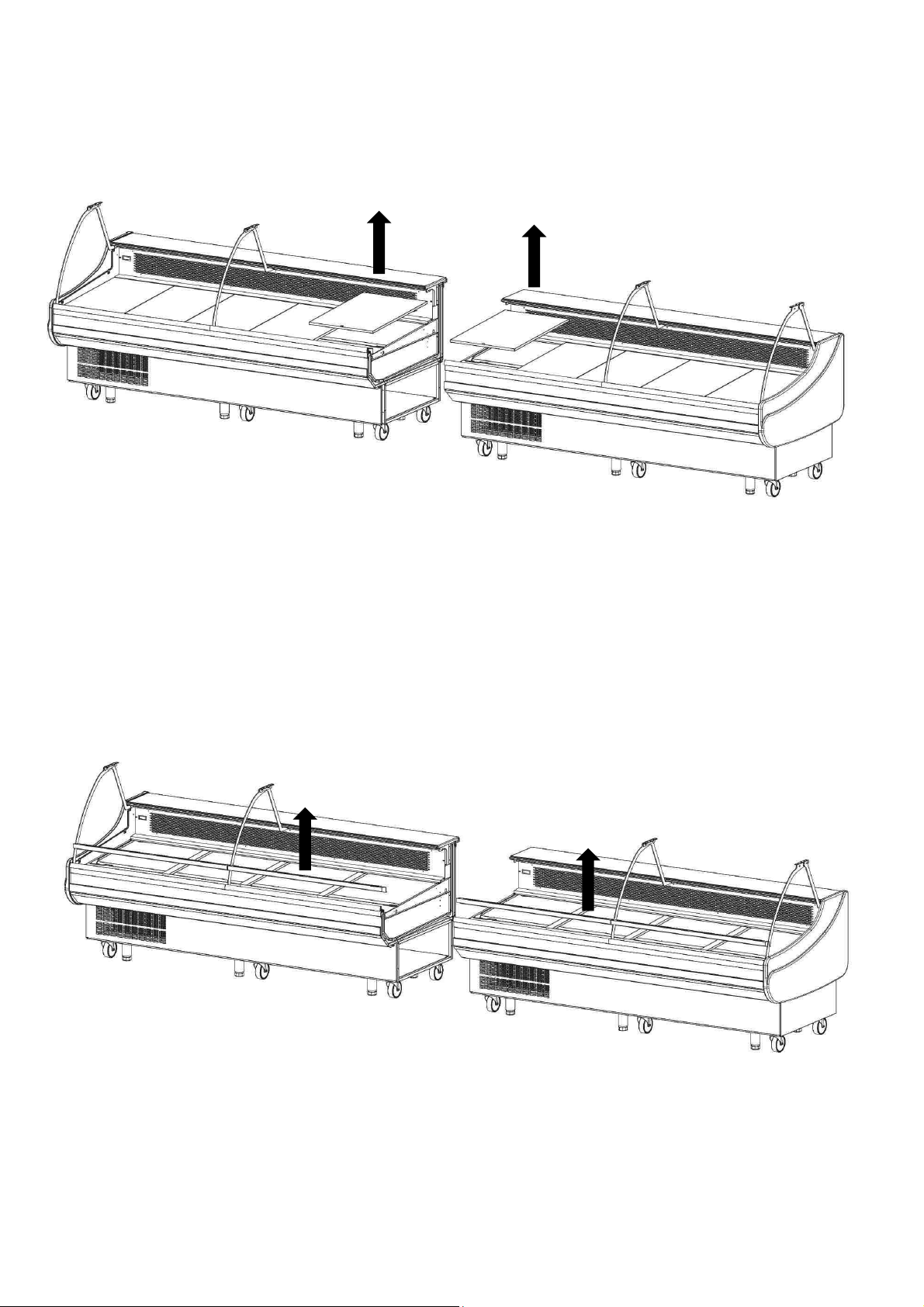

STEP 1: REMOVE DISPLAY AREA ELEMENTS

CVE-10-E

STEP 2: REMOVE FRONT GRILLE

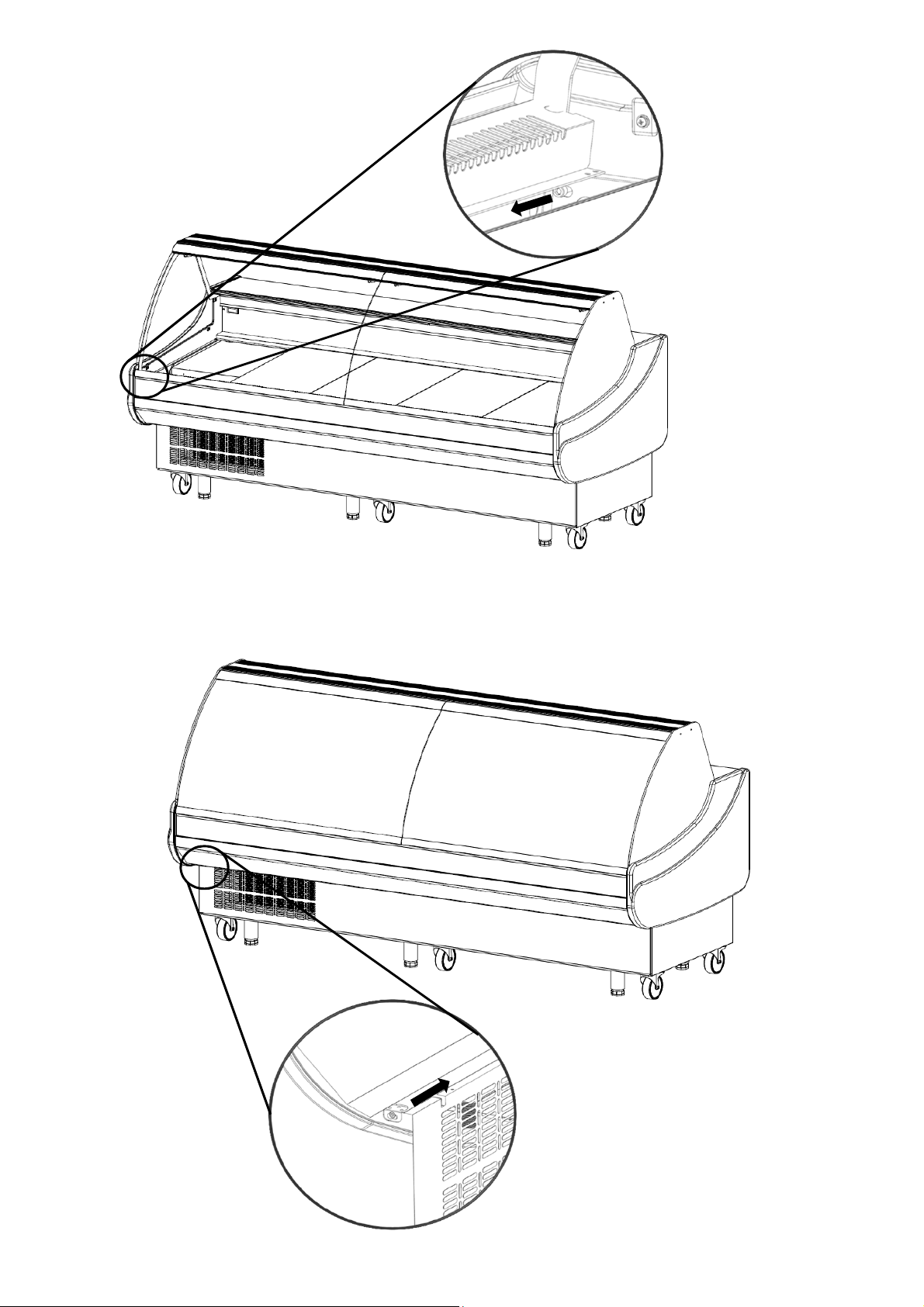

STEP 4: PLACING BRACKETS AT MACHINE

4.2x13
DIN 7981

CVE-10-E

4b. SCREW THE BRACKET AT
THE MACHINE IN THE BACK

M6 DIN 934

4a. SCREW THE BRACKET AT
THE MACHINE IN THE FRONT

CENTRAL BRACKET ONLY AT VE-10E-25/-30 MODELS

ONLY VE-10E-25/-30

CVE-10-E

SCREW THE BRACKET AT THE
MACHINE IN THE BACK

M6 DIN 934

M6x20 DIN 933

4.2x13
DIN 7981

SCREW THE BRACKET AT THE
MACHINE IN FRONT

STEP 5: PLACE THE FRONT GRILLE AT THE MACHINE

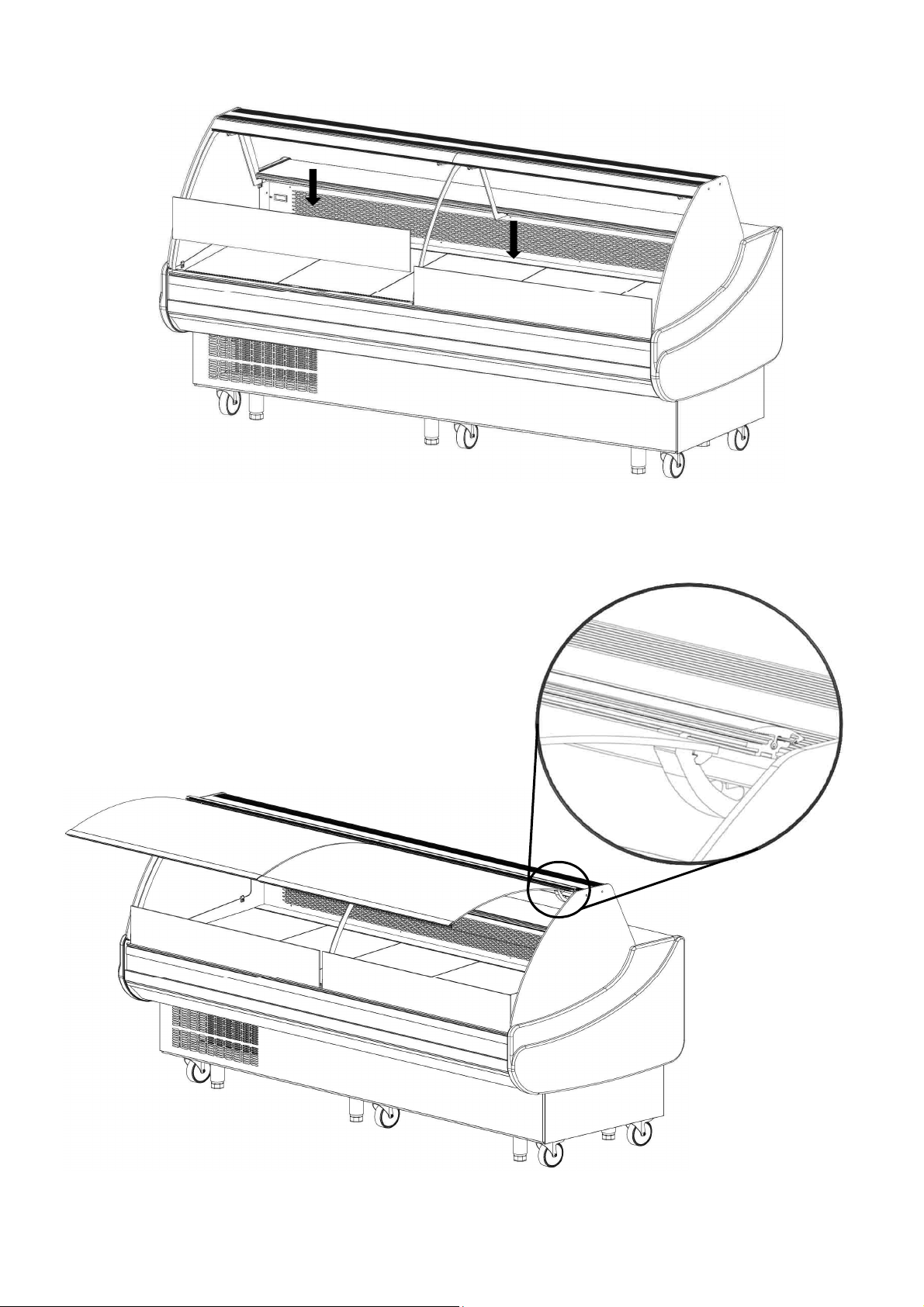

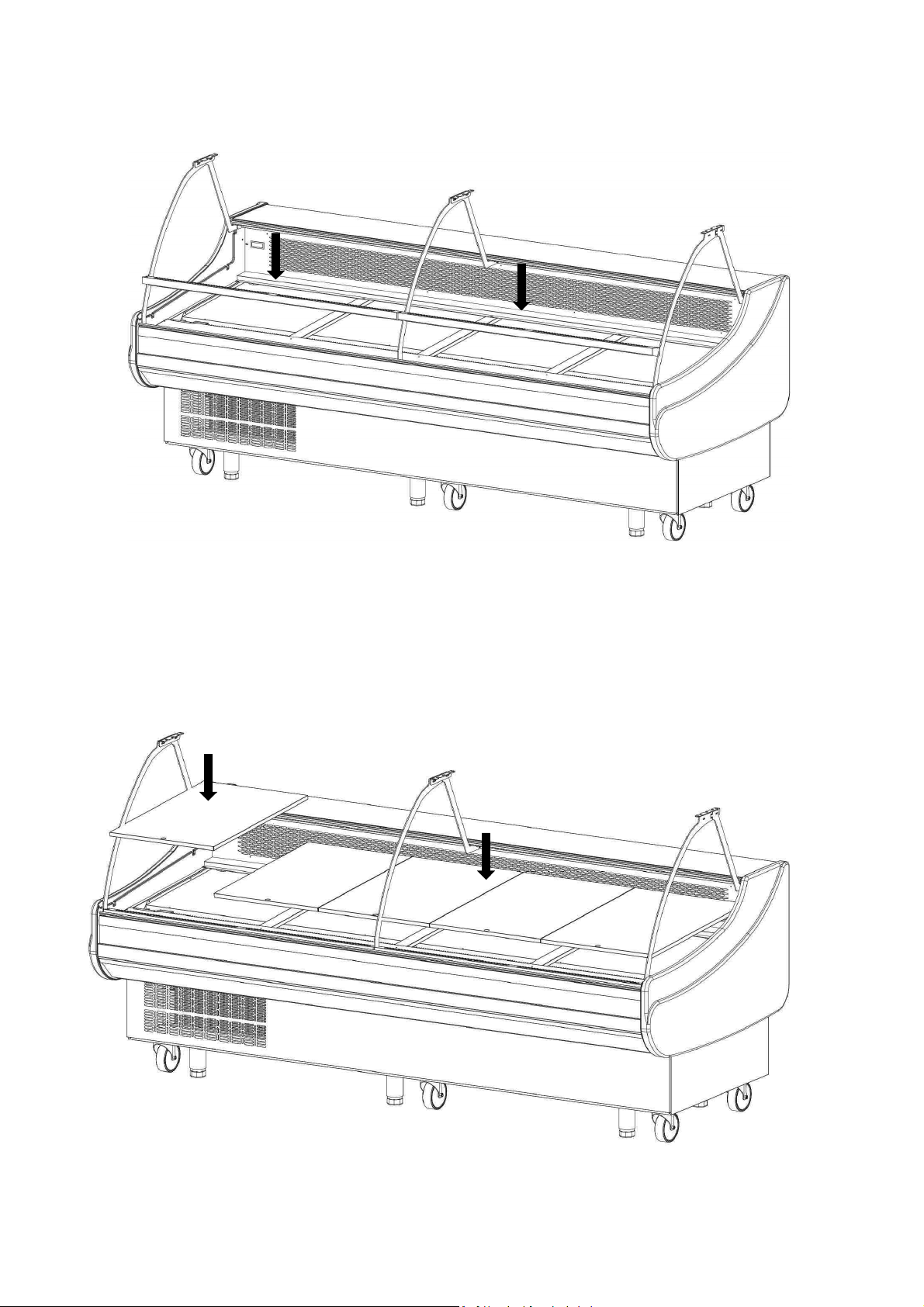

STEP 6: PLACE THE DISPLAY AREA ELEMENTS AT THE MACHINE

PLACING THEALUMINUMWORKTOP

0

6

CVE‐10‐E

M6x10EXAG,DIN933
INOX

ATTENTION:
NOTSCREW(ONLY
PLACETHESCREWS)
TOHAVETHE
POSSIBILITYTO
ADJUSTTHE
WORKTOP
POSITIONINNEXT
STEPS

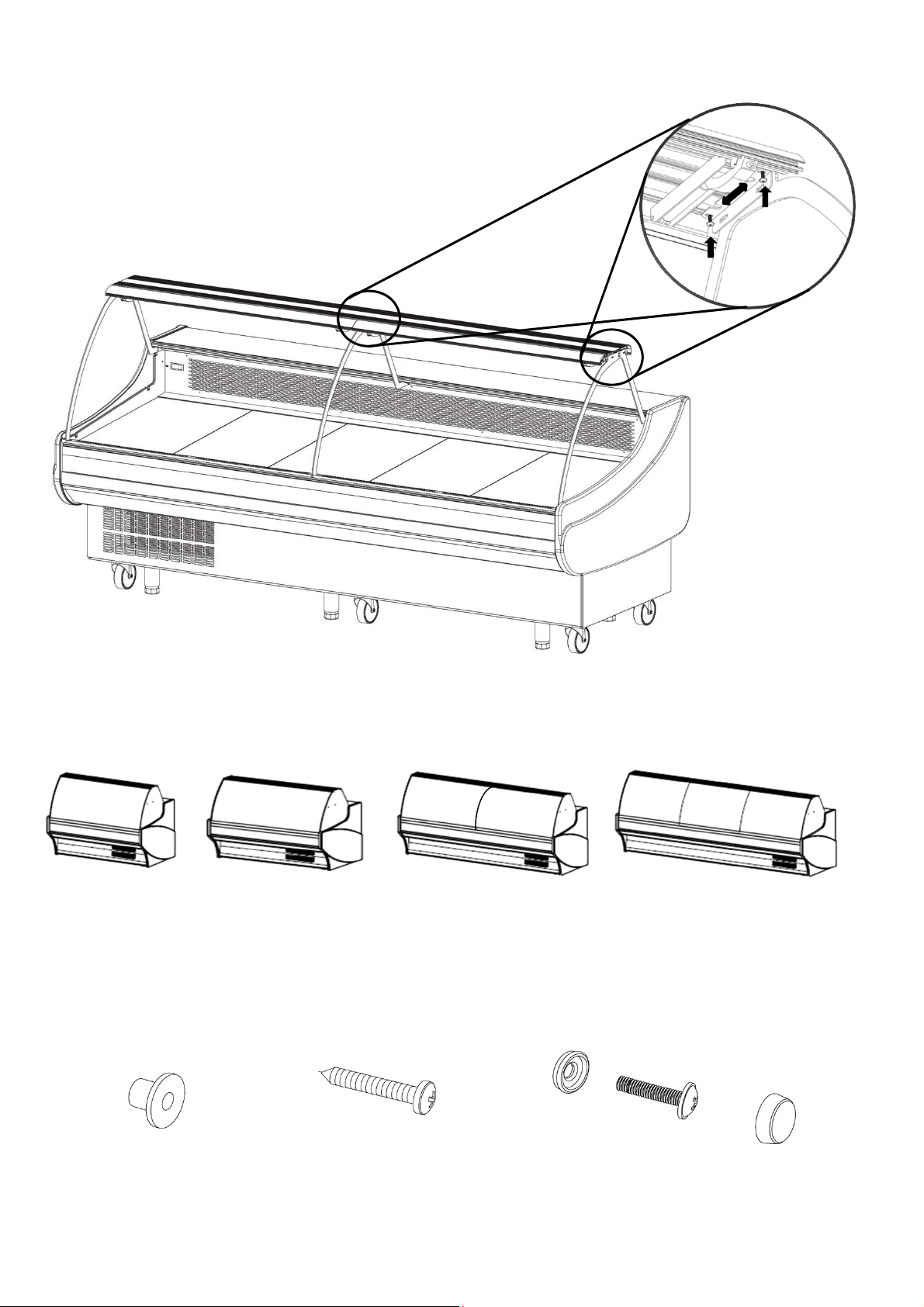

KINDOFGLASSES

VE‐10E‐15‐C

KINDOFSCREWS

x1

VE‐10E‐20‐C

4.8x25DINCE

x

VE‐10E‐25‐C

x4

VE‐10E‐30‐C

M4x20DIN7985

x4

x4

GLASSES

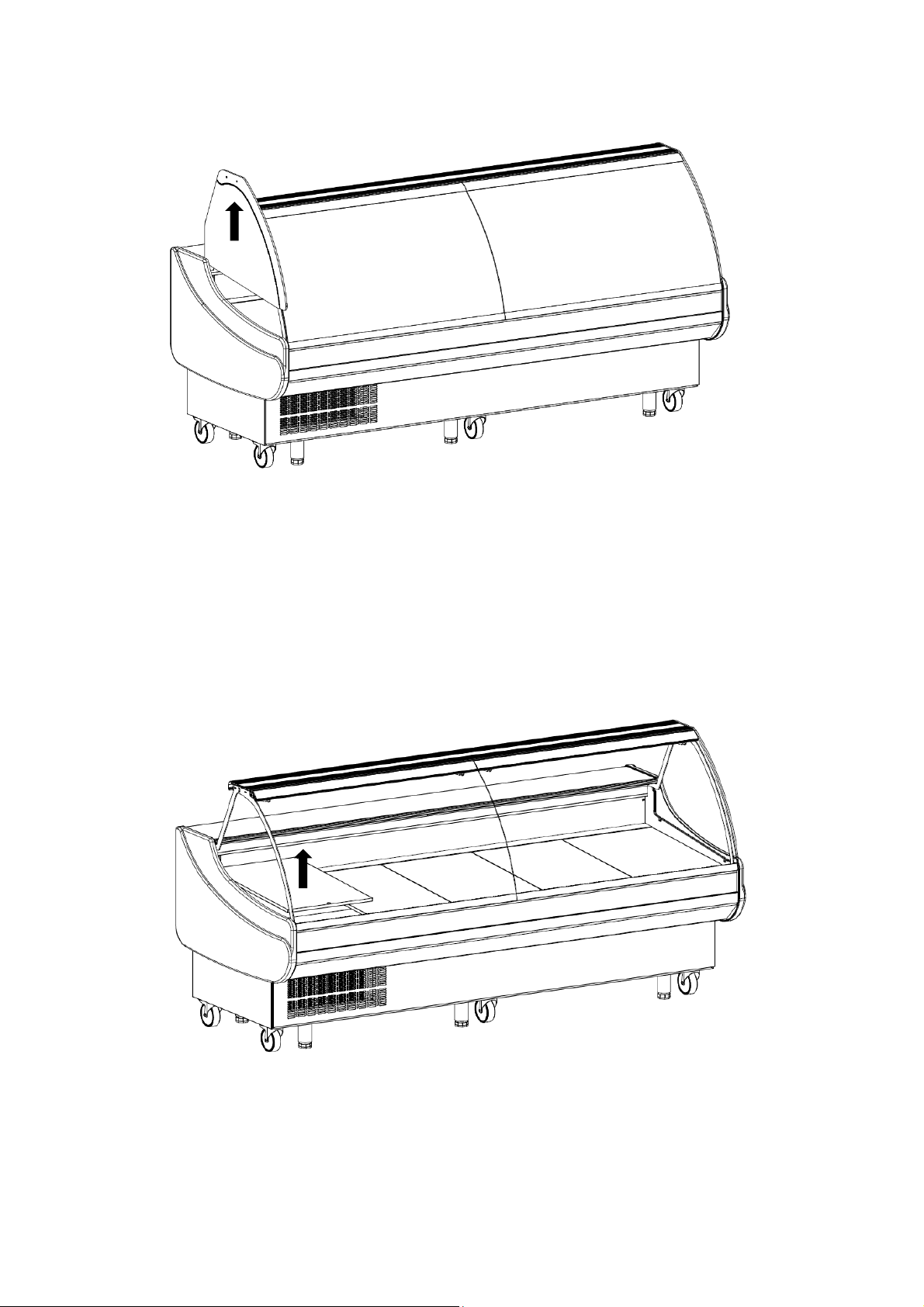

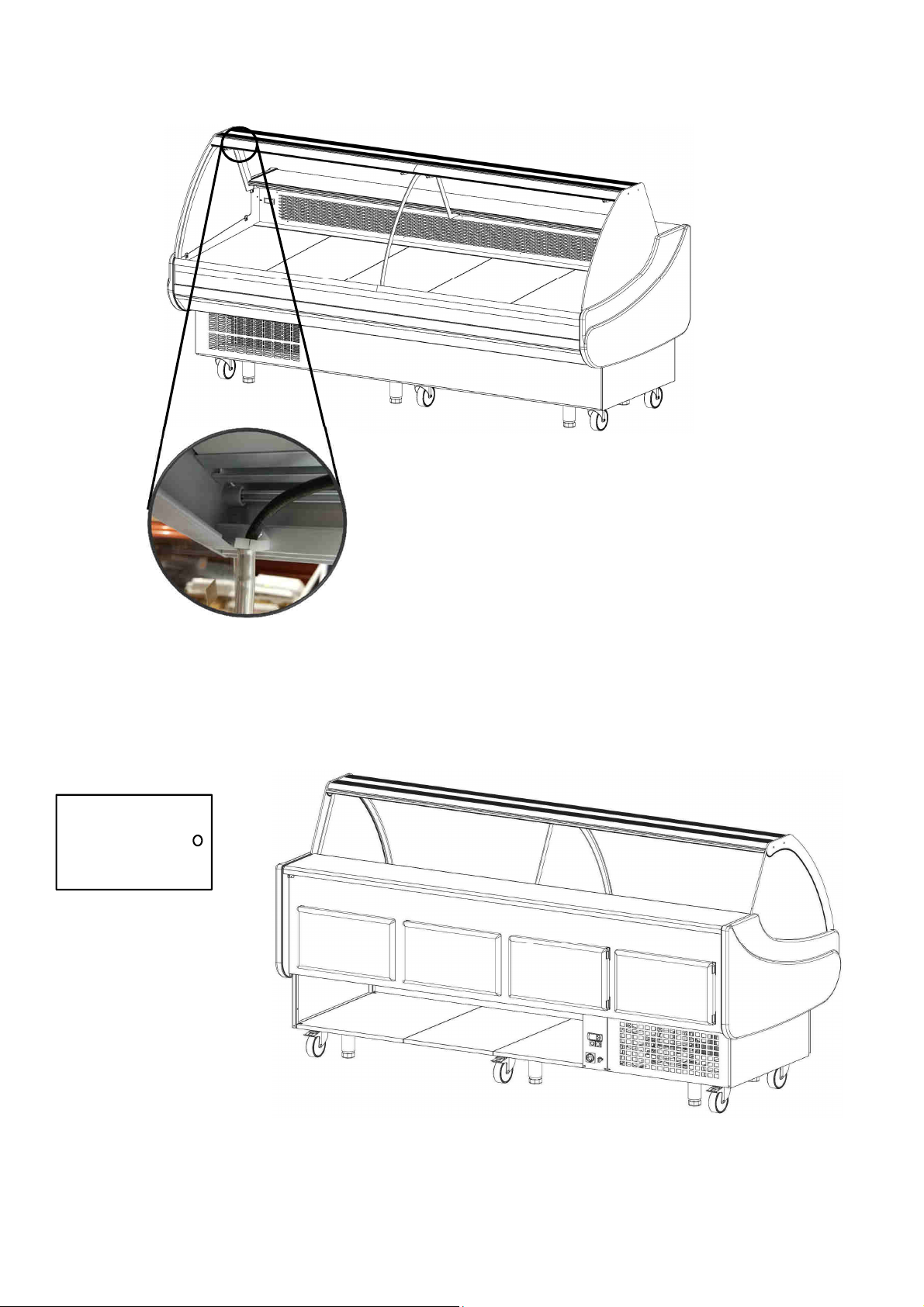

STEP 1: PLACE THE GLASSES IN THE SIDE PANEL

CVE-10-E

STEP 2: SCREW THE GLASSES AT THE ALUMINIUM UPPER PROFILE

ATTENTION:
WORKTOP POSSITION CAN BE
ADJUSTED (LEFT/RIGHT)

DURING THIS STEP TO ADJUST
THE POSITION OF GLASSES

M4x20 DIN 7985 ZIN

ATTENTION:
WORKTOP
POSSITION CAN
BE ADJUSTED
(FRONT/BACK)

DURING THIS STEP

4.8x25 DIN CE

STEP 3: SCREW BOTH GLASSES AT THE SIDE PANEL

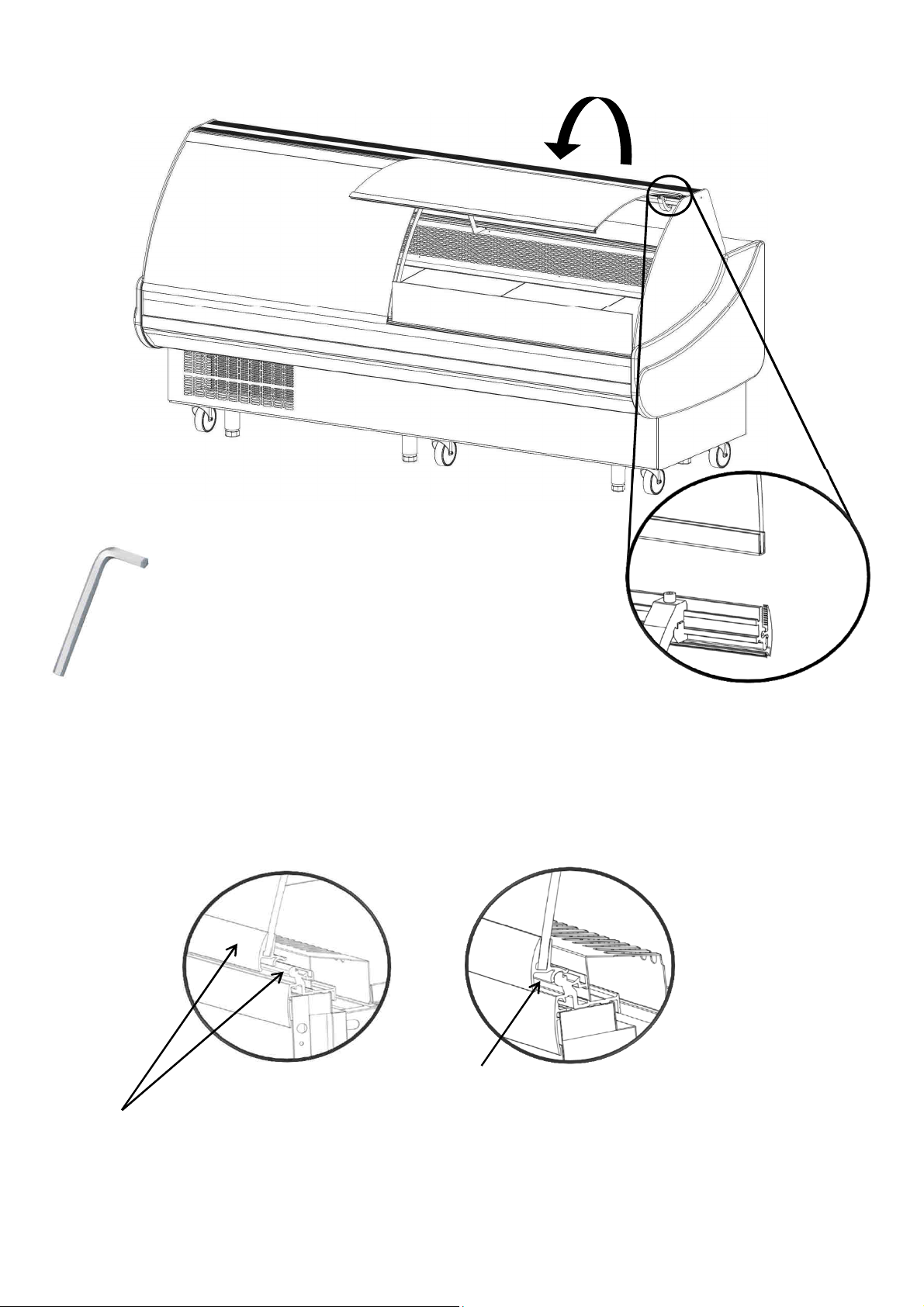

STEP 4: PUT THE ANTI-FOG

CVE-10-E

STEP 5: PLACE THE GLASSES

STEP 6: PLACE THE FRONT GLASSES IN THE JAW AND SCREW

M6x10 DIN 913

ALLEN NUMBER 5

STEP 8: CHECK ADJUSTMENT

TWO DIFFERENT PROFILES

ATTENTION:
CHECK ADJUSTMENT BETWEEN
ALUMINIUM PROFILES

3.ELECTRIC CONNECTION

x2

x3

x4

x4

PLEXI SLIDING DOORS

CVE-10E-15

CVE-10E-20

CVE-10E-25

CVE-10E-30

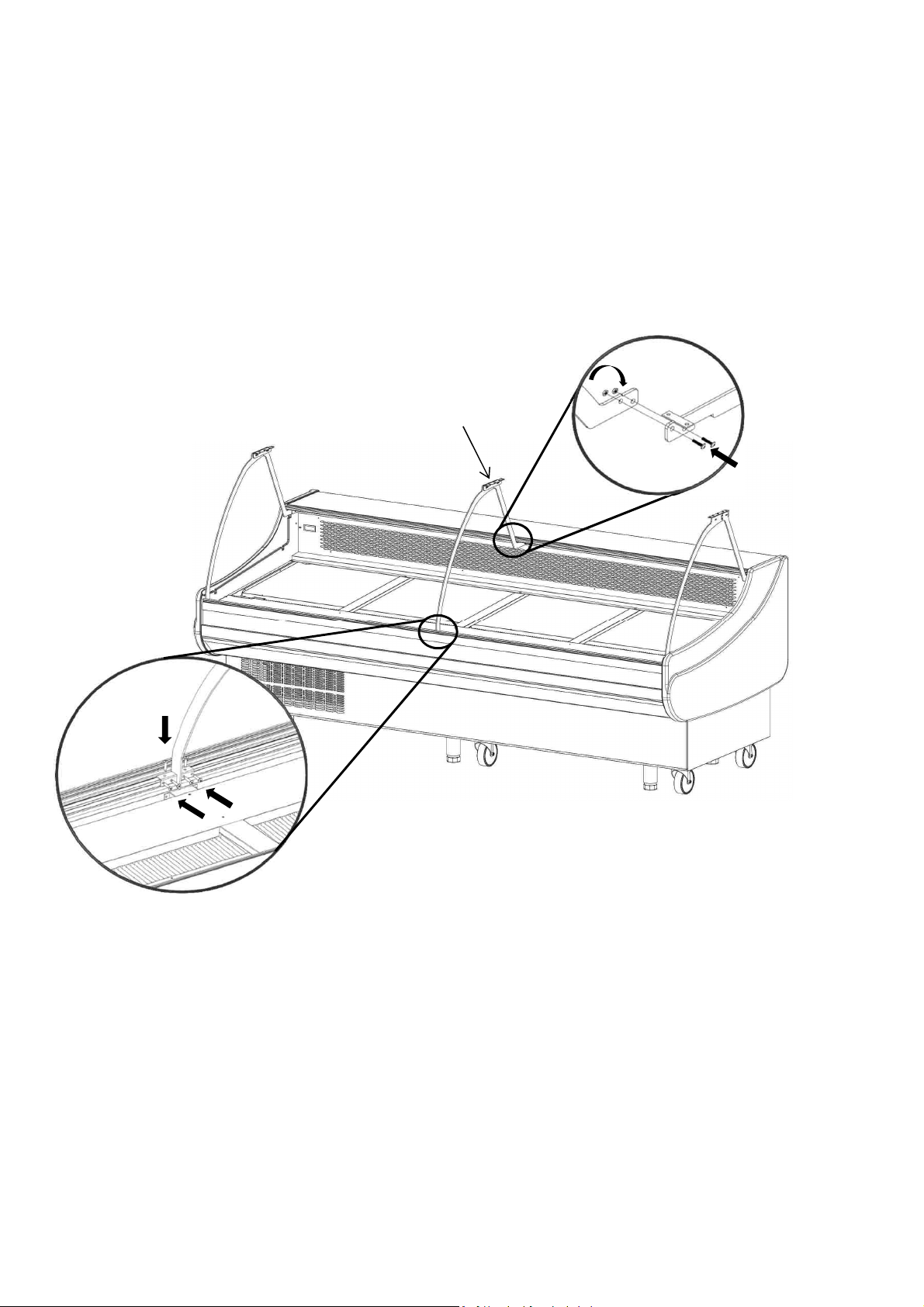

PLACE THE PLEXI DOORS AT THE LOWER SUPPORT AND AT THE UPPER ALUMINIUM PROFILE

1

2

REPEAT THE PROCESS WITH ALL THE PLEXI DOORS

4. JOINT KIT ASSEMBLY

x2

x3

x8

STOCKTAKING

x1

Always screw manually, do not use electrical tools

M8x20 ALLEN

M8x50 ALLEN

STEP 1: UNSCREW THE GLASS

M4x20 DIN 7985 ZIN

M8x10 EXAG DIN 933
INOX

"L" JOINT

M8 DIN 934

4.2x13 DIN
798

ALUMINIUM PLATE

FLAT WASHER

x2x4

4.8x25 DIN CE

STEP 2: REMOVE GLASS

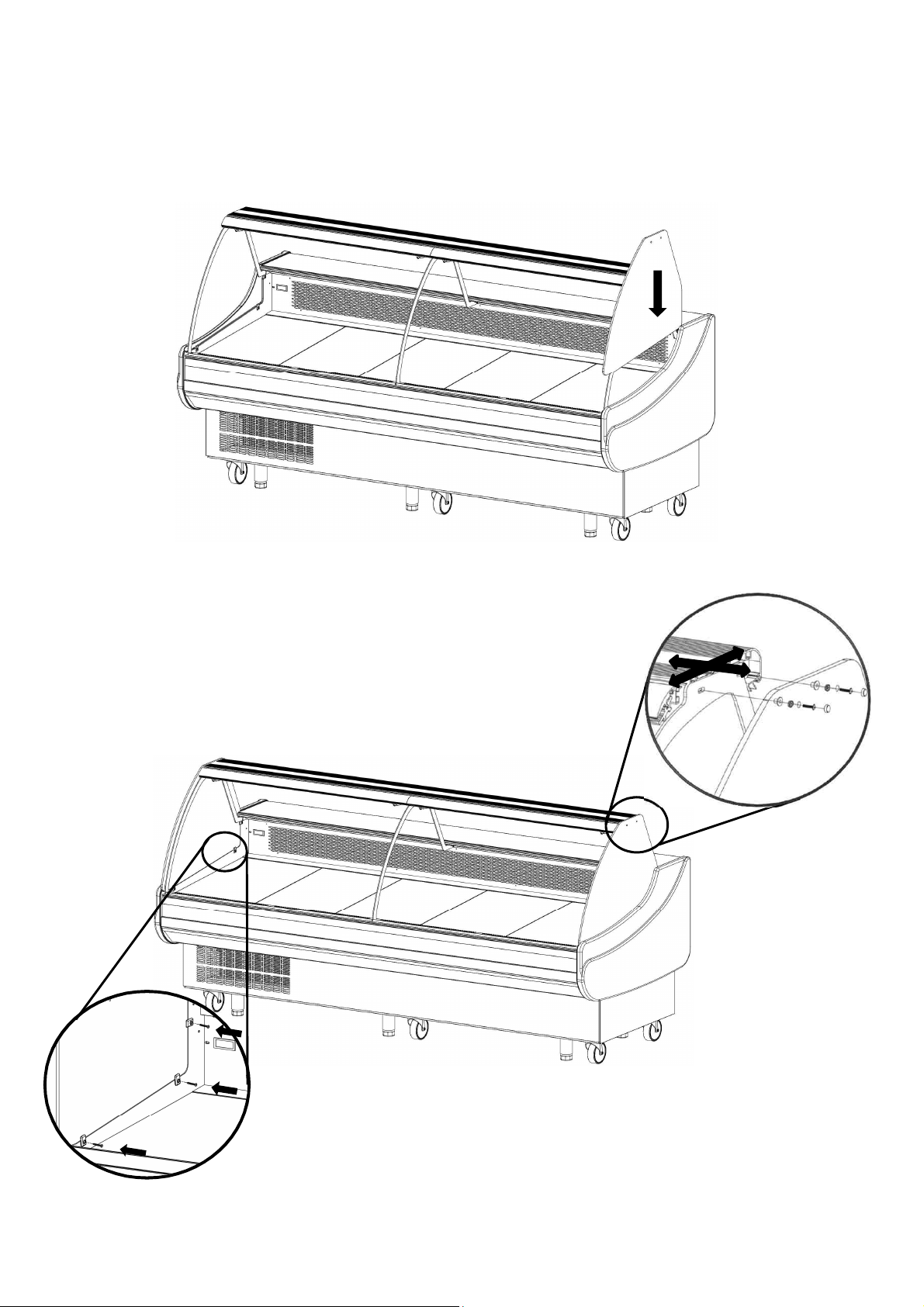

STEP 3: REMOVE DISPLAY AREA ELEMENTS

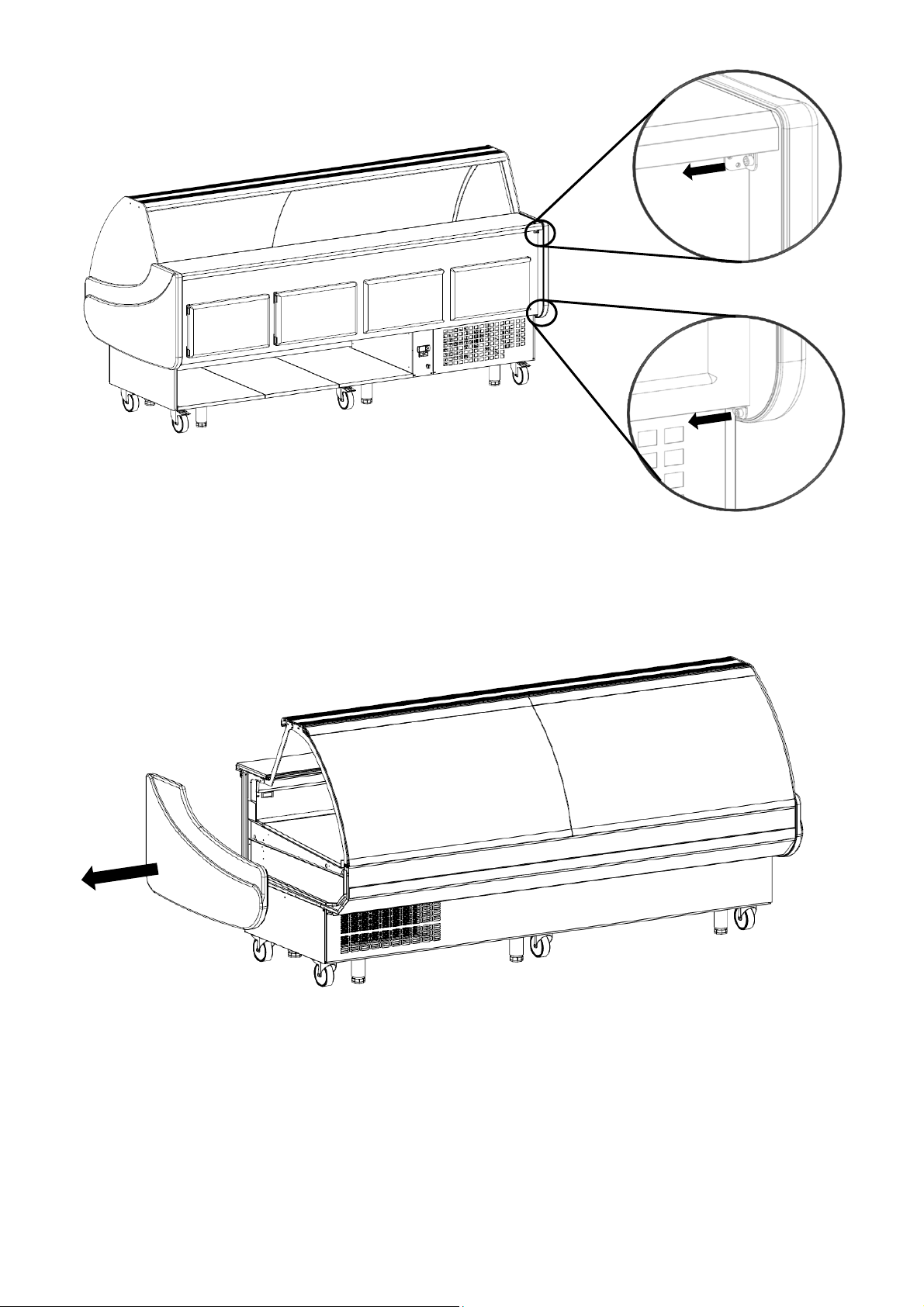

STEP 4: REMOVE THE SIDE PANEL FROM INTERIOR

STEP 5: UNSCREW THE SIDE PANEL COMPLETELY

STEP 6: ALSO SCREWS FROM THE BACK SIDE

STEP 7: REMOVE THE SIDE PANEL

STEP 8: REMOVE DISPLAY AREA ELEMENTS

STEP 9: REMOVE FRONT GRILL (DISPLAY AREA)

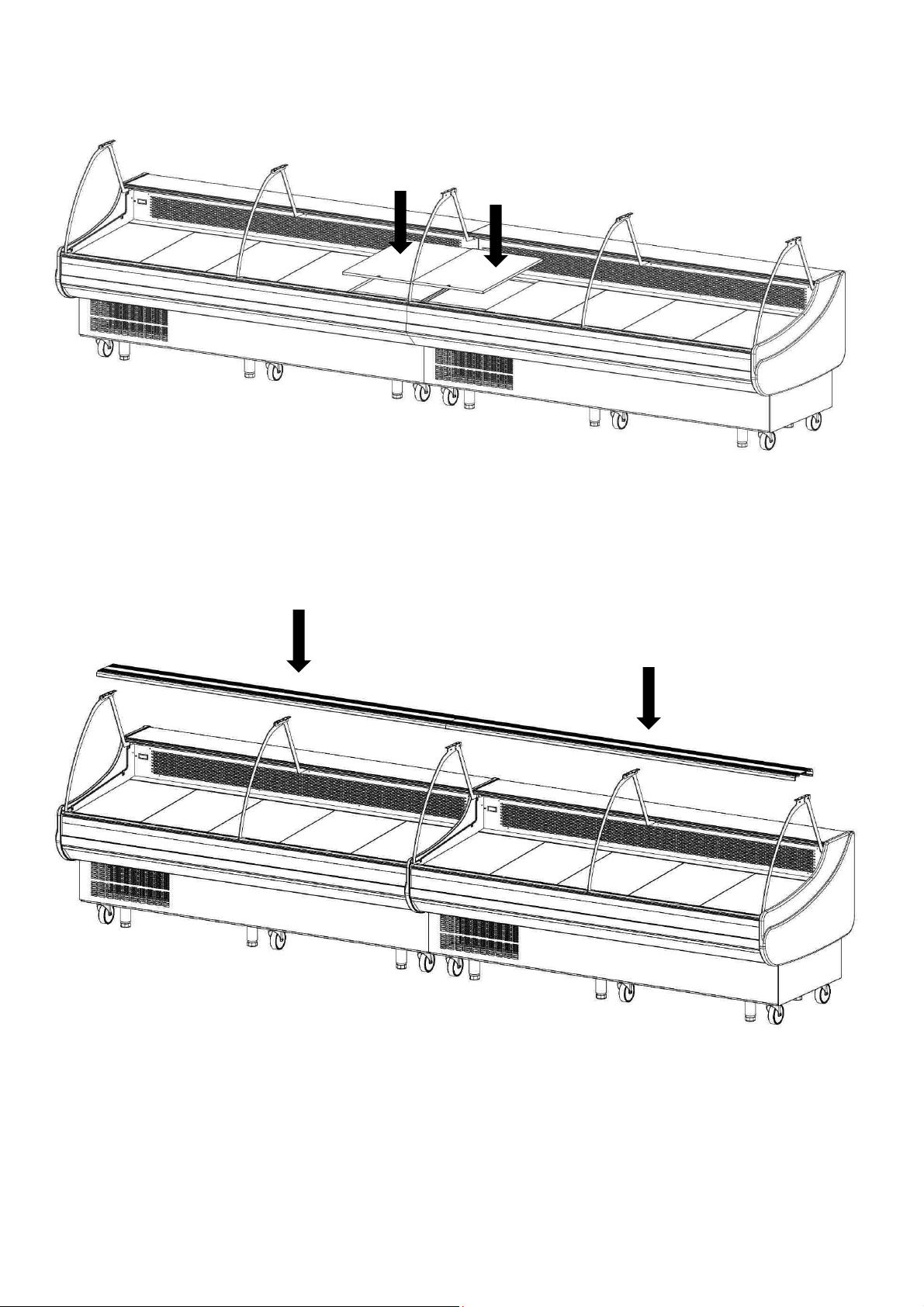

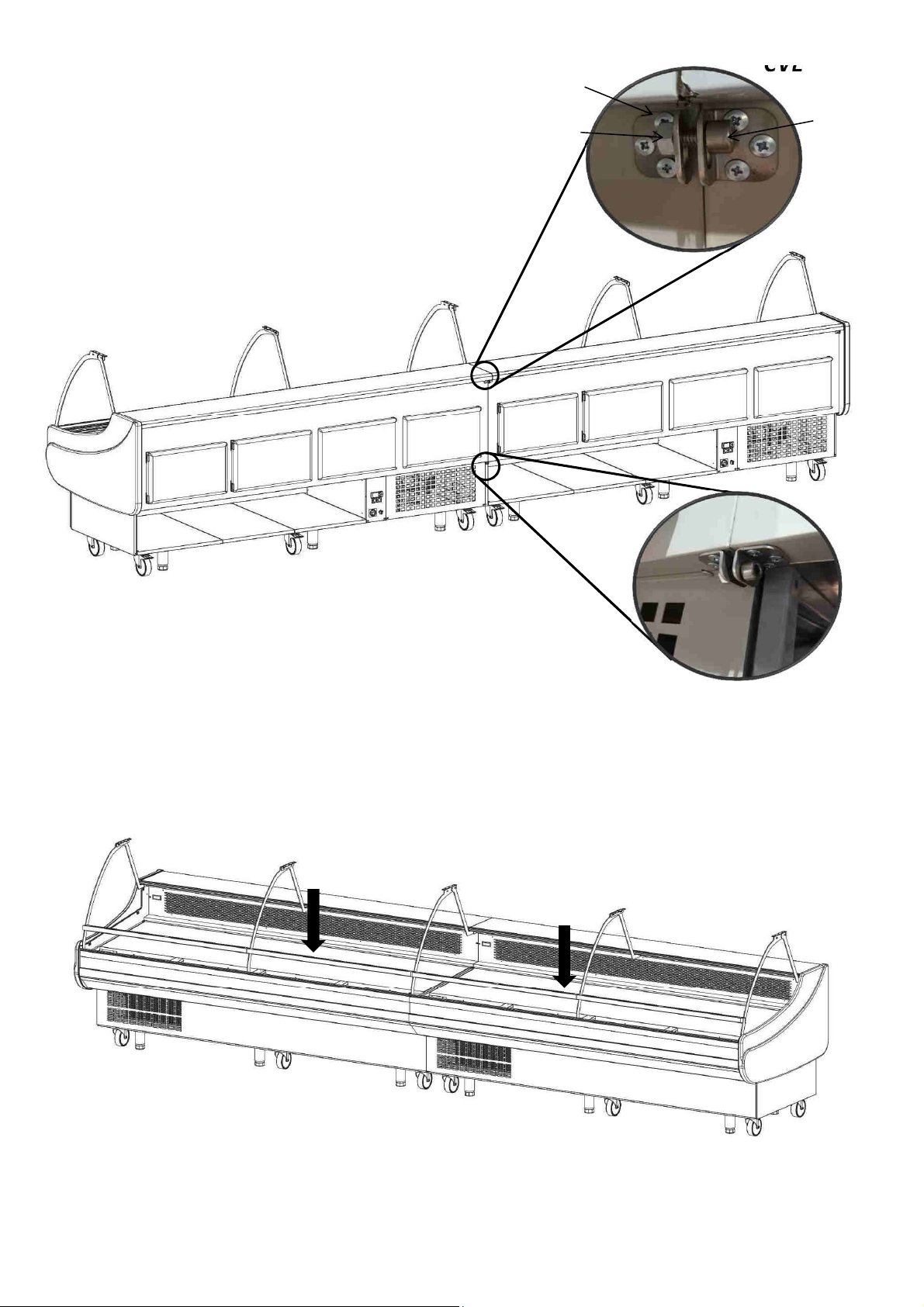

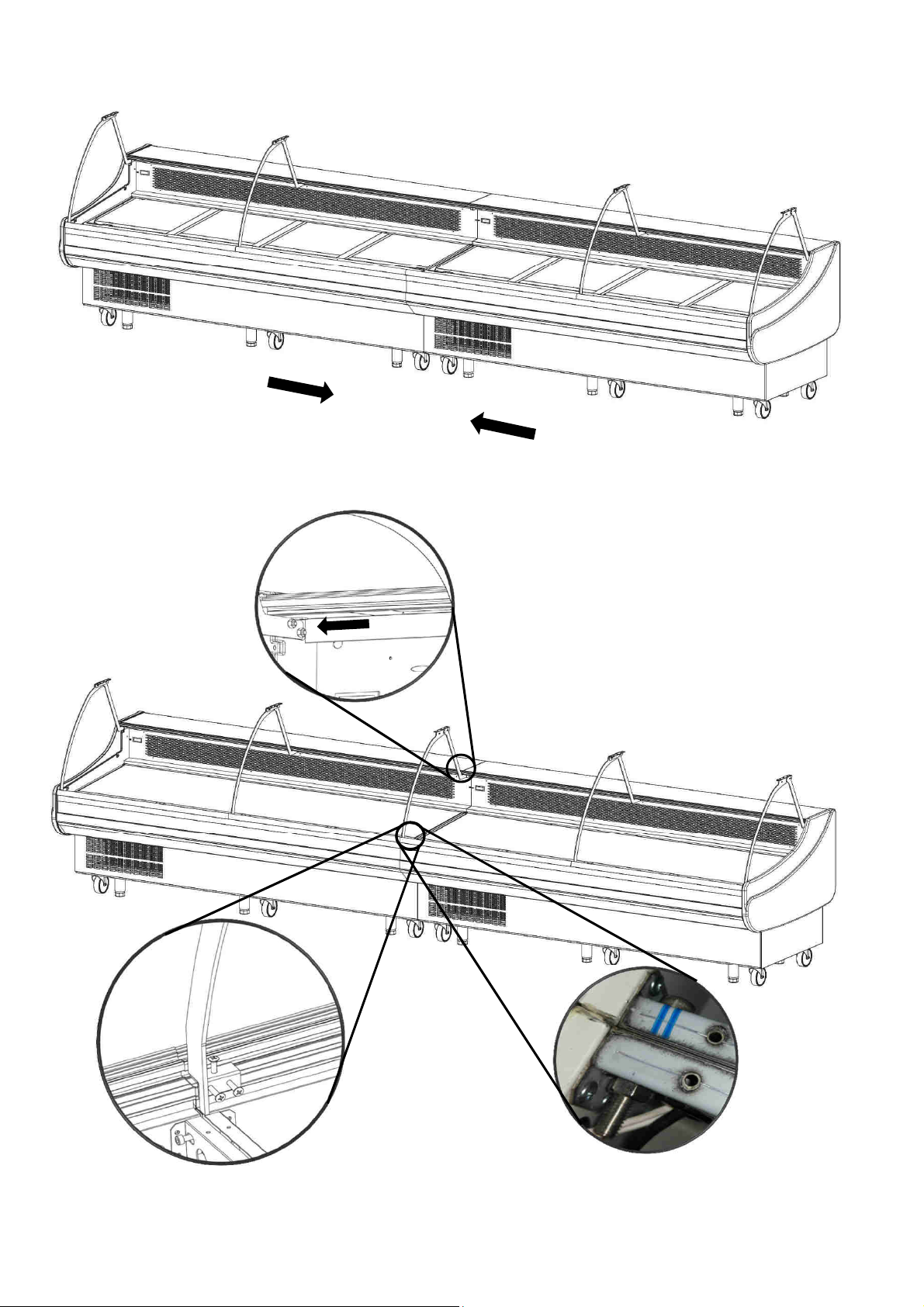

STEP 10: JOINING THE MACHINES

STEP 11: SCREW THE BRAKET AT MACHINE

SCREW THE BRACKET

AT THE MACHINE

M8 DIN 934

SCREW THE BRACKET AT THE
MACHINE IN FRONT

M8x50 ALLEN + M8
DIN 934

4.2x13 DIN 7981

CVE-10-E

STEP 12: SCREW THE BACK BRAKETS

M8x20 DIN 933

M8 DIN 934

STEP 13: PLACE THE FRONT GRILLE

STEP 14: PLACE THE DISPLAY AREA ELEMENTS

CVE-10-E

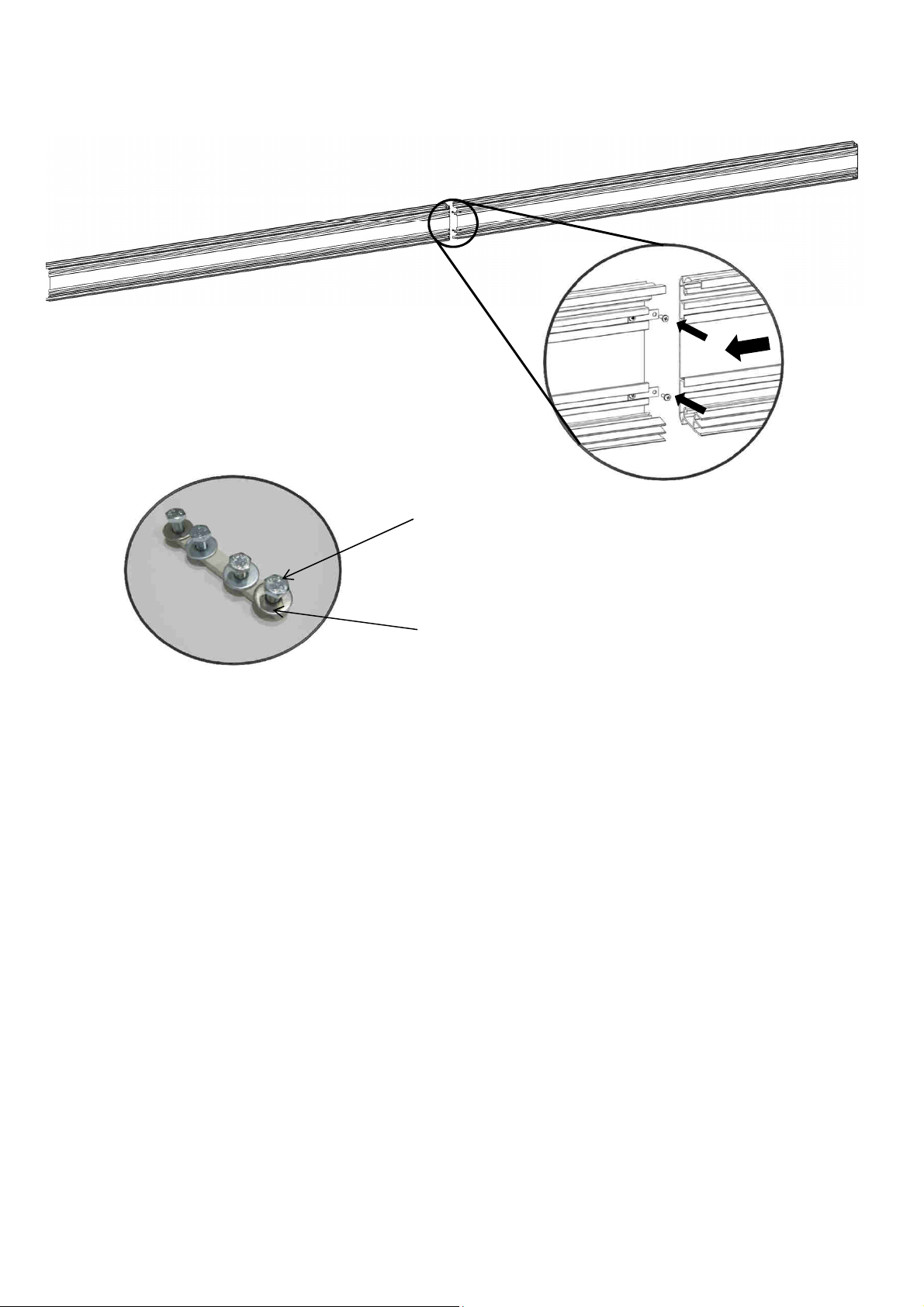

STEP 15: WORKTOP ASSEMBLY

BOTTOM WORKTOP VIEW

CVE-10-E

FLAT WASHER
ALUMINIUM PLATE

M6x10 din 933

5. CLEANING AND MAINTENANCE

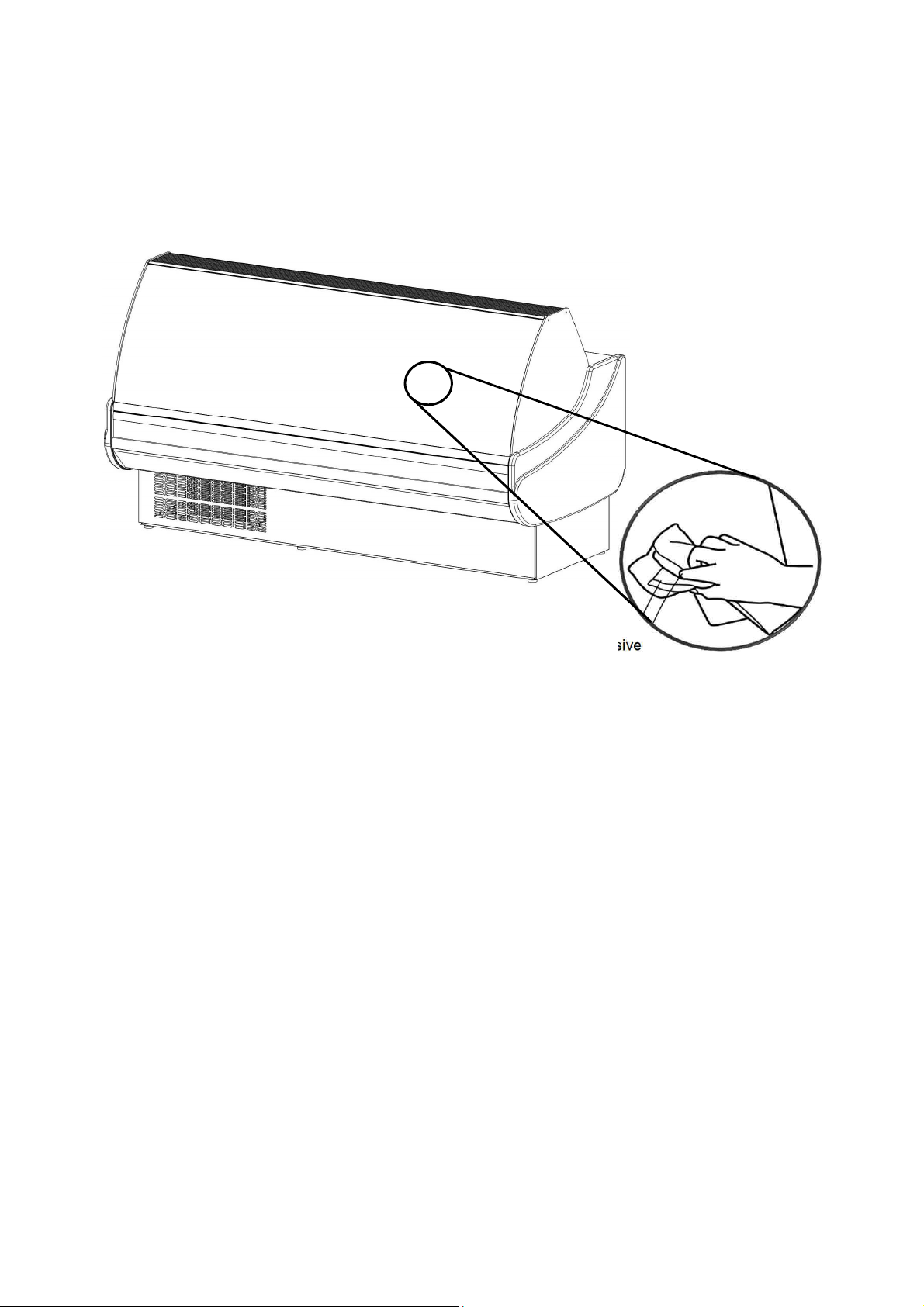

*NOTE: Clean the unit with soap and water, never use abrasive

or corrosive products because can damage the unit. Motor

cleaning, follow user manual instructions

6. SPARE PARTS

103500100 103500022 103500068

U

350100025 350100073 350100027 350100026

4 CONJUNTO PISTON PISTON ASSEMBLY 340100054 340100054 340100054 340100054

5 PERFIL MORDAZA CRI STAL CRYSTAL BAND PROFILE 151300271 151300271 151300271 151300271

6 ENCIMERA SUPERIOR TOP WO RKTO P 151300270 151300270 151300270 151300270

7 LED ENCIMERA LED LIGH TING 2 x 212900158 4 x 212900171 4 x 212900149 2 x 212900158

8 ESTANTE INTERMEDIO INTERMEDIA SHELF 100100088 100100091 100100093 100100103

9 DIFUSOR PANEL DE ABEJA HONEYCOMB DIFUSSER 390200041 390200042 390200039 390200040

10 REJILLA PROTEC. EVAPO RADOR PROTE C GROUP GRID 9A0111429 9A0111432 9A0111435 9A0111438

11 PUER TA PL AST ICA COM PLETA COMPLET PLASTIC DOOR 640700002 640700002 640700002 640700002

1B COSTADO ABS IZQ ABS SI DE UNIT LEFT 610100687 610100687 610100687 610100687

Nº DESCRIPCION DESCRIPCION CVE-10E-15 PVP CVE-10E-20 PVP CVE-10E-25 PVP CVE-10E-30 PVP

1A COSTADO ABS DER ABS SI DE UNIT RIGHT 610100688 610100688 610100688 610100688

2B VIDR IO C OST ADO LEFT LEFT SIDE GLASS 350500226 350500226 350500226 350500226

2A VIDRIO COSTADO DCHO RIGHT SIDE GLASS 350500227 350500227 350500227 350500227

3-A BRAZO DERECHO RIGHT ARM 622100228 622100228 622100228 622100228

3-B BRAZO IZQUIERDO LEFT ARM 622100229 622100229 622100229 622100229

12 REJILLA TRASERA GRU PO BACK GR ID GROUP 9K0100123 9K0100123 9K0100123 9K0100123

13-A CO STADO DERECHO CHASIS RIGHT SIDE CHASIS 9K0002253 9K0002253 9K0002253 9K00 02253

13-B COSTADO IZQU IERDO CHASIS LEFT SIDE CHASIS 9K0002254 9K0002254 9K0002254 9K00 02254

14 SONDA AMBIENTE ENVIROMENT PROBE 213500014 213500014 213500014 213500014

15 SONDA FILTRO FILTER PROBE 213500014 213500014 213500014 213500014

16A MANGUERA DE RED ELECTRI CAL HOSE 214100017 214100017 214100017 214100017

16B 2º MANGUERA DE RED 25-30 2º ELECTRICAL HOSE - - 214100014 214100014

17 CUADRO D E MAN DOS PANEL CO NTROL 9M011 1000 9M0111000 9M0111 000 9M0111000

18 CONTROL NIVEL D E AGUA WATER LEVEL SWITCH 213500023 213500023 213500023 213500023

19 TERMOSTATO TERMOSTAT 213500003 213500003 213500003 213500003

20 IN TERRUPTOR VERDE GREEN ON/OFF SWITC H 211300002 211300002 21130000 2 211300002

21 IN TERRUPTOR AMBAR AM BER ON/OFF SWITCH 211300001 211300001 211300001 211300001

22 PISACABLES CABLE HOLDER 130100030 130100030 130100030 130100030

23 FUENTE ALIMENTACION LED POWER SUPPLY 212900183 212900183 212900183 212900184

24 SONDA P RESENCIA DE AGUA WATER LEVEL PROBE 213500016 213500016 213500016 213500016

25 RESISTENCIA 800W RESISTANCE 800W 2125 000 19 212500019 212500019 212500019

26 BANDEJA D E EVAPORACION DRIP EVAPORATI ON TRY 341100002 341100002 341100002 341100002

27 VENTIL AD OR CONDENSADOR FAN CONDENSER 210500011 210500011 210500011 210500011

28 CONDENSADOR CONDENSER 290200003 290200011 290200011 290200011

29 COMPRESOR COMPRESSOR 210100053 210100014 210100059 210100059

30 FILTRO FILTER 470100006 470100006 470100006 470100006

31 RUEDA GIRATORIA ROTATING WHEEL 341300031 341300031 341300031 341300031

32 PATA REGULABLE ADJUSTABLE LEG 342500003 342500003 342500003 342500003

33 PERFIL PAR AGOLPES BUMPER 151700209 151700210 151700211 151700212

34 DECORATI VO INFERIOR LOWE R DECORATION 1035 00029

35 REJILLA FRONTAL GRUPO FRONTAL GR ID GROUP 102100253 102100253 102100253 102100253

36 DECORACION FRON TAL FRONTAL DECORATION 102100254 102100255 102100256 102100257

37 VIDRIO FRONTAL MEDIO PUNTO FRONTA L GLASS MEDIUM RADI

38 VENTIL AD OR COMPACTO C OMPACT VENTILAT OR 2105 00009 210500009 210500009 210500009

39 SOP ORTE VENTILADORES C VE-10 FANS SU PORT CVE -10 9M000252 0 9M 0003902 9M0003931 9M 000 3957

40 EVAPORADO R EVAPORATOR 290100005 290100006 290100010 290100015

41 TERMOMETRO TERMOMETER 213500017 213500017 213500017 213500017
