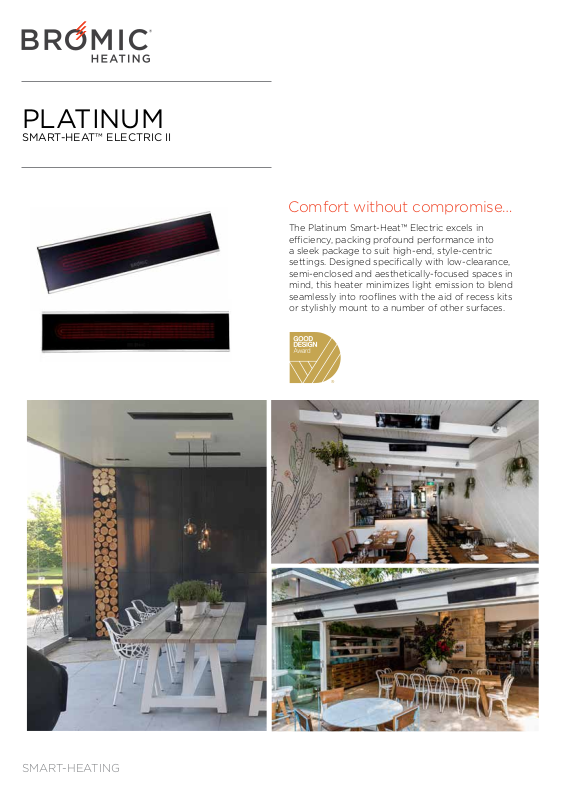

Page 1
PLATINUM
SMART-HEAT™ ELECTRIC II
Comfort without compromise…
The Platinum Smart-Heat™ Electric excels in
efficiency, packing profound performance into
a sleek package to suit high-end, style-centric
settings. Designed specifically with low-clearance,
semi-enclosed and aesthetically-focused spaces in
mind, this heater minimizes light emission to blend
seamlessly into rooflines with the aid of recess kits
or stylishly mount to a number of other surfaces.
SMART-HEATING
Page 2
PLATINUM
33”
7”
2”
8”
8”
SMART-HEAT™ ELECTRIC
FEATURES
Tinted Glass-Ceramic Screen
The Platinum’s signature screen
spreads comfort evenly across an
area while minimizing light emission
Wafer-Thin Design
Wall, ceiling and flush-mounting
options allow subtle placement
of this compact heater practically
anywhere!
Subtle Aesthetics
Elegantly understated to create
comfort while blending into the
environment
Precise Directional Heating
Accurately alter coverage through
simple bracket adjustment
BRACKET TYPES
Ultra-Durable Design
Stainless steel construction ensures
reliable heating for years to come
Tight Space Specialist
Minimal vertical clearance
requirements and a multitude of
mounting options offers versatility
to a variety of enclosed outdoor
areas
Ease Of Use
Single switch activation and smart
control compatibility creates setand-forget simplicity
Wireless Control Capabilities
Genuine wireless control
accessories allow seamless
integration of remote heating
output adjustment
HEATING AREAS:
2300W
6.5’9’
Heats approx 65 ft
2300W heating power
3400W
10’
2
Straight Bracket Angled Bracket
7”
33”
7”
2300W
SPECIFICATIONS
Model
Part No.
Heat Output (Watts)
Approximate area heated (ft2)
Electrical connection
Dimension (WxDxH)
Min. distance to combustible materials
Mounting height requirement to ground
Weight (Ibs)
Finish
Approval
1
Must only be installed by a licensed technician. Must complete “Pre-Installation Checklist” before installing 2The temperature will not exceed 65°C
above the ambient temperature at specified distances. Please consult material manufacturer for temperature ratings and suitability. Bromic Heating
takes no responsibility for material compliance.
and must comply with any additional jurisdictional requirements. Bromic takes not responsibility for incorrect or non-compliant installations
220-240V - A.C. - 50/60Hz 220-240V - A.C. - 50/60Hz
2
3
3
Installation must be performed in accordance with AS5601 installation code (or relevant standard)
Platinum Smart-Heat
BH0320003 BH0320005
2300W 3400W
2
65 ft
33” x 7” x 2” 50.2” x 7” x 2”
Side: 10” Side: 18”
Wall Mount: 71”, Ceiling Mount: 94”
16.5 Ibs 22 Ibs
Brushed stainless steel AISI 304
Intertek: 5001799
TM
Electric II
2
108 ft
12’
Heats approx 108 ft
*Heat area dependent on ambient temperature and wind.
Optimum conditions experienced at approx 15.5°C/ 60°F &
in a low wind covered environment .
50.2”
3400W
3400W heating power
2”
MINIMUM INSTALLATION CLEARANCES
WALL MOUNTING
CEILING
6”
6.5”
83.5”
71”
FLOOR
CEILING MOUNTING
10” (2300w Model)
18” (3400w Model)
102”
2
8”
(FACE DOWN)
CEILING
FLOOR
8”
94”
SMART-HEATING
