Active Holder
for Fixed Installation
New improved charger
The 2nd Generation Molex active holder has
now been released. The charger has many
improved features, such as
- New overmoulded connector
- Improved protection against peaks
- Built-in resettable fuse in the box (2 A)
- Improved overload protection
- New box design, with ventilation holes
- More efficient charging, generates less heat
The product is CE and E approved.
Connect the power cable with a 2 A fuse.
5 Volt out.
2 A charger.
12/24 Volt.
Professional installation recommended.
2nd Generation
With Molex adapter system

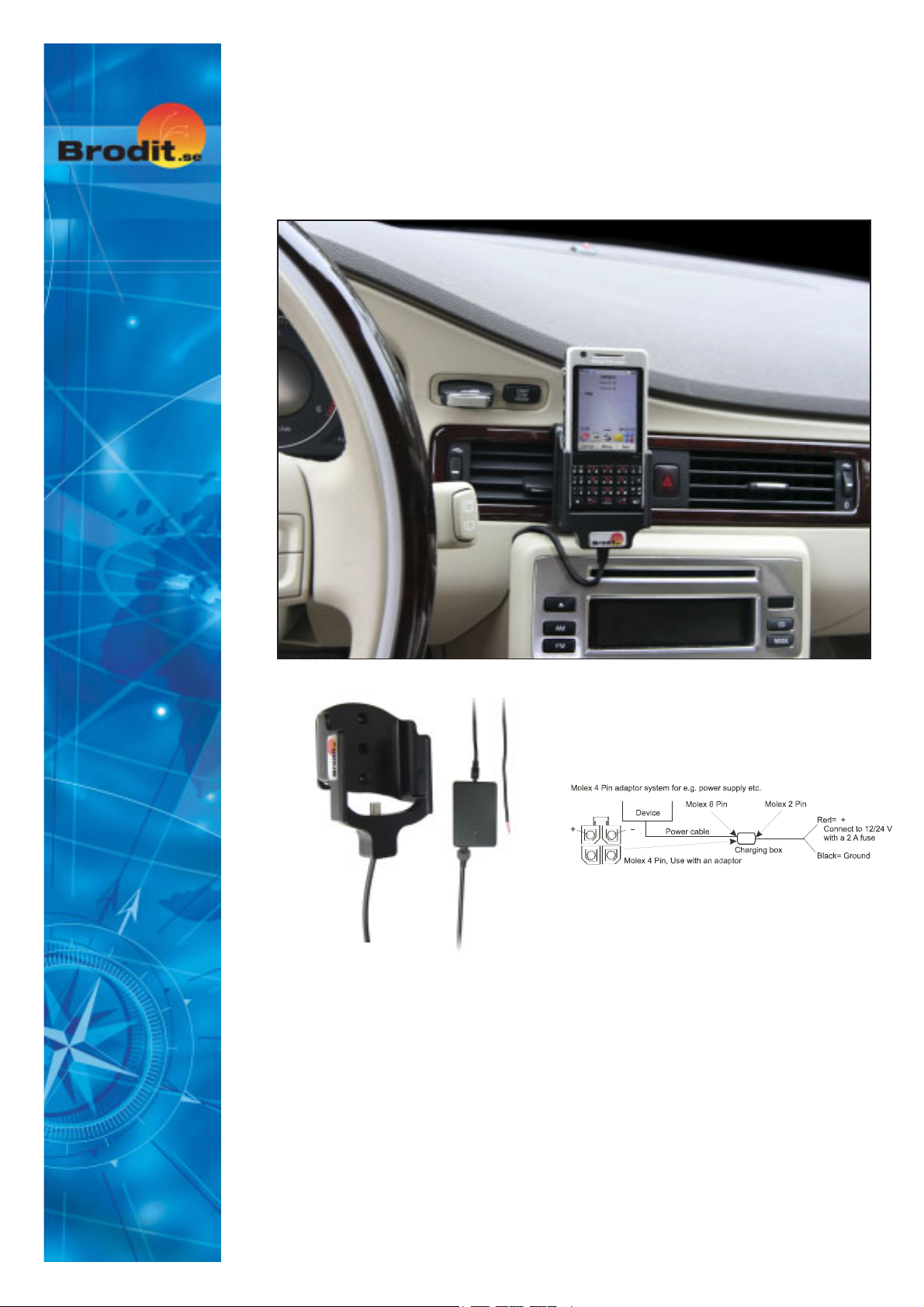

An active holder with a straight cable with
open end for fixed installation and a cable with
Molex adapter system. The cables are to be
connected inside the dashboard, this gives a
discreet, neat installation without cables
hanging over the interior.
You can choose to use the holder as an active
holder only for charging, or to connect an
adapter to the Molex connector for additional
features. Then you can use the holder also for
power supply of a GPS receiver or other own
solutions. Can not be used for data communication
The holder is attached onto a tilt swivel so it
can be adjusted in order to avoid light
reflection. Attach onto the ProClip Mounting
Platform.
232122 847
Tel +46 (0)505 109 00
Fax +46 (0)505 445 72
Gesällvägen 8
546 34 Karlsborg, Sweden
info@brodit.se
www.brodit.se
Item no Molex Pin 4 to... The adapter is e.g. for
945070 DC, 4mm * Bluetooth GPS: Bluetooth Belkin, Emtac, GlobalSat BT-308, BT -328, HP Bluetooth GP, Rikaline
GPS-6030, Socket BT GPS, SysOn Chip Bluetooth, TomTom, Royaltek RBT-1000 etc.
945073 DC, 3,5 mm * Bluetooth GPS: Navman 4410, Navman 4100, Adapt, Vicsat BT GPS etc.
945074 Mini USB * Bluetooth GPS: Holux Bluetooth, Navigon Bluetooth, GlobalSat BT-539 etc.
945078 RX/TX/Ground Open cable ends.
Adapter cables With an adapter cable connected to the Molex Pin 4 adapter, you can get the connector of your choice.
945070
945073 945074 945078
Active holder for fixed installation, with Molex adapter system
Item no Make Model
971114 BlackBerry 8120
971114 BlackBerry Pearl 8100
971206 BlackBerry Pearl 8120
971206 BlackBerry Pearl 8130
971152 HP iPAQ 500 Series
971086 HTC Breeze
971086 HTC MTeoR
971096 HTC Oxygen
971096 HTC S310
971196 HTC S630
971153 HTC S710
971154 HTC S710
971192 HTC S730
971273 HTC S740
971042 HTC Tornado Noble
971041 HTC Tornado Tempo
971086 iMate SP JAS
971959 iMate SP3
971975 iMate SP3i
971041 iMate SP5
971042 iMate SP5m
971968 Motorola RAZR V3
971968 Motorola RAZR V3c
971968 Motorola RAZR V3i
971189 Motorola RAZR2 V9m
971204 Nokia 2600 Classic
971197 Nokia 2630
971162 Nokia 3109
971162 Nokia 3110 Classic
971244 Nokia 3120 Classic
971227 Nokia 5310
971021 Nokia 6020
971021 Nokia 6021
971164 Nokia 6110 Navigator
971167 Nokia 6120 Classic
971909 Nokia 6220
971243 Nokia 6220 Classic
971909 Nokia 6230
971082 Nokia 6233
971131 Nokia 6300
971131 Nokia 6301
971184 Nokia 6500 Classic
971132 Nokia E50
971180 Nokia E51
971098 Nokia E61
971170 Nokia E61i
Item no Make Model
971098 Nokia E62
971147 Nokia E65
971242 Nokia E71
971165 Nokia E90
971166 Nokia E90
971120 Nokia N73
971232 Nokia N78
971179 Nokia N81
971198 Nokia N82
971156 Nokia N95 4GB
971178 Nokia N95 8GB
971268 Palm Treo Pro
971959 Qtek 8010
971975 Qtek 8020
971042 Qtek 8300
971041 Qtek 8310
971228 Samsung SGH-I200
971222 Samsung SGH-M110
971236 Samsung SGH-U900
971236 Samsung Soul
971200 Sonim XP1
971233 Sony Ericsson C702
971241 Sony Ericsson C902
971270 Sony Ericsson C905
971266 Sony Ericsson Xperia X1
971234 Sony Ericsson G700
971231 Sony Ericsson G900
971174 Sony Ericsson K530i
971144 Sony Ericsson K550
971144 Sony Ericsson K550i
971095 Sony Ericsson K800i
971163 Sony Ericsson K810i
971183 Sony Ericsson K850i
971171 Sony Ericsson P1i
971099 Sony Ericsson P990i
971175 Sony Ericsson T650i
971174 Sony Ericsson W660i
971124 Sony Ericsson W850i
971221 Sony Ericsson W890
971220 Sony Ericsson W910
971201 Sony Ericsson W960i
971225 Sony Ericsson Z770i
971975 T-Mobile SDA
971153 Vodafone 1415
971154 Vodafone 1415
971975 Xphone II
