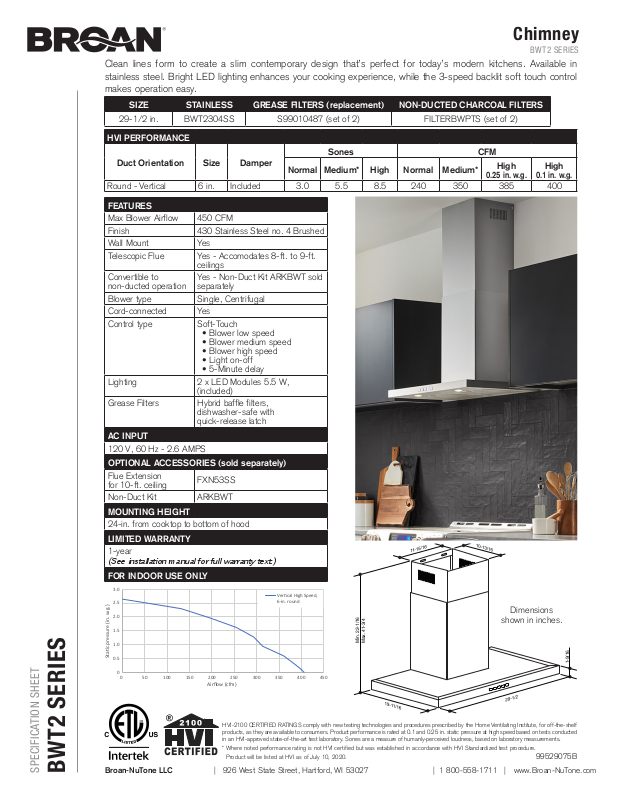

Page 1
Chimney
3.0
450
Stac pressure (in. w.g.)
Airflow (cfm)
BWT-BWS-400 Series
BWT2 SERIES
Clean lines form to create a slim contemporary design that’s perfect for today’s modern kitchens. Available in
stainless steel. Bright LED lighting enhances your cooking experience, while the 3-speed backlit soft touch control
makes operation easy.
SIZE STAINLESS GREASE FILTERS (replacement) NON-DUCTED CHARCOAL FILTERS
29-1/2 in. BWT2304SS S99010487 (set of 2) FILTERBWPTS (set of 2)
HVI PERFORMANCE
Sones CFM
Duct Orientation Size Damper
Normal Medium* High Normal Medium*
Round - Vertical 6 in. Included 3.0 5.5 8.5 240 350 385 400
FEATURES
Max Blower Airflow 450 CFM
Finish 430 Stainless Steel no. 4 Brushed
Wall Mount Yes
Telescopic Flue Yes - Accomodates 8-ft. to 9-ft.
ceilings
Convertible to
non-ducted operation
Yes - Non-Duct Kit ARKBWT sold
separately
Blower type Single, Centrifugal
Cord-connected Yes
Control type Soft-Touch
• Blower low speed
• Blower medium speed
• Blower high speed
• Light on-off
• 5-Minute delay
Lighting 2 x LED Modules 5.5 W,
(included)
Grease Filters Hybrid baffle filters,
dishwasher-safe with
quick-release latch
AC INPUT
120 V, 60 Hz - 2.6 AMPS
OPTIONAL ACCESSORIES (sold separately)
Flue Extension
for 10-ft. ceiling
FXN53SS
Non-Duct Kit ARKBWT
MOUNTING HEIGHT
24-in. from cooktop to bottom of hood
LIMITED WARRANTY
1-year
(See installation manual for full warranty text.)
FOR INDOOR USE ONLY
High
0.25 in. w.g.
High
0.1 in. w.g.
SPECIFICATION SHEET
2.5
2.0
1.5
1.0
0.5
0
050 100 150 200 250 300 350 400
BWT2 SERIES
Broan-NuTone LLC | 926 West State Street, Hartford, WI 53027 | 1 800-558-1711 | www.Broan-NuTone.com
Vercal High Speed,
6-in. round
Dimensions
shown in inches.
Min. 22-1/16
Max. 41-3/4
HVI-2100 CERTIFIED RATINGS comply with new testing technologies and procedures prescribed by the Home Ventilating Institute, for off-the-shelf
products, as they are available to consumers. Product performance is rated at 0.1 and 0.25 in. static pressure at high speed based on tests conducted
in an HVI-approved state-of-the-art test laboratory. Sones are a measure of humanly-perceived loudness, based on laboratory measurements.
* Where noted performance rating is not HVI certified but was established in accordance with HVI Standardized test procedure.
Product will be listed at HVI as of July 10, 2020.
99529075B
1-9/16
