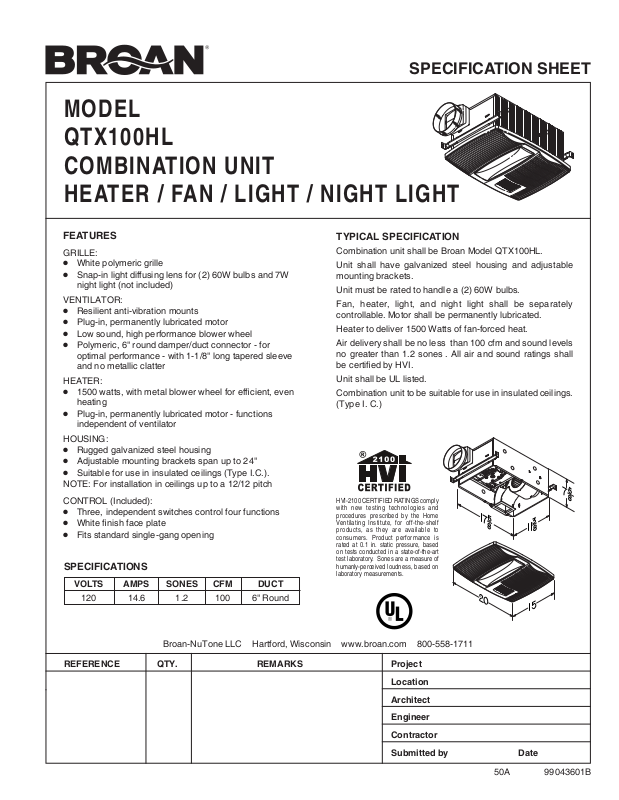

SPECIFICATION SHEET
MODEL
QTX100HL
COMBINATION UNIT
HEATER / FAN / LIGHT / NIGHT LIGHT
FEATURES
GRILLE:
White polymeric grille
•
Snap-in light diffusing lens for (2) 60W bulbs and 7W
•
night light (not included)
VENTILATOR:
Resilient anti-vibration mounts
•
Plug-in, permanently lubricated motor
•
Low sound, high performance blower wheel
•
Polymeric, 6" round damper/duct connector - for
•
optimal performance - with 1-1/8" long tapered sleeve
and no metallic clatter
HEATER:
1500 watts, with metal blower wheel for efcient, even
•
heating
Plug-in, permanently lubricated motor - functions
•
independent of ventilator
HOUSING:
Rugged galvanized steel housing
•
Adjustable mounting brackets span up to 24"
•
Suitable for use in insulated ceilings (Type I.C.).
•
NOTE: For installation in ceilings up to a 12/12 pitch
CONTROL (Included):
Three, independent switches control four functions
•
White nish face plate
•
Fits standard single-gang opening
•
SPECIFICATIONS
VOLTS AMPS SONES CFM DUCT
120 14.6 1.2 100 6" Round
TYPICAL SPECIFICATION
Combination unit shall be Broan Model QTX100HL.
Unit shall have galvanized steel housing and adjustable
mounting brackets.
Unit must be rated to handle a (2) 60W bulbs.
Fan, heater, light, and night light shall be separately
controllable. Motor shall be permanently lubricated.
Heater to deliver 1500 Watts of fan-forced heat.
Air delivery shall be no less than 100 cfm and sound levels
no greater than 1.2 sones . All air and sound ratings shall
be certied by HVI.
Unit shall be UL listed.
Combination unit to be suitable for use in insulated ceilings.
(Type I. C.)
HVI-2100 CERTIFIED RATINGS comply
wit h ne w te stin g tec hnol ogie s an d
procedures prescr ibed by the Home
Ventila ting In stitute , for o ff-the- shelf
pro duct s, as they are ava ilab le to
cons umers. Produ ct per formance is
rated at 0.1 in. static pressure, based
on tests conducted in a state-of-the-art
test laboratory. Sones are a measure of
humanly-perceived loudness, based on
laboratory measurements.
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
50A 99043601B
