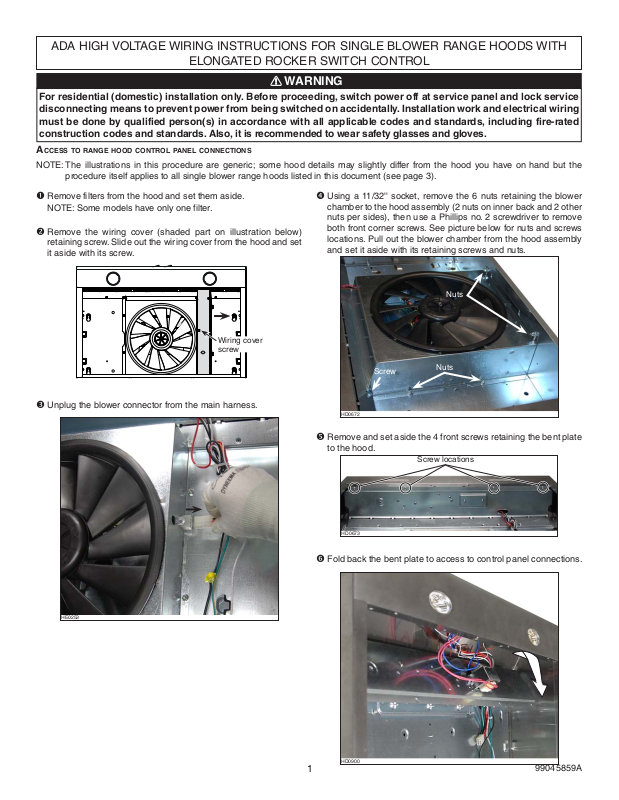

ADA HIGH VOLTAGE WIRING INSTRUCTIONS FOR SINGLE BLOWER RANGE HOODS WITH
!
ELONGATED ROCKER SWITCH CONTROL
WARNING
For residential (domestic) installation only. Before proceeding, switch power off at service panel and lock service
disconnecting means to prevent power from being switched on accidentally. Installation work and electrical wiring
must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated
construction codes and standards. Also, it is recommended to wear safety glasses and gloves.
ACCESS TO RANGE HOOD CONTROL PANEL CONNECTIONS
NOTE: The illustrations in this procedure are generic; some hood details may slightly differ from the hood you have on hand but the
procedure itself applies to all single blower range hoods listed in this document (see page 3).
Remove filters from the hood and set them aside.
NOTE: Some models have only one filter.
Remove the wiring cover (shaded part on illustration below)
retaining screw. Slide out the wiring cover from the hood and set
it aside with its screw.
Wiring cover
screw
Unplug the blower connector from the main harness.
Using a 11/32'' socket, remove the 6 nuts retaining the blower
chamber to the hood assembly (2 nuts on inner back and 2 other
nuts per sides), then use a Phillips no. 2 screwdriver to remove
both front corner screws. See picture below for nuts and screws
locations. Pull out the blower chamber from the hood assembly
and set it aside with its retaining screws and nuts.
Nuts
Screw
HD0672
Nuts
Remove and set aside the 4 front screws retaining the bent plate
to the hood.
Screw locations
HD0673
Fold back the bent plate to access to control panel connections.
HE0253
1
HD0900
99045859A
CAUTION
TO HOOD
2-ROCKER
SWITCH
WHITE
GROUND
14/3 CABLE
RED
(motor)
BLACK
(lights)
GROUND
WHITE
WHITE
120 VAC
LINE IN
TO HOOD
14/3 CABLE
BLACK
2-ROCKER
SWITCH
RED
(motor)
BLACK
(lights)
Use standard switches that are rated 120 VCA, 15 A. Only use wires suitable for at least 90C (194F). Ensure the
wires are reliably routed away from the halogen lights.
According to your needs, there are 2 ways to wire a 2-rocker switch control to these range hoods: 120 VAC power cable entering the range
hood or 120 VAC power cable entering the switch box.
120 VAC POWER CABLE ENTERING THE HOOD
Install a 2-rocker switch at a convenient place for the
user. Use a 14/3 cable to wire it to the range hood
(see diagram at right).
NOTE: Code requires both ends of WHITE wire
insulation to be colored; use a permanent
marker.
NOTE: Allow enough length of 14/3 cable to perform the RED wire
connection in the hood nose.
Insert the 14/3 cable along with the 14/2 house wiring cable in the
hood through an UL approved wire clamp, suitable for 2 cables.
Add a GROUND wire and connect one end to the GREEN ground
screw. Use an appropriate wire nut to connect the other end of the
added GROUND wire with the ground wire coming from the 14/3
cable and the ground wire coming from 14/2 house wiring cable.
Connect BLACK wire from house wiring to WHITE wire from
14/3 cable using an appropriate wire nut.
Connect BLACK wire from 14/3 cable to BLACK wire from range
hood wiring using an appropriate wire nut.
Connect WHITE wire from house wiring to WHITE wire range
hood wiring using an appropriate wire nut.
Run RED wire from 14/3 cable through bend plate wiring opening
for hood control connection. See next page for RED wire
connection.
3
4
120 VAC
HOUSE WIRING
Motor switch
Light switch
2
14/3 CABLE
5
TO CONTROL PANEL
MOTOR
GROUND
WIRE
1
BLACK
WHITE
RED
GROUND
120 VAC POWER CABLE ENTERING THE SWITCH
Install a 2-rocker switch at a convenient place for the
user. Feed the switch box with 120 VAC house wiring
and use a 14/3 cable to wire it to the range hood (see
diagram at right).
NOTE: Allow enough length of 14/3 cable to perform the RED wire
connection in the hood nose.
Insert the 14/3 cable in the hood through an UL approved wire
clamp. Connect ground wire to the GREEN ground screw.
Connect WHITE wire from 14/3 cable to WHITE wire from range
hood wiring using an appropriate wire nut.
Connect BLACK wire from 14/3 cable to BLACK wire from range
hood wiring using an appropriate wire nut.
Run RED wire from 14/3 cable through bend plate wiring opening for
hood control connection. See next page for RED wire connection.
2
3
2
Motor switch
Light switch
4
TO CONTROL PANEL
1
14/3 CABLE
MOTOR
GROUND
WIRE
BLACK
WHITE
RED
GROUND
