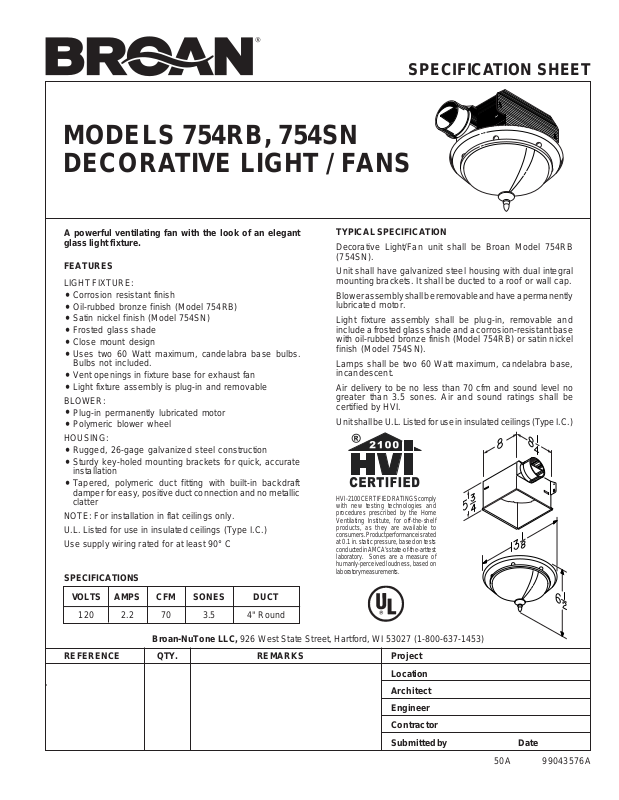

Broan 754rb, 754sn Specification Data

MODELS 754RB, 754SN
DECORATIVE LIGHT / FANS

SPECIFICATION SHEET

A powerful ventilating fan with the look of an elegant
glass light fixture.

FEATURES

LIGHT FIXTURE:

Corrosion resistant finish

•

Oil-rubbed bronze finish (Model 754RB)

•

Satin nickel finish (Model 754SN)

•

Frosted glass shade

•

Close mount design

•

Uses two 60 Watt maximum, candelabra base bulbs.

•

Bulbs not included.
Vent openings in fixture base for exhaust fan

•

Light fixture assembly is plug-in and removable

•

BLOWER:

Plug-in permanently lubricated motor

•

Polymeric blower wheel

•

HOUSING:

Rugged, 26-gage galvanized steel construction

•

Sturdy key-holed mounting brackets for quick, accurate

•

installation
Tapered, polymeric duct fitting with built-in backdraft

•

damper for easy, positive duct connection and no metallic

clatter
NOTE: For installation in flat ceilings only.
U.L. Listed for use in insulated ceilings (Type I.C.)
Use supply wiring rated for at least 90° C

SPECIFICATIONS

TYPICAL SPECIFICATION

Decorative Light/Fan unit shall be Broan Model 754RB
(754SN).

Unit shall have galvanized steel housing with dual integral
mounting brackets. It shall be ducted to a roof or wall cap.

Blower assembly shall be removable and have a permanently
lubricated motor.

Light fixture assembly shall be plug-in, removable and
include a frosted glass shade and a corrosion-resistant base
with oil-rubbed bronze finish (Model 754RB) or satin nickel
finish (Model 754SN).

Lamps shall be two 60 Watt maximum, candelabra base,
incandescent.

Air delivery to be no less than 70 cfm and sound level no
greater than 3.5 sones. Air and sound ratings shall be
certified by HVI.

Unit shall be U.L. Listed for use in insulated ceilings (Type I.C.)

HVI-2100 CERTIFIED RATINGS comply
with new testing technologies and
procedures prescribed by the Home
Ventilating Institute, for off-the-shelf
products, as they are available to
consumers. Product performance is rated
at 0.1 in. static pressure, based on tests
conducted in AMCA’s state-of-the-art test
laboratory. Sones are a measure of
humanly-perceived loudness, based on
laboratory measurements.

VOLTS AMPS CFM SONES DUCT

12 0 2.2 70 3 .5 4" Round

Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)

REFERENCE QTY. REMARKS Project

Location
Architect
Engineer
Contractor
Submitted by Date

50A 99043576A
