Britax STRIDER PLUS User Manual
IMPORTANT: KEEP THIS BOOKLET IN A SAFE PLACE FOR FUTURE REFERENCE. Note: Second Seat, Bassinet, Infant Carrier and Footmuff are all sold separately.
www.striderplus.com.au
INDEX
general warnings...................................................................................................................................... |
3 |
bassinet, infant carrier & second seat warnings.................................................................................... |
4 |
features.................................................................................................................................................... |
5 |
parts.......................................................................................................................................................... |
7 |
1. stroller frame opening........................................................................................................................... |
8 |
2. to fit and remove the wheel guards..................................................................................................... |
9 |
3. rear wheel fitting and removal............................................................................................................. |
9 |
4. front wheel fitting and removal - 4 wheel model................................................................................ |
10 |
5. front wheel fitting and removal - 3 wheel model................................................................................ |
11 |
6. swivel/fixed front wheel operation - 4 wheel model........................................................................... |
12 |
7. swivel/fixed front wheel operation - 3 wheel model........................................................................... |
12 |
8. to operate the brake........................................................................................................................... |
13 |
9. to adjust the pivotal handle - 7 positions........................................................................................... |
13 |
10. to fit the accessory bag.................................................................................................................... |
14 |
11. fitting the stroller seat to the frame.................................................................................................. |
15 |
12. to fit the armbar................................................................................................................................ |
16 |
13. adjusting the backrest....................................................................................................................... |
17 |
14. stroller seat removal ......................................................................................................................... |
17 |

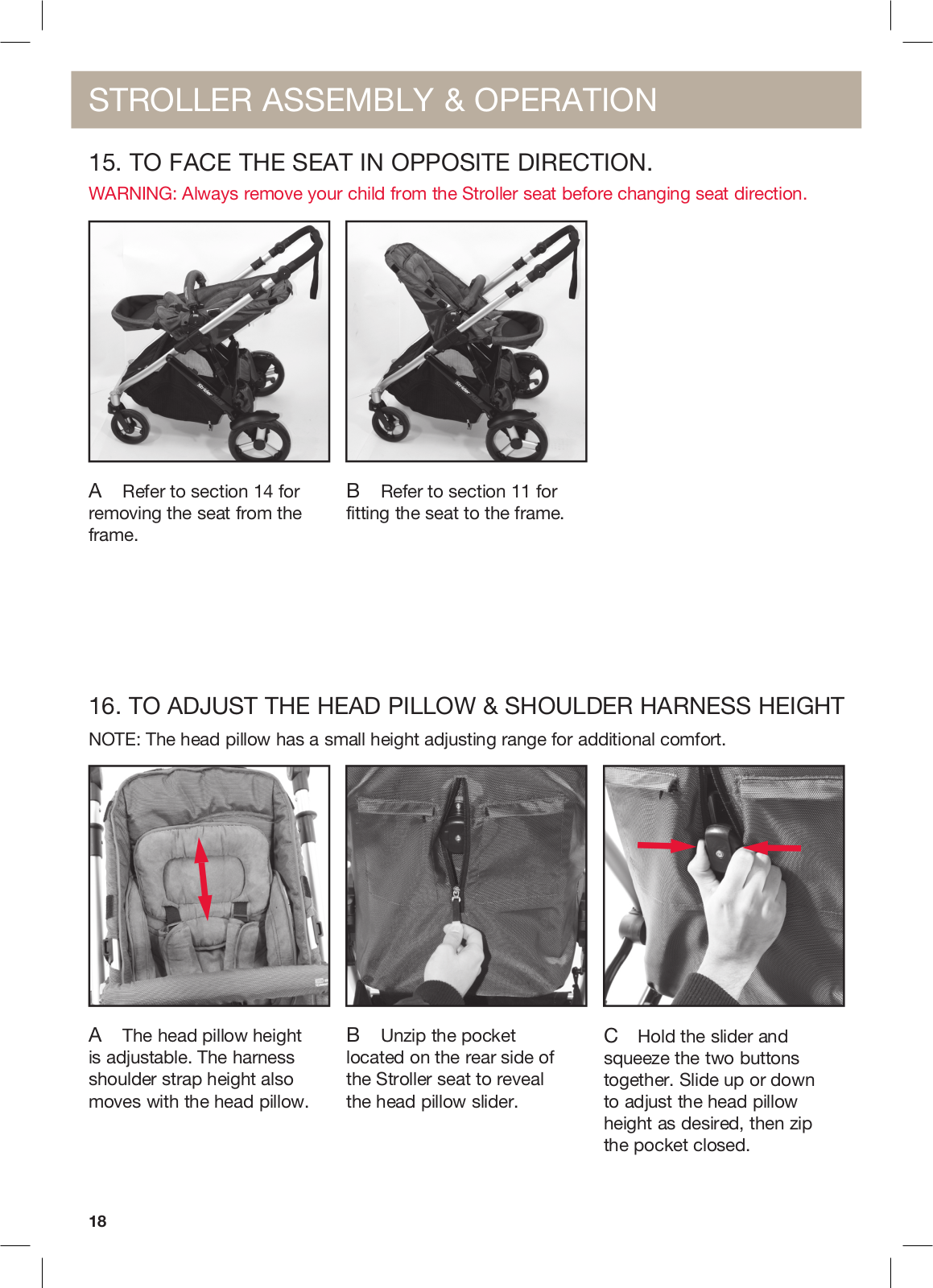

15. to face the seat in opposite direction............................................................................................... |
18 |
16. to adjust the head pillow & shoulder harness height....................................................................... |
18 |
17. to fit, use and remove the canopy................................................................................................... |
19 |
18. harness adjustment.......................................................................................................................... |
20 |
19. tether strap....................................................................................................................................... |
21 |
20. to fit the reversible seat pad............................................................................................................ |
21 |
21. to use the reversible shoulder pads................................................................................................. |
22 |
22. adjustable leg support...................................................................................................................... |
22 |
23. to fit the bootcover........................................................................................................................... |
23 |
24. to use the basket.............................................................................................................................. |
23 |
25. to use the footmuff........................................................................................................................... |
24 |
26. to fit the mesh cover........................................................................................................................ |
25 |

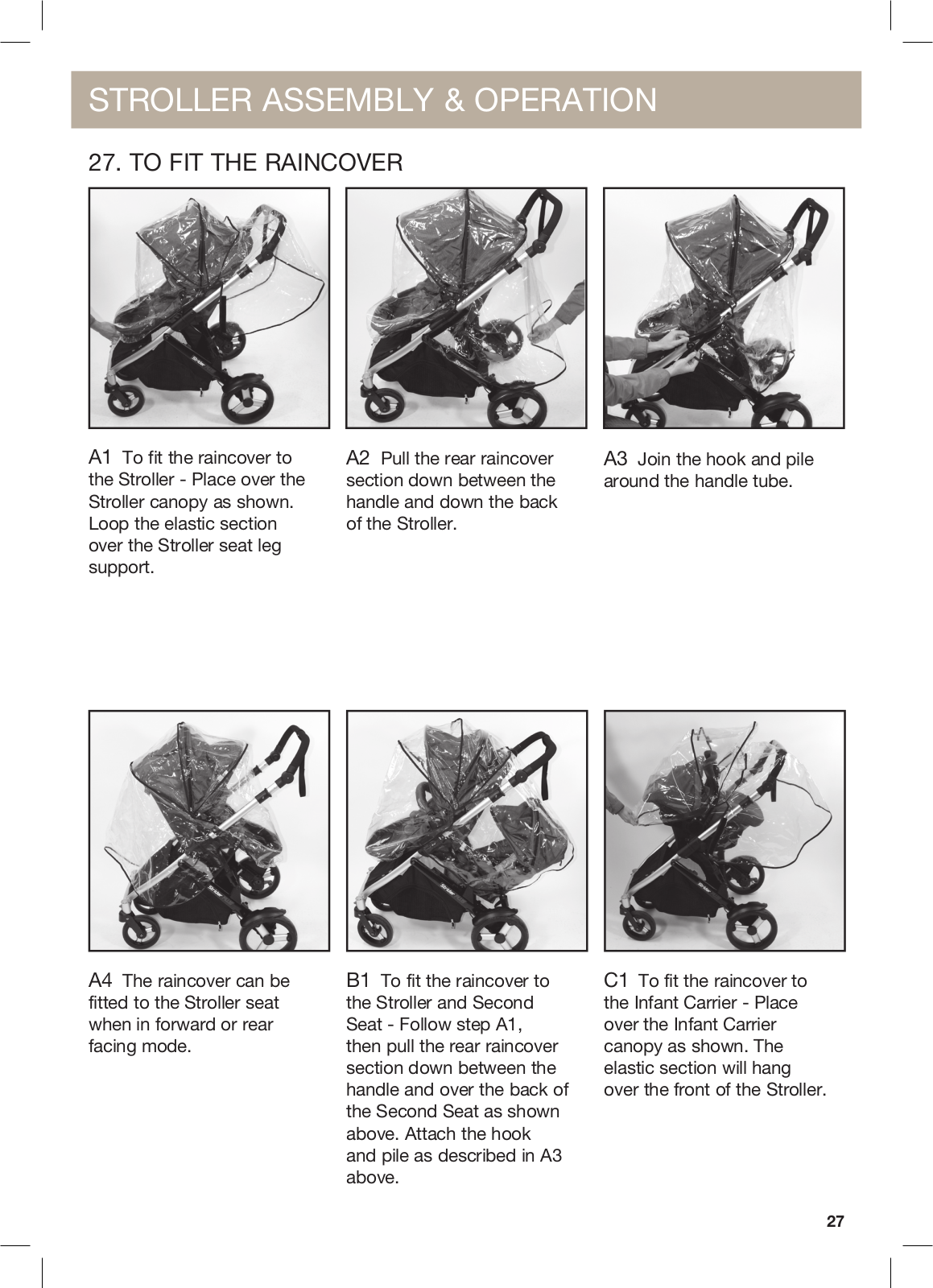

27. To fit the raincover............................................................................................................................ |
27 |
bassinet warnings................................................................................................................................... |
29 |
28. bassinet assembly, fitting & removal ............................................................................................... |
29 |
infant carrier warnings........................................................................................................................... |
32 |
29. infant carrier fitting and removal ..................................................................................................... |
32 |
30. to fold/close the stroller.................................................................................................................... |
35 |
second seat warnings............................................................................................................................ |
38 |
31. to use the second seat.................................................................................................................... |
38 |
31.1 to fit second seat to the stroller.................................................................................................... |
40 |
31.2 to adjust into seating positions...................................................................................................... |
41 |
31.3 to fit, use and remove the canopy................................................................................................. |
41 |
31.4 harness adjustment........................................................................................................................ |
41 |
31.5 reversible shoulder pads................................................................................................................ |
42 |
31.6 to adjust the head pillow and harness shoulder strap height position.......................................... |
42 |
31.7 to fold the second seat while attached to the frame.................................................................... |
43 |

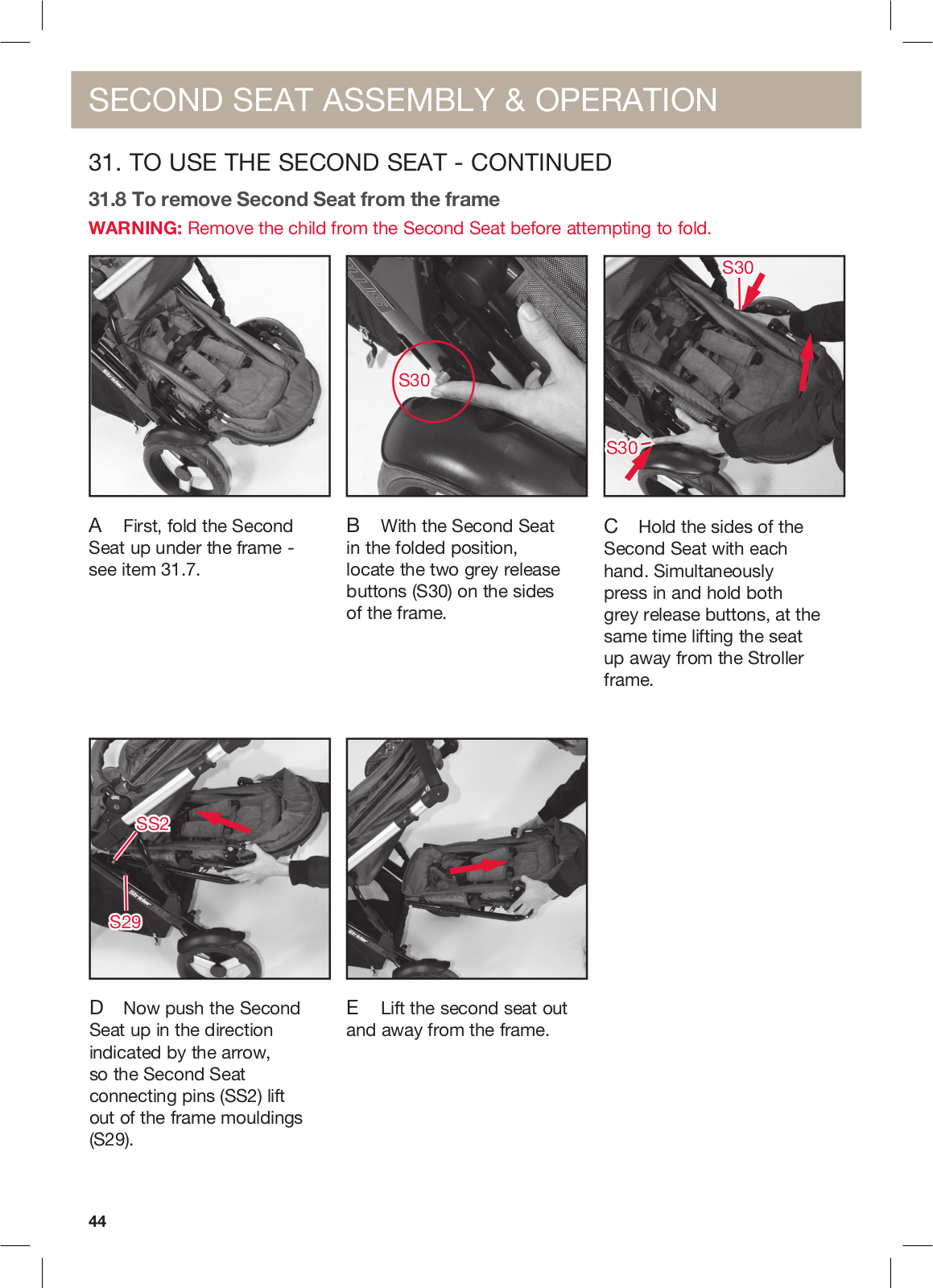

31.8 to remove second seat from the frame........................................................................................ |
44 |
31.9 to use the adaptors with the stroller seat.................................................................................... |
45 |
31.10 to use the adaptors with the infant carrier.................................................................................. |
46 |
care and maintenance............................................................................................................................ |
47 |
warranty.................................................................................................................................................. |
48 |
2
WARNINGS
READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE OF THE Stroller. ALWAYS FOLLOW THE INSTRUCTIONS. THE CORRECT USE AND MAINTENANCE OF THIS PRODUCT IS ESSENTIAL.
GENERAL WARNINGS:
•Check that all safety locks are engaged before placing a child in the Stroller.
•Ensure your child is secured with a correctly adjusted safety harness.
•Do not leave children unattended.
•Always apply the brakes when parking the Stroller.
•Never let go of the Stroller when parked on an incline because it may slide.
•When making adjustments to the Stroller, ensure that your child’s body is clear of any moving parts, otherwise they may be injured.
•Remove child from the Stroller before going up or down stairs or escalators.
•Remove your child from the Stroller seat before changing the seat unit direction.
•Do not lift the Stroller by the armrest bar because it may disengage.
•Do not carry additional children on the Stroller.
•Do not allow children to stand on the seat.
•Do not hang bags or goods from the handle as this could cause the Stroller to tip over.
•Do not place more than 4kgs in the basket, 1kg in the seat backrest pocket, 1kg in the Bassinet pocket or 1kg in the Accessory Bag.
•To prevent the risk of the Stroller catching fire, do not park it near an exposed heat source such as a radiator, open fire, barbecue, etc.
•It may be unsafe to use accessories other than those tested and approved by Britax.
•Remove Bassinet from the Stroller frame before folding Stroller.
•The weight of the child using this product should not exceed 17kgs for the Stroller and
9kg for the Bassinet, 9kg for the Infant Carrier or 15kg for the Second Seat.
NOTE:
The upright positions are not suitable for use with children less than six months old. The lowest recline position should be used for babies, and then the backrest can be adjusted to a more upright position as the child grows older and is able to support it’s head without assistance.
Always lock the front swivel wheels when on uneven surfaces to minimize wheel wobble. The canopy will not give your child total protection from the harmful rays of the sun.
THIS PRODUCT IS NOT INTENDED FOR COMMERCIAL USE.
3
WARNINGS
BASSINET WARNINGS:
•Always remove your child from the Bassinet before fitting or removing from Stroller.
•The Bassinet must be removed from the frame before folding.
•Do not lift Stroller by the Bassinet. Only use Strider Bassinet with the Strider Plus
Stroller. Use a harness once the baby can sit up unaided.
INFANT CARRIER WARNINGS:
•Do not leave the child in the carrier for extended periods.
•The carrier is designed to provide mobility outside of the car but it should not be used instead of an appropriate cot.
•Ensure the carrier must be correctly fitted and locked into the Stroller.
•The Infant Carrier must only be used with an SC or Steelcraft Stroller with compatible attachments.
•To be used only in a rearward facing position, that is facing toward the Stroller handle.
•Use only for a child weighing up to 9kgs and with a length of up to 700mm.
•Remove Infant Carrier from Stroller frame before folding.
•Always secure your child with the harness provided.
SECOND SEAT WARNINGS:
•The Second Seat cannot be used in conjunction with the Bassinet
•The Second Seat must only be used with a SC or Steelcraft Stroller with compatible attachments.
•Second Seat to be used only in a forward facing position. That is connected to the rear of the Stroller and facing towards the Stroller.
•The Second Seat must be correctly fitted and locked onto the Stroller.
•Use only for a child weighing up to 15kgs.
•A five-point harness is provided to restrain your child. To secure the child in the harness, push buckles (A) through the buckle rings (B) and into the buckle housing (C) until the buckle prongs snap into position. Carefully adjust the harness by pulling the sliders (D) until the desired fit is achieved in the lap, shoulder and crotch straps. Always adjust the harness when changing the seating position of the child. To release the buckle, squeeze the top and bottom buckle prongs (A).
4
STROLLER FEATURES
S1. |
Adjustable & removable |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
canopy |
S1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
S2. |
Pivotal handle |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
S2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
S3. |
Visor |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
S4. |
Frame fold mouldings |
S3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
(on both sides) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S5. |
Canopy mesh |
S4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
(under zip) |
S5 |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|||||||||
S6. |
Arm bar |
S6 |
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
||||||||
S7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
||||
S7. |
Removeable & reversible |
S8 |
|
|
|
|
|
||||||||
|
|
|
|
||||||||||||
|
Stroller seat |
S9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
S8. |
Stroller seat release |
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
buttons (on both sides) |
S10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
S9. |
Frame sockets (on both |
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
sides) accepts Stroller |
S11 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
seat, Infant Carrier, |
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
bassinet or adaptors. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S10. Frame lock |
S12 |
|
|
|
|
|
|
|
|
|
|
|
|
||
S11. Wheel guards |
|
|
|
|
|
||||||||||
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
S12. Side access zip pocket |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(on both sides) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S13. Adjustable head pillow |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S14. Reversible seat pad |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S15. Reversible shoulder pads |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S16. |
5 point harness |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S17. Crotch pad |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S18. Adjustable footrest |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S19. Front access zip pocket
(4 wheel model only)
S21
S20. Front wheel release
S21. Swivel wheel lock
The 3 wheel model has similar features, however some features are in different locations as shown right.
S13
S14
S15
S16
S17
S18
S19
S20 S21
S20
5
STROLLER FEATURES
S22. Canopy window |
|
|
S23. Backrest recline lever |
|
|
S24. Tether strap |
S22 |
|
|
||
S25. Head pillow adjustment |
|
|
slider (under zip) |
|
|
S26. Accessory bag |
|
|
S27. Rear wheel release |
S23 |
|
|
||
S28. Brake |
S24 |
|
|
||
S29. Mouldings (for |
S25 |
|
|
||
attachment to second |
|
|
seat connecting pins) |
|
|
S30. Second Seat release |
|
|
buttons |
S26 |
|
S31. Lower mouldings (for |
||
|
||
attachment to second |
|
|
seat frame) |
|
S27
S28
S29
S29
S30
S31 |
S30 |
Accessory bag and Stroller seat have been removed from the frame shown right.
6
STROLLER PARTS
Stroller frame |
Stroller seat |
Armbar |
Tether strap |
Shoulder pads |
Canopy |
Seat pad |
Accessory bag
Front wheels (4 wheel model)
Rear wheels
Mesh cover |
Front wheel (3 wheel model) |
Wheel guards |
Raincover |
Bootcover |
7
STROLLER ASSEMBLY & OPERATION
1. STROLLER FRAME OPENING
A Lay the frame on a flat surface.
B Release the frame lock and lift up by the handle to partially open the frame.
C Continue to lift the handle up to open the frame until the left and right side frame mouldings engage and lock together.
D Push down on the handle to confirm the frame is locked open.
NOTE: To fold/close the frame see Section 30.
8
STROLLER ASSEMBLY & OPERATION
2. TO FIT AND REMOVE THE WHEEL GUARDS
A Position the left and right guards beside the frame as shown.
B Fit each guard onto the moulding at the base of the leg tubes. Push down until they lock into position.
C Pull on each guard in the direction shown, to
make sure they are locked on correctly.
3. REAR WHEEL FITTING AND REMOVAL
A To fit the rear wheels, align the wheel axle/
rod with the hole in the wheel moulding. Push the rear wheel into the wheel moulding until it locks into position.
B Pull on the rear wheel to make sure it is locked on. Repeat steps A & B to fit the other rear wheel.
C To release the rear wheels, press down and hold the metal release tab. Then slide the wheel out and remove. Repeat for the other side.
9
STROLLER ASSEMBLY & OPERATION
4. FRONT WHEEL FITTING AND REMOVAL - 4 WHEEL MODEL
NOTE: Tip the frame backwards for more convenient assembly.
A Take each front wheel assembly and push the axle into the wheel housing, until it locks in.
B Pull on both front wheel sets to make sure they are locked on.
C To remove the wheel assembly, turn top knob to the left to unlock and release the wheel.
10
STROLLER ASSEMBLY & OPERATION
5. FRONT WHEEL FITTING AND REMOVAL - 3 WHEEL MODEL
NOTE: Tip the frame backwards for more convenient assembly.
A Take the front wheel assembly and push the axle into the wheel housing, until it locks in.
B Pull on the front wheel to make sure it is locked on.
C To remove the wheel assembly, push the metal tab all the way back to unlock, release and remove the wheel.
11
STROLLER ASSEMBLY & OPERATION
6. SWIVEL/FIXED FRONT WHEEL OPERATION - 4 WHEEL MODEL
NOTE: Always lock the front swivel wheels when on uneven surfaces.
A For swivel wheel mode, slide both red latches
up until they lock it into position.
B To lock the front wheels into the fixed position, slide both red latches down until they lock.
C The front wheels will automatically lock into the fixed position when you move the Stroller forward by approximately one metre.
7. SWIVEL/FIXED FRONT WHEEL OPERATION - 3 WHEEL MODEL
NOTE: Always lock the front swivel wheel when on uneven surfaces.
A For swivel wheel mode, lift the lever into the upright position until it locks.
B To lock the front swivel wheel into the fixed position, press in the button on the swivel release moulding. The lever will rotate downwards.
C The front wheel will automatically lock into the fixed position when you move the Stroller forward by approximately one metre.
12
STROLLER ASSEMBLY & OPERATION
8. To operate the brake
WARNING - Always apply the brakes when parking the Stroller. The Stroller may roll away even if left unattended for a few moments.
A To lock both rear wheels, press the red brake lever all the way down. Push the Stroller back and forth to confirm the wheels are locked.
B To unlock both rear wheels, firmly lift up the brake lever all the way until it locks into the up position.
9. To adjust the pivotal handle - 7 positions
A There is an adjusting button on the inside of each handle moulding.
B Press both buttons in together and hold. Now rotate the handle up or down to the desired height position.
C When the desired height position has been achieved, release both buttons.
13
STROLLER ASSEMBLY & OPERATION
10. To fit the accessory bag
NOTE: Adjust the pivot handle up to create more assembly space (refer to section 9).
A The bag firstly needs to be attached to the pile strip on the inside of the Stroller basket.
B Hold the bag up by the black back flap on the rear side of the bag. Note the hook strip on the edge of the flap.
C Attach the hook strip to the pile strip on the inside of the basket. This will help to keep it in place. Note: this flap also contains two pockets.
D Now thread each hook strap through the frame moulding as shown.
E Attach each strap to the pile strips sewn on the bag to hold in place.
F The accessory bag is now ready for use. Return the pivot handle to the desired position.
14
STROLLER ASSEMBLY & OPERATION
11. Fitting the Stroller seat to the frame
WARNING - Always remove your child from the Stroller seat before installing, removing or changing seat direction.
NOTE: The seat is reversible so it can face in either forward or rearward position.
A Hold the Stroller seat over the frame.
B Align the Stroller seat mouldings on both sides, over the frame connection sockets located in the middle of the Stroller.
C Push the Stroller seat down until both seat mouldings are locked into the frame sockets.
D Pull up on both sides of the Stroller seat to make sure it is securely locked into the Stroller frame.
15
Loading...
