Britax B-SCENE Stroller User Manual

B-SCENE™ Stroller

User Guide

IMPORTANT: To ensure your child is as safe as possible, read all instructions thoroughly before using this stroller. Store this manual for future reference.

Table of Contents

Warnings.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Features .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

In the Box.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Assembly .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operating Instructions

Parking Brake.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Attaching the Seat.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Detaching the Seat.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Folding.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Swivel Wheels.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Leg Rest.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Reclining.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Handle Angle.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Securing Your Child.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Infant Car seat Mode

Attaching Britax Infant Car Seat Adapters.. . . . . . . . . . . . . . . . . . . .16

Removing Britax Infant Car Seat Adapters.. . . . . . . . . . . . . . . . . . . .16

Attaching a Britax Infant Car Seat .. . . . . . . . . . . . . . . . . . . . . . . . . .17

Removing a Britax Infant Car Seat.. . . . . . . . . . . . . . . . . . . . . . . . . .18

Accessories .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Other Available Accessories.. . . . . . . . . . . . . . . . . . . . . . . . . . . 20

B-SCENE™ Stroller Configurations.. . . . . . . . . . . . . . . . . . . . . . 21

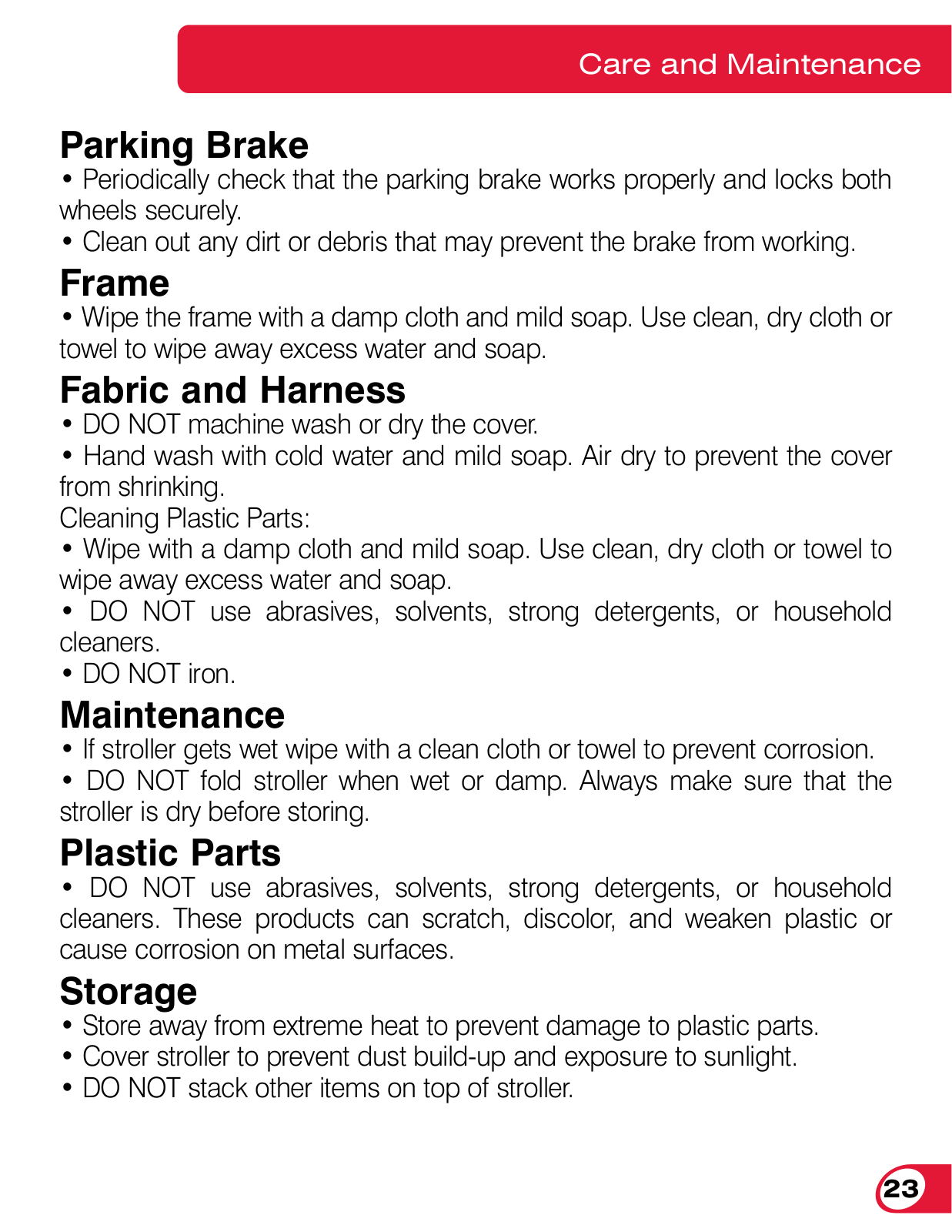

Care and Maintenance.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Warranty.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

©2010 Britax Child Safety, Inc. All rights reserved. Printed in China. P409400_R3:09.10 This product and its components are subject to change without notice.

WARNING!Section Title

DEATH or SERIOUS INJURY can occur:

•Never leave child unattended.

•Avoid serious injury from falling or sliding out. Always use harness to secure child.

•Do not use stroller for an infant younger than 6 months without an infant car seat or bassinet.

•Do not use stroller with a child who weighs more than 55 lbs (25 kg).

•Do not use stroller with a child taller than 44 inches (111.8 cm).

•Do not overload basket – Maximum weight in basket is 10 lbs (4.5 kg). Overloading the basket may cause the stroller to become unstable.

•Do not overload the seat-back storage pockets. Maximum weight in storage pockets is 1 lb (0.45 kg).

•Always make certain that the stroller is fully open and locked before use.

•Assembly of this stroller must be performed only by an adult.

•Do not hang or place items on the stroller handle or frame except for those approved by Britax. They may cause the stroller to become unstable.

•Only use Britax approved child restraints or car seats with this stroller without the use of the Infant Car Seat Adapter Frame.

•Do not allow children to climb on or play with the stroller.

•Never use stroller on stairs or escalators.

•To avoid entrapment or pinching, do not fold or unfold stroller when child is in or near stroller.

2

Section Title

•Stroller is intended for walking speed only. Do not use while jogging, skating, etc.

•Always set the parking brake when stroller is not moving.

•Only use accessories and replacement parts approved by Britax Child Safety, Inc.

•Do not lift the stroller by the arm bar of the seat when the seat is occupied.

•Read and understand these instructions before using this product. To ensure proper use, store this user guide in a convenient place so it can be consulted often. Failure to follow all warnings and instructions could result in serious injury or death.

•When using an infant car seat with this product, refer to the product’s user guide for maximum weights and other instructions.

•Do not exceed the manufacturer’s maximum weight limit when using an infant car seat with this product.

3

Features

Canopy	Handle
	Height
	Adjuster

	Arm Bar
	Harness	Frame
		Release
		Lever
	Buckle
		Seat Locking Latch
		Chassis Socket
		Release Lever
	Leg Rest
	Front.	Chassis
		Lock
	Wheel
	Release	On right side
		of frame

	Rear Wheels
Swivel.	Under-Seat
Lock		Rear Wheel
	Storage
Front Wheel	Basket	Release Button

• Actual product may vary from images.

4

In the Box

Front Wheel

Seat

Rear Wheels

Arm Bar
Britax Infant Car	Stroller Frame
seat Adapters

Rain Cover

5

Assembly

Unfolding

•Lift chassis lock lever and open the frame

•Lift handle until frame locks into upright position as shown

Front Wheel

•Slide mounting pin into the housing on the frame until it locks into place

NOTE: Always make sure the front and rear wheels are locked into place and that the brake functions properly before each use

6

Assembly

Rear Wheels

NOTE: Left and right wheels are marked with an L or R and are from the perspective of standing behind

the stroller

• Hold in the release button in the center of the wheel and slide the mounting pin into the housing on the rear axle

Arm Bar

•Attaching: slide the pins into the mounts on the seat until they lock into place

•Removing: push the release button on the bottom of the mounts and pull arm bar out

NOTE: Armbar or cup holders must always be used to avoid finger

entrapment in the open connectors

7
