B-NIMBLE™ Stroller
User Guide
Mode d’emploi
IMPORTANT:To ensure your child is as safe as possible, read all instructions thoroughly before using this stroller. Store this manual for future reference.
IMPORTANT : Pour assurer un maximum de sécurité à votre enfant, veuillez lire toutes les instructions avant d’utiliser cette poussette. Conservez ce manuel en guide de référence.
Table of Contents
Warnings.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Features .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
In the Box.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Assembly .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operating Instructions
Parking Brake.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Leg Rest Adjustment.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Recline Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Swivel Wheels.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Folding the Stroller.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Securing Your Child.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Infant Carrier Mode
Attaching Britax Infant Car Seat Adapters.. . . . . . . . . . . . . . . . . . . .16
Removing Britax Infant Car Seat Adapters.. . . . . . . . . . . . . . . . . . . .16
Attaching the Infant Car Seat.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Removing the Infant Car Seat .. . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

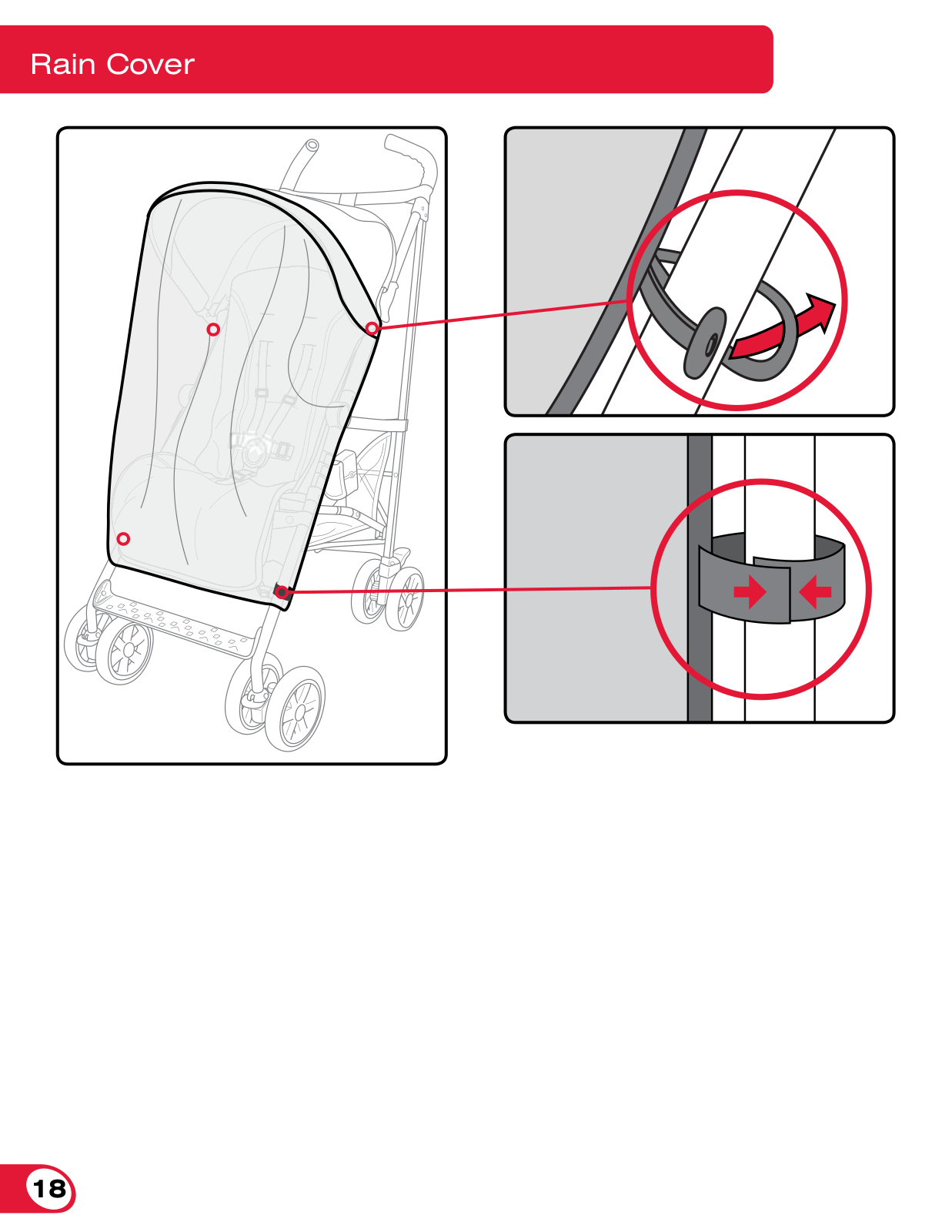

Rain Cover .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Care and Maintenance.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Warranty.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

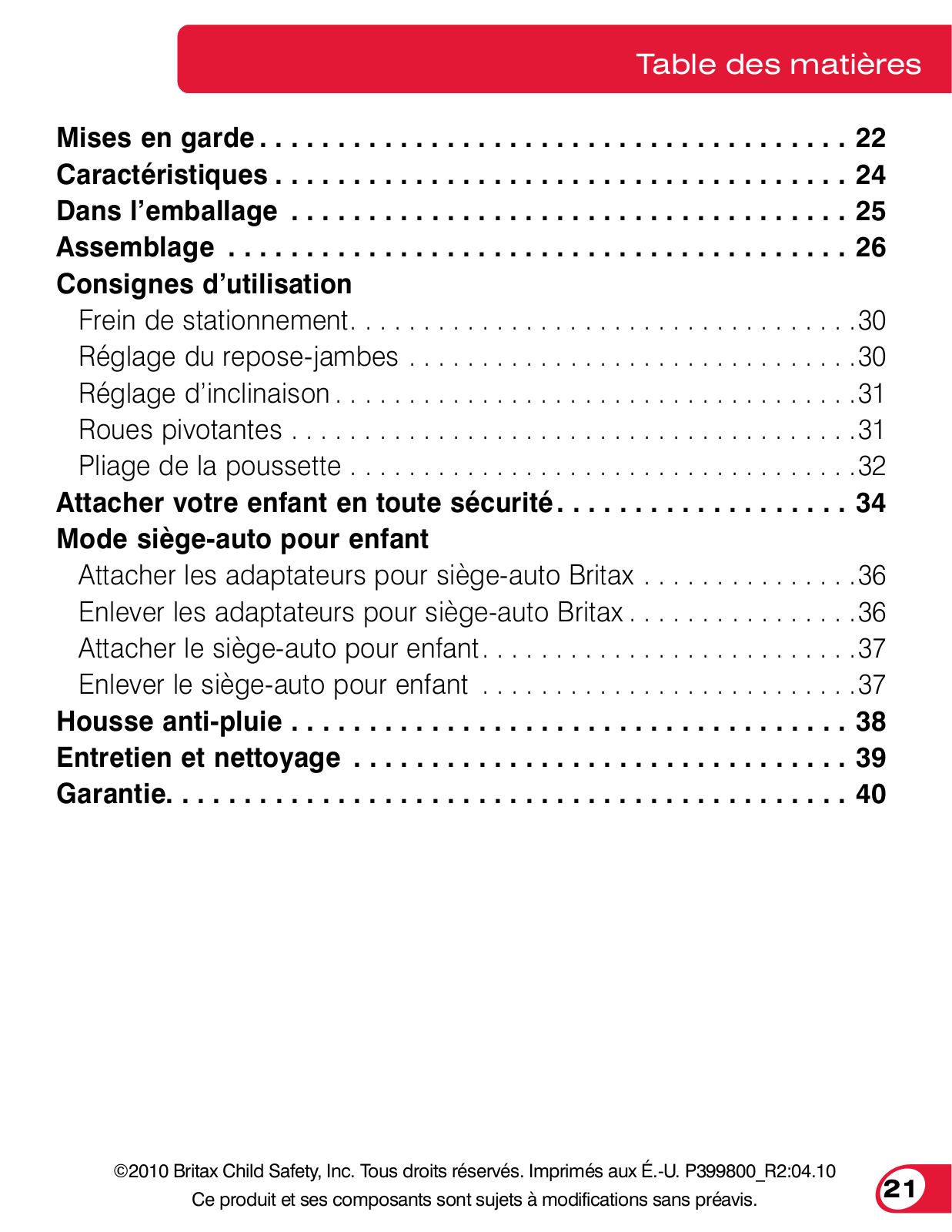

Instructions en français.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
©2010 Britax Child Safety, Inc. All rights reserved. Printed in USA P399800_R3:08.10 This product and its components are subject to change without notice.
WARNING!Section Title
DEATH or SERIOUS INJURY can occur:
•Never leave child unattended.
•Avoid serious injury from falling or sliding out. Always use harness to secure child.
•Do not use stroller for an infant younger than 6 months without an infant carrier.
•Do not use stroller with a child who weighs more than 24.9 kg (55 lbs).
•Do not use stroller with a child taller than 111.8 cm (44 inches).
•Do not overload basket – Maximum weight in basket is 4.5 kg (10 lbs). Overloading the basket may cause the stroller to become unstable.
•Do not overload the storage pouch - Maximum weight in storage pouch is 0.45 kg (1 lb).
•Do not overload the cup holder - Maximum weight in cup holder is 0.45 kg (1 lb)
•Always make certain that the stroller is fully open and locked before use.
•Assembly of this stroller must be performed only by an adult.
•Do not hang or place items on the stroller handle or frame. They may cause the stroller to become unstable.
•Children must always be restrained to prevent standing or falling out of stroller.
•Only use Britax approved child restraints or carriers with this stroller.
•Do not allow children to climb on or play with the stroller.
•Never use stroller on stairs or escalators.
2
Section Title
•To avoid entrapment or pinching, do not fold or unfold when child is in or near stroller.
•Stroller is intended for walking speed only. Do not use while jogging, skating, etc.
•Always set the parking brake when stroller is not moving.
•Only use accessories and replacement parts approved by Britax Child Safety, Inc.
•Read and understand these instructions before using this product. To ensure proper use, store this user guide in a convenient place so it can be consulted often. Failure to follow all warnings and instructions could result in serious injury or death.
Infant Car Seat Mode
•The infant car seat adapters are ONLY compatible with Britax infant car seat and ONLY models from 2009 or newer
•Attempting to fit them into another infant car seat can damage the car seat or cause the car seat to fall
•Infant car seats MUST only be installed rear facing, or toward the parent. Installing the car seat forward facing can cause the stroller to become unstable.
3
Features
Canopy with Sun Visor
Chassis
Lock
On right side of frame
Harness
Buckle
Frame
Release
Lever
Leg Rest
Swivel
Wheel
Locks
Front Wheels
Handles
Carry
Strap
Infant
Car Seat
Adapter
Frame
Release
Lever
Rear
Wheels
Under-Seat
Storage
Basket
• Actual product may vary from images.
4
In the Box
B-NIMBLE
Stroller
Canopy with
Sun Visor
Infant Car Seat
Receivers
Front Wheels
L |
R |
Britax Infant Car |
|
Seat Adapters |
|||
|
|
Rain Cover
Cup Holder
5
Assembly
Unfolding the Stroller
•Lift the chassis lock and pull the frame apart
•Lift up on the handles and pull them away from each other
WARNING: To avoid entrapment or pinching, do not fold or unfold when child is in or near stroller
•Step down on the primary frame lock pedal to lock the stroller chassis
IMPORTANT: Ensure that the stroller frame is locked before placing a child in the seat
6
Assembly
Front Wheels |
|
|
• Locate the right and left |
|
|
wheels and ensure that the |
|
|
swivel lock lever is locked |
|
|
into place as shown before |
|
|
placing wheels on stroller |
L |
R |
|
• Press the wheel assembly |
|
onto the mount at the front |
|
of the stroller |
R |
|
NOTE: Pull down on wheel assembly to ensure that it is locked
L
Canopy
• Line up the canopy mounts with the brackets on the frame and slide them down until they lock into place
7
Assembly

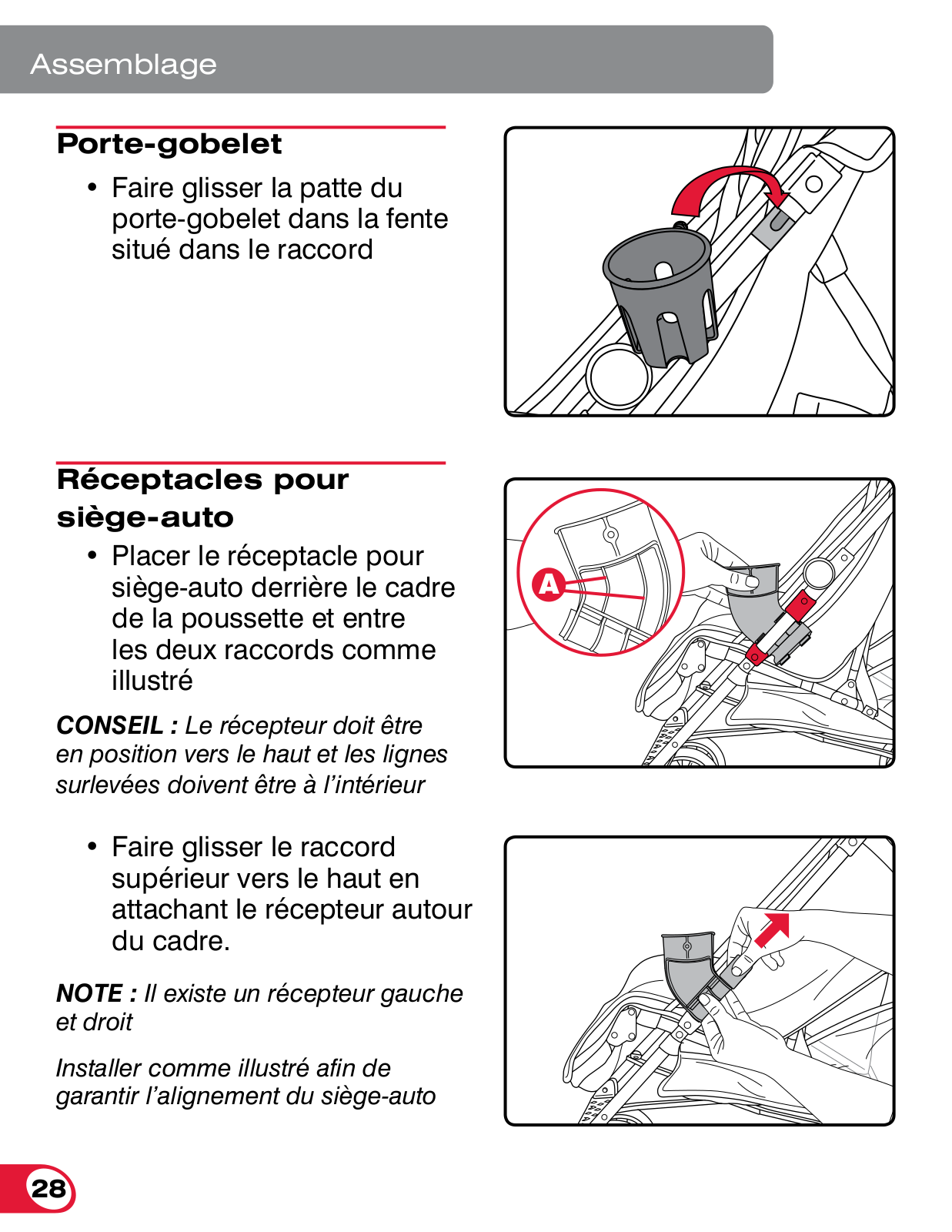

Cup Holder
• Slide the tab on the cup holder into the slot in the cup holder bracket
Infant Car Seat |
|
|
Receivers |
|
|
• Place the infant car seat |
A |
|
receiver behind the stroller |
||
|
||
frame and between the two |
|
|
brackets as shown |
|
TIP: The receiver should be pointing upward, and the raised lines (Fig. A)
should be on the inside
• Slide and hold the top bracket up while closing the receiver around the frame and snapping it together
NOTE: There is a left and right receiver
Install as shown to ensure infant car seat allignment
8
Assembly
Lowering the Infant Car
Seat Receivers
• Slide the receiver up to
release the receiver
•While holding the receiver up, rotate to the lower position
9
Operating Instructions
Parking Brake
•Step on the brake pedal on either side of the stroller until the wheels lock
•Lift either brake pedal to release the brake
Leg Rest Adjustment
•Lift leg rest to raise it or press and hold both leg rest levers to lower
10
Operating Instructions

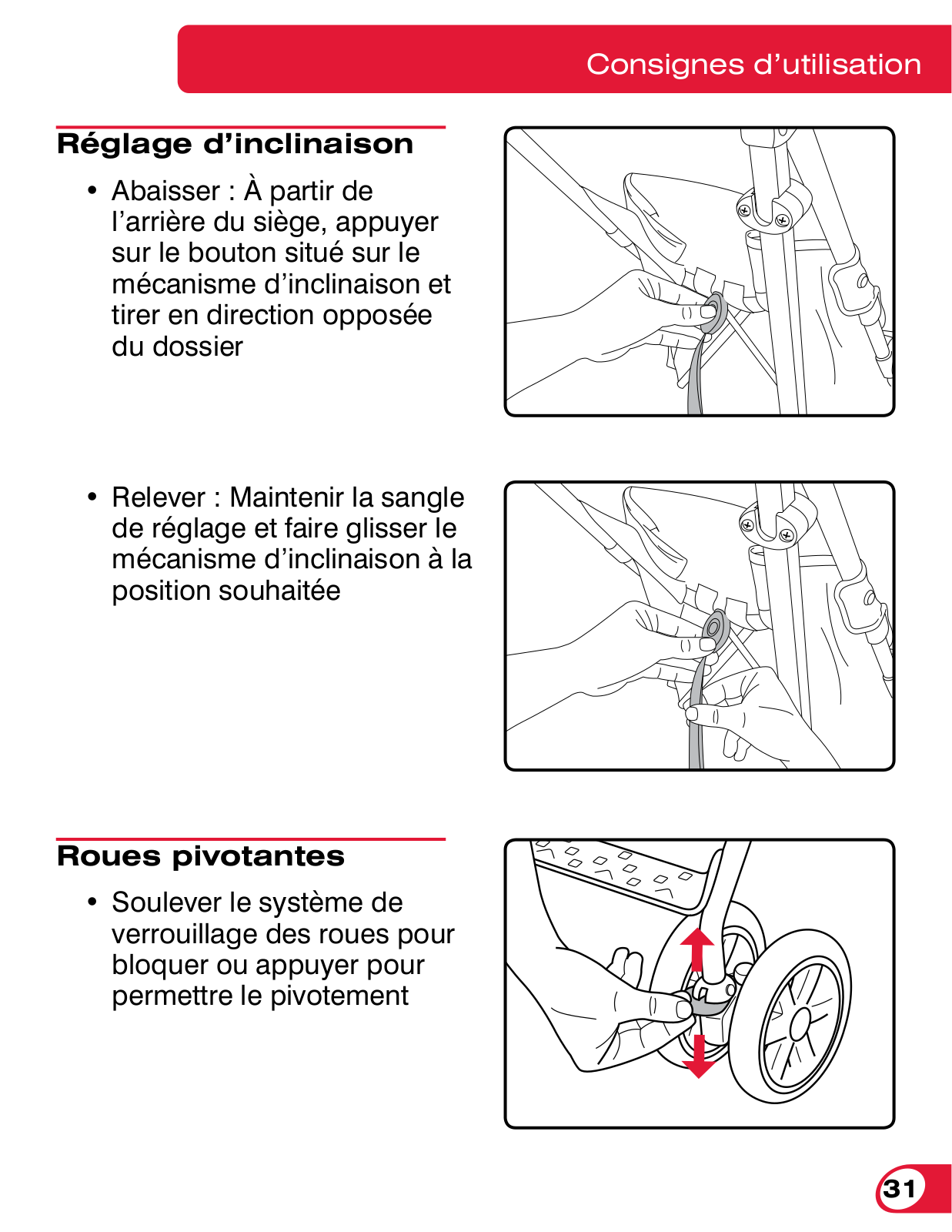

Recline Adjustment
• Lowering: From the back of the seat, press and hold the button on the recline adjuster and pull away from the seat back
• Raising: Hold the adjuster strap and slide the recline adjuster to the desired position
Swivel Wheels
•Move the swivel wheel lock up to lock wheels in place or down to allow wheels to
swivel
11
Operating Instructions
Folding the Stroller
•If infant car seat receivers are attached you must first rotate them to the lower position (Page 8)
•Pull up on the carry strap to release the primary frame lock
