Britax Hi-Liner SG, 4830/A/2010 Series Instructions For Installation And Use Manual
INFORMATION FOR BUYERS:
To be used with either a lap-sash seat
belt or an add-on accessory Child
Harness by children whose shoulders
are above the lower shoulder height
marker with head restraint in lowest
position (approximately 4 years of
age) until child’s shoulders reach the
upper shoulder height marker with
head restraint in highest position
(approximately 6 to 8 years of age).
Suitable for use only with the
Safe-n-Sound™Protecta
PLUS™Harness Series 220/2010 or
Babylove EzyGo Harness™ Series
BL220/2010 Child Harnesses.
Hi-Liner SG™
Child Booster Seat
Series Number: 4830/A/2010
IMPORTANT:
KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT
INTRODUCTION
2 3
INDEX
INTRODUCTION
WARNINGS
SHOULDER HEIGHT MARKERS AND A GROWING CHILD
SHOULDER HEIGHT MARKERS AND THE NEXT SEAT
SPECIAL FEATURES
SUITABLE FOR USE
HOW TO SETUP
HOW TO INSTALL
HOW TO USE
CARE & MAINTENANCE
HOW TO CLEAN
PRECAUTIONS
ACCESSORIES
PRE-INSTALLATION
PRE-INSTALLATION ANCHOR FITTING
FEATURES
IN CASE OF ACCIDENT
3
Page
7
4
8
6
10
11
13
14
30
31
32
33
34
35
37
38
This Booster Seat is designed for use by children from approximately 4 years of age up
to approximately 6 to 8 years of age in vehicles using a lap-sash seat belt or with a seat
belt and Child Harness. It must not be used with just a lap only seat belt as the upper body
of the child is not protected. This Booster Seat is tted with the Versa-Tether™ catch that
allows it to be used with a child harness.
Only the Safe-n-Sound™Protecta PLUS™Harness Series 220/2010 or Babylove EzyGo
Harness™ Series BL220/2010 child harnesses are suitable for use with this product.
No other Harness is suitable with this booster seat unless advised by Safe-n-Sound.
A child that is not tall enough to reach the lowest shoulder height marker in their seat with
in-built harness will be too small for this booster seat. This booster seat should be used
until the child no longer ts in the seat or the child can sit in the car’s seat with their lower
leg able to hang over the seat cushion.
This booster seat is not designed to be reclined.
CAREFULLY READ ALL THE INSTRUCTIONS FOR INSTALLATION.
IN THE EVENT OF DOUBT ABOUT THE METHOD OF INSTALLATION, CONSULT
SAFE-N-SOUND OR A CHILD RESTRAINT FITTING STATION AUTHORISED BY A
RELEVANT TRANSPORT AUTHORITY. IN NEW ZEALAND, CONTACT THE AGENT FOR
THE VEHICLE.
THIS RESTRAINT MUST BE USED IN CARS WITH FORWARD FACING SEATS WITH A
LAP-SASH SEAT BELT OR WITH A SEAT BELT AND CHILD HARNESS.
No child restraint can guarantee absolute protection from injury in every crash. However, to
ensure that your child gets all the protection designed into the restraint PLEASE READ AND
FOLLOW THESE INSTRUCTIONS EXACTLY.
Always store the instruction book under the base, for future reference.
• Use the restraint exactly as shown in the instructions.
• Supervision of children is needed because they may be able to undo buckles and
adjusters.
• DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
• Do not alter or modify this restraint. Use only recommended parts and accessories.
• Repairs must only be done by the manufacturer or agent.
• Do not allow the restraint to come into contact with polishes, oils, bleach and other
chemicals.
• Destroy the restraint if it has been in a severe crash, even if no damage is visible.
• DO NOT USE WITH JUST A LAP BELT. You must use with lap-sash seat belt, or with a
seat belt and child harness.
• The lap part of the seat belt must be firmly across the thighs and sash straps fitted
diagonally across the chest and on the shoulder.
• If used with a child harness, the lap strap of the seat belt must be adjusted firmly first,
and then the harness, so that the lap-strap is not lifted off the child’s lap when the
harness is adjusted.
• DO NOT USE THIS RESTRAINT WITHOUT THE COVER.
• IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT
IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURER’S WARNINGS AND
INSTRUCTIONS.
• Regularly check the restraint components, straps and other fitments for correct function,
cracking & condition. Seek prompt repair.
• Straps may be damaged by unsecured cargo in a collision. Secure or remove hazardous
cargo before using this strap. Hatch-back or wagon: Do not use the child restraint where
this strap may fall into a split in the seat back. Always attach hook and remove slack.
• Securely stow all heavy objects, feeding bottles, cup holders, etc that could become
missiles during an accident and cause injury to any occupant.
• The restraint should not be purchased or sold as a second hand item. It is recommended
not to use child restraints older than 10 years as the protection in an accident may be
reduced.
• THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT
IN THE CAR. REFER TO CAR OWNER’S HANDBOOK FOR LOCATION OF ANCHORAGE
POINTS. REFER TO A CHILD RESTRAINT FITTING STATION IF NO ANCHORAGE POINTS
ARE IN THE MOTOR CAR.
• THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE ANCHORAGE STRAP MAY
FALL INTO A SPLIT IN THE SEAT BACK. (E.G. HATCHBACK OR WAGON).
• Do not lift the seat by the headrest.
• Do not store in areas that may get hot, like in car boots, roof space, beside shed walls
which get hot in summer. Do not place heavy items on top of the seat as this may distort
the plastic.
4
5
DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
:
Label A Smaller Child - Lower Marker
When moving from a child restraint with in-built harness the child’s shoulders will be in
line with or above the Lowest Marker (label A) with the headrest in the lowest position, if
the child’s shoulders
are below this marker
the child needs to be
in a child seat with an
in-built harness.
Label B Larger Child - Upper Marker
The seat can be used until the child’s shoulders reach the Upper Marker (label B) with the
headrest fully raised. Usually the shoulders will contact the bottom of the headrest, it is
then time to move
to the next form of
restraint.
For maximum safety
continue to use this
seat as long as the
child ts in the seat.
6
7
SHOULDER HEIGHT MARKERS &
A GROWING CHILD
SHOULDER HEIGHT MARKERS &
THE NEXT SEAT
SMALLER CHILD
Shoulders must not be below the Lower
Shoulder Height Marker when the headrest
is the lowest position.
From approximately 4 years of age.
TALLER CHILD
Shoulders must not be above the Upper
Shoulder Height Marker when the headrest
is in the highest position.
To approximately 6 to 8 years of age.
Note:
These heights also apply if you
are using a Child Harness with the
booster seat.
Height label will be behind the child’s neck.
Front of Vehicle
IMPORTANT: Follow this advice.
Just the car's
lap-sash
seatbelt.
Or you can use a Child Harness
and lap seat belt. Lap seat belts
can be dangerous without a
Child Harness.
Or you can use a narrow booster
seat suitable for children up to
8-10 years of age. An accessory
Child Harness may be used.
Next type of restraint that can be used in the car for your child.
When your child has outgrown the seat, you can then either use:
Label B
Label A
Label A
Label B
9
8
SPECIAL FEATURES
SPECIAL FEATURES
1. Car's Anchor Fitting
2. Adjustable Height Headrest
3. Car Seat Belt
4. Padded Cover for Comfort
5. Booster Seat Belt path recess area
6. Booster Seat Belt path indicator
7. Pull-Out cup holder (1 each side)
8. Headrest Adjustment handle
9. Sash Guide (1 each side of headrest)
10. SLIDEGUARD™Clip
11. Armrest (1 on each side)
12. Shoulder Height Markers
13. Shoulder slots for use with Child Harness
14. Upper Anchorage Strap Adjuster
15. Upper Anchorage Storage Band
16. Adjustable Upper Anchorage Strap
17. Attachment Clip
Front of Vehicle
1
2
3
5
6
7
6
12
11
10
4
Rear View of Booster Seat
8
9
17161514
13
10
11
SUITABLE FOR USE
To be used with either a lap-sash seatbelt or an add-on accessory Child Harness by
children whose shoulders are above the Lower Shoulder Height Marker with head restraint
in the lowest position (approximately 4 years of age) until their shoulders reach the Upper
Shoulder Height Marker with head restraint in the highest position (approximately 6 to 8
years of age).
Continue to use this child restraint until the child reaches this limit. Children are safest in
a booster seat until their shoulders reach the Upper Shoulder Height Marker of the booster
seat. Do not use this restraint until child’s shoulders are above the Lower Shoulder Height
Marker with the head restraint in the lowest position.
THIS RESTRAINT MUST BE USED IN CARS WITH FORWARD-FACING SEATS WITH A
LAP-SASH SEAT BELT OR WITH A SEAT BELT AND CHILD HARNESS.
• If your vehicle is not tted with an anchor point, please contact a Safety Restraint Fitting
Station authorised by the relevant State Government Body for correct tment of the
restraint. In New Zealand contact the agent for the vehicle. The upper anchorage strap
must be attached to an anchorage point using an extension strap if necessary.
• DO NOT USE WITH JUST A LAP BELT. You must use with lap-sash seat belt, or with a
seat belt and Child Harness.
• Do not use the restraint without the Upper Anchorage Strap attached.
• Do not use in a front seat, unless it has a child restraint anchorage point and your child
is over 4 years of age or in accordance with the applicable Road Rules in your region.
• Do not use on any vehicle seat which faces sideways or rearwards.
• Only use Safe-n-Sound™replacement covers for this Booster seat to ensure all safety
information is provided.
HOW TO SETUP
ADJUSTING THE HEADREST
A. The headrest can be adjusted to lock into different height
locations. This can be done with the child in the seat.
B. Hold backrest as shown and squeeze the headrest
adjustment handle at the back of the headrest with the
other hand, to move the headrest up or down.
Caution: K e e p h a n d s a w a y f r o m g a p a t t h e b a c k
of the lower backrest whilst adjusting.
C. Adjust the headrest height so that the bottom of the sash
guide is level with or just above your child’s shoulder
(but not more than 30mm above).
D. When the headrest is in the correct position let go of the
headrest adjustment handle and ensure it has locked into place.
ADJUSTING THE BACKREST
The back rest pivots freely so as to match
the car seat back angle. Move the restraint
back until it is touching the car’s seat back.
If the vehicle seat back angle is adjustable
put it in the normal upright mode.
Normal
backrest angle
Backrest angle
too reclined
A
Less
than
30mm
Greater
than
30mm
B
Pull to remove slack
12 13
HOW TO SETUP
ADJUSTING THE
SLIDEGUARD™CLIP POSITION
A. Adjust the crotch straps for the SLIDEGUARD™clip to
the correct length for your child. It should be kept as low as
possible to keep the lap portion of the seat belt engaged
low-over the hips. Ensure the SLIDEGUARD™clip does not
push into your child's thighs as this may cause discomfort.
B. The crotch strap length adjusters can be found under the
seat. Turn the booster over and adjust as shown.

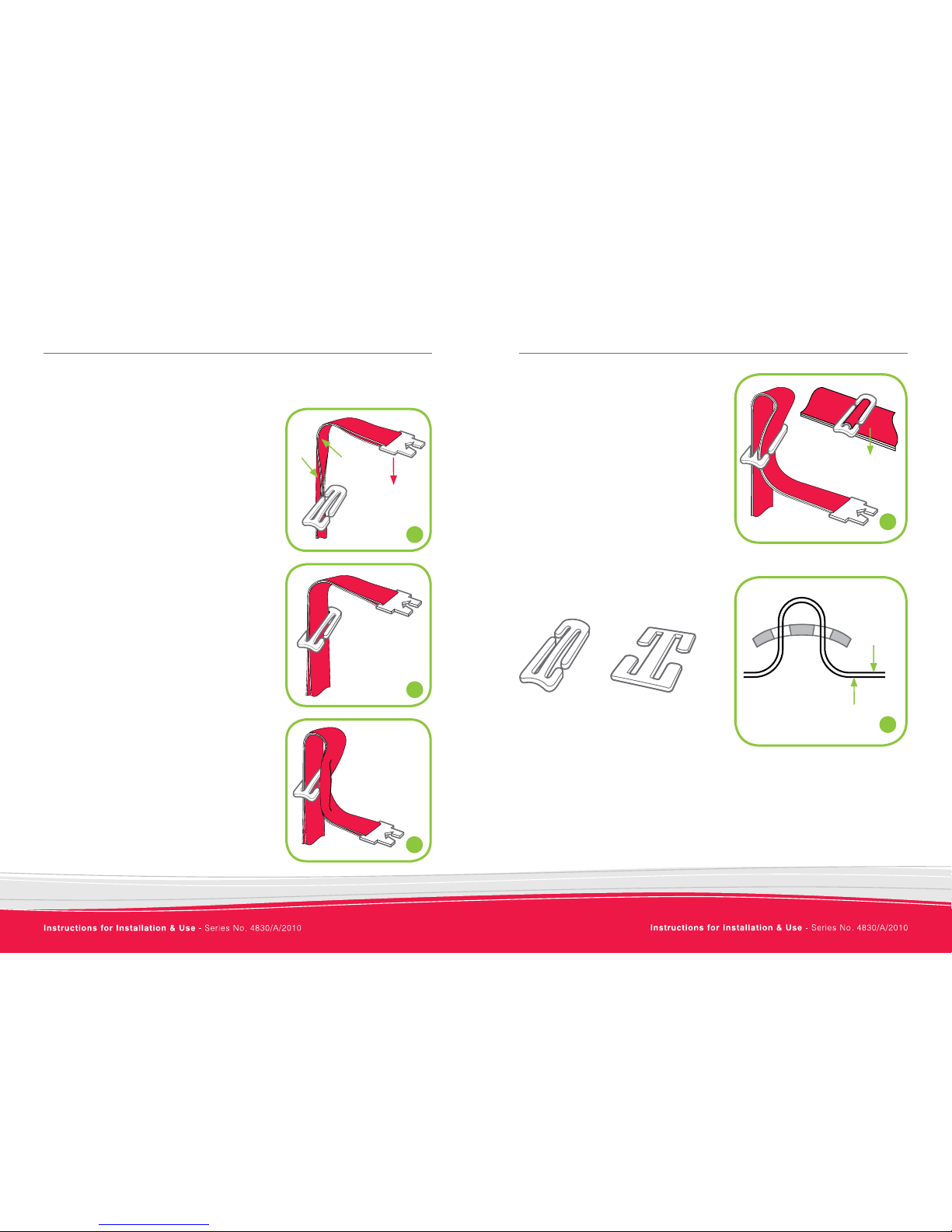

C. To change the length of the crotch strap, thread through
the adjuster in the direction of the arrows shown.
ALWAYS USE THIS DEVICE.
Lower edge of
SLIDEGUARD™
Clip, level with
top of thighs.
To shorten To lengthen
IMPORTANT :
You must adjust the crotch strap to the correct length for your child before installing the
restraint as it cannot be adjusted in the car.
Always return the crotch strap to its original shorter length when using the seat with a
smaller child. The SLIDEGUARD™clip must always be positioned low down on your child's
body - it will not connect correctly with the seat belt if it is too high. DO NOT attempt to
remove or dismantle the crotch strap.
HOW TO INSTALL
INSTALLING INTO VEHICLE
A. Position the restraint in the car forward facing in the
chosen seating position. Adjust the headrest to the
correct height for your child (refer to page 11). Ensure
the seating position has a child restraint anchorage
tting. Refer to the car owner's handbook. If no tting is
provided refer to anchor tting information on pages 34
to 36.
B. Lengthen the upper anchorage strap by removing the
excess strap from the storage band, then press the
adjuster button (1) and pull the strap with the attachment
clip (2). Hook the attachment clip to the anchor tting.
Make sure to remove any twists from the Upper
Anchorage Strap.
C. Tighten Adjustable Upper Anchorage Strap by pulling
adjusting strap (3) to remove slack. Do not tighten
causing the restraint base to lift off the vehicle seat.
D. Fold up excess strap and use storage band to neatly store
away from child's reach and secure with the hook and
loop storage strap.
Always attach hook and remove slack.
Attachment Clip
Anchor Fitting
Fold up excess
strap and store with
the storage band.
Storage
Band
A
B
C
D
Storage
Band
1
2
3
Loading...
