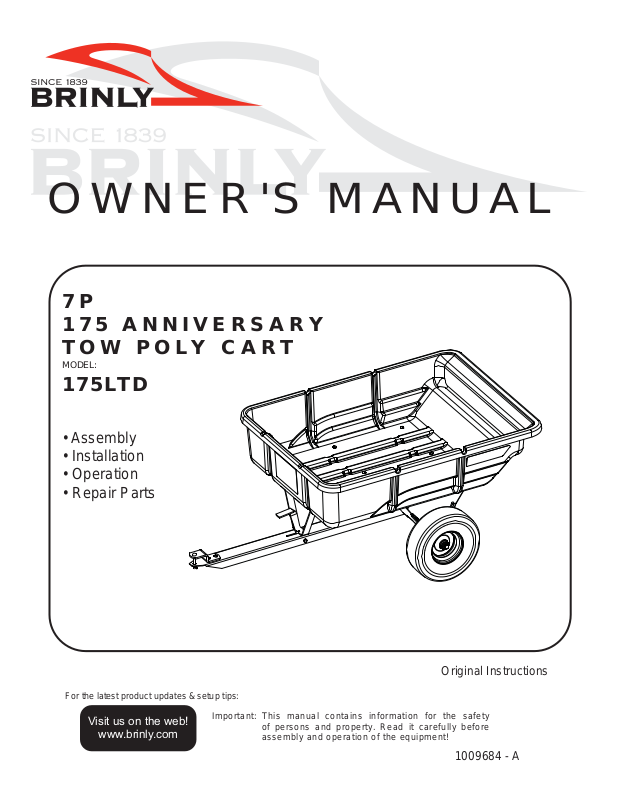

Page 1
OWNER'S MANUAL
7P
175 ANNIVERSARY
TOW POLY CART
MODEL:
175LTD
• Assembly
• Installation
• Operation
• Repair Parts
For the latest product updates & setup tips:
Visit us on the web!
www.brinly.com
Important: This manual contains information for the safety
Original Instructions
of persons and property. Read it carefully before
assembly and operation of the equipment!
1009684 - A
Page 2
INTRODUCTION AND SAFETY
================================================================================================
CONGRATULATIONS on the purchase of your new Brinly-Hardy
Cart! Your Cart has been designed, engineered and manufactured
to give you the best possible dependability and performance.
Should you experience any problem you cannot easily remedy,
please do not hesitate to contact our knowledgeable customer service department toll-free at 1-877-728-8224. We have competent,
well trained technicians to help you with the assembly and use of
your Cart.
CUSTOMER RESPONSIBILITIES
Please read and retain this manual. The instructions will
enable to assemble and maintain your Cart properly.
Please carefully read and observe the SAFETY section of
this manual.
Follow a regular schedule in maintaining and caring-for
your Brinly-Hardy Cart.
TABLE OF CONTENTS
SAFETY ...........................................................................................2
COMPONENT VIEW AND REFERENCE LIST ...............................4
ASSEMBLY .................................................................................5-7
OPERATION ....................................................................................8
SERVICE - STORAGE ....................................................................8
WARRANTY INFORMATION ..........................................................9
SAFETY
SAFETY LABELS AND NOTATION
This symbol will help to point out important safety precautions
throughout this manual. It means - ATTENTION! BECOME
ALERT! your safety is involved.
AVOID INJURY FROM EXPLOSION
'RQRWSODFHJDVFRQWDLQHULQFDUWZKHQILOOLQJ
RIDERS CAN FALL OFF AND BE KILLED
1RULGHUVLQFDUW
POUR ÉVITER TOUTE BLESSURE PAR SUITE
D’EXPLOSION
1HSDVFRQVHUYHUOHELGRQiHVVHQFHGDQVOH
FKDULRWORUVGXUHPSOLVVDJH
LES PASSAGERS PEUVENT TOMBER ET
ENCOURIR DES BLESSURES MORTELLES
1HSDVWUDQVSRUWHUGHSHUVRQQHVGDQVOHFKDULRW
B-7084
2.
1009684 - A
The safety labels shown in this section are placed in important
areas on your product to draw attention to potential safety hazards.
On your product safety labels, the words DANGER, WARNING
and CAUTION are used with the safety-alert symbol. DANGER
identifi es the most serious hazards.
The operator’s manual also explains any potential safety hazards whenever necessary in special safety messages that are
identifi ed with the word, CAUTION, and the safety-alert symbol.
GENERAL NOTES (OPERATION)
Caution should be taken when towing and/or using any
attachment. This attachment combined with the weight
distribution, turning radius, and speed of towing vehicle can
result in severe injury or death to operator, damage to towing
vehicle, and/or attachment if not used properly. Follow all towing
safety precautions noted in the towing vehicle owner’s manual,
including the following precautions:
• Ensure the combined weight of the towing vehicle (tow
vehicle weight + operator weight) is greater than the
maximum towed weight of attachment (empty
attachment weight + weight of load).
• Do not exceed maximum towing capacity of towing
vehicle.
• Do not exceed the maximum drawbar pull rating of the
towing vehicle. Drawbar pull is the horizontal force
required to pull the attachment (including weight of
load).
• Only tow this product in the vehicle’s tow mode/speed
setting or less than 5 mph. Do not exceed 5 mph.
• Towing speed should always be slow enough to
maintain control. Travel slowly and use caution when
traveling over rough terrain. Avoid holes, rocks and
roots.
• Slow down before you turn and do not turn sharply.
• Use wide turning angles to ensure the attachment
follows the path of the towing vehicle.
• Do not use attachment on steep slopes. A heavy
load could cause loss of control or overturn attachment
and towing vehicle. Additional weights may need to
be added to your vehicle; check with
towing vehicle manufacturer for recommendations.
• Reduce towed weight when operating on slopes.
• Keep all movement on slopes slow and gradual. Do
not make sudden changes in speed, directions, or
turning.
• If you start and stop suddenly on hills, you may lose
steering control or the towing vehicle may tip.
Do not start or stop suddenly when going uphill or
downhill. Avoid uphill starts.
• Slow down and use extra care on hillsides. Turf
conditions can affect vehicle stability. Use
extreme caution while operating near drop-offs.
• Do not drive close to creeks, ditches and public
highways.
• Watch out for traffi c when crossing near roadways.
• Use care when loading or unloading the vehicle into a
trailer or truck.
• The attachment can obstruct the view to the rear. Use
extra care when operating in reverse.
• When reversing, carefully back-up straight to avoid
jackknifi ng. Do not allow towing vehicle wheels to
Page 3
contact attachment draw bar. Damage could result.
• Stop on level ground, disengage drives, set the
parking brake, and shut off engine before
leaving the operator’s position
for any reason including emptying the
attachment.
• Use this attachment for intended purpose only.
• This attachment is intended for use in lawn care
and home applications. Do not tow behind vehicle
on a highway or in any high speed applications.
Do not tow at speeds higher than the maximum
recommended towing speed.
• Do not tow this product behind a motor vehicle such
as a car or truck.
• Always wear substantial footwear. Do not wear
loose fi tting clothing that can get caught in moving
parts.
• Keep your eyes and mind on your towing vehicle,
attachment and area being covered. Do not let other
interests distract you.
• Stay alert for holes and other hidden hazards in the
terrain
• Keep the towing vehicle and attachment in good
operating condition and keep safety devices in
place.
• The towing vehicle and attachment should be
stopped and inspected for damage after striking
a foreign object. Any damage should be repaired
before restarting and operating the equipment.
• Keep all parts in good condition and properly
installed. Fix damaged parts immediately. Replace
worn or broken parts. Replace all worn or damaged
safety and instruction decals. Keep all nuts, bolts
and screws tight.
• Do not modify the attachment or safety devices.
Unauthorized modifi cations to the towing vehicle
or attachment may impair its function, safety and
void the warranty.
TOWING VEHICLE AND TOWING SAFELY
• Know your towing vehicle controls and how to
stop safely. READ YOUR TOWING VEHICLE
OWNER’S MANUAL before operating.
• Check the towing vehicle brake action before you
operate. Adjust or service brakes as necessary.
• Stopping distance increases with speed and weight
of towed load. Travel slowly and allow extra time
and distance to stop.
• Use only approved hitches. Tow this attachment
only with a towing vehicle that has a hitch designed
for towing. Do not connect this attachment except at
the approved hitch point.
• Follow the tow vehicle manufacture’s
recommendations for weight limits for towed
equipment and towing on slopes. Use
counterweights or wheel weights as described in the
towing vehicle operator’s manual.
• Do not shift to neutral and coast downhill.
• Do not allow children to operate the towing vehicle.
Do not allow adults to operate the towing vehicle
without proper instruction or without having read the
owner’s manual.
PROTECT THOSE AROUND YOU
• Before you operate any feature of this attachment
or towing vehicle, observe your surroundings and
look for bystanders.
• Keep children, bystanders and pets at a safe
distance away while operating this or any
attachment.
• Use care when reversing. Before you back up, look
carefully behind for bystanders.
KEEP RIDERS OFF TOWED ATTACHMENT AND TOWING
VEHICLE
• Do not carry passengers.
• Do not let anyone, especially children, ride in/on this
attachment, the towing vehicle or hitch bracket.
Riders are subject to injury such as being struck by
foreign object and/or being thrown off during sudden
starts, stops and turns.
Riders may also obstruct the operator’s view resulting in
this attachment being operated in an unsafe manner.
POLY CART SPECIFIC SAFETY INSTRUCTIONS
• Do not tow cart with bed raised
1009684 - A
3.
Page 4
COMPONENT VIEW AND REFERENCE LIST
================================================================================================
INSTALLATION
7
10
STOP
1
QUESTIONS?
MISSING PARTS?
REPLACEMENT PARTS?
DON’T GO BACK
TO THE STORE!
Please call our Customer Service
Department T oll-Free at
877.728.8224
or
www.customerservice
@brinly.com
9
16
14
8
6
14
21
18
12
13
3
4
7
11
5
9
REF PART NO. DESCRIPTION QTY
1 1009706 Poly Bed 1
2 B-7084 Warning Label 1
3 1009663 Wheel 2
4 1007363-10 Foot Pedal 1
5 B-3034-10 Clevis 1
6 B-3520-10 Lock Bracket 1
7 20M1016P Rd. Hd. Screw, 5/16" X 1" 12
8 30M1000P Hex Nut, 5/16" 12
9 40M1000P Lock Washer, 5/16" 12
10 45M1111P Flat Washer, 5/16" 10
11 B-1675P Hex Lock Nut, 3/8" 1
12 B-3861 Hitch Pin, 1/2" X 2-1/2" 1
8
17
16
15
Tools Required:
(1) Flat Tip Screw Driver
(1) Pliers
20 19
(1) 1/2” Wrench
(2) 9/16” Wrenches
14
3
14
13
9
8
REF PART NO. DESCRIPTION QTY
13 B-4305 "E" Ring, 3/4" 2
14 1007732 Nylon Washer 4
15 B-6298 Hex Hd Bolt, 3/8" X 3-3/4" 1
16 B-6299 Keps Hex Nut, 3/8" 2
17 B-3303 Latch Spring 1
18 D-146P Hairpin Cotter, 1/8" 1
19 1007353 Axle, 3/4" X 32.59" 1
20 B-4599-10 Axle Support 1
21 1008697 Towbar 1
22 L-1744 Serial Number Label 1
23 B-6535 Caution Decal 1
24 1009671 Poly Bed Cover 1
4.
1009684 - A
Page 5

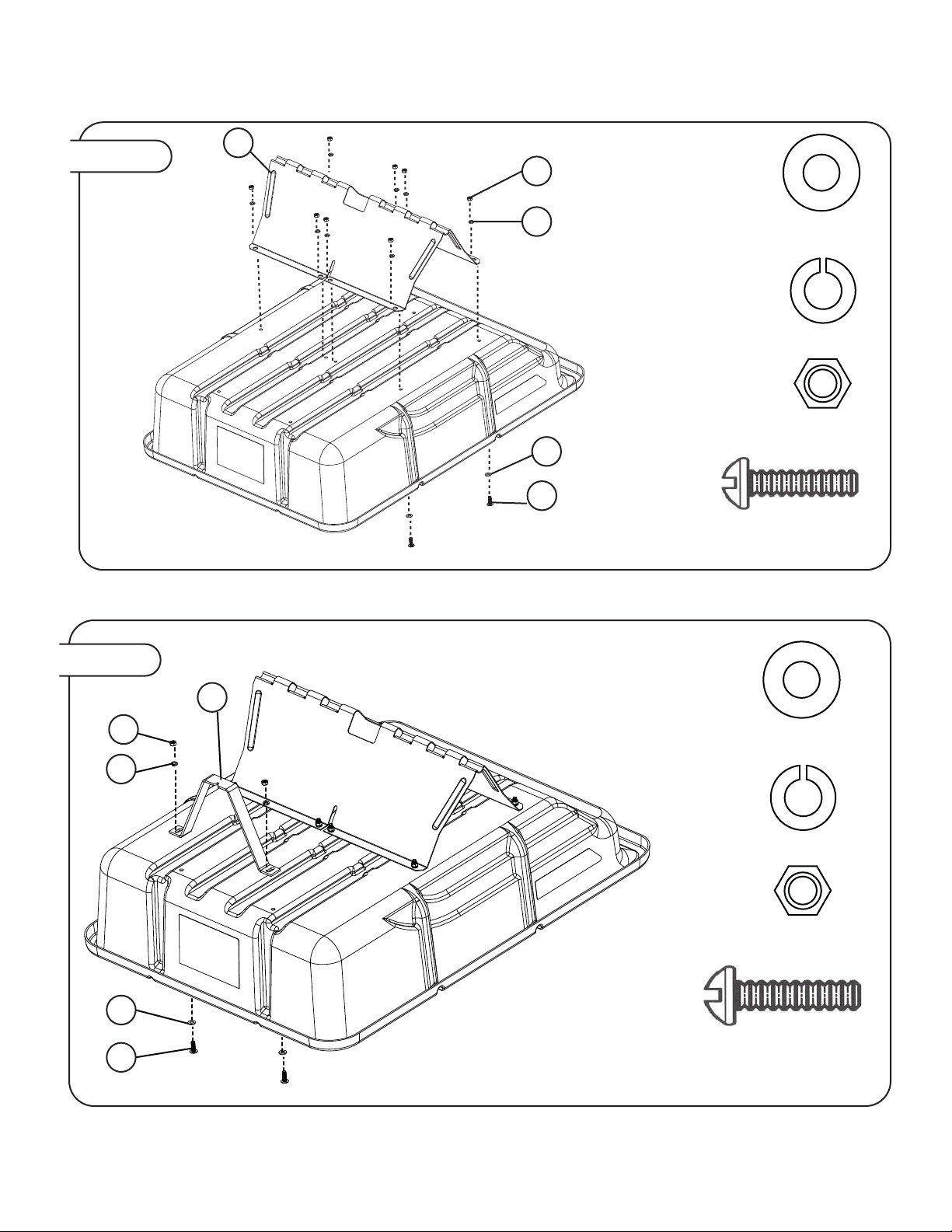

ASSEMBLY
================================================================================================
Step 1.
20
8
9
10
7
10
Flat Washer, 5/16”
Qty. 8
9
Lock Washer, 5/16”
Qty. 8
8
Hex Nut, 5/16”
Qty. 8
Round Head Screw, 5/16” x 1”
7
Qty. 8
Step 2.
8
9
10
7
6
10
Flat Washer, 5/16”
Qty. 2
9
Lock Washer, 5/16”
Qty. 2
8
Hex Nut, 5/16”
Qty. 2
Round Head Screw, 5/16” x 1”
7
Qty. 2
1009684 - A
5.
Page 6

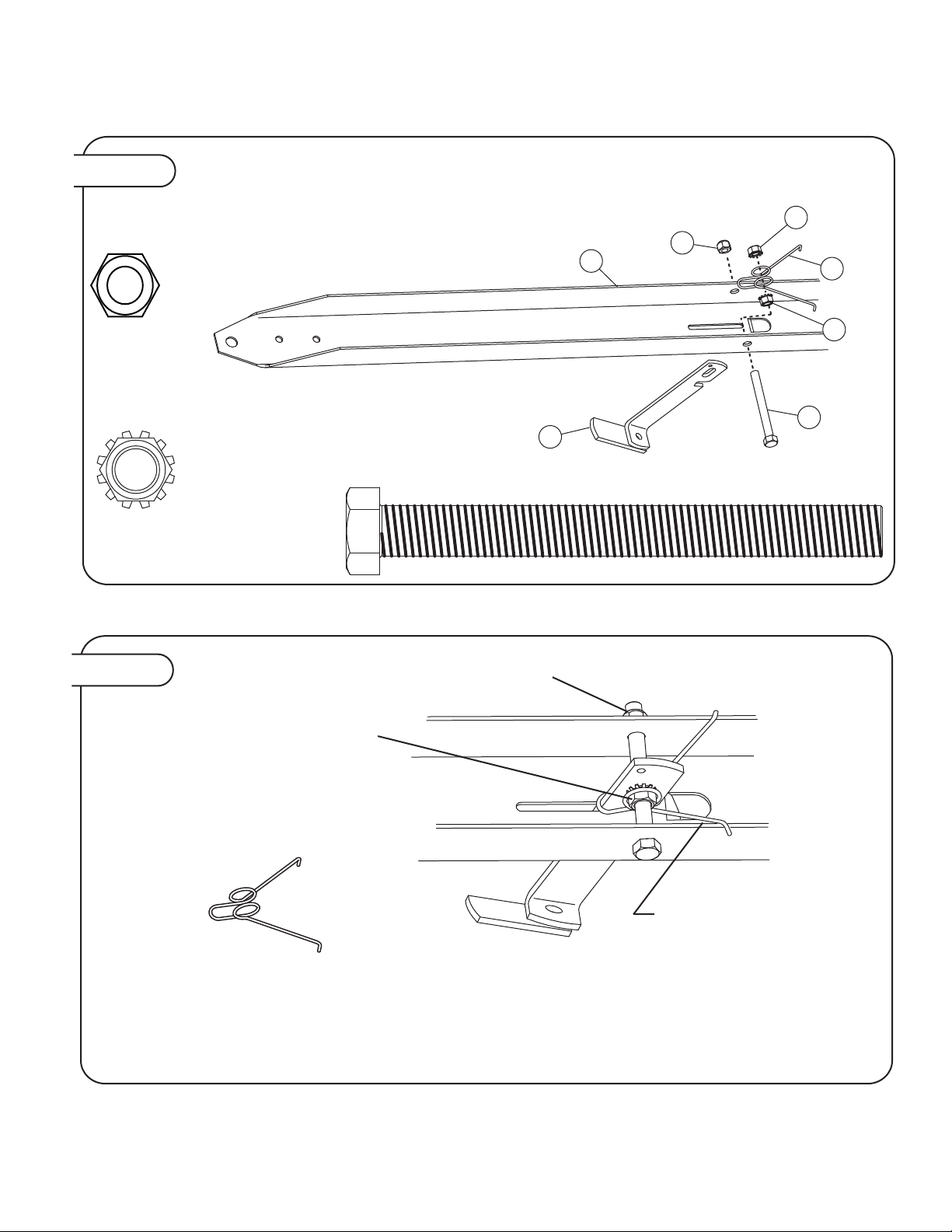

ASSEMBLY
================================================================================================
Step 3.
16
11
21
17
11
Lock Nut, 3/8”
Qty. 1
16
Keps Nut, 3/8”
Qty. 2
Step 4.
16
15
4
15
Hex Bolt, 3/8” x 3-3/4”
Qty. 1
Leave nut (11) loose enough for Foot
Pedal (4) to pivot freely
Tighten nuts (16) securely with
Foot Pedal (4) centered on slot in
Tow Bar
6.
Latch Spring
1009684 - A
17
Qty. 1
Correct Latch Spring (17)
placement with bolt (15)
through center of eye
Page 7

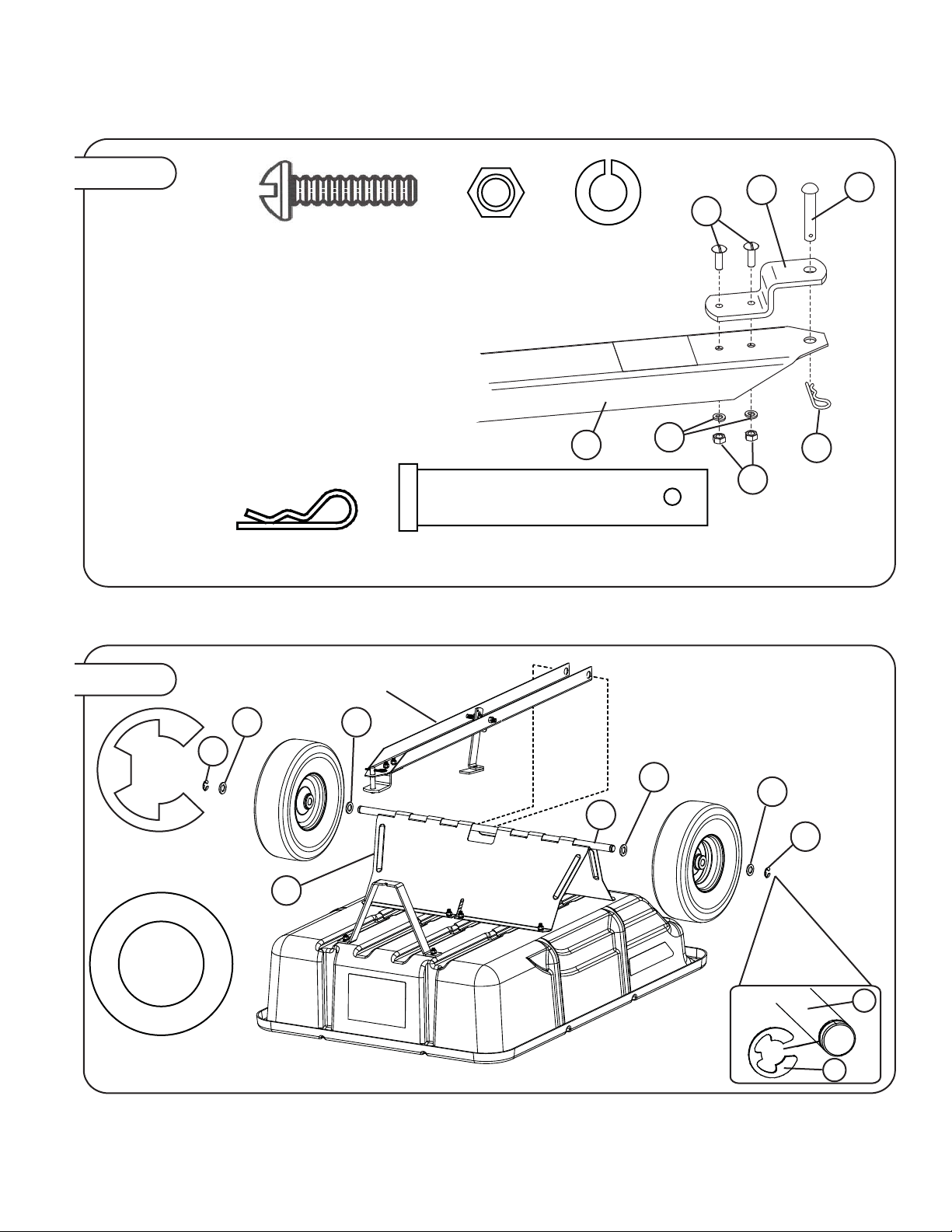

ASSEMBLY
================================================================================================
Step 5.
12
7
Round Head Screw, 5/16” X 1”
Qty. 2
8
Hex Nut, 5/16”
Qty. 2
5
7
9
Lock Washer, 5/16”
Qty. 2
Step 6.
13
Retaining Ring, E-Type
Qty. 2
Hair Pin Cotter, .080
14
13
18
Qty. 1
Towbar Assembly
14
20
12
Hitch Pin
Qty. 1
21
19
14
9
18
8
14
13
14
3/4” Nylon Washer
Qty. 4
1009684 - A
19
13
7.
Page 8

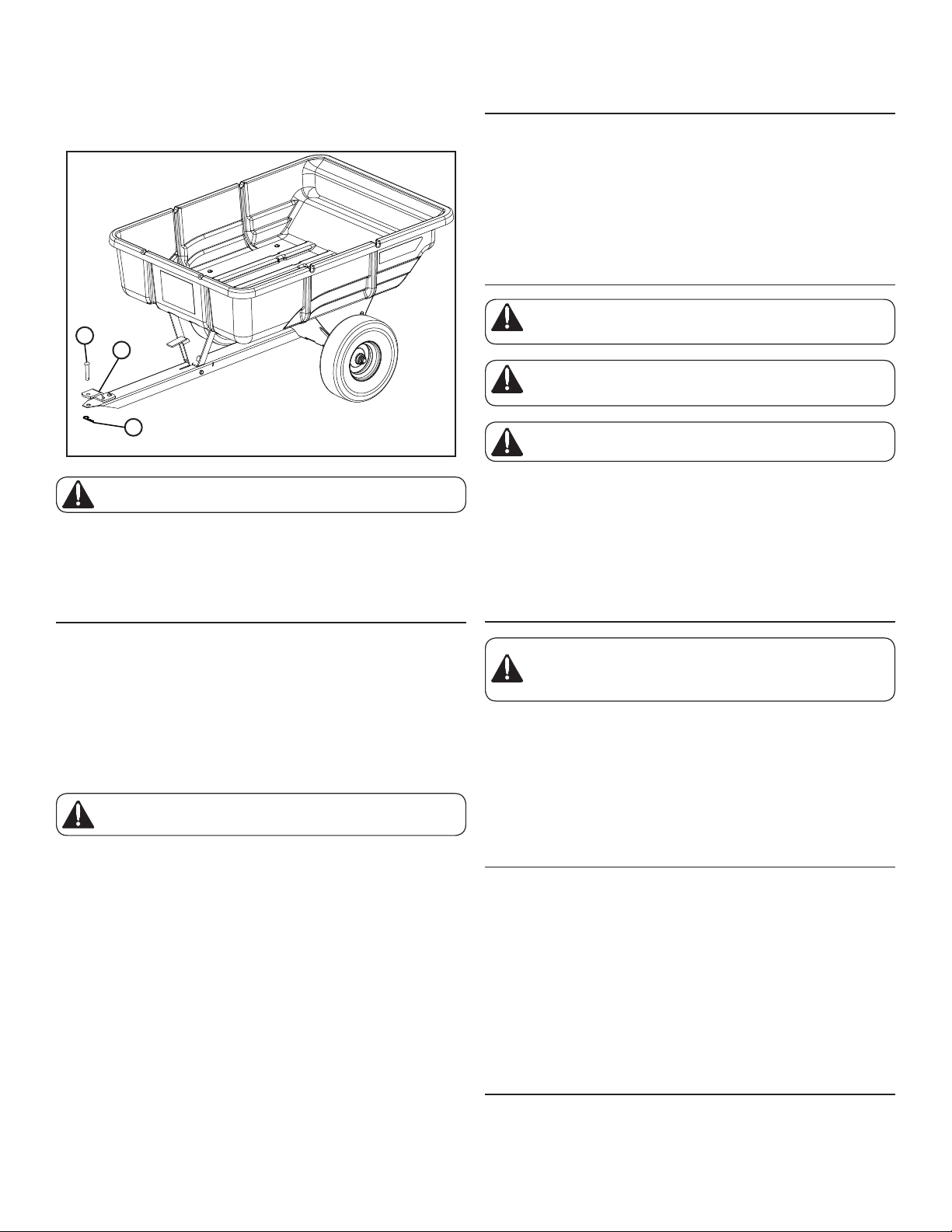

OPERATION, SERVICE AND STORAGE
================================================================================================
OPERATION
INSTALLING YOUR CART
12
5
CART SPECIFICATIONS
• Maximum speed is 8 mph.
• Tire pressure should be maintained at 30 psi (maximum).
• Maximum load for cart is 450 lbs.
Avoid overfi lling the cart. This can cause the towing vehicle to lose traction and skid.
The towing vehicle and operator combined weight MUST BE more than loaded cart
weight for PROPER towing and braking.
Extremely heavy loads will be diffi cult to dump. Fill cart to a capacity that is
comfortable for you to dump.
DUMPING LOAD
CAUTION: Take care when dumping the Bed. An unevenly
distributed load in the Bed could cause the Bed to dump quickly
(Example: load set at rear of cart).
CAUTION: To avoid injury , never disengage Foot Pedal with hand.
Always use foot to disengage Foot Pedal while keeping body parts
clear of bed.
18
CAUTION: Avoid Injury! Keep body parts away from under
Drawbar and Bed.
1. Park towing vehicle safely using the parking brake (see towing vehicle
operator’s manual).
2. Align Cart Clevis (5) with towing vehicle hitch plate.
3. Install Hitch Pin (12) through Clevis (5) and towing vehicle hitch plate.
Secure Hitch Pin (12) with Hairpin Cotter (18).
USAGE
Cart Weight
The following maximum loaded weight capacity is the weight of the Cart plus the
maximum weight loaded into the Cart Bed:
Model Weight
175LTD 65 lbs (empty)
Maximum capacity 450 lbs
---------Maximum Towed Weight 515 lbs
CAUTION: Weight of towing vehicle and operator MUST BE
MORE than the weight of cart and load.
Example:
If Towing Vehicle weighs: 450 lbs
Add Your Weight: 200 lbs
---------Combined Weight Equals: 650 lbs
To maintain stability using the cart in this example, you cannot safely tow more than
650 lbs without fi rst adding ballast to the towing machine.
Use correct number of weights on towing vehicle. If additional weight is required, add
this weight at or forward of the rear wheels. Additional weight rearward of rear wheels
causes a negative affect on vehicle steering.
Observe terrain and take care when loading the cart bed. Risk is increased on
slippery, uneven or sloped terrain. An unsafe load on dry, level ground may cause the
tractor to lose traction and skid on slippery or sloped ground.
Keep riders out of cart.
8.
1009684 - A
CAUTION: Avoid Injury! Keep body parts away from under Bed
when dumping or closing.
To Dump Cart:
1. Park towing vehicle safely and set the parking brake (see towing
vehicle operator’s manual).
2. Depress Foot Pedal with foot.
3. Raise the bed carefully into the full dump position.
4. Once empty, close Bed fully onto the Drawbar.
Keep body parts from under the Bed when closing.
Confi rm Foot Pedal has engaged with the Bed Lock Bar.
REMOVING YOUR CART
CAUTION: Avoid Injury! Keep body parts away from under
Drawbar.
Do not attempt to disconnect Cart from towing vehicle with weight
in the Bed.
1. Park towing vehicle safely and set the parking brake (see towing
vehicle operator’s manual).
2. Confi rm Bed is not loaded.
3. Remove Hairpin Cotter (18) and Hitch Pin (12) from Clevis (5).
4. Push Cart away from the towing vehicle.
5. Reinstall Hitch Pin (12) and Hairpin Cotter (18) to Clevis (5) for
storage.
SERVICE AND STORAGE
MAINTENANCE
The key to years of trouble-free service is to keep your Cart clean and dry.
After the fi rst 30 minutes of use, check all fasteners for tightness.
Thereafter, periodically check all fasteners for tightness.
Unauthorized modifi cations to the cart may impair its function and safety.
Occasionally check all moving parts for free movement and, if necessary, lubricate
with oil.
For rust appearing on painted surfaces, sand lightly and paint affected area with
enamel.
Wheels are fi tted with oil impregnated bushings. If additional lubrications is needed,
grease can be applied through the zerk grease fi tting located on the inside of the rim.
STORAGE
Cart should be stored in a dry place.
Cart should be stored with Bed closed and locked in position.
Drawbar is a trip hazard. Avoid leaving Drawbar in aisle ways and walking paths.
Page 9
s
MANUFACTURER’S LIMITED WARRANT
Y
FOR
Pull Behind Accessorie
The limited warranty set forth below is given by Brinly-Hardy
Company with respect to new merchandise purchased and used
in the United States, its possessions and territories.
Brinly-Hardy Company warrants the products listed below against
defects in material and workmanship, and will at its option, repair
or replace, free of charge, any part found to be defective in
materials or workmanship. This limited warranty shall only apply
if this product has been assembled, operated, and maintained
in accordance with the Operator’s manual furnished with the
product, and has not been subject to misuse, abuse, commercial
use, neglect, accident, improper maintenance, alteration,
vandalism, theft, fi re, water, or damage because of other peril or
natural disaster.
Normal Wear Parts or components thereof are subject to separate
terms as follows: All normal wear parts or component failures will
be covered on the product for a period of 90 days.
Parts found to be defective within the warranty period will be
replaced at our expense. Our obligation under this warranty is
expressly limited to the replacement or repair, at our option, of
parts found to be defective in material and workmanship.
HOW TO OBTAIN SERVICE: Warranty parts replacements are
available, ONLY WITH PROOF OF PURCHASE, through our Pull
Behind Accessories Customer Service Department. Call 877-728-
8224.
TO REGISTER YOUR ANNIVERSARY CART GO TO
www.brinly.com/register-175 to register your 175th anniversary
poly cart.
This limited warranty does not provide coverage in the following
cases:
a) Routine maintenance items such as lubricants and fi lters.
b) Normal deterioration of the exterior fi nish due to use or
exposure.
c) Transportation and/or labor charges.
d) The warranty does not include rental use.
No implied warranty, including any implied warranty of
merchantability of fi tness for a particular purpose, applies
after the applicable period of express written warranty above
as to the part as identifi ed below. No other express warranty
whether written or oral, except as mentioned above, given
by any person or entity, including a dealer or retailer, with
respect to any product, shall bind Brinly-Hardy Co. During
the period of the warranty, the exclusive remedy is repair or
replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole
and exclusive remedy arising from the sale. Brinly-Hardy
Co. shall not be liable for incidental or consequential loss
or damage including, without limitation, expenses incurred
for substitute or replacement lawn care services or for rental
expenses to temporarily replace a warranted product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not
apply to you.
During the warranty period, the exclusive remedy is replacement
of the part. In no event shall recovery of any kind be greater that
the amount of the purchase price of the product sold. Alteration
of safety features of the product shall void this warranty. You
assume the risk and liability for loss, damage, or injury to you and
your property and/or to others and their property arising out of the
misuse or inability to use this product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as
a gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This limited
warranty gives you specifi c legal rights, and you may also have
other rights which vary from state to state.
IMPORTANT: The Warranty period stated below begins with the
PROOF OF PURCHASE. Without the proof of purchase, the
Warranty period begins from the date of manufacture determined
by the serial number manufacturing date.
WARRANTY PERIOD:
The warranty period for the product shown in this manual is as
follows: Steel Frame Parts: consumer - 2 Years, commercial - 90
days. Tires and Wheels are normal wear parts - 90 days.
Brinly-Hardy Company, 3230 Industrial Parkway, J effersonville, IN 47130 (877) 728-8224
1009684 - A
9.
Page 10
BLANK PAGE
================================================================================================
10.
1009684 - A
Page 11
BLANK PAGE
================================================================================================
1009684 - A
11.
Page 12
BLANK PAGE
================================================================================================
12.
1009684 - A
Loading...
