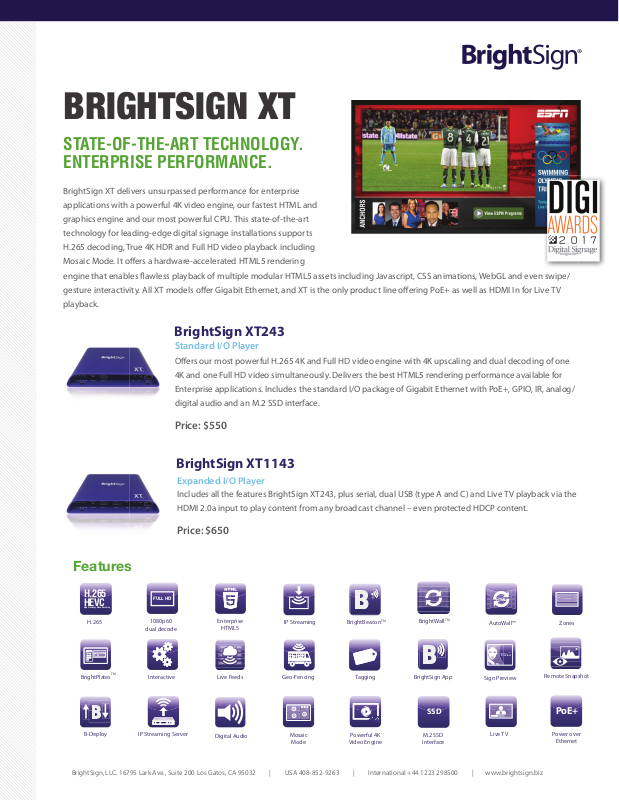

BRIGHTSIGN XT
Preview
STATE-OF-THE-ART TECHNOLOGY.
ENTERPRISE PERFORMANCE.
BrightSign XT delivers unsurpassed performance for enterprise
applications with a powerful 4K video engine, our fastest HTML and
graphics engine and our most powerful CPU. This state-of-the-art
technology for leading-edge digital signage installations supports
H.265 decoding, True 4K HDR and Full HD video playback including
Mosaic Mode. It o ers a hardware-accelerated HTML5 rendering
engine that enables awless playback of multiple modular HTML5 assets including Javascript, CSS animations, WebGL and even swipe/
gesture interactivity. All XT models o er Gigabit Ethernet, and XT is the only product line o ering PoE+ as well as HDMI In for Live TV
playback.
BrightSign XT243
Standard I/O Player
O ers our most powerful H.265 4K and Full HD video engine with 4K upscaling and dual decoding of one
4K and one Full HD video simultaneously. Delivers the best HTML5 rendering performance available for
Enterprise applications. Includes the standard I/O package of Gigabit Ethernet with PoE+, GPIO, IR, analog/
digital audio and an M.2 SSD interface.
Features
H.265
HEVC
High Efficiency Video Decoding
H.265
BrightPlates
TM
FULL HD
1080p60
dual decode
Interactive
Price: $550
BrightSign XT1143
Expanded I/O Player
Includes all the features BrightSign XT243, plus serial, dual USB (type A and C) and Live TV playback via the
HDMI 2.0a input to play content from any broadcast channel – even protected HDCP content.
Price: $650
HTML
Enterprise
HTML5
Live Feeds
IP Streaming
Geo-Fencing
BrightBeacon
Tagging
TM
BrightSign App
BrightWall
SSD
TM
AutoWall™
Preview
Sign Preview
Zones
Remote Snapshot
PoE+
B-Deploy
BrightSign, LLC. 16795 Lark Ave., Suite 200 Los Gatos, CA 95032 | USA 408-852-9263 | International +44 1223 298500 | www.brightsign.biz
IP Streaming Server
Digital Audio
Mosaic
Mode
Powerful 4K
Video Engine
M.2 SSD
Interface
Live TV
Power over
Ethernet
SPECIFICATIONS
MODEL XT243 XT1143
VIDEO ENGINE DECODER
Single 1080p60 video decoding X X
Dual 1080@60p decoding X X
Native 4K@60p CEA HDR10 video decoding X X
Dual video decoding of one 4K & one 1080p60 video X X
MEDIA FORMATS
Video Codecs for 4K content: H.265
Video Containers for 4K H.265 content: .ts, .mov, .mp4, .mkv X X
Video Codecs for Full HD: H.265, H.264(MPEG-4, Part 10),
MPEG-2, MPEG-1
Video Containers for Full HD content: .ts, .mpg, .vob, .mov,
.mp4, .m2ts, .wmv
Images: BMP, JPEG, PNG X X
Audio: MP2, MP3, AAC, FLAC, OGG, and WAV (AC3 is passed
through)
HTML5 X (Enterprise)
DISPLAY RESOLUTIONS*
4K resolutions: 3840x2160, 4096x2160, 3840x600 X X
Upscaling to: 3840x2160x24/25/29.97/30p X X
1920x1080x24/25/29.97 /30/50/59.94/60p,
1920x1080x50/59.94/60i, 1600x1200x60p,
1440x1050x60/75p, 1440x900x60/75p, 1360x768x60p,
1280x1024x60/75p, 1280x960x60p, 1280x800x60p/75p,
1280x768x60p, 1280x720x50 /59.94/60p, 1024x768x60p,
800x600x60/75p, 720x576x50p/50i, 720x480x59.94/60p/60i,
640x480x60p
HARDWARE INTERFACES
Locking Power Connector X X
External micro SD Slot (SDHC and SDXC); SDHC storage up
to 32GB SDXC storage up to 2TB
M.2 SSD Interface X X
USB High Speed Host Port (also supports content updates) X (2 ports:
Phoenix GPIO Port (12-pin bi-directional) X X
3.5mm RS-232 Serial Port X
3.5mm IR In/Out X X
3.5mm Audio Out (analog -or- SPDIF digital, nonsimultaneous)
HDMI 2.0a Out X X
HDMI 2.0a Input X
Ethernet X (Gigabit)
Power over Ethernet (PoE+) X X
M.2 (E) Keyed Wi-Fi/Bluetooth Connector X X
Wi-Fi External Antenna Connector (optional) X X
Status LEDs Power, Error, Busy, Update
Reset Button X X
Real Time Clock X X
FEATURES
H.265 Decoding: smaller le sizes and higher quality
content than H.264
Powerful 4K Video Engine: True 4K CEA HDR10, 4K
upscaling, dual video decoding and superior scaling
X X
X X
X X
X X
X X
X X
Type A&C)
X X
X X
X X
MODEL XT243 XT1143
Live TV: brings Live TV, even HDCP-protected content, to
your signage via HDMI 2.0a Input
HTML5: hardware-accelerated engine that plays modular
HTML assets awlessly alongside high-bandwidth video
TM
BrightBeacon
between mobile devices & signage (requires: wireless/
Bluetooth module)
BrightWall™: synchronized playback across multiple displays X X
Autowall™: embraces the power of HTML5 to create unique
multimedia video walls
Zones: playback multiple content types on a single screen X X
Mosaic Mode: play a multitude of smaller resolution
videos simultaneously that add up to the maximum video
resolution of the player
IP Streaming: play streaming media X X
IP Streaming Server: serve IP streams from local storage X X
Encoding Server: transcode or composite/encode IP streams X X
Interactivity: connect virtually any type of interactive device
to a multitude of interactive ports
Live Feeds: Live Data, Live Text, MRSS, Twitter, Flickr, etc. X X
Tagging: BrightSign Network users can assign media and
player tags for highly targeted content distribution
BrightSign App: update signs with an iOS device X X
Geo-Fencing: trigger playback based on location (requires
USB dongle)
Sign Preview: preview presentation playback in
BrightAuthor
Remote Snapshot: remotely view a snapshot image of the
display’s playback
BrightPlates
Networking: update, manage and schedule your signage X X
B-deploy: A setup feature to deploy many players at once X X
Extended Thermal: Supports ambient temperatures
between 0° & 70° C at 90% max relative humidity, noncondensing
SOFTWARE
Free BrightAuthor Software X X
BrightSign Networking Options X X
ACCESSORIES
USB Button Pads X
Wireless/Bluetooth Module X X
MicroSD Class 10 Cards (various capacities) X X
MISCELLANEOUS
Dimensions (W x H x D) 179.9 x 21.9 x 204.2mm or 7.1 x
Weight 20 oz
Power 12V / 3A (36 Watts)
Multi-Country Power & Regulatory Approvals X X
Built-in Wall Mounting Brackets X X
1 year warranty, parts and labor X X
: 2-way Bluetooth/Beacon communication
TM
: easy template-based sign creation service X X
X (Enterprise)
X X
X X
X X
X (GPIO, IR,
UDP)
X X
X X
X X
X X
0.86 x 8 in
X
X (GPIO, dual
USB, serial, IR,
UDP)
X
Copyright © 2018 by BrightSign, LLC. All rights reserved. BrightSign and the BrightSign logo are registered trademarks of BrightSign, LLC.
Other brand and product names are trademarks or registered trademarks of their respective holders. DOC-1-18
