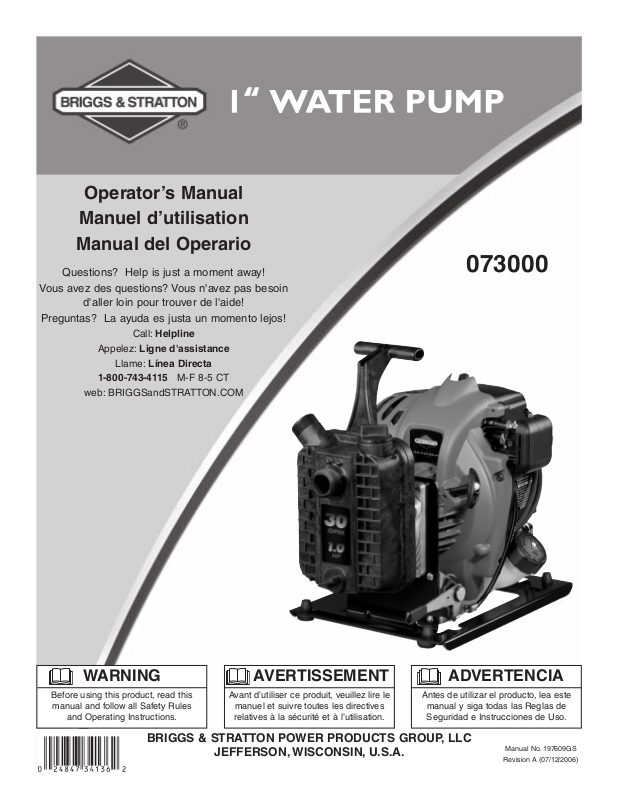

Briggs & Stratton 73000 User Manual

073000

Operator’s Manual

Manuel d’utilisation

Manual del Operario

Questions? Help is just a moment away!

Vous avez des questions? Vous n'avez pas besoin

d'aller loin pour trouver de l'aide!

Preguntas? La ayuda es justa un momento lejos!

Call: Helpline

Appelez: Ligne d'assistance

Llame: Línea Directa

1-800-743-4115 M-F 8-5 CT

web: BRIGGSandSTRATTON.COM

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Manual No. 197609GS

Revision A (07/12/2006)

Before using this product, read this

manual and follow all Safety Rules

and Operating Instructions.

WARNING

Antes de utilizar el producto, lea este

manual y siga todas las Reglas de Seguridad e Instrucciones de Uso.

ADVERTENCIA

Avant d’utiliser ce produit, veuillez lire le

manuel et suivre toutes les directives

relatives à la sécurité et à l’utilisation.

AVERTISSEMENT

SAFETY RULES

TABLE OF CONTENTS

Safety Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Know Your Water Pump . . . . . . . . . . . . . . . . . . . . . . . 5

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-17

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Emissions Control Warranty . . . . . . . . . . . . . . . . 21-22

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

EQUIPMENT DESCRIPTION

Read this manual carefully and become familiar with your water pump. Know its applications, its limitations and any hazards involved.

This water pump can be used in light construction or in an emergency to transfer water from a flooded or unwanted location such as a basement. It can also be used for draining swimming pools or for watering a lawn or garden.

Every effort has been made to ensure that information in this manual is accurate and current. However, we reserve the right to change, alter or improve the product and this document at any time without prior notice.

The Emissions Control System for this water pump is warranted for standards set by the Environmental Protection Agency and the California Air Resources Board.

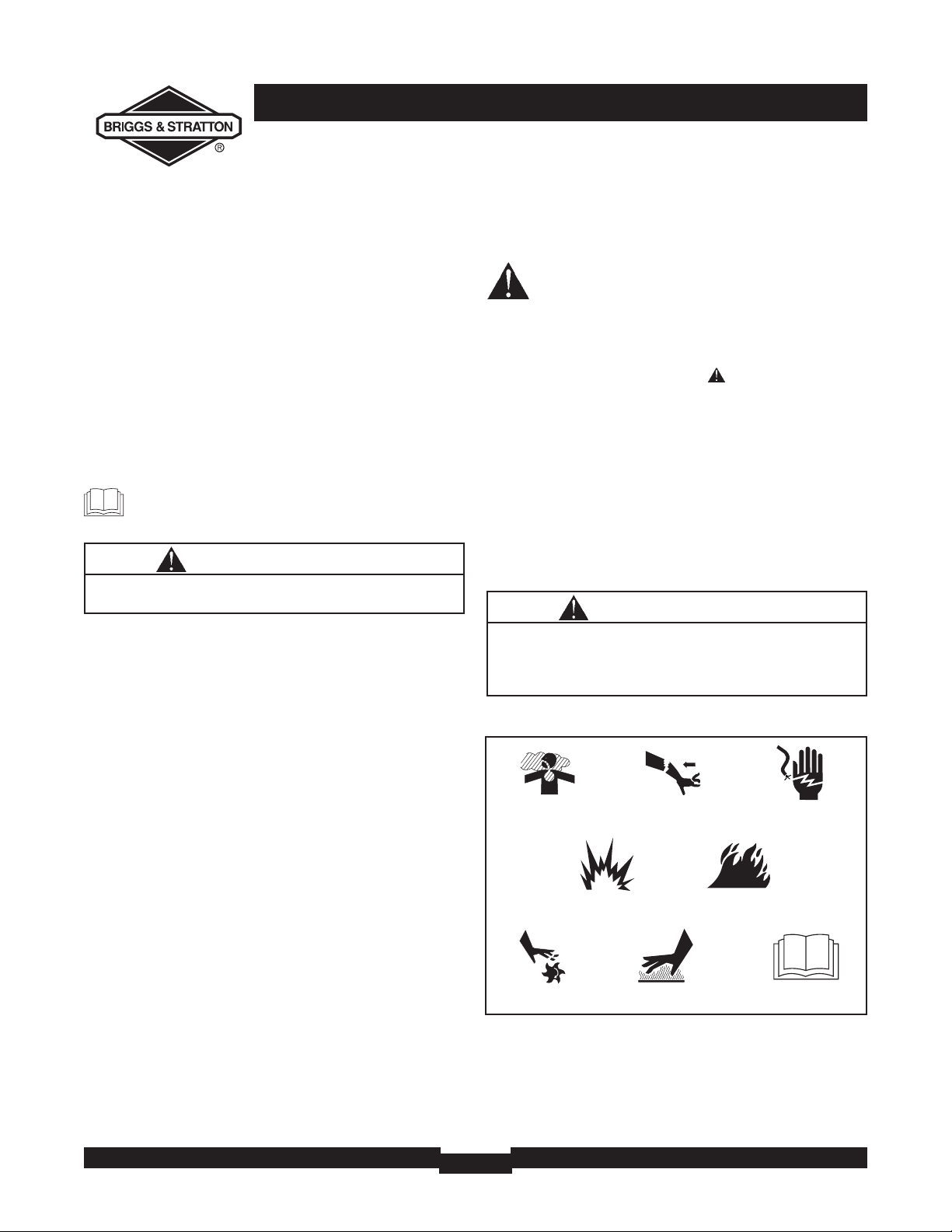

SAFETY RULES

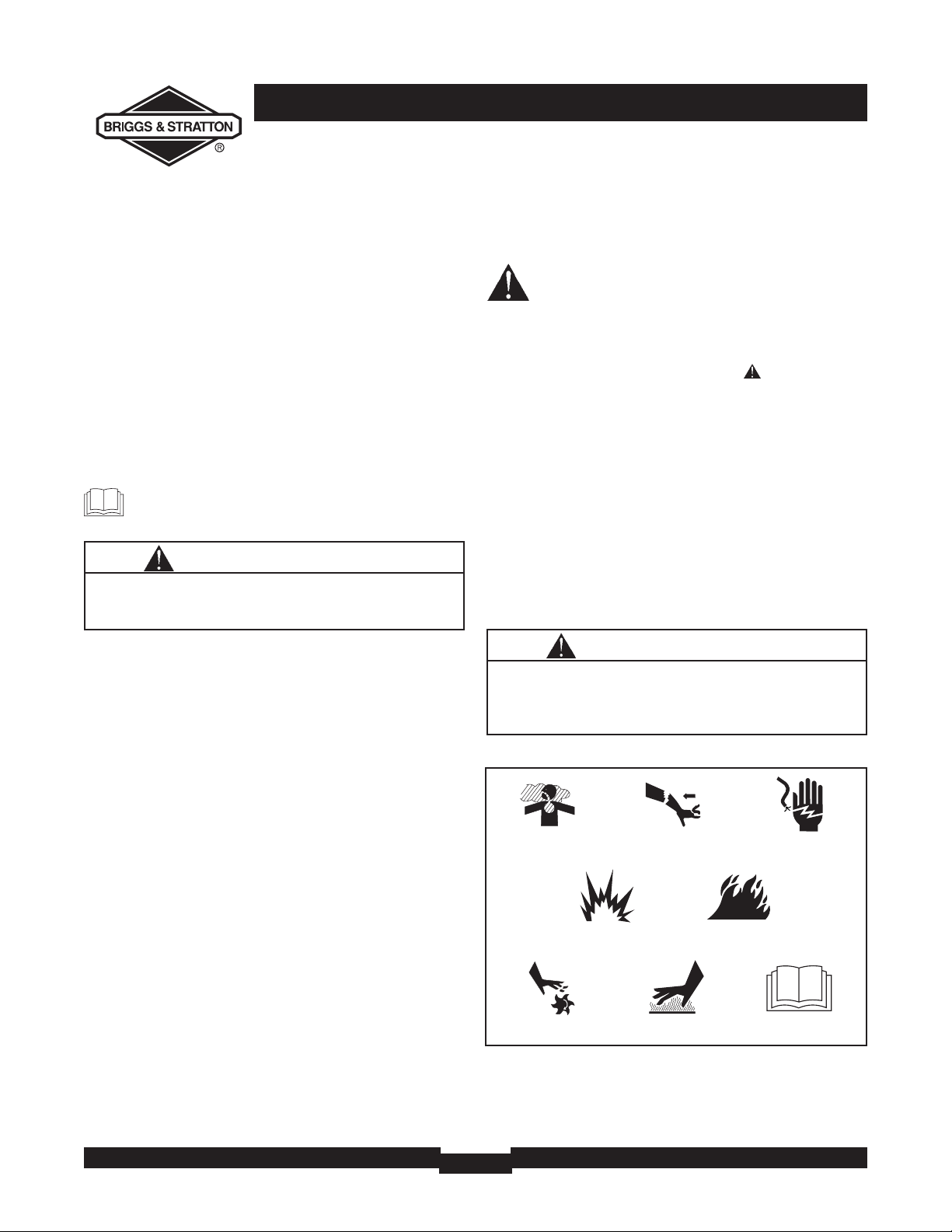

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

The safety alert symbol ( ) is used with a signal word (DANGER, CAUTION, WARNING), a pictorial and/or a safety message to alert you to hazards. DANGER indicates a hazard which, if not avoided, will result in death or serious injury. WARNING indicates a hazard which, if not avoided, could result in death or serious injury. CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury. CAUTION, when used without the alert symbol, indicates a situation that could result in equipment damage. Follow safety messages to avoid or reduce the risk of injury or death.

Hazard Symbols and Meanings

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

WARNING

Copyright © 2006 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power Products Group, LLC.

SAVE THESE INSTRUCTIONS

These water pumps are manufactured to pump ONLY clear

water that is not intended for human consumption.

CAUTION

Fire

Explosion

Toxic Fumes

Hot Surface

Electrical Shock

Kickback

Operator’s Manual

Moving Parts

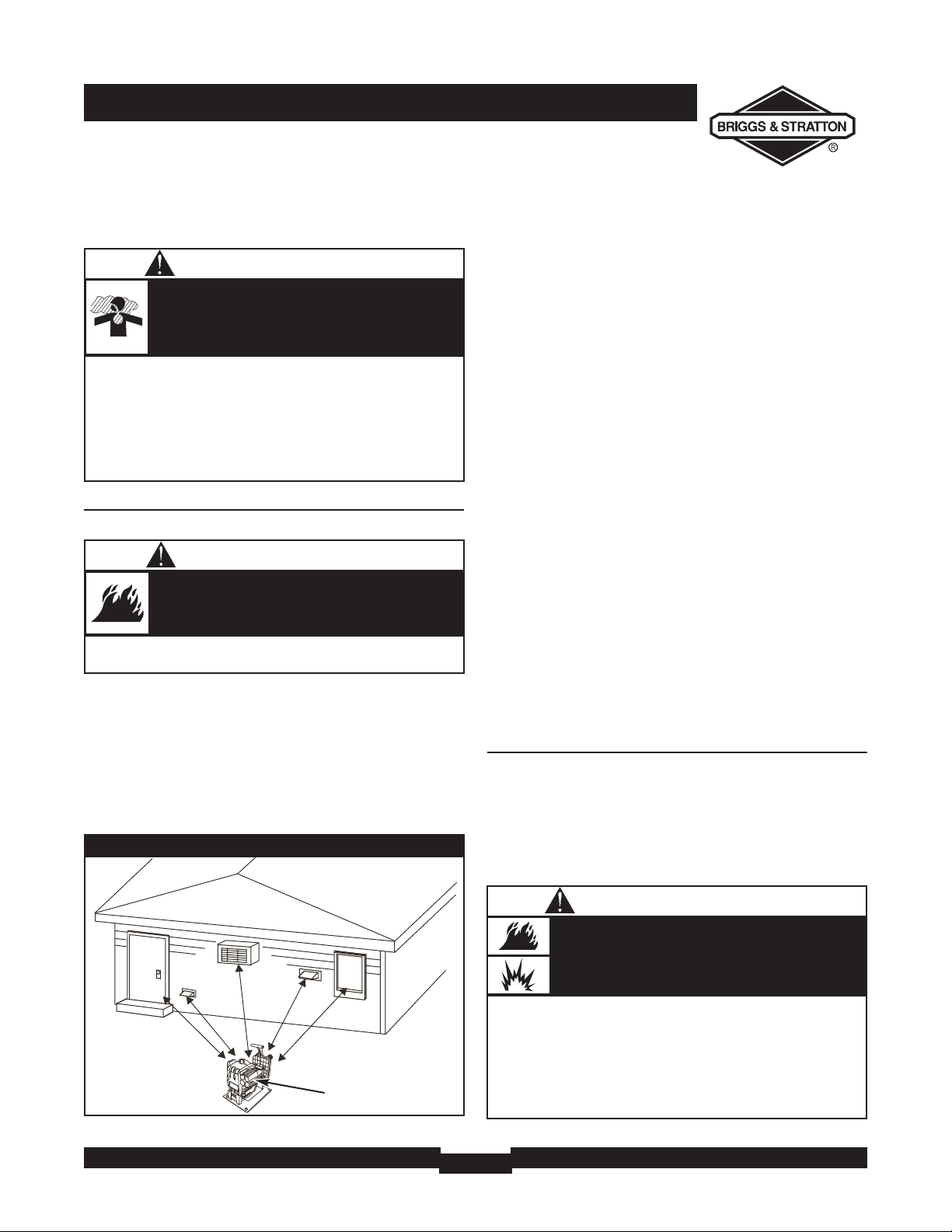

SAFETY RULES

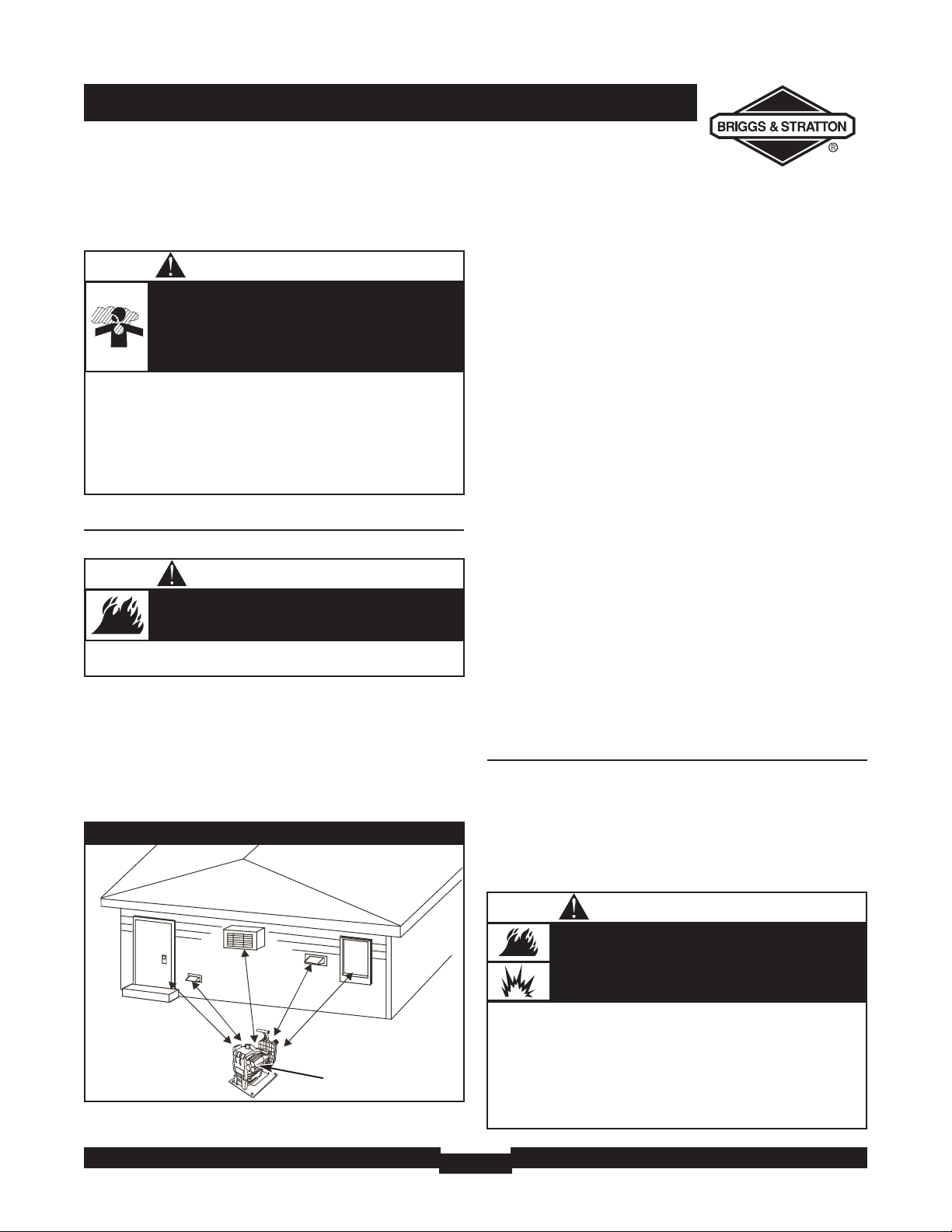

• Operate water pump ONLY outdoors.

• Keep exhaust gas from entering a confined area through windows, doors, ventilation intakes or other openings.

• DO NOT operate water pump inside any building, confined area or enclosure, such as basements, garages or a similar location, even if doors or windows are open.

Running water pump gives off carbon monoxide, an odorless, colorless, poison gas.

Breathing carbon monoxide can cause nausea, fainting or death.

WARNING

WHEN ADDING OR DRAINING FUEL

• Turn water pump OFF and let it cool at least 2 minutes before removing fuel cap. Loosen cap slowly to relieve pressure in tank.

• Fill or drain fuel tank outdoors.

• DO NOT overfill tank. Allow space for fuel expansion.

• If fuel spills, wait until it evaporates before starting engine.

• Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.

• DO NOT light a cigarette or smoke.

WHEN STARTING EQUIPMENT

• Ensure spark plug, muffler, fuel cap and air cleaner are in place.

• DO NOT crank engine with spark plug removed.

WHEN OPERATING EQUIPMENT

• DO NOT pump flammable liquids, such as fuel or fuel oils.

• This water pump is not for use in mobile equipment or marine applications.

• DO NOT tip engine or equipment at angle which causes fuel to spill.

• Secure water pump. Loads from hoses may cause tipover.

• DO NOT stop engine by moving choke lever to “Full

Choke” position.

WHEN TRANSPORTING OR REPAIRING EQUIPMENT

• Transport/repair with fuel tank EMPTY.

• Disconnect spark plug wire.

WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN TANK

• Store away from furnaces, stoves, water heaters, clothes dryers or other appliances that have pilot light or other ignition source because they can ignite fuel vapors.

Fuel and its vapors are extremely flammable and explosive.

Fire or explosion can cause severe burns or death.

WARNING

• When starting engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.

• Secure discharge hose to avoid whipping.

Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go.

Broken bones, fractures, bruises or sprains could result.

Keep hands and body clear from discharge of pump.

WARNING

WHEN ADJUSTING OR MAKING REPAIRS TO YOUR WATER PUMP

• Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.

WHEN TESTING FOR ENGINE SPARK

• Use approved spark plug tester.

• DO NOT check for spark with spark plug removed.

Unintentional sparking can result in fire or electric shock.

WARNING

SAFETY RULES

• DO NOT tamper with governed speed.

• DO NOT modify water pump in any way.

• DO NOT allow unqualified persons or children to operate or service water pump.

Excessively high operating speeds increase risk of injury and damage to water pump.

Excessively low speeds impose a heavy load.

CAUTION

• Be sure pump chamber is filled with water before starting the engine. NEVER run pump without priming.

• Use a non-collapsible hose on the suction side of pump.

• Use water pump only for intended uses.

• If you have questions about intended use, ask dealer or call 1-800-743-4115.

• Pumping sea water, beverages, acids, chemical solutions, or any other liquid that promotes corrosion can damage the pump.

• Ensure all connections are air tight.

• DO NOT obstruct the suction or discharge hose in any way.

• NEVER operate pump without strainer basket connected to end of suction hose.

• DO NOT exceed suction head maximum of 7 m (23 ft.) and total head of 35 m (115 ft.). Use shortest suction head possible (see page 8).

• NEVER allow vehicles to drive over hoses. If a hose must be positioned across a roadway, use planking on each side of hose to allow vehicles to pass over without obstructing or collapsing hose.

• Anchor pump to avoid “walking” or equipment movement, especially if located near a ditch or edge of open ravine. The equipment could fall in.

• Keep equipment away from edge of river or lake where it could cause the bank to collapse.

• DO NOT insert any objects through cooling slots.

Improper treatment of water pump can damage it and shorten its life.

CAUTION

• NEVER place hands or body parts inside of running pump or hoses.

• DO NOT wear loose clothing, jewelry or anything that may be caught in the starter or other rotating parts.

• Tie up long hair and remove jewelry.

Starter and other rotating parts can entangle hands, hair, clothing, or accessories.

WARNING

• DO NOT touch hot surfaces and avoid hot exhaust gases.

• Allow equipment to cool before touching.

• Keep at least 5 ft. (152 cm) clearance on all sides of water pump including overhead.

• Code of Federal Regulation (CFR) Title 36 Parks, Forests, and Public Property require equipment powered by an internal combustion engine to have a spark arrester, maintained in effective working order, complying to USDA Forest service standard 5100-1C or later revision. In the State of California a spark arrester is required under section 4442 of the California Public resources code. Other states may have similar laws.

Running engines produce heat. Temperature of muffler and nearby areas can reach or exceed 150°F (65°C).

Severe burns can occur on contact. Exhaust heat/gases can ignite combustibles,

structures or damage fuel tank causing a fire.

WARNING

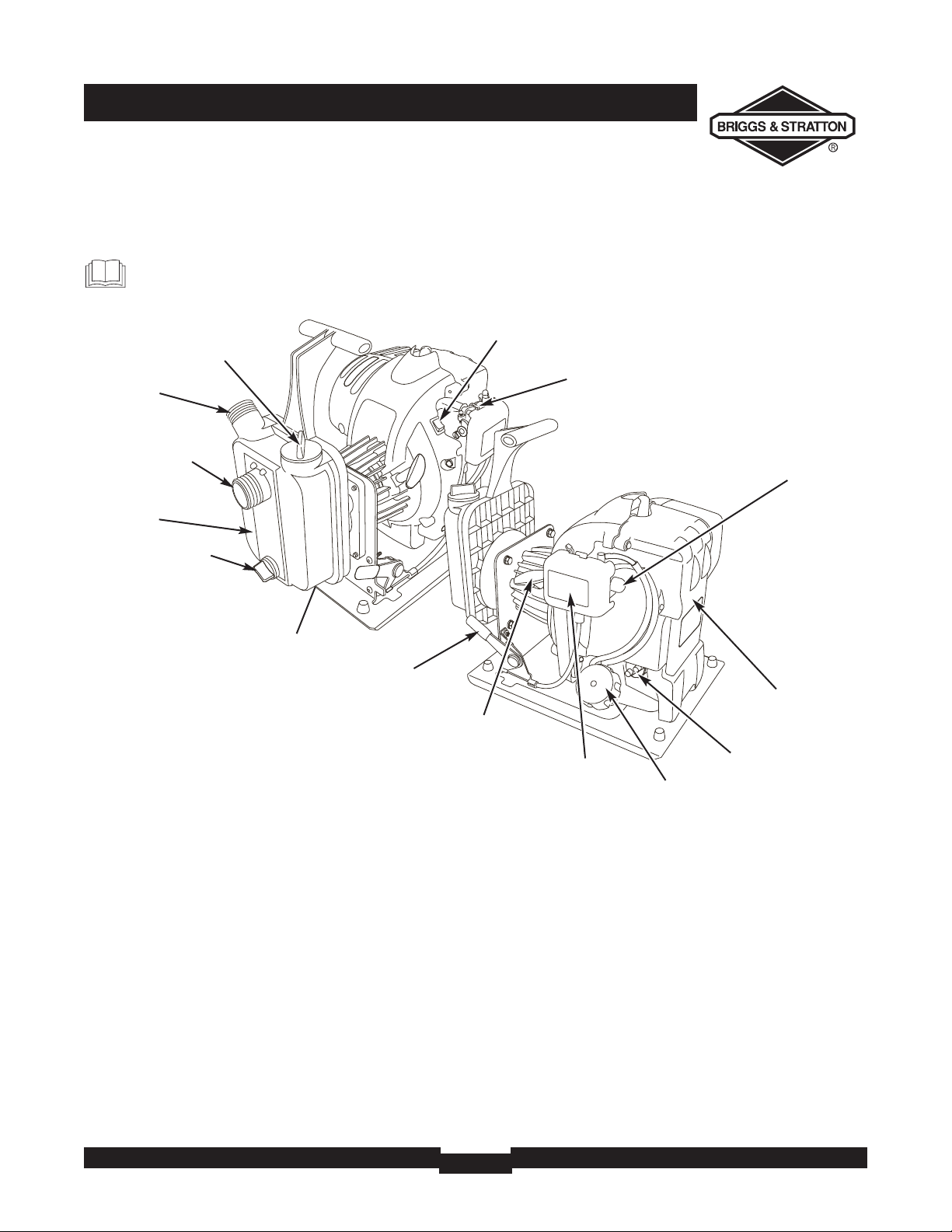

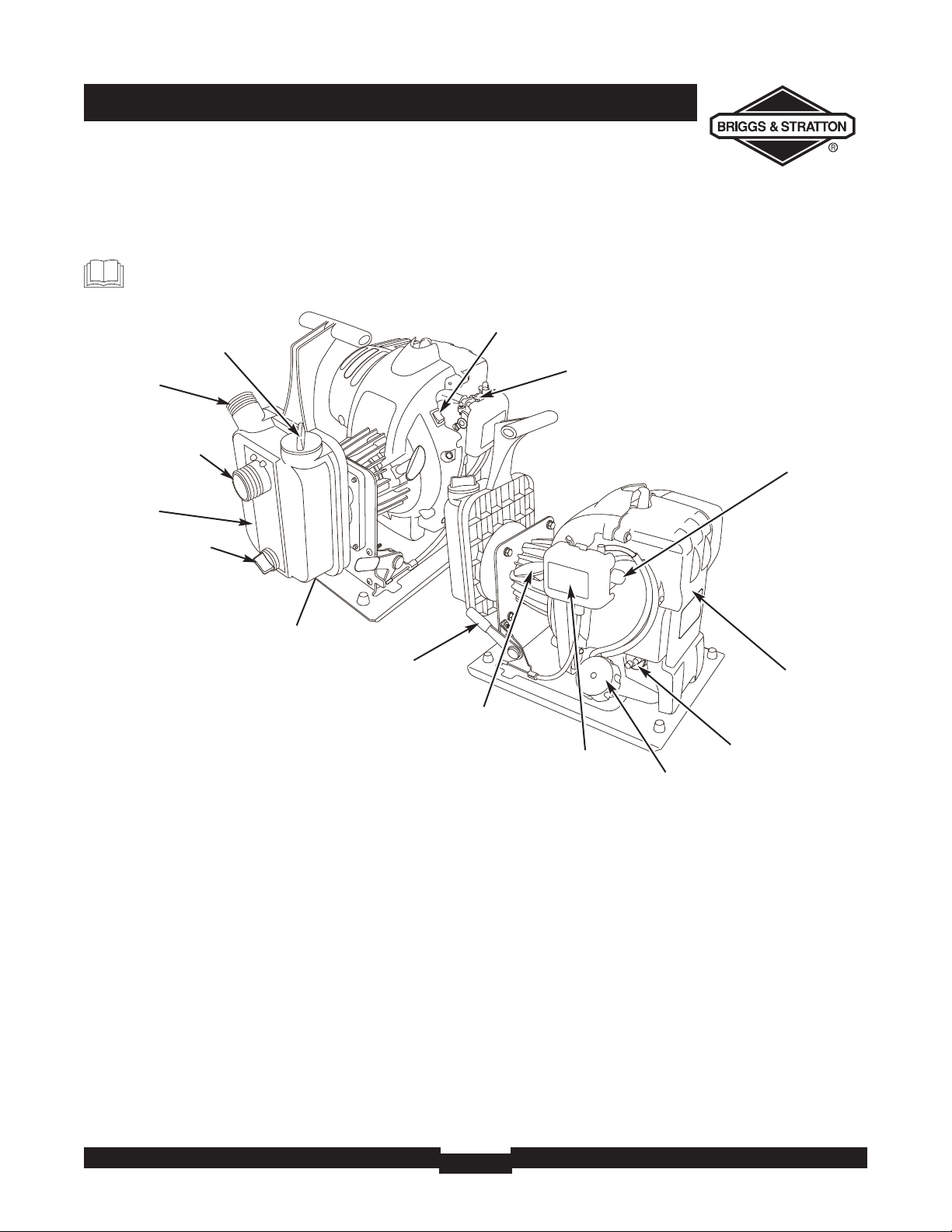

KNOW YOUR WATER PUMP

Read this Operator’s Manual and safety rules before operating your water pump.

Compare the illustrations with your water pump, to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.

Air Cleaner — Protects engine by filtering dust and debris out of intake air.

Choke Lever — Used when starting a cold engine. Discharge Outlet — Connect discharge hose here. Engine Label — Provides model, type and code

number of engine. Please have these readily available when calling for assistance.

Fuel Tank — Capacity of 10 fl. oz.. Oil Fill Cap/Dipstick — Check and fill engine with oil

here.

Primer Bulb — Prepares a cold engine for starting. Priming Plug — Fill pump with water here to prime

pump before starting.

Pump Chamber — Be sure to fill with water before starting.

Starter Handle — Used to start the engine. Stop Switch — Push to "Stop" to switch off engine. Serial Number Label — Provides model, revision and

serial number of water pump. Please have these readily available when calling for assistance.

Strainer Basket (not shown) — Used to limit passage of abrasive materials into the pump.

Suction Inlet — Connect reinforced suction hose here. Throttle Lever — Used to adjust engine speed to

control pump output. Water Drain Plug — Remove to drain water from

pump and flush internal components with clean water.

Fuel Tank

Air Cleaner

Stop Switch

Water Drain Plug

Choke Lever

Starter Handle

Priming Plug

Oil Fill Cap/Dipstick

Discharge Outlet

Serial Number Label

Suction Inlet

Throttle Lever

Pump Chamber

Primer Bulb

Engine Label

ASSEMBLY

Your water pump requires some assembly and is ready for use after it has been properly serviced with the recommended oil and fuel.

If you have any questions regarding the assembly of your water pump, please call the helpline at 1-800-743-4115. If calling for assistance, please have the model, revision, and serial number from the serial number label available. See “Know Your Water Pump” for location.

Unpack Water Pump

1. Remove everything from carton.

2. Ensure you have all included items prior to assembly.

Carton Contents

Items in the carton include:

• Water pump

• Oil bottle (SAE 30)

• Suction hose

• Parts bag (which includes the following):

• This operator’s manual

• Strainer basket and barb

• Hose barb (2)

• Barb cuff (2)

• Rubber seal (2)

• Hose clamp (3)

• 1” Garden hose adapter

• Oil measure cup

If any of the above parts are missing or damaged, call the helpline at 1–800–743–4115.

Add Engine Oil

CAUTION! Any attempt to crank or start the engine

before it has been properly serviced with the recommended oil may result in an engine failure.

1. Lay water pump in level position on side with fuel and oil fill facing up (Figure 1).

2. Use a rag to clear dirt and debris from around oil fill and remove oil fill cap.

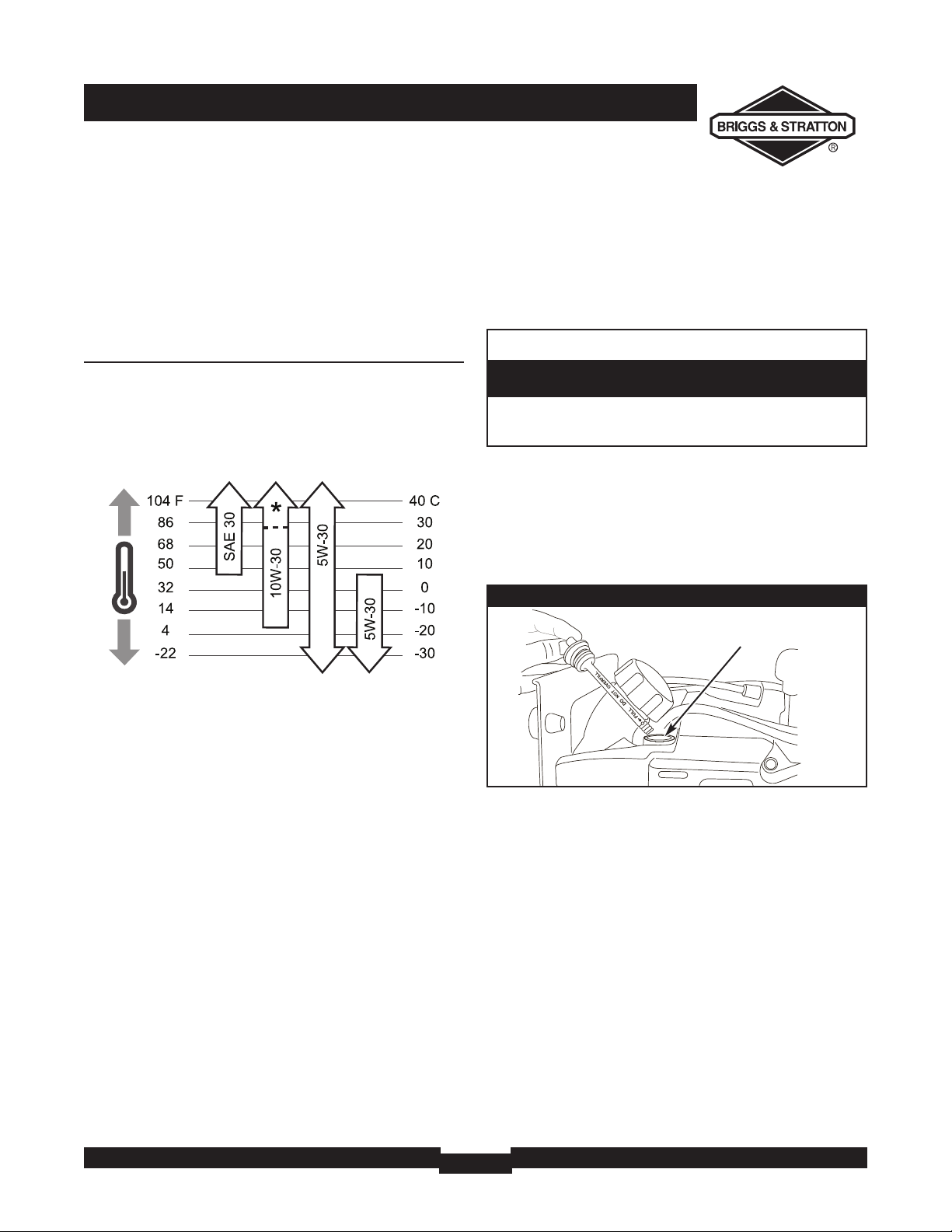

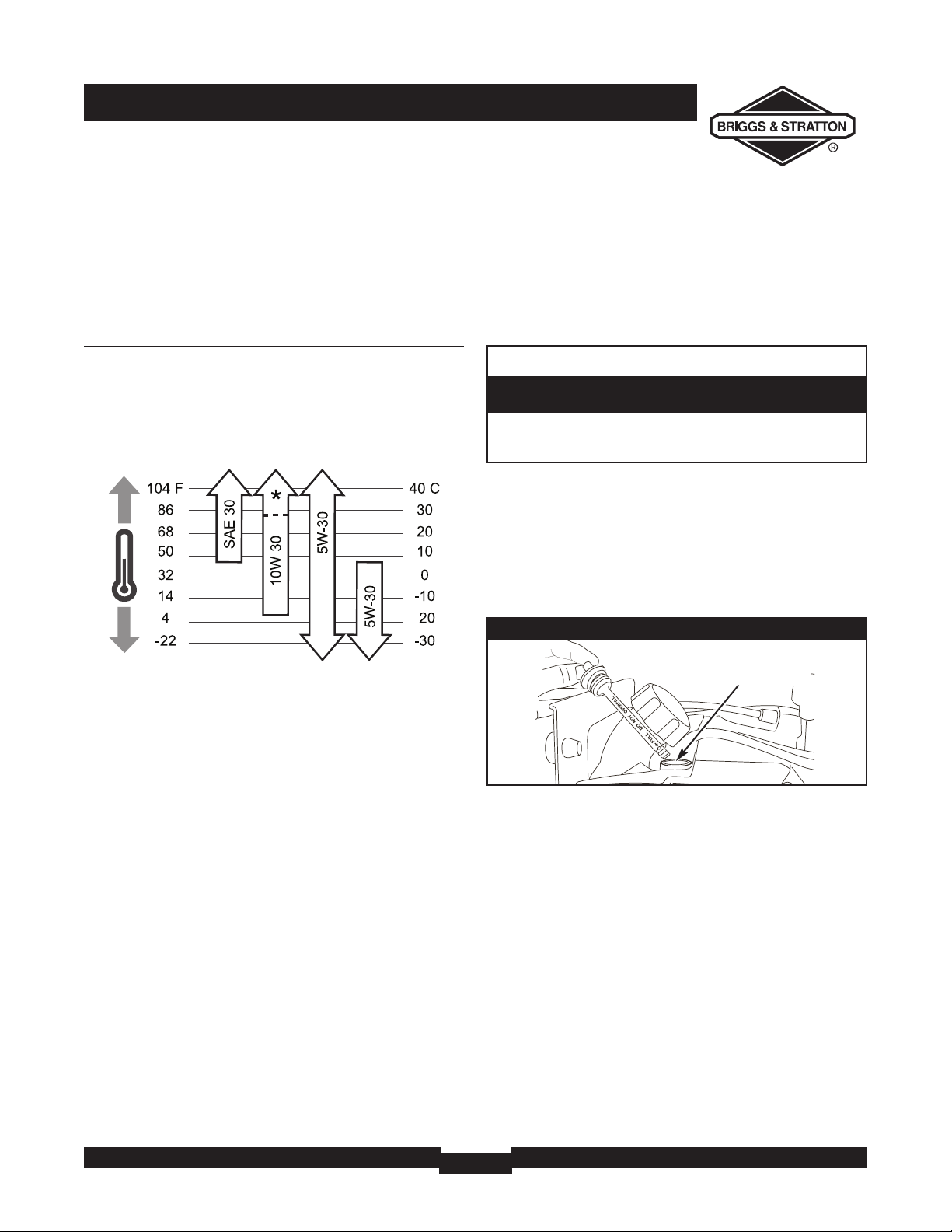

NOTE: See the section “Oil” on page 15 to review oil recommendations. Verify provided oil bottle is correct viscosity for current ambient temperature.

3. Keeping engine level, slowly pour entire contents of provided oil bottle (3 oz.) into oil fill opening.

4. Replace oil fill cap and fully tighten.

5. Return water pump to normal operating position.

Add Fuel

All fuel is not the same. If a starting or performance problem is encountered immediately after new fuel has been used, try another service station or change brands.

NOTE: This engine is certified to operate on gasoline. Exhaust Emissions Control System: EM (Engine Modifications).

WHEN ADDING FUEL

• Turn water pump OFF and let it cool at least 2 minutes before removing fuel cap. Loosen cap slowly to relieve pressure in tank.

• Fill fuel tank outdoors.

• DO NOT overfill tank. Allow space for fuel expansion.

• If fuel spills, wait until it evaporates before starting engine.

• Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.

• DO NOT light a cigarette or smoke.

Fuel and its vapors are extremely flammable and explosive.

Fire or explosion can cause severe burns or death.

WARNING

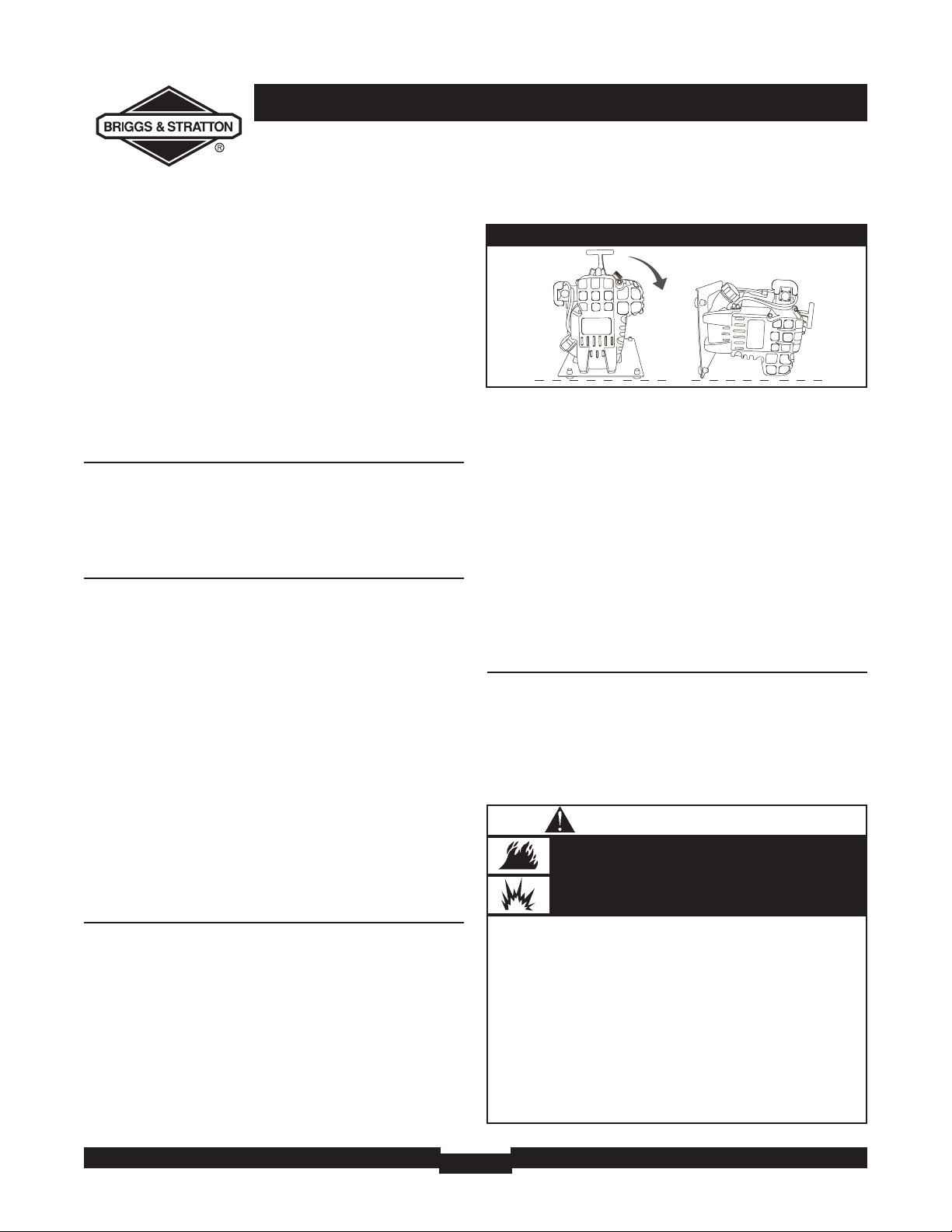

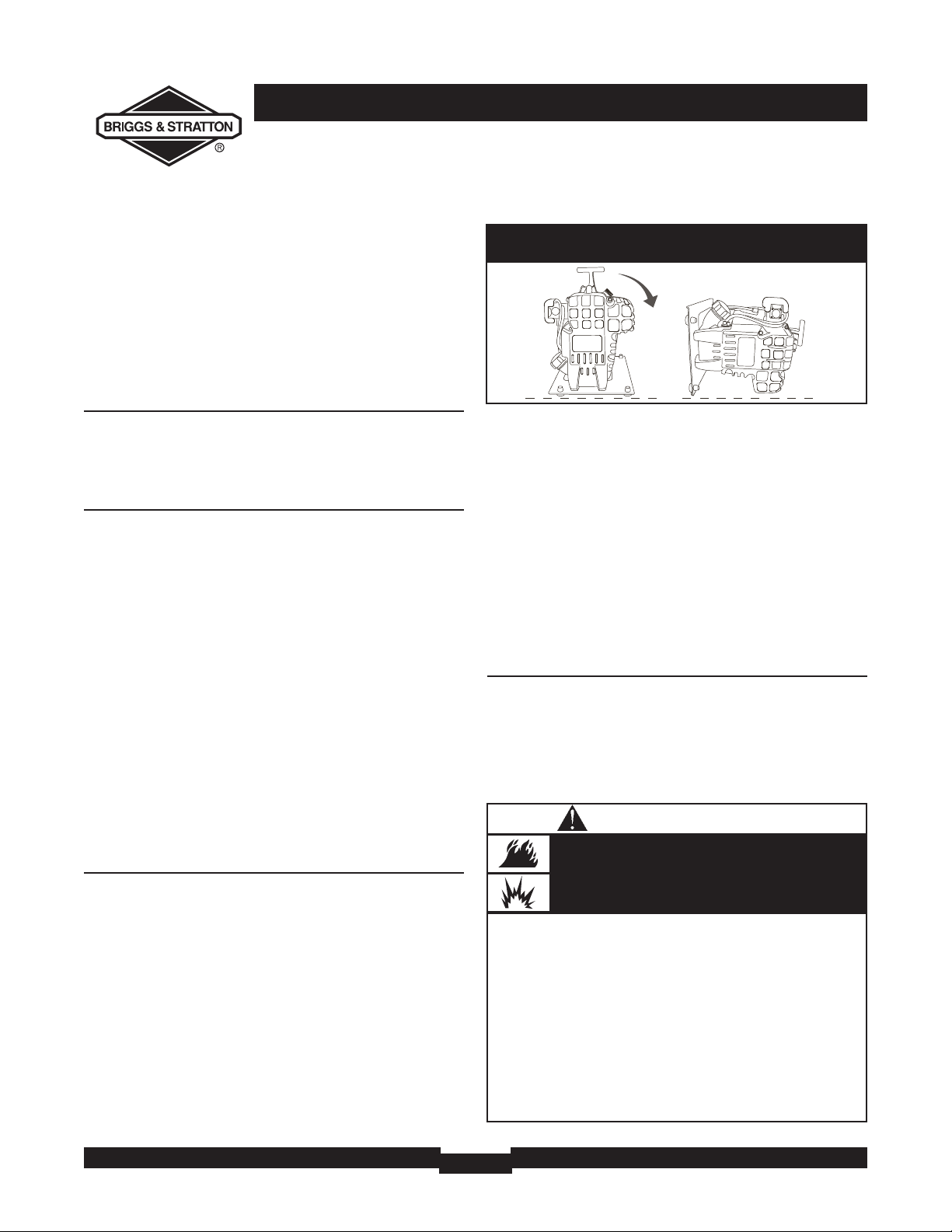

Figure 1 - Water Pump in Level Position on Side

ASSEMBLY

Type of Fuel

1. Always use clean, fresh, unleaded gasoline with a minimum of 87 octane/87 AKI (91 RON). Do Not mix oil with fuel. Do not modify the engine fuel system or carburetor to run on alternative fuels.

NOTE: Fuel with up to 10% ethanol (gasohol) or up to 15% MTBE (methyl tertiary butyl ether), is acceptable.

IMPORTANT: Use of any fuel other than those approved above will void warranty. Some areas require that fuel pumps be marked if the fuel contains alcohols or ethers. If you are not sure if your fuel contains alcohol or ethers that are different than those approved above, then check with the service station operator.

2. Clean area around fuel fill cap, remove cap.

3. Using a fuel funnel (optional), slowly add unleaded gasoline until fuel level is approximately 1” below top of fuel tank neck to allow for fuel expansion (Figure 2). Be careful not to overfill.

4. Install fuel cap and let any spilled fuel evaporate before starting engine.

To avoid engine performance issues, the fuel system should be treated with a fuel preserver or emptied before storage of 30 days or longer. To protect the fuel system from gum formation, use Briggs & Stratton FRESH START™ fuel stabilizer plus. If fuel preserver is not used, drain the fuel tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See “Storage” on page 18 for additional information.

NEVER use engine or carburetor cleaner products in the fuel tank as permanent damage may occur.

High-altitude use

Operation at high altitude (over 5,000 feet), may require a high-altitude carburetor jet kit to improve performance and decrease fuel consumption. See your local authorized Briggs & Stratton dealer for more information.

Connect Suction Hose

You will need the following tool to install the hoses to the water pump:

• 1/4" or 6mm standard screwdriver

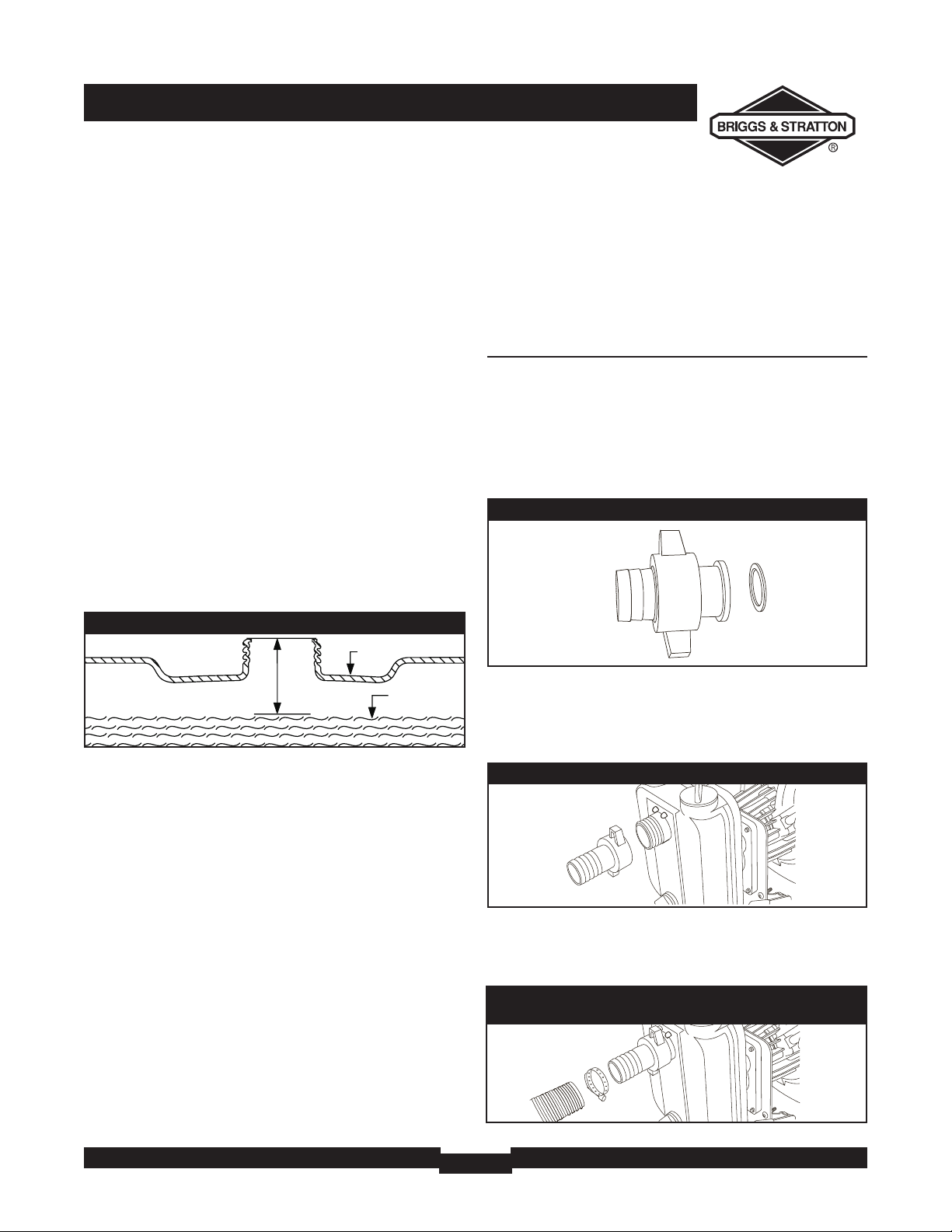

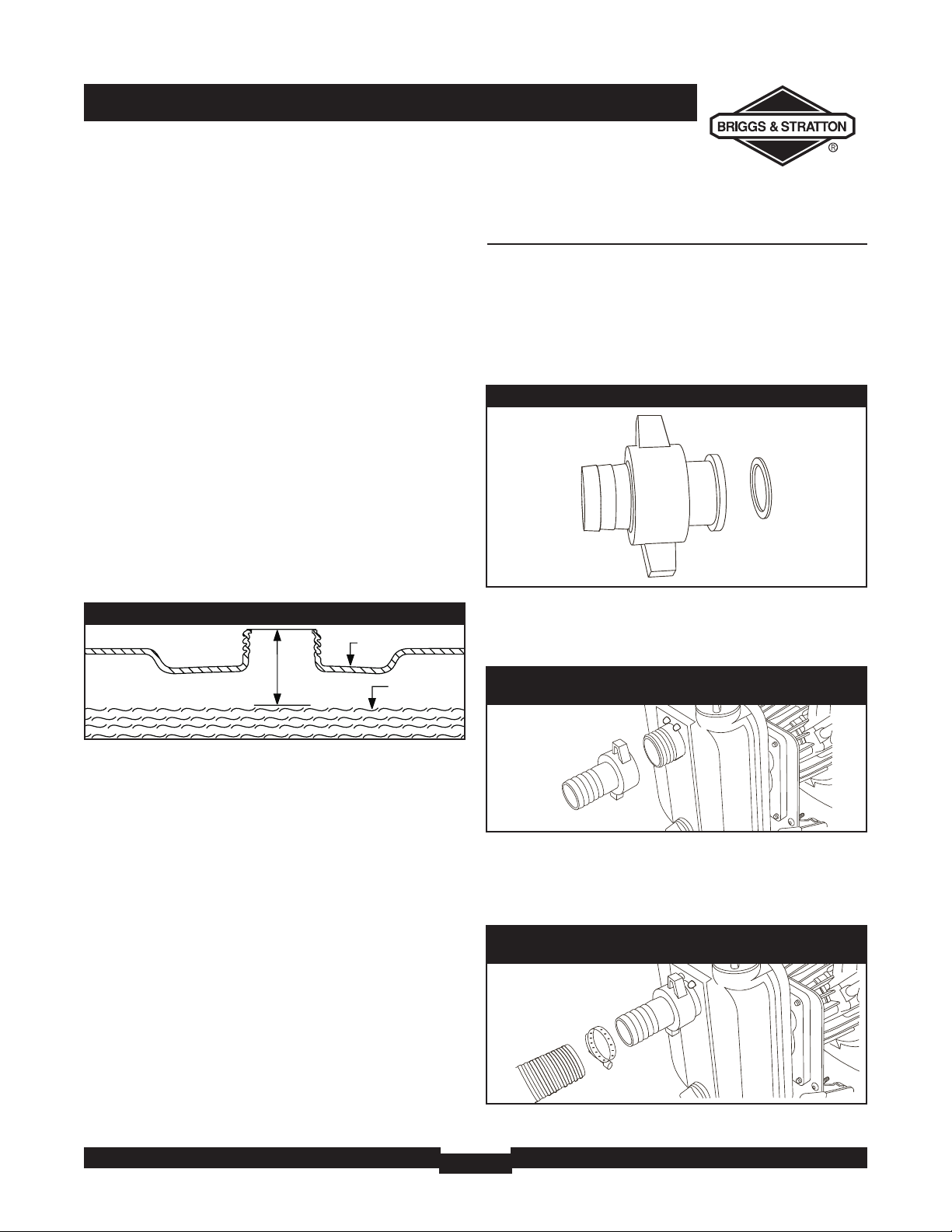

Connect Suction Hose to Pump

1. Slide barb cuff over hose barb. Insert rubber seal into end of barb cuff (Figure 3).

2. Remove two plastic shipping caps from water pump’s inlet and outlet.

3. Screw hose barb assembly onto pump in clockwise rotation until hose barb assembly is tightened securely (Figure 4).

4. Slide hose clamp over end of hose. Slide suction hose onto hose barb (Figure 5).Tighten hose clamp securely using a standard 1/4” (6mm) screwdriver.

Figure 3 - Assemble Hose Barb

Figure 4 - Connect Hose Barb to Pump

Fuel

Tank

1” Air Space

Figure 2 - Add Fuel to Fuel Tank

Figure 5 - Connect Suction Hose to Hose Barb

ASSEMBLY

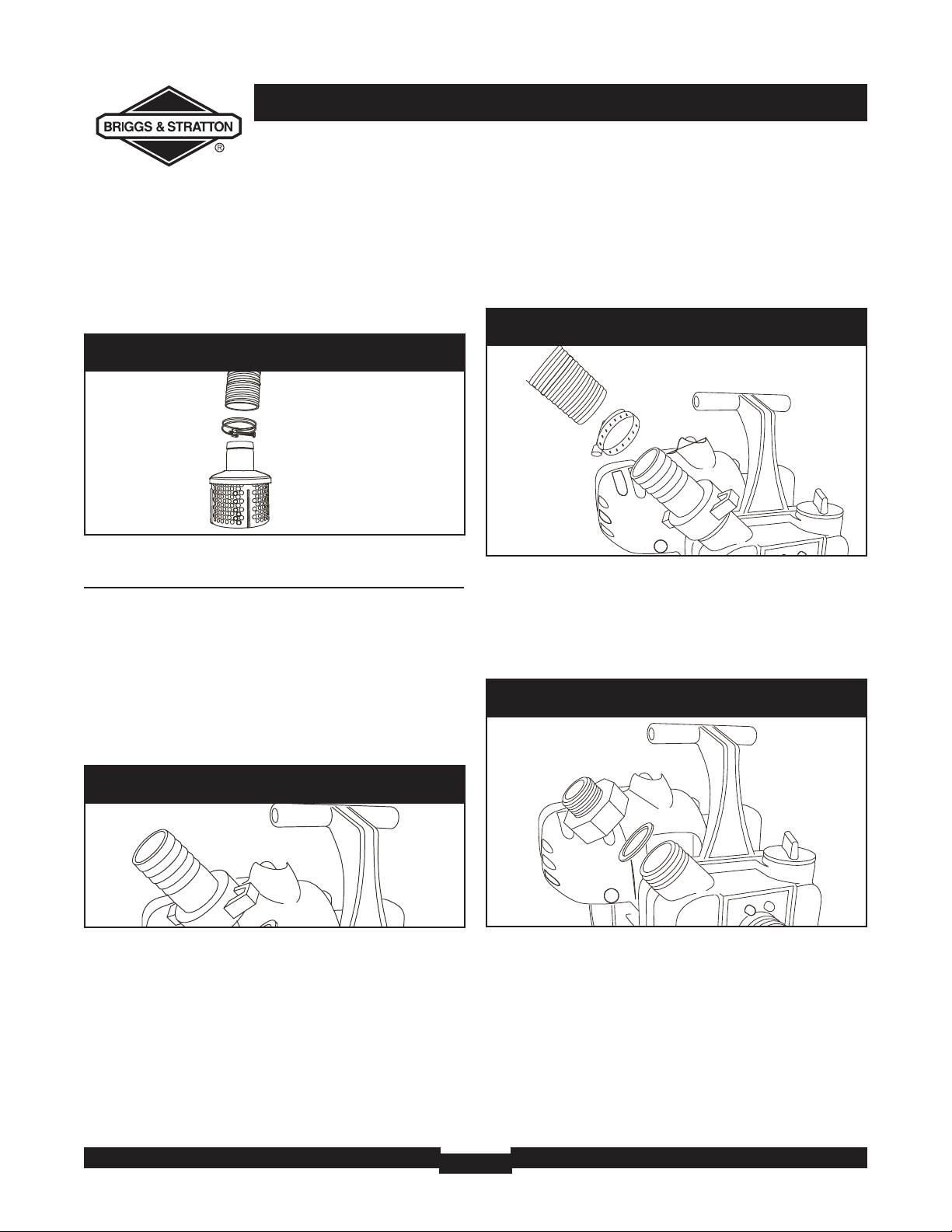

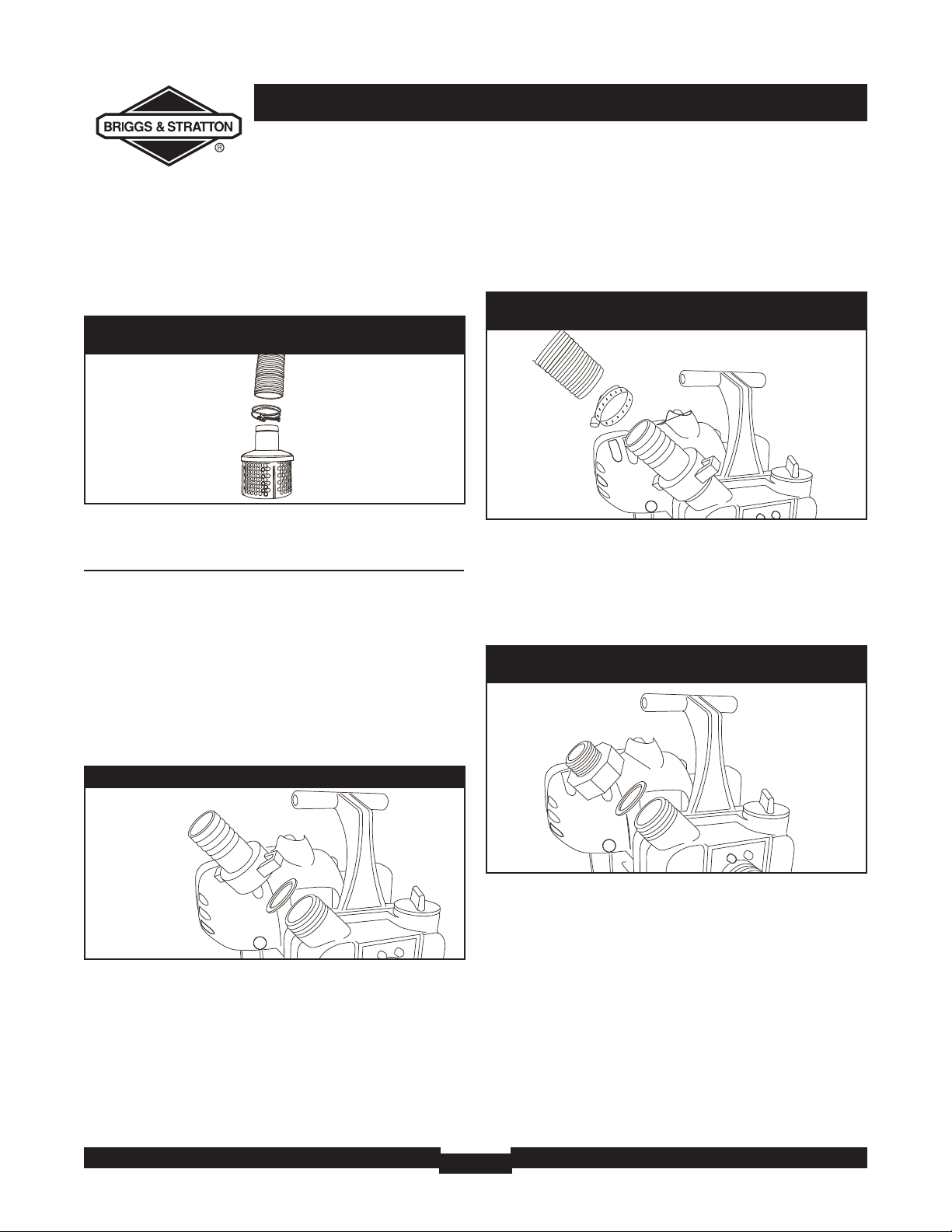

Connect Suction Hose to Strainer Basket

Slide hose clamp over hose. Connect open end of suction hose to strainer hose barb (Figure 6). Tighten hose clamp securely using a standard 1/4” (6mm) screwdriver.

Connect Discharge Hose (Optional)

1” Discharge Hose Assembly

If desired, purchase a commercially available hose (1” inside diameter) and attach to water pump as described.

1. Slide barb cuff over hose barb. Insert rubber seal into end of barb cuff (see Figure 3, earlier).

2. Screw hose barb assembly onto pump in clockwise rotation until hose barb assembly is tightened securely (Figure 7).

3. Slide hose clamp over end of discharge hose. Slide discharge hose onto hose barb (Figure 8). Tighten hose clamp securely using a standard 1/4” (6mm) screwdriver.

Garden Hose Discharge Assembly

1. Insert rubber seal into end of garden hose adapter. Attach supplied 1” garden hose adapter onto pump discharge port. Finger tighten in clockwise rotation (Figure 9).

2. Attach garden hose to adapter, turning in clockwise rotation.

Figure 6 - Connect Suction Hose to Strainer Hose Barb

Figure 7 - Connect Hose Barb to Pump

Figure 8 - Connect Discharge Hose to Hose Barb

Figure 9 - Connect Garden Hose Adapter to Discharge

Port

OPERATION

USING THE WATER PUMP

Safe Operating Considerations

Clearances and Air Movement

DO NOT place water pump where exhaust gas could accumulate and enter inside or be drawn into a potentially occupied building. Ensure exhaust gas is kept away from any windows, doors, ventilation intakes or other openings that can allow exhaust gas to collect in a confined area (Figure 10). Prevailing winds and air currents should be taken into consideration when positioning water pump.

What is “Head”?

Head refers to the height of a column of water that can be delivered by the discharge of the pump.

Suction Head is the vertical distance between the center of the pump and the surface of the liquid on the suction side of the pump (may also be referred to as “suction lift”). The atmospheric pressure of 14.7 psi at sea level limits suction head lift to less than approximately 26 feet for any pump.

Discharge Head is the vertical distance between the pump’s discharge port and the point of discharge, which is the liquid surface if the hose is submerged or pumping into the bottom of a tank.

Total Head is the sum of the suction head value plus the discharge head value.

As water pumping height increases, pump output decreases.The length, type, and size of the suction and discharge hoses can also significantly affect pump output.

It is important for the suction operation to be the shorter part of the total pumping action. This will decrease the priming time and improve pump performance by increasing the discharge head.

Suction head is a maximum of 23 feet (7 m) and discharge head should be a maximum of 92 feet (28 m). Total head can not be more than 115 feet (35 m) (Figure 11, next page).

Move Water Pump to Safe Operating

Location

For best pump performance, locate the pump on a flat, level surface as close as possible to the water to be pumped. Secure water pump to avoid tipover. Use hoses that are no longer than necessary.

IMPORTANT: Direct open end of discharge hose away from home, electrical devices or anything not desired to get wet.

Figure 10 — Water Pump Clearance

Exhaust Port

WHEN OPERATING EQUIPMENT

• This water pump is not for use in mobile equipment or marine applications.

• DO NOT tip engine or equipment at angle which causes fuel to spill.

• Secure water pump. Loads from hoses may cause tipover.

Fuel and its vapors are extremely flammable and explosive.

Fire or explosion can cause severe burns or death.

WARNING

• Operate water pump ONLY outdoors.

• Keep exhaust gas from entering a confined area through windows, doors, ventilation intakes or other openings.

• DO NOT operate water pump inside any building, confined area or enclosure, such as basements, garages or a similar location, even if doors or windows are open.

Running water pump gives off carbon monoxide, an odorless, colorless, poison gas.

Breathing carbon monoxide may cause nausea, fainting or death.

WARNING

• Keep at least 5 ft. (152 cm) clearance on all sides of water pump including overhead.

Exhaust heat/gases can ignite combustibles, structures or damage fuel tank causing a fire.

WARNING

OPERATION

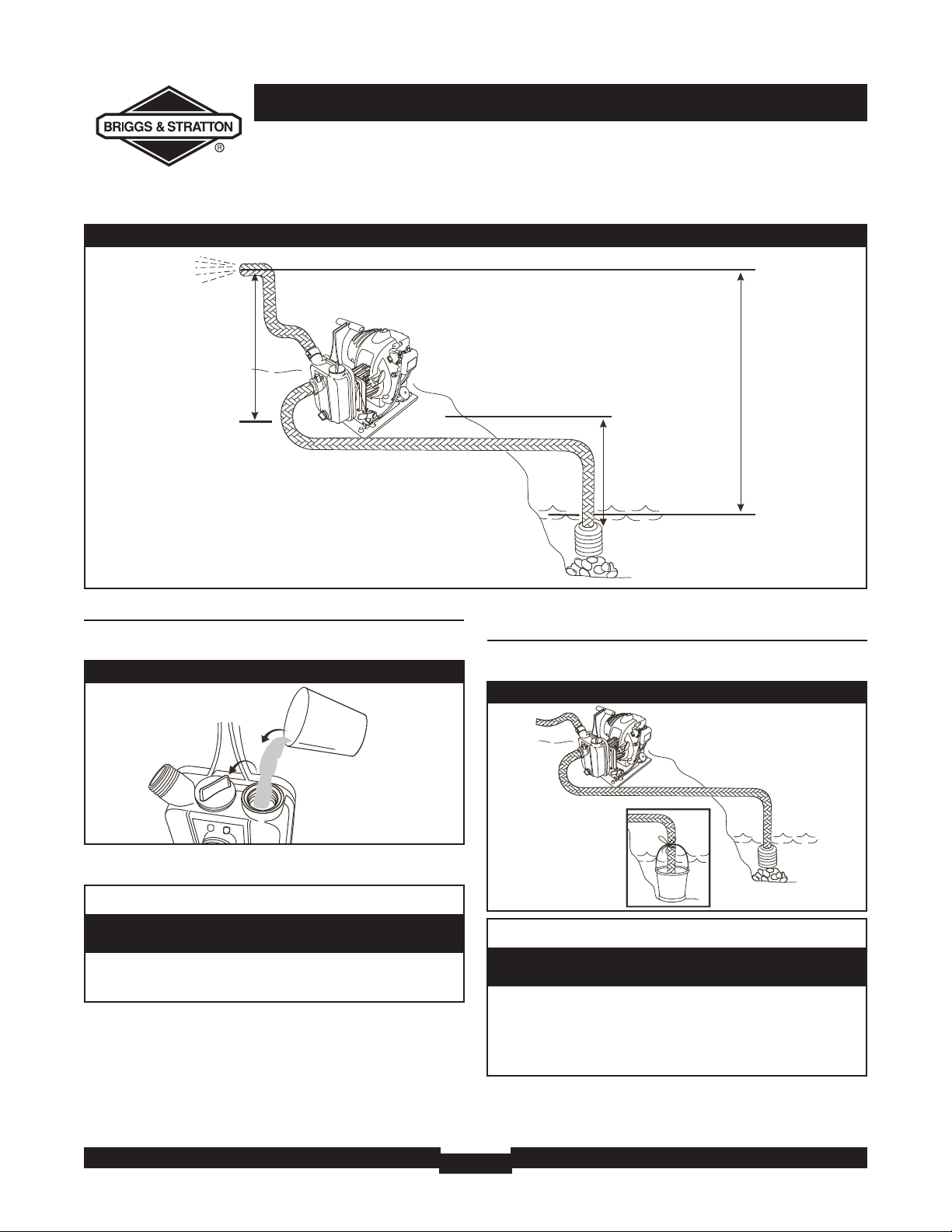

Prime the Water Pump

1. Remove plug from top of pump (Figure 12).

2. Fill pump with clean, clear water up to top of discharge outlet (Figure 10).

3. Replace pump plug.

Locate Strainer Basket Into Water

Source

Place strainer basket into water to be pumped. Basket must be fully immersed in water (Figure 13).

• NEVER operate pump without strainer connected to end of suction hose.

• Keep strainer out of sand or silt, place in bucket or on stones.

• DO NOT let pump run dry or damage to seals may result.

Improper treatment of water pump can damage it and shorten its life.

CAUTION

Figure 13 — Place Strainer Basket into Water

• Be sure pump chamber is filled with water before starting the engine. NEVER run pump without priming.

Improper treatment of water pump can damage it and shorten its life.

CAUTION

Figure 12 — Prime the Water Pump

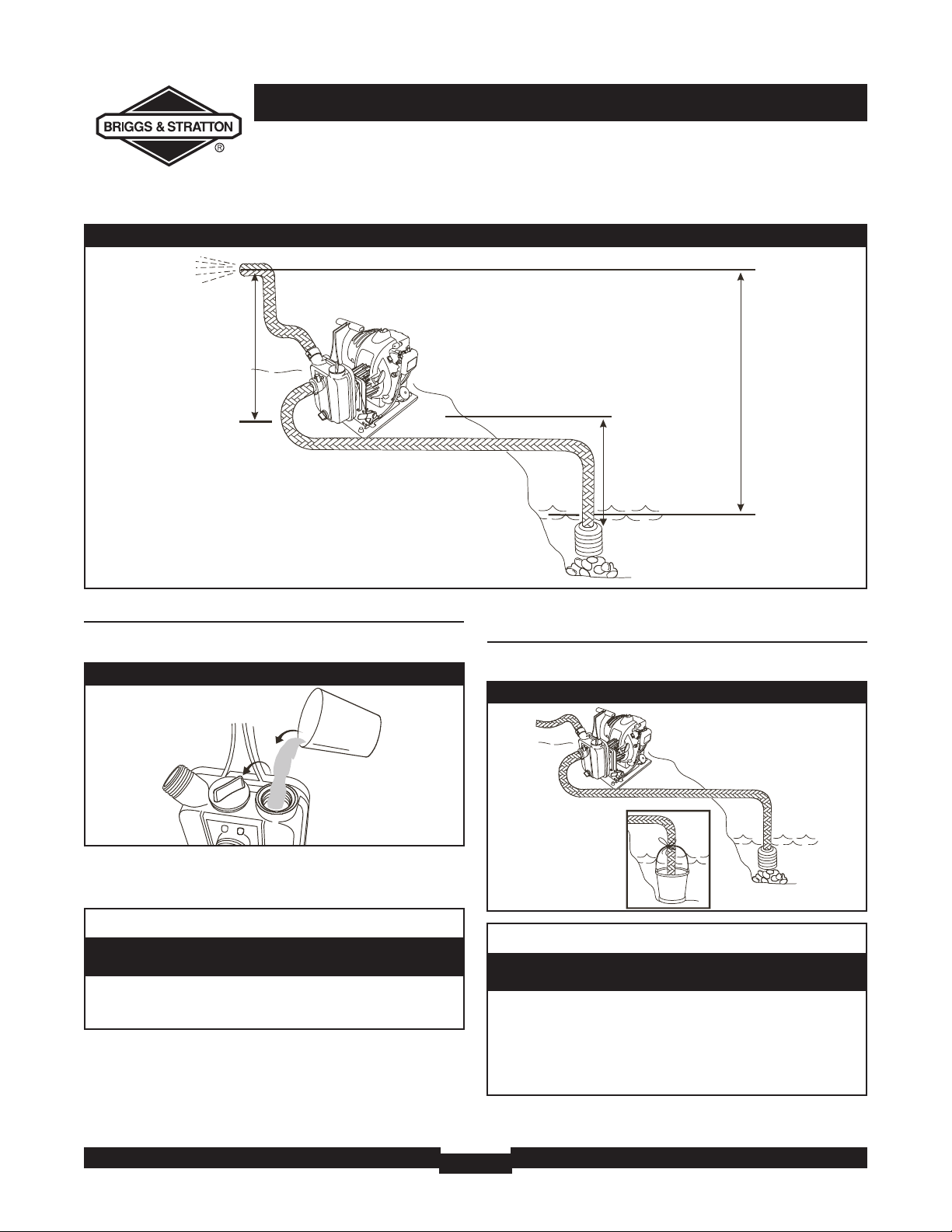

Figure 11 — Head

Discharge Head

- 92 feet (28 m) Maximum

Suction Head

- 23 feet (7 m) Maximum

Total Head

- 115 feet (35 m) Maximum

OPERATION

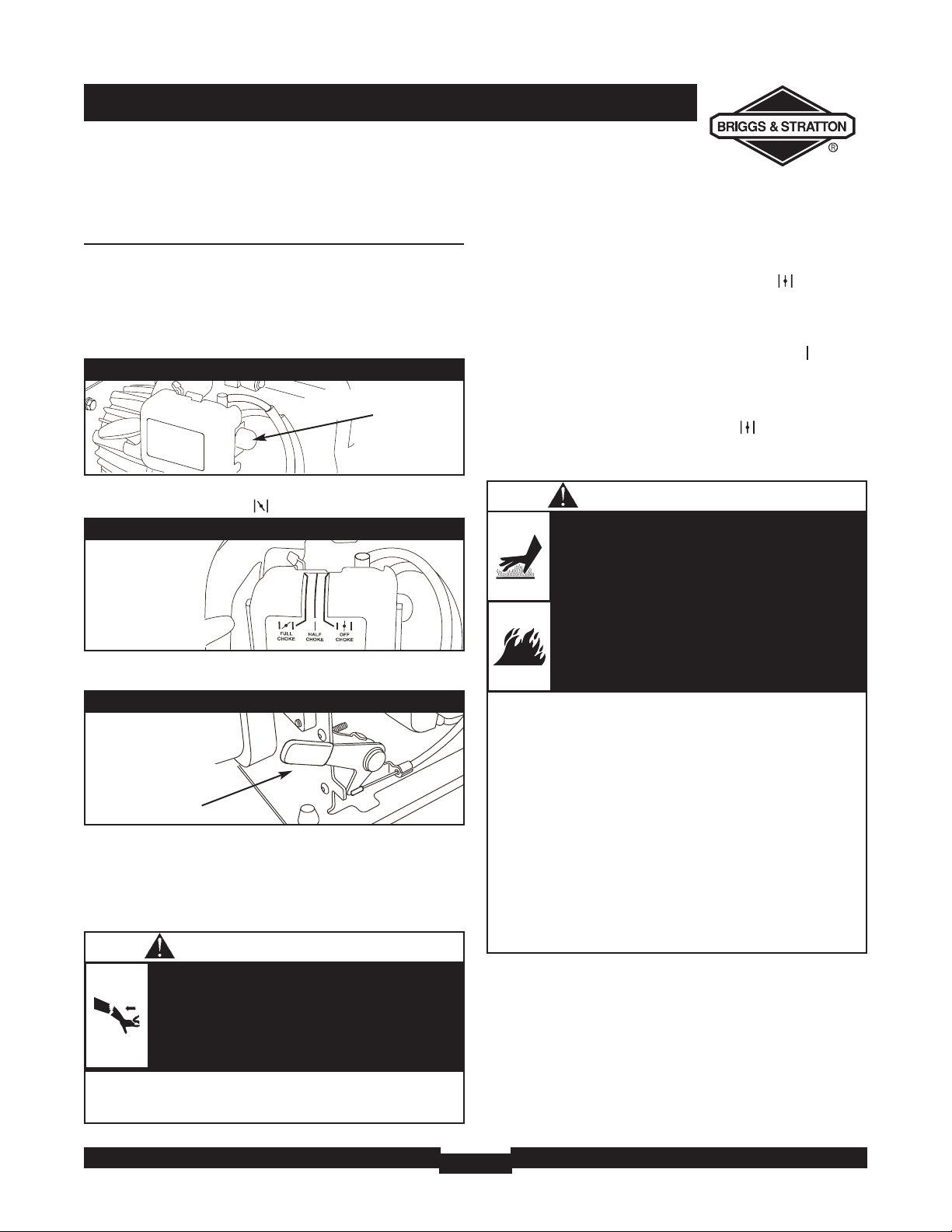

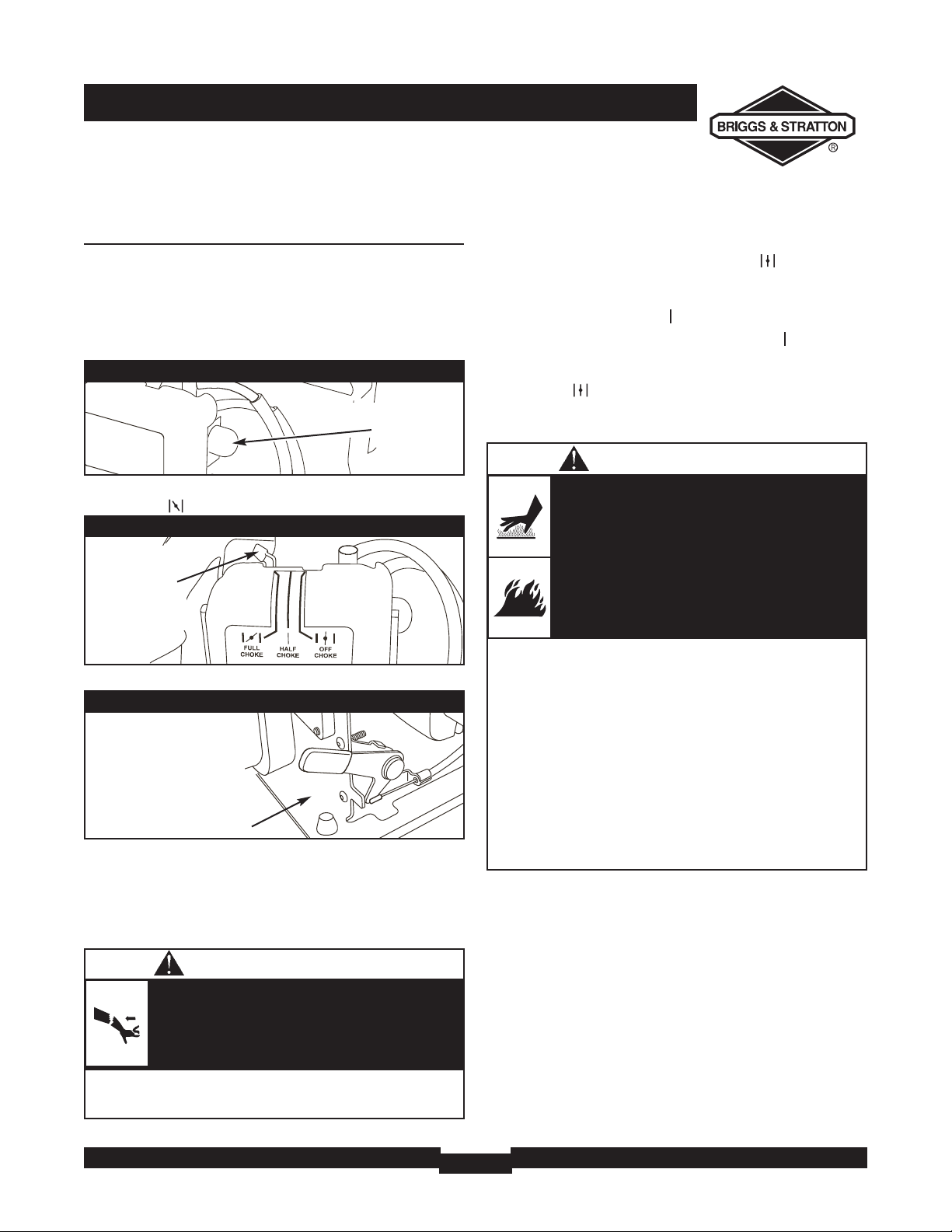

Starting the Water Pump

Use the following start instructions:

1. Make sure unit is on a flat, level surface and pump chamber is primed.

2. Push primer bulb (Figure 14) 15 times for a new engine. Push primer bulb 8 times for all future starts.

3. Move red choke lever to “Full Choke” ( ) position (Figure 15).

4. Move throttle lever all the way up (Figure 16).

5. While firmly grasping pump carrying handle with left hand, pull starter handle with right hand slowly until slight resistance is felt.Then pull handle rapidly to overcome compression, prevent kickback and start engine.

IMPORTANT: If excessive fuel is present in the air/fuel mixture causing a “flooded” condition, move choke lever to “Off Choke” ( ) position and pull handle repeatedly until engine starts.

6. Wait a maximum of 10 seconds, then move choke

lever to “Half Choke” ( ) position.

7. Run the engine at “Half Choke” for 20 seconds or

until unit accelerates smoothly. Move choke lever to “Off Choke” ( ) position.

IMPORTANT: It may take a few minutes for water pump to begin pumping water.

Pump output is controlled by adjusting engine speed. Moving the throttle lever up will increase pump output, and moving the throttle lever down will decrease pump output.

• When starting engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.

Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go.

Broken bones, fractures, bruises or sprains could result.

WARNING

Figure 16 — Throttle Lever

Throttle Lever

shown fully up

Figure 14 — Primer Bulb

Figure 15 — Choke Lever

Choke Lever shown in “Full Choke” position

Primer Bulb

• DO NOT touch hot surfaces and avoid hot exhaust gases.

• Allow equipment to cool before touching.

• Keep at least 5 ft. (152 cm) clearance on all sides of water pump including overhead.

Running engines produce heat. Temperature of muffler and nearby areas can reach or exceed 150°F (65°C).

Severe burns can occur on contact. Exhaust heat/gases can ignite combustibles,

structures or damage fuel tank causing a fire.

WARNING

OPERATION

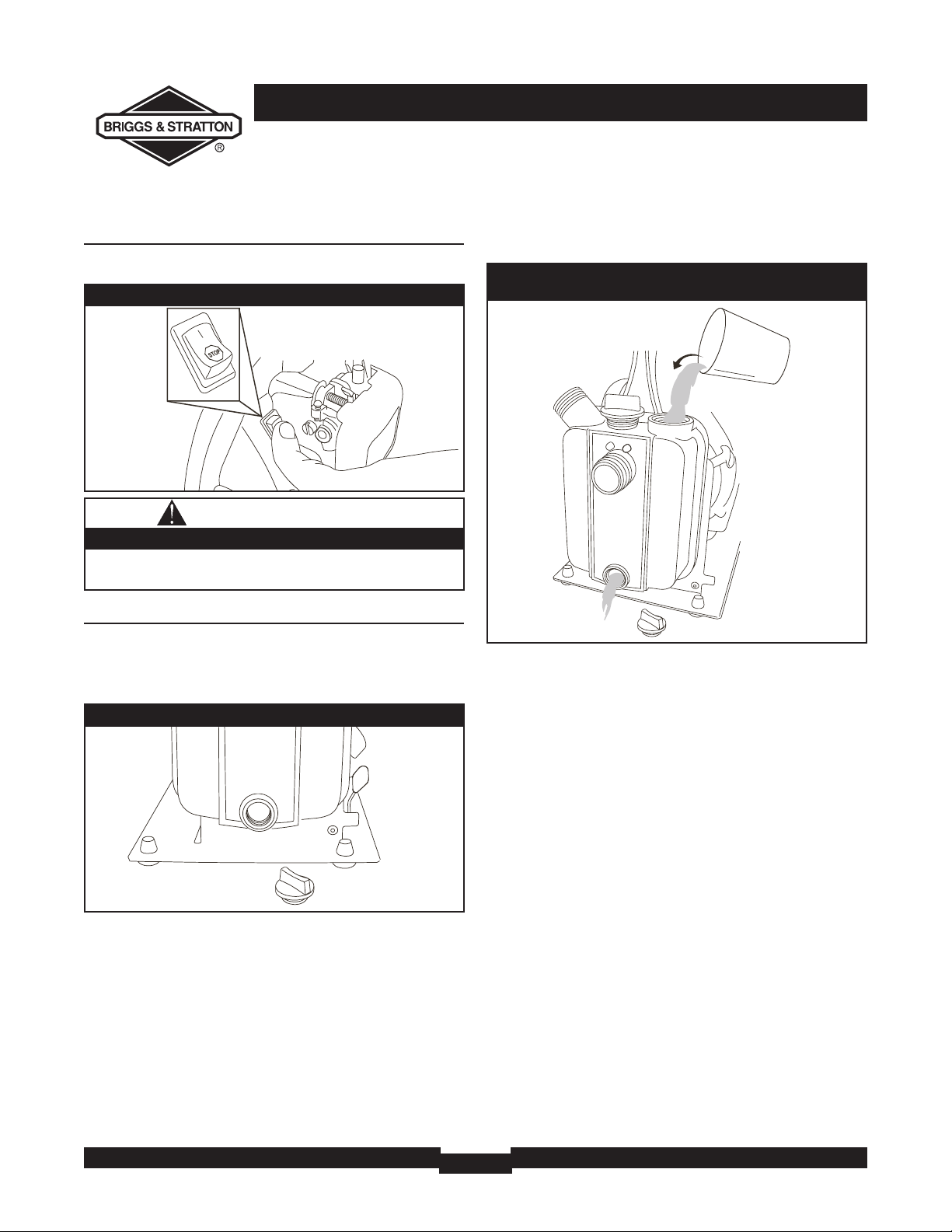

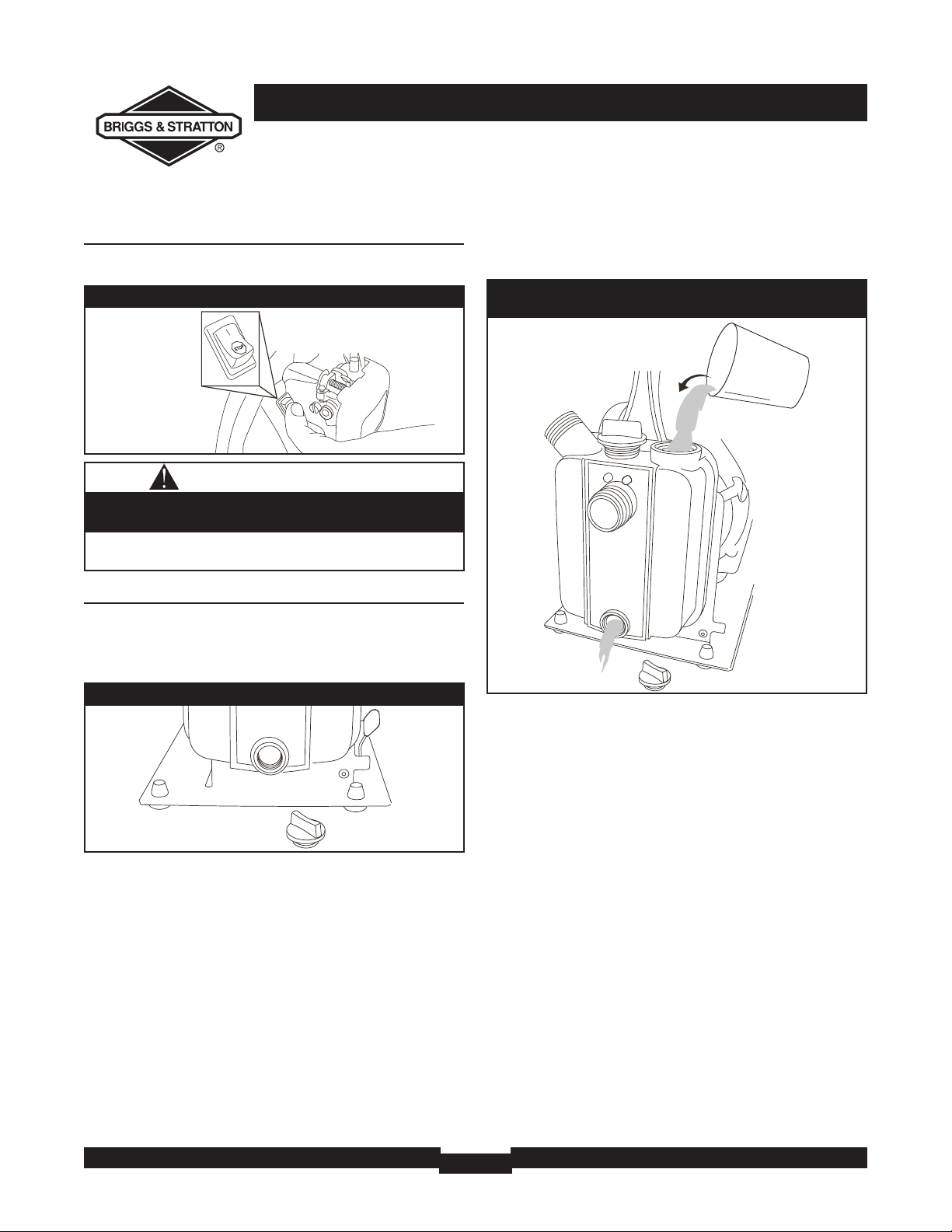

Stopping the Water Pump

1. Press stop switch to “Stop” position until engine

stops (Figure 17).

Drain and Flush Water Pump

1. Disconnect and drain suction and discharge hoses.

2. Remove drain plug at bottom of pump (Figure 18).

3. Remove plug from top of pump and flush internal components of pump with clean water (Figure 19).

4. Replace both plugs and finger tighten.

Figure 18 — Remove Drain Plug

Figure 19 — Remove Plug from Top of Pump and Flush

Figure 17 — Stop Switch

• DO NOT stop engine by moving choke lever to “Full Choke” position.

Backfire, fire or engine damage could occur.

CAUTION

SPECIFICATIONS

ENGINE TECHNICAL

INFORMATION

This is a single cylinder, air cooled engine. It is a low emissions engine.

In the State of California, these water pump engines are certified by the California Air Resources Board to meet emissions standards for 50 hours. Such certification does not grant the purchaser, owner or operator of this engine any additional warranties with respect to the performance or operational life of this engine. The engine is warranted as stated elsewhere in this manual.

Power Ratings

* The power ratings for an individual engine model are initially developed by starting with SAE (Society of Automotive Engineers) code J1940 (Small Engine Power & Torque Rating Procedure) (Revision 2002-05). Given both the wide array of products on which our engines are placed, and the variety of environmental issues applicable to operating the equipment, it may be that the engine you have purchased will not develop the rated horsepower when used in a piece of power equipment (actual “on-site” power). This difference is due to a variety of factors including, but not limited to, the following: differences in altitude, temperature, barometric pressure, humidity, fuel, engine lubrication, maximum governed engine speed, individual engine to engine variability, design of the particular piece of power equipment, the manner in which the engine is operated, engine run-in to reduce friction and clean out of combustion chambers, adjustments to the valves and carburetor, and other factors. The power ratings may also be adjusted based on comparisons to other similar engines utilized in similar applications, and will therefore not necessarily match the values derived using the foregoing codes.

PRODUCT SPECIFICATIONS

Model 073000

Water Pump Specifications

Suction Port Diameter . . . . . . . . . . . . . . .1 in (25 mm)

Discharge Port Diameter . . . . . . . . . . . . 1 in (25 mm)

Total Head . . . . . . . . . . . . . . . . . . . . . . . .115 ft (35 m)

Maximum Head

Suction Lift . . . . . . . . . . . . . . . . . . . . . . . .23 ft (7 m)

Discharge Lift . . . . . . . . . . . . . . . . . . . . 92 ft (28 m)

Maximum Discharge Capacity . .30 US gal (113 l) per

minute

Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . .22 lbs.

Engine Specifications

Gross* Horsepower . . . . . . . . . . . . . .1.0 at 3600 rpm

Bore . . . . . . . . . . . . . . . . . . . . . . . . .1.575 in. (40 mm)

Stroke . . . . . . . . . . . . . . . . . . . . . . . .1.065 in. (27 mm)

Displacement . . . . . . . . . . . . . . . . . . .2.074 in. (34 cc)

Spark Plug

Type: . . . . . . . . . . . Champion RDJ7Y or Equivalent

Set Gap To: . . . . . . . . . . . . . . . .0.025 in. (0.64 mm)

Armature Air Gap: . . . .0.010-0.014 in. (0.25-0.36mm)

Valve clearance with valve springs installed and piston 1/4 in. (6 mm) past top dead center of compression stroke (check when engine is cold).

Intake . . . . . . . . . . . . .0.002-0.004 in. (0.05-0.10 mm)

Exhaust . . . . . . . . . . .0.002-0.004 in. (0.05-0.10 mm)

Fuel Capacity . . . . . . . . . . . . . . . . . .10 fl. oz. (300 ml)

Oil Capacity . . . . . . . . . . . . . . . . . . .3 Ounces (90 ml)

NOTE: Engine power will decrease 3-1/2% for each 1,000 feet (300 meters) above sea level and 1% for each 10° F (5.6° C) above 77° F (25° C).

MAINTENANCE

General Recommendations

Regular maintenance will improve the performance and extend the life of the water pump. We recommend you use an authorized Briggs & Stratton service dealer for all maintenance and service. Use only genuine Briggs & Stratton parts.

The water pump’s warranty does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must maintain water pump as instructed in this manual.

All service and adjustments should be made at least once each season. Follow the requirements in the “Maintenance Schedule” chart above.

NOTE: Once a year you should clean or replace the spark plug and replace the air filter. A new spark plug and clean air filter assure proper fuel-air mixture and help your engine run better and last longer.

Emissions Control

Maintenance, replacement or repair of the emissions control devices and systems may be performed by any non-road engine repair establishment or individual. See emissions control system warranty, elsewhere in this manual.

Maintenance

Maintenance consists of keeping the water pump clean. Store the unit in a clean dry environment where it will not be exposed to excessive dust, dirt, moisture or any corrosive vapors. Cooling air slots in the water pumps engine must not become clogged with dirt, leaves or any other foreign material.

NOTE: DO NOT use a garden hose to clean water pumps engine. Water can enter engine fuel system and cause problems.

Cleaning

Daily or before use, look around and underneath water pump for signs of oil or fuel leaks. Clean accumulated debris from inside and outside water pump. Keep linkage, spring and other engine controls clean. Keep area around and behind muffler free from any combustible debris. Inspect cooling air slots and opening on water pump. These openings must be kept clean and unobstructed.

Engine parts should be kept clean to reduce the risk of overheating and ignition of accumulated debris.

• Use a damp cloth to wipe exterior surfaces clean.

• Use a soft bristle brush to loosen caked on dirt or oil.

• Use a vacuum cleaner to pick up loose dirt and debris.

MAINTENANCE SCHEDULE

Follow the hourly or calendar intervals, whichever occurs first. More frequent service is required when operating in adverse conditions noted below.

Change oil after the first (4) operating hours and every 8 hours or every year, whichever occurs first, thereafter. Change oil every 4 hours when operating under heavy loads or in high temperatures. Clean more often under dusty conditions or when airborne debris is present. Replace air cleaner if very dirty.

MAINTENANCE SCHEDULE

FILL IN DATES AS YOU

COMPLETE REGULAR SERVICE

SERVICE DATES

MAINTENANCE TASK

Before Each

Use

Every 8 Hours

or Yearly

Every 50 Hours

or Yearly

Clean debris

Check oil level

Change engine oil

Service air cleaner

Service spark plug

Prepare for storage If unit is to remain idle for longer than 30 days.

MAINTENANCE

Remove silt and sludge buildup in pump body:

• Open priming plug and remove drain plug.

• Flush internal components of pump with clean water.

Oil

Oil Recommendations NOTE: When adding oil to the engine crankcase, use

only high quality detergent oil classified “For Service SF, SG, SH, SJ” or higher. DO NOT use special additives.

1. Choose a viscosity according to the following table:

NOTE: Synthetic oil meeting ILSAC GF-2, API certification mark and API service symbol with “SJ/CF ENERGY CONSERVING” or higher, is an acceptable oil at all temperatures. Use of synthetic oil does not alter required oil change intervals.

SAE 30: 40 °F and higher (5 °C and higher) is good for all purpose use above 40°F, use below 40°F will cause hard starting.

10W-30: 0 to 100 °F (-18 to 38 °C) is better for varying temperature conditions.This grade of oil improves cold weather starting, but may increase oil consumption at 80°F (27°C) or higher. *Check oil level frequently at higher temperatures.

Synthetic 5W-30: -20 to 120 °F (-30 to 40 °C) provides the best protection at all temperatures as well as improved starting with less oil consumption.

5W-30: 40 °F and below (5 °C and below) is recommended for winter use, and works best in cold conditions.

Checking Oil Level

Oil level should be checked prior to each use and changed at least every 8 hours of operation. Keep oil level maintained.

1. Lay water pump in level position on side with fuel and oil fill facing up.

2. Remove oil fill cap/dipstick and wipe clean with cloth.

3. Tighten oil fill cap/dipstick down.

4. Remove and check oil level.

5. Verify oil is at FULL level by presence of oil in dipstick hole or by measure line (Figure 20).

Adding Engine Oil

DO NOT overfill. Use oil measuring cup for filling.Add only half ounce of oil at a time.

1. Lay water pump in level position on side with fuel and oil fill facing up.

2. Check oil level as described above in “Checking Oil Level”.

3. If needed, add only half ounce of oil at a time to bring it to FULL. Re-check level.

• If engine is not level, dipstick reading will not be accurate. This will lead to possible over or under filling causing damage to the engine.

Engine must be level, with oil fill facing up, to check oil.

CAUTION

Figure 20 — Oil Dipstick

Hole in Dipstick

MAINTENANCE

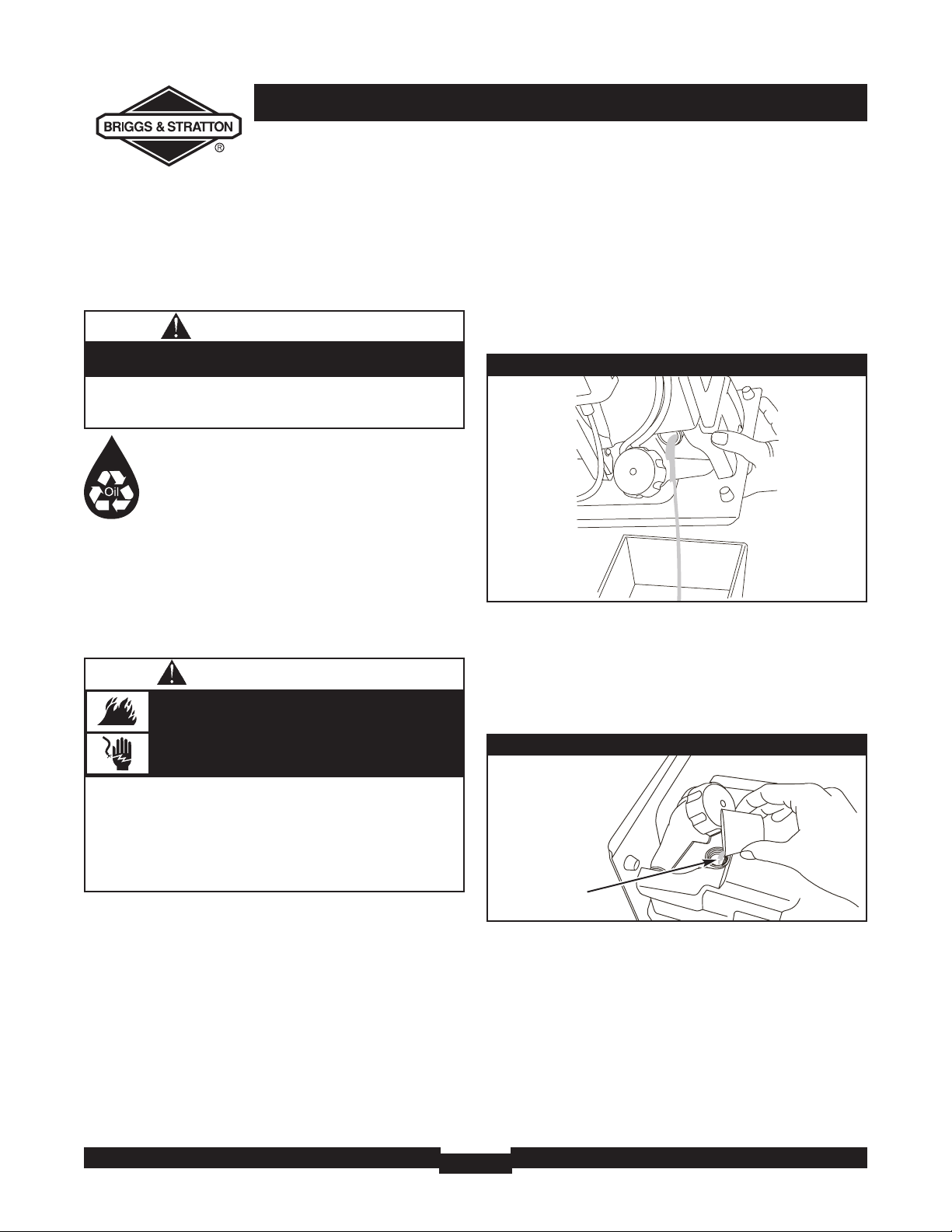

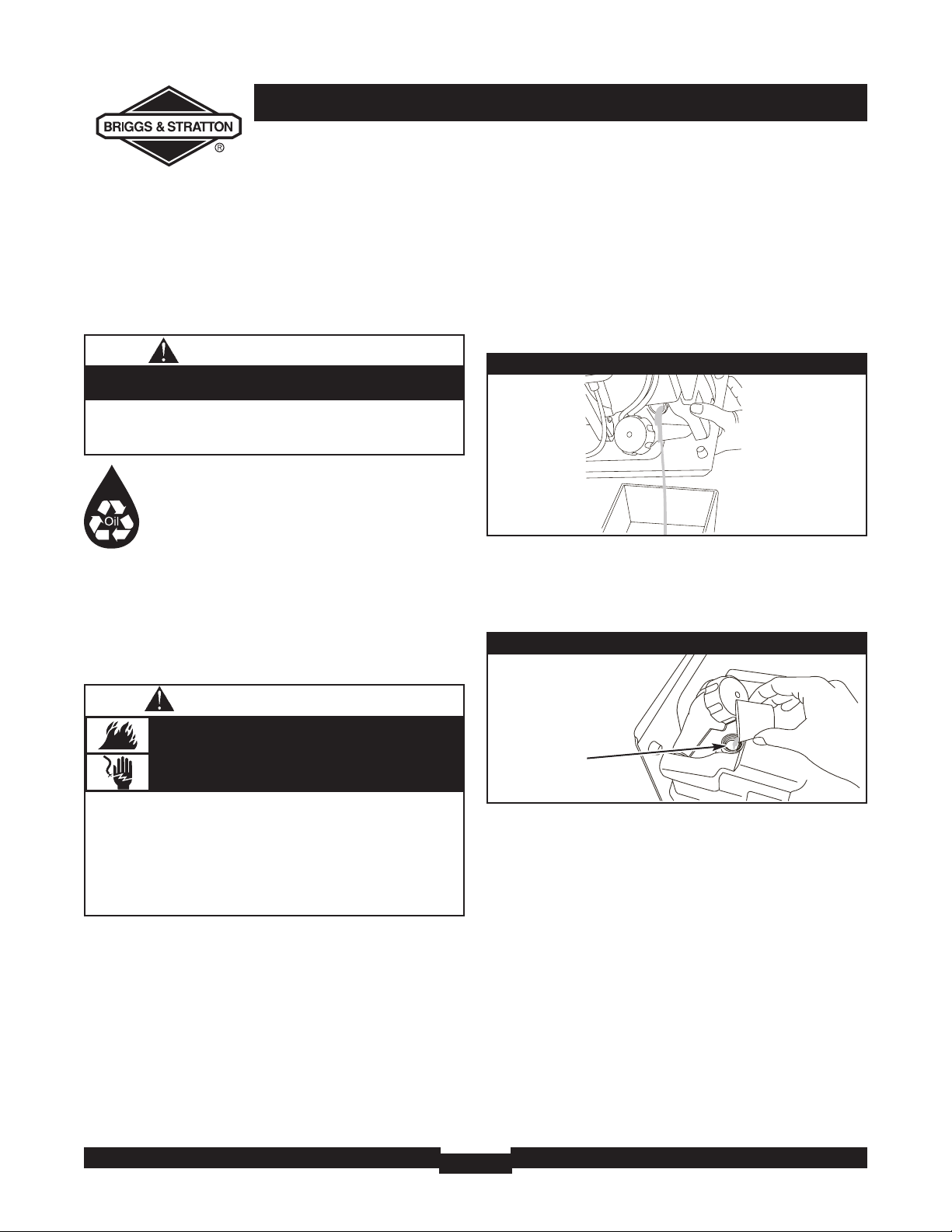

Changing Engine Oil

Change the oil after the first 4 hours of operation. Change oil every 8 hours thereafter. If you are using your water pump under extremely dirty or dusty conditions, or in extremely hot weather, change the oil every 4 hours.

KEEP OUT OF REACH OF CHILDREN. DON'T POLLUTE. CONSERVE RESOURCES. RETURN USED OIL TO COLLECTION CENTERS.

Change the oil while the engine is still warm from running, as follows:

1. Lay water pump in level position on side with fuel and oil fill facing up.

2. Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.

3. Ensure fuel cap is tightened securely.

4. Clean area around oil fill cap/dipstick.

5. Remove oil fill cap/dipstick and drain oil completely in the direction shown in Figure 21 into a suitable container.

6. Lay water pump on side with fuel and oil fill facing up.

7. Using oil measure cup, slowly pour oil into oil fill opening adding half ounce at a time (Figure 22). DO NOT overfill.

NOTE: Engine holds approximately 3 oz. (90 ml).

8. Reinstall oil fill cap/dipstick. Finger tighten cap securely.

9. Reconnect spark plug wire to spark plug.

10. Wipe up any spilled oil.

Figure 21 — Drain Oil

WHEN ADJUSTING OR MAKING REPAIRS TO YOUR WATER PUMP

• Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.

WHEN TESTING FOR ENGINE SPARK

• Use approved spark plug tester.

• DO NOT check for spark with spark plug removed.

Unintentional sparking can result in fire or electric shock.

WARNING

Figure 22 — Oil Fill Opening

Oil Fill Opening

• Used motor oil has been shown to cause skin cancer in certain laboratory animals.

• Thoroughly wash exposed areas with soap and water.

Avoid prolonged or repeated skin contact with used motor oil.

CAUTION

MAINTENANCE

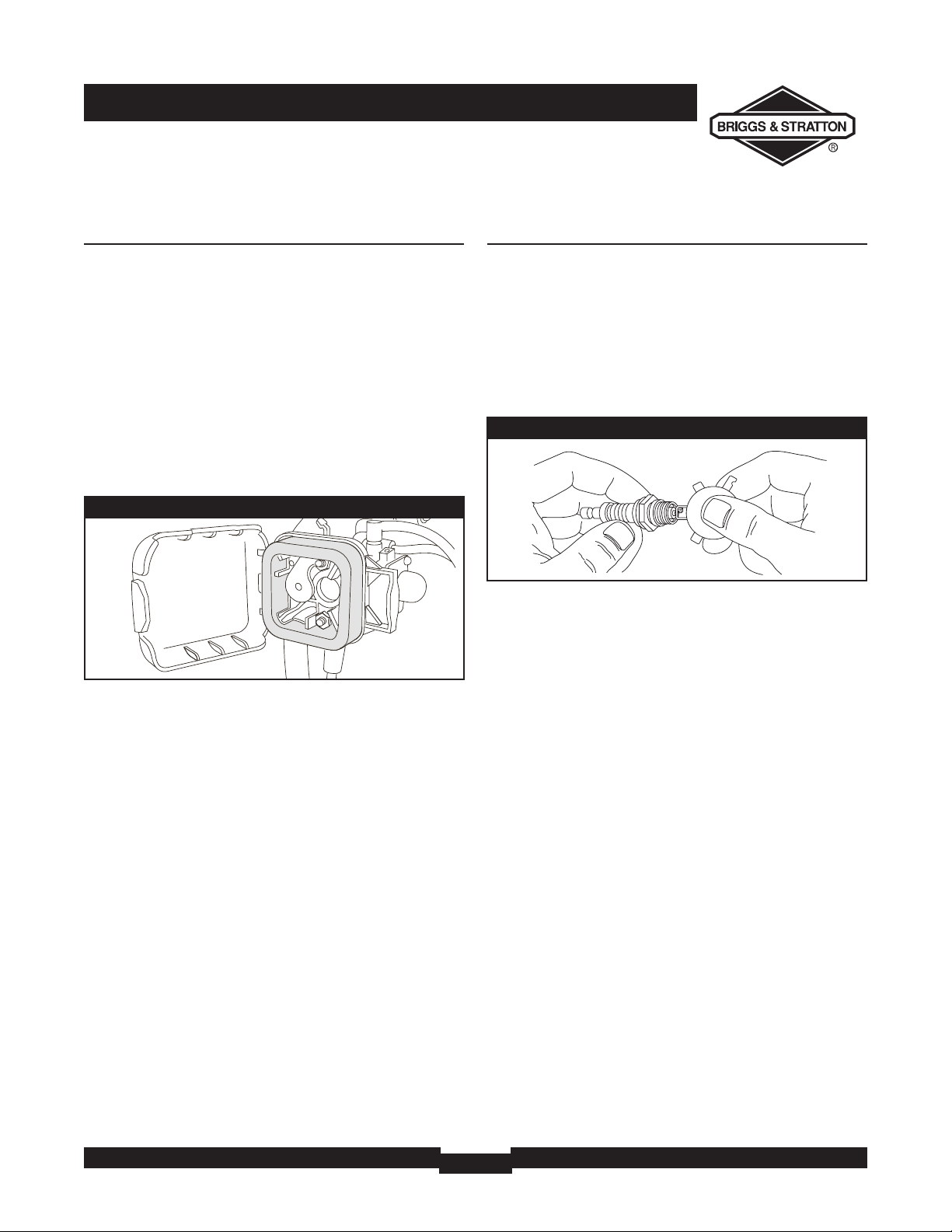

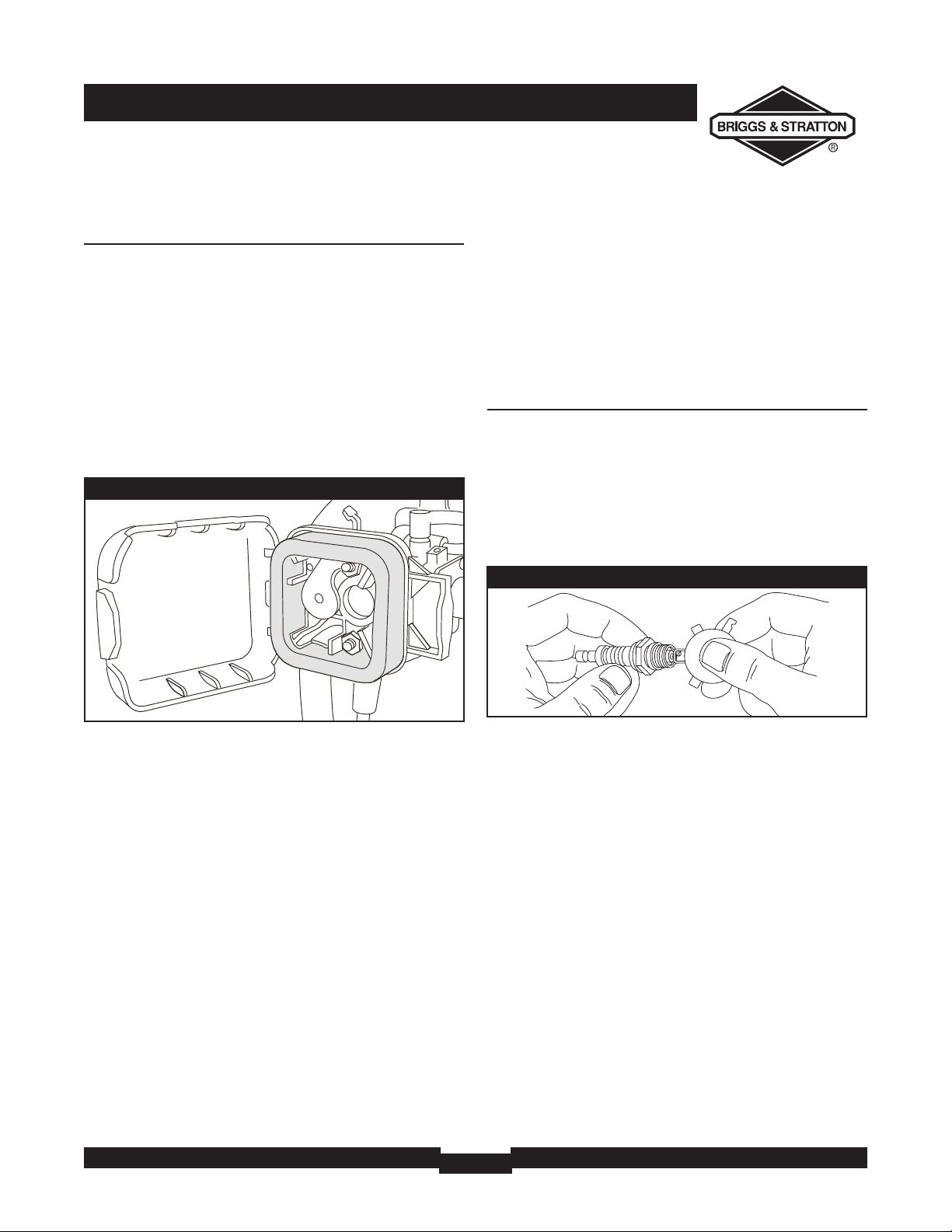

Service Air Cleaner

Your engine will not run properly and may be damaged if you run it with a dirty air cleaner.

Service the air cleaner every 8 hours of operation or once each year, whichever comes first. Service more often if operating under dirty or dusty conditions.

Check and clean the intake chamber for dirt. If the foam air cleaner is dirty and worn, replace with new air cleaner.

To service the air cleaner, follow these steps:

1. Push cover tab to release cover, then pull cover away from the engine (Figure 23).

2. Carefully remove foam air cleaner.

3. Wash foam air cleaner in liquid detergent and water. Squeeze dry in a clean cloth.

4. Dip foam air cleaner in engine oil and squeeze in a clean cloth to remove excess oil.

NOTE: Engine will smoke if too much oil is left on air cleaner.

5. Reinstall clean air cleaner.

6. Push cover closed to lock tab into base.

Service Spark Plug

Change the spark plug every 50 hours of operation or once each year, whichever comes first. This will help your engine to start easier and run better.

1. Clean area around spark plug.

2. Remove and inspect spark plug.

3. Check electrode gap with wire feeler gauge and set spark plug gap to 0.025 inch (0.64mm) if necessary (Figure 24).

4. Replace spark plug if electrodes are pitted, burned or porcelain is cracked. Use the recommended replacement plug.

5. Install spark plug and tighten firmly.

Figure 24 — Spark Plug

Figure 23 - Air Cleaner

STORAGE

The water pump should be started at least once every seven days and allowed to run at least 30 minutes. If this cannot be done and you must store the unit for more than 30 days, use the following information as a guide to prepare it for storage.

Long Term Storage Instructions

It is important to prevent gum deposits from forming in essential fuel system parts, such as the carburetor, fuel filter, fuel hose or tank during storage. Also, experience indicates that alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads to separation and formation of acids during storage. Acidic fuel can damage the fuel system of an engine while in storage.

Protect Fuel System

Fuel Stabilizer:

Follow these instructions if storing fuel more than 30 days. To protect the fuel system from gum formation, use

Briggs & Stratton FRESH START™ fuel stabilizer plus. If fuel stabilizer is used, you do not need to drain fuel

prior to storage.

• Run engine outdoors for several minutes to be sure treated fuel has replaced untreated fuel in carburetor.

If fuel preserver is not used, then always remove all fuel from tank and run engine until it stops from lack of fuel.

Change Oil

While engine is still warm, drain oil from crankcase. Refill with recommended grade. See “Changing Oil” on page 16.

Oil Cylinder Bore

• Remove spark plug and pour about 1 teaspoon (5 ml) of clean engine oil into the cylinder.

• Install spark plug and pull starter handle slowly 8-10 times to distribute oil.

Water Pump

1. Drain water pump as described in “Drain and

Flush Water Pump”.

2. Clean water pump as described in “Cleaning”.

3. Check that openings on water pump are open and

unobstructed.

Other Storage Tips

1. DO NOT store fuel from one season to another

unless it has been treated as described in “Protect Fuel System”.

2. Replace fuel can if it starts to rust. Contaminated

fuel will cause engine problems.

3. If possible, store unit indoors and cover it to give

protection from dust and dirt.

4. Cover unit with a suitable protective cover that

does not retain moisture.

5. Store water pump in clean, dry area.

WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN TANK

• Store away from furnaces, stoves, water heaters, clothes dryers or other appliances that have pilot light or other ignition source because they can ignite fuel vapors.

WHEN DRAINING FUEL

• Turn water pump OFF and let it cool at least 2 minutes before removing fuel cap. Loosen cap slowly to relieve pressure in tank.

• Drain fuel tank outdoors.

• Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.

• DO NOT light a cigarette or smoke.

Fuel and its vapors are extremely flammable and explosive.

Fire or explosion can cause severe burns or death.

WARNING

• NEVER pull starter handle with spark plug removed.

Unintentional sparking can result in fire or electric shock.

WARNING

• DO NOT place a storage cover over a hot water pump.

• Let equipment cool for a sufficient time before placing the cover on the equipment.

Storage covers can be flammable.

WARNING

TROUBLESHOOTING

Problem Cause Correction

No pump output or low pump output when water pump is running.

1. Pump not primed.

2. Suction hose restricted, collapsed, damaged, too long, or diameter too small.

3. Strainer not completely under water.

4. Air leak at suction hose connector.

5. Strainer clogged.

6. Discharge hose restricted, damaged, too long, or diameter too small.

7. Excessive or marginal head.

8. Throttle lever is down in slow position.

1. Fill pump chamber with water and prime pump.

2. Replace suction hose.

3. Sink the strainer and the end of suction hose completely under water.

4. Replace sealing washer if missing or damaged. Tighten hose connector and clamp.

5. Clean debris from strainer.

6. Replace discharge hose.

7. Relocate pump and/or hoses to reduce head.

8. Move throttle lever up to fast position.

Engine will not start; lacks power; starts and runs rough; or "hunts" or falters.

1. Dirty air cleaner.

2. Out of fuel.

3. Stale or contaminated fuel or water in fuel.

4. Spark plug wire not connected to spark plug.

5. Bad spark plug.

6. Excessive fuel is present in the air/fuel mixture causing a “flooded” condition.

7. Excessively rich fuel mixture.

8. Intake valve stuck open or closed.

9. Engine has lost compression.

10. Carburetor is running too rich or too lean.

1. Clean or replace air cleaner.

2. Wait two minutes and fill fuel tank.

3. Drain fuel tank and carburetor; fill with fresh fuel.

4. Connect wire to spark plug.

5. Replace spark plug.

6. Wait 5 minutes and re-crank engine.

7. Contact Authorized service facility.

8. Contact Authorized service facility.

9. Contact Authorized service facility.

10. Contact Authorized service facility.

Engine shuts down when running.

Out of gasoline. Wait two minutes and fill fuel tank.

NOTES

EMISSIONS CONTROL SYSTEM WARRANTY

Briggs & Stratton Corporation (B&S), the California Air Resources Board (CARB)

and the United States Environmental Protection Agency (U.S. EPA)

Emissions Control System Warranty Statement

(Owner’s Defect Warranty Rights and Obligations)

California, United States and Canada Emissions Control Defects Warranty Statement

The California Air Resources Board (CARB), U.S. EPA and B&S are pleased to explain the Emissions Control System Warranty on your small off–road engine (SORE). In California, new small off–road engines model year 2006 and later must be designed, built and equipped to meet the State’s stringent anti–smog standards. Elsewhere in the United States, new non–road, spark–ignition engines certified for model year 1997 and later must meet similar standards set forth by the U.S. EPA. B&S must warrant the emissions control system on your engine for the periods of time listed below, provided there has been no abuse, neglect or improper maintenance of your small off–road engine.

Your emissions control system includes parts such as the carburetor, air cleaner, ignition system, fuel line, muffler and catalytic converter. Also included may be connectors and other emissions related assemblies.

Where a warrantable condition exists, B&S will repair your small off–road engine at no cost to you including diagnosis, parts and labor.

Briggs & Stratton Emissions Control Defects Warranty Coverage

Small off–road engines are warranted relative to emissions control parts defects for a period of two years, subject to provisions set forth below. If any covered part on your engine is defective, the part will be repaired or replaced by B&S.

Owner’s Warranty Responsibilities

As the small off–road engine owner, you are responsible for the performance of the required maintenance listed in your Operating and Maintenance Instructions. B&S recommends that you retain all your receipts covering maintenance on your small off–road engine, but B&S cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.

As the small off–road engine owner, you should however be aware that B&S may deny you warranty coverage if your small off–road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.

You are responsible for presenting your small off–road engine to an Authorized B&S Service Dealer as soon as a problem exists. The undisputed warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact a B&S Service Representative at 1–414–259–5262.

The emissions warranty is a defects warranty. Defects are judged on normal engine performance. The warranty is not related to an in–use emissions test.

Briggs & Stratton Emissions Control Defects Warranty Provisions

The following are specific provisions relative to your Emissions Control Defects Warranty Coverage. It is in addition to the B&S engine warranty for non–regulated engines found in the Operator’s Manual.

1. Warranted Parts Coverage under this warranty extends only to the parts listed below

(the emissions control systems parts) to the extent these parts were present on the engine purchased.

a. Fuel Metering System

• Cold start enrichment system (soft choke)

• Carburetor and internal parts

• Fuel Pump

• Fuel line, fuel line fittings, clamps

b. Air Induction System

• Air cleaner

• Intake manifold

c. Ignition System

• Spark plug(s)

• Magneto ignition system

d. Catalyst System

• Catalytic converter

• Exhaust manifold

• Air injection system or pulse valve

e. Miscellaneous Items Used in Above Systems

• Vacuum, temperature, position, time sensitive valves and switches

• Connectors and assemblies

2. Length of Coverage B&S warrants to the initial owner and each subsequent purchaser

that the Warranted Parts shall be free from defects in materials and workmanship which caused the failure of the Warranted Parts for a period of two years from the date the engine is delivered to a retail purchaser.

3. No Charge Repair or replacement of any Warranted Part will be performed at no

charge to the owner, including diagnostic labor which leads to the determination that a Warranted Part is defective, if the diagnostic work is performed at an Authorized B&S Service Dealer. For emissions warranty service contact your nearest Authorized B&S Service Dealer as listed in the “Yellow Pages” under “Engines, Gasoline,” “Gasoline Engines,” “Lawn Mowers,” or similar category.

4. Claims and Coverage Exclusions Warranty claims shall be filed in accordance with the provisions of the

B&S Engine Warranty Policy. Warranty coverage shall be excluded for failures of Warranted Parts which are not original B&S parts or because of abuse, neglect or improper maintenance as set forth in the B&S Engine Warranty Policy. B&S is not liable to cover failures of Warranted Parts caused by the use of add–on, non–original, or modified parts.

5. Maintenance Any Warranted Part which is not scheduled for replacement as

required maintenance or which is scheduled only for regular inspection to the effect of “repair or replace as necessary” shall be warranted as to defects for the warranty period. Any Warranted Part which is scheduled for replacement as required maintenance shall be warranted as to defects only for the period of time up to the first scheduled replacement for that part. Any replacement part that is equivalent in performance and durability may be used in the performance of any maintenance or repairs. The owner is responsible for the performance of all required maintenance, as defined in the B&S Operator’s Manual.

6. Consequential Coverage Coverage hereunder shall extend to the failure of any engine

components caused by the failure of any Warranted Part still under warranty.

+ 47 hidden pages
