Illustrated
Parts List
Attachment
. No. Description
Mf
7063281 Twin Bag Catcher, 28" & 33" R.E.R.
Briggs & Stratton Power Products Group, L.L.C.
P.O. Box 702
Milwaukee, WI 53201-0702 USA
BRIGGSandSTRATTON.com
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2012
Manual Part No.
Rev. Date:
7105884
Revision
7/25/2012
-
Page 2
Not for
Reproduction
Page 3
Not for
Reproduction
Table Of Content
s
PRODUCT COMPONENTS PAGES
Catcher Group .....................................................................................................................................................
Chute Group ........................................................................................................................................................
Torque Specification Chart ..................................................................... Inside Back Cover
4
6
Page 4
Not for
Reproduction
Catcher Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0061
The above parts group applies to the following Mfg. Nos.:
7063281 - Twin Bag Catcher
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2012
4
7105884
Page 5
Not for
Reproduction
Catcher Group
PART NO. DESCRIPTIONREF NO QTY.
KIT, Grass Catcher Was 60946 -- 7063281 1
COVER, Twin Bag 2 7059626 1
SECTOR 3 7019725 1
WELDMENT, Frame 4 7059951 1
BOLT, 5/16-18 x 1-1/2" Carr. 7 7091612 2
HINGE, Top 8 7038087 2
SCREW, 1/4-28 x 3/4" Cap 9 7091611 4
NUT, 5/16-24 Hex Center Lock 10 7091606 2
PAD, Bumper Mount 11 7023797 2
NUT, 1/4-28 Hex Was 91605 12 7090095 4
NUT, 1/4-20 Hex Included in Hardware Bag 60589 15 7091576 8
WASHER, 1/4" Flat Included in Hardware Bag 60589 21 7091294 4
PIN, 5/16 x 11/16" Clevis Included in Hardware Bag 60589 22 7029841 3
PIN, 3/32 x 1-1/2" Hair Included in Hardware Bag 60589 23 7091503 3
NUT, 1/4-20 Flange Lock Included in Hardware Bag 60589 24 7091545 5
BOLT, 1/4-20 x 1/2" Carriage Included in Hardware Bag 60589 25 7091604 5
SUPPORT, Bumper 26 7031954 1
WASHER, 5/16" Flat 27 7090188 6
WASHER, 1/4 Int.Tooth Lock Was 91314 28 7090053 4
GUARD, Muffler 29 7071677 1
WASHER, 5/16 Split Lock 31 7091315 2
NUT, 5/16-18 Hex Center Lock 32 7091575 2
ASS'Y,Bag (Incl. Indented Items) 33 7051930 2
BAG, Grass Catcher -- 7019250 1
ROD, Bag Support -- 7019965 1
CONNECTOR -- 7014456 1
ASS'Y, Screen (Indented Items) 34 7057652 1
SCREEN -- 7019731 1
FRAME, Screen -- 7019732 1
SCREW, 5/16-24 x 1" Cap 35 7090238 2
DECAL, Snapper 36 7019295 1
SCREW, #10-24 x 1/2" S. Tap Was 90853 38 7090896 8
SEAL 39 7019794 1
CLAMP 40 7038276 2
INLET, Twin Bagger 48 7019966 1
DECAL, Chute/Deflector 51 7046720 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
7063281 - Twin Bag Catcher
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2012
5
7105884
Page 6
Not for
Reproduction

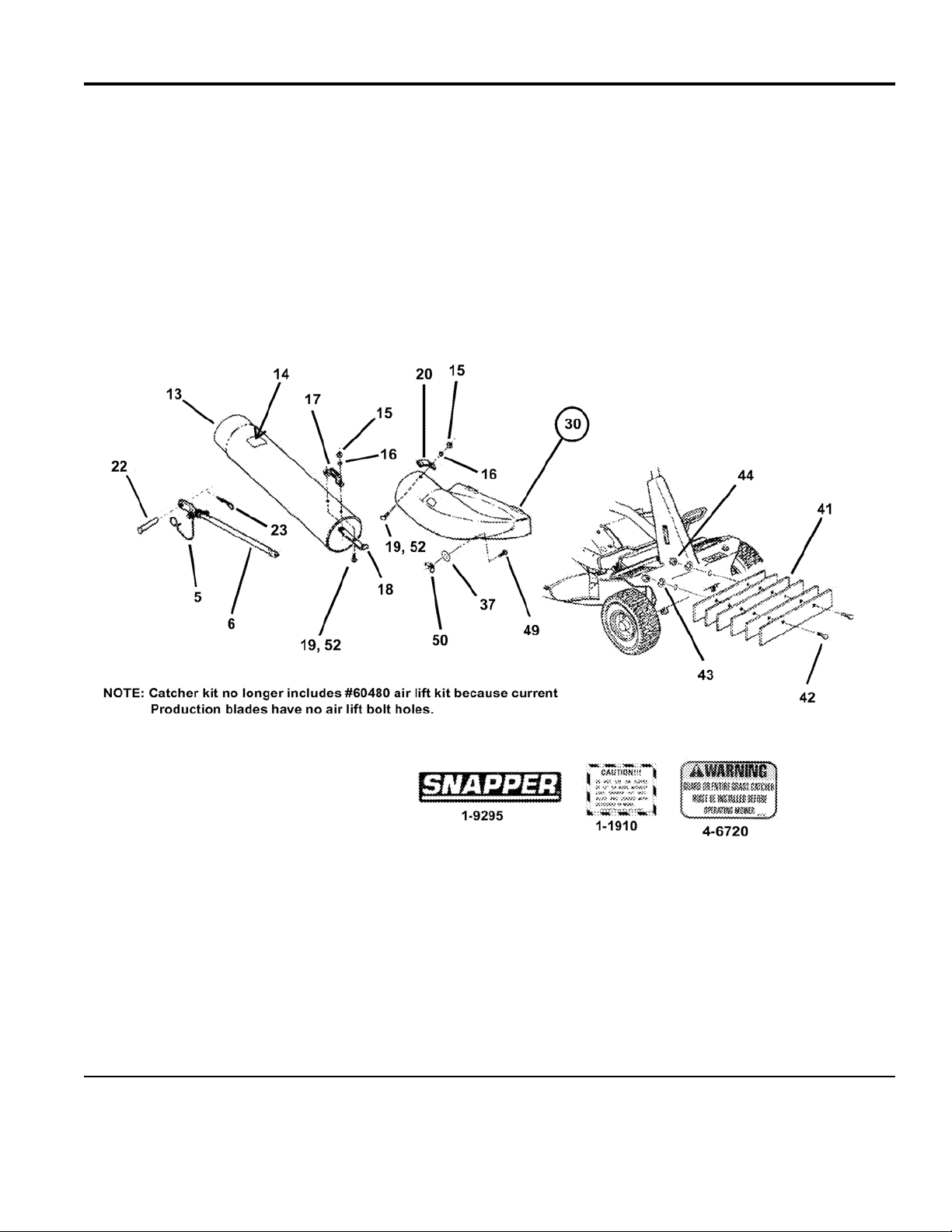

Chute Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0063
The above parts group applies to the following Mfg. Nos.:
7063281 - Twin Bag Catcher
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2012
6
7105884
Page 7
Not for
Reproduction
Chute Group
PART NO. DESCRIPTIONREF NO QTY.
ASSEMBLY, Spring & Hook 5 7051407 1
BRACE, Rear (24-1/2" Long) 6 7036073 1
BRACE, Rear (24-13/16" Long) -- 7046573 1
TUBE, Grass (36" long) 13 7014517 1
DECAL, Caution 14 7011910 1
NUT, 1/4-20 Hex Included in Hardware Bag 60589 15 7091576 8
WASHER, 1/4 Internal Tooth Lock Was 91314 (Included in Hardware Bag 60589) 16 7090053 4
HANDLE, Tube Included in Hardware Bag 60589 17 7037745 1
BASE, Tube Handle Included in Hardware Bag 60589 18 7031952 1
BOLT, 1/4-20 x 3/4" Carriage Included in Hardware Bag 60589 19 7091530 4
LATCH, Tube Chute Included in Hardware Bag 60589 20 7031951 1
PIN, 5/16 x 11/16" Clevis Included in Hardware Bag 60589 22 7029841 3
PIN, 3/32 x 1-1/2" Hair Included in Hardware Bag 60589 23 7091503 3
ADAPTER (Includes Decal 4-6720) 30 7057809 1
WASHER, 5/16" Flat Was 91296 37 7090188 6
WEIGHT, Front Frame 41 7072416 6
SCREW, 5/8-11 x 1-3/4" Cap 42 7091976 2
WASHER, 5/8" Split Lock 43 7090333 2
NUT, 5/8-11 Hex 44 7090537 2
BOLT, 5/16-18 x 1" Carriage Included in Hardware Bag 60589 49 7091303 1
WING NUT, 5/16-18 Lock Included in Hardware Bag 60589 50 7091537 1
SCREW, 1/4-20 x 3/4" 52 7091614 4
DECAL, SNAPPER 1-9295 7019295 1
DECAL, GRASS CATCHER 1-1910 7011910 1
DECAL, CHUTE DEFLECTOR 4-6720 7046720 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
7063281 - Twin Bag Catcher
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2012
7
7105884
Page 8
Not for
Reproduction
Page 9
Not for
Reproduction
Page 10
Not for
Reproduction
Page 11
Not for
Reproduction
Hardware Identification & Torque Specifications
No
Marks
0
1/4 3/4
1/2
21
1/4 3/4
1/2
1/4 3/4
1/2
1/4 3/4
1/2
4
Torque Specification Chart
FOR STANDARD METRIC MACHINE HARDWARE (Tolerance ± 20%)
Property
Class
Size Of
Hardware
M3
M4
M5
M6 7.3 10.3 12.1
M7 12.1 16.9 19.9
M8 17.7
M10 35 50
M12 61 86.2 103 140
M14
M16 147 210 250 340
M18 202 287 346 470
M20 290 405 486 660
M22 390 559 656 890
M24 497
M27 733 1032 1239 1680
M30 995 1401 1681 2280
M33
M36 1740 2441
M39 2249 3163
The guides and ruler furnished below are designed to
help you select the appropriate hardware.
010
Nut, M8
Thread
Diameter (mm)
Inside
Diameter (in)
Nut, 1/2-16
Class 5.6
in/lbs
ft/lbs
5.88
13.44
26.4
44.64
5.2
7.7
15
26
42
64
89
126
169
217
320
435
590
759
988
20
5.6
Nm. Nm. Nm.
.56
1.28
2.50
4.3
7.1
10.5
21
36
58
88
121
171
230
295
435
590
800
1030
1340
30
8.8
Class 8.8
in/lbs
ft/lbs
13.44 1.80
30.72 43.44 52.56
60.96
Class 10.9
in/lbs
ft/lbs
19.2 22.92
1.28
2.90
5.97 7.15
5.75
9.9
16.5
24
48
83
101
136 162 220
132
200
275
390
530
708
375
995
1350
1349
1902 2278 3090
1830
2360
3050
50
60
Body Length
40
Screw, M8- 1.25 x 25
Thread
Diameter (mm)
Threads
per inch
Body
Diameter
Screw, 1/2- 16 x 2
10.9
4.10
8.10
14
23
25
34
67
117
185
285
390
550
745
960
1400
1900
2580
3310
4290
80
Diameter
Distance between
threads (mm)
Threads
per inch
3
12.9
Class 12.9
in/lbs
ft/lbs
29
59
840 1140
2935 3980
3798
Body
Nm.
2.15
4.95
9.7
16.5
27
40
81
5150
90 10070
Body
Length (mm)
Body
Length (in)
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
Size Of
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32
8-36
10-24
10-32
1/4-20
1/4-28
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 29 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
b. for flange whizlock nuts and screws - use 135% of
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
Common Hardware Types
Hex Head Capscrew
SAE Grade 2 SAE Grade 5 SAE Grade 8
in/lbs in/lbs
19
2.1
20
2.3
27
3.1
31
3.5
66
7.6 8 10.9 12 16.3
76
8.6 10 13.6 14 19.0
30
31
43
49
in/lbs
3.4
3.5
4.9
5.5
NOTES
torques.
grade 5 torques.
41
43
60
68
Washer
4.6
4.9
6.8
7.7
Standard Hardware Sizing
When a washer or nut is identified as 1/2” (M8), this is
Nominal size
the
(8mm metric thread diameter); if a second number is present
it represents the
When bolt or capscrew is identified as 1/2 - 16 x 2” (M8 - 1.25 x 50 ),
this means the
metric thread diameter), the second number,16, represents the
threads per inch, (1.25 thread diameter).
body length of the bolt or screw, 2 inches (50mm).
, meaning the
threads per inch
Nominal size
inside diameter
is 1/2 inch
(distance between threads).
, or body diameter is 1/2 inch (8mm
The final number is the
Carriage Bolt
Wrench & Fastener Size Guide
1/4” Bolt or Nut
Wrench—7/16”
M6 Bolt or Nut
Wrench—10mm
5/16” Bolt or Nut
Wrench—1/2”
M8 Bolt or Nut
Wrench—13mm
3/8” Bolt or Nut
Wrench—9/16”
M10 Bolt or Nut
Wrench—17mm
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
M12 Bolt or Nut
Wrench—19mm
Lockwasher
Hex Nut
1/2” Bolt or Nut
Wrench—3/4”
M14 Bolt or Nut
Wrench—22 mm
