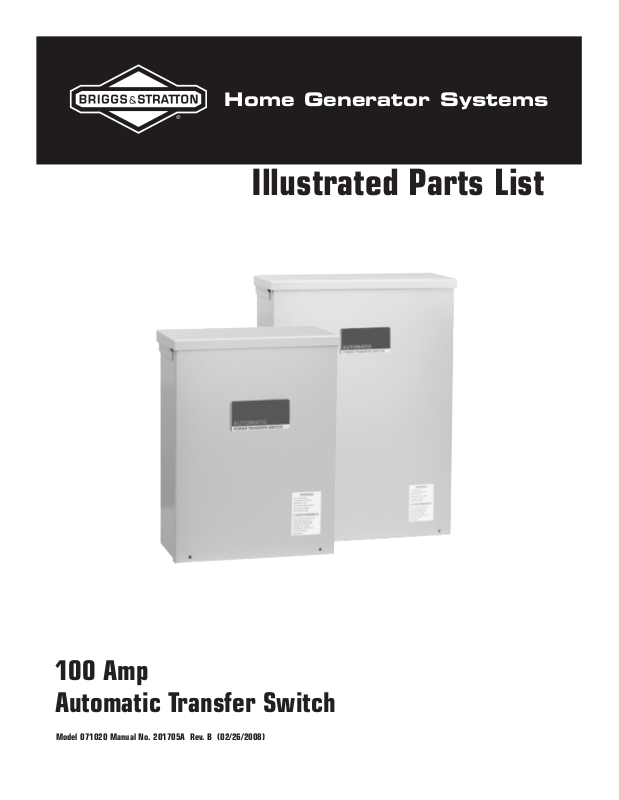

Page 1
Home Generator Systems
Illustrated Parts List
Model 071020 Manual No. 201705A Rev. B (02/26/2008)
100 Amp
Automatic Transfer Switch
Page 2
2 BRIGGSandSTRATTON.COM
Exploded View - Model 071020
Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
Page 3
3
Item Part # Description
1 NSP ASSY, Enclosure
2 NSP BACK PANEL
3 195667GS TRNSFR SWTCH, 100A, w/ Handle
4 * PPHMS, #10 - 32 x 1/2"
5 * WASHER, Ext. Tooth, #10
6 193689GS WIRE, Copper
7 * PPHMS, #6- 32 x 3/8"
8 193664GS INSULATION, Dead Front
9 197279GS CONTROL, Board
10 201685GS SPACER
11 196094GS GROUND LUG
12 * WASHER, Lock 1/4"
13 192882GS BREAKER Circuit, 100A
14 * NUT, 1/4” - 20
15 192696GS TERMINAL, Neutral
16 B4857GS FUSE
17 192151GS FUSE HOLDER
18 197355GS CLIP, Latching Wire
20 196355GS DECAL, CT Warning
21 B5106GS DECAL, Connection, Utility
23 196520GS DECAL, 100A, ATS
25 205395GS DECAL, Warning Shock
26 190984GS DECAL, Fuse
27 B4986GS DECAL, Ground
28 192597GS DECAL, Sensing, Utility
29 193450GS DECAL, Breaker, Circuit
30 197294GS DECAL, Contacts Rating
31 192150GS SPACER
32 197198GS DECAL, Wire Circuits
33 192770GS BRACKET, Circuit Breaker
34 * PPHMS, 8-32x 3/8"
36 * LOCKWASHER, #10
37 * PPHMS, #10 - 32 x 1/4"
38 193159GS DECAL, Reinstall Barrier
Items Not Illustrated
195728GS CURRENT TRANSFORMER
* - Items without part numbers are common fasteners and
are available at local hardware stores.
Illustrated Parts List - Model 071020
