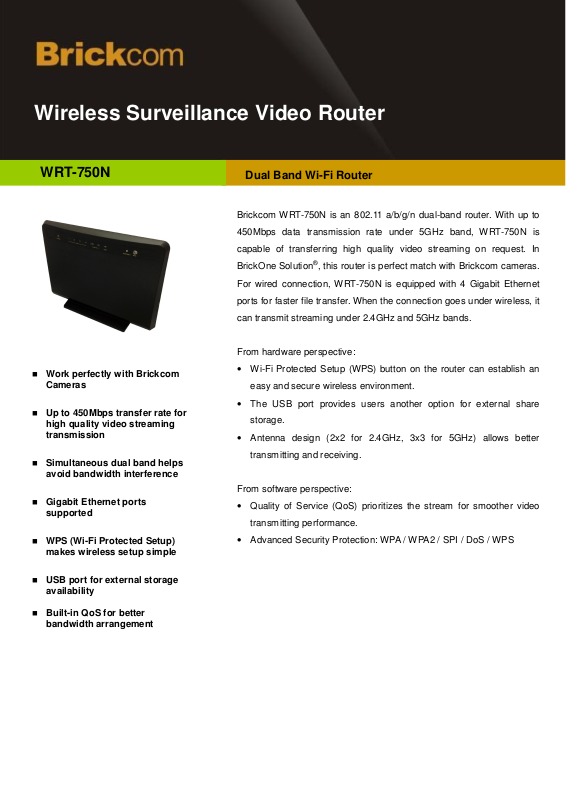

Brickcom WRT-750N Specsheet
W
ireless Surveillance Video Router
W
ork perfectly
with Brickcom
WRT-750N
Cameras
Up to 450Mbps transfer rate for
high quality video streaming
transmission
Simultaneous dual band helps
avoid bandwidth interference
Gigabit Ethernet ports
supported
WPS (Wi-Fi Protected Setup)
makes wireless setup simple
USB port for external storage
availability
Built-in QoS for better
bandwidth arrangement
Dual Band Wi-Fi Router
Brickcom WRT-750N is an 802.11 a/b/g/n dual-band router. With up to
450Mbps data transmission rate under 5GHz band, WRT-750N is
capable of transferring high quality video streaming on request. In
BrickOne Solution®, this router is perfect match with Brickcom cameras.
For wired connection, WRT-750N is equipped with 4 Gigabit Ethernet
ports for faster file transfer. When the connection goes under wireless, it
can transmit streaming under 2.4GHz and 5GHz bands.
From hardware perspective:
• Wi-Fi Protected Setup (WPS) button on the router can establish an
easy and secure wireless environment.
• The USB port provides users another option for external share
storage.
• Antenna design (2x2 for 2.4GHz, 3x3 for 5GHz) allows better
transmitting and receiving.
From software perspective:
• Quality of Service (QoS) prioritizes the stream for smoother video
transmitting performance.
• Advanced Security Protection: WPA / WPA2 / SPI / DoS / WPS
Storage
Support
QoS
Buttons
Voltage Range
Power
Operation
Dimensions
Net Weight
Certification
Models
Modulation
Type
Antenna
5GHz radio
Standard
Security
VPN Passthrough
info@brickcom.com
Copyright
2014
Brickcom Corporation. All rights reserved. All other company
Specification
WRT-750N
802.11a: OFDM
802.11b: CCK (11&5.5 Mbps), QPSK
(2Mbps), BPSK (1Mbps)
802.11g: OFDM
802.11n HT20, HT40: 64 QAM, 16 QAM,
QPSK, BPSK
5 Total, 2 for 2.4GHz and 3 for
band
IEEE 802.11 a/b/g/n
Built-in NAT firewall
MAC Filtering
Stateful Packet Inspection (SPI)
Denial of Service Prevention (DoS)
Authentication: PAP/CHAP
DMZ
WEP / WPA / WPA2 / Radius / WPS
Video Streaming Priority
IPSec / PPTP / L2TP Pass through
FAT32, NTFS
Wireless Multimedia (WMM)
WPS, Reset, On/Off Switch, Wi-Fi On/Off
100~240Vac at 50/60 Hz
12V 2A
Temperature: 0°C~40°C (32°F ~ 104°F)
Relative Humidity: 5% ~ 95%
non-condensing
195 x 142.64 x 60 mm
(7.68 x 5.62 x 2.36 inch)
298 g
CE, FCC
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
