Brickcom WRT-750N User Manual
Dual Band Wireless
Surveillance Video Router
WRT-750N
User Manual
Quality Service Group
Product Name:
Dual Band Wireless Surveillance Video Router
Release Date:
2014/03
Manual Revision:
V1.0
Web Site:
www.brickcom.com
Email:
support@brickcom.com
info@brickcom.com
© 2014 Brickcom Corporation. All Rights Reserved
Table of Content
PACKAGE CONTENTS.................................................................................................... 3
I. PRODUCT DESCRIPTION .................................................................................... 4
GENERAL FEATURES .................................................................................................... 4
II. HARDWARE INTRODUCTION ............................................................................. 5
1. APPEARANCE ..................................................................................................... 5
2. LED INDICATORS ................................................................................................ 6
3. SYSTEM REQUIREMENT ........................................................................................ 7
III. SOFTWARE INTRODUCTION .............................................................................. 8
EQUIPMENT NEEDED ................................................................................................... 8
1. Setup Wizard .............................................................................................. 8
2. Running Status ......................................................................................... 13
3. Network Setup ......................................................................................... 16
4. Wireless Setting ....................................................................................... 20
5. Forwarding .............................................................................................. 27
6. Access Control .......................................................................................... 29

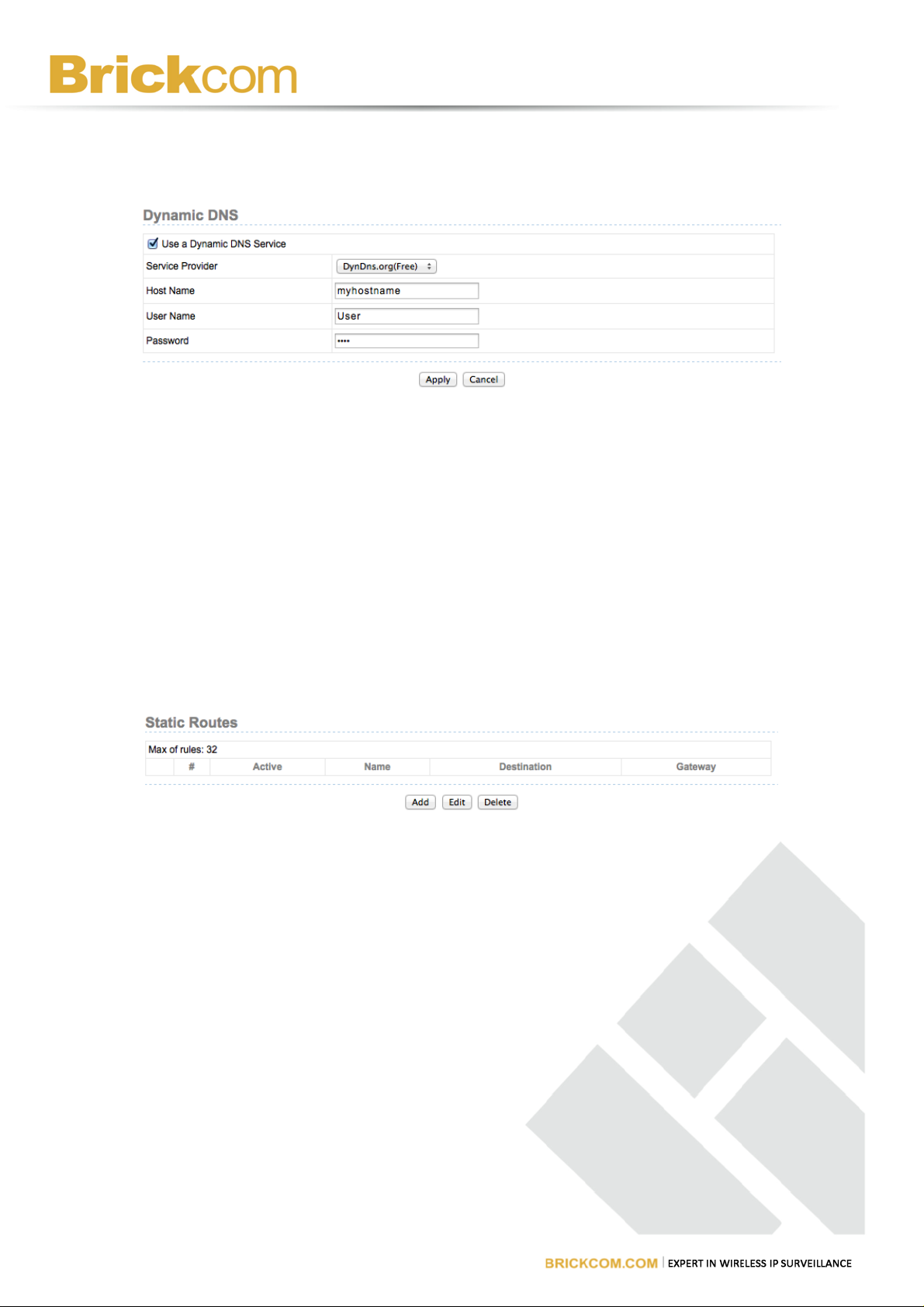

7. Dynamic DNS ........................................................................................... 33
8. Static Routes ............................................................................................ 33
9. Email ........................................................................................................ 34
10. Security Options ................................................................................... 35

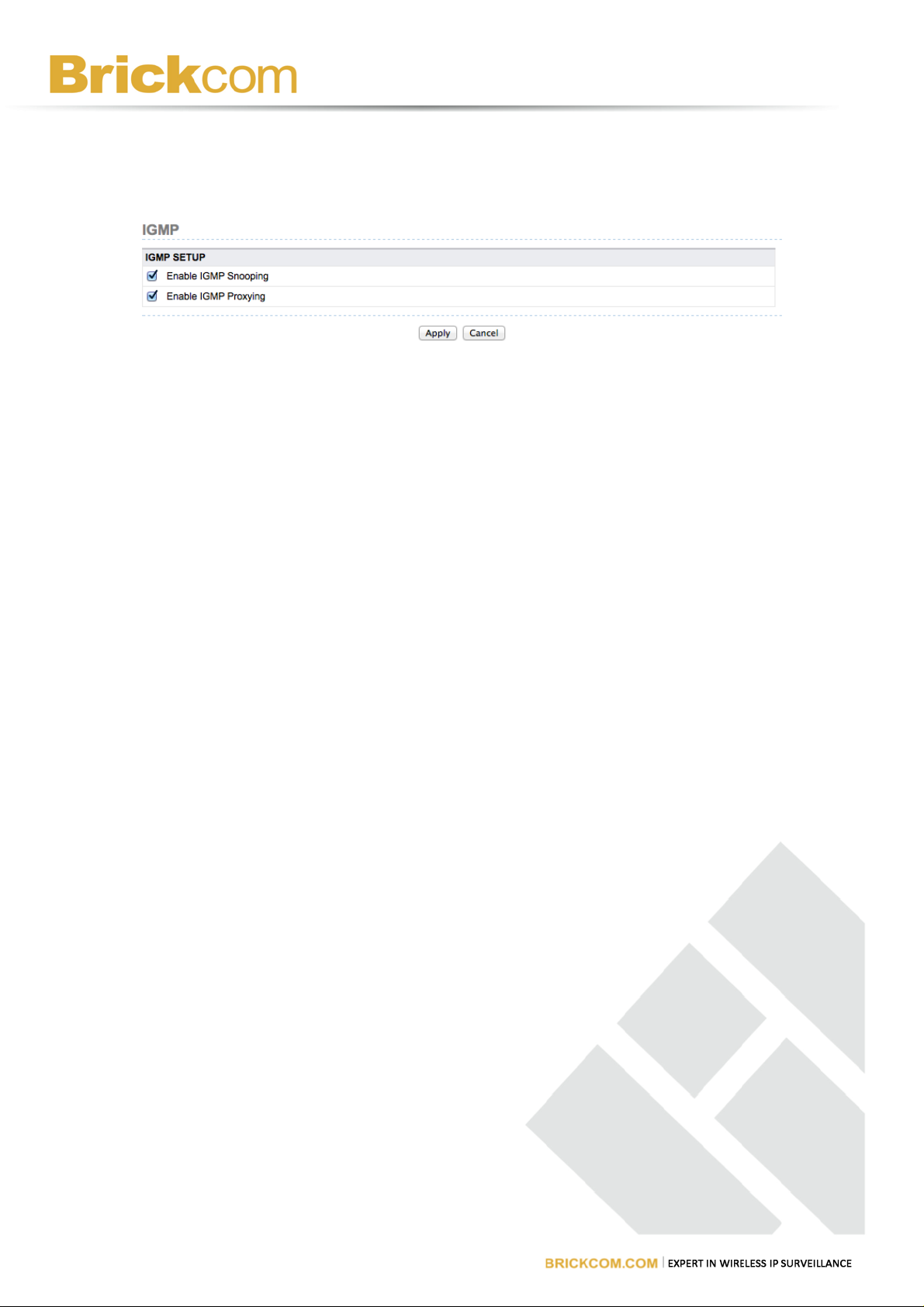

11. Multicast Control .................................................................................. 38

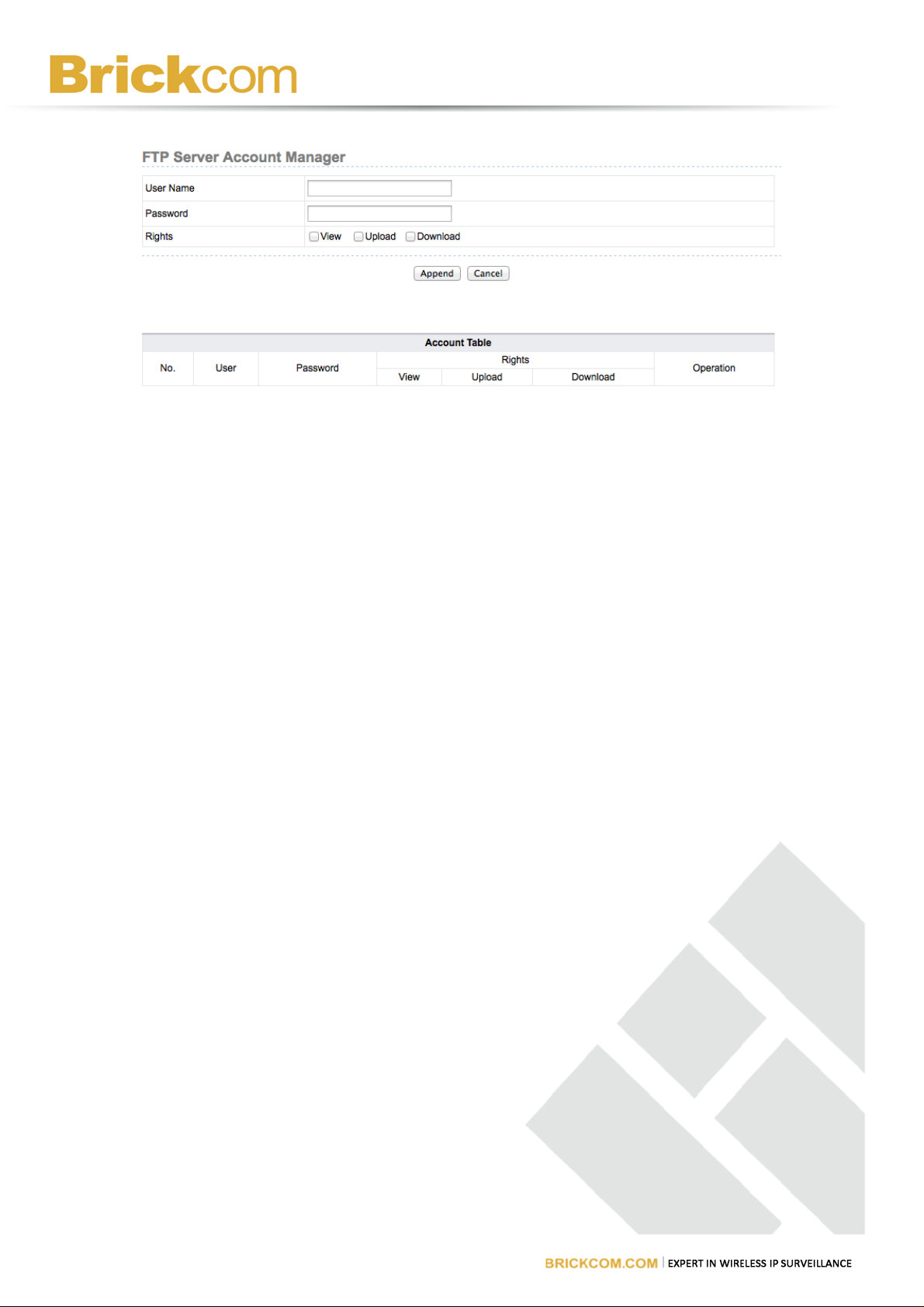

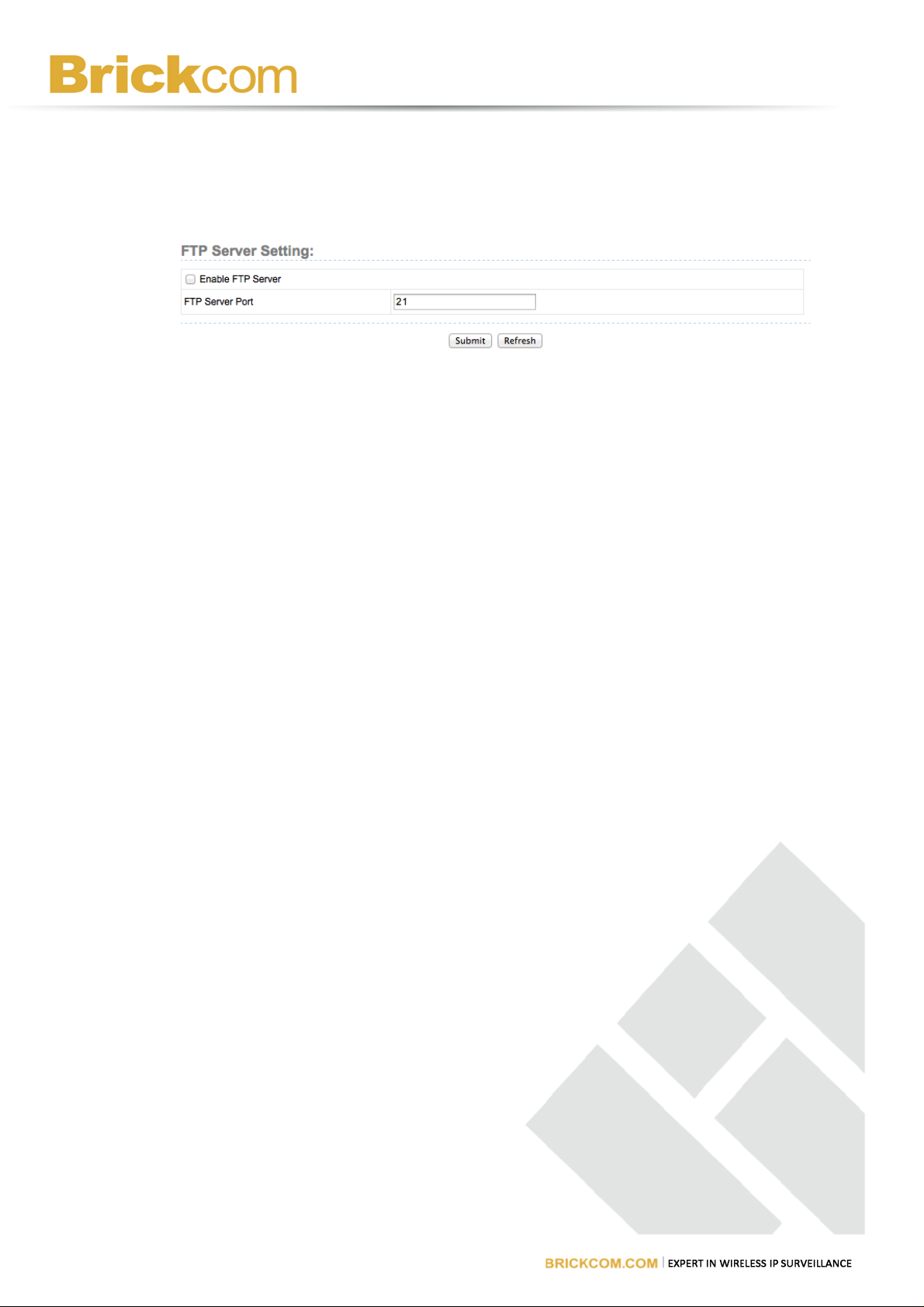

12. Storage Setup ....................................................................................... 39
13. System Information .............................................................................. 44
CONTACTING TECHNICAL SUPPORT ............................................................................... 47
3
WRT-750N
Power Adapter
Ethernet Cable
EIG
Package Contents
WRT-750N User Manual
4
I. Product Description
Brickcom WRT-750N is an 802.11 a/b/g/n dual-band router. With up to 450Mbps
data transmission rate under 5GHz band, WRT-750N is capable of transferring high
quality video streaming on request. In BrickOne Solution®, this router is perfect
match with Brickcom cameras.
For wired connection, WRT-750N is equipped with 4 Gigabit Ethernet ports for faster
file transfer. When the connection goes under wireless, it can transmit streaming
under 2.4GHz and 5GHz bands.
General Features
Hardware
• Wi-Fi Protected Setup (WPS) button on the router can establish an easy and
secure wireless environment.
• The USB port provides users another option for external share storage.
• Antenna design (2x2 for 2.4GHz, 3x3 for 5GHz) allows better transmitting and
receiving.
Software
• Quality of Service (QoS) prioritizes the stream for smoother video transmitting
performance.
• Advanced Security Protection: WPA / WPA2 / SPI / DoS / WPS
WRT-750N User Manual
5
II. Hardware Introduction
1. Appearance
Front
Back
WRT-750N User Manual
6
Function
Color
Status
Description
Power
Green
Steady
Device Ready
Flashing
Booting
Red
Solid Light
System Failure
None
Off
Device Off
WLAN
(2.4/5GHz)
Green
Steady
WLAN Enabled
Flashing
Data Transmission
Off
WLAN Disabled
Internet
(Modem)
Amber
Steady
Link Detected with 1000Mbps
Flashing
Data Transmission
Green
Steady
Link Detected with 10/100Mbps
Flashing
Data Transmission
Off
No Link
Amber/Green
Flashing in
Rotation
Establishing Connection
WPS
Green
Steady
Ethernet or WPS Provisioning
Flashing
WPS is Successfully Triggered
Light Off
Device Ready for New WPS Setup
LAN
Amber
Steady
Link Detect with 1000Mbps
Flashing
Data Transmission
Green
Steady
Link Detected with 10/100Mbps
Flashing
Data Transmission
Off
No Link
USB
Green
Solid Light
Device Connected to USB Port
Flashing
Data Transmission
Light Off
No Activity
2. LED Indicators
WRT-750N User Manual
7
3. System Requirement
Computer System
• Windows®, Macintosh, or Linux-based Operating System
• An Installed Ethernet Adapter
Browser Support
• Internet Explorer
• Safari
• Firefox
WRT-750N User Manual
8
III. Software Introduction
Equipment Needed
Brickcom Router, Power Adapter, and Ethernet cable (included)
High-speed Internet connection and access to Internet modem (Users should
contact their local provider assistance if needed)
Additional Ethernet cable (usually provided with the Internet modem)
A computer Internet browser (such as Internet Explorer, Firefox, or Safari)
1. Setup Wizard
A. To access the configuration utility, open a web-browser such as Internet
Explorer and enter the IP address of the router.
(Default IP address: 192.168.1.1).
B. Type “admin” for User Name and Password in the entry field.
WRT-750N User Manual
9
C. When you successfully connect the router into the network, the Smart Setup
Wizard menu displays two options for configuring the Internet connection.
The Setup Wizard will attempt to auto-detect the type of Internet service you
have through your ISP -- or you can configure the router manually. It is
recommended that, if you aren't used to setting up Internet connections, you
let the Smart Setup Wizard do some of the work for you.
WRT-750N User Manual
10
Set Up Connection by PPPoE
A. Select this option based on the type of account you have with your ISP. If
you need to enter login information every time you connect to the Internet
or you have a PPPoE account with your ISP, select Yes. Otherwise, select No.
Note: If you have installed PPP software such as WinPoET (from Earthlink) or
Enternet (from PacBell), then you have PPPoE. Select Yes. After selecting Yes and
configuring your router, you will not need to run the PPP software on your PC to
connect to the Internet.
Choose ‘Yes’ to do auto detection.
B. Detect the PPPoE Connection
C. Set up the PPPoE Connection by Keying the Correspondent Information
WRT-750N User Manual
11
Set Up Connection Manually
A. Choose ‘No’ on Setup Wizard for manual setting

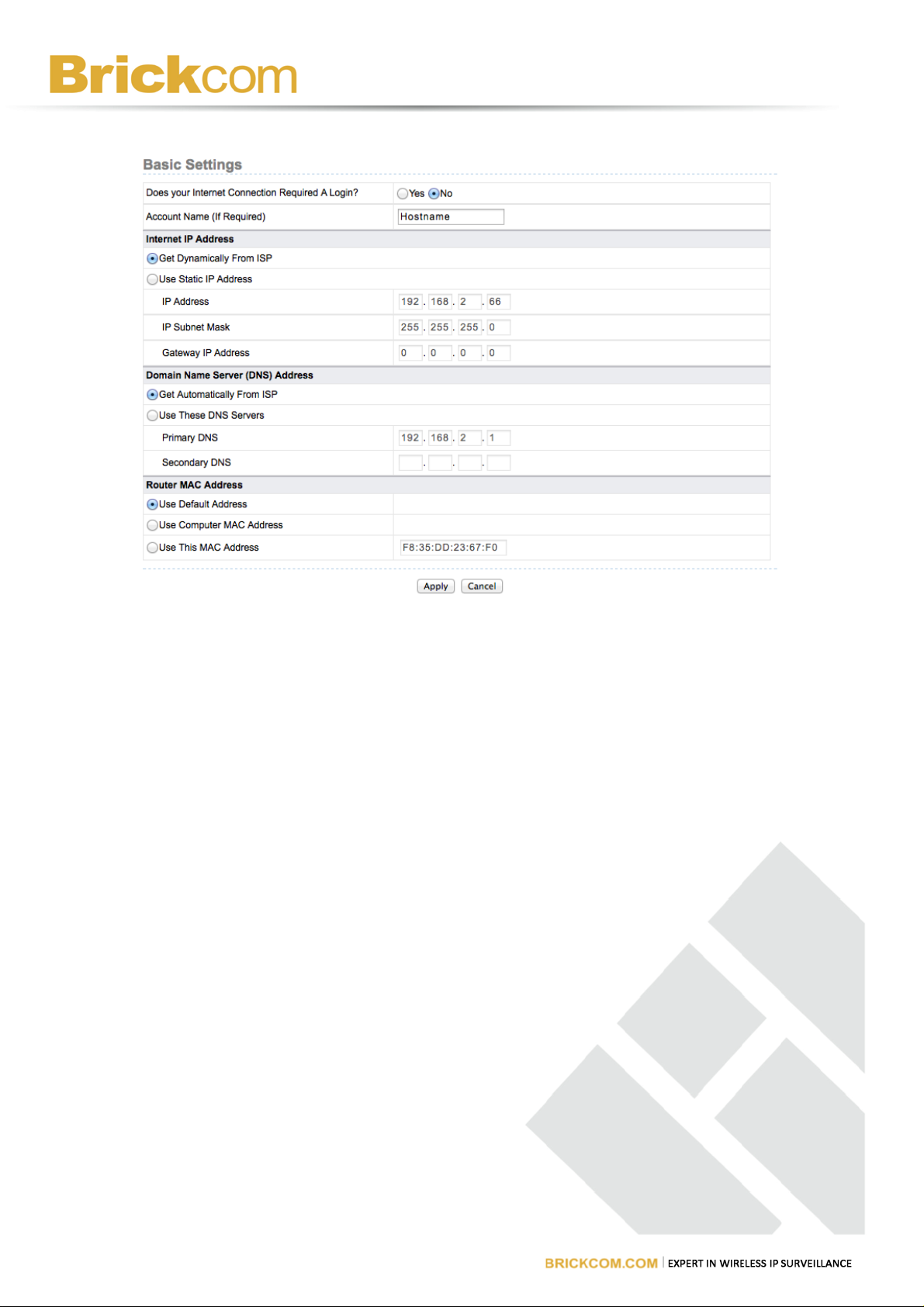

B. Key in the necessary information in the ‘Basic Settings’ page.
Note: If you are setting up the router for the first time, the default settings may work for you with no
changes.
Does Your Internet Connection Require A Login?
Select this option based on the type of account you have with your ISP. If you need to
enter login information every time you connect to the Internet or you have a PPPoE
account with your ISP, select Yes. Otherwise, select No.
Note: If you have installed PPP software such as WinPoET (from Earthlink) or Enternet (from PacBell),
then you have PPPoE. Select Yes. After selecting Yes and configuring your router, you will not need to
run the PPP software on your PC to connect to the Internet.
Account Name(Also known as Host Name or System Name)
For most users, type your account name or user name in this box. For example, if
WRT-750N User Manual
12
your main mail account is JerAB@ISP.com, then put JerAB in this box.
If your ISP has given you a specific Host name, then type it (for example, CCA7324-A).
Internet IP Address
If you log in to your service or your ISP did not provide you with a fixed IP address,
the router will find an IP address for you automatically when you connect. Select Get
Dynamically From ISP.
If you have a fixed (or static IP) address, your ISP will have provided you with the
required information. Select Use Static IP Address and type the IP Address, Subnet
Mask and Gateway IP Address into the correct boxes.
For example:
• IP Address: 24.218.156.183
• Subnet Mask: 255.255.255.0
• Gateway IP Address: 24.218.156.1
Domain Name Server (DNS) Address
The DNS server is used to look up site addresses based on their names.
If your ISP gave you one or two DNS addresses, select Use These DNS Servers and
type the primary and secondary addresses.
Otherwise, select Get Automatically From ISP.
Note: If you get ‘Address not found’ errors when you go to a Web site, it is likely that
your DNS servers aren't set up properly. You should contact your ISP to get DNS
server addresses.
Router MAC Address
Your computer's local address is its unique address on your network. This is also
referred to as the computer's MAC (Media Access Control) address.
Usually, select Use Default MAC Address.
If your ISP requires MAC authentication, then select either Use Computer MAC
address to disguise the Router's MAC address with the Computer's own MAC address
or Use This MAC Address to manually type the MAC address for a different computer.
The format for the MAC address is XX:XX:XX:XX:XX:XX. This value may be changed if
the Use Computer MAC Address is selected once a value has already been set in the
Use This MAC Address selection.
WRT-750N User Manual
13
2. Running Status
2.1Router Status
You can use the Router Status screen to check the current settings and statistics for
your router. This screen shows you the current settings. If something needs to be
changed, you will have to change it on the relevant screen.
Hardware Version: The router model.
Firmware Version: This is the current software the router is using. This will change if
you upgrade your router.
Internet Port: These are the current settings that you set in the Setup Wizard or
Basic Settings screens.
• MAC Address. The physical address of the router, as seen from the Internet.
WRT-750N User Manual
14
• IP Address. The current Internet IP address If assigned dynamically, and no
Internet connection exists, this will be blank or 0.0.0.0.
• Internet Access Mode. Indicate DHCP, PPPoE or Fixed IP.
• IP Subnet Mask. The subnet mask associated with the Internet IP address.
• Domain Name Server. Displays the address of the current DNS.
LAN Port. These are the current settings, as set in the LAN IP Setup screen.
• MAC Address. The physical address of the router, as seen from the LAN.
• IP Address. The LAN IP address of the router.
• IP Subnet Mask. The subnet mask associated with the LAN IP address.
• DHCP. Indicates if the router is acting as a DHCP server for devices on your
LAN.
Wireless Port: These are current settings, as set in the Wireless Settings screen.
• Name (SSID). SSID of the router.
• Region. The location (country).
• Channel. The current channel in use.
• Mode. Indicates the current mode (802.11b, 802.11g and 802.11b/g/n).
• Wireless AP. Indicates if the access point feature of the router is enabled or
not. If not enabled, the Wireless LED on the front panel is off.
• Enable SSID Broadcast. Indicates if the router is broadcasting its SSID.
• Enable Wireless Isolation. Indicates if wireless isolation is enabled.
• Wi-Fi Protected Setup. Indicates if the router's wireless settings are
configured.
Wireless Port-Guest Profile: These are the current settings, as set in the Guest
Network screen.
• Name (SSID). SSID of the guest network.
• Enable SSID Broadcast. Indicates if the guest network is broadcasting its SSID.
• Enable Wireless Isolation. Indicates if wireless isolation of the guest network
is enabled.
• Enable Guest Network. Indicates if the clients connected to this guest
network are allowed to access local LAN network.
Click Show Statistics to see router performance statistics such as the number of
packets sent and the number of packets received for each port.
WRT-750N User Manual
15
Click Connection Status to see information about your current connection.
2.2Client List
This page shows the IP Address, Device Name and MAC (Media Access Control)
Address for each computer attached to the router.
