Brickcom WOB-200Np-KIT Specsheet

v5

N-Series Superior Night Vision
2 Megapixel Bullet Network Camera

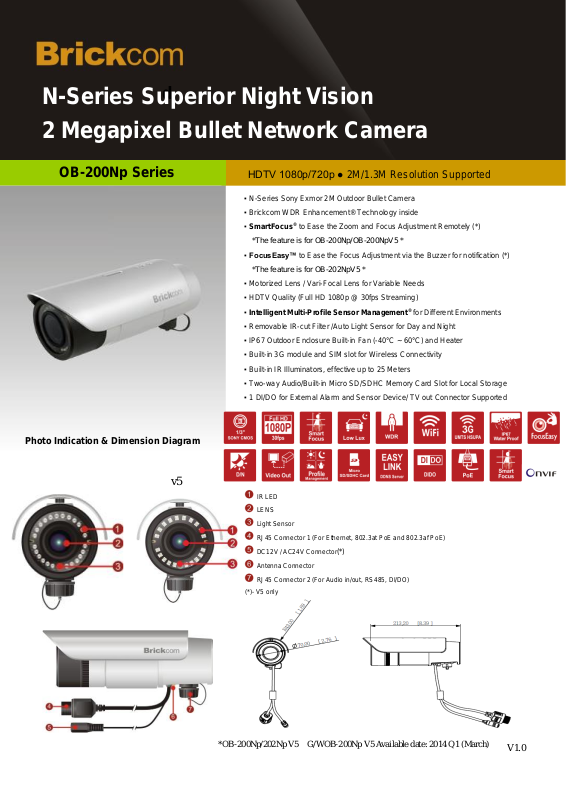

Photo Indication & Dimension Diagram

OB-200Np Series

HDTV 1080p/720p ● 2M/1.3M Resolution Supported

IR LED
LENS
Light Sensor
RJ45 Connector 1 (For Ethernet, 802.3at PoE and 802.3af PoE)
DC12V / AC24V Connector(*)
Antenna Connector
RJ45 Connector 2 (For Audio in/out, RS485, DI/DO)

(*)- V5 only

▪ N-Series Sony Exmor 2M Outdoor Bullet Camera
▪ Brickcom WDR Enhancement® Technology inside
▪ SmartFocus® to Ease the Zoom and Focus Adjustment Remotely (*)

*The feature is for OB-200Np/OB-200NpV5 *

▪ FocusEasy™ to Ease the Focus Adjustment via the Buzzer for notification (*)

*The feature is for OB-202NpV5 *

▪ Motorized Lens / Vari-Focal Lens for Variable Needs
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ IP67 Outdoor Enclosure Built-in Fan (-40°C ~ 60°C) and Heater
▪ Built-in 3G module and SIM slot for Wireless Connectivity
▪ Built-in IR Illuminators, effective up to 25 Meters
▪ Two-way Audio/Built-in Micro SD/SDHC Memory Card Slot for Local Storage
▪ 1 DI/DO for External Alarm and Sensor Device/ TV out Connector Supported

*OB-200Np/202Np V5 G/WOB-200Np V5 Available date: 2014 Q1 (March)

d

V1.0

Models

OB-202Np/OB-202Np V5: 2M, Vari-Focal Lens
OB-200Np/OB-200Np V5: 2M, Motorized Lens
WOB-200Np/WOB-200N V5: 2M, Motorized Lens,

Wireless

GOB-200Np/GOB-200Np 2M, Motorized Lens, 3G

Hardware
System

CPU: 533 MHz
Flash: 32M
RAM: 256M DDR

Image Sensor

Sensor Type : 1/2.8” 2M Sony Exmor Megapixel
sensor
Sensor Resolution : 2048 x 1536 pixel

Lens

Lens Type: Board Lens

OB/WOB/GOB-200Np & B/WOB/GOB-200Np V5:

Lens Type: Board Lens
Focal Length: 3mm~10.5mm
F value: F1.4
View Angle:
Normal :(H )90°~30°(V )50°~17°/(D) 102°~34°

OB-202N & OB-202N V5

Lens Type: Board Lens
Focal Length: 3.3mm~10.5mm
F value: F1.4
View Angle:
Normal :(H )76°~29°(V )/42°~17°/(D) 88°~34°

Local Storage

Built-in Micro SD/SDHC/SDXC Max.64G Memory
Card Slot

Day & Night ICR

Triggered by Light sensor, Scheduling,
Digital Input

Minimum
Illumination

OB/WOB/GOB-200Np & OB-202Np:

0 Lux (IR ON, B/W)

0.001 Lux (IR OFF, B/W)

0.002 Lux(F1.4,Color)

OB/WOB/GOB-202Np V5 & OB-202Np V5:

0 Lux (IR ON, B/W)

0.002 Lux (IR OFF, B/W)

0.003 Lux(F1.4,Color)

IR Illuminators

Built –In IR Illuminators,

OB/WOB/GOB-200Np & OB-202Np:

effective up to 15 meters
IR LED: 24pcs

OB/WOB/GOB-200Np V5 & OB-202Np V5:

effective up to 25 meters
IR LED:20pcs

Events

Motion Detection/ Schedule/ Audio Detection/ Digital
Input/ Temperature Alarm(*)/ Auto Focus Shift for
Day & Night(**)
*OB-200Np V5/OB-202Np V5 Only
**OB-200Np V5 Only

Alarm

Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output

Audio
Streaming

2-way Audio Support

Audio
Compression

G.711, AMR (8 kHz, Mono, PCM)

Audio
Input/ Output

Line input (Unbalanced, 1.4 Vp-p, 1 Vrms)
/ Line output

Communication

Ethernet : one 10/100Mbps RJ-45
IEEE 802.11a/b/g/n compliance

WOB-200Np/WOB-200Np V5

HSUPA/UMTS 850/1900/2100

GOB-200N/GOB-200Np V5

Supported Protocols : TCP/IP, UDP, ICMP, DHCP,
NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba,
PPPoE, UPnP, RTP, RTSP, RTCP, IPv6

Power Input

DC12V 1A / 802.3af PoE

802.3at PoE/ DC48V 0.8A
AC24V

Power Input/
Temperature/
Environment

Operating Temperature:
DC12V 1A / 802.3af PoE:

-20°C ~ 60°C (-4°F ~140°F)

802.3at PoE/ DC48V 0.8A:
(build in fan and heater):

-40°C ~ 60°C (-40°F ~140°F)
Operating Humidity: 10% ~ 80%

Max. Power
Consumption

OB-202Np & OB-202Np V5

7.6 Watts (PoE 802.3af, IR on)

7.8 Watts (PoE 802.3at, IR on)

18.2 Watts (PoE 802.3at, IR&Heater&Fan on)

OB-200Np/WOB-200Np/GOB-200Np &
OB-200Np/WOB-200Np/GOB-200Np V5

8.6 Watts (PoE 802.3af, IR on)

8.4 Watts (PoE 802.3at, IR on)

18.2 Watts (PoE 802.3at, IR&Heater&Fan on)

Dimension

70(D) * 166(H) mm

Weight

OB-200Np/OB-202Np & OB-200Np
V5/OB-202Np V5

Net: 1100 g/2.43lb

W/GOB-200Np & W/GOB-200Np V5

Net: 1110 g/2.45lb

Housing

Weather-proof (IP67)

Certification

FCC, CE

Viewing System
Requirements

OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC

Warranty

Limited 2-year warranty

Compression
Streaming

H.264 / MPEG4 / MJPEG
Simultaneous multiple streams

Video Setting

Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure Control/Gain/ White Balance Control
Manual Exposure Control: 1/10000~1/5s
Manual Gain Control: 1X ~ 15X

S/N Ratio

Above 50dB

Resolution

2M (Full HD): 1920x1080 @ 30fps
1M (HDTV): 1280x720 @ 30fps

Camera

General

Video
