Quick Installation Guide
for WOB-100Ap
WWW.BRICKCOM.COM | EXPERT IN IP SURVEIL LANCE
Things to Have Before You Start
• Brickcom WOB-100Ap
– Username/Password: admin/admin
• Brickcom DWRT-600N Wi-Fi Simultaneous Dual-Band Router
– Default IP address: 192.168.1.1
• Wi-Fi Antenna
– GEM04-222008A: omni-directional antenna
– GEM04-222060: directional antenna
• High-Power PoE Injector (POE30U)
• Brickcom Software Kit
– Download page: http://www.brickcom.com.tw/support/download.php
• Computer
– Intel Core 2 Duo@2GHz or above
– RAM 1GB or above
– Preferably with an nVIDIA/ATI stand-alone VGA card.
• Ethernet Cable
Confidential © Brickcom Corporation, All Rights Reserved.
WOB-100Ap Camera Hardware
WWW.BRICKCOM.COM | EXPERT IN IP SURVEIL LANCE
Screw Holes
Screw Holes
Shielding Cover
RJ45 Connector 1
RJ45 Connector 2
Antenna Connector
Confidential © Brickcom Corporation, All Rights Reserved.
WOB-100Ap Camera Hardware
IR LED
Lens
Light Sensor
WWW.BRICKCOM.COM | EXPERT IN IP SURVEIL LANCE
Confidential © Brickcom Corporation, All Rights Reserved.
Ventilation Hole
WWW.BRICKCOM.COM | EXPERT IN IP SURVEIL LANCE

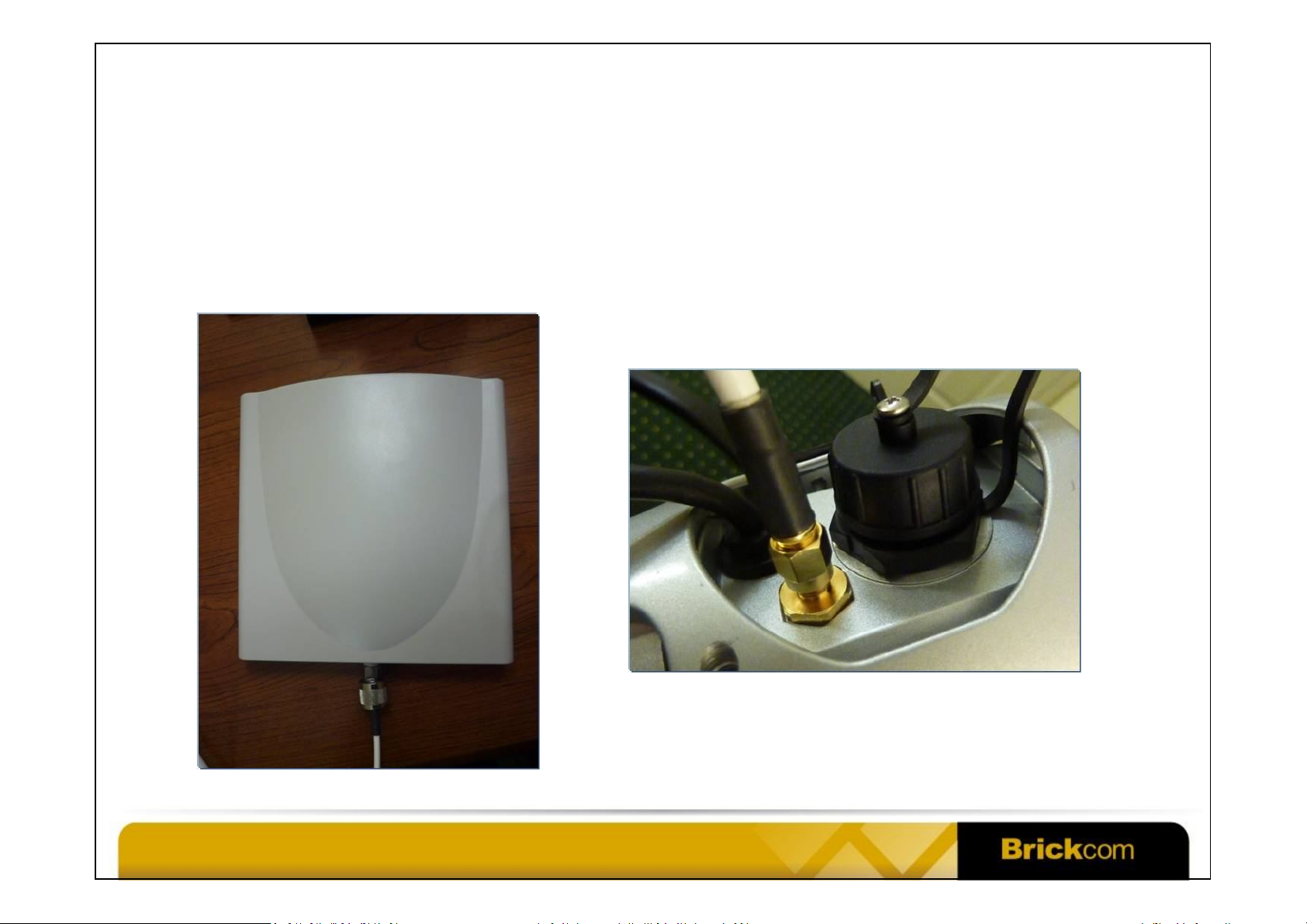

WOB-100Ap Wi-Fi Antenna: GEM04-222008A
• Connect the Wi-Fi antenna to the WOB-100Ap using the antenna cable. The
Wi-Fi antenna doesn’t need to face towards the DWRT-600N.
Confidential © Brickcom Corporation, All Rights Reserved.
WWW.BRICKCOM.COM | EXPERT IN IP SURVEIL LANCE
WOB-100Ap Wi-Fi Antenna: GEM04-222060
• Connect the Wi-Fi antenna to the WOB-100Ap using the antenna cable.
• The Wi-Fi antenna needs to face towards the DWRT-600N.
Confidential © Brickcom Corporation, All Rights Reserved.
WWW.BRICKCOM.COM | EXPERT IN IP SURVEIL LANCE

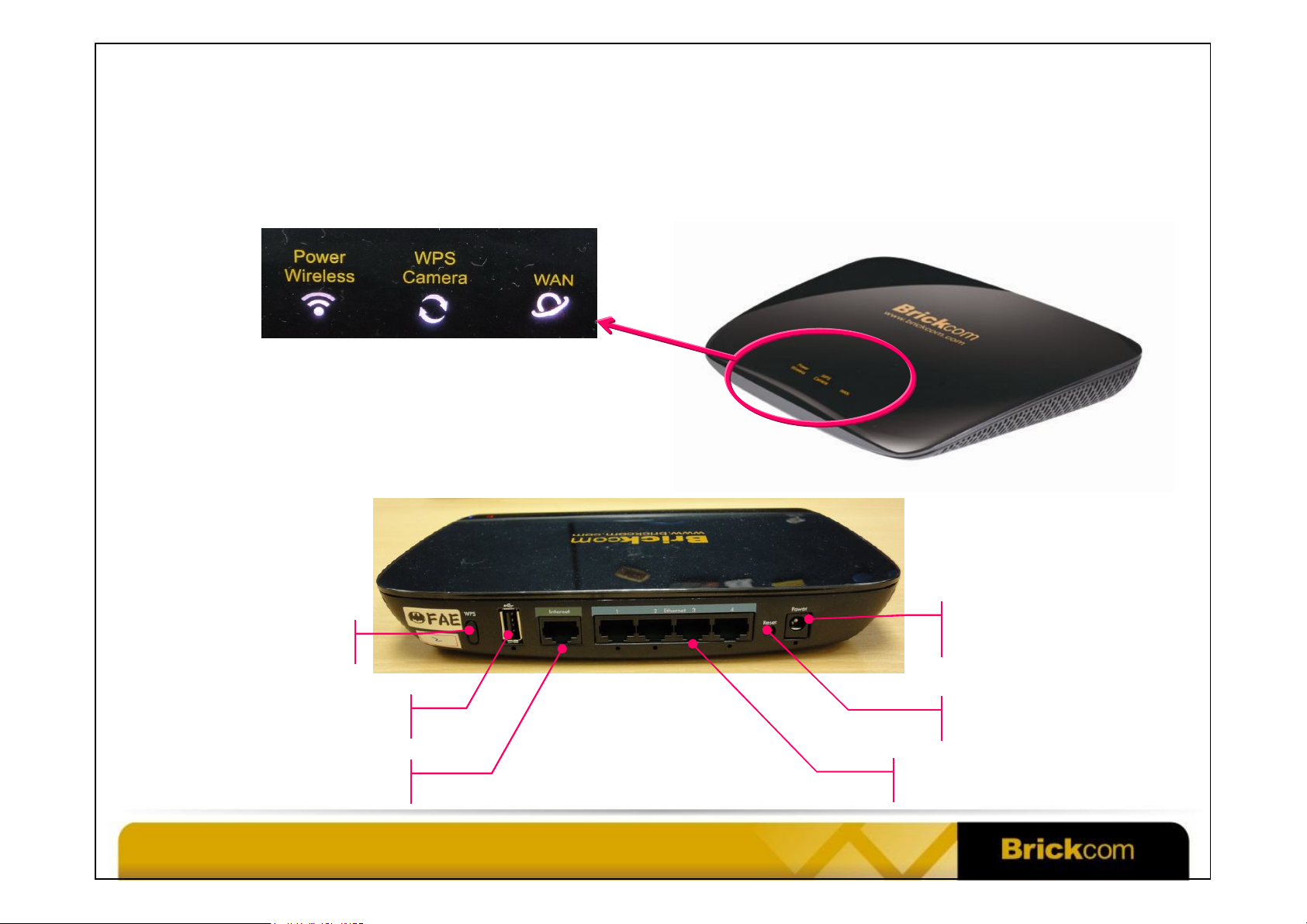

DWRT-600N Hardware
• Wi-Fi Simultaneous Dual-Band Router: DWRT-600N
LED Indicators
WPS Button
USB Port
WAN Ethernet Port
Confidential © Brickcom Corporation, All Rights Reserved.
DC Power In
(12V 1.5A)
Reset Button
LAN Ethernet Ports
WWW.BRICKCOM.COM | EXPERT IN IP SURVEIL LANCE

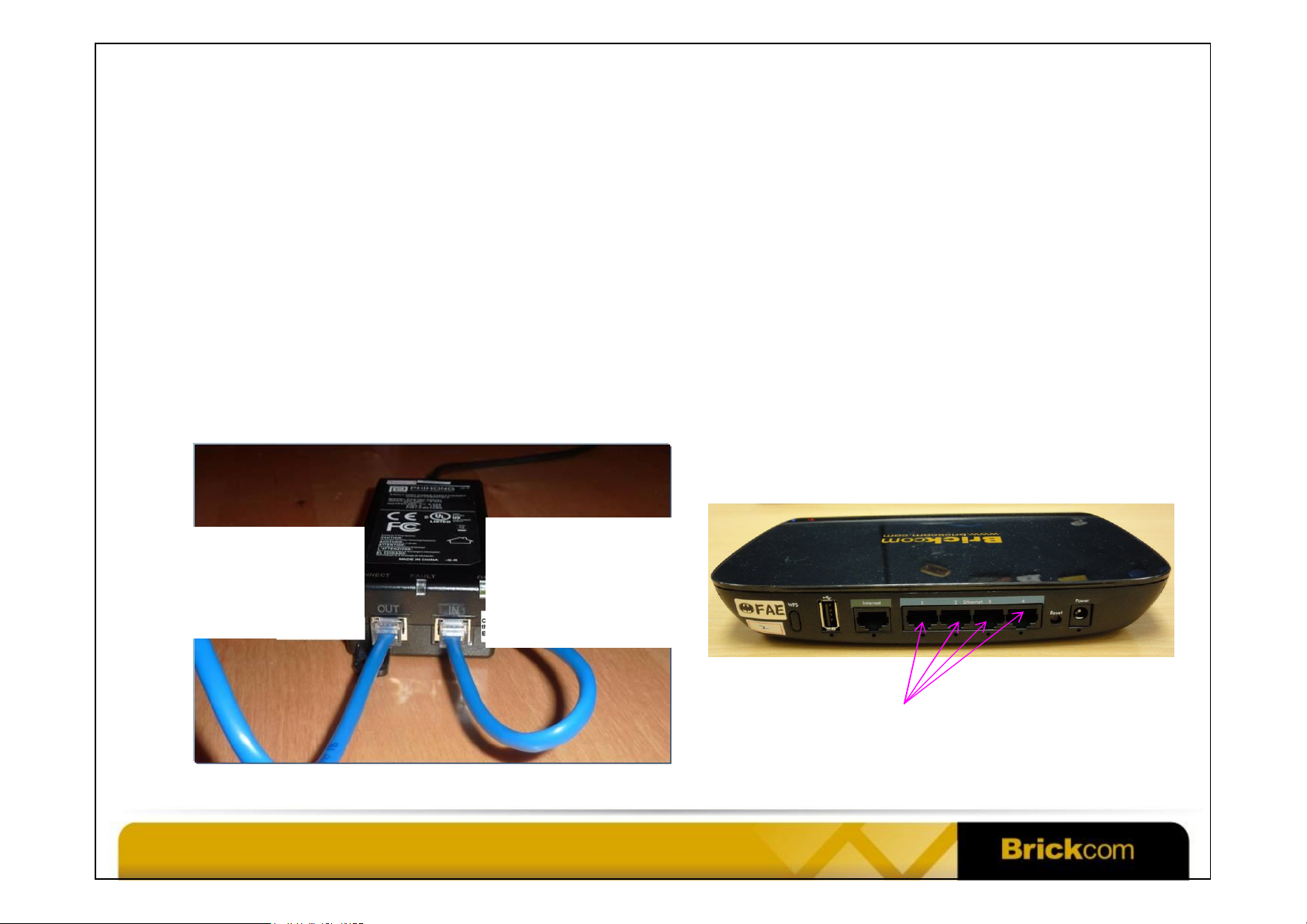

Connect PC & WOB-100Ap to DWRT-600N
• Connect an Ethernet cable from the WOB-100Ap to the OUT port on the
high-power PoE injector.
• Connect an Ethernet cable from the IN port on the high-power PoE
injector to the LAN Ethernet port on the DWRT-600N.
• Connect an Ethernet cable from the LAN Ethernet port on the DWRT-600N
to your PC.
POWER OUT
Connect the Ethernet
cable from the OUT
port to the WOB-100Ap
Confidential © Brickcom Corporation, All Rights Reserved.
IN Port
Connect the Ethernet
cable from the IN
port to the DWRT600N LAN Ethernet
plug.
Connect the Ethernet cable from your PC
and the high-power PoE injector to any of
the DWRT-600N’s four LAN Ethernet ports.
WWW.BRICKCOM.COM | EXPERT IN IP SURVEIL LANCE

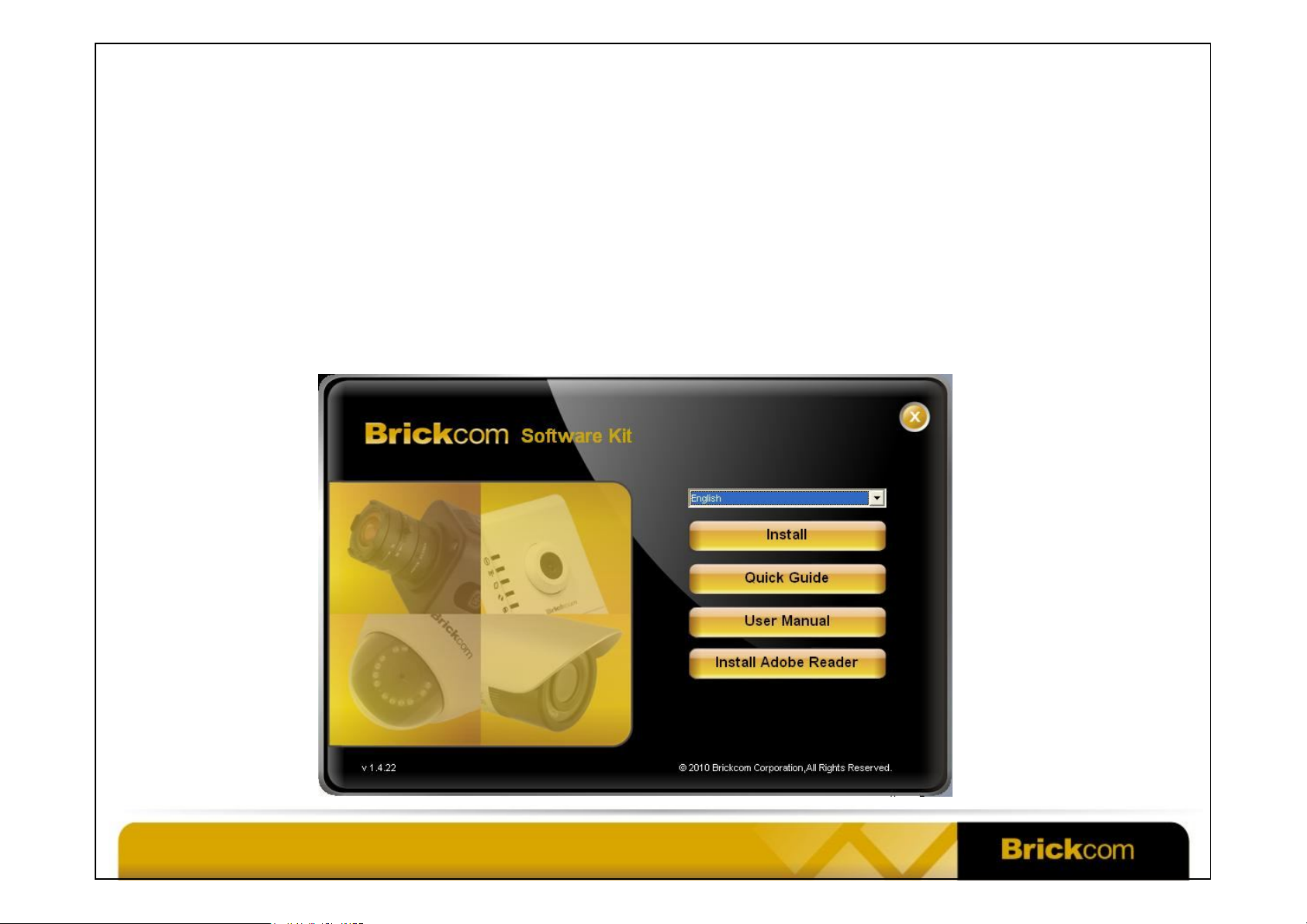

Brickcom Software Kit
• Includes EasyConfig, PC-NVR, User Manual, Quick Guide, etc.
• Language Support: English, Spanish, French, Deutsche, Japanese, Chinese, etc.
• Comes in a CD with the Brickcom IP camera. The CD supports Auto Run.
• Click Install to install the Brickcom Software Kit to your PC.
Confidential © Brickcom Corporation, All Rights Reserved.
WWW.BRICKCOM.COM | EXPERT IN IP SURVEIL LANCE

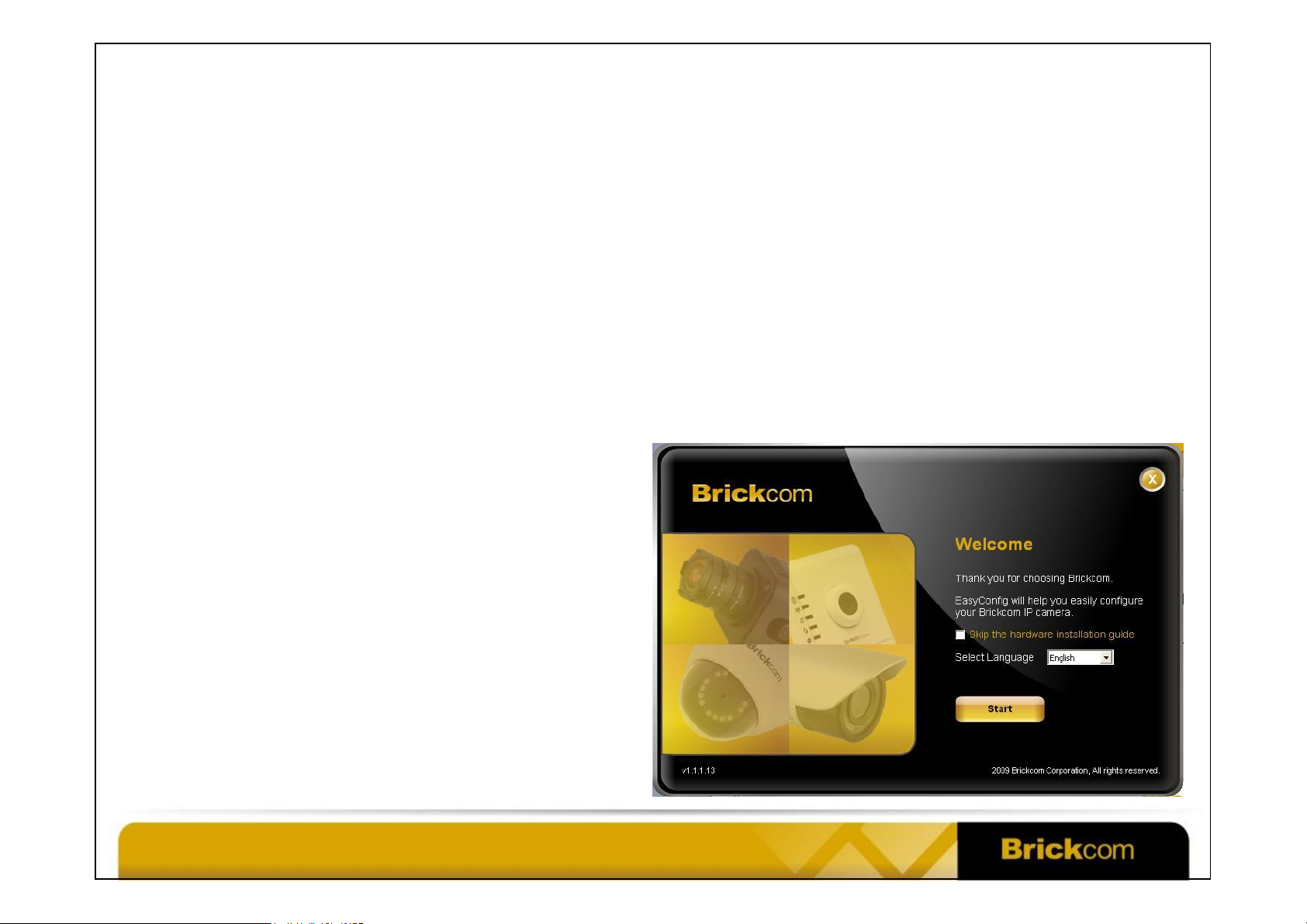

EasyConfig
• Use EasyConfig to discover and access the Brickcom IP camera.
– Simple Mode allows the user to find the camera, connect to it and do the
live view in just a few mouse clicks!
– Professional Mode gives the user more control over the camera, such as
• Detailed network configuration of the camera
• EasyLink setting
• Access to PC-NVR
Confidential © Brickcom Corporation, All Rights Reserved.
WWW.BRICKCOM.COM | EXPERT IN IP SURVEIL LANCE

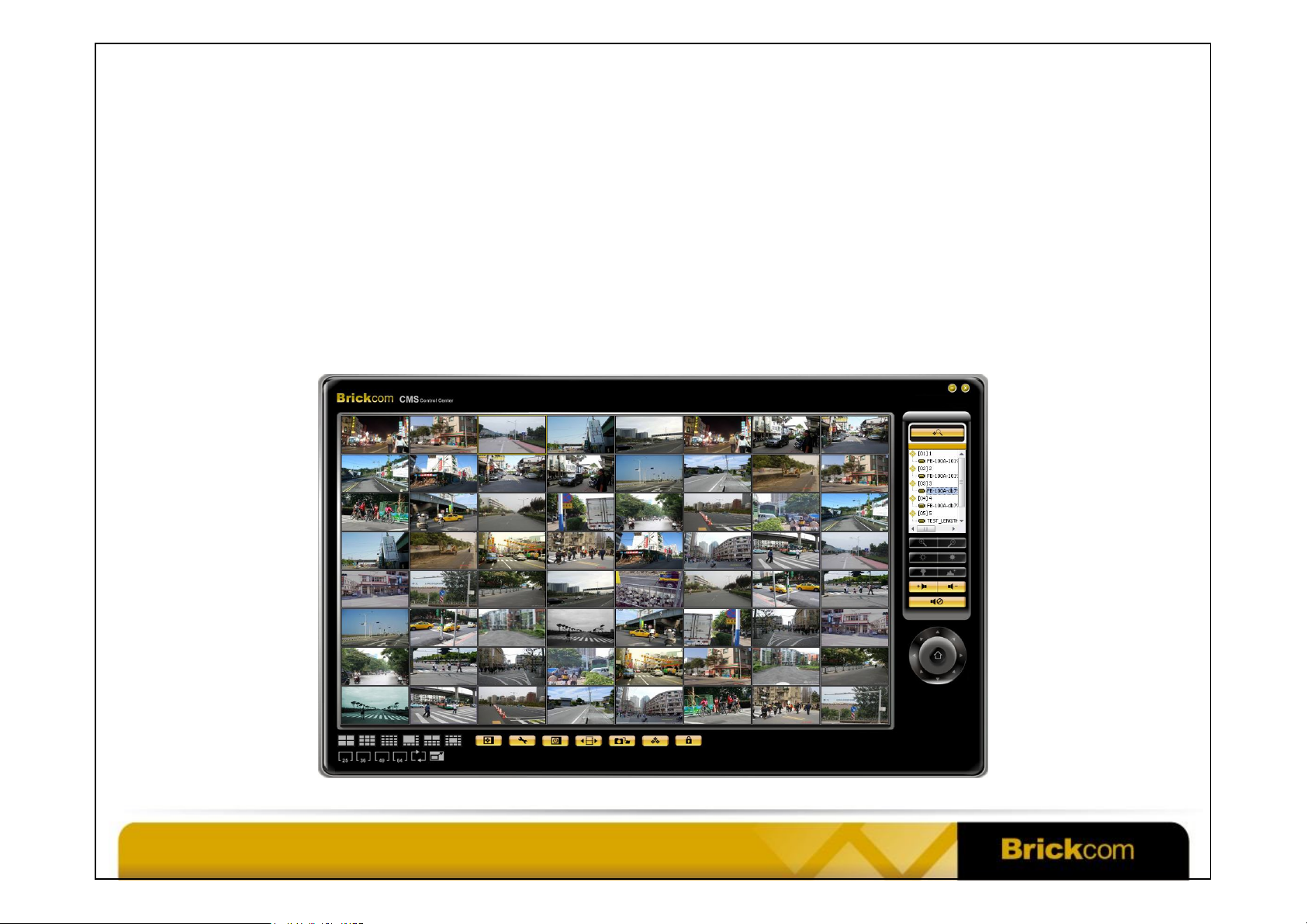

PC-NVR (BRC-64)
• Brickcom’s free-bundled 64-channel recording software. No license fee.
• Included in the Brickcom Software Kit. The user manual is also included.
• Supports Windows XP, Vista and 7. Both the 32-bit version and 64-bit are supported.
• Supports simultaneous live view, recording and playback.
Confidential © Brickcom Corporation, All Rights Reserved.
WWW.BRICKCOM.COM | EXPERT IN IP SURVEIL LANCE
Attention: Please connect your PC to

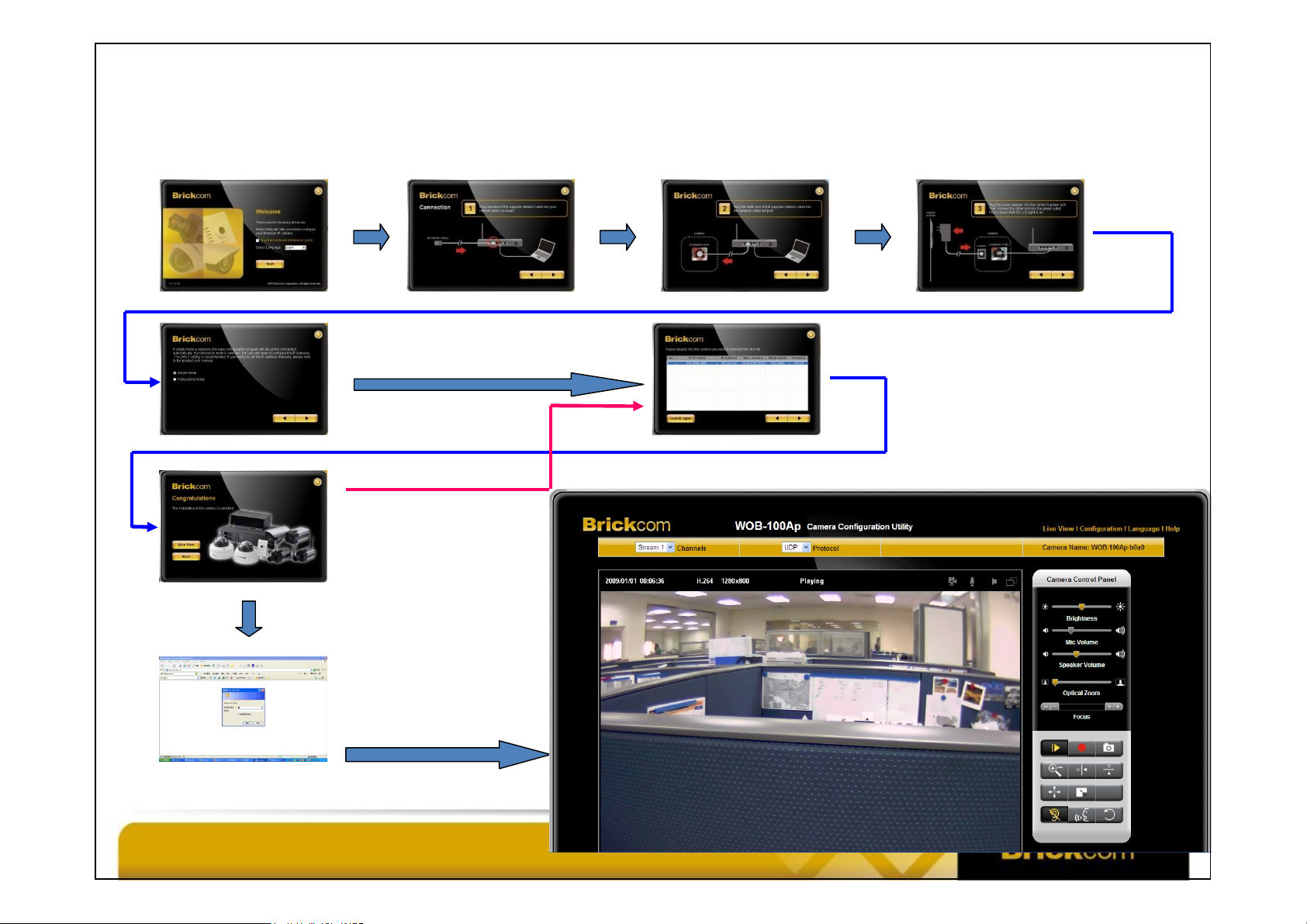

EasyConfig Workflow
Start Next Next Next
Choose Simple Mode
and click Next
Choose Back
to set up more
the DWRT-600N’s LAN Ethernet port
before running EasyConfig.
Choose the camera
and click Next
Choose
Live View
Username: admin
Password: admin
Confidential © Brickcom Corporation, All Rights Reserved.
cameras
First-Time
ActiveX Player
Installation
WWW.BRICKCOM.COM | EXPERT IN IP SURVEIL LANCE
Set Up Wi-Fi Connection

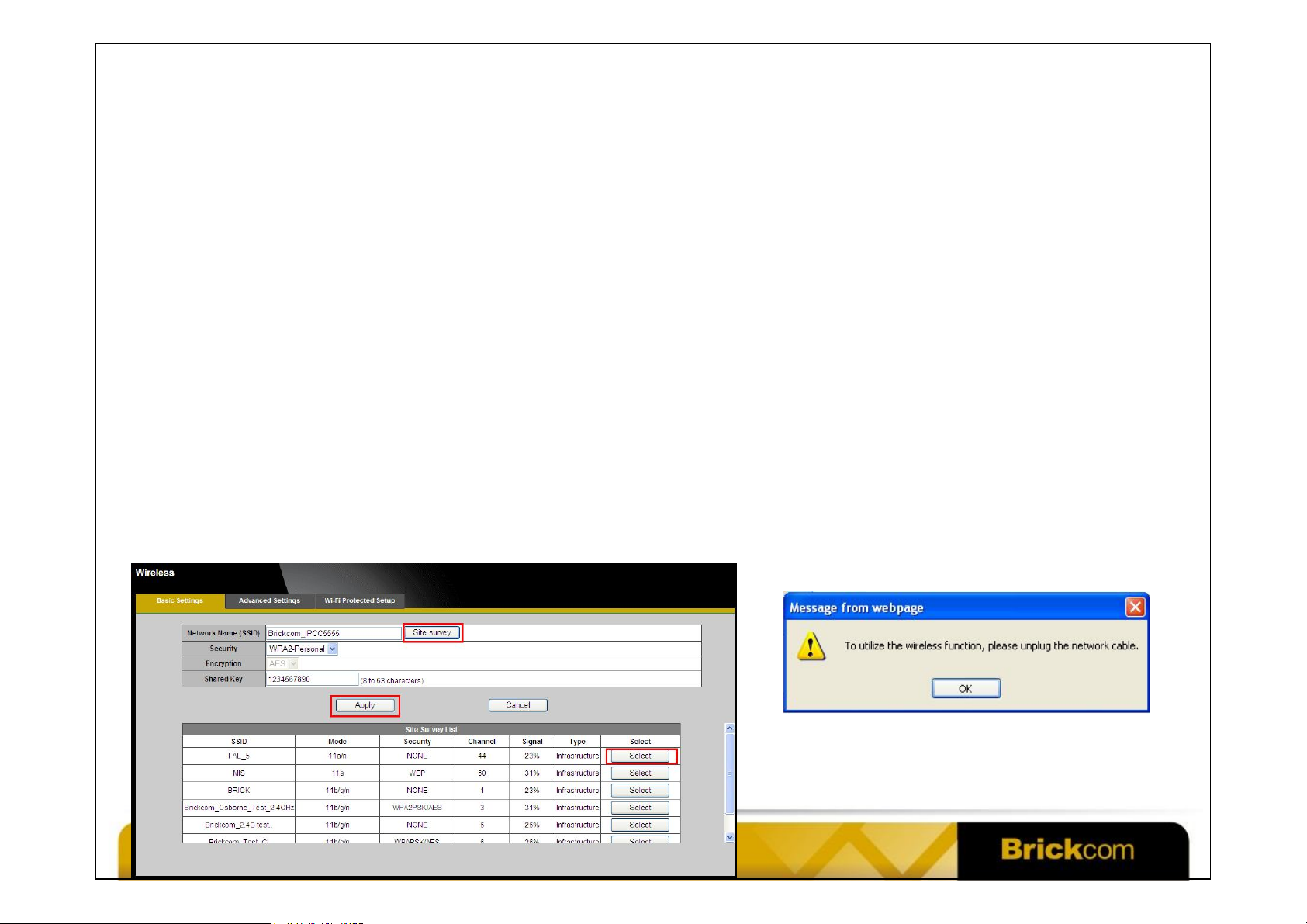

• Once connected to the WOB-100Ap’s web UI, select Configuration from the
right hand corner and Wireless from the left hand side menu.
• Select the Site survey button to scan for available networks.
• From the list of available networks, press the Select button of the SSID of the
DWRT-600N.
• Click Apply to save the settings.
• When asked to unplug the network cable, disconnect the Ethernet cable
connecting the WOB-100Ap to the DWRT-600N.
• After approximately one minute, the wireless connection will be established.
Confidential © Brickcom Corporation, All Rights Reserved.
WWW.BRICKCOM.COM | EXPERT IN IP SURVEIL LANCE
Notes

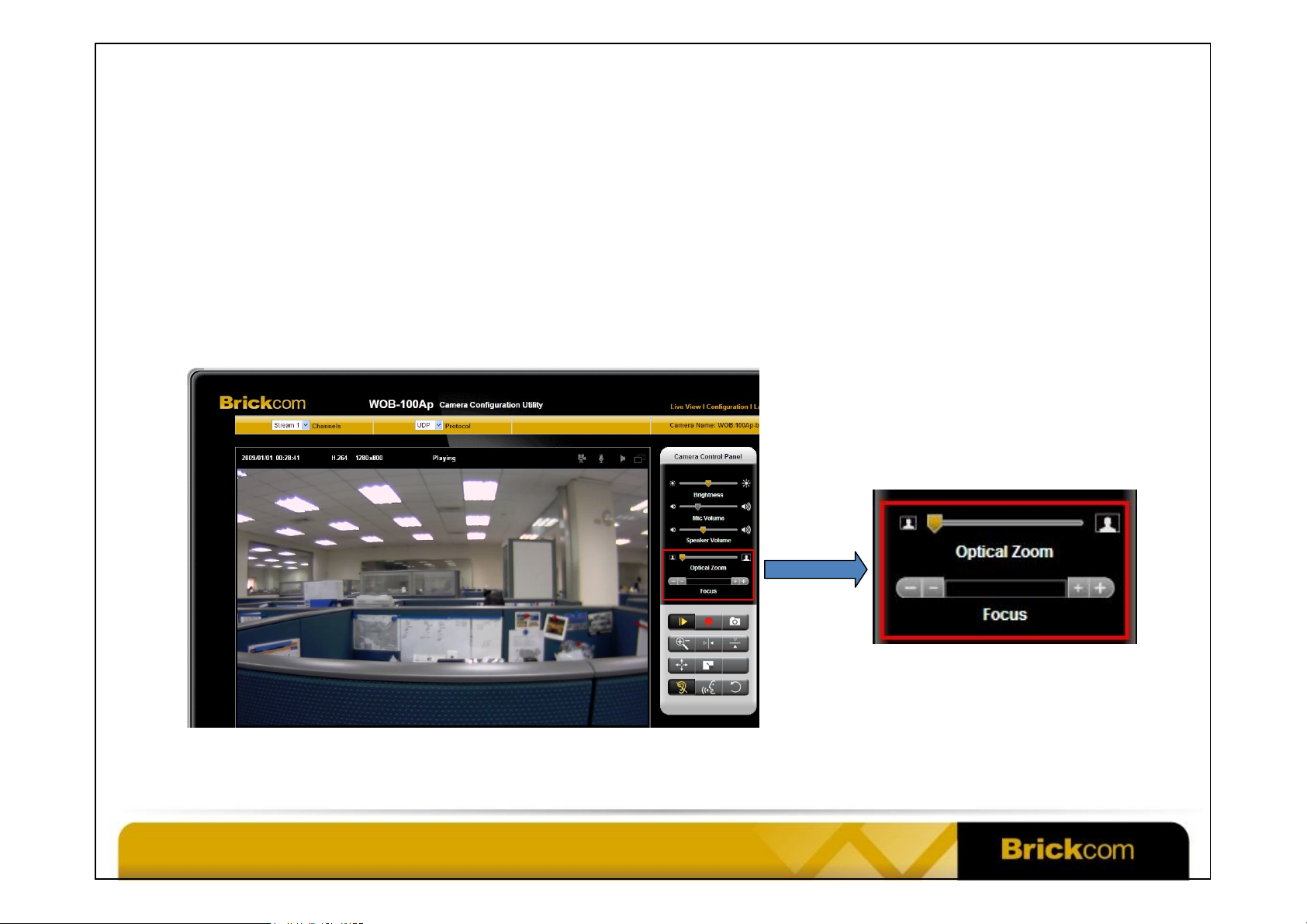

• The WOB-100Ap offers a Smart Focus feature that allows the motorized
lens to be adjusted remotely through the web GUI on the live view page.
The optical zoom and focus can be adjusted using the controls.
Confidential © Brickcom Corporation, All Rights Reserved.
WWW.BRICKCOM.COM | EXPERT IN IP SURVEIL LANCE
Notes
• The wireless distance between the DWRT-600N and WOB-100Ap varies
with the environment.
– With GEM04-222008A: up to 150ft (50m) line-of-sight.
– With GEM04-222060: up to 300ft (100m) line-of-sight.
– In a non-line-of-sight situation, the wireless performance will be impacted.
– If a different Wi-Fi AP/router is used, the wireless performance will vary.
• Please close all other programs in order for the computer to have more
system resources for viewing the video feed. It is recommended that the
CPU usage be under 80%.
Confidential © Brickcom Corporation, All Rights Reserved.
Brickcom, Your Best Partner.
Thank You
