Brickcom WMB-500Ap User Manual
Megapixel Mini Box Network Camera
MB-500A Series
User’s Manual
Quality Service Group
Product name:
Network Camera (MB-500A series)
Release Date:
2012/5
Manual Revision:
V1.0
Web site:
www.brickcom.com
Email:
support@brickcom.com
info@brickcom.com
© 2011 Brickcom Corporation. All Rights Reserved
- -
Table of Contents
Before You Use This Product .......................................................................................... 0
FCC Warning ................................................................ ................................ .................. 0
Regulatory Information .................................................................................................... 1
Product Comparison ....................................................................................................... 0
Package Contents ........................................................................................................... 0
Cube Network Camera Overview .................................................................................... 2
Device Appearance Description ...................................................................................... 4
LED Behavior .................................................................................................................. 5
Installation ....................................................................................................................... 7
System Requirements .............................................................................................. 7
Camera Connection ................................................................................................. 8

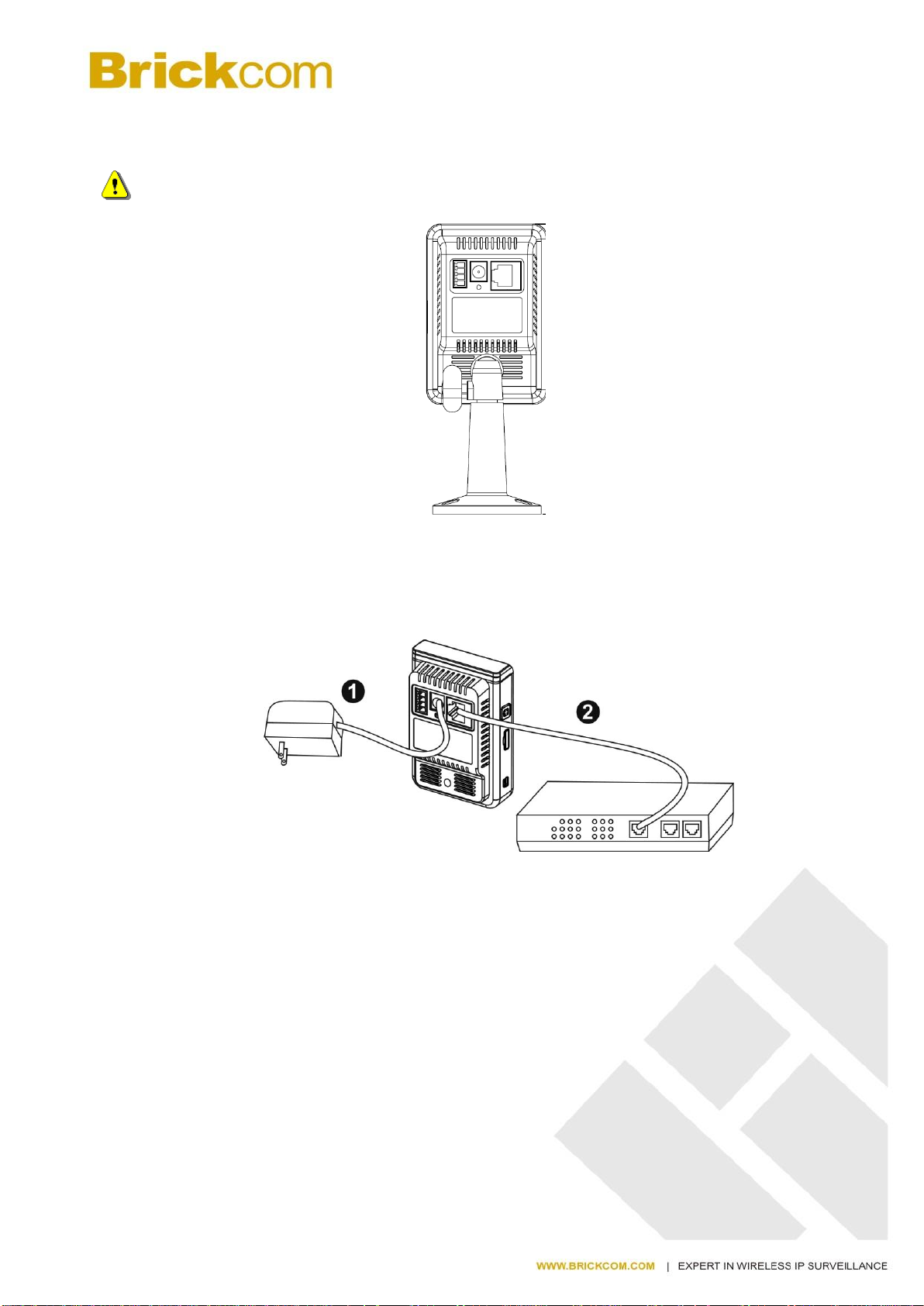

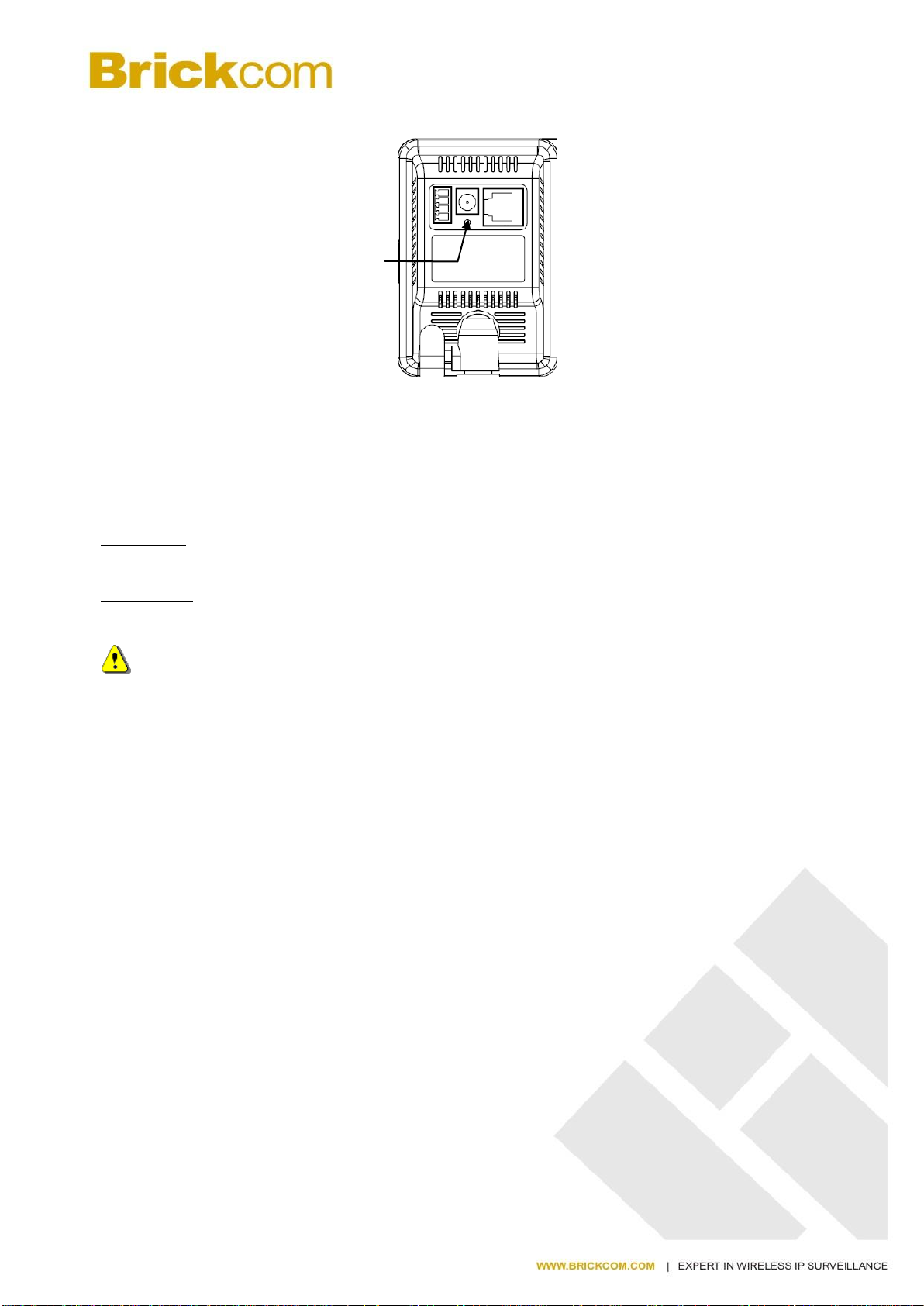

Basic Connection ............................................................................................... 8

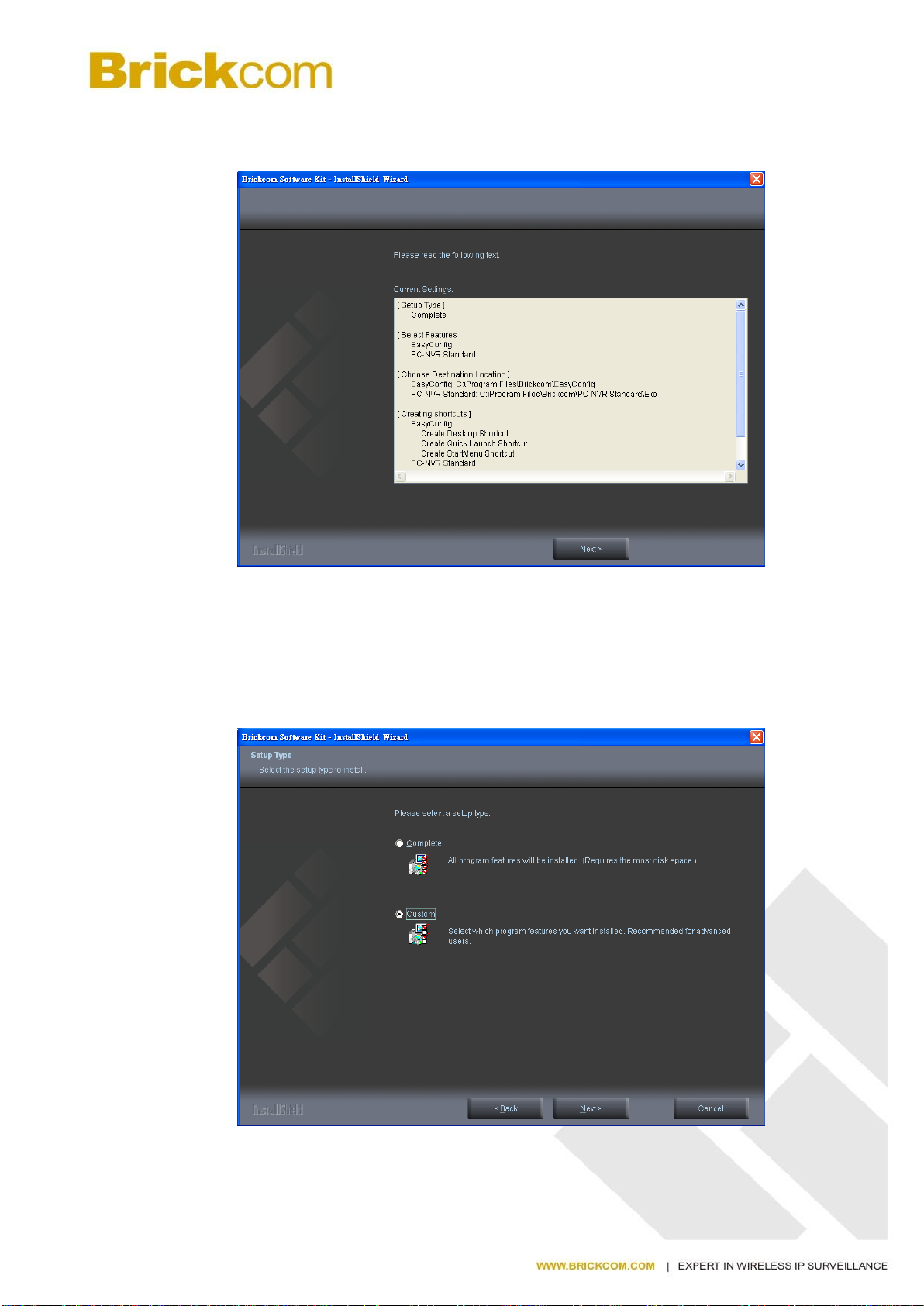

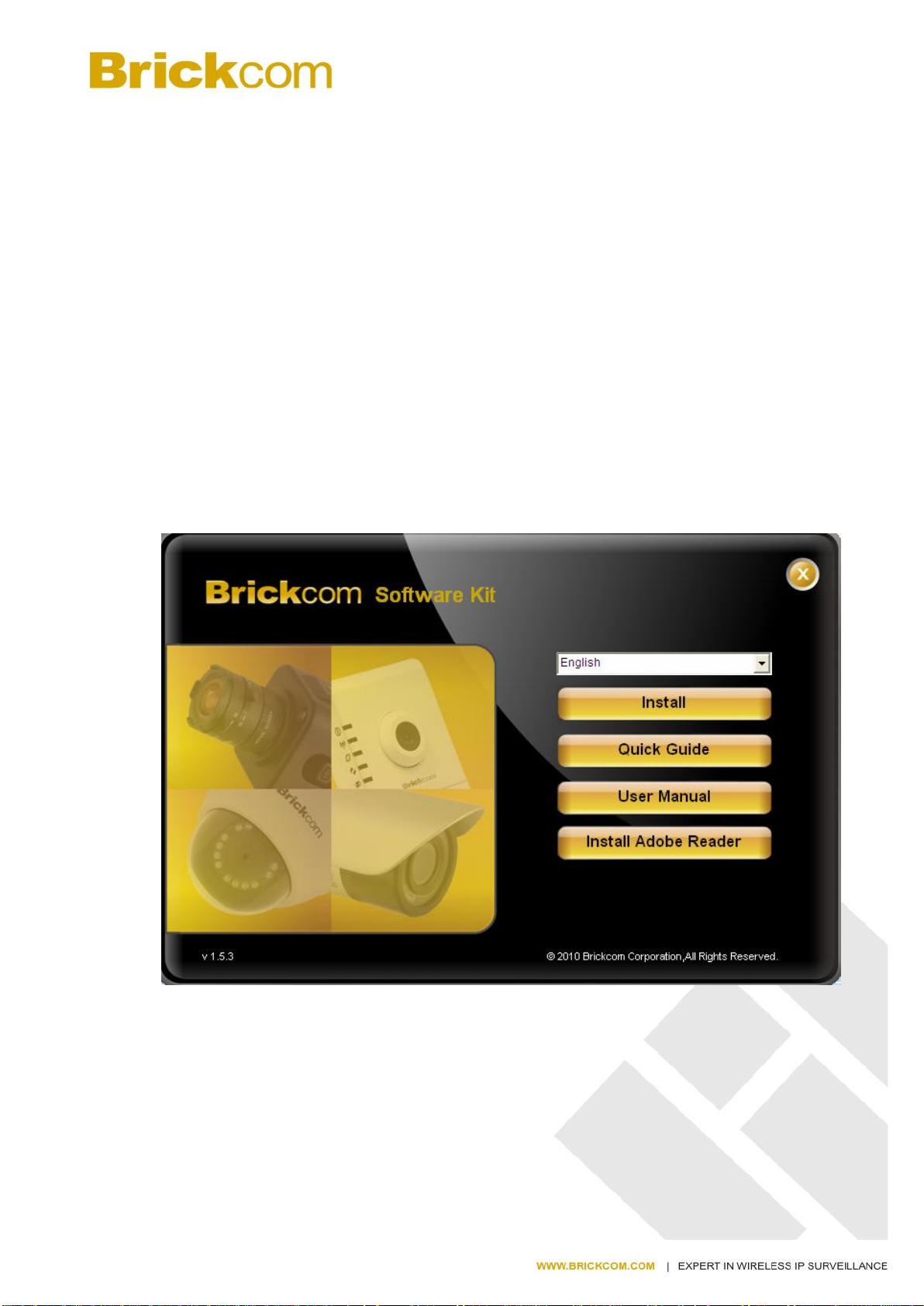

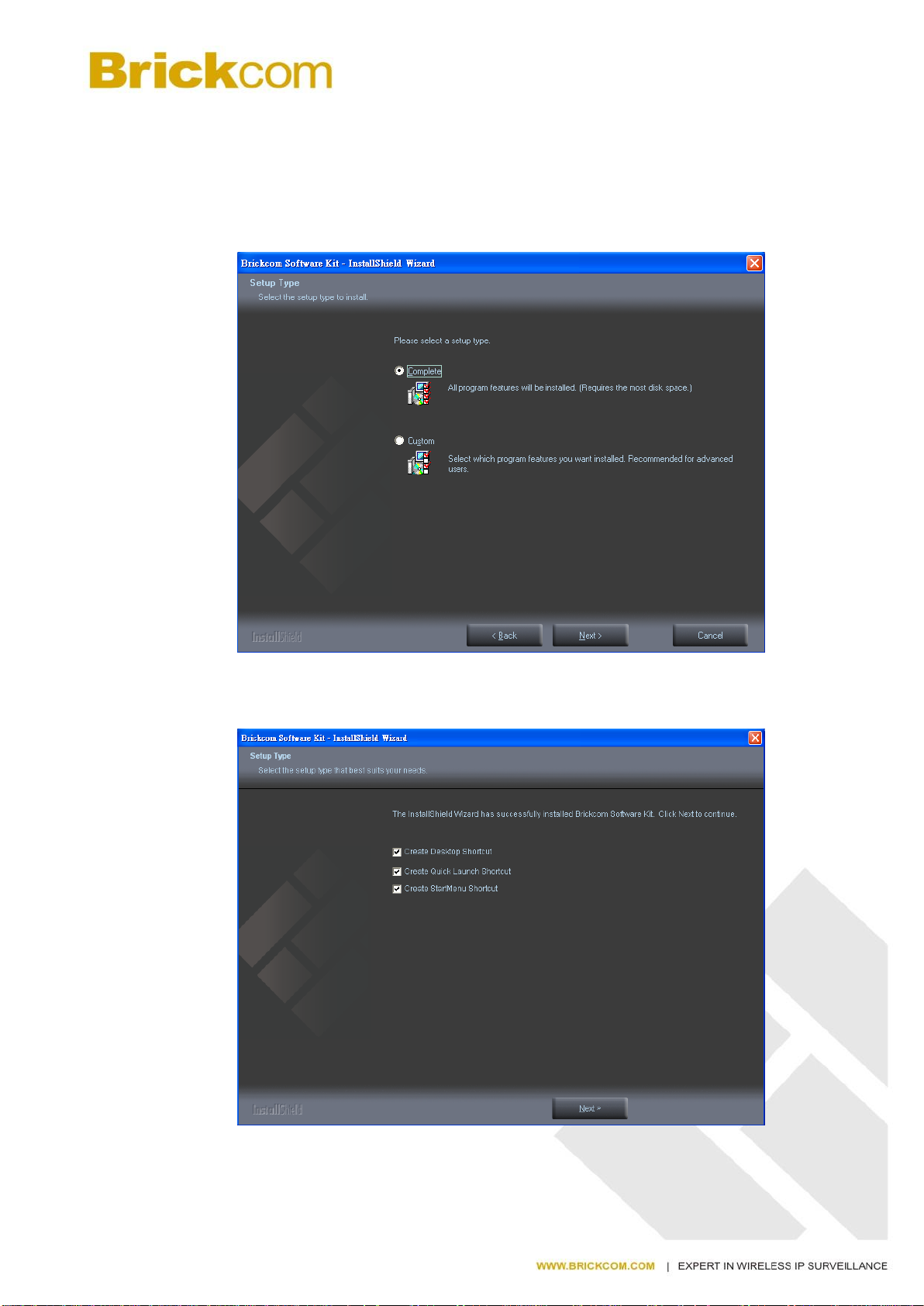

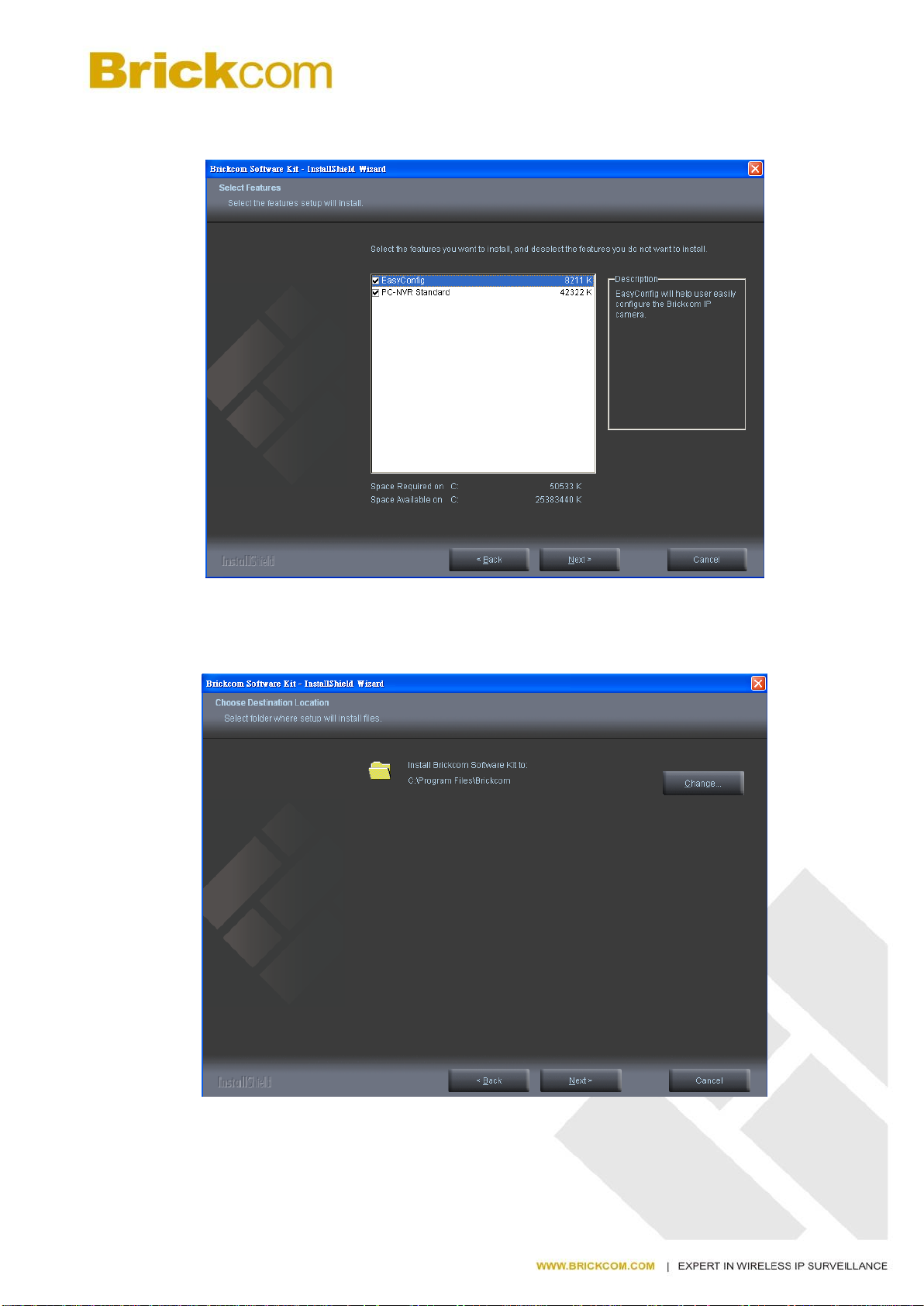

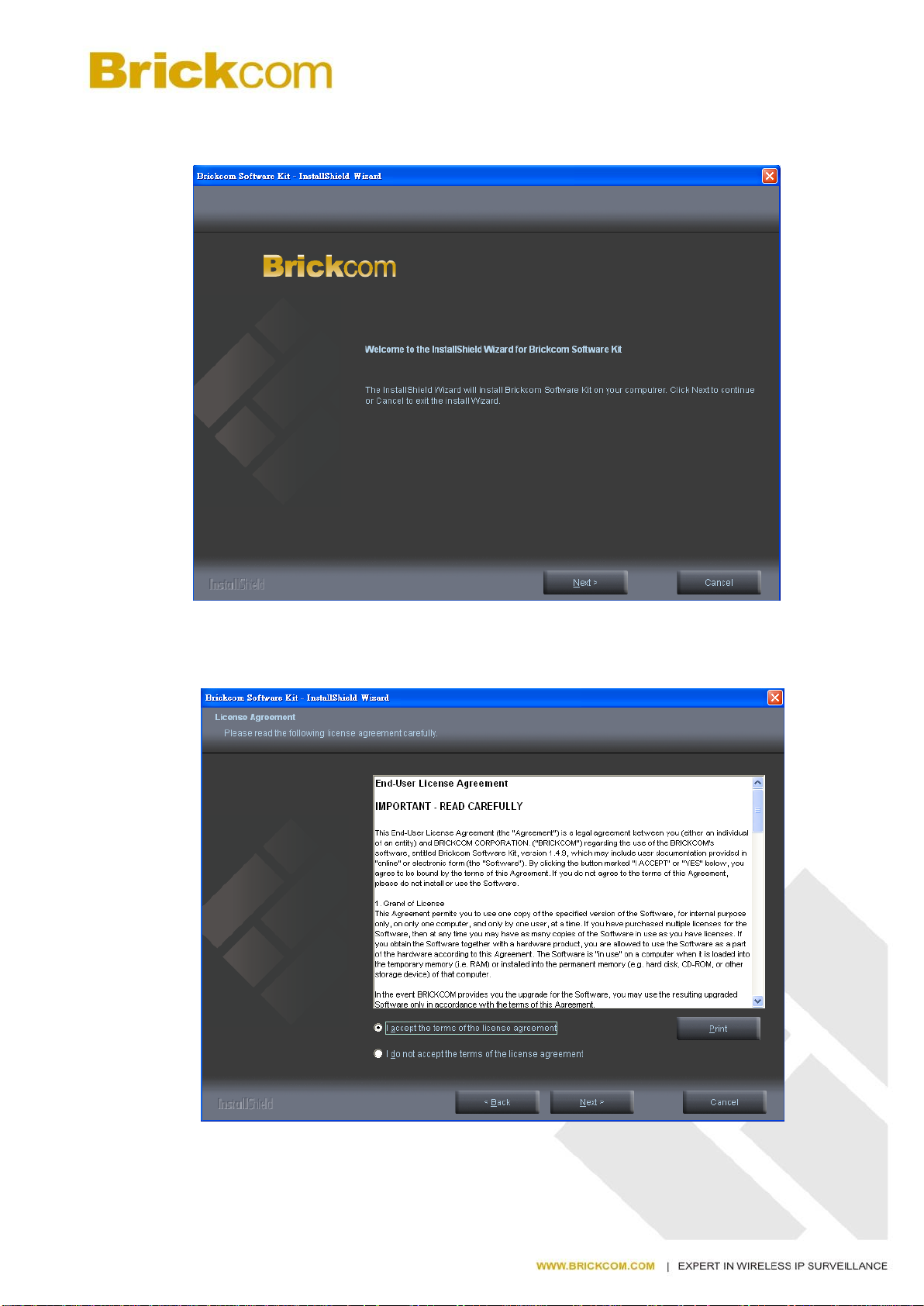

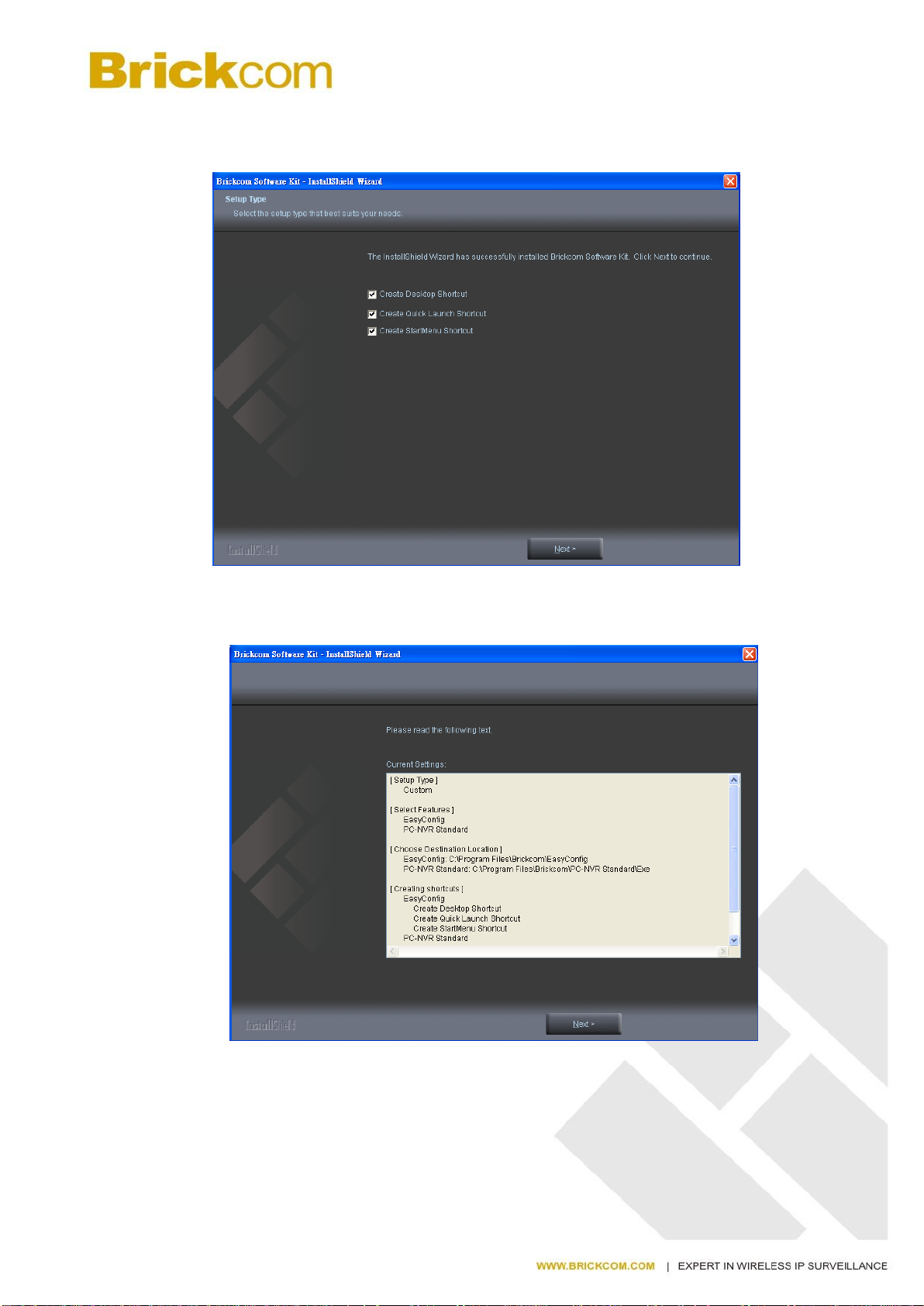

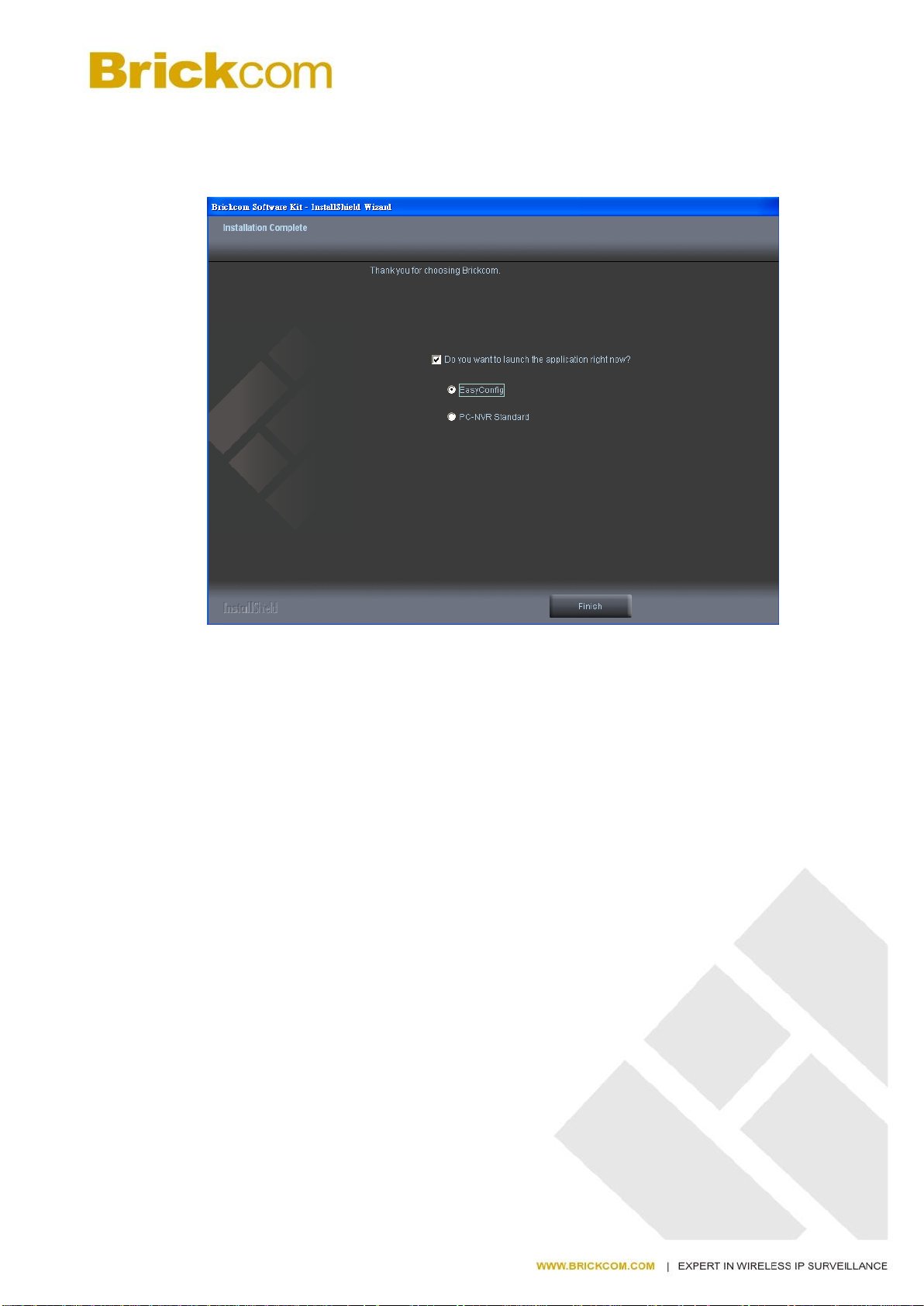

Software Installation ................................................................................................. 9

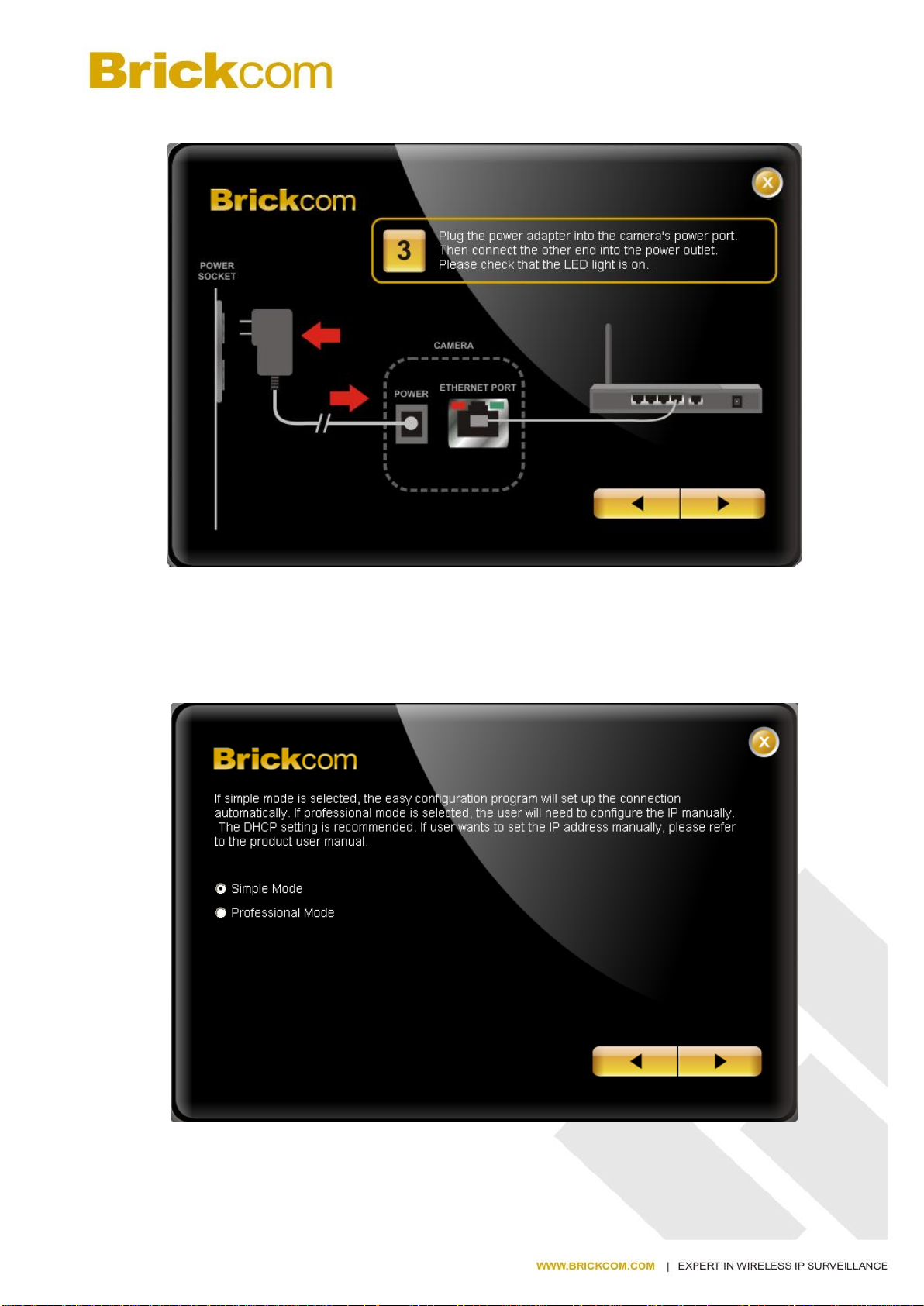

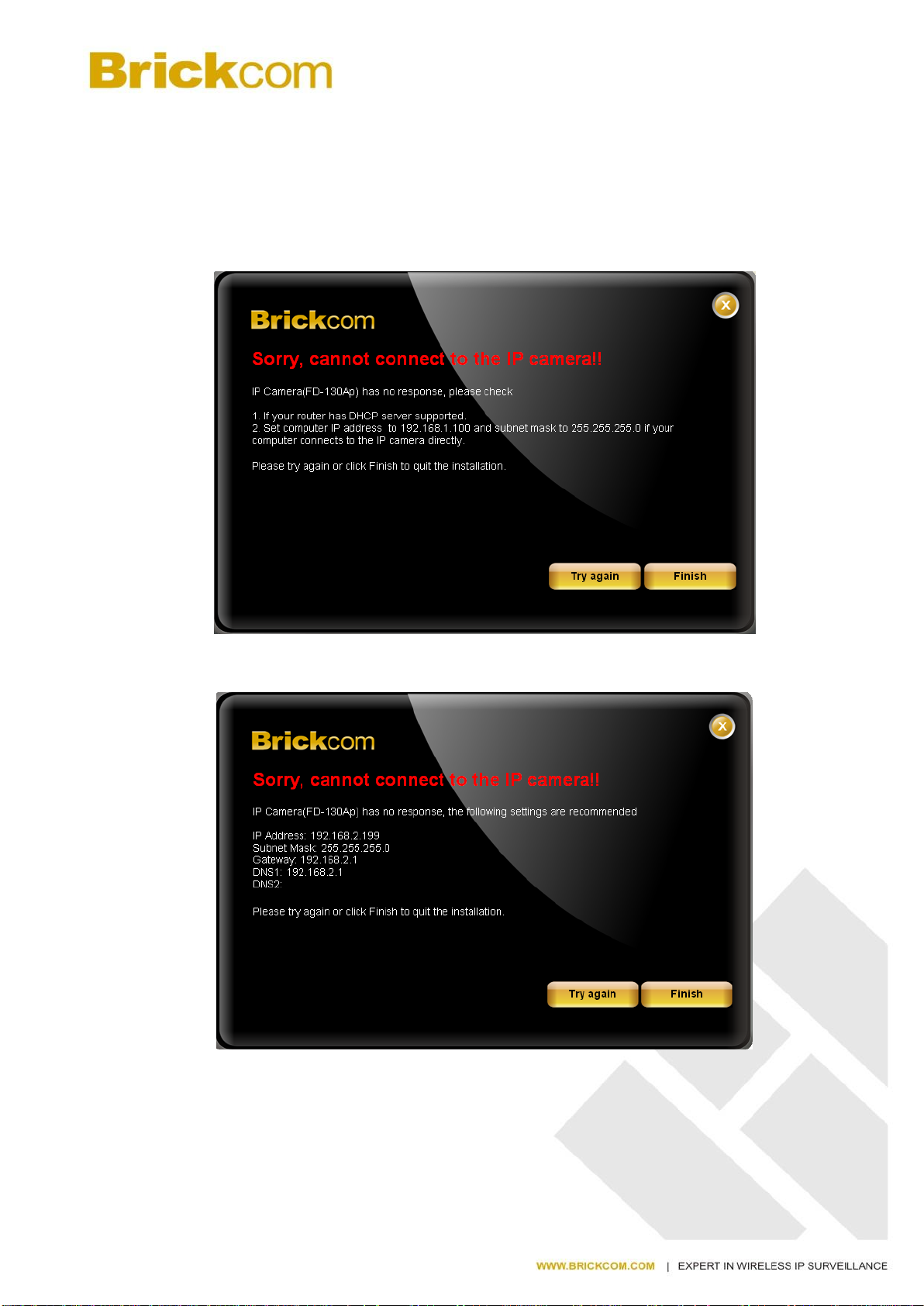

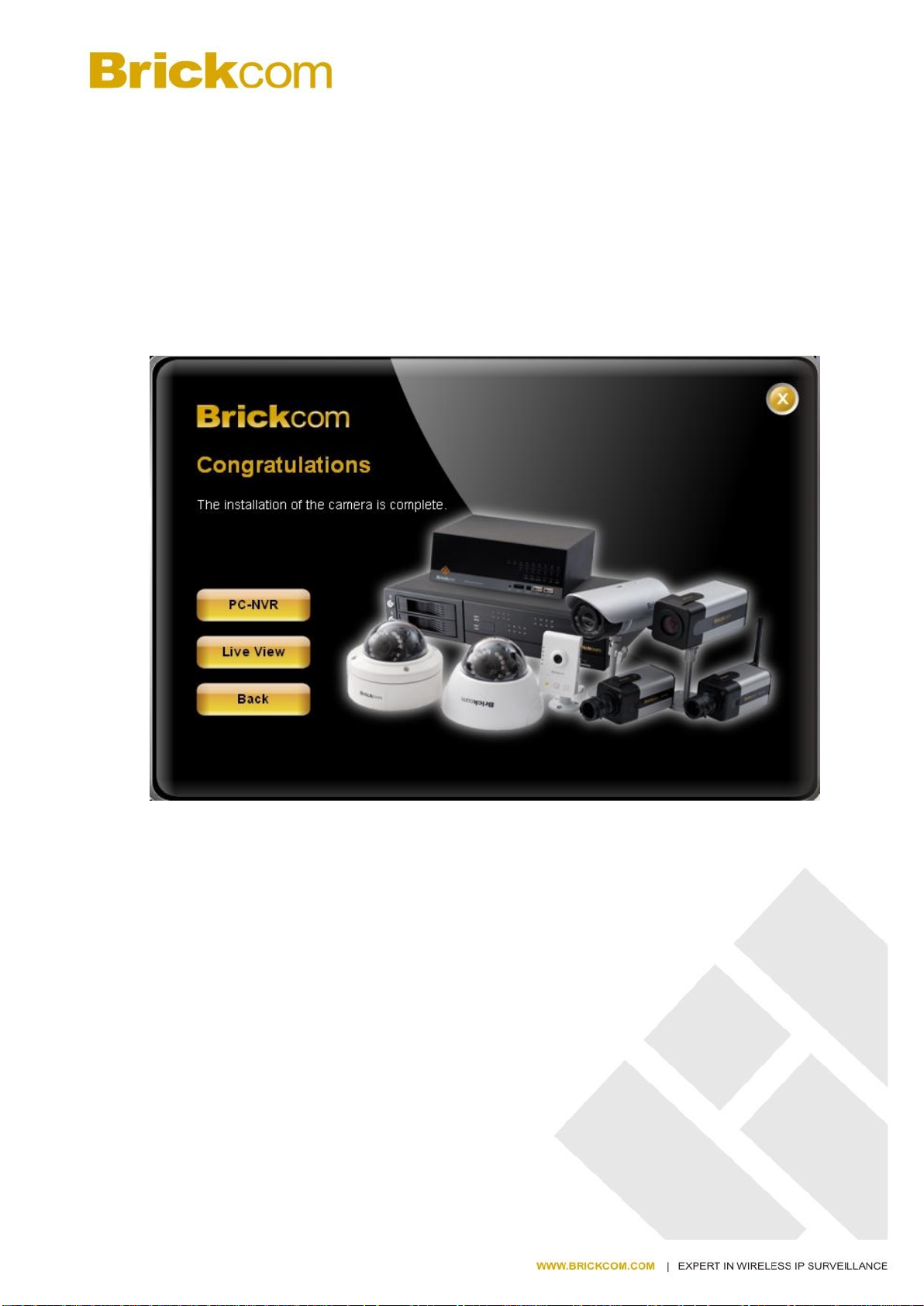

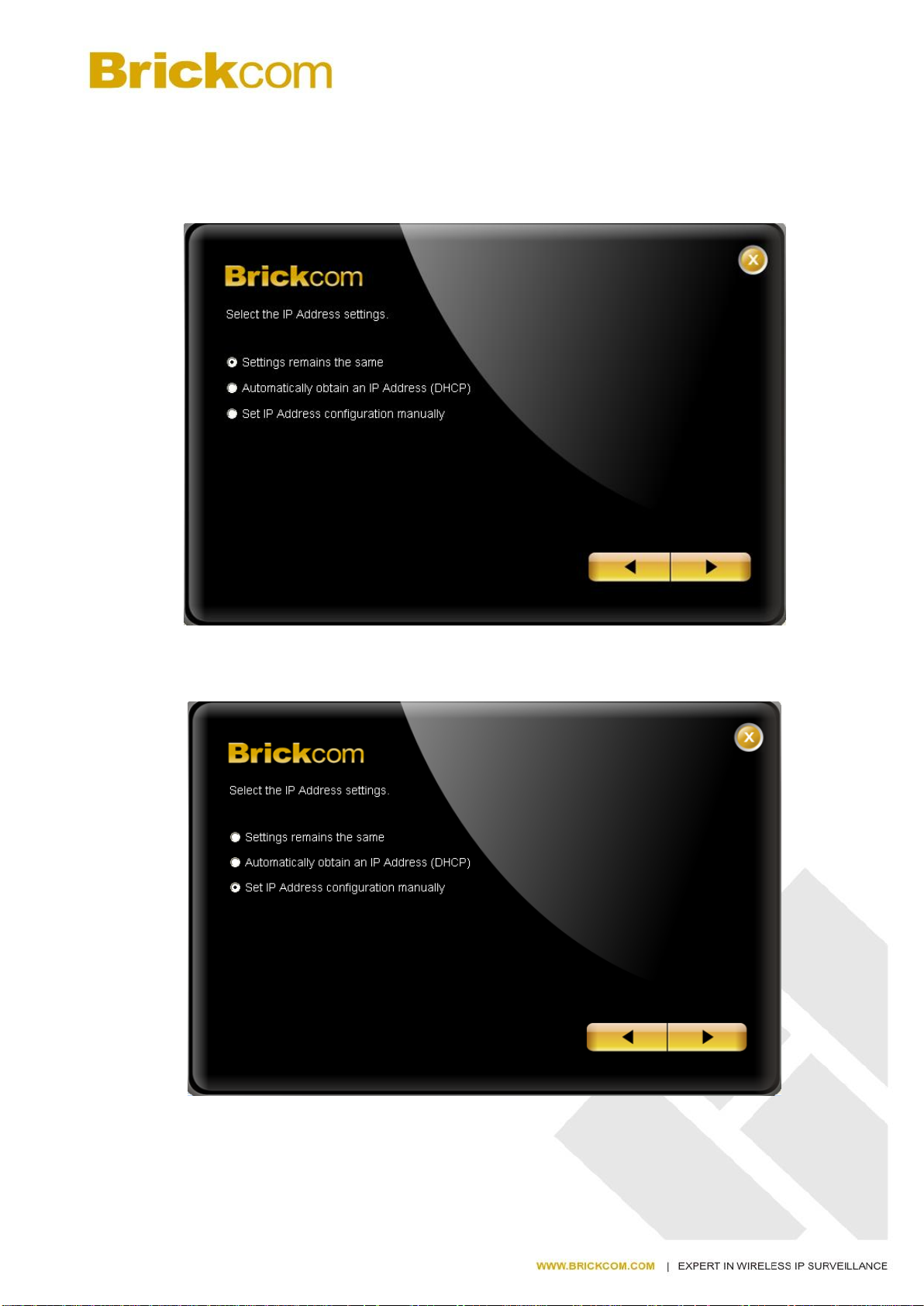

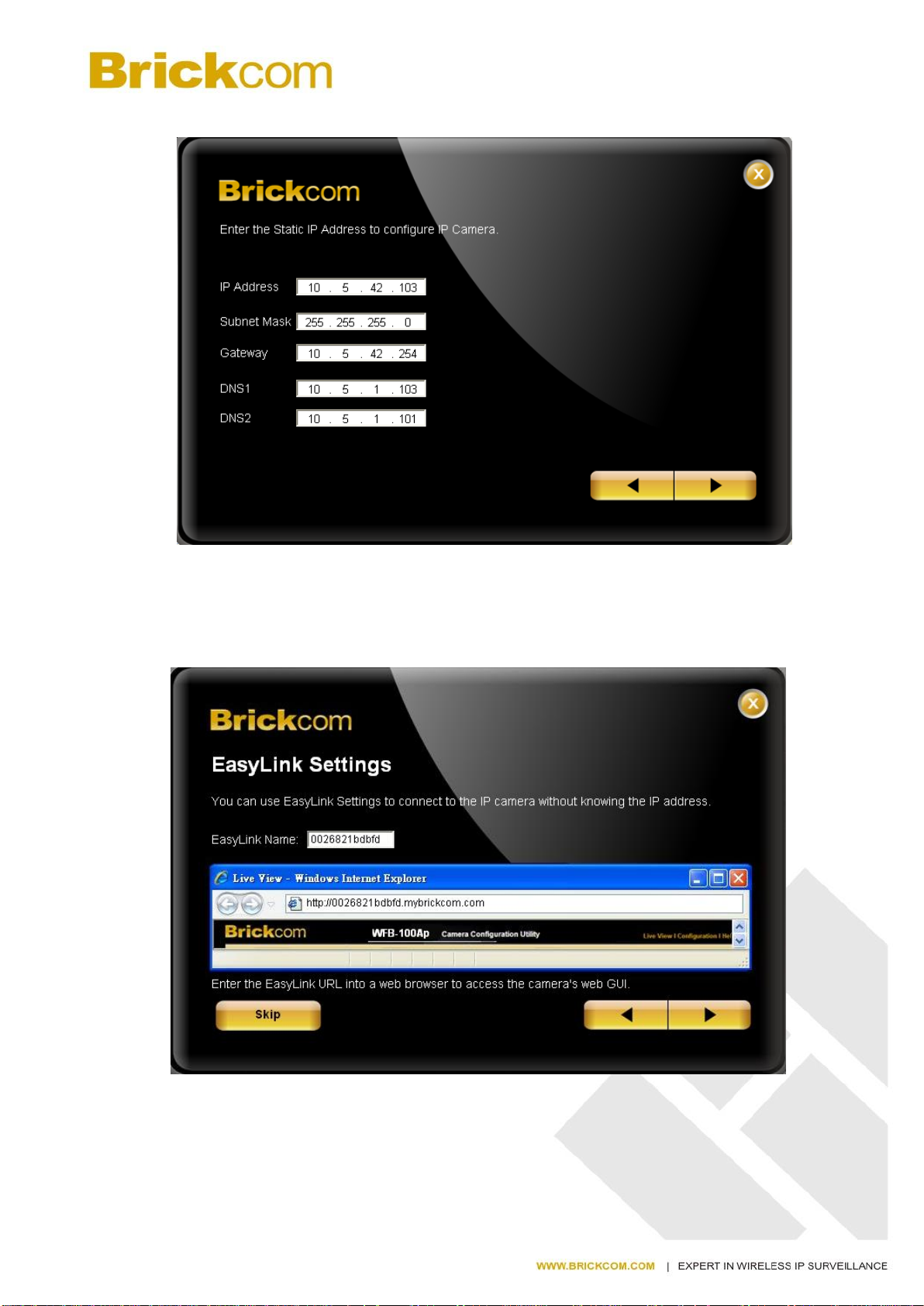

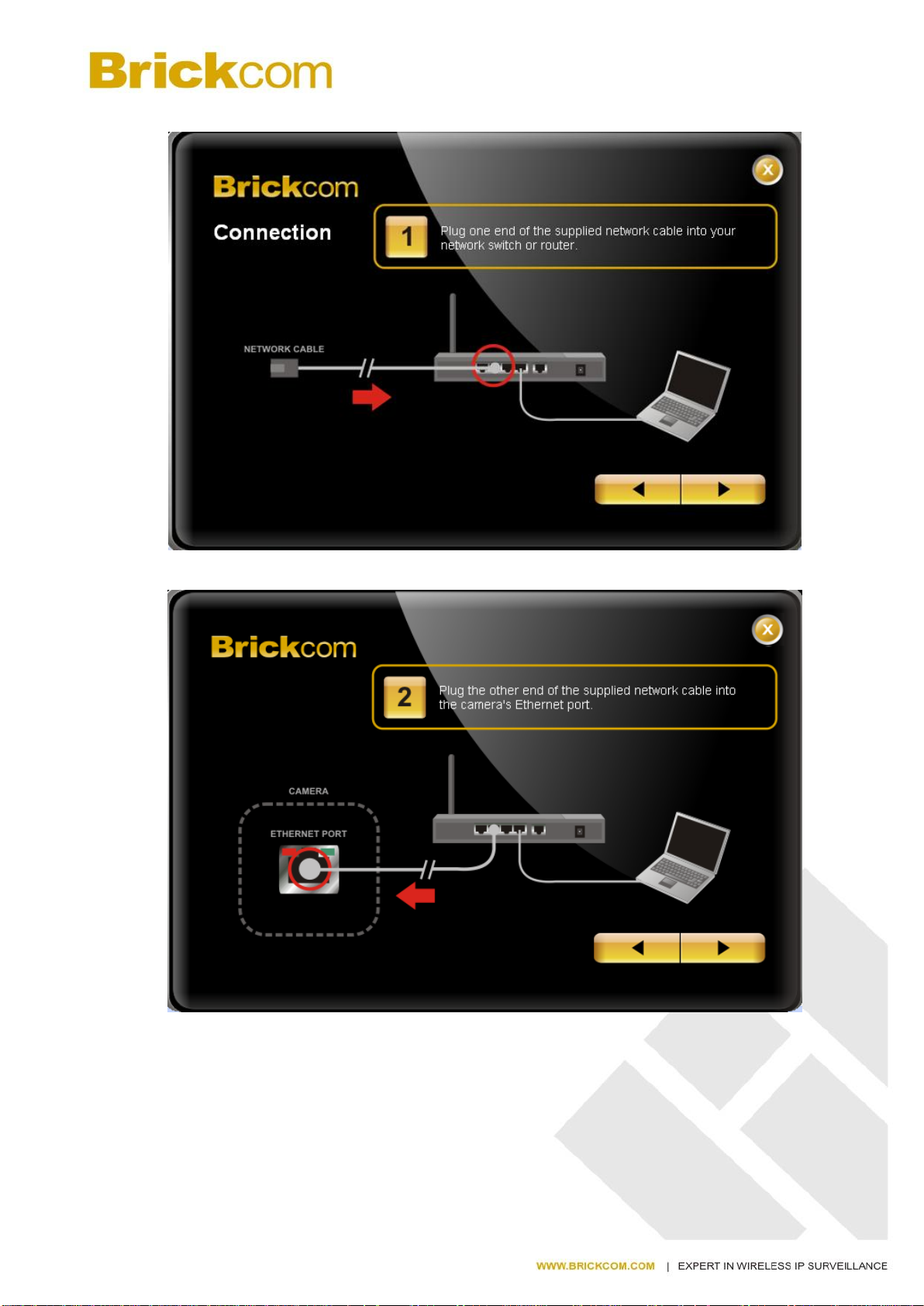

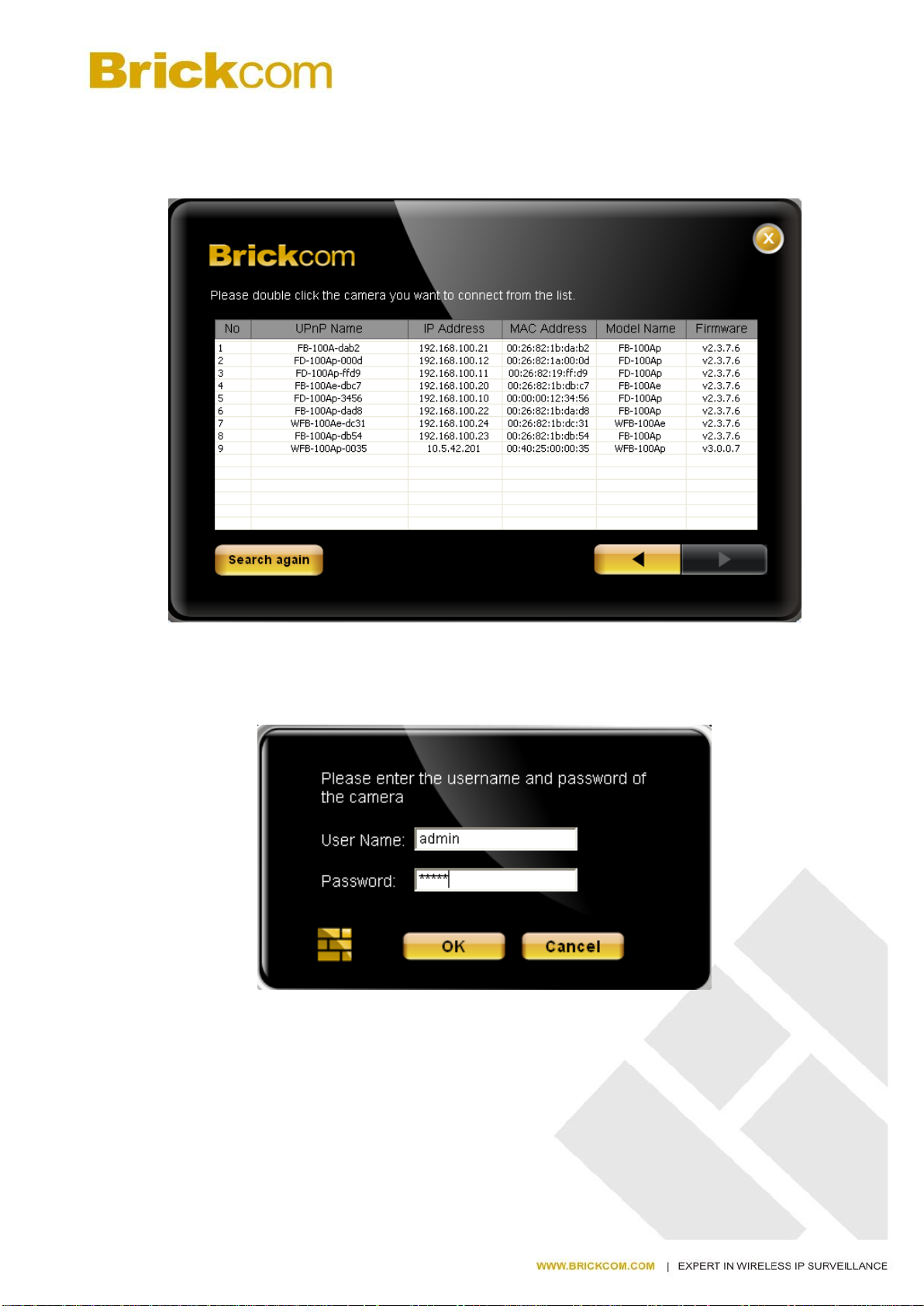

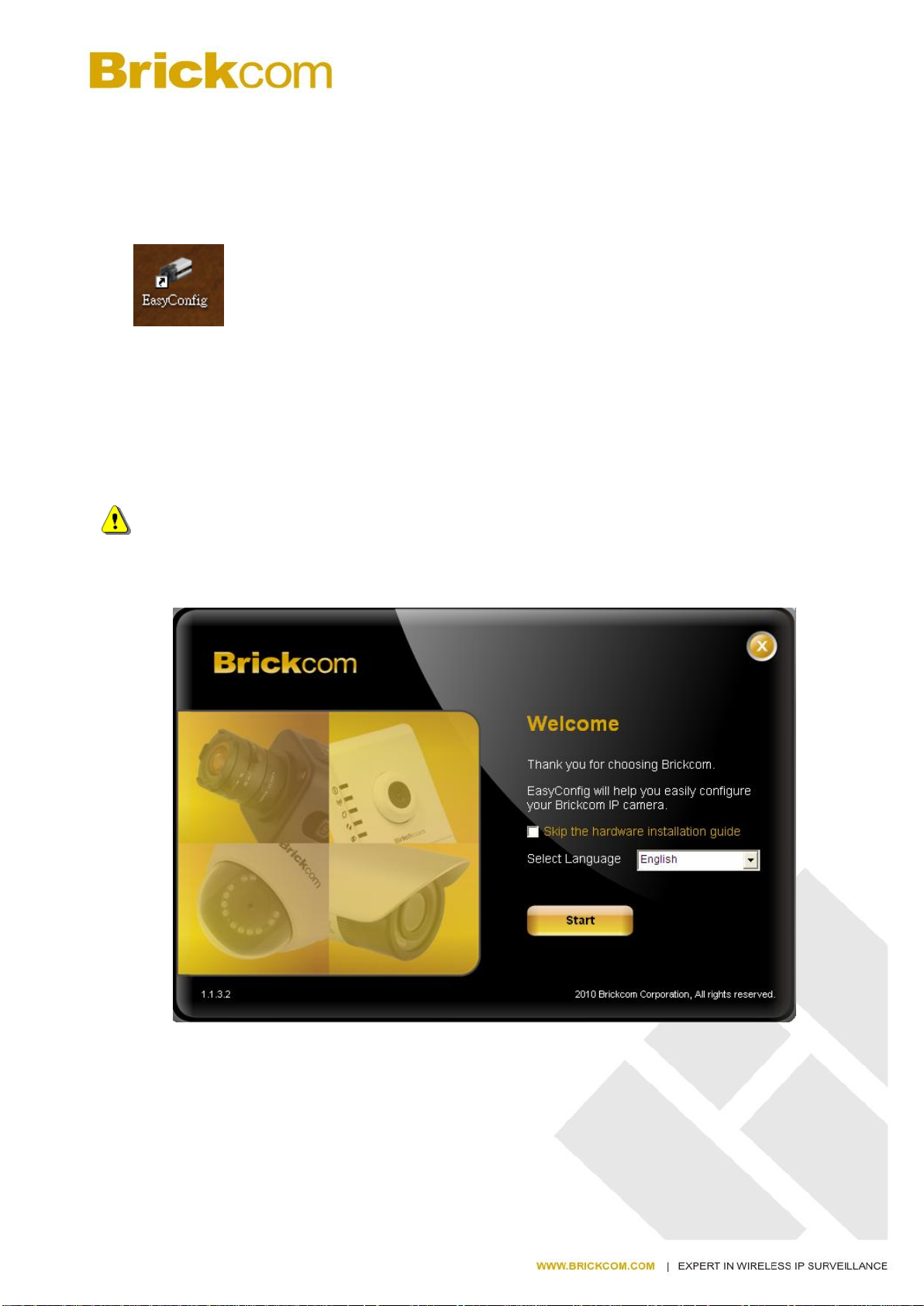

EasyConfig ...................................................................................................... 16
Accessing the Network Camera .................................................................................... 25
Check Network Settings ......................................................................................... 25
Add Password to Prevent Unauthorized Access .................................................... 25
- -
Before You Use This Product
In many countries, there are laws prohibiting or restricting the use of surveillance
devices. This Network Camera is a high-performance, web-ready camera which can be
part of a flexible surveillance system. It is the user’s responsibility to ensure that the
operation of this camera is legal before installing this unit for its intended use.
Upon opening the product’s package, verify that all the accessories listed on the
“Package Contents” are included. Before installing the Network Camera, read the
warnings in the “Quick Installation Guide” to avoid misuse. When installing the
Network Camera, carefully read and follow the instructions in the “Installation” chapters
to avoid damages due to faulty assembly or installation.
FCC Warning
This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions;
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operations.
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.
- -
Model Name
Lesns
WiFi
PoE
USB port for 3G/ 4G
IR LED
DC Iris
MB-500A
Series
MB-500Ap
Board
Lens
-
-
WMB-500Ap
Board
Lens
-
-
-
MB-502Ap
CS
Mount
-
-
WMB-502Ap
CS
Mount
- - -
a. MB-500A Series
b. Product CD
c. Camera Stand
d. Easy Installation Guide
Product Comparison
*This table compliant with MB-500A Series, MB-400A Series, MB-300A Series,
MB-200A Series, MB-130A Series.
Package Contents
Please check to make sure the product package contains all the accessories listed
below.
e. Warranty Card
f. Power Adapter
(Only for WMB-500Ap &WMB-502Ap)
g. Terminal I/O Connector Block
- 1 -
Mini Box Network Camera Overview
The compact Brickcom MB-500A series Mini Box network series offers a high quality, video
surveillance solution for residences and small businesses. Unlike a general webcam, this
camera series is a standalone surveillance system that does not need to be connected to a
computer. EasyLinkTM is a feature of the MB-500A series camera which allows for users to
simply plug in the camera to any home or small business network and play the video.
This camera series offers a user-friendly and unique design which allows anyone without a
technical background to use it. It features live video feed and two-way audio which can be
used over a local area network (LAN), through any internet browser, or via any 3G mobile
device. The wireless capability makes it easy to mount on any surface. The MB-500A
series features many cutting edge functions and its fashionable, streamline design make it the
perfect additional for any home or office.
Because of its many advanced features, the MB-500A series has many versatile applications.
Users can easily monitor the safety of their family members, pets, office, valuables, and
property.
Small Office and Retail Surveillance –
Security systems for small offices can be expensive and difficult to install and maintain. With
the EasyConfig software, the MB-500A series can easily be installed and configured by
anyone without extensive technical knowledge. The video can be reviewed remotely so
business owners can monitor office safety and employee productivity at all times.
Elderly and Child Care –
A high concern for many people is the safety of elderly relatives and small children. Users can
use the MB-500A series camera to ensure the safety of their loved ones by use of the live
view and intercom functions.
Pet Monitor –
The motion detection feature can be used to create forbidden areas in the home which the pet
should not enter when the owner is away. If the camera records the pet entering the region,
a recorded message can be programmed to play and the owner will be notified via email or
MMS.
- 2 -
- 3 -
Adjustable focal Lens
Light Sensor
Illumination LED
(MB-500Ap/WMB-500Ap)
Built-in Microphone
Speaker
Privacy LED
WPS LED (*)
FW Upgrade LED
Wireless LED (*)
Power LED
Ethernet RJ45 Socket
Power Connector
DIDO Terminal I/O Connector
Reset Button
WPS Button (*)
Privacy Button
Micro SD/SDHC slot
USB Port for 3G/4G
* WMB-500Ap / WMB-502Ap*
Device Appearance Description
< Front & Rear view >
1. NOTE - The WPS and Privacy buttons must first be enabled through the web GUI in
order to work.
2. (*) These are optional features. Please refer to the Product List for the full list of optional
features available for the product.
- 4 -
