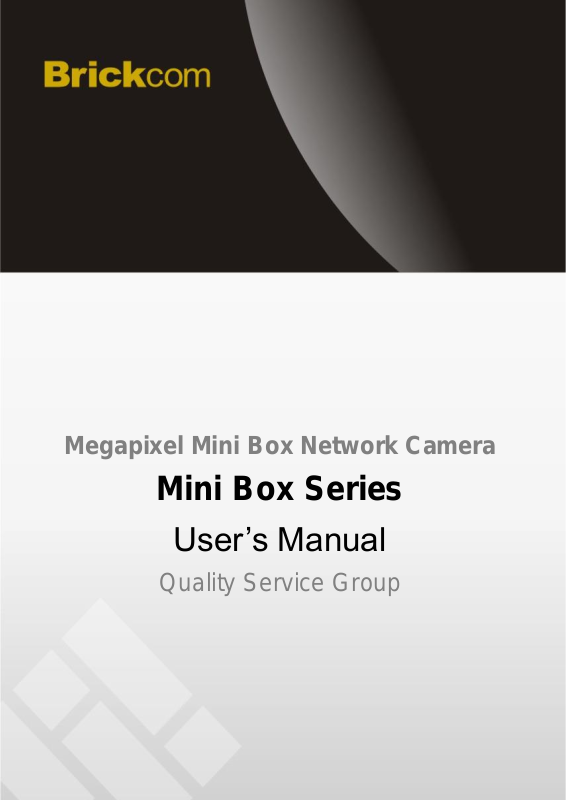

Brickcom WMB-300Ap User Manual

Megapixel Mini Box Network Camera

Mini Box Series

User’s Manual

Quality Service Group

Product name:

Network Camera (MB series)

Release Date:

2015/09

Manual Revision:

V1.1
Web site:

www.brickcom.com

Email:

[e-mail]

[e-mail]

© 2015 Brickcom Corporation. All Rights Reserved

Table of Contents

Before You Use This Product ....................................................................................... 3

Regulatory Information ................................................................................................. 4

Chapter 1 - Package Contents ...................................................................................... 5

Chapter 2 - Mini Box Network Camera Overview ........................................................ 6

Chapter 3 - Device Appearance Description ............................................................... 8

Chapter 4 - LED Behavior ............................................................................................. 9

Chapter 5 - Installation ................................................................................................ 11

5.1 Camera Connection ..................................................................................................... 11

Basic Connection ................................................................................. 11

Wireless Connection (Only for WMB series) ................................................. 12

Terminal I/O Connector Block Connection ................................................... 12

Power over Ethernet (PoE) Connection (Only for MB series) ............................. 12

5.2 System Requirements ................................................................................................. 13

5.3 Software Installation .................................................................................................... 14

Before You Use This Product

In many countries, there are laws prohibiting or restricting the use of surveillance
devices. This Network Camera is a high-performance, web-ready camera which can be

part of a flexible surveillance system. It is the user’s responsibility to ensure that the

operation of this camera is legal before installing this unit for its intended use.

Upon opening the product’s package, verify that all the accessories listed on the

“Package Contents” are included. Before installing the Network Camera, read the

warnings in the “Quick Installation Guide” to avoid misuse. When installing the

Network Camera, carefully read and follow the instructions in the “Installation” chapters
to avoid damages due to faulty assembly or installation.

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.

The availability of some specific channels and/or operational frequency bands are country

dependent and are firmware programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.

Chapter 1 - Package Contents

a. MB Series

b. Product CD

c. Camera Stand

d. Easy Installation Guide

e. Warranty Card

f. Power Adapter

(Only for WMB series)

g. Terminal I/O Connector Block

Please check to make sure the product package contains all the accessories listed
below.

Chapter 2 - Mini Box Network Camera
Overview

The compact Brickcom MB series Mini Box network series offers a high quality, video
surveillance solution for residences and small businesses. Unlike a general webcam,
this camera series is a standalone surveillance system that does not need to be
connected to a computer. EasyLinkTM is a feature of the MB series camera which allows
for users to simply plug in the camera to any home or small business network and play
the video.

This camera series offers a user-friendly and unique design which allows anyone
without a technical background to use it. It features live video feed and two-way audio
which can be used over a local area network (LAN), through any internet browser, or via
any 3G mobile device. The wireless capability makes it easy to mount on any surface.
The MB series features many cutting edge functions and its fashionable, streamline
design make it the perfect additional for any home or office.

Because of its many advanced features, the MB series has many versatile applications.
Users can easily monitor the safety of their family members, pets, office, valuables, and
property.

Small Office and Retail Surveillance –

Security systems for small offices can be expensive and difficult to install and maintain.
With the EasyConfig software, the MB series can easily be installed and configured by
anyone without extensive technical knowledge. The video can be reviewed remotely
so business owners can monitor office safety and employee productivity at all times.

Elderly and Child Care –

A high concern for many people is the safety of elderly relatives and small children.

Users can use the MB series camera to ensure the safety of their loved ones by use of
the live view and intercom functions.

Pet Monitor –

- 6 -

The motion detection feature can be used to create forbidden areas in the home which
the pet should not enter when the owner is away. If the camera records the pet
entering the region, a recorded message can be programmed to play and the owner will
be notified via email or MMS.

- 7 -
