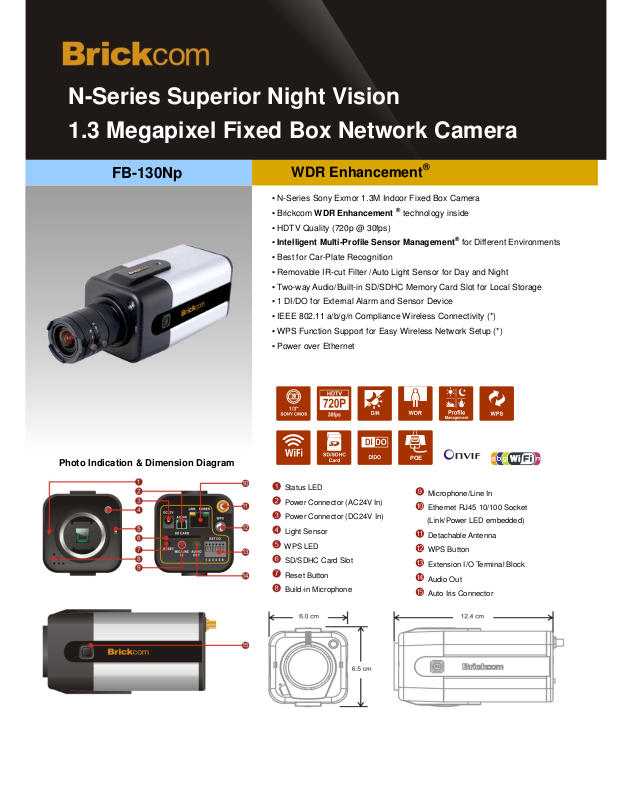

Brickcom WFB-130Np Specsheet
®
N-Series Superior Night Vision
1.3 Megapixel Fixed Box Network Camera
FB-130Np
WDR Enhancement
▪ N-Series Sony Exmor 1.3M Indoor Fixed Box Camera
▪ Brickcom WDR Enhancement ® technology inside
▪ HDTV Quality (720p @ 30fps)
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Best for Car-Plate Recognition
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ Two-way Audio/Built-in SD/SDHC Memory Card Slot for Local Storage
▪ 1 DI/DO for External Alarm and Sensor Device
▪ IEEE 802.11 a/b/g/n Compliance Wireless Connectivity (*)
▪ WPS Function Support for Easy Wireless Network Setup (*)
▪ Power over Ethernet
Photo Indication & Dimension Diagram
Status LED
Power Connector (AC24V In)
Power Connector (DC24V In)
Light Sensor
WPS LED
SD/SDHC Card Slot
Reset Button
Build-in Microphone
POE
Microphone/Line In
Ethernet RJ45 10/100 Socket
(Link/Power LED embedded)
Detachable Antenna
WPS Button
Extension I/O Terminal Block
Audio Out
Hardware System
Image Sensor
Day & Night
Communication
Power input
LEDs FB-130N
Power
Envi
ronment
Dimension
Weight
FB-130N
Ce
rtification
Warranty
Audio Streaming
Audio
Audio
Video Image
Video Setting
Image Resolution
1.3M
Copyright
2011 Brickcom Corporation. All rights reserved. All other company
info@brickcom.com
FB-130N Series
Camera
Support
Audio
Compression
Input/ Output
Video
Compression
CPU: 500 MHz
Flash: 16M
RAM: 128M DDR
Sensor Type : 1/3” Sony CMOS Sensor
Sensor Resolution : 1280 x 1024 pixel
Minimum Illumination : 0.1 Lux (F1.3,B/W)
0.5 Lux(F1.3,Color)
Mechanical ICR , Triggered by Light sensor,
Scheduling, Digital Input
2-way audio support
G.711, AMR (8 kHz, Mono, PCM)
External microphone or line input (Unbalanced,
1.4 Vp-p, 1 Vrms)/Line Output
H.264 / MPEG4 / MJPEG
Auto Exposure Control:
Sport, Normal, Night Vision, User Defined
Auto Gain Control: 1X~5X
Shutter Speed: 1/32000~1s
General
consumption
Ethernet : one 10/100Mbps RJ-45
IEEE 802.11a/b/g/n compliance (WFB-130N)
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS,
DDNS, SMTP, FTP, HTTP, Samba, PPPoE,
UPnP, RTP, RTSP,
RTCP, Wireless 802.11 a/b/g/n (WFB-130N)
AC 24V
DC 12V / 1A (Power Supply)
PoE:802.3af Compliant
Status/Ethernet(Power/Link)
WFB-130N
Status/WPS/Ethernet(Power/Link)
5 watts
Operating Temperature : 0°C ~ 50°C (32°F
~122°F)
Operating Humidity : 10% ~ 80%
124(L)*60 (W)*65(H) mm
Net: 380g (Without Lens)/0.83lb
Gross : 893G/1.97lb
WFB-130N
Net: 385g (Without Lens)/0.85lb
Gross: 903G/2.00lb
FCC, CE
Limited 2-year warranty
- 1280x1024@25fps
1M
-1280x720@30fps
FB-130N Series FB-130Np WFB-130Np
Wireless (11a/b/g/n dual band WiFi)
Auto Iris Support
WPS Button
-
-
Work Best With
Network Equipment Options Camera Accessories Options
T3Z2914CS-IR
3x Vari-focal Lens with Manual Iris
YV2.1x2.8SR4A-SA2L
2.1x Vari-focal Lens with DC Iris
CI-803C
Camera Bracket
DWRT-600N
Dual Band Wireless Router
PS-7242IL-AF
24-port 10/ 100M PoE Web Smart Ethernet
Switch
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
