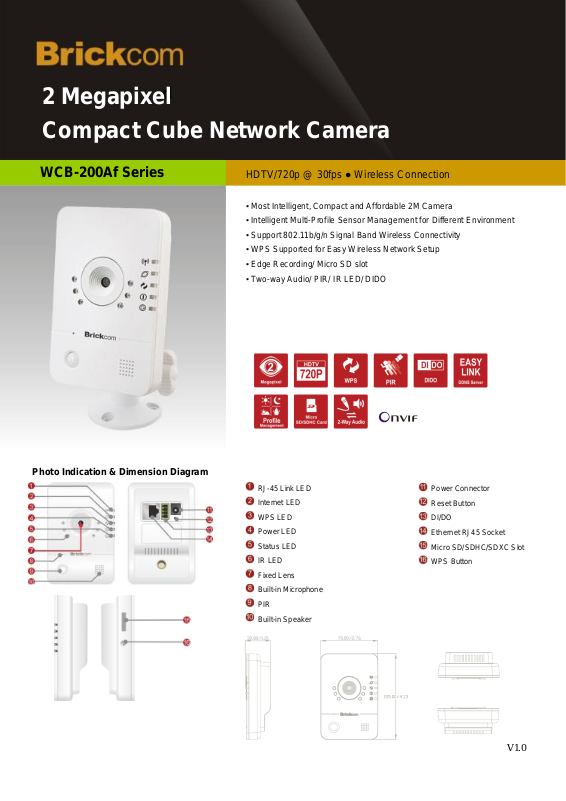

Brickcom WCB-200Af Specsheet
2 Megapixel
Compact Cube Network Camera
▪ Most Intelligent, Compact and Affordable 2M Camera
▪ Intelligent Multi-Profile Sensor Management for Different Environment
▪ Support 802.11b/g/n Signal Band Wireless Connectivity
▪ WPS Supported for Easy Wireless Network Setup
▪ Edge Recording/ Micro SD slot
▪ Two-way Audio/ PIR/ IR LED/ DIDO
RJ-45 Link LED
Internet LED
WPS LED
Power LED
Status LED
IR LED
Fixed Lens
Built-in Microphone
PIR
Built-in Speaker
Power Connector
Reset Button
DI/DO
Ethernet RJ45 Socket
Micro SD/SDHC/SDXC Slot
WPS Button
Photo Indication & Dimension Diagram
WCB-200Af Series
HDTV/720p @ 30fps ● Wireless Connection
d
V1.0
Models
WCB-200Af
Hardware System
CPU: 533 MHz
Flash: 16M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/5” CMOS Sensor
Sensor Resolution : 1600x1200 pixel
Minimum
Illumination
0 Lux (IR ON, B/W)
0.065 Lux (IR OFF, B/W)
0.085 Lux(F2.8,Color)
IR Illuminators
Built -in IR Illuminators
IR LED: 6 pcs
IR wavelength: 850nm
Lens
Lens Type: Board Lens
Focal Length: f= 2.9 mm
Iris: F2.8
View Angle: (H): 55°/ (V): 42°/ (D): 66°
Audio Streaming
2-way Audio Support
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Built-in MIC & Speaker
Video Image
Compression
H.264 / MPEG4 / MJPEG
Video Setting
Audio Exposure Control:
Sport/ Normal/ Night Vision/ User Defined
Manual Exposure Control: 1//18000~1/5s
Manual Gain Control: 1X ~ 15X
Manual White Balance Control: 2000K~7000K
S/N Ratio
20 dB
Image Resolution
2M: 1600x1200 @ 15fps
1.3M: 1280x1024@ 26fps
1M (HDTV): 1280x720 @ 30fp
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input
DC12V/ 1A(Power Supply)
Max. Power
Consumption
6.2 watts
Environment
Operating Temperature
0°C ~ 50°C (32°F ~122°F),
Operating Humidity :
10% ~ 80%
Dimension
34.8 (L) X60 (W) X 95 (H) mm
Weight
129g
Certification
FCC, CE
Warranty
Limited 1-year warranty
PS-588I
8-port 10/100M PoE Fast Ethernet Switch
BP-1000
UPS power pack (Edge Recording)
CI-803A/CI-803C
Camera Bracket
GL-222
Camera Bracket
Camera
Audio
Network Equipment Options
Camera Accessories Options
Copyright 2013 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
info@brickcom.com
Video
Work Best With
General
V1.0
