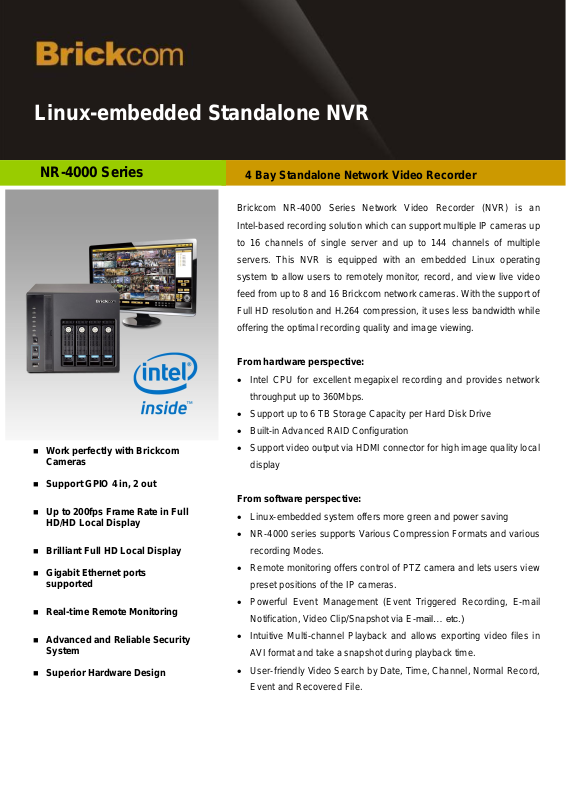

Linux-embedded Standalone NVR
Brickcom NR-4000 Series Network Video Recorder (NVR) is an
Intel-based recording solution which can support multiple IP cameras up
to 16 channels of single server and up to 144 channels of multiple
servers. This NVR is equipped with an embedded Linux operating
system to allow users to remotely monitor, record, and view live video
feed from up to 8 and 16 Brickcom network cameras. With the support of
Full HD resolution and H.264 compression, it uses less bandwidth while
offering the optimal recording quality and image viewing.
From hardware perspective:
Intel CPU for excellent megapixel recording and provides network
throughput up to 360Mbps.
Support up to 6 TB Storage Capacity per Hard Disk Drive
Built-in Advanced RAID Configuration
Support video output via HDMI connector for high image quality local
display
From software perspective:
Linux-embedded system offers more green and power saving
NR-4000 series supports Various Compression Formats and various
recording Modes.
Remote monitoring offers control of PTZ camera and lets users view
preset positions of the IP cameras.
Powerful Event Management (Event Triggered Recording, E-mail
Notification, Video Clip/Snapshot via E-mail… etc.)
Intuitive Multi-channel Playback and allows exporting video files in
AVI format and take a snapshot during playback time.
User-friendly Video Search by Date, Time, Channel, Normal Record,
Event and Recovered File.
NR-4000 Series
4 Bay Standalone Network Video Recorder
Work perfectly with Brickcom
Cameras
Support GPIO 4 in, 2 out
Up to 200fps Frame Rate in Full
HD/HD Local Display
Brilliant Full HD Local Display
Gigabit Ethernet ports
supported
Real-time Remote Monitoring
Advanced and Reliable Security
System
Superior Hardware Design
Brickcom NVR Series Specification
Models
NR-4208
NR-4216
Supported Channel Number
Up to 8 Channels
Up to 16 Channels
Operating System
Linux-embedded
Maximum Network
Throughput
360Mbps
Full HD Local Display
VGA x1 / HDMI x1
Frame Rate in
Full HD/HD Local Display
Up to 200fps
Storage Capacity per HDD
Up to 6 TB
Maximum capacity
Up to 24TB (2.5”/ 3.5” SATA HDD x4)
HDD Tray
4 (hot-swappable and lockable tray)
* All standalone NVR will be shipped without HDD
Multi-NVR Server Monitoring
Yes (Up to 144 Channels)
Video Format
MJEPG, MPEG-4, H.264 (Depending on the camera models)
Disk Configuration
JBOD, RAID 0/1/10/5
CPU & Memory
CPU: INTEL & Memory: 2GB DDRIII, 1GB Flash(DOM)
LAN Port
Gigabit x2
GPIO
4 in, 2 out
USB Connector
USB 2.0 x 6
Fan
2 x quiet cooling fan
Power Supply
Input: 100-240V AC, 50/60 Hz, Output: 250W
Power Consumption
Operation: 54 ~ 65W
(with 4 x 500GB HDD installed and in RAID 5 building process)
H/W Dimensions
317(H) x 250(W) x 245.8(D) mm
7.28(H) x 8.08(W) x 9.68 (D) inch
General
info@brickcom.com
Copyright2014Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
