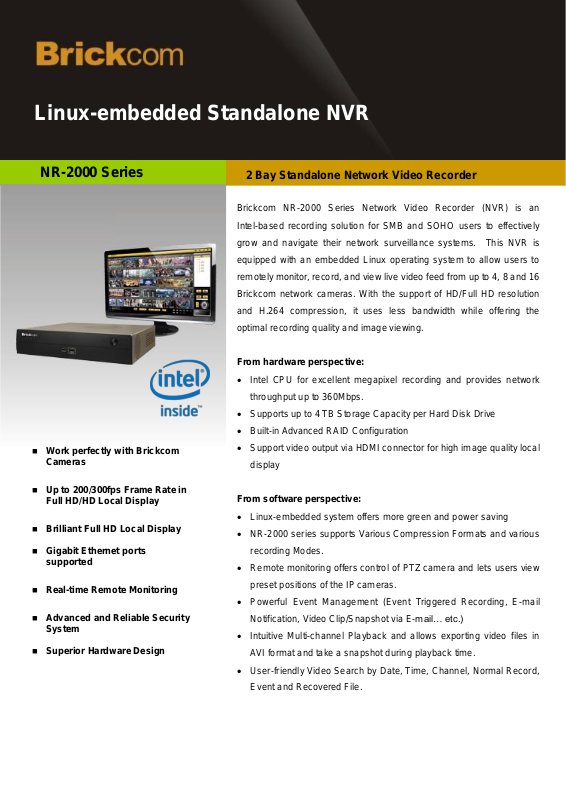

Brickcom NR-2104, NR-2108, NR-2116 Specsheet
Linux-embedded Standalone NVR
Brickcom NR-2000 Series Network Video Recorder (NVR) is an
Intel-based recording solution for SMB and SOHO users to effectively
grow and navigate their network surveillance systems. This NVR is
equipped with an embedded Linux operating system to allow users to
remotely monitor, record, and view live video feed from up to 4, 8 and 16
Brickcom network cameras. With the support of HD/Full HD resolution
and H.264 compression, it uses less bandwidth while offering the
Intel CPU for excellent megapixel recording and provides network
Support video output via HDMI connector for high image quality local
NR-2000 series supports Various Compression Formats and various
Remote monitoring offers control of PTZ camera and lets users view
Powerful Event Management (Event Triggered Recording, E-mail
Intuitive Multi-channel Playback and allows exporting video files in
User-friendly Video Search by Date, Time, Channel, Normal Record,
NR-2000 Series
2 Bay Standalone Network Video Recorder
Work perfectly with Brickcom
Advanced and Reliable Security
optimal recording quality and image viewing.
From hardware perspective:
throughput up to 360Mbps.
Supports up to 4 TB Storage Capacity per Hard Disk Drive
Built-in Advanced RAID Configuration
Cameras
Up to 200/300fps Frame Rate in
Full HD/HD Local Display
Brilliant Full HD Local Display
Gigabit Ethernet ports
supported
Real-time Remote Monitoring
System
Superior Hardware Design
display
From software perspective:
Linux-embedded system offers more green and power saving
recording Modes.
preset positions of the IP cameras.
Notification, Video Clip/Snapshot via E-mail… etc.)
AVI format and take a snapshot during playback time.
Event and Recovered File.
Brickcom NVR Series Specification
Models
NR-2104
NR-2108
NR-2116
Supported Channel Number
Up to 4 Channels
Up to 8 Channels
Up to 16 Channels
Operating System
Linux-embedded
Maximum Network
Throughput
360Mbps
Full HD Local Display
YES (HDMI)
Frame Rate in
Full HD/HD Local Display
Up to 200/300fps
Storage Capacity per HDD
Up to 4 TB
Maximum capacity
Up to 8TB (2.5”/ 3.5” SATA HDD x2)
HDD Tray
2 (internal) * All standalone NVR will be shipped without HDD
Multi-NVR Server Monitoring
Yes (Up to 144 Channels)
Video Format
MJEPG, MPEG-4, H.264 (Depending on the camera models)
Disk Configuration
Single, JBOD, RAID 0/1
CPU
Intel
LAN Port
Gigabit x1
USB Connector
USB 3.0 x2 and USB 2.0 x4
H/W Dimensions
63.2(H) x295(W) x271(D) mm
2.49(H) x 11.61 (W) x 10.67 (D) inch
General
