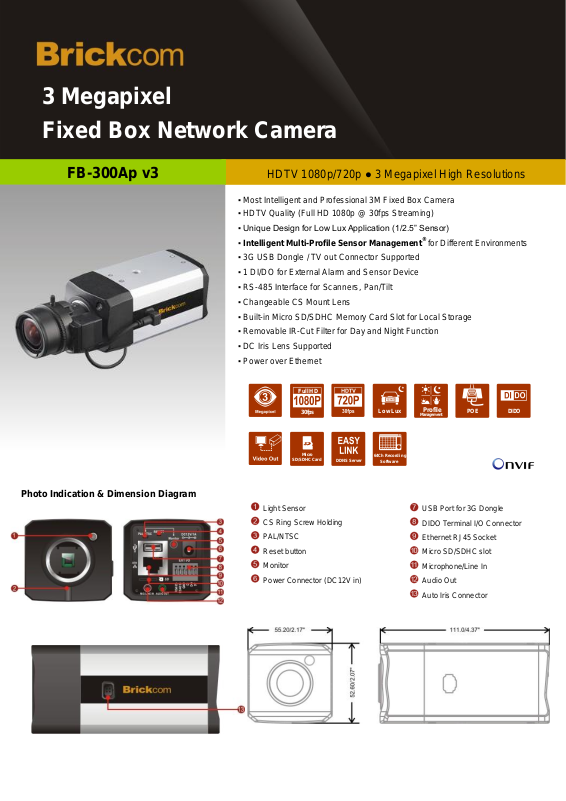

Brickcom FB-300Ap Specsheet
Micro
SD/SDHC Card
DDNS Server
Recording
Software
64Ch
3 Megapixel
Fixed Box Network Camera
▪ Most Intelligent and Professional 3M Fixed Box Camera
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ Unique Design for Low Lux Application (1/2.5” Sensor)
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ 3G USB Dongle / TV out Connector Supported
▪ 1 DI/DO for External Alarm and Sensor Device
▪ RS-485 Interface for Scanners, Pan/Tilt
▪ Changeable CS Mount Lens
▪ Built-in Micro SD/SDHC Memory Card Slot for Local Storage
▪ Removable IR-Cut Filter for Day and Night Function
▪ DC Iris Lens Supported
▪ Power over Ethernet
Light Sensor
CS Ring Screw Holding
PAL/NTSC
Reset button
Monitor
Power Connector (DC12V in)
USB Port for 3G Dongle
DIDO Terminal I/O Connector
Ethernet RJ45 Socket
Micro SD/SDHC slot
Microphone/Line In
Audio Out
Auto Iris Connector
FB-300Ap v3
Photo Indication & Dimension Diagram
Full HD
30fps
Low Lux
Profile
Management
POE
DIDO
HDTV 1080p/720p ● 3 Megapixel High Resolutions
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution : 2048x1536 pixel
Minimum
Illumination
0.8 lux (F1.3, B/W)
2 lux (F1.3, Color)
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Sensor Management
Day/ Night / Sunset/ User 1/ User 2
Auto Exposure / Gain / White Balance Control
Manual Exposure Control:1/20000~1/5s
Manual Gain Control: 1X~32X
Manual White Balance Control: 2000K~7000K
S/N Ratio
38.1 dB
Image Resolution
3M : 2048x1536 @ 18fps
2M (Full HD): 1920x1080 @30fps
1M (HDTV): 1280x720 @ 30fps
Events
Motion Detection
Schedule
Audio Detection
Digital Input
Alarm
Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification
Audio Streaming
2-way Audio Support
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Line in/ Line out
M13VG288IR
2.2x Manual zoom/focus, DC iris
M13VM288IR
2.2x,Manual zoom/focus, Manual iris
YV2.1x2.8SR4A-SA2
2.1x,Manual zoom/ focus, DC iris
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP,RTCP
Power Input
DC12V/ 1A(Power Supply)
PoE:802.3af Compliant
Interface
RJ45 Ethernet Cable Connector
General I/O Terminal Block(DI/DO, RS485
included)
External MIC/Line Input
External Audio Output
Reset Button
Micro SD/SDHC memory card slot
TV out
3G USB Dongle
Max. Power
Consumption
6 watts
Environment
Operating Temperature
0°C ~ 50°C (32°F ~122°F),
Operating Humidity :
10% ~ 80%
Dimension
111 (L) X55.2 (W) X 52.6 (H) mm
Weight
332g (Without Lens)/ 0.73lb
Certification
FCC, CE
Warranty
Limited 2-year warranty
DWRT-600N
Dual Band Wireless Router
PoE16U
PoE Injector
PS-7242IL-AF
24-port 10/ 100M PoE Web Smart Ethernet
Switch
Camera
General
Video
Network Equipment Options
Camera Accessories Options
info@brickcom.com
info@brickcom.com
Copyright 2012 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
Work Best With
