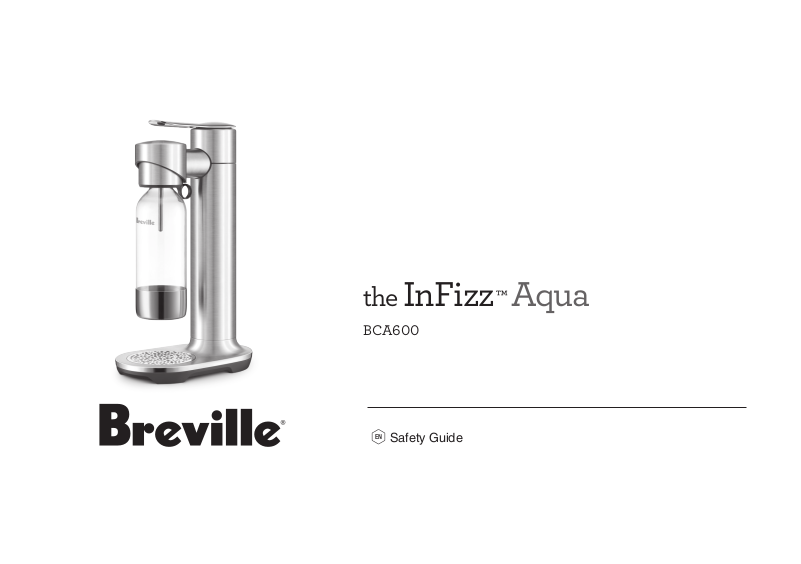

Page 1
the InFizz
BCA600
EN
Safety Guide
™
Aqua
Page 2
CONTENTS
2 - Limited product warranty
2 - Breville® recommends safety rst
2 - Safety guidelines
4 - Components & Accessories
5 - Before rst use - Care & Cleaning
6 - Gas canister placement
7 - Carbonating water
8 - Troubleshooting
LIMITED PRODUCT
WARRANTY
2 YEAR LIMITED
Breville’s warranty for this product covers the repair
or replacement if it’s found to be defective due
to faulty materials, workmanship, or function within
the warranty period.
All legal warranty rights under applicable national
legislation will be respected and will not be impaired
by our warranty. For details on length of warranty,
to obtain a printed copy or to read full terms and
conditions please scan the QR code or visit
www.breville.com
Alternatively, call the Breville
Service Centre (see back
QR149
cover for contact details)
BREVILLE®
RECOMMENDS
SAFETY FIRST
At Breville® we are very
safety conscious.
We design and manufacture
consumer products with
the safety of you, our valued
customer, foremost in mind.
In addition, we ask that you
exercise a degree of care
when using any appliance
and adhere to the following
precautions.
SAFETY
GUIDELINES
Keep clean and store
the bottle with the lid o.
WARNING
Never attempt
to carbonate
an empty bottle.
Never use a bottle
that’s deformed,
discoloured, or scratched.
Never put the bottle
in the freezer.
Don’t transport
the InFizz
gas Canister installed.
Do not carbonate milk
based products.
Do not put ice
in the bottle.
™
Aqua with the
2
Page 3
Use InFizz™ Aqua
compatible carbonating
bottles ONLY.
Never clean the bottle
in the dishwasher.
Do not leave the InFizz™
Aqua and/or the bottle in
direct sunlight or too close
to a window.
Do not place the InFizz™
Aqua next to a heat source.
Do not place the InFizz™
Aqua close to open ames
of any sort.
Do not use the InFizz™
Aqua and/or the bottle in
extreme temperatures.
Do not use the bottle
after its expiration date.
The symbol shown
indicates that this
appliance should not be
disposed of in normal
household waste. It should be
taken to a local authority waste
collection centre designated for
this purpose or to a dealer
providing this service. For more
information, please contact your
local council oce.
CARBON DIOXIDE CO
2
Canister
To reduce the risk of a CO
leak,
2
personal injury and property
damage:
• In the event of a CO
leak,
2
ventilate the area, breathe fresh
air and if feeling unwell seek
immediate medical attention.
• Do not insert a CO
into the InFizz
™
Canister
2
Aqua when
a bottle is installed.
• Do not remove a CO
™
from the InFizz
Aqua when
Canister
2
it is being operated.
• Do not remove bottle during
carbonation.
• Do not handle or remove
a CO
discharging CO
Canister while it is
2
.
2
• Do not use if damaged.
Inspect the CO
Canister valve prior to use
CO
2
Canister and
2
for dents, punctures, or other
damage. If damaged, contact
an authorised service
representative.
• Do not tamper with the CO
2
Canister in any way, including
puncturing, incinerating or
removing the valve.
• Do not expose the CO
2
Canister to heat above 120°F
/ 50°C. Protect from sunlight.
Store in a well-ventilated area.
EN
SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY
3
Page 4
COMPONENTS
C
D
ACCESSORIES
A
B
1 2
NOTE
0.6 L Bottle -
Sold separately
E
A. Carbonating lever
B. Tilt head with ring pull
C. Gas cylinder compartment
D. Flat surface safety switch
to ensure a at surface is used.
E. Removable drip tray cover (hand wash only)
F. Drip tray
4
F
1. 1 L bottle (hand wash only)
2. Bottle brush
Page 5
BEFORE FIRST USE
1.
CARE & CLEANING
1.1
1.2 1.3
1.6
1.7
Keep clean and store
the bottle with the lid off.
1.4 1.5
MAX
XX/XXXX
5
Page 6
GAS CANISTER
2.
PLACEMENT
2.1
Screw
Type
Quick
Connect
Type
2.2 2.3
2
CO
2
CO
Gently turn the canister
in a clockwise motion
until screwed in.
6
Page 7
MIN
MAX
CARBONATING
3.
WATER
3.1
3.2
1°C - 8°C
3.3
3.6
CLICK
3.4 3.5
PSS SH
1sec
x 2
x 4
x 6
7
Page 8
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES EASY SOLUTIONS
Small pieces of
ice in the bottle.
Little or no
carbonation.
Small pieces of ice may appear and quickly melt
in the bottle while carbonating.
CO₂ canister may be near empty or empty.
NOTE: Cold water also maximises carbonation.
• Shorten each press so the eciency
of carbonation is not aected.
• Replace the canister with a full one.
• Check the CO₂ canister is properly screwed
into place.
8
Page 9
5.
For more information on:
• Cleaning • Troubleshooting
• Useful Tips and Warranty
Check out the website, visit www.breville.com
9
Page 10
NOTES
10
Page 11
NOTES
11
Page 12
Breville Service Center
Australian Customers
Phone: 1300 139 798
Web: www.breville.com
Breville, the Breville Logo, is a trademark of Breville Pty Ltd (“Breville”)
and Breville’s products are distributed in Australia and New Zealand under license.
Due to continued product improvement, the products illustrated/photographed
in this brochure may vary slightly from the actual product.
New Zealand Customers
Phone: 0800 273 845
Web: www.breville.com
Copyright Breville Pty. Ltd. 2023.
BCA600 ANZ SG1_C23
