TM 450
Datasheet
2 pgs1.35 Mb0
LIST OF THE EXPLODED VIEWS
11 pgs788.57 Kb0

Brema TM 450 LIST OF THE EXPLODED VIEWS

Download
TM 450
LIST OF THE EXPLODED VIEWS
Rev. 6 - 04/03/2014
2° version - From s/n. 658903
SHELL ASSY
COOLING SYSTEM
EVAPORATOR
1° version - Till s/n. 658902
SHELL ASSY
COOLING SYSTEM
EVAPORATOR
ELECTRIC PARTS
ELECTRIC PARTS
Page 1
TM 450
1
2
3
4
5
6
9
4
10
8
7
2° Version
From s/n. 658903
SHELL ASSY
10
Rev. 6 - 04/03/2014
1
9
8 4 7
Common Parts
Ref. Spare Description Code
1 Top 221518 2 Back Panel 221513
2
3 Back Grill D12091 4 Right/Left Side Panel 221515 5 Right Side Grill D12092 6 Front Panel 22151 1
3
Parts for Air-Cooled Version Only
Ref. Spare Description Code
4
7 Lower Left Side Panel 221517
8* Filter 18246
9 Left Side Grill D12093
Parts for Water-Cooled Version Only
Ref. Spare Description Code
1 0 Left Side Grill D12092
6
5
Page 2
TM 450
1
5
6
7
2
3
4
8
11
9
10
7
2° Version
From s/n. 658903
COOLING SYSTEM
Common Parts
Ref. Spare Description Code
10
9
8
11
See Exploded
View of the Evaporator
1 Compressor See Table
2 Vacuum-Charge Valve Body 14007 3* Vacuum-Charge Valve Device 14005 4* Vacuum-Charge Valve Plug 14006 5* Solid Core Drier 14084
9 Hot Gas Valve Body 20409
10 Hot Gas Valve Coil 23091 11 Expansion Valve 201004
Rev. 6 - 04/03/2014
6
Parts for Air-Cooled Version Only
Rif.
Ref. Spare Description Code
7 Air Condenser 20675
8 Sucking Fan 20407
Parts for Water-Cooled Version Only
Descrizione Ricambio
Ref. Spare Description Code
6 Water Condenser 14678
5
4
2
3
1
Rif. 1 - Compressor
Voltage Code
T11 23984 T12 23982
Page 3
TM 450
2° Version
From s/n. 658903
EVAPORATOR
Rev. 6 - 04/03/2014
14
13
12
11
17
16
1
2
5
3
4
Ref. Spare Description Code
1 Ice Exhoust with Micro Assy C11169
2 Ice Breaker 20948
3 Extruder with bearings C201013
4 Auger 201015
5 OR Gasket 4400 20955
6 Ceramic Seal 20643
7 OR Gasket 4312 NBR70 20205
8 Reduction Ring 201016
9 Bearing 201017
10 Flange 20644 11 Lower Joint D20 493 12 Elastomer 20494 13 Upper Joint D2 0642 14 Evaporator Assy C11171 15 Nilos Ring 201018 16 OR Gasket 3425 201019 17 Extruder cover 201014
15
10
6
7
8
9
Page 4
3
4
5
6
8
9
10
10
7
1
12
11
2
TM 450
11
12
2° Version
1
From s/n. 658903
2
HYDRAULIC CIRCUIT
Common Parts
Ref. Spare Description Code
1 Microswitch 23055
2 Double Switch Basin 10700 3* Double Switch Basin Assembly C10 686
6 Discharges Manifold 10579
7 Ice Outlet Pipe with Bin bulbo holder C10 6 57
8 Locking Exhaust Strip 25049 9* Ice Exhaust Assy with Micro C10585
Rev. 6 - 04/03/2014
9
8
7
6
5
3
Parts for Water-Cooled Version Only
Ref. Spare Description Code
4 Water regulating valve assembly C20 967
5 Drain manifold 20984
4
Page 5
3
4
5
6
8
9
10
10
7
1
12
11
2
TM 450
11
12
2° Version
1
From s/n. 658903
2

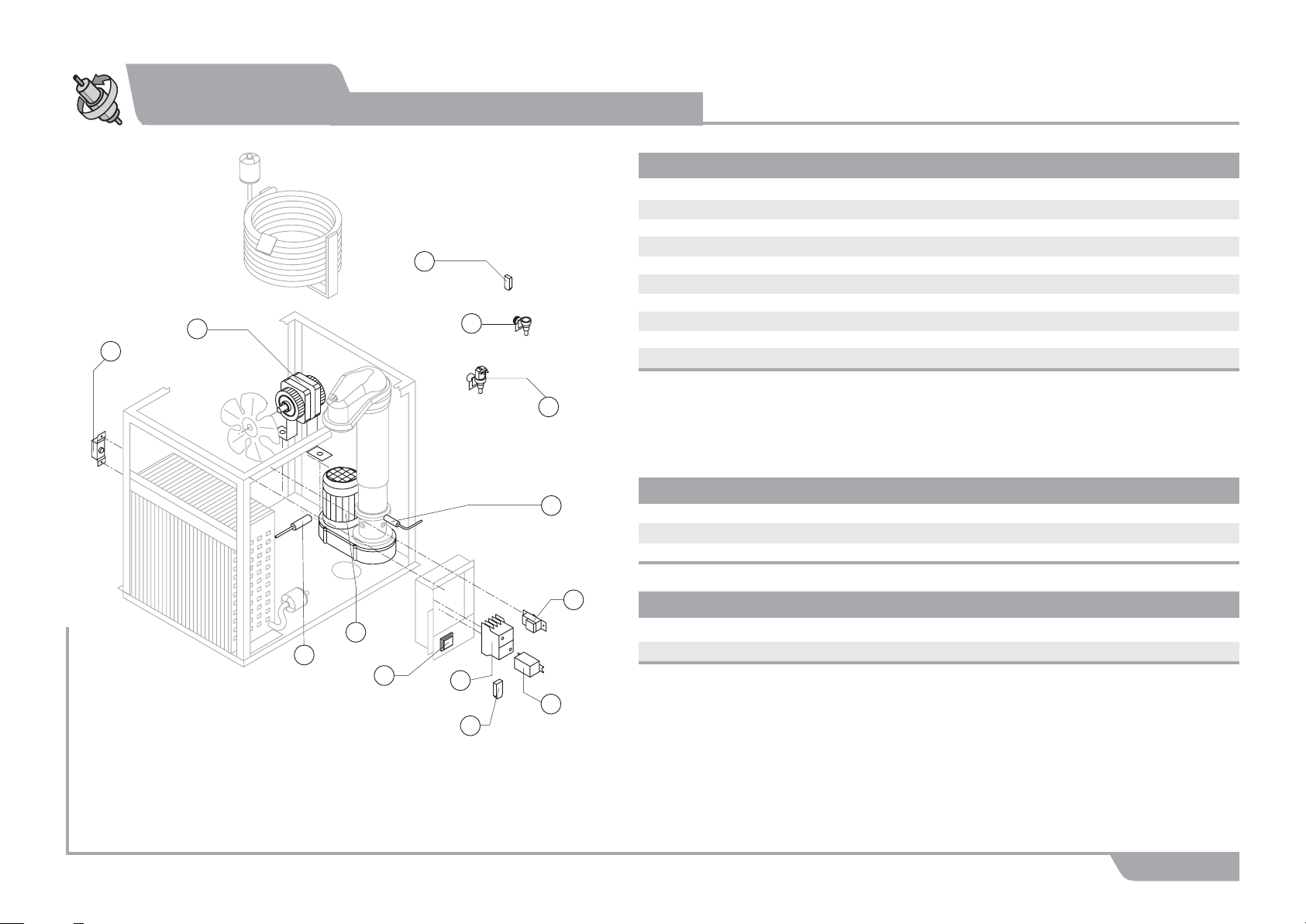

ELECTRIC P ARTS
Common Parts
Ref. Spare Description Code
1 Anti Radio Interference Filter T11 C23 4 5 7
2 Safety Pressure Switch 23342 3* 1 Way- Water Inlet Valve 23115
4 Rotation Sensor R231028
5 Gearmotor 23638
6 Low pressure safety switch 23909 8* Green Light Switch (On-Off) 23327
10 Contactor See Table
11* Bin Thermostat R231035
Rev. 6 - 04/03/2014
9
8
7
6
5

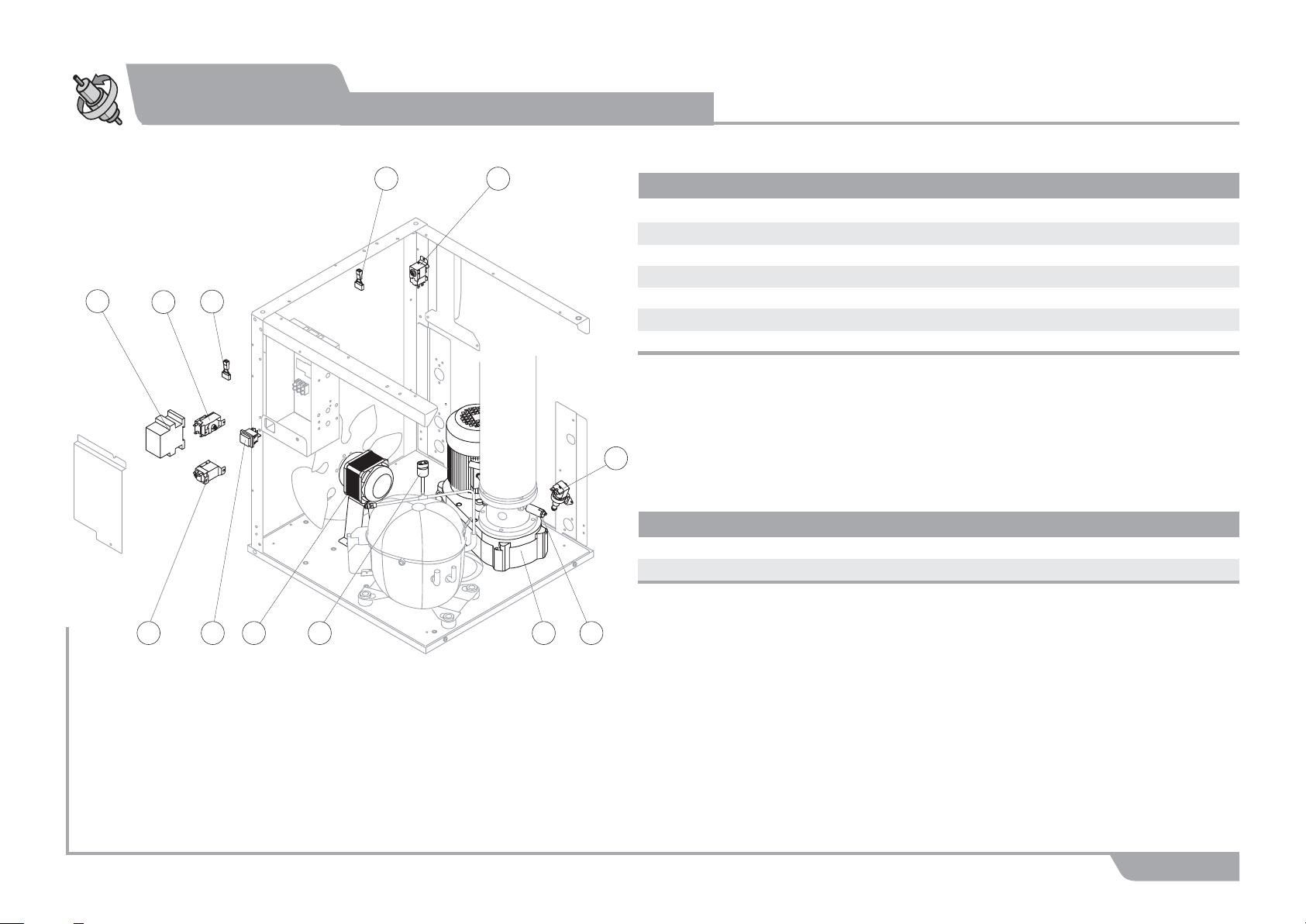

4
Parts for Air-Cooled Version Only
3
Ref. Spare Description Code
7* Fan Motor 23121 9* Pressostato Condensatore 23175
12 Condenser Pressure Switch T11 C2345 9
Rif. 10* - Contactor
Voltage Code
T11 23147 T12 23963
Page 6
TM 450
1
2
7
6
3
2
3
4
5
1° Version
Till s/n. 658902
SHELL ASSY
1
7
2
6
3
Common Parts
Ref. Spare Description Code
1 Top 221 122 2 Right/Left Side Panel 22663 3 Lateral Grid D12061 4 Front Panel Assembly 22 1138 6 Rear Grid D12060 7 Rear Panel 22665
Parts for Air-Cooled Version Only
Ref. Spare Description Code
5* Filter 18163
Rev. 6 - 04/03/2014
2
5
3
4
Page 7
TM 450
1
2
3
4
6
7
8
5
9
7
1° Version
Till s/n. 658902
COOLING SYSTEM
2
3
4
1
5
6
7
Rev. 6 - 04/03/2014
See Exploded View
of the Evaporator
Common Parts
Ref. Spare Description Code
1 Compressor See Table -
2 Vacuum-Charge Valve Body 14007 3* Vacuum-Charge Valve Device 14005 4* Vacuum-Charge Valve Plug 14006 7* Solid Core Drier 14084
Parts for Air-Cooled Version Only
Rif.
Ref. Spare Description Code
6 Sucking Fan 20407
8 Air Condenser 20675
Parts for Water-Cooled Version Only
Descrizione Ricambio
Ref. Spare Description Code
5 Pressostatic Valve 20210
6 Sucking Fan 10213
9 Water Condenser 14507
Ref. 1 - Compressor
Voltage Code
T11 23984
9
7
8
T15 23999
Page 8
TM 450
1° Version
Till s/n. 658902

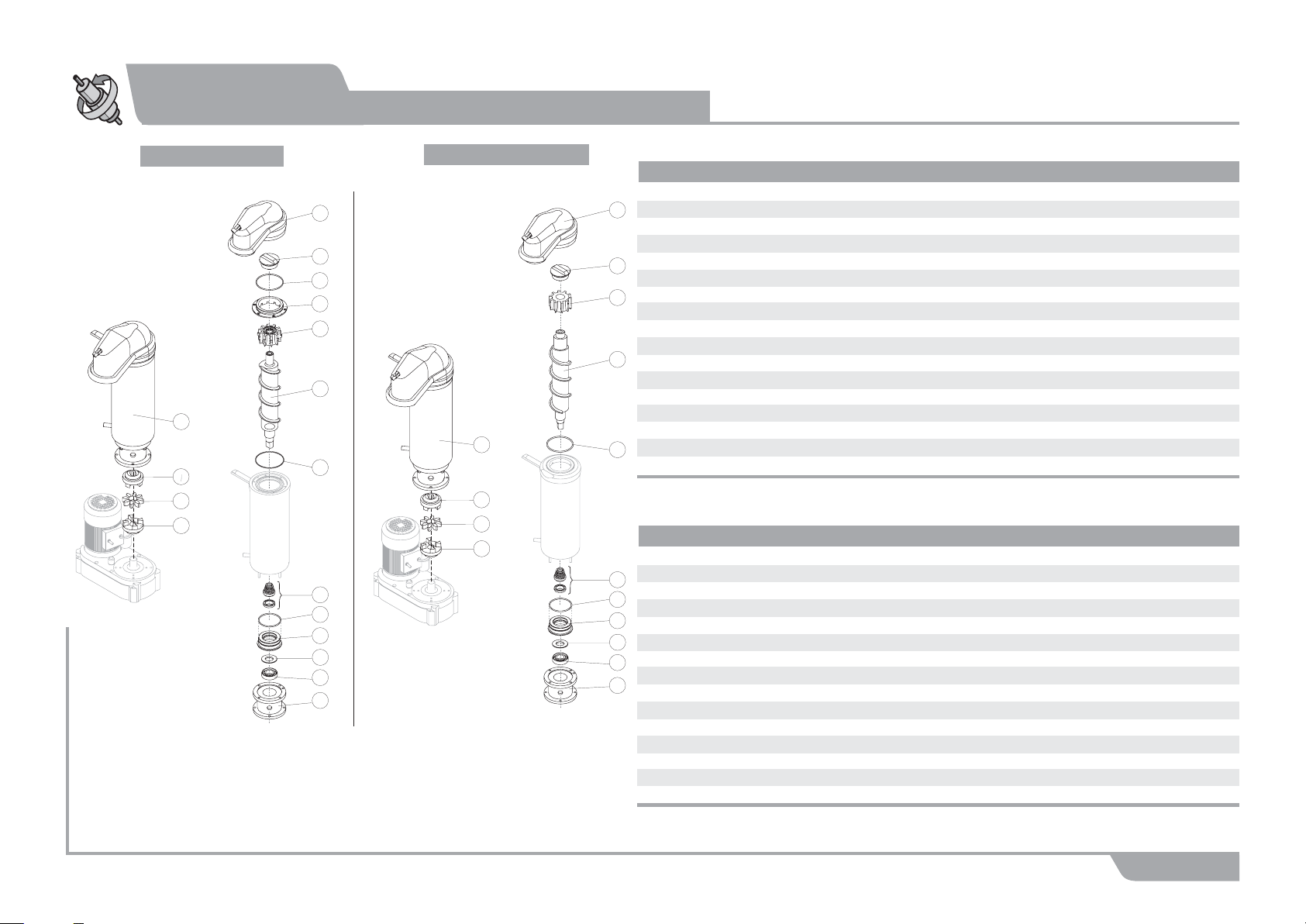

EVAPORATOR
Current Version
14
13
12
11
Rev. 6 - 04/03/2014
17
16
15
10
Till s/n. 585283
Ref. Spare Description (Current Version) Code
1 Ice Exhoust with Micro Assy C11169 2 Ice Breaker 20948
1
2
5
3
4
14
13
12
11
6
7
8
9
1
3 Extruder with bearings C201013 4 Auger 201015 5 OR Gasket 4400 20955
2
6 Ceramic Seal 20643 7 OR Gasket 4312 NBR70 20205
3
8 Reduction Ring 201016 9 Bearing 201017
10 Flange 20644
4
11 Lower Joint D20 493 12 Elastomer 20494 13 Upper Joint D2 0642 14 Evaporator Assy C11171 15 Nilos Ring 201018 16 OR Gasket 3425 201019
5
17 Extruder cover 201014
Ref. Spare Description (Till s/n. 585283) Code
1 Ice Exhoust with Micro Assy C11163 2 Ice Breaker 20948
6
3 Extruder with bushing C20 949
7
4 Auger 20947
8
5 OR Gasket 4400 20955 6 Ceramic Seal 20643
15
7 OR Gasket 4312 NBR70 20205
9
8 Reduction Ring 20647
10
9 Bearing 20954
10 Flange 20644
11 Lower Joint D20 493 12 Elastomer 20494 13 Upper Joint D2 0642 14 Evaporator Assy C11160 15 Nilos Ring From s/n. 519637 20996
Page 9
TM 450
4
3
5
2
6
4
5
1° Version
2
Till s/n. 658902
3
HYDRAULIC CIRCUIT
Common Parts
Ref. Spare Description Code
1 Double Switch Basin 10145 2 Microswitch 23055
3* Double Switch Basin Assembly C10 314
4 Basin Support Plate 21133 6 Ice Outlet Pipe Assy Current Version C10620 6 Ice Outlet Pipe Assy Till s/n. 606127 C10592
Parts for Air-Cooled Version Only
Rif.
Ref. Spare Description Code
5 Discharges Manifold 10579
Descrizione Ricambio
Rev. 6 - 04/03/2014
Parts for Water-Cooled Version Only
Ref. Spare Description Code
5 Discharges Manifold C10053
6
Page 10
1
3
13
2
10
4
12
7
8
5
6
9
11
12
TM 450
13
1° Version
1
Till s/n. 658902
2

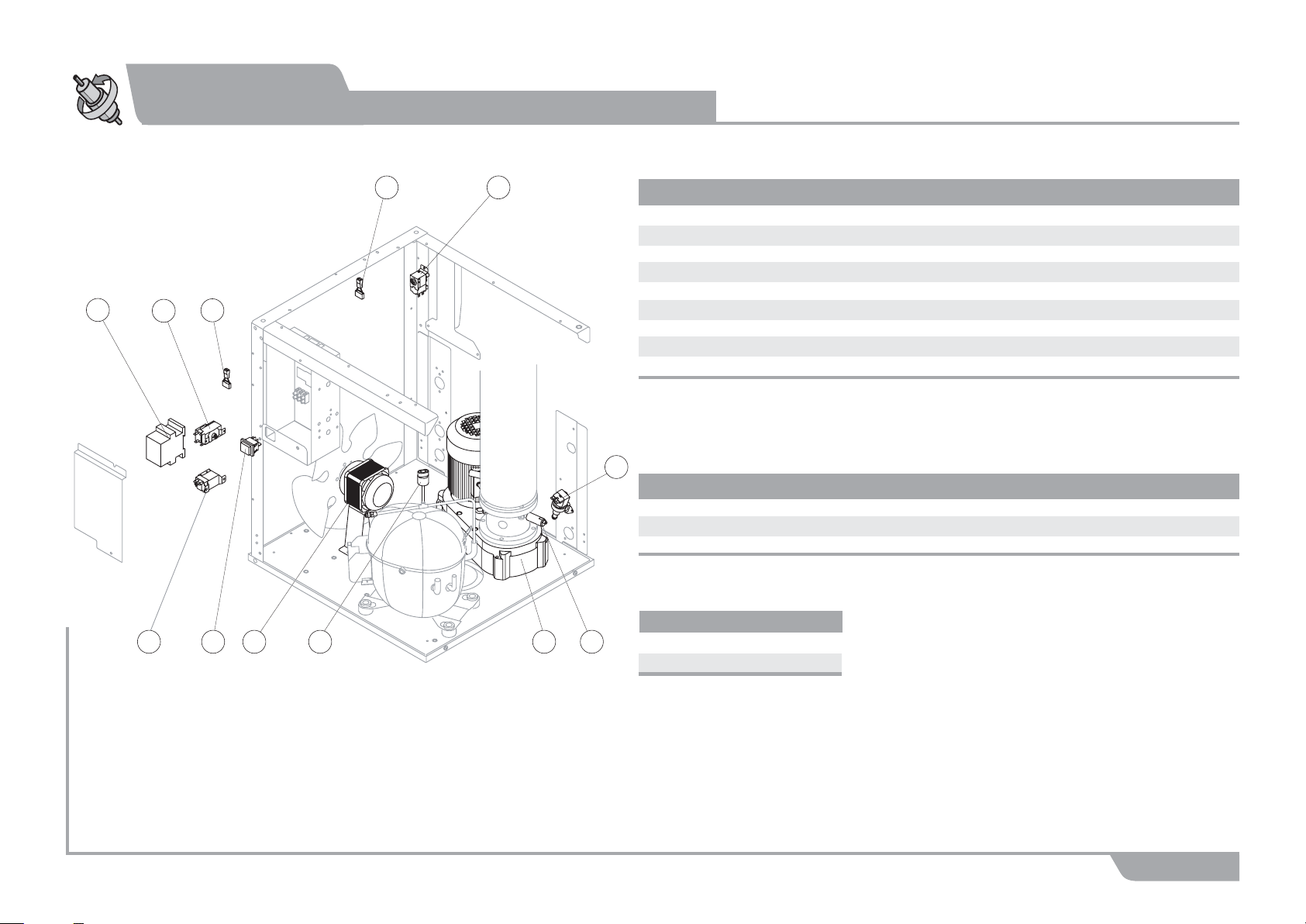

ELECTRIC PARTS
Common Parts
Ref. Spare Description Code
1 Anti Radio Interference Filter C23 4 5 7 3* 1 Way- Water Inlet Valve 23115 4* Rotation Sensor R231028 5* Bin Thermostat Current Version R231035 5* Bin Thermostat Till s/n. 606127 R23 421 8* Contactor 23147 9* Green Light Switch (On-Off) 23327
10 Gearmotor 23638 11 Low pressure safety switch 23909 12 Safety Pressure Switch 23342
3
Parts for Air-Cooled Version Only
4
Ref. Spare Description Code
6* Condenser Pressure Switch 23175
7 Anti Radio Interference Filter C23 4 5 9
13* Fan Motor 23121
Rev. 6 - 04/03/2014
10
11
9
8
7
5
6
Parts for Water-Cooled Version Only
Ref. Spare Description Code
2* 1 Way- Water Inlet Nipple 10368
13* Fan Motor 23029
Page 11
