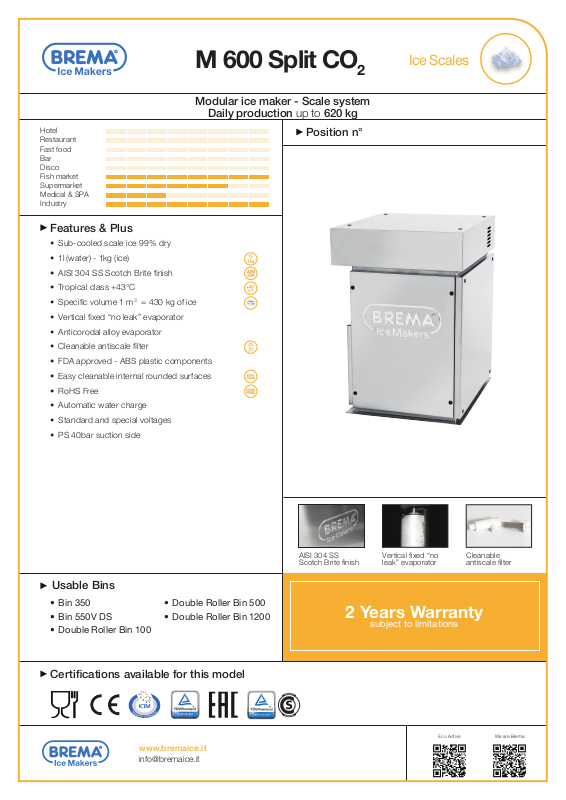

Brema Split 600 CO2 User manual

M 600 Split CO

2

Modular ice maker - Scale system

Daily production up to 620 kg

Ice Scales

Hotel
Restaurant
Fast food
Bar
Disco
Fish market
Supermarket
Medical & SPA
Industry

Features & Plus

• Sub-cooled scale ice 99% dry

• 1l (water) - 1kg (ice)

• AISI 304 SS Scotch Brite nish

• Tropical class +43°C

• Specic volume 1 m

• Vertical xed “no leak” evaporator

• Anticorodal alloy evaporator

• Cleanable antiscale lter

• FDA approved - ABS plastic components

• Easy cleanable internal rounded surfaces

• RoHS Free

• Automatic water charge

• Standard and special voltages

• PS 40bar suction side

3

= 430 kg of ice

Position n°

Usable Bins

• Bin 350

• Bin 550V DS

• Double Roller Bin 100

• Double Roller Bin 500

• Double Roller Bin 1200

Certications available for this model

www.bremaice.it

[e-mail]

AISI 304 SS
Scotch Brite nish

2 Years Warranty

Vertical xed “no
leak” evaporator

subject to limitations

Eco Active We are Brema

Cleanable
antiscale lter

705 mm

27 12/16"

Ice Scales

588 mm

23 2/16"

H

M 600 Split CO

2

Modular ice maker - Scale system

Daily production up to 620 kg

Working conditions

• Location: Indoor

495 mm

19 8/16"

Ambient temperature

Water temperature

Voltage

Water inlet pressure

Min Max

+10° C / +50° F

+3° C / +37° F

-10%

1bar (14 psi)

+43° C / 110° F

+32° C / +90° F

+10 %

6bar (84 psi)

L

3

1

2

Technical information

Production in 24h

Refrigerant

Refrigerant capacity

PS suction line

Water consumption

Standard voltage

Average power consumption

P

5

4

620 kg / 1367 lbs

CO2 (R74 4) 19 8/16 - 23 2/16 - 27 12/16

3500 W (evap. temp. -23° C)

580 PSI - 40bar

1 l/kg - 12,0 gal/100 lbs

220-240 V ~ 50 Hz

180 W

Connections

1

Water inlet

Water outlet

2

Electrical connection

3

Refrigerant feeding pipe

4

Outlet pipe of gaseous refrigerant

5

Sizes (L-P-H mm)

(L-P-H in)

Sizes with pack (L-P-H mm)

(L-P-H in)

Net weight

Gross weight

Finishing

495 - 588 - 705

550 - 655 - 900

21 10/16 - 25 13/16 - 35 7/16

73 kg / 161 lbs

89 kg / 196 lbs

AISI 304 stainless steel, scotch brite

All the technical information need to be considered at the following conditions:
Refrigerant capacity 3500 W (evap. temp. -23° C)
Water temperature +15° C
Average power consumption at +43° C (standard voltage)

Models and specications are subject to change without notice

www.bremaice.it

[e-mail]

Rev. 04 - Issued Settembre 2019
