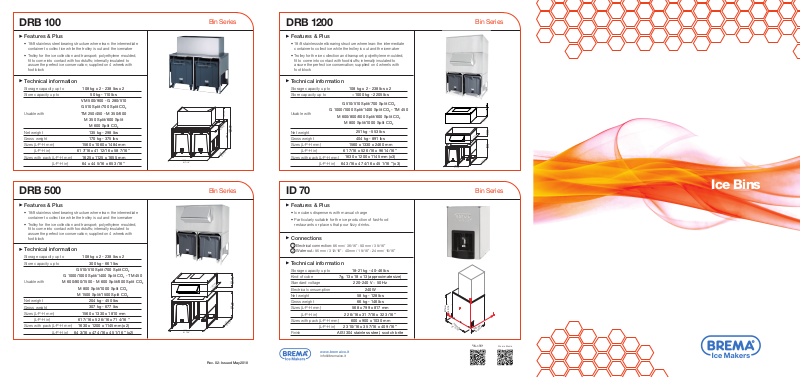

Brema DRB 100, DRB 1200, ID 70, DRB 500, Bin 240 PE Datasheet
...
DRB 100
61 7/16"
Bin Series
DRB 1200
Bin Series
Features & Plus
• 18/8 stainless steel bearing structure where lean: the intermediate
container to collect ice while the trolley is out and the icemaker
• Trolley for the ice collection and transport; polyethylene moulded,
t to come into contact with foodstuffs; internally insulated to
assure the perfect ice conservation; supplied on 4 wheels with
foot block
Technical information
Storage capacity up to
Store capacity up to
Usable with
Net weight
Gross weight
Sizes (L-P-H mm)
(L-P-H in)
Sizes with pack (L-P-H mm)
(L-P-H in)
108 kg x 2 - 238 lbs x 2
50 kg - 110 lbs
VM 500/900 - G 280/510
G 510 Split/700 Split CO
2
TM 250/450 - M 350/600
M 350 Split/600 Split
M 600 Split CO
2
135 kg - 298 lbs
170 kg - 375 lbs
1560 x 1060 x 1484 mm
61 7/16 x 41 12/16 x 58 7/16 ”
1625 x 1125 x 1655 mm
64 x 44 5/16 x 65 3/16 ”
1320 mm - 51 15/16"
OPEN CLOSED OPEN CLOSED
1560 mm
61 7/16"
619 mm
24 6/16"
1060 mm
41 12/16"
970 mm
38 3/16"
500 mm
19 11/16"
984 mm
1484 mm
38 12/16"
58 7/15"
Features & Plus
• 18/8 stainless steel bearing structure where lean: the intermediate
container to collect ice while the trolley is out and the icemaker
• Trolley for the ice collection and transport; polyethylene moulded,
t to come into contact with foodstuffs; internally insulated to
assure the perfect ice conservation; supplied on 4 wheels with
foot block
Technical information
Storage capacity up to
Store capacity up to
Usable with
G 1000/1000 Split/1400 Split CO2 - TM 450
Net weight
Gross weight
Sizes (L-P-H mm)
(L-P-H in)
Sizes with pack (L-P-H mm)
(L-P-H in)
108 kg x 2 - 238 lbs x 2
≈ 1000 kg - 2205 lbs
G 510/510 Split/700 Split CO
2
M 600/800/600 Split/600 Split CO
M 800 Split/1000 Split CO
2
251 kg - 553 lbs
404 kg - 891 lbs
1560 x 1330 x 2460 mm
61 7/16 x 52 6/16 x 96 14/16 ”
1630 x 1200 x 1145 mm (x3)
64 3/16 x 47 4/16 x 45 1/16 ” (x3)
2
1560 mm
61 7/16"
1330 mm
52 6/16"
1070 mm
42 2/16"
1070 mm
42 2/16"
30 mm
650 mm
800 mm
950 mm
25 9/16"
31 8/16"
37 6/16"
DRB 500
Features & Plus
• 18/8 stainless steel bearing structure where lean: the intermediate
container to collect ice while the trolley is out and the icemaker
• Trolley for the ice collection and transport; polyethylene moulded,
t to come into contact with foodstuffs; internally insulated to
assure the perfect ice conservation; supplied on 4 wheels with
foot block
Technical information
Storage capacity up to
Store capacity up to
G 1000/1000 Split/1400 Split CO2 - TM 450
Usable with
M 600/800/1500 - M 600 Split/600 Split CO
Net weight
Gross weight
Sizes (L-P-H mm)
(L-P-H in)
Sizes with pack (L-P-H mm)
(L-P-H in)
108 kg x 2 - 238 lbs x 2
300 kg - 661 lbs
G 510/510 Split/700 Split CO
M 800 Split/1000 Split CO
M 1500 Split/1500 Split CO
204 kg - 450 lbs
307 kg - 677 lbs
1560 x 1330 x 1810 mm
61 7/16 x 52 6/16 x 71 4/16 ”
1630 x 1200 x 1145 mm (x2)
64 3/16 x 47 4/16 x 45 1/16 ” (x2)
Bin Series
ID 70
Features & Plus
• Ice cubes dispensers with manual charge
• Particularly suitable for the ice production of fast-food
restaurants or places that pour zzy drinks.
Connections
1
Electrical connection: 86 mm / 3 6/16” - 90 mm / 3 9/16”
2
Water out.: 95 mm / 3 12/16” - 40 mm / 1 9/16” - 24 mm / 15/16”
Technical information
2
830 mm
1070 mm
42 2/16"
32 11/16"
950 mm
37 6/16"
2
2
2
1560 mm
1330 mm
52 6/16"
Storage capacity up to
Kind of cube
Standard voltage
Electrical consumption
Net weight
Gross weight
Sizes (L-P-H mm)
(L-P-H in)
Sizes with pack (L-P-H mm)
(L-P-H in)
Finish
18-21 kg - 40-46 lbs
7g, 13 x 18 x 13 (approximate size)
220-240 V ~ 50 Hz
240 W
58 kg - 128 lbs
66 kg - 146 lbs
568 x 799 x 817 mm
22 6/16 x 31 7/16 x 32 3/16 ”
600 x 900 x 1030 mm
23 10/16 x 35 7/16 x 40 9/16 ”
AISI 304 stainless steel, scotch brite
817mm
P
32 3/16"
799 mm
31 7/16"
P
Bin Series
H
568 mm
22 6/16"
L
Ice Bins
Rev. 02 - Issued May 2018
www.bremaice.it
info@bremaice.it
Bim + Data
download
We are Brema
Bin 240 PE
Bin Series
Bin 200
Bin Series
Bin 550V DS
Bin Series
Features & Plus
• Polyethylene moulded, t to come into contact with foodstuffs
• Highly insulated, avoid the ice melting for a long time
Technical information
Storage capacity up to
Usable with
G 700 Split CO2 - TM 140/250/450
Net weight
Gross weight
Sizes (L-P-H mm) *
(L-P-H in)
Sizes with pack (L-P-H mm)
(L-P-H in)
Sizes without feet
* Adjustable foot 100-160 mm
180 kg - 397 lbs
C 150 - VM 350/500/900
G 160/280/510/510 Split
64 kg - 141 lbs
79 kg - 174 lbs
942 x 795 x 1053 mm
37 1/16 x 31 5/16 x 41 7/16 ”
1035 x 885 x 1275 mm
40 12/16 x 34 13/16 x 50 3/16 ”
942 mm
37 1/16"
795 mm
31 5/16"
41 7/16"
1053 mm
100-160 mm
3 15/16 - 6 15/16"
Features & Plus
• Frame completely in stainless steel 18/8 scotch brite
• Inside tank in polyethylene, suitable to get into
contact with foodstuff and simple to clean
• Highly insulate, avoid the ice melting for a long time
Technical information
Storage capacity up to
Usable with
Net weight
Gross weight
Sizes (L-P-H mm) *
(L-P-H in)
Sizes with pack (L-P-H mm)
(L-P-H in)
Sizes without feet
* Adjustable foot 100-160 mm
G 160/280/510/510 split/700 split CO2
200 kg - 441 lbs
C 150 - VM 350/500/900
TM 140/250/450 - M 250
74 kg - 163 lbs
93 kg - 205 lbs
870 x 790 x 1000 mm
34 4/16 x 31 2/16 x 39 6/16 ”
920 x 840 x 1210 mm
36 4/16 x 33 1/16 x 47 10/16 ”
870 mm
34 7/16"
100-160 mm
3 15/16 - 6 15/16"
790 mm
31 2/16"
39 6/16"
1000 mm
Features & Plus
• Made of AISI 304 scotch brite 18/8 stainless steel,
with effective insulation that provides long-lasting
prevention of ice melting
• Vertical design, equipped with 2 doors to facilitate
removal of the ice
Technical information
Storage capacity up to
Usable with
G 1000/1000 Split/1400 Split CO2 - TM 450
M 600/800 Split - M 600/1000 Split CO
Net weight
Gross weight
Sizes (L-P-H mm)
(L-P-H in)
Sizes with pack (L-P-H mm)
(L-P-H in)
M 350/600/800/1500 - M 350 Split
550 kg - 1213 lbs
550 kg - 1213 lbs
G 510/510 Split/700 Split CO
M 1500 Split/1500 Split CO
163 kg - 359 lbs
177 kg - 390 lbs
1110 x 1060 x 1915 mm
43 11/16 x 41 12/16 x 75 6/16 ”
1280 x 1235 x 1960 mm
50 6/16 x 48 10/16 x 77 3/16 ”
2
2
2
1670 mm
65 12/16"
1060 mm
41 12/16"
800 mm
31 8/16"
205 mm
8 1/16"
1110 mm
43 11/16"
Bi n 110
Features & Plus
• Frame completely in stainless steel 18/8 scotch brite
• Inside tank in polyethylene, suitable to get into
contact with foodstuff and simple to clean
• Highly insulated, avoid the ice melting for a long time
Technical information
Storage capacity up to
Usable with
Net weight
Gross weight
Sizes (L-P-H mm) *
(L-P-H in)
Sizes with pack (L-P-H mm)
(L-P-H in)
Sizes without feet
* Adjustable foot 100-160 mm
100 kg - 220 lbs
VM 350 - G 160/280/510
G 510 Split/700 Split CO2
TM 140/250/450
53 kg - 117 lbs
65 kg - 143 lbs
560 x 815 x 1000 mm
22 x 32 1/16 x 39 6/16 ”
620 x 880 x 1175 mm
24 7/16 x 34 10/16 x 46 4/16 ”
560 mm
22"
Bin Series
815 mm
32 1/16"
39 6/16"
1000 mm
100-160 mm
3 15/16 - 6 15/16"
Bin 350
Features & Plus
• Frame completely in stainless steel 18/8 scotch brite
• Inside tank in polyethylene, suitable to get into
contact with foodstuff and simple to clean
• Highly insulate, avoid the ice melting for a long time
Technical information
Storage capacity up to
C 150/300/300 Split - VM 500/900/1700
Usable with
M 350 Split/600 Split - M 600 Split CO
Net weight
Gross weight
Sizes (L-P-H mm) *
(L-P-H in)
Sizes with pack (L-P-H mm)
(L-P-H in)
Sizes without feet
* Adjustable foot 100-160 mm
G 280/510/510 Split/700 Split CO2
350 kg - 772 lbs
TM 250/450 - M 250/350/600
105 kg - 231 lbs
126 kg - 278 lbs
1250 x 790 x 1000 mm
49 3/16 x 31 2/16 x 39 6/16 ”
1300 x 850 x 1180 mm
51 1/5 x 33 7/16 x 46 7/16 ”
Bin Series
Roller Bin 100
Bin Series
Features & Plus
• 18/8 stainless steel bearing structure where lean: the intermediate
container to collect ice while the trolley is out and the icemaker
• Trolley for the ice collection and transport; polyethylene moulded,
t to come into contact with foodstuffs; internally insulated to
assure the perfect ice conservation; supplied on 4 wheels with
foot block
Technical information
Storage capacity up to
Store capacity up to
Usable with
2
Net weight
Gross weight
39 6/16"
1000 mm
Sizes (L-P-H mm)
(L-P-H in)
Sizes with pack (L-P-H mm)
1250 mm
49 3/16"
790 mm
100-160 mm
3 15/16 - 6 15/16"
31 2/16"
(L-P-H in)
108 kg - 238 lbs
17 kg - 37 lbs
G160/280/510/510 Split
G700 Split CO
2
TM 140/250/450
64 kg - 141 lbs
80 kg - 176 lbs
795 x 1060 x 1284 mm
31 5/16 x 41 12/16 x 50 9/16 ”
860 x 1125 x 1145 mm
33 14/16 x 44 5/16 x 45 1/16 ”
676 mm - 26 10/16"
OPEN CLOSED
795 mm
31 5/16"
587mm
23 2/16"
1060 mm
41 12/16"
970 mm
301,5mm
38 3/16"
11 14/16"
984 mm
1284 mm
38 12/16"
50 15/16"
Rev. 02 - Issued May 2018
