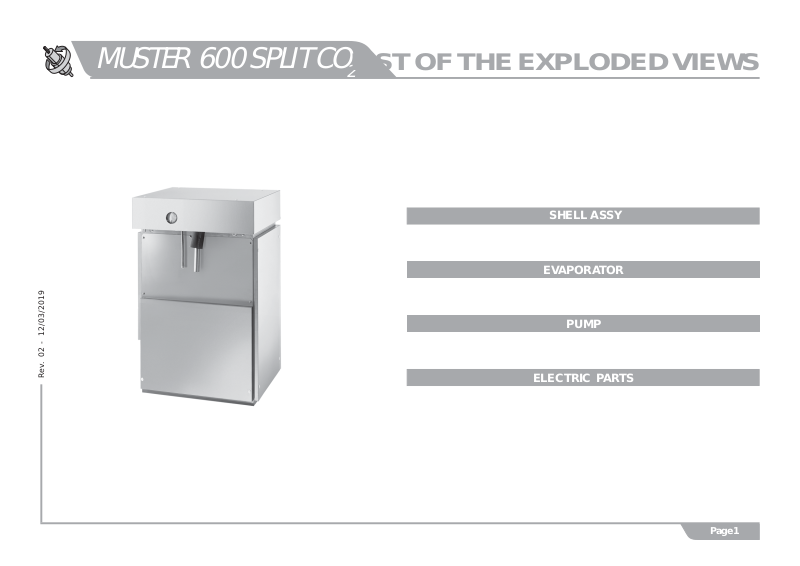

Page 1
MUSTER 600 SPLIT CO
INVOLUCRO
LIST OF THE EXPLODED VIEWS
2
SHELL ASSY
EVAPORATOR
PUMP
Rev. 02 - 12/03/2019
ELECTRIC PARTS
Page 1
Page 2
MUSTER 600 SPLIT CO
2
Ref. Spare Description Code
1
5
1 T op Assembly C22990
2 Right Side Panel 22425
3 Front Panel 22469
4 Left Side Panel 22989
5 Rear Panel 22991
2
SHELL ASSY
Rev. 02 - 12/03/2019
4
3
Page 2
Page 3
MUSTER 600 SPLIT CO
25
22
Rev. 02 - 12/03/2019
2
1
EVAPORATOR
Ref. Spare Description Code
2
3
4
1 Gearmotor Assy C23412
2 Key 6x6x40 20350
3 Pinion with Shaft for Gearmotor C20344
4 Cylinder Locking Ring Nut 20324
5
26
24
4
5
6
23
6
7
5 Ring Gear 20354
6 Scraper 20866
7 Tie Rod (to Block Scraper) 20865
8 Stainless S teel Bearing 20531
9 Silicone OR 4081 Gasket 20338
10 Stainless S teel Bearing 20045
8
22
7
14
9
15
9
16
9
10
11
12
13
14
9
15
9
16
1 1 Rotating Basin 10184
12 Ring Nut for Rotating Ring 10182
13 Spacer 10519
14 Fixed Basin C10598
15 Water Inlet Ring 20851
16 Screw 20849
19 Evaporator Chamber Shield 10522
2 0 1 Way- Water Inlet Nipple 10368
21 Discharges Manifold 10580
22 Complete Rotating Ring C10180
23 Joint 20335
24 Sprayer Ring C20867
19
25 Evaporator C1 1149
26 Ring Gear Cover C10629
20
21
Page 3
Page 4
MUSTER 600 SPLIT CO
1
2
3
5
6
7
8
9
10
11
13
14
1
2
3
5
14
6
2
PUMP
Ref. Spare Description Code
1 Pump Motor R23073
2 Heat Dissipator 22430
3 Pump Filter Gasket 13080
5 Pump Motor Support 10161
6 Pump-Filter Connection Pipe 13084
7 Pump Body 10065
8 Pump Impeller 10190
9 Diffusor 10067
10 Water Pump Basin Cover 22420
1 1* Floating V alve 10188
13 Connection 20799
14 * Pump and Filter Assy C26736
Rev. 02 - 12/03/2019
13
7
8
9
10
11
Page 4
Page 5
MUSTER 600 SPLIT CO
2
Ref. Spare Description Code
1* Contactor 23594
2 Microswitch for Ice Overflow 23746
3* Bin Thermostat R23005
4 Electronic delay timer 231033
5 Relay 23190
5
3
ELECTRIC P ARTS
4
Rev. 02 - 12/03/2019
2
1
Page 5
