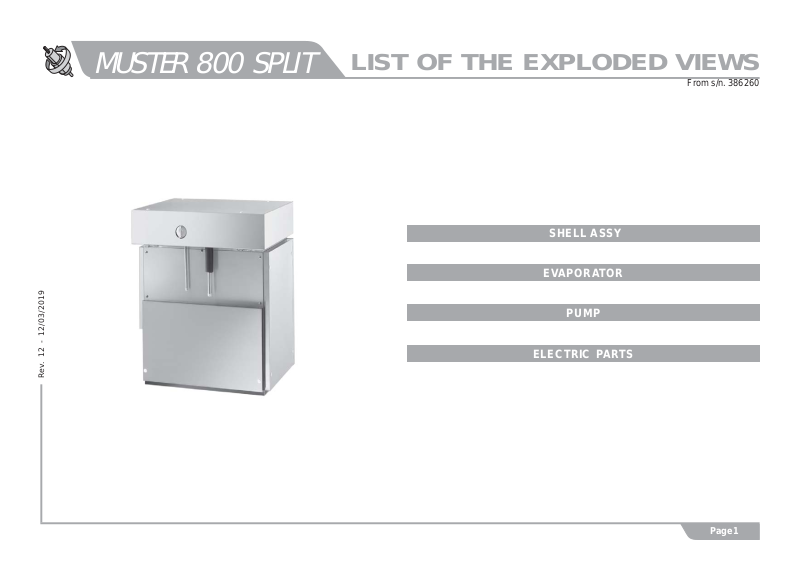

MUSTER 800 SPLIT
INVOLUCRO
LIST OF THE EXPLODED VIEWS
From s/n. 386260
SHELL ASSY
EVAPORATOR
PUMP
Rev. 12 - 12/03/2019
ELECTRIC PARTS
Page 1
MUSTER 800 SPLIT
SHELL ASSY
5
Rev. 12 - 12/03/2019
2
3
Ref. Spare Description Code
1 Front Panel 22474
2 T op Assemby C22966
3 Right Side Panel 22445
4 Left Side Panel 22963
5 Rear Panel 22965
4
1
Page 2
MUSTER 800 SPLIT
1
EVAPORATOR
24
4
5
6
21
Rev. 12 - 12/03/2019
7
12
9
14
9
15
2
3
4
5
25
23
Ref. Spare Description Code
1 Gearmotor Assy C23412
2 Key 6x6x40 20350
3 Pinion with Shaft for Gearmotor C20344
4 Cylinder Locking Ring Nut 20365
5 Ring Gear 20363
6 Scraper 20358
7 M10 Tie Rod (to Block Scraper) 20369
22
6
8 St ainless Steel Bearing 20045
9 Silicone OR 4081 in Ring 20338
10 Rotating Basin 10191
1 1 Ring Nut for Rotating Ring 10194
7
8
9
21
8
10
11
12
13
9
14
9
15
16
17
12 Spacer 10528
13 Fixed Basin C10599
14 Water Inlet Ring 20851
15 Screw 20872
16 Expansion V alve 20734
17 Orifice Current Version 20944
17 Orifice Till s/n. 470848 20733
18 Evaporator Chamber Shield 10531
1 9 1 Way- Water Inlet Nipple 10368
20 Discharge Manifold 10580
21 Complete Rotating Ring C10193
22 Joint 20367
23 Sprayer Ring C20357
24 Evaporator C1 1150
25 Ring Gear Cover From s/n. 556448 C10631
18
20
19
Page 3
MUSTER 800 SPLIT
1
2
3
5
6
7
8
9
12
13
17
14
PUMP
14
Rev. 12 - 12/03/2019
17
1
2
3
5
6
7
8
9
12
13
Ref.
1 Pump See Table
2 Heat Dissipator 22430
3 Pump Filter Gasket 13080
5 Pump Motor Support 10161
6 Pump-Filter Connection Pipe 13084
7 Pump Body 10065
8 Pump Impeller 10138
9 Diffusor 10067
12 Water Pump Basin Cover 22420
13* Floating V alve 10188
14 * Pump and Filter Assy See Table
17 Connection 20799
Ref. 1 - Pump
Tension
220-240V ~ 50Hz
220-230V ~ 60Hz
R23073
23187
Spare Description
Code
Ref. 14* - Pump and Filter Assy
Tension
220-240V ~ 50Hz
220-230V ~ 60Hz
Code
C26738
C26739
Code
Page 4
MUSTER 800 SPLIT
ELECTRIC P ARTS
3
Rev. 12 - 12/03/2019
Ref.
1* Contactor 23594
2 Microswitch for Overflow Ice 23746
3* Bin Thermostat R23005
2
Spare Description
Code
1
Page 5
