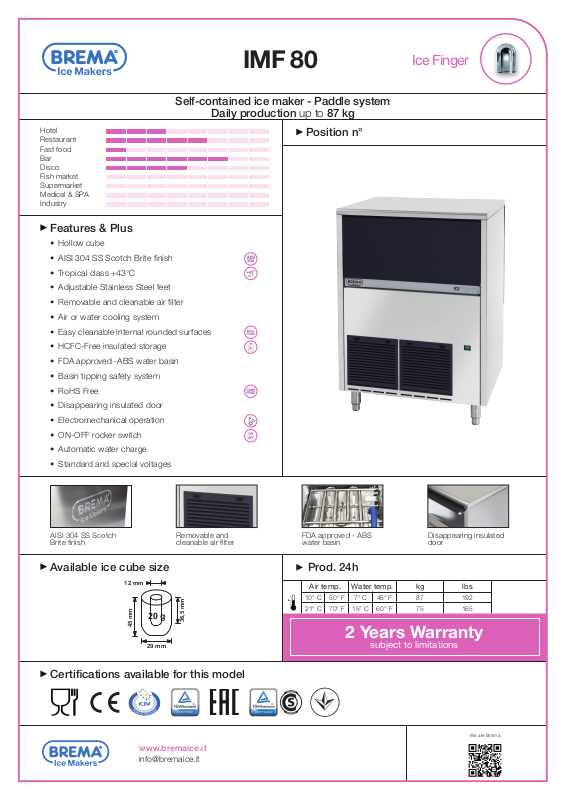

Brema IMF 80 Datasheet
IMF 80
Self-contained ice maker - Paddle system
Daily production up to 87 kg
Ice Finger
Hotel
Restaurant
Fast food
Bar
Disco
Fish market
Supermarket
Medical & SPA
Industry
Features & Plus
• Hollow cube
• AISI 304 SS Scotch Brite nish
• Tropical class +43°C
• Adjustable Stainless Steel feet
• Removable and cleanable air lter
• Air or water cooling system
• Easy cleanable internal rounded surfaces
• HCFC-Free insulated storage
• FDA approved -ABS water basin
• Basin tipping safety system
• RoHS Free
• Disappearing insulated door
• Electromechanical operation
• ON-OFF rocker switch
• Automatic water charge
• Standard and special voltages
Position n°
AISI 304 SS Scotch
Brite nish
Removable and
cleanable air lter
Available ice cube size
12 mm
20 g
45 mm
29 mm
36,5 mm
Certications available for this model
www.bremaice.it
info@bremaice.it
FDA approved - ABS
water basin
Prod. 24h
Air temp.
10° C
21° C
Water temp. kg
7° C
50° F
15° C
70° F
2 Years Warranty
Disappearing insulated
door
45° F
60° F
87 192
75 165
subject to limitations
lbs
We are Brema
Ice Finger
IMF 80
Self-contained ice maker - Paddle system
Daily production up to 87 kg
Working conditions
907 mm
35 11/16"
P
735 mm
28 15/16"
110-150 mm
4 5/16-5 14/16"
H
2
596 mm
23 7/16"
3
1
• Location: Indoor
Min Max
Ambient temperature
Water temperature
Voltage
Water inlet pressure
+10° C / +50° F
+3° C / +37° F
-10%
1bar (14 psi)
+43° C / 110° F
+32° C / +90° F
+10 %
6bar (84 psi)
L
Performances
Water temperature
7° C
87 kg
10° C
50° F
21° C
70° F
32° C
Air temperature
90° F
15° C 21° C45° F 60° F 70° F
192 lbs
75 kg
165 lbs
60 kg
132 lbs
Connections
All measures are referred to the rear bottom-left corner (L-H-Ø)
1
Water in.: 116 mm / 4 9/16” - 285 mm / 11 4/16” - 3/4”
3
Electrical connections: 161 mm / 6 5/16” - 321 mm / 12 10/16”
2
Water out.: 54 mm / 2 2/16” - 240 mm / 9 7/16” - 24 mm / 15/16”
Technical information
Production in 24h
Store capacity, up to
Cooling system
Kind of cube
Refrigerant
Standard voltage
Average power consumption
Fuse
Finish
All the technical information must be considered at the following conditions:
Sizes without feet
Standard Cube (20 g)
Ambient temperature +21° C
Water temperature +15° C
Average power consumption at +43° C (standard voltage)
AISI 304 stainless steel, scotch brite
75 kg / 165 lbs
30 kg / 66 lbs
A - W
A-20g
R404A - R452A
220-240 V ~ 50 Hz
480 W
10 A
Water consumption
Sizes (L-P-H mm)
(L-P-H in)
Sizes with pack (L-P-H mm)
(L-P-H in)
Net weight
Gross weight
A: 3,3 l/kg - 39,5 gal/100 lbs
W: 10,5 l/kg - 125,8 gal/100 lbs
735 - 596 - 907
28 15/16 - 23 7/16 - 35 11/16
780 - 640 - 1085
30 11/16 - 25 3/16 - 42 11/16
75 kg / 165 lbs
87 kg / 192 lbs
Models and specications are subject to change without notice
www.bremaice.it
info@bremaice.it
Rev. 04 - Issued September 2 019
