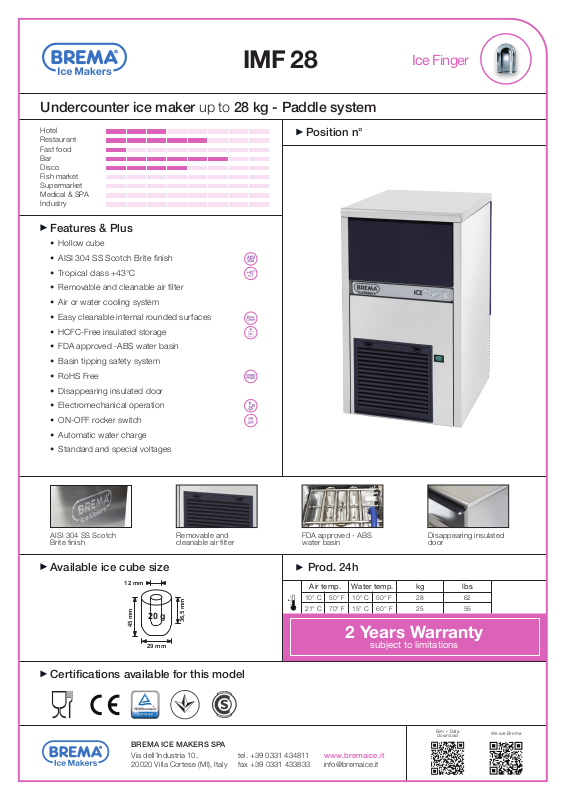

IMF 28 |
|
|
|
Ice Finger |
|
|
Undercounter ice maker up to 28 kg - Paddle system |
|
|
|
||||||
Hotel |
|
|
Position n° |
|
|
|
|
||
Restaurant |
|
|
|
|
|
|
|
|
|
Fast food |
|
|
|
|
|
|
|
|
|
Bar |
|
|
|
|
|
|
|
|
|
Disco |
|
|
|
|
|
|
|
|
|
Fish market |
|
|
|
|
|
|
|
|
|
Supermarket |
|
|
|
|
|
|
|
|
|
Medical & SPA |
|
|
|
|
|
|
|
|
|
Industry |
|
|
|
|
|
|
|
|
|
Features & Plus |
|
|
|
|
|
|
|
|
|
• Hollow cube |
|
|
|
|
|
|
|
|
|
• AISI 304 SS Scotch Brite finish |
|
|
|
|
|
|
|
|
|
• Tropical class +43°C |
|
|
|
|
|
|
|
|
|
• Removable and cleanable air filter |
|
|
|
|
|
|
|
||
• Air or water cooling system |
|
|
|
|
|
|
|
|
|
• Easy cleanable internal rounded surfaces |
|
|
|
|
|
|
|
||
• HCFC-Free insulated storage |
|
|
|
|
|
|
|
|
|
• FDA approved -ABS water basin |
|
|
|
|
|
|
|
||
• Basin tipping safety system |
|
|
|
|
|
|
|
|
|
• RoHS Free |
|
|
|
|
|
|
|
|
|
• Disappearing insulated door |
|
|
|
|
|
|
|
|
|
• Electromechanical operation |
|
|
|
|
|
|
|
|
|
• ON-OFF rocker switch |
|
|
|
|
|
|
|
|
|
• Automatic water charge |
|
|
|
|
|
|
|
|
|
• Standard and special voltages |
|
|
|
|
|
|
|
|
|
AISI 304 SS Scotch |
|
Removable and |
FDA approved - ABS |
|
|
Disappearing insulated |
|||
Brite finish |
|
cleanable air filter |
water basin |
|
|
|
door |
|
|
Available ice cube size |
|
Prod. 24h |
|
|
|
|
|||
12 mm |
|
|
Air temp. |
Water temp. |
kg |
lbs |
|
||
|
|
|
|
||||||
|
|
<![if ! IE]> <![endif]>36,5 mm |
10° C |
50° F |
10° C |
50° F |
28 |
62 |
|
<![if ! IE]> <![endif]>45 mm |
20 g |
21° C |
70° F |
15° C |
60° F |
25 |
55 |
|
|
|
|
2 Years Warranty |
|
||||||
|
|
|
|
||||||
|
|
|
|
|
|
||||
|
29 mm |
|
|
|
subject to limitations |
|
|||
Certifications available for this model |
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
Bim + Data |
We are Brema |
|
|
|
|
|
|
|
|
download |
|
|
|
|
|
|
|
|
|
|
|
BREMA ICE MAKERS SPA |
|
|
|
|
|
|
|
||
Via dell’Industria 10, |
tel. +39 0331 434811 |
www.bremaice.it |
|
|
|
||||
20020 Villa Cortese (MI), Italy |
fax +39 0331 433833 |
info@bremaice.it |
|
|
|
|
Ice Finger |
IMF 28 |
|
|
|
|
|
|
|
|
|
Undercounter ice maker up to 28 kg - Paddle system
|
|
|
|
|
|
Working conditions |
|
|
|
|||
|
|
|
|
|
|
• Location: Indoor |
|
|
|
|
||
|
385 |
mm |
468 |
|
|
|
|
|
|
|
|
|
|
3/16" |
mm |
|
|
|
|
|
|
|
|||
|
15 |
|
|
|
|
|
|
|
||||
|
|
18 |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
7/16" |
|
|
|
|
Min |
|
Max |
|
|
|
|
H |
|
|
Ambient temperature |
|
+10° C / +50° F |
+43° C / 110° F |
|||
|
|
|
|
|
Water temperature |
|
+3° C / +37° F |
+32° C / +90° F |
||||
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
Voltage |
|
|
-10% |
|
+10% |
|
|
|
|
|
|
|
Water inlet pressure |
|
1bar (14 psi) |
6bar (84 psi) |
|||
<![if ! IE]> <![endif]>687 mm |
<![if ! IE]> <![endif]>27 1/16" |
|
|
|
|
|
|
|
|
|
|
|
|
P |
|
|
|
L |
Performances |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
Water temperature |
|
|
||
|
|
|
|
|
|
|
|
10° C 50° F |
15° C |
60° F 21° C |
70° F |
|
|
|
|
|
3 |
|
<![if ! IE]> <![endif]>temperature |
10° C |
28 kg |
|
|
|
|
|
|
|
1 |
|
|
50° F |
62 lbs |
|
|
|
|
|
|
|
|
2 |
|
|
|
|
|
|
|||
|
|
|
|
|
21° C |
|
25 kg |
|
|
|
||
|
|
5 mm |
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
||
|
|
3/16" |
|
|
|
70° F |
|
|
55 lbs |
|
|
|
|
|
|
|
|
|
32° C |
|
|
17 kg |
|
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>Air |
|
|
|
|
||
|
|
|
|
|
|
90° F |
|
|
|
37 lbs |
|
|
|
|
|
|
|
|
|
|
|
|
|
Connections
All measures are referred to the rear bottom-left corner (L-H-Ø)
1 Water in.: 111 mm / 4 6/16” - 175 mm / 6 14/16” - 3/4” 2 Water out.: 49 mm / 1 15/16” - 130 mm / 5 2/16” - 24 mm / 15/16” 3 Electrical connections: 156 mm / 6 2/16” - 211 mm / 8 5/16”
Technical information
Production in 24h |
25 kg / 55 lbs |
|
|
|
|
Store capacity, up to |
8 kg / 18 lbs |
|
|
|
|
Cooling system |
A - W |
|
|
|
|
Kind of cube |
A-20g |
|
|
|
|
Refrigerant |
R404A |
|
|
|
|
Standard voltage |
220-240 V ~ 50 Hz |
|
|
|
|
Electrical consumption |
310 W |
|
|
|
|
Fuse |
10 A |
|
|
|
|
Finish |
AISI 304 stainless steel, scotch brite |
|
|
|
|
Water consumption |
A: 4,5 l/kg - 53,9 gal/100 lbs |
|
|
|
W: 15,5 l/kg - 185,7 gal/100 lbs |
|
|
Sizes (L-P-H mm) |
385 - 468 - 687 |
|
|
(L-P-H in) |
15 3/16 - 18 7/16 - 27 1/16 |
|
|
Sizes with pack (L-P-H mm) |
440 - 520 - 880 |
|
|
(L-P-H in) |
17 5/16 - 20 8/16 - 34 10/16 |
|
|
Net weight |
38 kg / 84 lbs |
|
|
Gross weight |
45 kg / 99 lbs |
|
|
All the technical information must be considered at the following conditions:
Sizes without feet
Standard Cube (20 g)
Ambient temperature +21° C
Water temperature +15° C
Electrical consumption at +43° C (standard voltage)
|
Models and specifications are subject to change without notice |
|
|
Rev. 01 - Issued January 2016 |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
