G 160
LIST OF THE EXPLODED VIEWS
SHELL ASSY
COOLING SYSTEM
EVAPORATOR
HYDRAULIC CIRCUIT
Rev. 3 - 12/03/2019
ELECTRIC PARTS
Page 1
G 160
1
2
3
4
5
6
8
9
10
11
7
8
SHELL ASSY
Common Parts
1
9
Ref. Spare Description Code
1 Top 221518
2 Back Panel 221514
3 Back Grill D12091
2
4 Right Side Panel 221516
5 Right Side Grill D12092
6 Front Panel 221512
10
11
Rev. 3 - 12/03/2019
3
7
Parts for Air-Cooled Version Only
Ref. Spare Description Code
7* Filter 18247
8 Left Side Grill D12094
9 Left Side Panel 221520
4
Parts for Water-Cooled Version Only
Ref. Spare Description Code
6
5
10 Left Side Panel 221516
1 1 Left Side Grill D12092
Page 2
G 160
1
2
3
4
5
6
7
8
Common Parts
6
7
See Exploded
View of the
Evaporator
5
2
3
4
1
Ref. Spare Description Code
1 Compressor See Table
5* Molecular Drier 14009
8 Suctin Line for the spare parts code give us the s/n.
Parts for Air-Cooled Version Only
Rif.
Ref. Spare Description Code
7 Air Condenser 20558
Parts for Water-Cooled Version Only
8
Ref. Spare Description Code
6 Water Condenser 14014

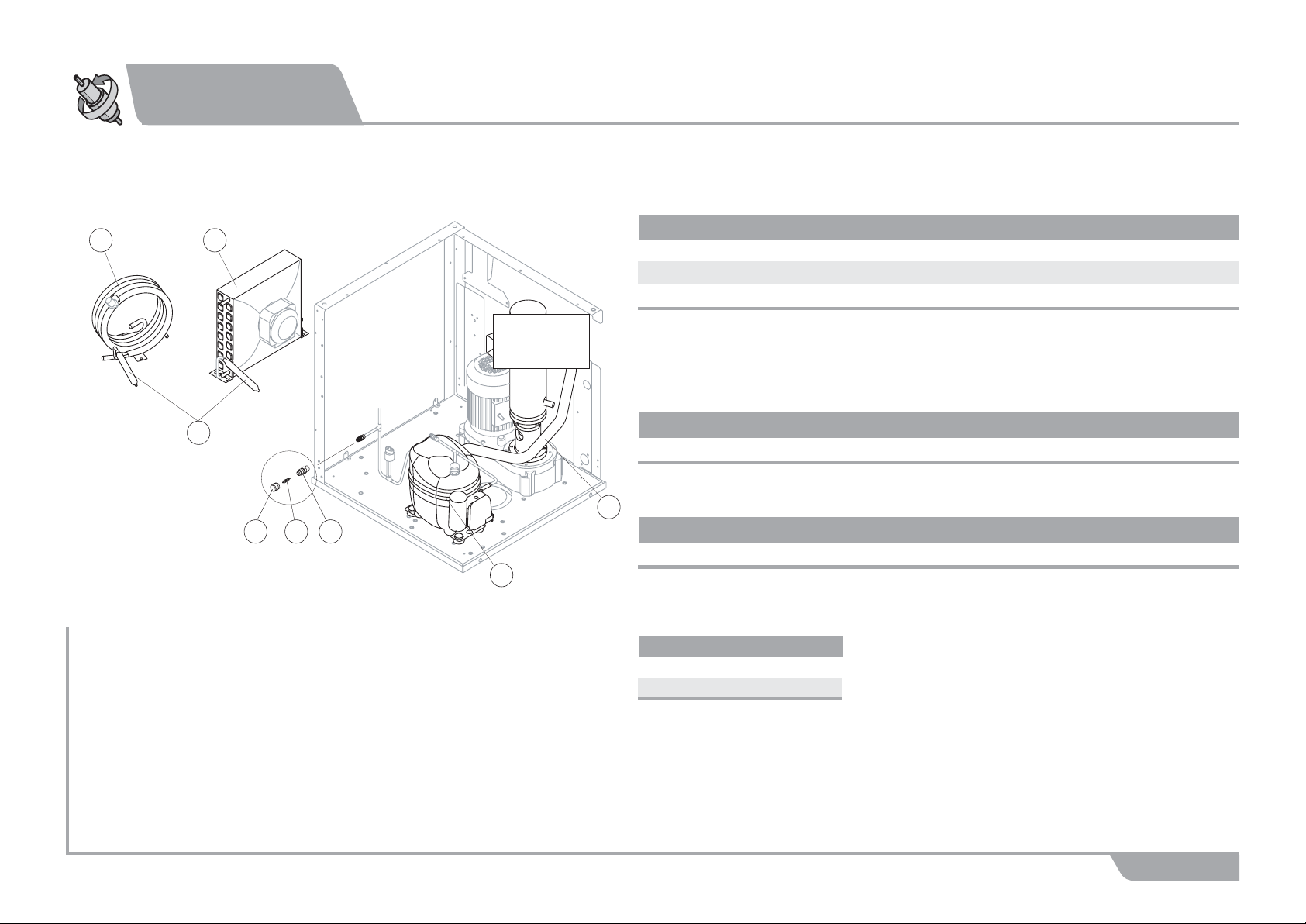

COOLING SYSTEM
Descrizione Ricambio
Rev. 3 - 12/03/2019
Rif. 1 - Compressor
Voltage Code
220-240V ~ 50Hz 23832
220-230V ~ 60Hz 231308
Page 3
11
1
2
3
4
5
6
7
9
11
13
14
15
8
10
18
16
17
19
G 160
18
17

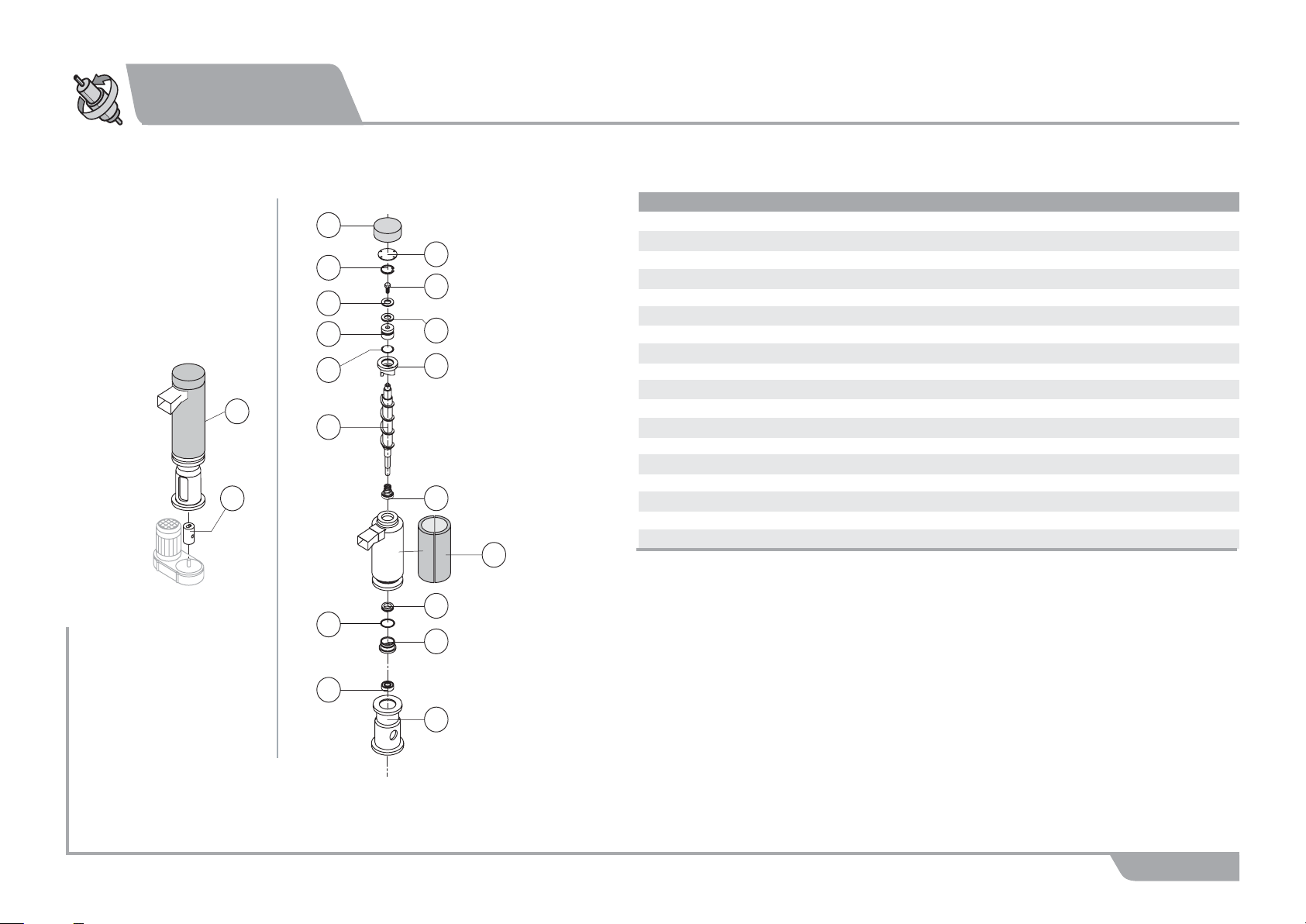

EVAPORATOR
Ref. Spare Description Code
1
2
3
4
5
7
8
6
9
10
11
19
1 Insulating Cap 18170
2 Closing Disk 22825
3 Seeger 20043
4 Stainless Steel Screw 20663
5 Shimming Disk 22826
6 Self-Lubricating Disk 20631
7 Stainless Steel Thrust Bearing 20686
8 OR Gasket 3087 20688
9 Ice Breaker 201236
10 Auger 20783
11 Ceramic Seal 20937
13 OR Gasket 3162 NBR70 20429
14 Reduction Ring 20785
15 Stainless Steel Bearing 20782
16 Flange 20629
17 Joint D20784
18 Evaporator Assy C11152
19 Insulating Cap 18281
Rev. 3 - 12/03/2019
13
15
11
14
16
Page 4
G 160
3
6
7
8
9
4
5
1
9
HYDRAULIC CIRCUIT
Common Parts
1
3
Ref. Spare Description Code
1 Microswitch 23055
3* Double Switch Basin Assembly C10 684
5 Discharges Manifold 10579
7 Ice Outlet Pipe with Bin Bulb Holder C10 6 5 5
8 Locking Exhaust Strip 25049
9* Ice Exhaust with micro Assy C10 585
8
Rev. 3 - 12/03/2019
7
4
Parts for Water-Cooled Version Only
Ref. Spare Description Code
5
4 Water regulating valve assembly R20 210
5 Drain manifold 20984
6
Page 5
G 160
2
3
4
5
7
8
9
10
11
6
1
12

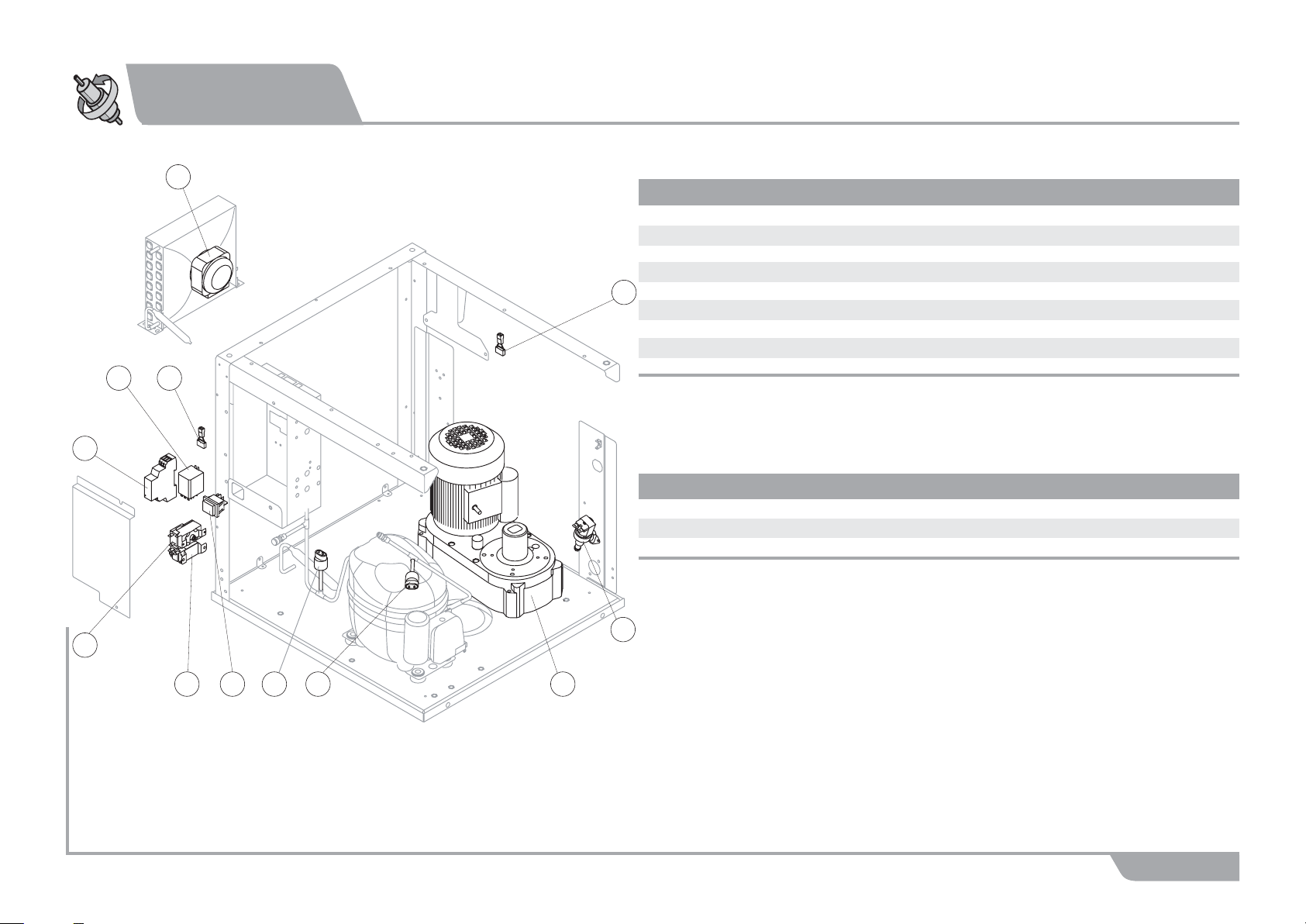

ELECTRIC P ARTS
12
10
9
Rev. 3 - 12/03/2019
8
11
Common Parts
Ref. Spare Description Code
1 Anti Radio Interference Filter 220-240V ~ 50Hz C23457
2* 1 Way- Water Inlet Valve 23115
3 Gearmotor 231030
4 Evaporator pressure switch 23909
5 HP Safety pressure switch 23960
1
6* Green Light Switch (On-Off) 23327
8* Bin Thermostat R231035
9* Electronic Timer 231033
10* Relay 23190
Parts for Air-Cooled Version Only
Ref. Spare Description Code
7* Condenser Pressure Switch 23175
11 Anti Radio Interference Filter
12* Fan Motor with Conveyor 231006
2
220-240V ~ 50Hz C23459
4
7
5
6
3
Page 6
