29 mm
26 mm
51 mm
42,5 mm
45 mm
60 g
B

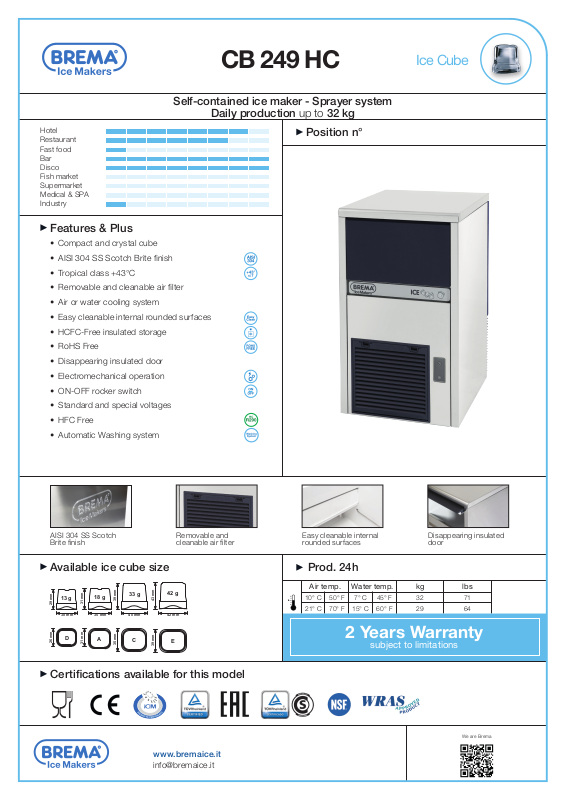

CB 249 HC
Self-contained ice maker - Sprayer system
Daily production up to 32 kg
Ice Cube
Hotel
Restaurant
Fast food
Bar
Disco
Fish market
Supermarket
Medical & SPA
Industry
Features & Plus
• Compact and crystal cube
• AISI 304 SS Scotch Brite nish
• Tropical class +43°C
• Removable and cleanable air lter
• Air or water cooling system
• Easy cleanable internal rounded surfaces
• HCFC-Free insulated storage
• RoHS Free
• Disappearing insulated door
• Electromechanical operation
• ON-OFF rocker switch
• Standard and special voltages
• HFC Free
• Automatic Washing system
Position n°
AISI 304 SS Scotch
Brite nish
Removable and
cleanable air lter
Available ice cube size
13 g
30 mm
D
31 mm
31 mm
18 g
35 mm
A
39 mm
35 mm
33 g
40 mm
C
43 mm
39 mm
42 g
42 mm
E
Certications available for this model
www.bremaice.it
info@bremaice.it
Easy cleanable internal
rounded surfaces
Prod. 24h
Air temp.
10° C
21° C
Water temp. kg
7° C
50° F
15° C
70° F
2 Years Warranty
subject to limitations
45° F
60° F
Disappearing insulated
door
lbs
32 71
29 64
We are Brema
Ice Cube
CB 249 HC
Self-contained ice maker - Sprayer system
Daily production up to 32 kg
Working conditions
• Location: Indoor
390 mm
15 6/16"
460 mm
18 2/16"
H
690 mm
27 3/16"
P
3
1
5 mm
3/16"
Connections
All measures are referred to the rear bottom-left corner (L-H-Ø)
1
Water in.: 111 mm / 4 6/16” - 175 mm / 6 14/16” - 3/4”
3
Electrical connections: 156 mm / 6 2/16” - 211 mm / 8 5/16”
2
L
Installation
Min Max
Ambient temperature
Water temperature
Voltage
Water inlet pressure
+10° C / +50° F
+3° C / +37° F
-10%
1bar (14 psi)
+43° C / 110° F
+32° C / +90° F
+10 %
6bar (84 psi)
Performances
Water temperature
7° C
32 kg
10° C
50° F
21° C
70° F
32° C
Air temperature
90° F
2
Water out.: 49 mm / 1 15/16” - 130 mm / 5 2/16” - 24 mm / 15/16”
15° C 21° C45° F 60° F 70° F
71 lbs
29 kg
64 lbs
24 kg
53 lbs
Technical information
Production in 24h
Store capacity, up to
Cooling system
Kind of cube
Refrigerant
Standard voltage
Average power consumption
Fuse
Electrical consumption
All the technical information must be considered at the following conditions:
Sizes without feet
Standard Cube (18 g)
Ambient temperature +21° C
Water temperature +15° C
Electrical consumption at +32° C (standard voltage)
Average power consumption at +43° C (standard voltage)
Models and specications are subject to change without notice
www.bremaice.it
info@bremaice.it
29 kg / 64 lbs
9 kg / 20 lbs
A - W
A-18g, C-33g, D-13g, E-42g
R290
220-240 V ~ 50 Hz
320 W
10 A
30 kWh/100kg
Water consumption
Sizes (L-P-H mm)
(L-P-H in)
Sizes with pack (L-P-H mm)
(L-P-H in)
Net weight
Gross weight
Finish
A: 5 l/kg - 60 gal/100 lbs
W: 12 l/kg - 144 gal/100 lbs
390 - 460 - 690
15 6/16 - 18 2/16 - 27 3/16
440 - 520 - 880
17 5/16 - 20 8/16 - 34 10/16
37 kg / 82 lbs
44 kg / 97 lbs
AISI 304 stainless steel, scotch brite
Rev. 03 - Issued September 2 019
