English
Our products are designed to meet the highest standards of quality,
functionality and design. We hope you entirely enjoy your new Braun product.
Read these instructions completely, they contain safety information.
Keep them for future reference.
For products sold in Japan, please follow the Japanese pages.

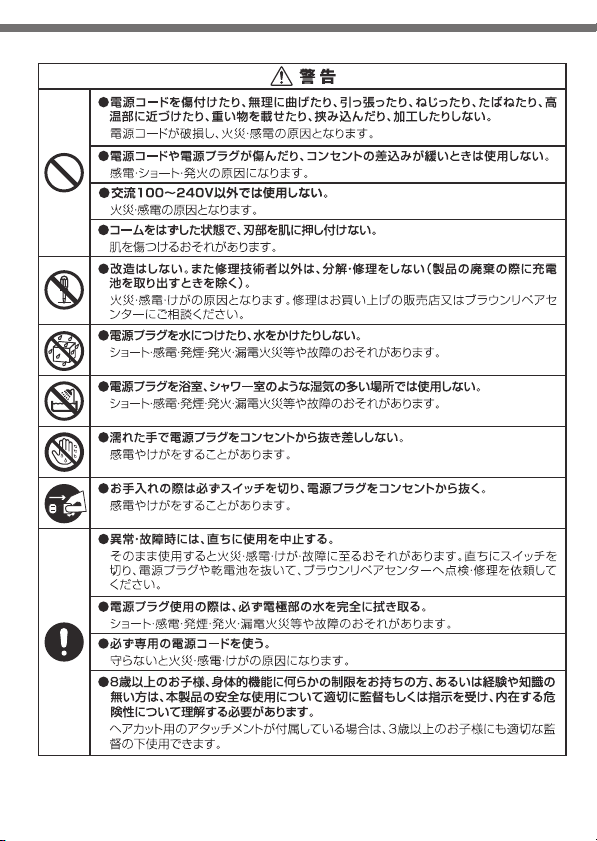

Warning
•
The appliance is suitable for cleaning under running tap water. Detach the appliance from the
power supply before cleaning it with water.
•
The appliance is provided with a special cord set (6)
with an integrated Safety Extra Low Voltage power
supply. Do not exchange or manipulate any part of it.
Otherwise there is a risk of electric shock. Only use the
special cord set provided with your appliance.
•
If the appliance is marked 491, you can use it
with any Braun power supply coded 491-XXXX.
•
Never use the appliance with a damaged cutting
system or damaged special cord set.
•

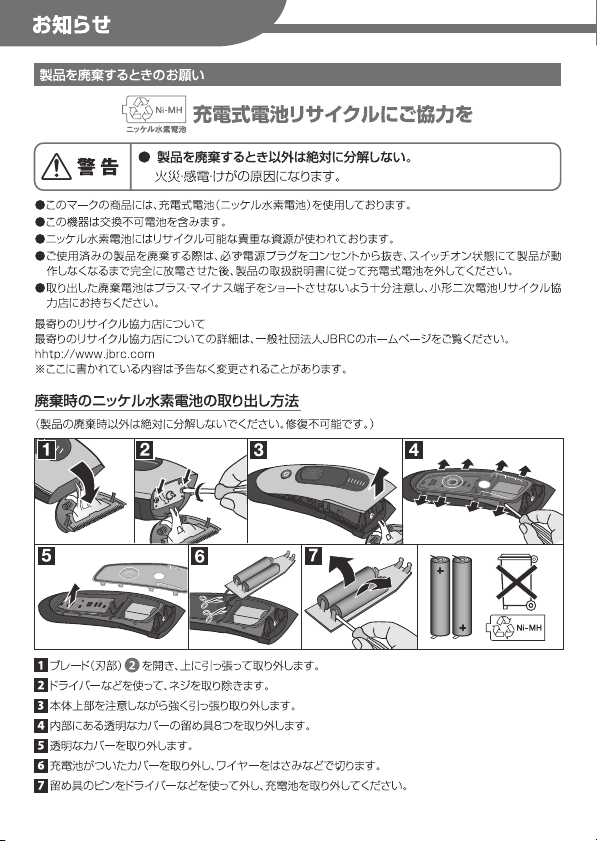

Do not open the appliance. This appliance contains
batteries that are non-replaceable. Only at the end of
the product’s useful life, disassemble the rechargeable
battery for disposal reasons as shown in the battery
removal section.
•
This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the safe use of the appliance
and understand the hazards involved. If the appliance
is provided with a hair clipping attachment, it can be
used for hair clipping purpose by children aged from
3 years under supervision. Children shall not play with
16
the appliance. Cleaning and user maintenance shall
not be made by children unless they are supervised.
•
When the distance comb is removed, the cutting system
should not be pressed into the skin. Risk of injury!
•
For household use only.
Oil bottle (not with all models)
Keep out of reach of children. Do not swallow. Do not apply to eyes.
Dispose of properly when empty.

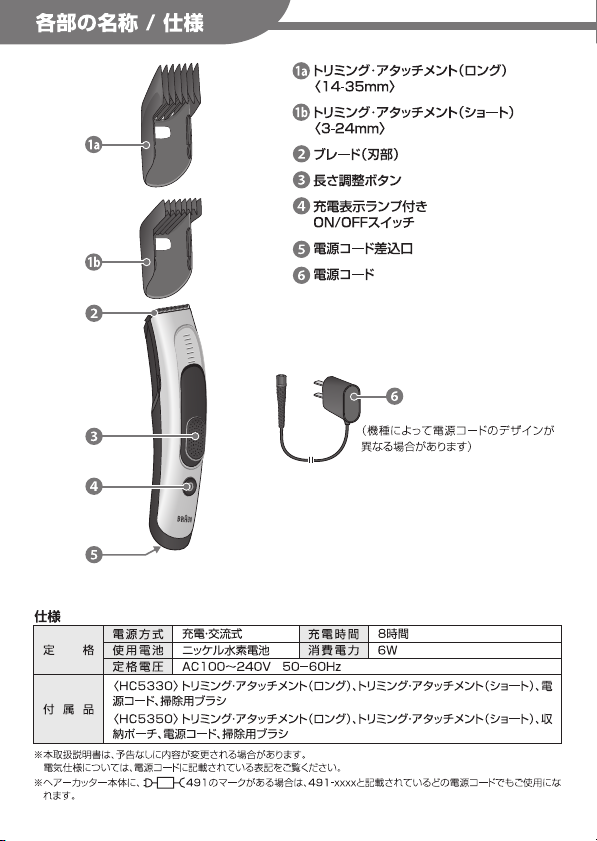

Description
1a Long hair clipping comb 14 – 35 mm*
1b Short hair clipping comb 3 – 24 mm
2 Cutting system
3 Length selector
4 On/off switch with charge indicator
5 Cord socket
6 Special cord set
7 Charging stand*
* not with all models

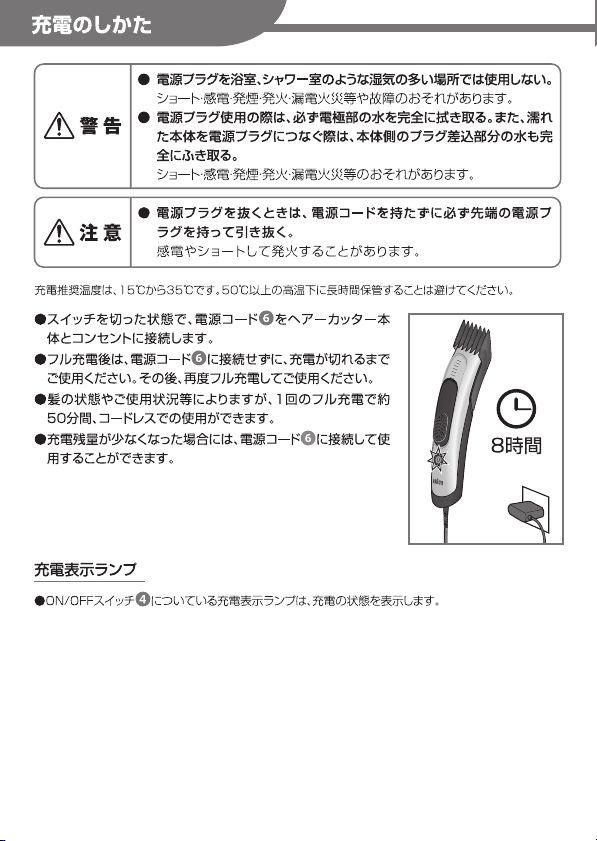

Charging
The best environmental temperature for charging is between 15 °C and 35 °C.
Do not expose the appliance to temperatures higher than 50 °C for extended
periods of time.
• Using the special cord set (6) or the charging stand (7), connect the
appliance to an electrical outlet with the motor switched off.
• When charging for the first time or when the appliance is not used for
a few months, leave the appliance to charge continuously for at least
4 hours (HC5350/5330/5310: 8 hours).
• Once the appliance is completely charged, discharge it (until empty)
through normal use. Then recharge to full capacity. Maximum capacity
will only be reached after several charging/discharging cycles.
• A full charge provides at least 50 minutes of cordless operating time.
This may vary depending on the hair you are trimming.
• If the rechargeable batteries are discharged, you may also use the
appliance by connecting to an electrical outlet via the special cord set.
17
Charge indicator
HC 7390
• The charge indicator integrated in the on/off switch (4) shows the battery
status.
• The charge indicator blinks green when the appliance is being charged.
When the battery is fully charged, the charge indicator shines
permanently green provided the appliance is connected to an electrical
outlet.
• During cordless use the charge indicator blinks green.
• The charge indicator flashes red when the battery is running low.
You should be able to finish your current trimming sequence.
HC5350/5330/5310
• The charge indicator (4) shows that the appliance is being charged.
When the battery is fully charged, the charge indicator turns off.

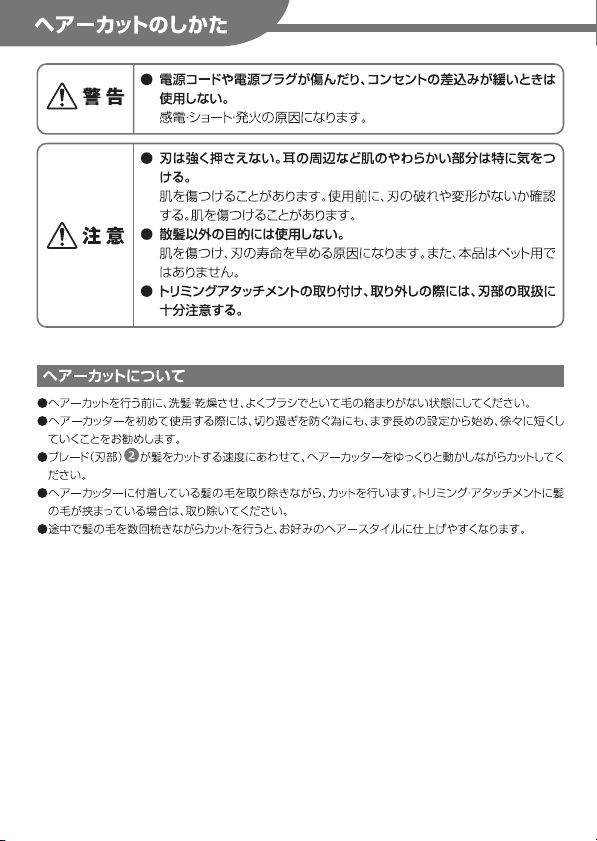

General hair cutting information
• The hair should be clean, well combed, tangle-free and dry.
• If you are not used to clipping hair, begin with a higher setting and then
reduce the setting to avoid cutting more hair than desired.
• Use a slow and controlled movement. Do not force the clipper through
the hair faster than the clipper can cut it.
• In between, shake or blow off the hair from the clipper. If too much hair is
caught in the distance comb, remove it.
• To control your progress during clipping, regularly comb the hair in the
style desired.

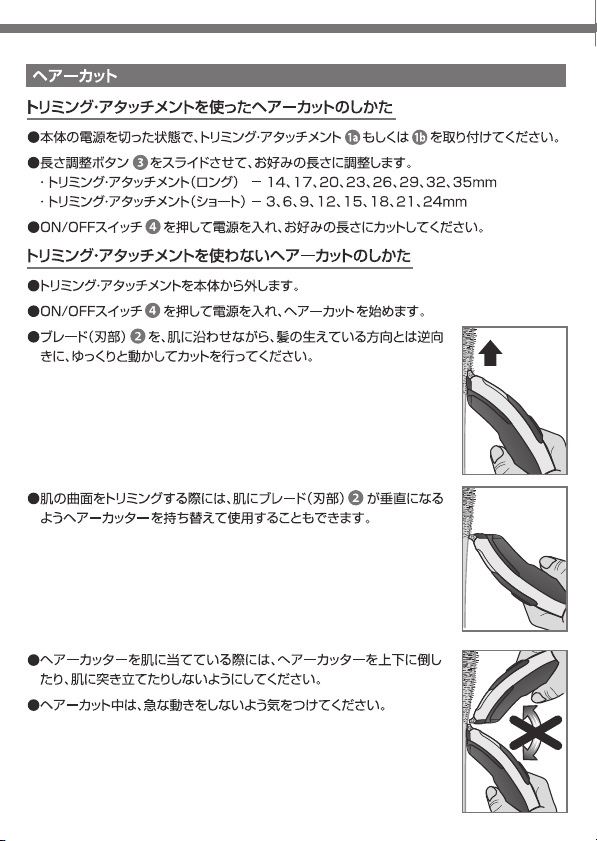

Hair cutting
Hair cutting with hair clipping comb
• Place the hair clipping comb (1a/1b) on the appliance with the appliance
turned off.
• Press the length selector (3) and slide the hair comb up to your desired
hair length. Possible length settings (mm):
Long hair clipping comb (1a) = 14 / 17 / 20 / 23 / 26 / 29 / 32 / 35
Short hair clipping comb (1b) = 3 / 6 / 9 / 12 / 15 / 18 / 21 / 24
• Turn the appliance on by pressing the on/off switch (4) and cut hair to the
desired length.
Hair cutting without hair clipping comb
• Remove the clipping comb.
• To start clipping, turn the appliance on by pressing the on/off switch (4).
18
• Move the cutting system only in a parallel position to the skin (A, cutting
hair). Slowly and carefully move the appliance against the direction of hair
growth.
• Only when trimming contours the cutting system should be positioned
vertically (B, trimming).
• Make sure you do not tilt the appliance while it is touching the skin (C).
• Avoid jerky movements while cutting.

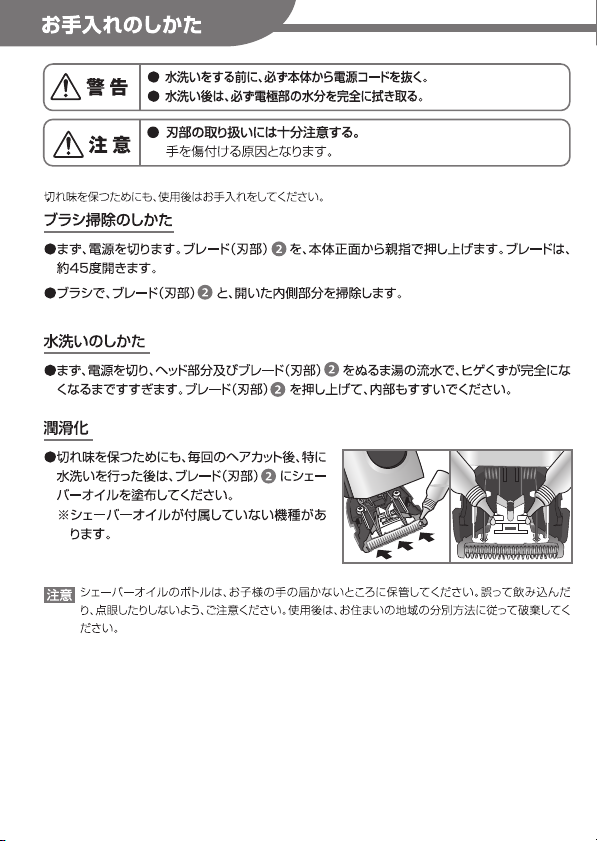

Cleaning
Regular cleaning ensures better trimming performance.
Cleaning with the brush
• Switch off the appliance. Open the cutting system by pressing with the
thumb against the trimmer from the front side. It opens by ca. 45°.
• Using the brush clean the trimmers and the space behind the trimmer
(inside the housing).
Cleaning with water
• Switch off the appliance and rinse the head and the trimmer under warm
running water until all residues have been removed. You can also rinse the
opened cutting system.
Keeping your appliance in top shape
To keep the cutting system working properly, oil it with light machine oil (D)
after each use, especially when cleaning under running water.
Preserving the batteries
In order to maintain the optimum capacity of the rechargeable batteries,
the appliance has to be fully discharged (by operating) every 6 months
approximately. Then recharge the appliance to full capacity.
Environmental notice
Product contains batteries and/or recyclable electric waste.
For environment protection do not dispose of in household waste,
but for recycling take to electric waste collection points provided in
your country.
Subject to change without notice.
For electric specifications, see printing on the special cord set.
