MultiGourmet
FS 10
MultiGourmet
FS 20
Type 3216
Electrical food steamer/rice cooker
3-216-369/00/XII-06
Korea/GB
Printed in Germany
FS 20FS 10
7
5
6
5b
5
4
3
2
1
4
5
4
10 – 20
30
25 –
50
–
35
30
MultiGourmet
12 20 –
8 –
min 15 – 35
0
5
0
1
15
20
25
5a
8
9
10
MIN
MAX
0
5
0
1
15
20
25
5a
12
20
–
10
30
–
25
50
–
35
30
–
MultiGourmet
20
12
–
8
35
–
15
min
11
45678
9
English
Our products are engineered to meet the
highest standards of quality, functionality, and
design. We hope you thoroughly enjoy your
new Braun product.
Your Braun MultiGourmet is particularly well
suited for steaming vegetables, rice, fish, meat
and poultry. Steaming is a most gentle and
healthy way of preparing food. Vitamins, minerals, natural taste and colour will be retained
to a large extent.
The model Braun MultiGourmet plus FS 20 is
provided with 2 steam baskets 5 and 2 drip
pans 4. Thus is has approximately twice the
capacity of the model Braun MultiGourmet FS
10 (except rice).
Read all instructions carefully before using
the appliance.
Important safeguards
• For safety reasons children should be kept
away from the appliance. Check whether the
voltage of the appliance corresponds with the
voltage printed on the appliance.
• This appliance is designed for household
use processing household quantities (see
processing tables).
• Use the steam basket 5 only together with
the drip pan 4.
• Always use the back insert e when steaming
food with colour (e. g. carrots, paprika, tomatoes, etc.), in order to minimize permanent
colouring of the white steam basket 5.
• Remove the black rice bowl 6 or the black
insert e only together with the steam basket
5 from the drip pan 4.
• Always unplug the appliance before cleaning.
Never immerse the base 1 into water.
• Never touch the appliance without potholders
or kitchen gloves, and do not unse the appliance without the cover 7. When lifting the
cover, always hold it so that you do not come
in touch with escaping steam or dripping hot
water. Be careful with hot liquids in the drip
pan(s).
• Always pull the plug when you have finished
using the appliance.
• When using the appliance ensure sufficient
room over and beside the appliance, in order
to prevent damage to e. g. cabinets or other
objects.
• When using the appliance place it on a dry,
level, heat-resistant surface.
• Never place the appliance on a hot surface or
over an open flame.
• Braun electric appliances meet applicable
safety standards. Repairs or the replacement
of the mains cord must only be done by
authorised service personnel. Faulty, unqualified repair work may cause considerable
hazards to the user.
Specifications
• Voltage/wattage: See type plate on the
bottom of the appliance
• Maximum capacity: 1.2 l water
Description
1 Base
2 Maximum water fill line
(for long steaming times)
3 Minimum water fill line
(for short steaming times)
4 Black drip pan
(the model FS 20 has 2 drip pans)
5 Steam basket with slots
(the model FS 20 has 2 steam baskets)
E 2 dividers for steam basket 5
e Black insert (with slots) for the steam
basket 5 for steaming food with colour
(e. g. carrots, paprika, tomatoes, etc.)
6 Black rice bowl (without slots)
for the steam basket
7 Cover (transparent)
8 Steam accelerator (removable)
9 Heating element
0 On/off switch with timer (60 minutes)
q Pilot light for switch
w Cord store for unused length of cord
Notice:
Clean all parts before the first use as
described under «Cleaning».
0
10
Steaming
1. Fill the base 1 with cold tap water and put
the steam accelerator 8 in place. Do not add
any spices, sauces, wine etc. to the water. The
water quantity needed (maximum or minimum
water fill line) depends on the selected
steaming time.
Steaming in the steam basket 5
(e.g. vegetables, fish)
Put the food into the steam basket with
slots 5. If you want to cook various foods,
2 dividers E can be inserted into the steam
basket 5. They prevent different foods
being mixed. Add spices when steaming is
finished. Always use the black insert e when
steaming food with colour (e. g. carrots,
paprika, tomatoes, etc.), in order to minimize
permanent colouring of the white steam
basket 5. The dividers E cannot be used in
the black insert e.
Model FS 20: When using both steam baskets 5 the black insert e or the black rice
bowl 6 can onl
y be used in the upper steam
basket.
Steaming in the black rice bowl 6
(e. g. rice, bakes)
Put the rice/grains with a liquid if necessary
into the rice bowl. Place the rice bowl into
the steam basket. The dividers E cannot be
used in the black rice bowl.
2. Place the filled steam basket onto the drip
pan 4 in the base 1 and set the cover 7 onto
the steam basket. Without the cover in place,
the consumption of electrical power would be
higher and the steaming time longer.
Model FS 20: When using both steam baskets,
place the second steam basket with its drip
pan on the lower steam basket.
3. When using the steamer ensure sufficient
vertical and horizontal space to other objects
(shelves etc.).
4. Plug the cord into a mains socket.
5. Set the timer 0. To do this first turn the knob
to 60 minutes and then back to the desired
steaming time. The pilot light q illuminates and
steaming begins.
6. After the selected steaming time is over, the
appliance switches off automatically and the
pilot light q goes out.
7. Check whether the food is cooked. Put on
long kitchen gloves. Switchs the appliance off.
Lift the cover 7 being careful of escaping
steam. Do not touch any hot parts. Check the
food using a long fork.
If you want to continue steaming put on the
cover 7 and switch the appliance on again.
Model FS 20 when using both steam baskets:
To check whether the food is cooked in the
lower steam basket proceed as follows. Switch
the appliance off and remove the cover 7.
Carefully lift off the upper steam basket (with
the black insert) and place it on the reverse
side of the cover. Then, using kitchen gloves,
carefully remove the drip pan from the lower
steam basket and check whether the food is
cooked.
If you want to continue steaming in both steam
baskets, first place the drip pan onto the lower
steam basket and then put on the upper steam
basket with the cover. Switch on the appliance
again.
8. When the appliance switches itself off and
the food is sufficiently cooked pull the plug and
let the appliance cool off slightly. Then remove
the steam basket, the black rice bowl or the
black insert together with the steam basket,
usin
g kitchen gloves. The reserve side of the
cover 7 serves as stand for the steam basket.
Remove the food from the steam basket or the
rice bowl and spice it as desired.
Model FS 20: For disassembling see Point 7.
9. The liquids which have dripped into the drip
pan 4 can be used for sauces or soup.
10. Before you pour out remaining water
from the base 1, disassemble or clean the
appliance, always let it cool off. Pull the plug.
Water quantities
The water quantity needed depends on the
steaming time. When steamin
g up to 18 minutes fill the base up to the minimum water fill
line 3. When you are steaming longer than
18 minutes, fill to the maximum water fill line 2.
Ensure a sufficient water level, especially if the
steaming time was extended. Should no more
steam develop, please check the water level.
To do so, pull the plug and let the appliance
cool off somewhat. Lift the steam basket and
the drip pan carefully, and add water.
Notice:
All parts are designed for use in the
Braun MultiGourmet only. Do not put them
into a conventional oven or a microwave
oven.
11

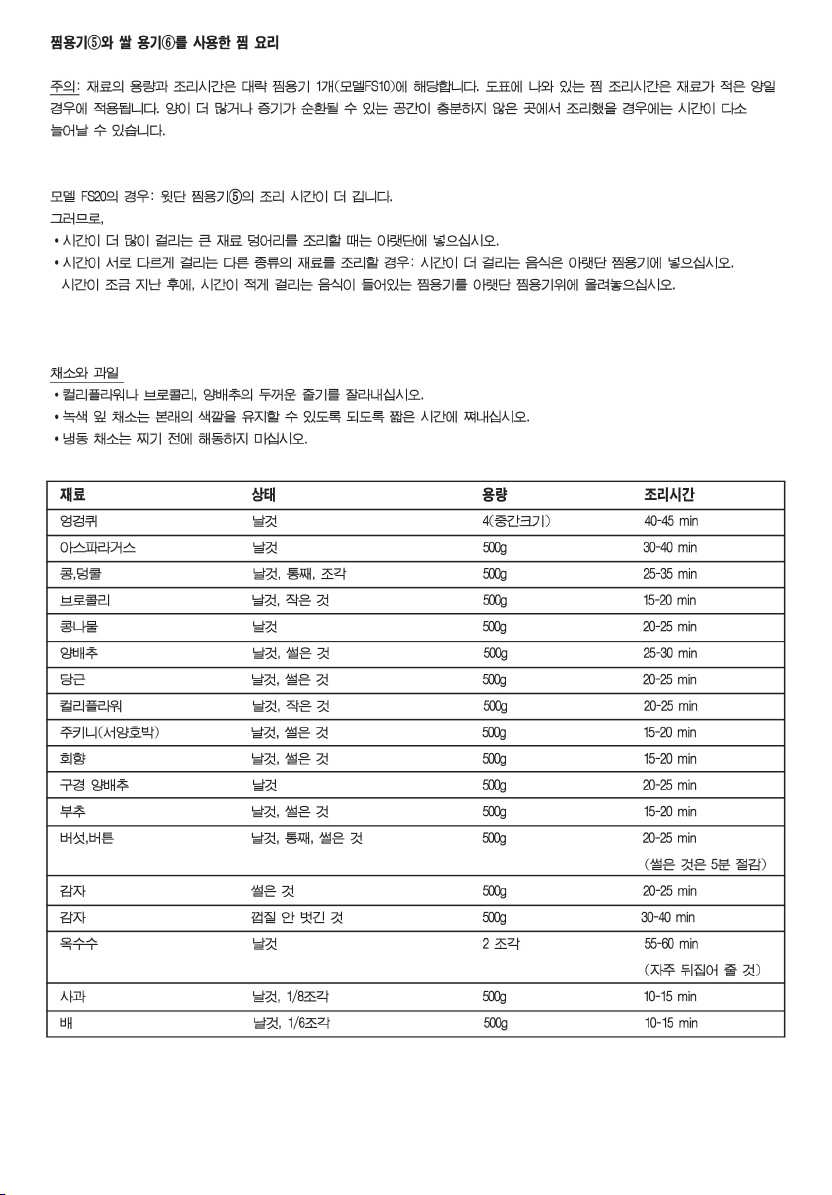

Steaming in the steam basket 5 and in the black rice bowl 6
Notice: The quantities and processing times are approximate for steaming in one steam basket
(e. g. model FS 10). The steaming times listed in the charts also apply when steaming smaller
quantities. When steaming larger quantities the steaming times may be somewhat longer if there
is not enough space to permit sufficient steam circulation.
Tips for steaming with the model FS 20: The steaming times in the upper steam basket are longer.
Therefore,
• steam larger pieces or food with longer steaming times in the lower steam basket.
• When steaming different kinds of food with different steaming times: Steam food with a longer
steam time in the lower steam basket. After some time place the steam basket containing food
with a shorter steaming time on top of the lower steam basket for steaming.
V
egetables and fruits
• Cut off thick stems from cauliflower, broccoli and cabbage.
• Steam leafy, green vegeteables for the shortest possible time as they lose colour easily.
• Frozen vegetables should not be thawed before steaming.
Food Type Ca. quantity Steam times
Artichokes fresh 4 (medium) 40–45 min.
Asparagus fresh 500 g 30–40 min.
Beans, runner fresh, whole or sliced 500 g 25–35 min.
Broccoli fresh, florets 500 g 15–20 min.
Brussels sprouts fresh 500 g 20–25 min.
Cabbage fresh, sliced 500 g 25–30 min.
Carrots fresh, sliced 500 g 20–25 min.
Cauliflower fresh, florets 500 g 20–25 min.
Courgettes fresh, sliced 500 g 15–20 min.
Fennel fresh, sliced 500 g 15–20 min.
Kohlrabi fresh, in cubes 500 g 20–25 min.
Leeks fresh, cut 500 g 15–20 min.
Mushrooms, button fresh, whole or sliced 500 g 20–25 min.
(sliced 5 min. less)
Potatoes sliced 500 g 20–25 min.
Potatoes unpeeled 500 g 30–40 min.
Sweetcorn fresh 2 pieces 55–60 min.
(turn frequently)
Apples fresh, 1/8 pieces 500 g 10–15 min.
Pears fresh, 1/6 pieces 500 g 10–15 min.
12

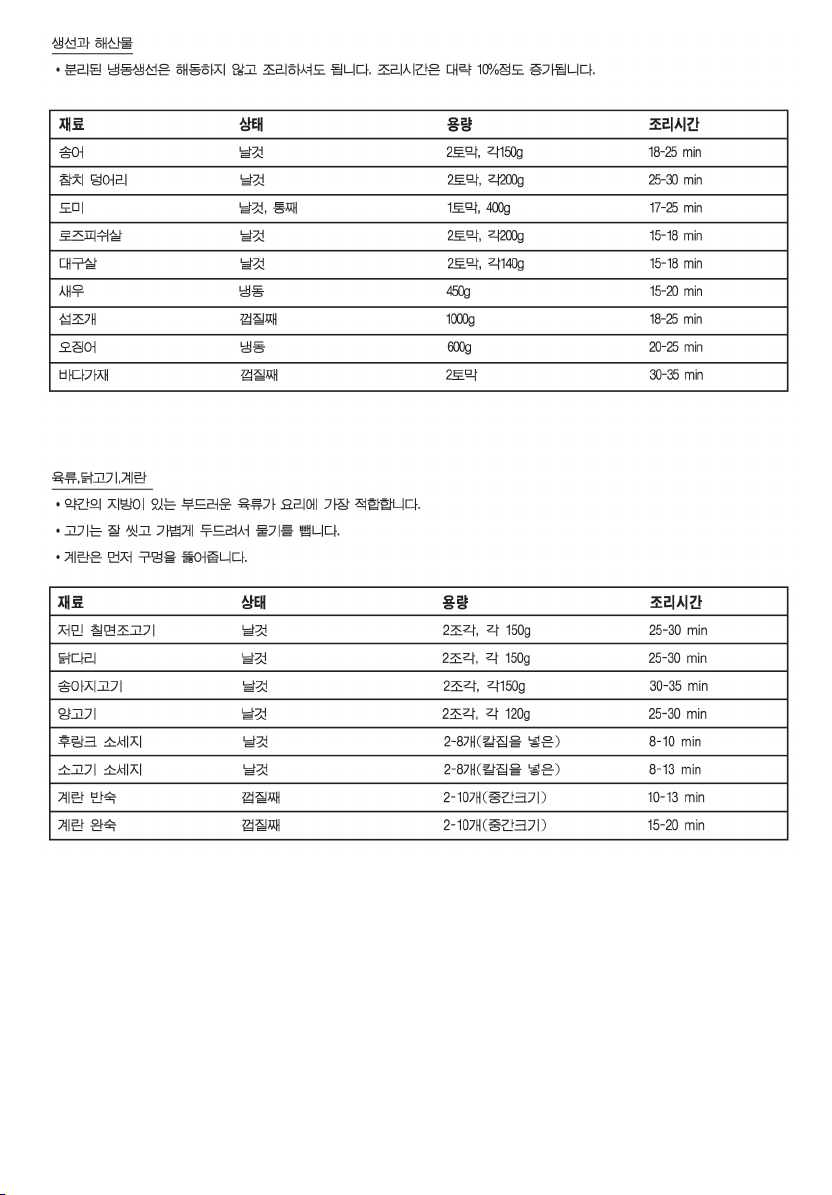

Fish and Seafood
• Frozen fish may be steamed without defrosting if separated before steaming, and the steaming
time is extended by approximately 10 %.
Food Type Ca. quantity Steam times
Trout fresh 2 pieces, each 150 g 18–25 min.
Tuna steaks fresh 2 pieces, each 200 g 25–30 min.
Bream fresh, whole 1 piece, 400 g 17–25 min.
Rosefish fillets fresh 2 pieces, each 200 g 15–18 min.
Pollack fillets fresh 2 pieces, each 140 g 15–18 min.
Shrimps frozen 450 g 15–20 min.
Mussels in the shells 1.000 g 18–25 min.
Squid frozen 600 g 20–25 min.
Lobsters in the shells 2 pieces 30–35 min.
, Poultry und Eggs
Meat
• Tender meat with a little fat ist suited best.
• The meat should be well washed and dabbed dry, so that as little juice as possible drips out.
• Puncture eggs first.
Food Type Ca. quantity Steam times
Turkey cutlets fresh 2 pieces, each 150 g 25–30 min.
Chicken legs fresh 2 pieces, each 150 g 25–30 min.
Veal cutlets fresh 2 pieces, each 150 g 30–35 min.
Lamb chops fresh 2 pieces, each 120 g 25–30 min.
Frankfurter sausages fresh 2–8 (pierce skins) 8–10 min.
Beef sausages fresh 2–8 (pierce skins) 8–13 min.
Eggs soft-boiled in the eggshell 2–10 medium size 10–13 min.
Eggs hard-boiled in the eggshell 2–10 medium size 15–20 min.

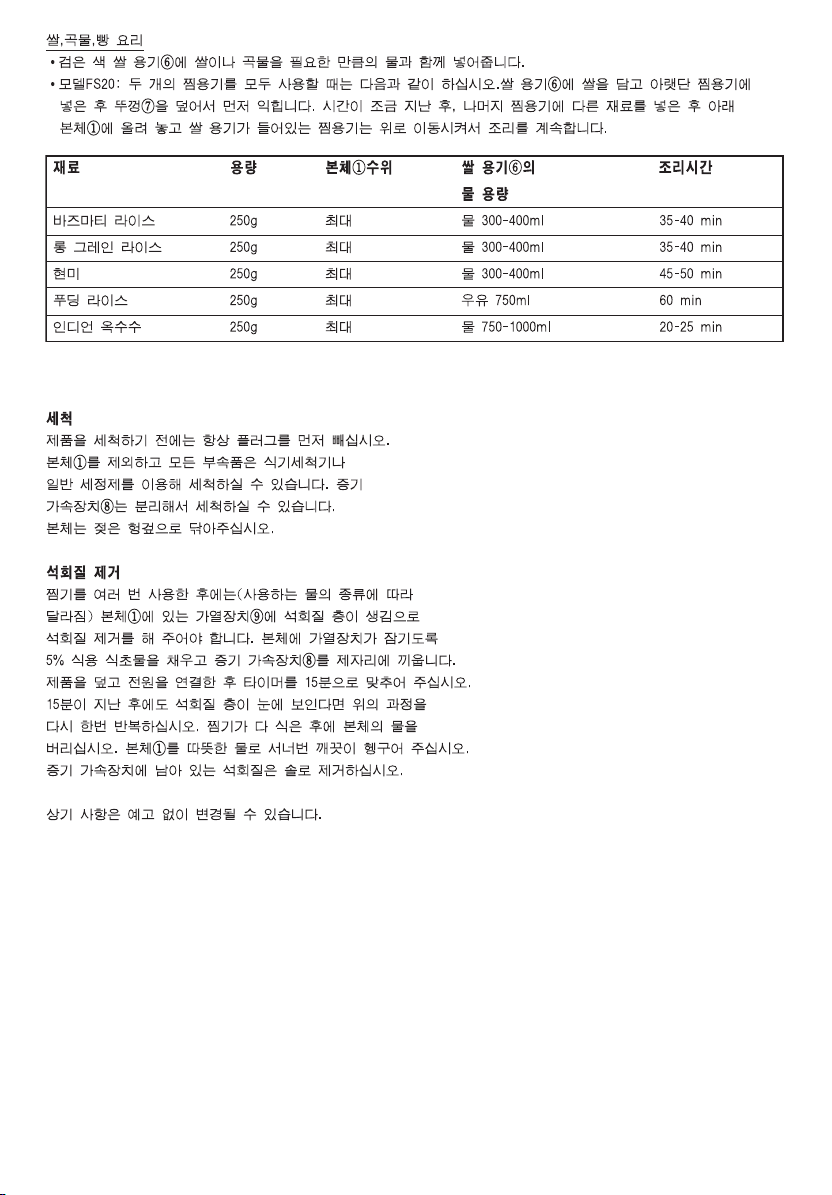

, grains, bakes
Rice
• Use the black rice bowl 6 and add the required quantity of liquid together with the rice, grains, etc.
• Model FS 20: If you are using both steam baskets please proceed as follows. Pre-steam the rice
etc. with its long steaming time in the rice bowl 6 – placed into the lower
steam basket with the
cover 7 in place. After some time place the other steam basket filled with different food on the
base 1 (i. e. on the bottom) and continue steaming the rice etc. by moving the steam basket to
the top.
Food Ca. Water level in Liquid level in Steam
quantity the base 1 the rice bowl 6 times
Basmati rice 250 g max. 300–400 ml water 35–40 min.
Long-grain rice 250 g max. 300–400 ml water 35–40 min.
Brown rice 250 g max. 300–400 ml water 45–50 min.
Pudding rice 250 g max. 750 ml milk 60 min.
Indian meal (maize) 250 g max. 750–1000 ml water 20–25 min.
13
Cleaning
Always pull the plug before you clean the
appliance. Except the base 1, all parts can be
cleaned in the dishwasher or by hand with a
commercially available detergent. The steam
accelerator 8 can be removed for cleaning.
Wipe the base 1 with a damp cloth.
Decalcifying
After you have used your steamer several
times (depending on the water hardness in
your housing area), the heater 9 in the base 1
is covered by a layer. The appliance should
now be decalcified. Fill the base with white
household vinegar (5 %) so that the heating
element is just covered. Put the steam accelerator 8 in place. Close the appliance, connect
it to the mains and set the time to 15 minutes.
Should there still be a layer visible after the
15 minutes are over, repeat the procedure.
After the vinegar and the appliance have sufficiently cooled off empty the base. Rinse the
base 1 3 to 4 times with warm water.
Any remaining calcium can be removed from
the steam accelerator with a brush.
Subject to change without notice.
This product conforms to the EMC-Directive 89/336/EEC.
.
At the end of the product's useful life,
please dispose of it at appropriate collection points provided in your country.
14
Loading...
