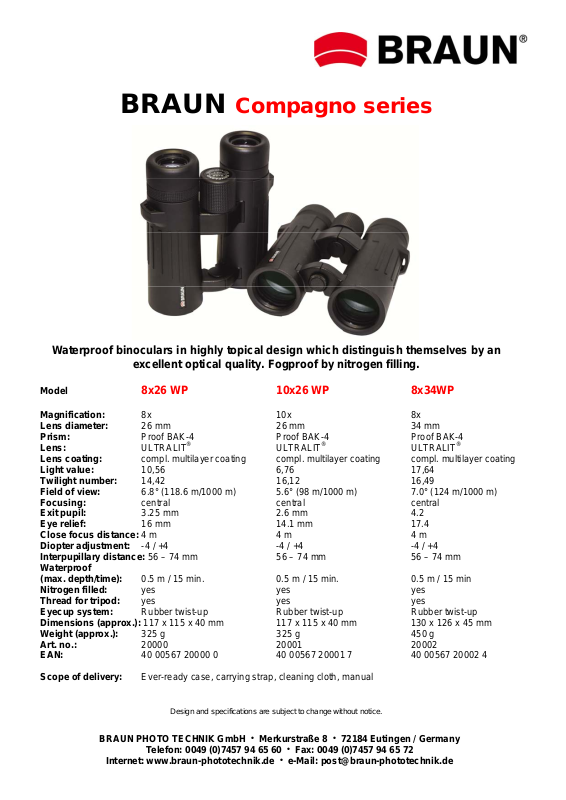

BRAUN Compagno series
Waterproof binoculars in highly topical design which distinguish themselves by an
excellent optical quality. Fogproof by nitrogen filling.
Model 8x26 WP 10x26 WP 8x34WP
Magnification: 8x 10x 8x
Lens diameter: 26 mm 26 mm 34 mm
Prism: Proof BAK-4 Proof BAK-4 Proof BAK-4
Lens: ULTRALIT
Lens coating: compl. multilayer coating compl. multilayer coating compl. multilayer coating
Light value: 10,56 6,76 17,64
Twilight number: 14,42 16,12 16,49
Field of view: 6.8° (118.6 m/1000 m) 5.6° (98 m/1000 m) 7.0° (124 m/1000 m)
Focusing: central central central
Exit pupil: 3.25 mm 2.6 mm 4.2
Eye relief: 16 mm 14.1 mm 17.4
Close focus distance: 4 m 4 m 4 m
Diopter adjustment: -4 / +4 -4 / +4 -4 / +4
Interpupillary distance: 56 – 74 mm 56 – 74 mm 56 – 74 mm
Waterproof
(max. depth/time): 0.5 m / 15 min. 0.5 m / 15 min. 0.5 m / 15 min
Nitrogen filled: yes yes yes
Thread for tripod: yes yes yes
Eyecup system: Rubber twist-up Rubber twist-up Rubber twist-up
Dimensions (approx.): 117 x 115 x 40 mm 117 x 115 x 40 mm 130 x 126 x 45 mm
Weight (approx.): 325 g 325 g 450 g
Art. no.: 20000 20001 20002
EAN: 40 00567 20000 0 40 00567 20001 7 40 00567 20002 4
Scope of delivery: Ever-ready case, carrying strap, cleaning cloth, manual
®
ULTRALIT
Design and specifications are subject to change without notice.
®
ULTRALIT
®
BRAUN PHOTO TECHNIK GmbH Merkurstraße 8 72184 Eutingen / Germany
Telefon: 0049 (0)7457 94 65 60
Internet: www.braun-phototechnik.de
Fax: 0049 (0)7457 94 65 72
e-Mail: post@braun-phototechnik.de
