Vista™ basic
Instructions for Use
950787 Rev H 02/03
Rx Only
The CE mark confirms compliance
with the “Council Directive on
Medical Products 93/42/EEC”
dated the 14
th
of June, 1993.
B. Braun Melsungen AG
INSPECTION ON DELIVERY
Despite careful packaging, the risk
of transport damage cannot be
entirely excluded. Upon delivery,
please check that nothing is
missing. Do not use a damaged
device! If the device is damaged,
contact the Service Department.
See “Maintenance, Storage, &
Service.”
RESPONSIBILITY OF
MANUFACTURER
Manufacturer, assembly, and
installation personnel or instructors
can only be held responsible for any
effects on device safety, reliability,
and performance if
♦ Installation, expansion work,
readjustments, modifications, or
repairs are carried out by
personnel authorized by the
above,
♦ The electrical wiring for AC power
satisfies the requirements of VDE
0100, 0107, and/or the IEC
publications, or regional and/or
national variations,
♦ The device is operated in line with
the Instructions for Use, and
♦ Regular technical inspections
(Preventative Maintenance) are
carried out every 2 years as
outlined in the Service Manual.
Packaging: The pump packaging is
reusable.
Package Contents: Vista basic
Infusion Pump, drop sensor, power
cable, pole clamp, Instructions for
Use.
Vista™ basic Instructions for Use 1/25
950787 Rev H 02/03
Vista™ basic Contents
CONTENTS
Warnings & Cautions.................................................................. 3
Introduction ................................................................................ 5
Preparing the Infusion................................................................ 7
Continuous Mode....................................................................... 8

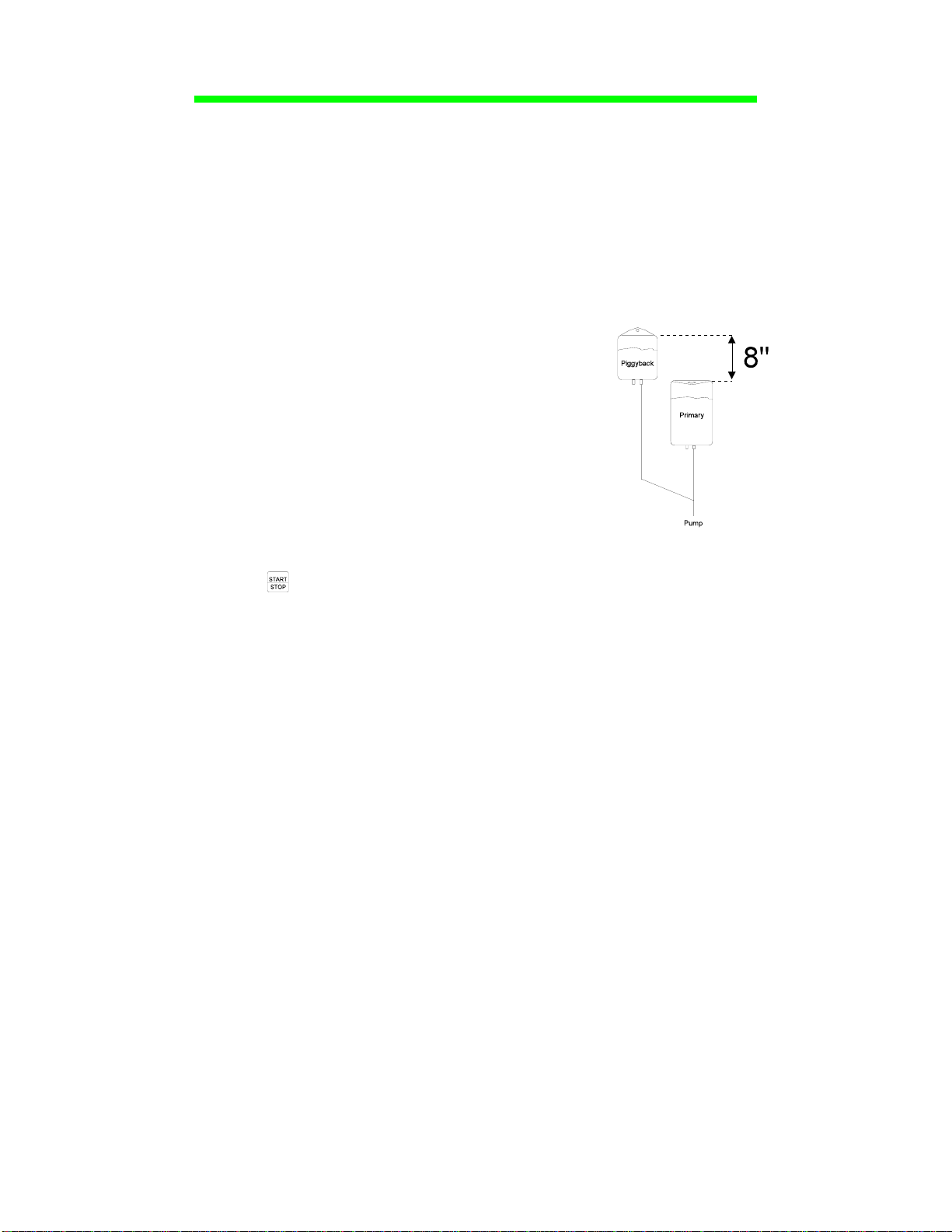

Options: Piggyback..........................................................................11
Ramp/Taper Mode............................................................12
Program Mode............................................................ 14
Delay A Mode ...................................................................15
Dosage Calculation...........................................................16
Bolus Mode, Interval Bolus (Intermittent Mode)................ 17
Total Infused, Standby................................................. 18
Occlusion Pressure, Drop Sensor, Battery .......................19
Data Lock, Contrast Selection ..........................................20
Adjust Clock, Loudness ....................................................21
Alarms........................................................................................22
AC, 12V, Battery, & CC Interface............................................... 23
Maintenance, Storage, & Service............................................... 24
Specifications............................................................................. 25
The Vista basic is a volumetric infusion
pump intended to provide accurate and
continuous flow of parenteral and
enteral fluids.
Qualified medical staff should decide
how the device should be used based
on its features and specifications.
For more details, please read the
Instructions for Use.
Rx only.
Vista™ basic Instructions for Use 2/25
950787 Rev H 02/03
WARNINGS & CAUTIONS
The following should be observed to avoid patient/user injury. This Instructions
for Use manual contains detailed instructions and warnings on the use of the
™
Vista
basic Infusion Pump. Please read it completely prior to using this device.
This manual is intended to reinforce the teaching given to the user by a trained
health care professional or an authorized B. Braun representative.
WARNINGS
♦ B. Braun will assume no
responsibility for incidents which
may occur if the product is not used
in accordance with product labeling.
♦ Make sure the pump is stable, either
fastened securely to the IV pole or
resting on a flat surface.
♦ Prior to use, always check the
audible and visual alarms (and staff
call, where applicable).
♦ Connection of pump tubing to the
patient should only be made after
the tubing is loaded and the unit is
turned on. Disconnect tubing from
patient when changing solution
containers to avoid the danger of
incorrect dosage.
♦ Ensure there are no kinks in the
tubing.
♦ Always read and follow the
instructions that accompany the
source container and IV
administration sets you are using.
Carefully follow the instructions for
loading, removing, and reloading the
set, as well as the recommended set
change intervals.
♦ Change pumping section on tubing
every 24 hours. Do not use tubing
for more than 72 hours or per
current facility protocol.
♦ Always check pump data prior to
starting infusion.
Vista™ basic Instructions for Use 3/25
950787 Rev H 02/03
♦ Do not operate this device in
environments where there is an
explosion hazard! A possible
explosion hazard exists if the pump
is used in the presence of
flammable anesthetics.
♦ The EMC-limits (Electro-magnetic
compatibility) according to IEC/EN
60601-1-2 and IEC/EN 60601-2-24
are maintained. If the equipment is
operated near other equipment
which may cause high levels of
interference (e.g. HF surgical
equipment, nuclear spin tomography
units, mobile telephones, etc.)
maintain the recommended
protective distances for these
devices. Under certain conditions,
malfunctions may occur which lead
to a device alarm with permanent
alarm tone. Interference may occur
e.g. at electro-magnetic fields > 10
[V/m] resp. electro-magnetic
discharges > [8 kV].
♦ Monitoring of the patient and
infusion status is necessary to
ensure the infusion is being
delivered as anticipated. The Vista
basic has been designed to stop
fluid flow to the patient under certain
alarm conditions. Also, prior to
starting an infusion, verify that no
drops are falling in the drip chamber
and the programmed information is
correct.
WARNINGS & CAUTIONS
♦ After starting an infusion, make sure
drops are falling in the drip chamber.
If no drops are falling, make sure the
roller clamp is open. If the roller
clamp is open and still no drops are
falling, replace and dispose of the
set.
♦ The air detector cannot recognize
the introduction of air at 3-way
stopcocks, infusion ports, and other
lines/tubes below the pump.
♦ See section entitled “Drop Sensor”
for additional information on using
the device without a drop sensor.
♦ To avoid mechanical or electronic
damage, do not steam autoclave or
immerse the pump in any fluids or
cleaning solutions. Always
disconnect electrical power cord
from outlet before cleaning to
prevent electrical shock.
CAUTIONS
♦ Rx only.
♦ Do not attempt to infuse two fluids
simultaneously using the Vista
basic.
♦ Variations in pressure, e.g. caused
by change in level of fluid container,
may affect the accuracy of the
device.
♦ If several pieces of infusion
equipment are connected together,
it is possible there may be mutual
influence. Possible incompatibilities
can be found in the instructions for
use for the drug or for the other
appliances.
™
♦ Use only equipment, accessories,
parts, and disposables that are
intended for use with the Vista
basic.
♦ Do not clean, disinfect, or sterilize
any part of the device by autoclaving
or with ethylene oxide gas. Doing
so may damage the device and void
the warranty. Only external parts of
the pump should be disinfected.
See “Maintenance, Storage, &
Service” for suggested cleaning
solutions.
♦ Technical specifications are not
guaranteed with any other tubing
than that approved for use with the
Vista basic.
♦ Any analog and digital components
connected must demonstrate that
they meet EN specifications (i.e. EN
60950 for data processing
equipment and EN 60601 for
electrical medical equipment).
♦ Only an authorized system
configuration technician responsible
for meeting the specifications of
standard EN 60601-1-1 may
connect additional devices to the
signal inputs or outputs.
SAFETY STANDARD
The Vista basic meets all safety
standards for medical electrical devices,
corresponding to IEC 60601-1 and IEC
60601-2-4.
NOTE: IEC 60601-1 corresponds to
European Standard EN 60601.
Vista™ basic Instructions for Use 4/25
950787 Rev H 02/03
INTRODUCTION
Display
All essential information is
displayed in plain language.
Green background lighting
illuminates only when
connected to AC power, or, in
battery operation, only when a
key is pressed.
Keyboard
Allows data entry
Alarm Light
Lights up during an alarm.
Display will also show
flashing AAA.
A.
Infusing Light
Indicates pump is infusing
Vista™ basic Instructions for Use 5/25
950787 Rev H 02/03
Handle for carrying
Clear Key
Resets a
value to
zero
INTRODUCTION
y
Door Open Button
Aluminum Case
Easy upkeep, drip proof, and
resistant to disinfectants
Function Keys
Allow choices of YES, NO, OK,
INFO, OPTS, etc.
ON/OFF (Power) Ke
Alarm Silence Key
Silences alarm tone for 2
minutes
START/STOP Key
Vista™ basic Instructions for Use 6/25
950787 Rev H 02/03
PREPARING THE INFUSION
Prepare the Pump
1. Check for cleanliness, completeness, and damage. If unit appears
damaged, do not use it.
2. Attach the pump to an IV pole by turning the knob on the pole clamp
clockwise, or place the pump on a flat, stable surface.
3. Plug the pump’s power cord into an electrical outlet.
Turn on the Pump
1. Press (ON/OFF).
2. Listen for 3 loud beeps.
3. Check screen for completeness of all pixels on the display. The Alarm ()
and Infusing (6) lights will blink once.
Load the Set
1. Prepare the solution container and prime the administration set according to
the instructions provided on the set package. Close the roller clamp.
2. Check that the drip chamber is about 1/3 full
and there is no air in the set.
3. Open the pump door by pressing the Door
Open Button on the top right corner of the
pump.
4. Push and hold open the clamp at the top of
the fluid path.
5. Insert tubing in clamp and release clamp.
6. Thread the tubing down the fluid path, making
sure the tubing is pressed into the Air-in-Line
detector at the bottom of the fluid path. The
roller clamp should be below the pump.
7. Close the door and open the roller clamp.
Check that no drops are falling in the drip
chamber.
8. Place drop sensor on drip chamber (optional).
9. Connect set to patient site.
Turning off the Pump
1. Press to stop the infusion.
2. Close the roller clamp.
3. Press and hold for 2 seconds.
Vista™ basic Instructions for Use 7/25
950787 Rev H 02/03
Continuous Mode
When the pump is turned on, it may display: Tubing Type VISTA Pump Set
Confirm you are using a Vista™ Pump Set, then press YES.
The pump may then display: Is This a New Therapy?
YES
Begins in Continuous Mode with all
data cleared.
The pump may then display: Prime Set?
YES
Press YES to begin priming set.
• Press STOP to end priming.
• Press EXIT to begin Continuous
Mode.
NO
Begins in Continuous Mode with all
data cleared.
Press the green key below your
answer.
CONTINUOUS MODE
This section explains how to program a Continuous Mode infusion. For
directions on how to program other Modes and Options, refer to those sections
later in this manual.
There are three ways to enter infusion data in Continuous Mode:
RATE and VTBD (Volume To Be Delivered)
1. Enter rate in ml/hr.
2. Press VTBD (Volume To Be Delivered).
3. Enter bag volume in ml.
4. Press OK. (To leave screen without saving changes, press EXIT.)
5. Press to begin the infusion. Check for drops in the drip
Vista™ basic Instructions for Use 8/25
950787 Rev H 02/03
Returns to the beginning of the last
program with all data retained.
Press YES to begin priming set.
• Press STOP to end priming.
• Press EXIT to return to the
beginning of the last program with
all data retained.
Returns to the beginning of the last
program with all data retained.
NO
YES
NO
Loading...
