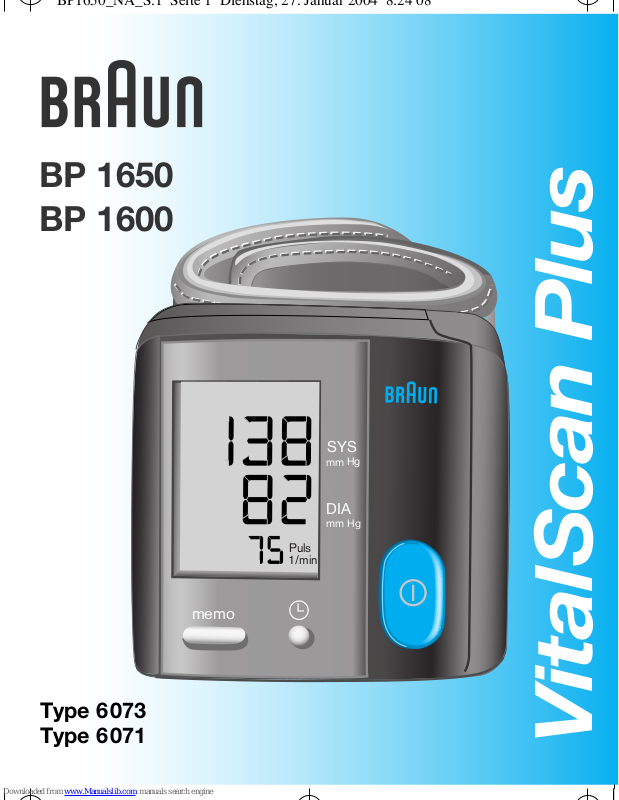

Braun VitalScan Plus BP 1650, VitalScan Plus BP 1600, 6073, 6071 User Manual
BP1650_NA_S.1 Seite 1 Dienstag, 27. Januar 2004 8:24 08
BP 1650
BP 1600
Type 6073
Type 6071
SYS
mm Hg
DIA
mm Hg
Puls
1/min
memo
VitalScan Plus
BP1650_NA_S.2 Seite 1 Donnerstag, 29. Januar 2004 9:31 09
Braun Infoline
English 4
Français 14
Español 25
Thank you for purchasing a Braun product.
We hope you are completely satisfied with
your new Braun VitalScan Plus.
If you have any questions, please call:
1-888-848-2572
Merci d’avoir acheté un produit Braun.
Nous espérons que votre nouveau Braun
VitalScan Plus vous donnera entière satisfaction.
Si vous avez des questions, veuillez
composer le : 1 888 848-2572
Gracias por comprar un producto Braun.
Internet:
www.braun.com
6-073-640/01/I-04
USA/CDN/MEX
Esperamos que se encuentre completamente
satisfecho con su nuevo VitalScan Plus.
Si Ud. tiene preguntas, por favor en EEUU
llame al: 1-888-848-2572
BP1650_NA_S.3 Seite 1 Dienstag, 27. Januar 2004 8:25 08
BP 1650 BP 1600
A
B
C
memo
Puls
1/min
SYS
mm Hg
DIA
mm Hg
F
A
B
memo
Puls
1/min
SYS
mm Hg
DIA
mm Hg
F
D
memo
SYS
mm Hg
DIA
mm Hg
G
D
G
E
F
BP1650_NA Seite 4 Dienstag, 27. Januar 2004 8:17 08
English
Braun VitalScan Plus is a blood pressure monitor that has been developed for easy
and accurate blood pressure measurements from the wrist. The measuring accuracy
of Braun VitalScan Plus was tested at the time of manufacture and was proven by
clinical research in accordance with AAMI/ANSI-SP10.
What you should know about blood pressure
Blood pressure constantly changes throughout the day. It rises sharply in the early
morning and declines during the late morning. Blood pressure rises again in the
afternoon and finally drops to a low level at night. Also, it may vary in a short period
of time. Therefore, readings from successive measurements can fluctuate.
SYS
mm HG
DIA
mm HG
140
120
100
80
60
65 h12 18 0

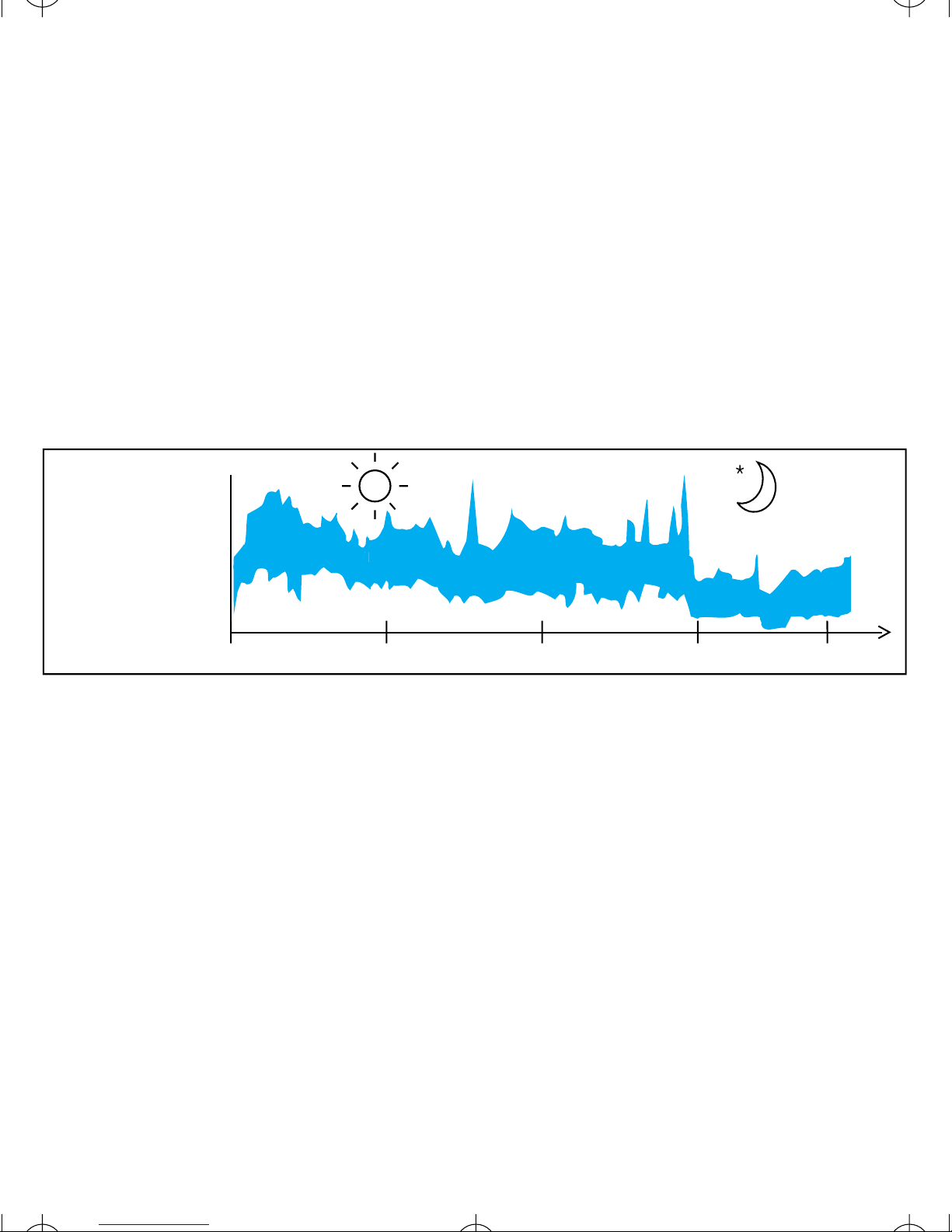

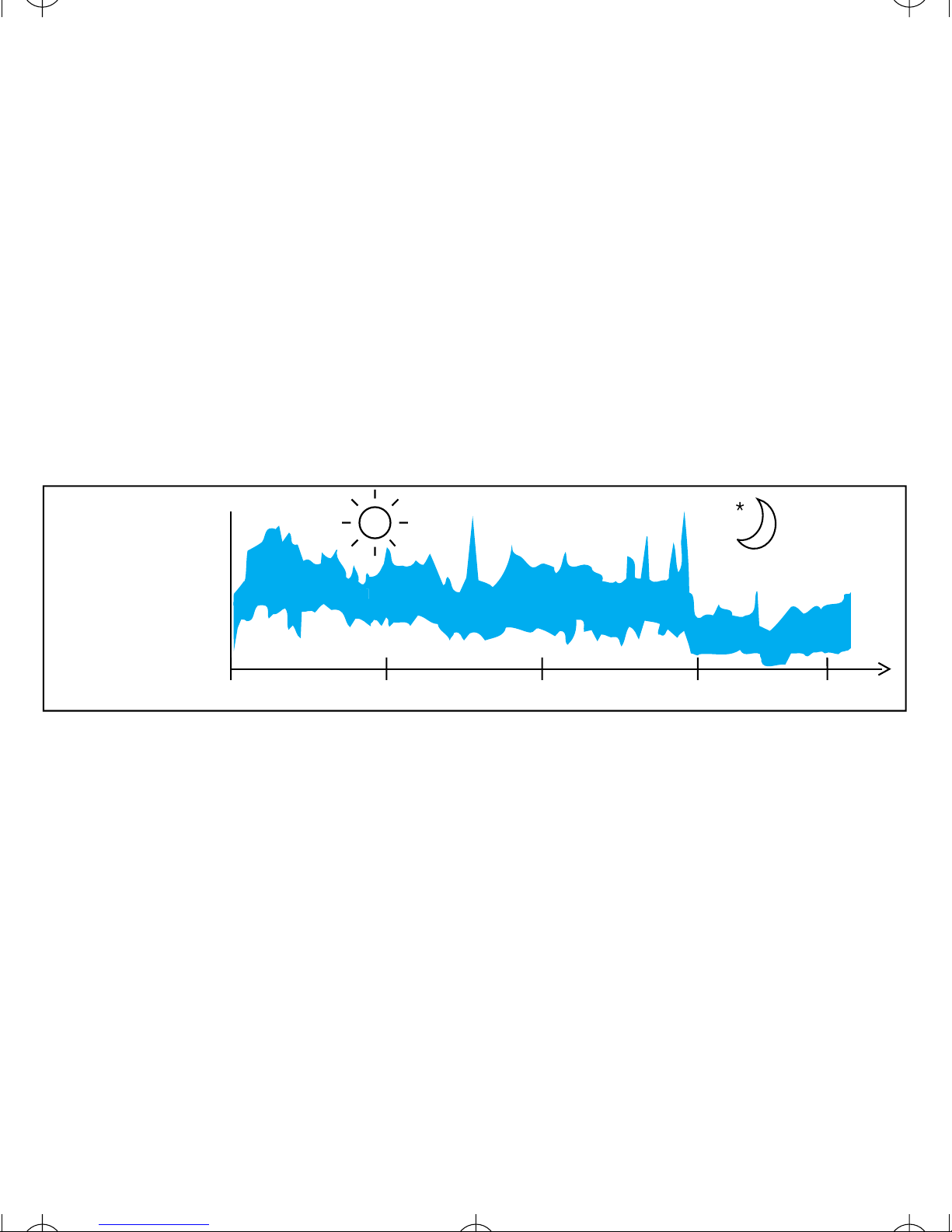

Blood pressure readings from a healthy 31-year old male, measured at 5-minute
intervals
Blood pressure measured in a doctor's office only provides a momentary value.
Repeated measurements at home better reflect one's actual blood pressure values
under everyday conditions.
Moreover, many people have a different blood pressure when they measure at home,
because they tend to be more relaxed than when in the doctor's office.

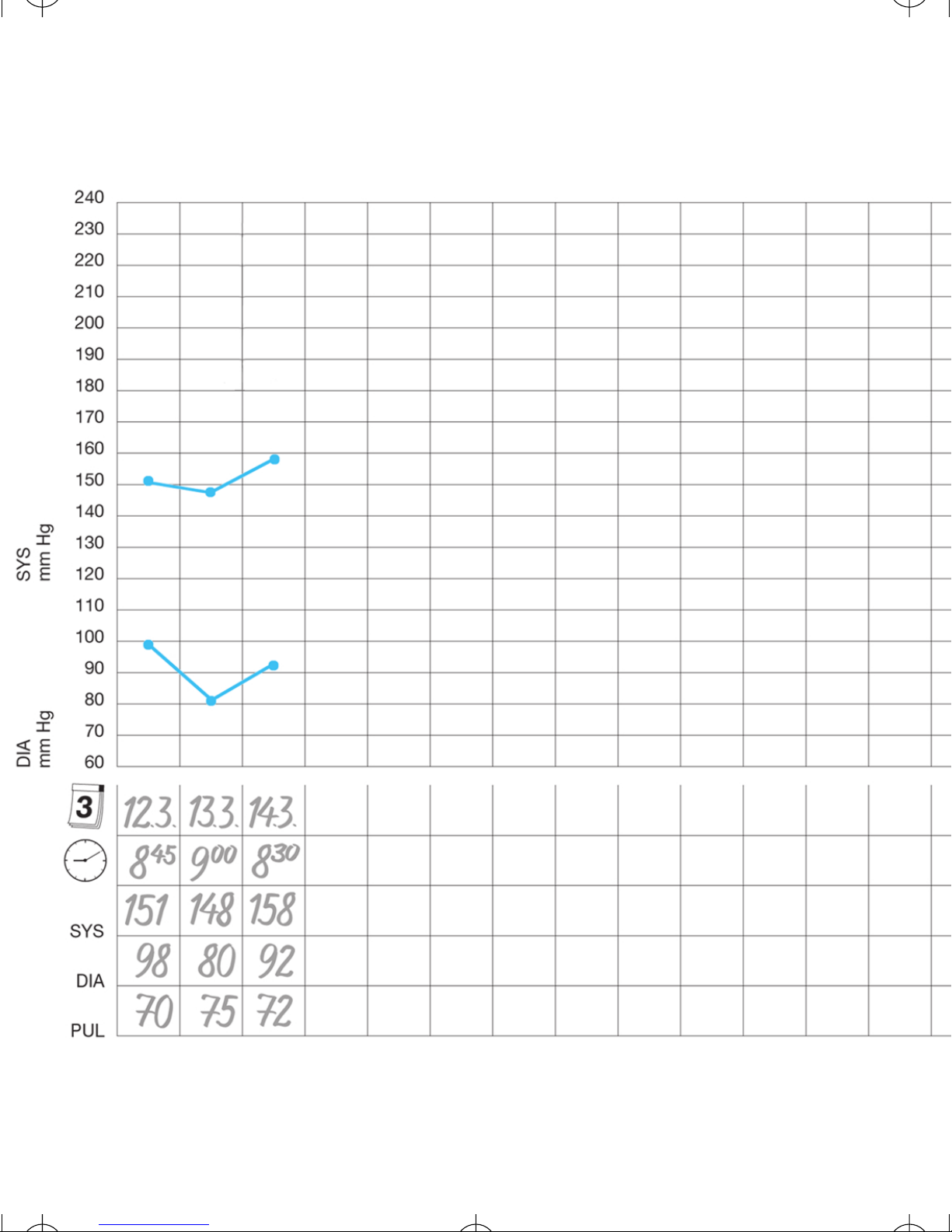

Regular blood pressure measurements taken at home can provide your doctor with
valuable information on your normal blood pressure values under actual «everyday»
conditions.
The World Health Organisation (WHO) has set up the following standard blood
pressure values when measured at resting pulse.
4
BP1650_NA Seite 5 Dienstag, 27. Januar 2004 8:17 08
Blood
pressure (mmHg)
SYS = systole
Normal values Mild hypertension Severe
hypertension
up to 140
140 – 180
over 180
= upper value
DIA = diastole
up to 90
90 – 110
over 110
= lower value
• To ensure accurate measuring results, carefully read these use instructions.
• This product is intended for household use only. Keep product and batteries away
from children.
• People suffering from cardiac arrhythmia, vascular constriction, arteriosclerosis in
extremities, diabetes or users of cardiac pacemakers should consult their doctor
before measuring their blood pressure themselves, since deviations in blood
pressure values may occur in such cases.
• If you are under medical treatment or taking any medication, please consult your
doctor first.
• The use of this blood pressure monitor is not intended as a substitute for
consultation with your doctor.
5
BP1650_NA Seite 6 Dienstag, 27. Januar 2004 8:17 08
Product description
A Display
B Memory button («memo»)
C Time/date button (BP 1650 only)
D Start/stop button
E Battery compartment
F Battery compartment cover
G Cuff

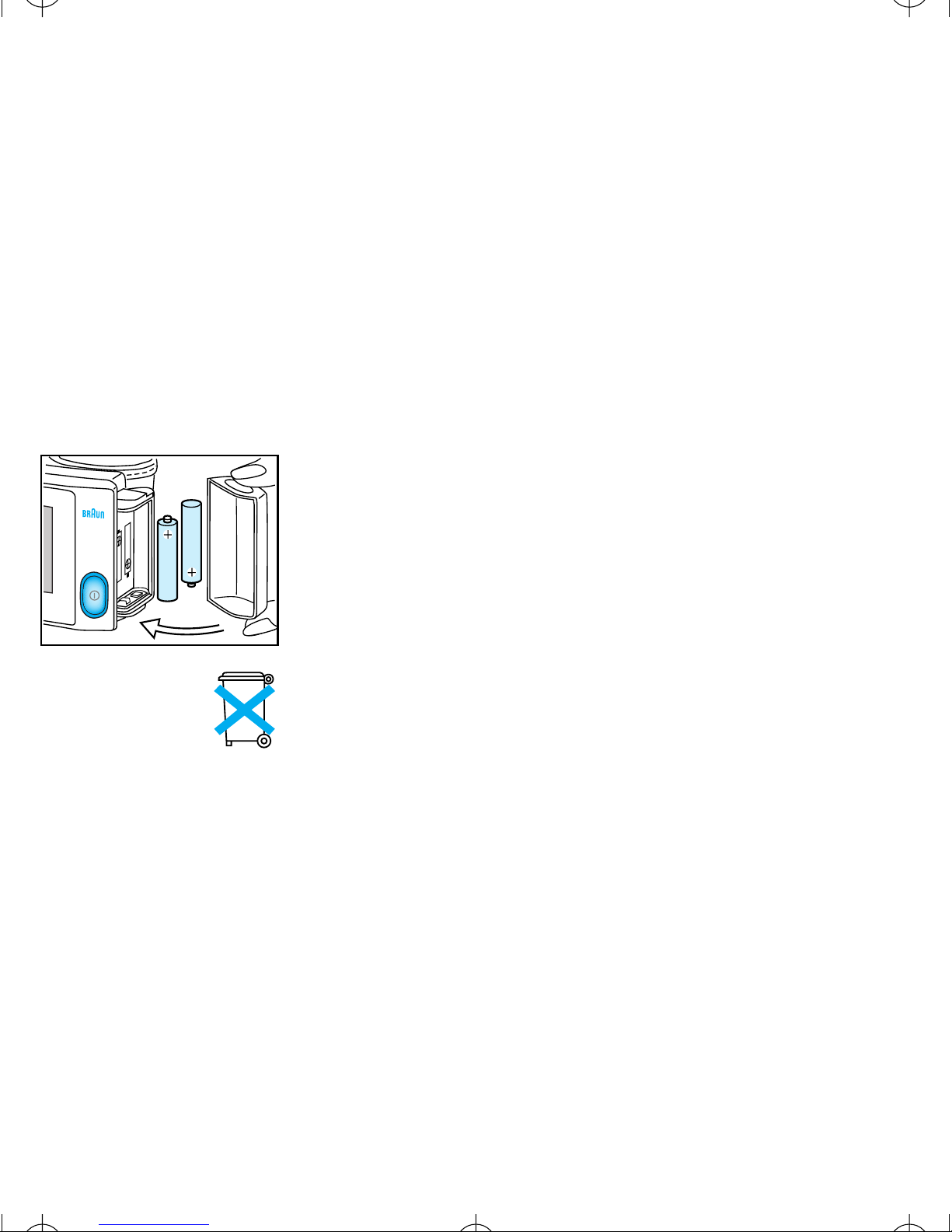

Inserting batteries
SYS
mm Hg
DIA
mm Hg
• Use alkaline batteries, type LR 03 (AAA) as supplied
with this product.
• Remove the battery compartment cover (F) and insert
two batteries with correct polarity (see symbol in the
battery compartment (E)).
• New batteries will provide approximately 200 measurements.
• Only discard empty batteries. They should not be
disposed of in the household waste, but at appropriate
collection sites or at your retailer.
Key rules for accurate blood pressure
measurement
• Always take readings at the same time of day, ideally in
• Do not measure within 30 minutes after smoking, coffee
• Take off wrist watch and jewelry before fitting the
• While taking a measurement, sit down, relax, keep still,
6
the morning, under the same conditions.
or tea consumption.
monitor on the measuring arm.
especially the hand of the measuring arm, do not move
or speak.
BP1650_NA Seite 7 Dienstag, 27. Januar 2004 8:17 08
2 cm
• Hold the monitor at heart level
.
• Wait approximately 3 minutes before repeating a
measurement.

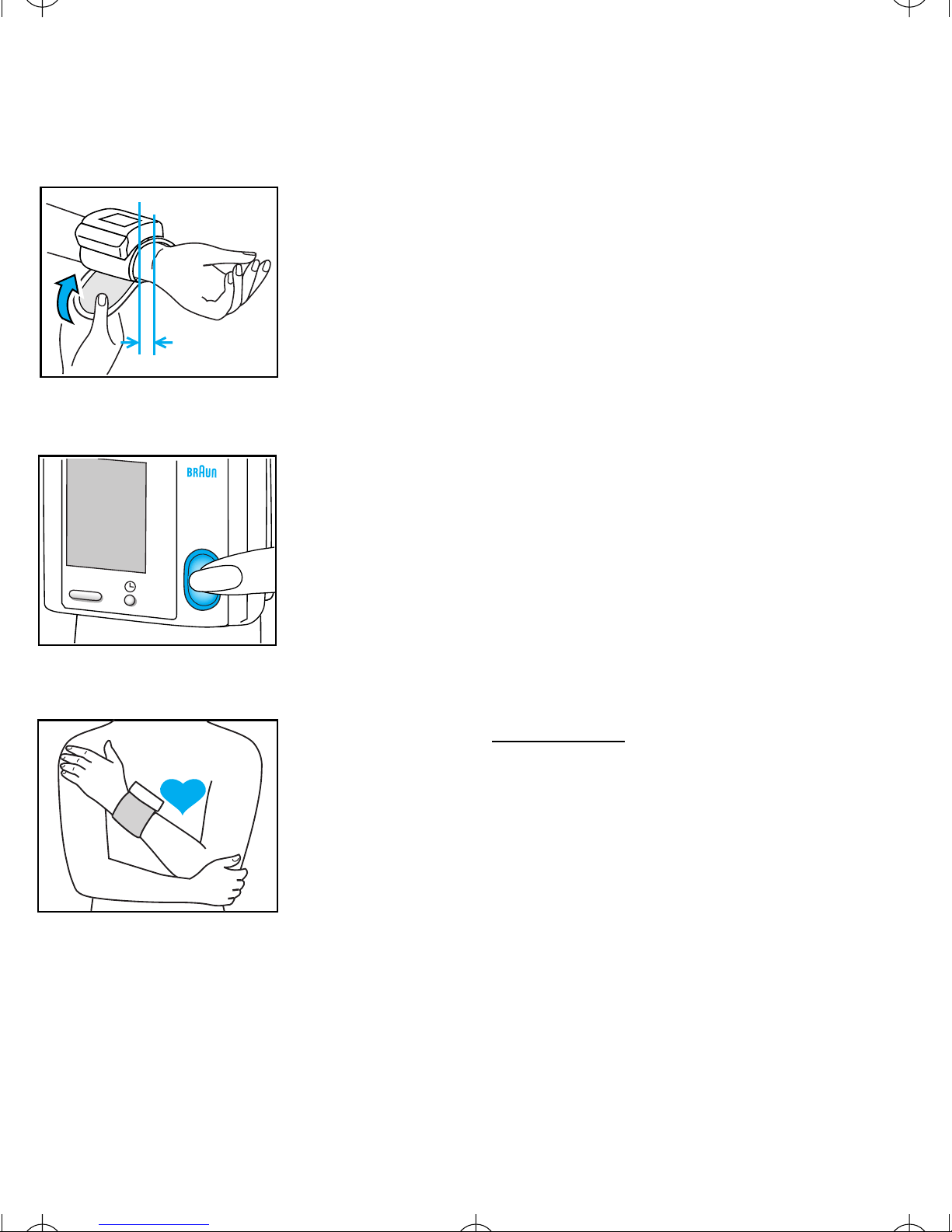

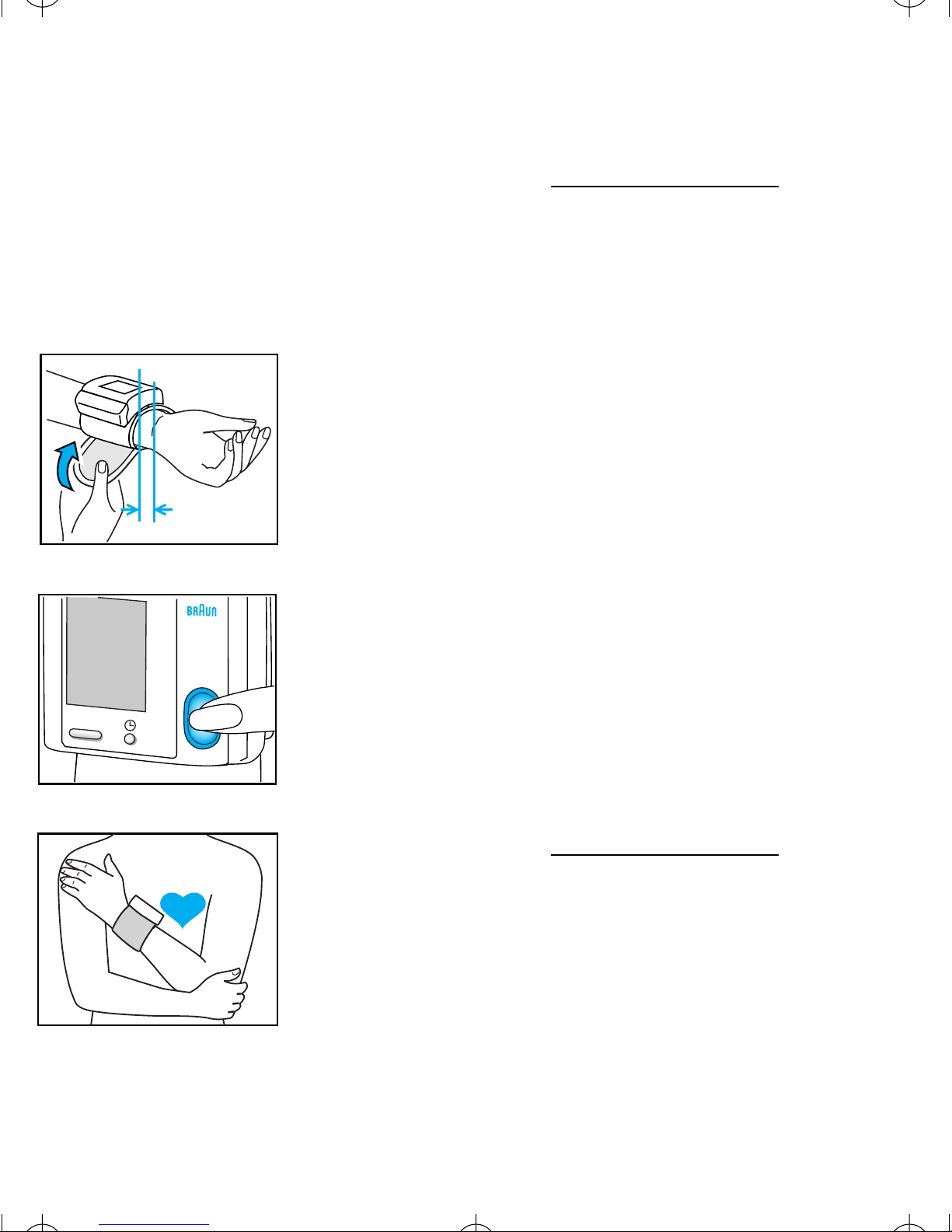

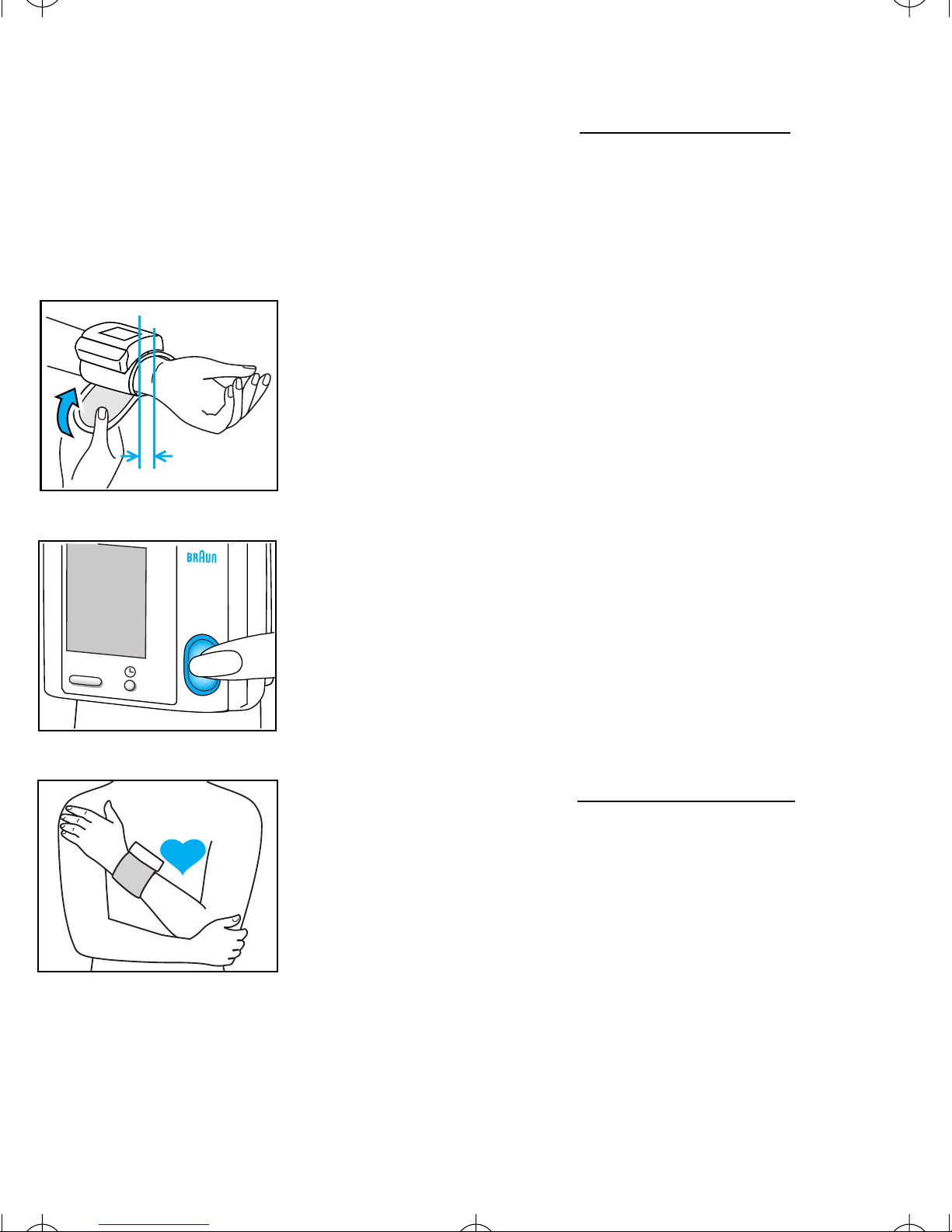

Taking a measurement
1. Fasten the monitor on the palm side of your wrist,
roughly 2 cm below the palm line.
Make sure that the cuff (G) fits tightly.
2. Press the red start/stop button (D).
memo
SYS
mm Hg
DIA
mm Hg
3. Hold the monitor at heart level
.
The measurement starts automatically. While measurement is in progress, do not move or speak.
7
BP1650_NA Seite 8 Dienstag, 27. Januar 2004 8:17 08

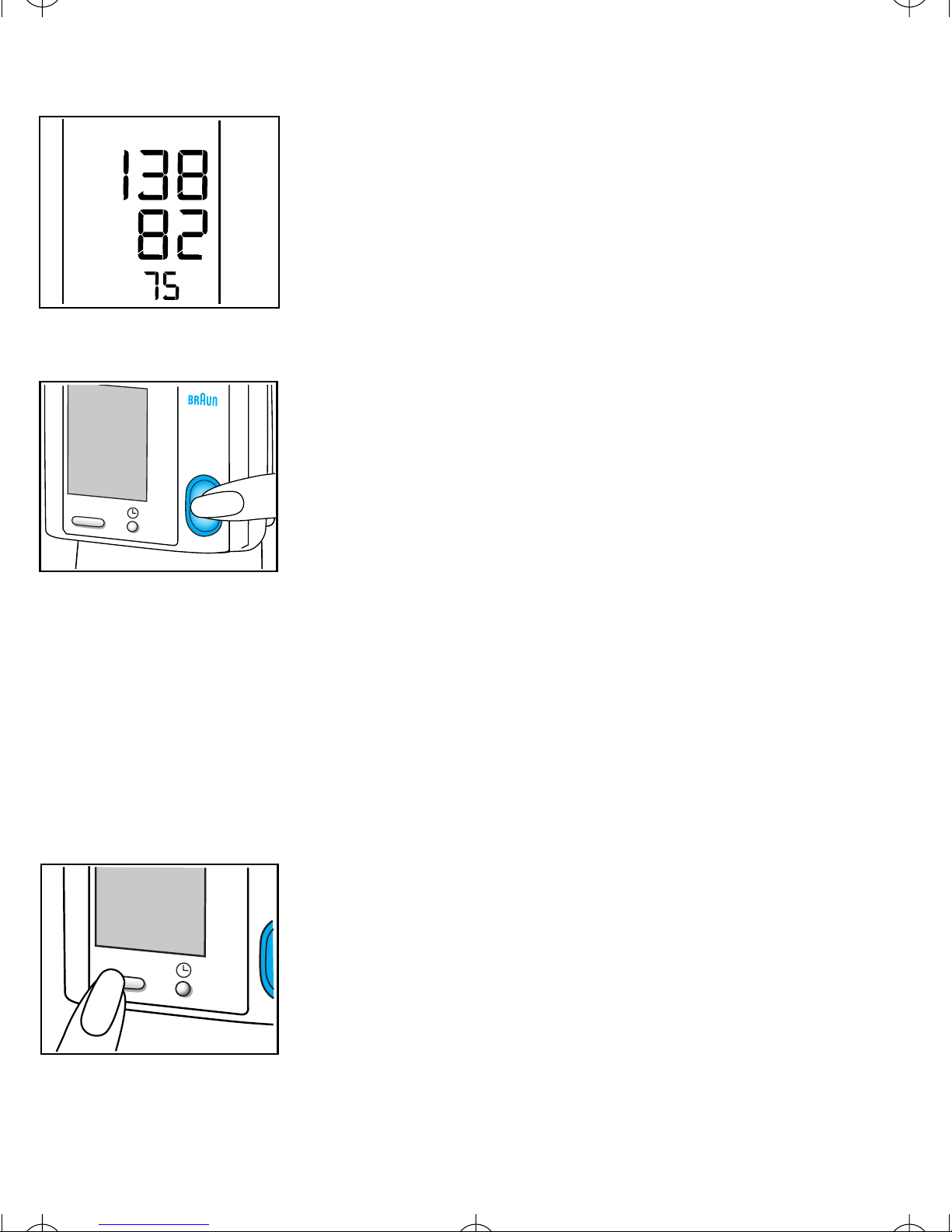

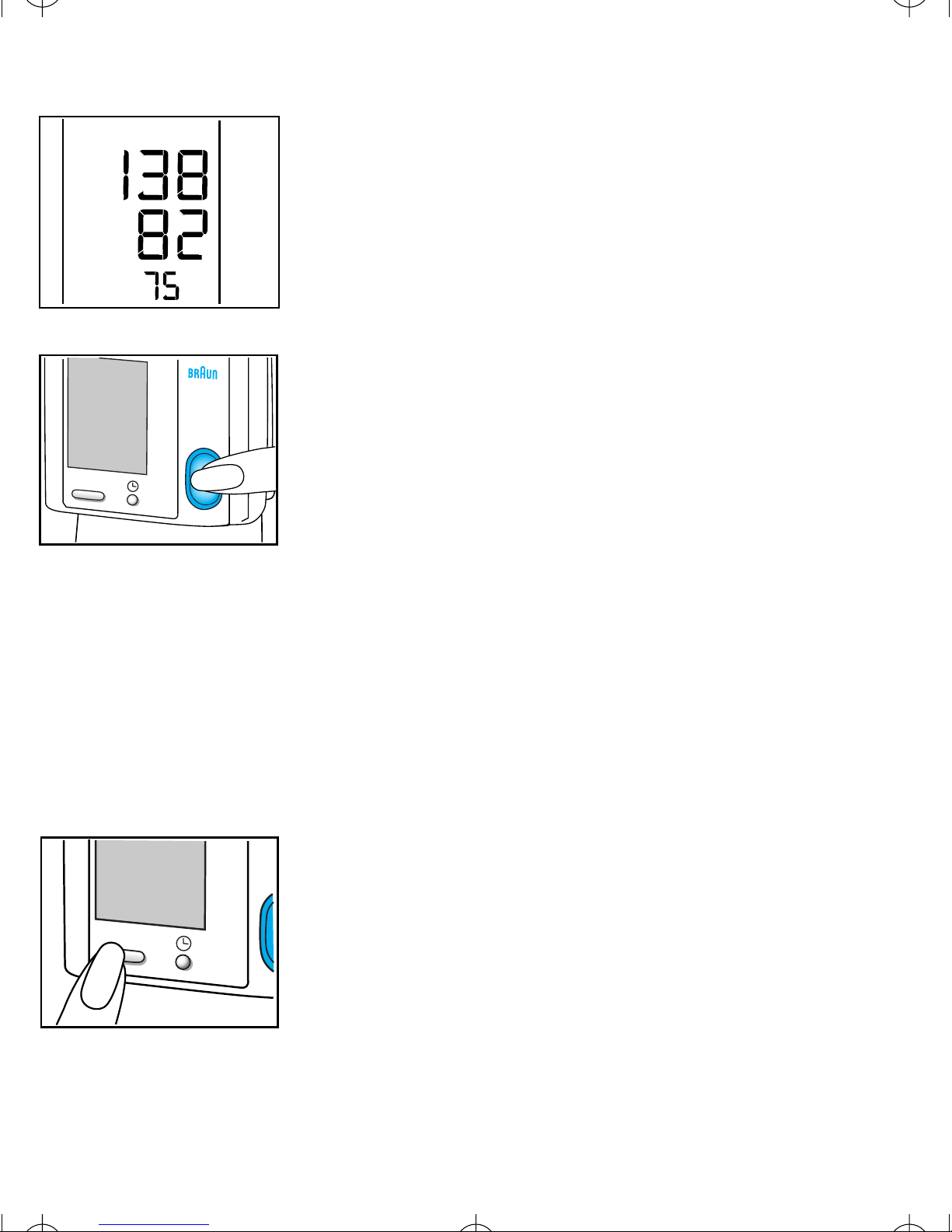

4. At the end of the measurement, a beep sounds and the
reading is displayed:
memo
SYS
mm Hg
DIA
mm Hg
Puls
1/min
SYS
mm Hg
DIA
mm Hg
Upper (systolic) value
Lower (diastolic) value
Pulse
5. Press the start/stop button to turn the product off.
Otherwise the product will turn off automatically after
2 minutes.
If at any time, you want to stop the measurement, press
the red start/stop button.
Memory function
memo
DIA
mm Hg
After each measurement, the blood pressure monitor
automatically stores the reading in memory.
Please note that stored data will be erased if changing
batteries takes longer than 15 seconds.
Recalling stored readings
• To recall stored readings, first turn the device off.
• Then press the memory button («memo») (B).
The latest reading will be displayed.
• Repeatedly pressing the memory button will call up one
by one all stored readings.
• To exit the memory mode, turn the device off by
pressing the start/stop button.
8
BP1650_NA Seite 9 Dienstag, 27. Januar 2004 8:17 08
BP 1600:
BP 1650:
The readings of the last 10 measurements are stored in memory.
The readings of the last 20 measurements
with time and date are stored
in memory. The lower display line successively shows date, time and
pulse of the respective measurement.
Date
Puls

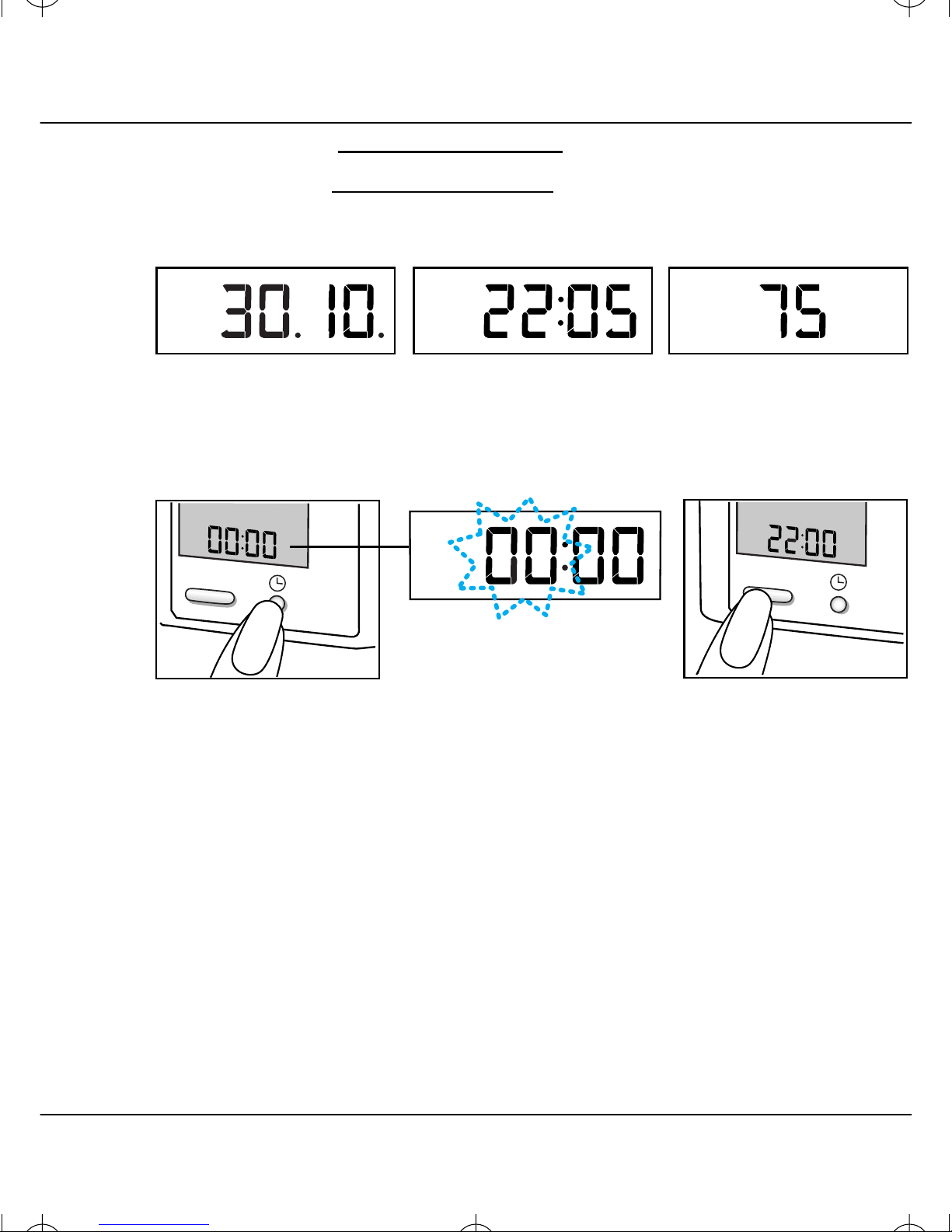

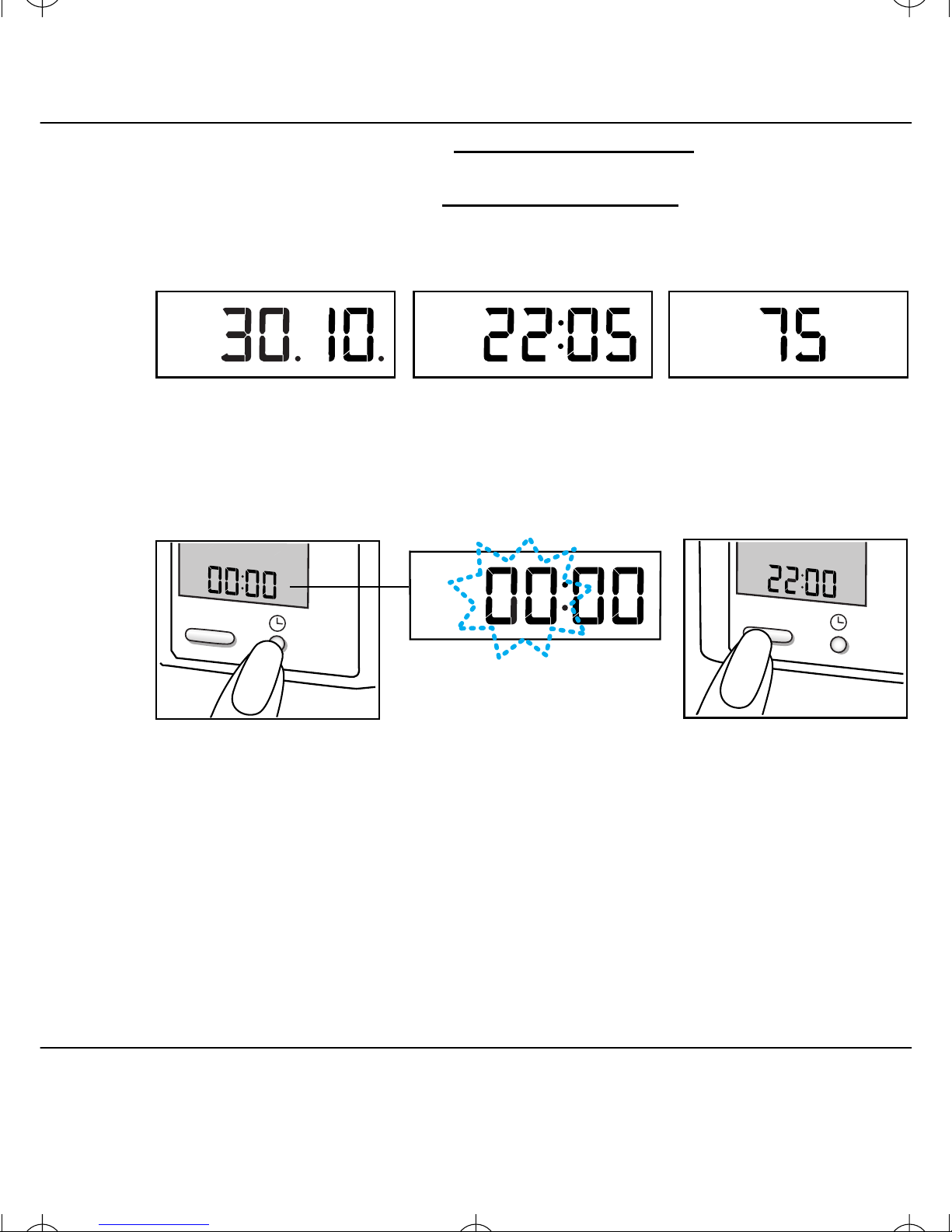

Setting time and date
Time
(BP 1650 only)
1/min
• Push the time/date button (C). The lower display line shows «Time» and
flashing digits in the «hour» position. To adjust the hours, repeatedly
push the «memo» button.
DIA
mm Hg
Time
mm Hg
Time
memo
Time
memo
• Push button (C) again: The minutes digits will flash. Again, repeatedly
push the «memo» button to adjust the minutes.
• Push button (C) again to adjust the date: The lower display line shows
«Date» and flashing digits in the month position. Adjust the month by
repeatedly pushing the «memo» button.
• Push button (C) again: The day digits will flash. Again, repeatedly push
the «memo» button to adjust the day.
• To exit the time and date setting mode, push button (C).
• Otherwise the device automatically turns off after 2 minutes and
activates the settings made so far.
9
BP1650_NA Seite 10 Dienstag, 27. Januar 2004 8:17 08
Storage and cleaning
Clean the product with a soft, slightly damp cloth. Stains on the cuff (G) can be
carefully removed with a damp cloth. Do not wash or dry clean the cuff. Do not store
the product in a place exposed to direct sunlight or high humidity.
Calibration
This product has been calibrated at the time of manufacture. If used according to the
use instructions, periodic re-calibration is not required.
If at any time you question the measuring accuracy, please call at 1-888-848-2572.
What to do if ...
Problem Reason Solution
Batteries are flat. Insert new batteries.
ERR Measurement /
handling error
– – – Inflation above
320 mmHg
While measuring
(during deflation
The device works with a
special deflation
Repeat measurement as
described under «Taking a
measurement». If problem
persists, contact a Braun Service
Centre or call the Braun Helpline.
Repeat measurement.
none
of the cuff),
you can hear a
clicking sound
with every
detected
heartbeat.
10
procedure (stepwise
deflation).
BP1650_NA Seite 11 Dienstag, 27. Januar 2004 8:17 08
Problem Reason Solution
Readings from
repeated measurements differ
considerably.
Blood pressure is a
fluctuating value. For
healthy adults, deviations
of 10 to 20 mmHg are
possible.
Cuff is not properly
fitted.
Readings were not
consistently taken at
heart level.
Talking, coughing,
laughing, moving etc.
none
Ensure that the monitor is fitted as
follows:
- on the palm side of your wrist
- approx. 2 cm away from the
palm line.
For each measurement, hold the
monitor at heart level.
While measuring, relax, keep still,
do not move or speak.
when measuring will
influence the reading.
Specifications
Model: BP1650 / BP1600
Operation principle: Oscillometric method
Display: Liquid Crystal Display
Measuring range: 0–320 mmHg (cuff pressure)
40–199 / min (pulse rate)
Blood pressure
measurement: 20 mmHg (minimum diastolic value)
300 mmHg (maximum systolic value)
Laboratory accuracy: ± 3 mmHg (cuff pressure)
± 5 % of reading (pulse rate)
11
BP1650_NA Seite 12 Dienstag, 27. Januar 2004 8:17 08
Clinical accuracy: According to AAMI-SP10 with auscultatory reference:
< 5 mmHg systematic offset
< 8 mmHg standard deviation
Inflation: Automatic
Deflation: Step valve
Power supply: 2 batteries, type LR 03 (AAA)
Operating temperature: + 10 °C to + 40 °C
Storage temperature: – 20 °C to + 60 °C
Humidity: Up to 85% RH
Cuff: Suitable for wrist circumference of 13 to 21 cm
Clinical validation: According to AAMI-SP10 with auscultatory reference.
(Please note that a validation against intra-arterial
measurements can lead to different results for devices
which are calibrated against auscultatory reference.)
If device is not used within specified temperature and humidity ranges the technical
accuracy can not be ensured.
Type BF equipment
Blood pressure measurements determined with this device are equivalent to those
obtained by a trained observer using cuff/stethoscope auscultation method, within
the limits prescribed by the American National Standard, Electronic or automated
sphygmomanometers.
Subject to change without notice.
This device conforms to the following standards:
DIN EN 60601-1: 3/96 «Medical electrical equipment» –
Part 1: General requirements for safety
DIN EN 1060-1: 12/95, AMD 1 09/02 «Non-invasive sphygmomanometers» –
Part 1: General requirements
DIN EN 1060-3: 9/97 «Non-invasive sphygmomanometers» –
Part 3: Supplementary requirements for electro-mechanical blood pressure
measuring systems
12
